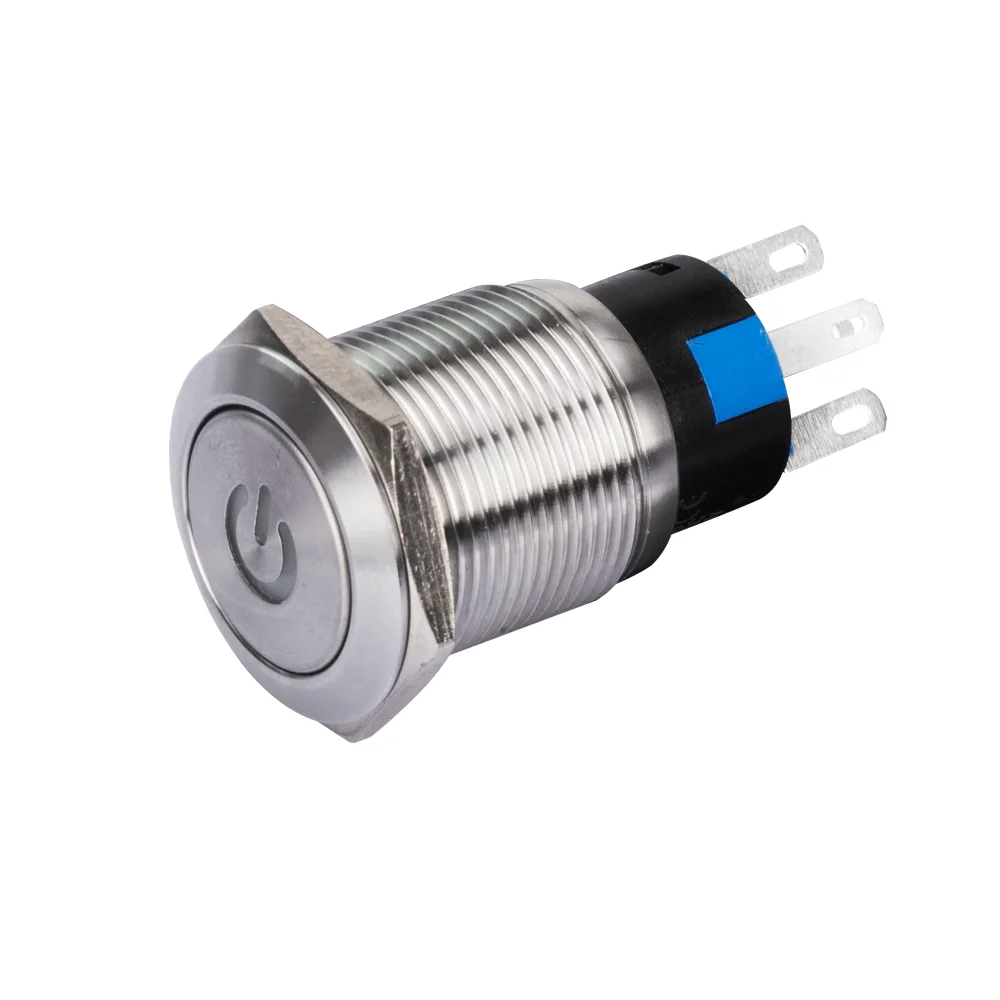

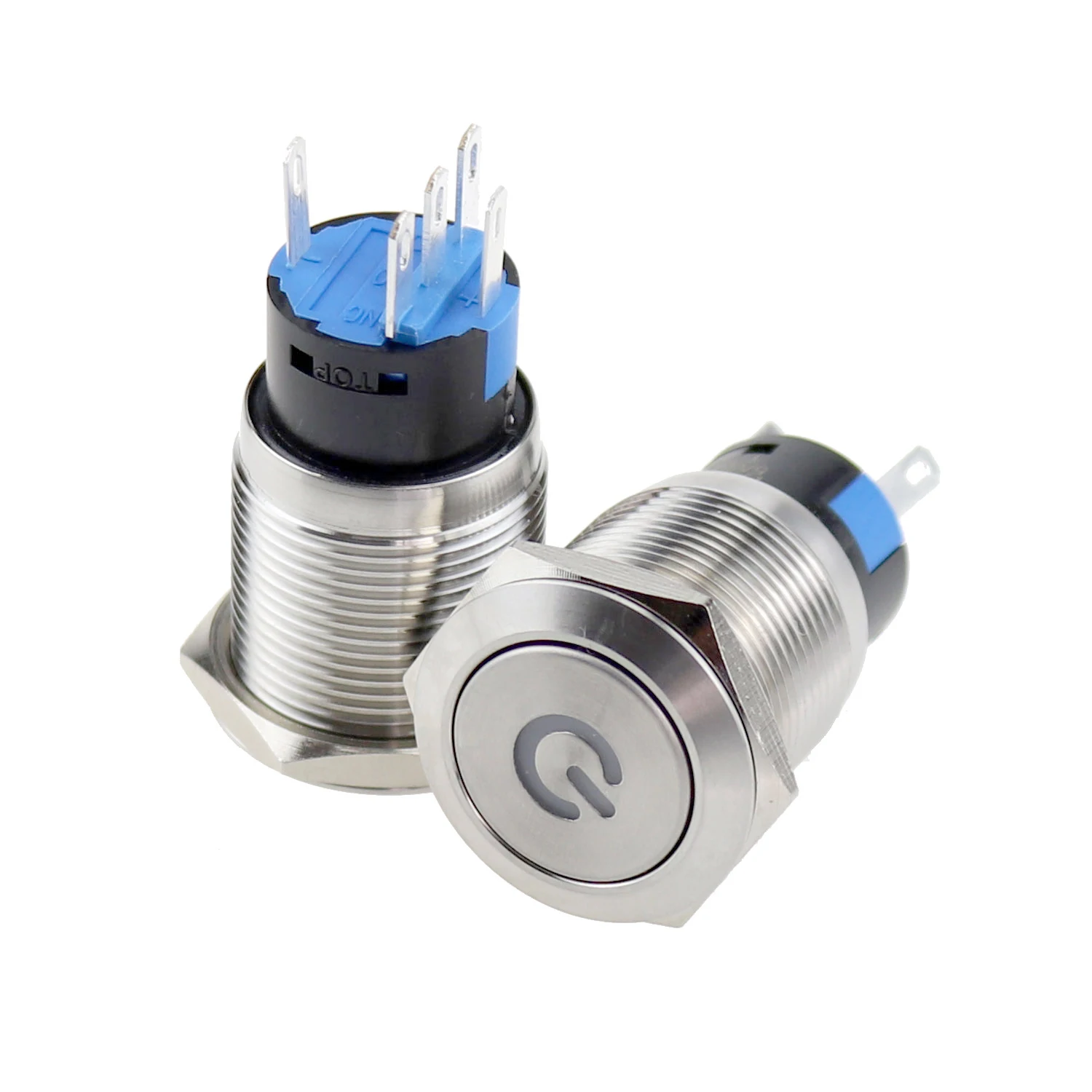

19mm auto engine ignition starter ac power latching push button with led light
- Category: >>>
- Supplier: Yueqing Yueshun Electric Co. Ltd.
Share on (1600314027345):
Product Overview
Description
19mm auto engine ignition starter ac power latching push button with led light
Quick Description
19mm Power push button switch

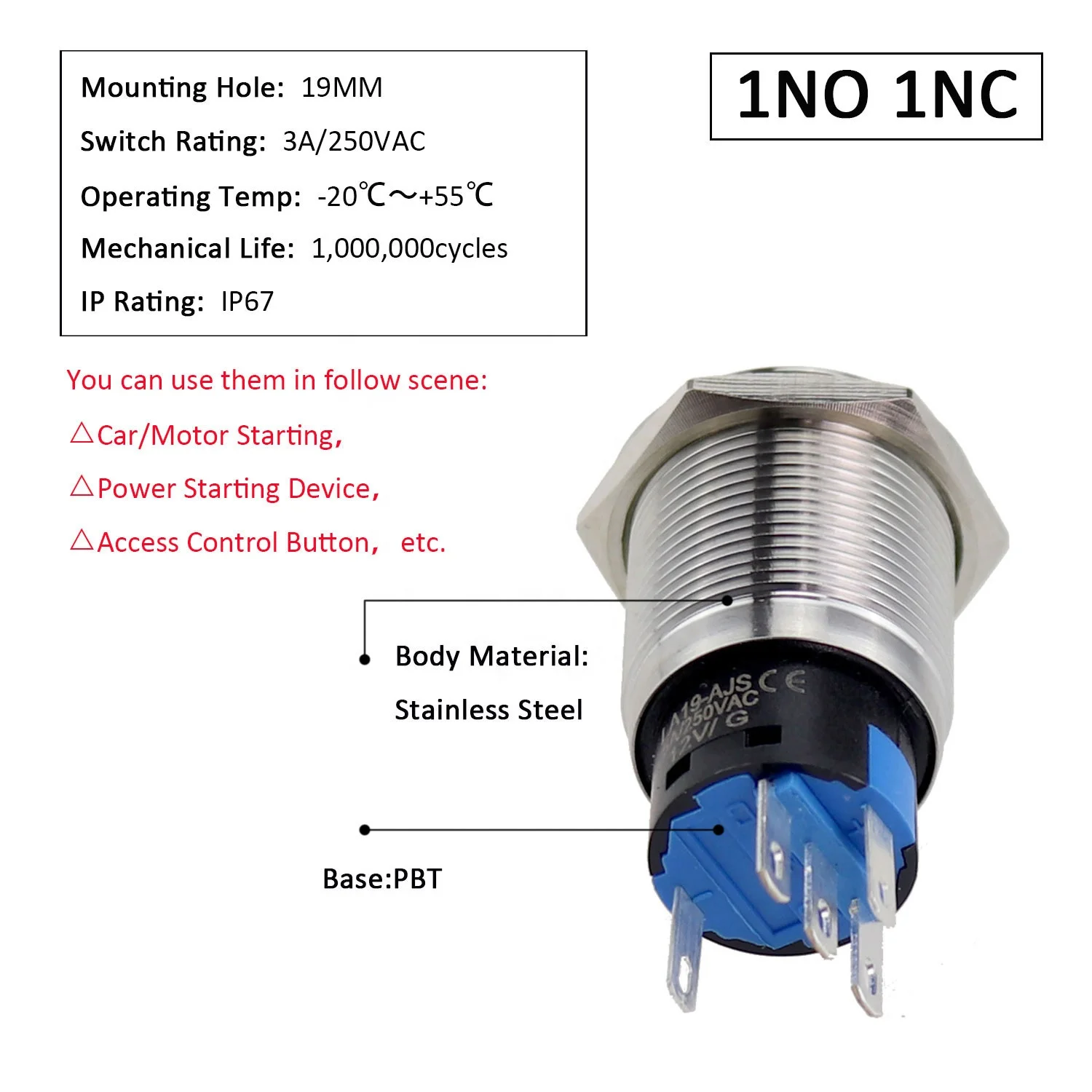

Mounting Size : 19mm;
Switch Rating : 5A , 250VAC/DC
IP Class : IP67
Function : 1NO+1NC
Material ：Stainless Steel / Nickel plated brass
Operating Type : Latching OR Momentary
Switch Rating : 5A , 250VAC/DC
IP Class : IP67
Function : 1NO+1NC
Material ：Stainless Steel / Nickel plated brass
Operating Type : Latching OR Momentary
LED type : Power
LED color :Red (or Blue / green / yellow / white / orange / purple ,Please contact us);
LED Voltage : 12V (or 3v / 6V / 24V / 110V/ 220V,Please contact us)
PRODUCT FEATURES | ||

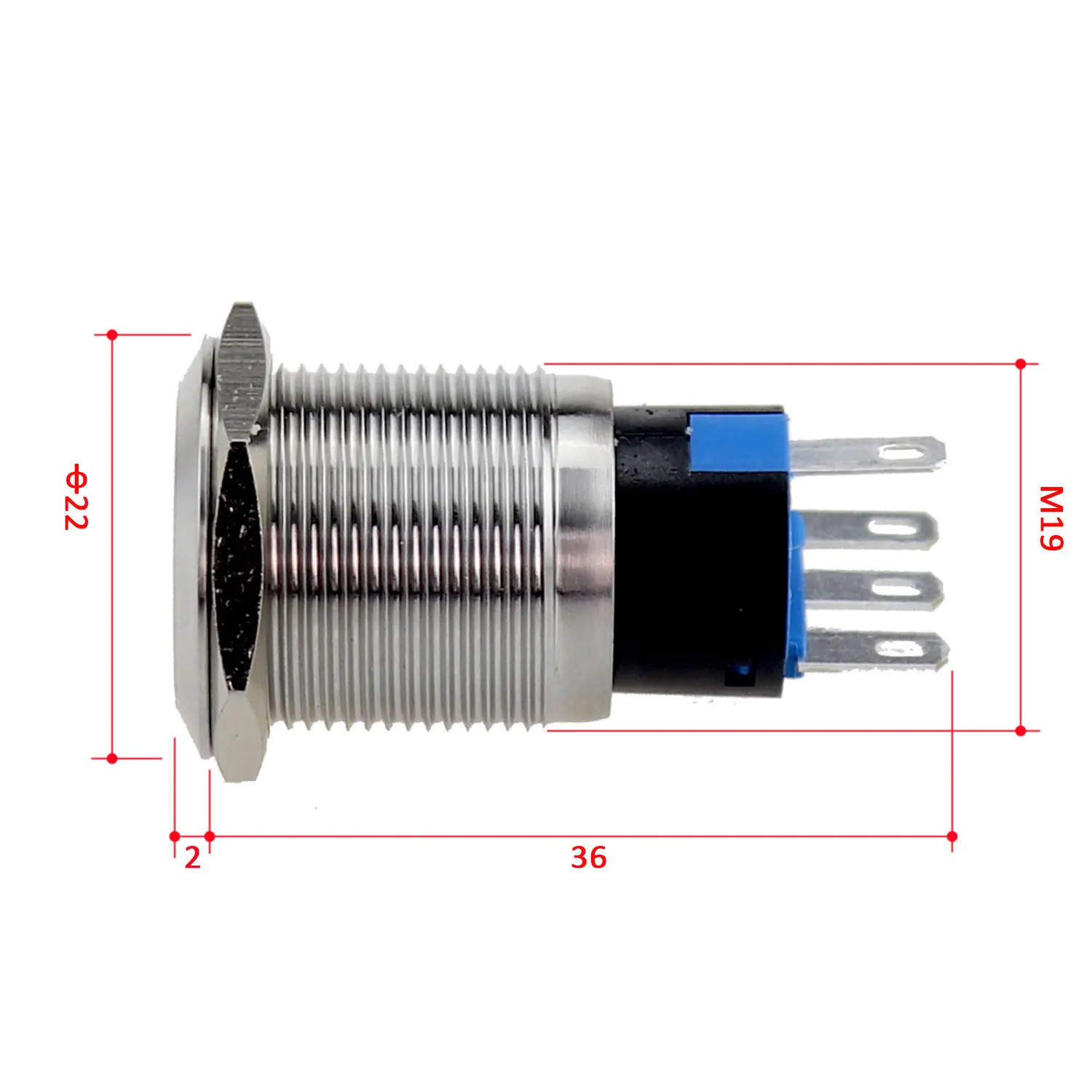

Install Diameter | 19mm | |

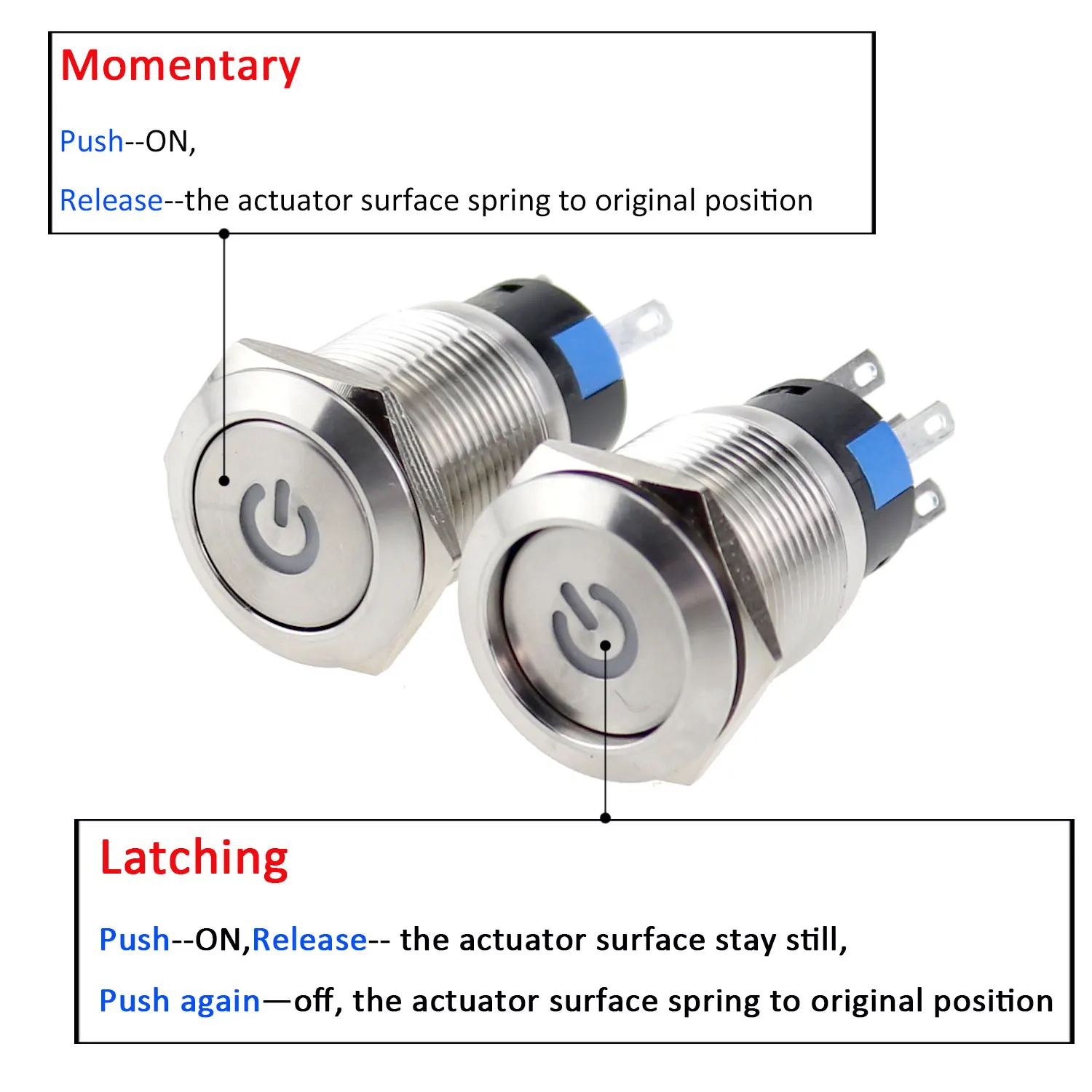

Operation Type | Momentary or Latching | |
Switch Combination | 1NO+1NC | |
Head Shape | Flat Round Head | |

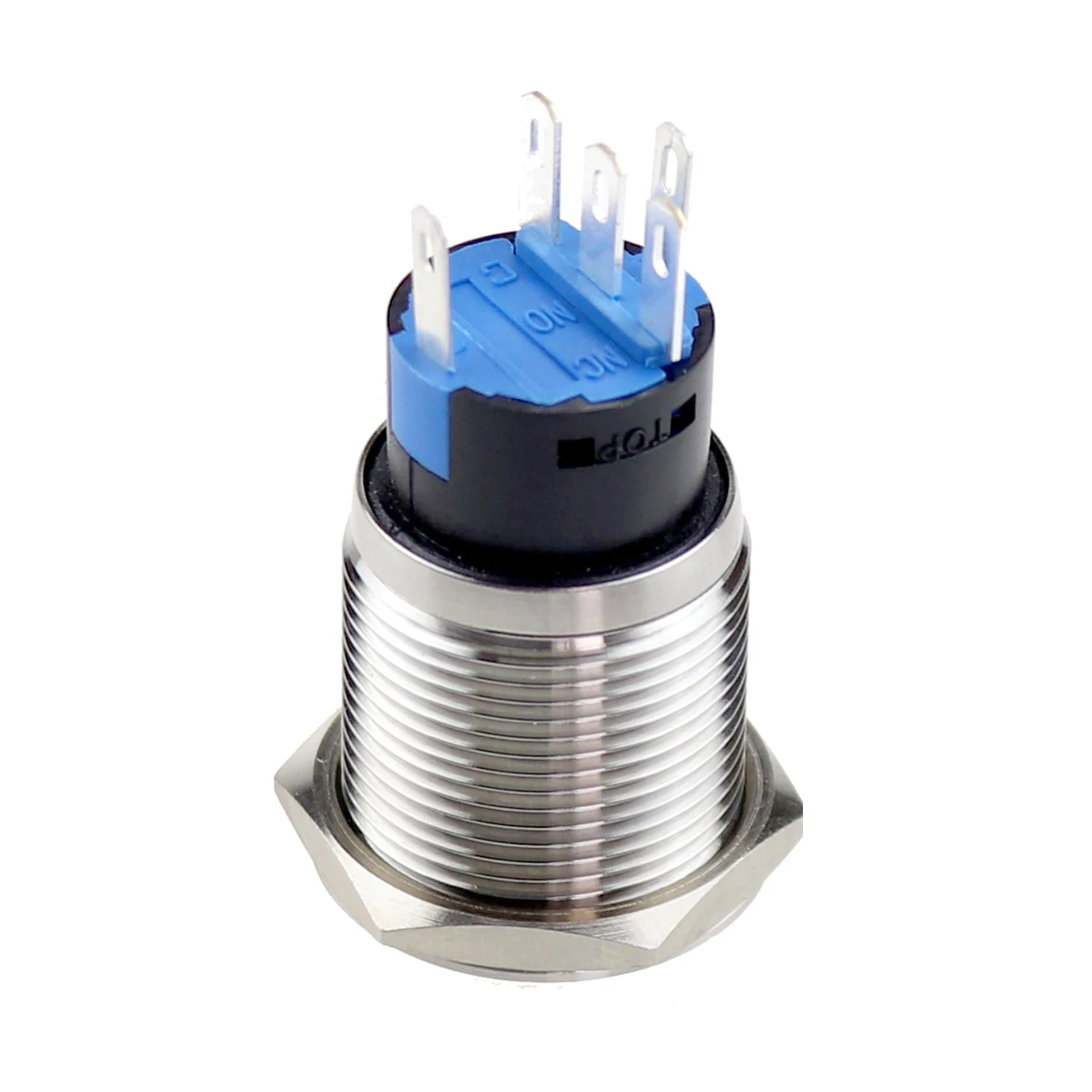

Terminal Type | 5 PIN TERNINAL | |
Panel Thickness | 1-10mm | |
Operating Distance | About 2.8mm | |
PRODUCT MATERIALS | ||
Body Material | Stainless Steel / Nickel plated brass / Black aluminum oxidation | |
Button Material | Stainless Steel / Nickel plated brass / Black aluminum oxidation | |
Base Material | PBT | |
Contact Material | Silver Alloy | |
LED SPECIFICATIONS | ||

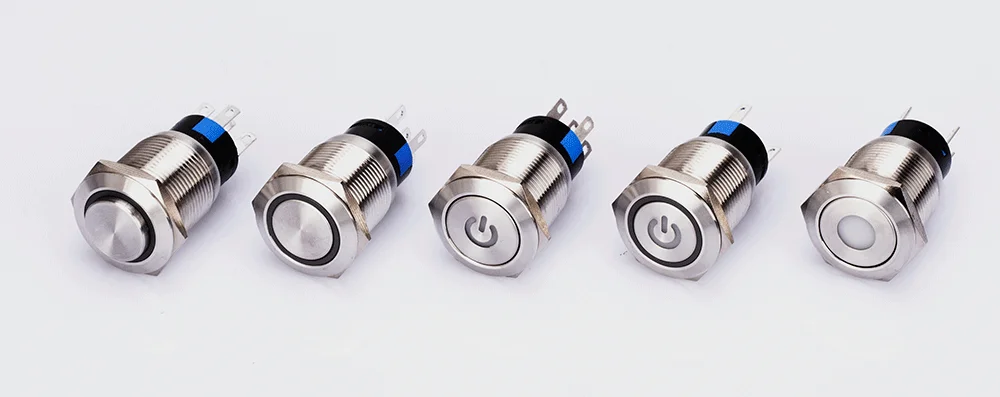

LED Type | Ring power dot customizable | |
LED Color | Red / Green / Yellow / Blue/ White / Orange / Purple / Bi-color / Tri-color | |
LED Voltage | 3V / 6V / 12V / 24V / 36V / 110V / 220V | |
LED Life | More Than 40,000 hours | |
ELECTRICAL SPECIFICATIONS | ||
Max Switch Rating | 5A / 250V AC/ DC | |
Contact Resistance | ≤ 50mΩ | |
Insulation Resistance | ≥ 10000mΩ | |
Dielectric Strength | 2000VAC | |
Mechanical Life | More than 1000,000 cycles | |
Electrical Life | More than 100,000 cycles | |
ENVIRONMENTAL SPECIFICATIONS | ||
IP Degree | IP 67 | |
Operation Temperature | 20℃～+55℃ | |
Operating Pressure | About 3-5N | |
Torque | 5-14Nm | |
Why Choose Us
Waterproof ,Dustproof ,Vandal Resistant
It is waterproof, dustproof and destruction-proof. It can be used in outdoor harsh environment.Mechanical Life more than 100,0000 times,with long service life.
All our products have passed the CE, CCC, ROHS etc. certifications
Exquisite Workmanship
Our products are of exquisite workmanship,push button's terminal pins are firm in the plastic,integrating with it.The push buttons use 95% silver contacts,with good contactperformance.
High Quality Shell Material
High quality metal shell, durable and strong corrosion resistance, not easy to fade, excellent performance, IP67 protection level are great for all kinds of first level equipments.
Easy To Install

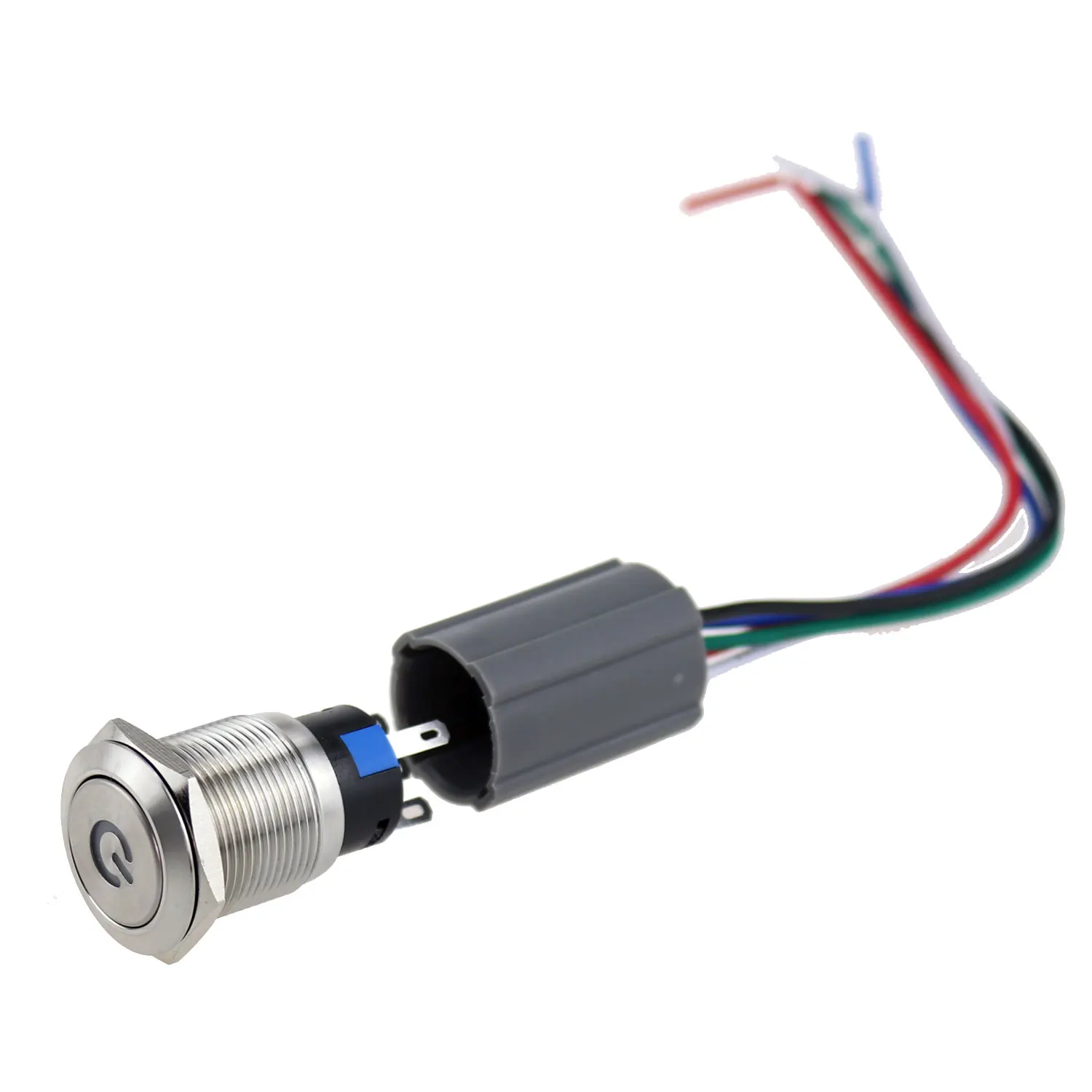

Adopt rubber ring and hexagonal nut fixed, anti dust and waterproof, which make it great for outdoors use
ILLUNINATED

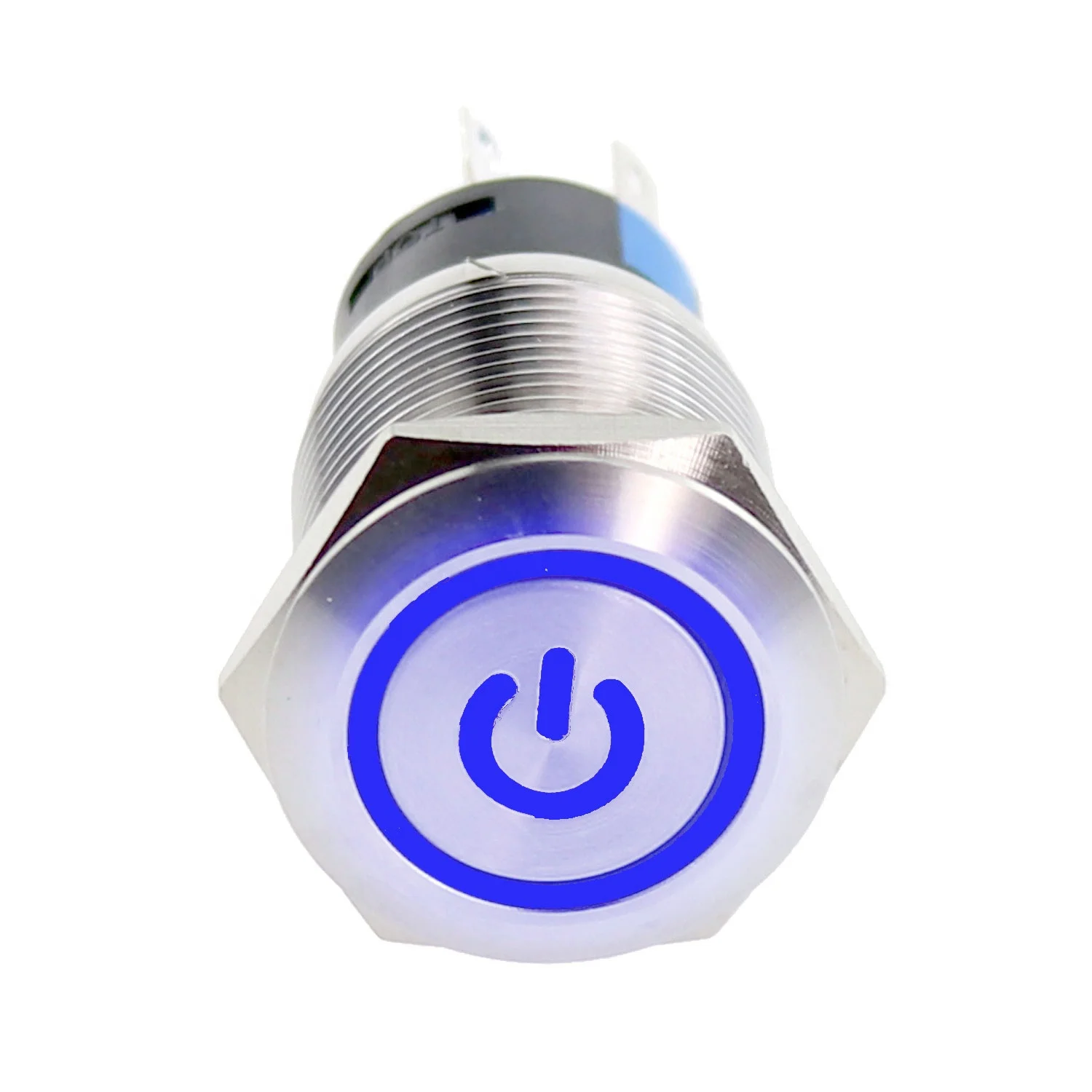

High bright solid color LED light, beautiful not dazzling.
Built-in buck resistor. Customized LED light sign.
Built-in buck resistor. Customized LED light sign.

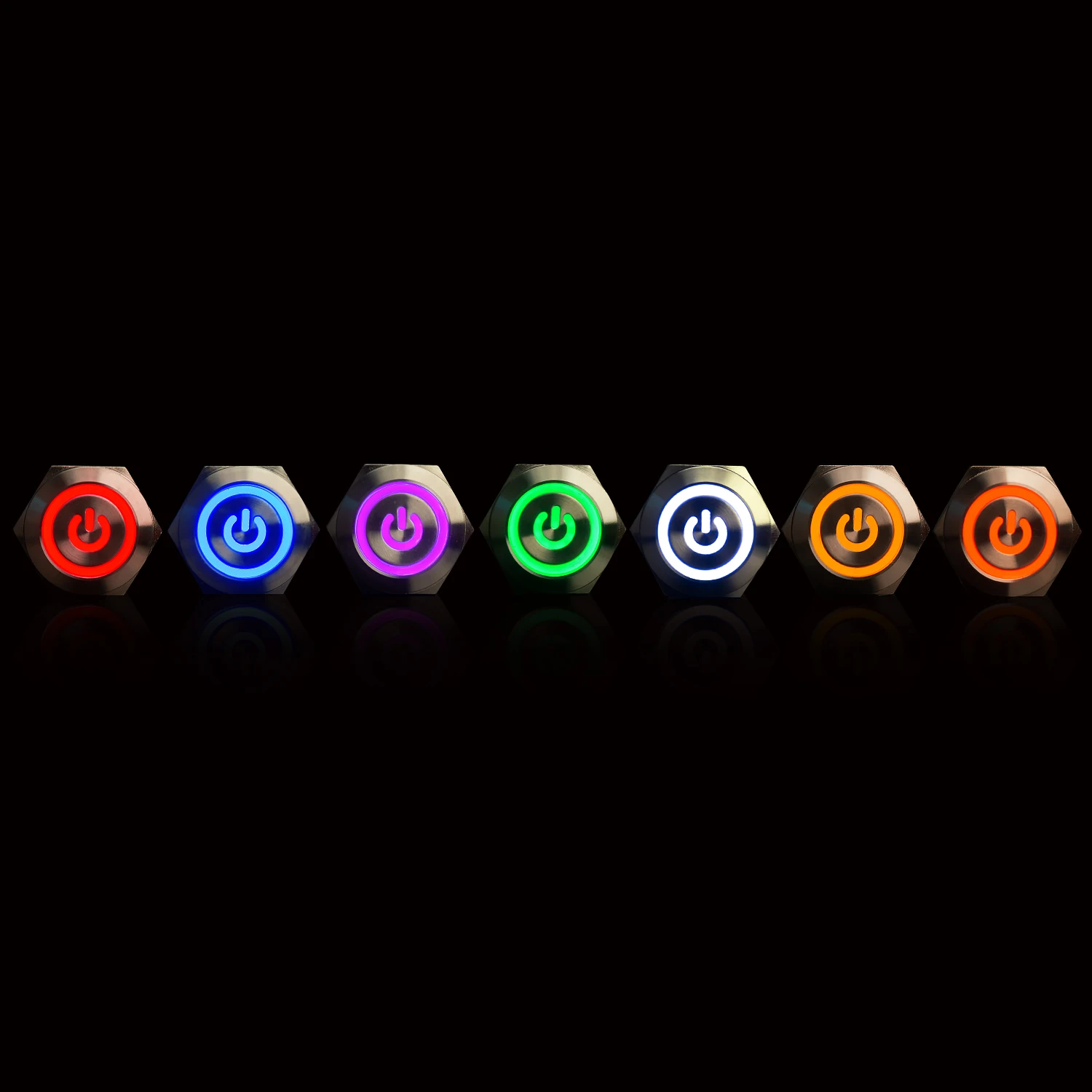

7 colors optional, can be customized Bi-colors, Tri-colors.
Company Profile
Yueqing YueShun Electric Co., Ltd
Established in 2005, we focus on manufacturing high quality metal push button switches for more than 15years. We are one of thefamous domestic manufacturer in this area, and we have many stable customers overseas too, with cooperation for more than 10years.
We have professional engineers, workers, sales and service team to supply you with variety push button switches which are either
industry and market focused, as well as excellent quality and professional service.
industry and market focused, as well as excellent quality and professional service.
We enjoy a complete line of 8mm 12mm 16mm 19mm 22mm 25mm 28mm 30mm 35mm 40mm push button switches and indicator.
In this 15 years, we helped many customers produce according to their requirements. So we are experienced in ODM and OEM . We will make more efforts to develop and innovate, to produce products more in line with market demand, and to provide dedicated services.
