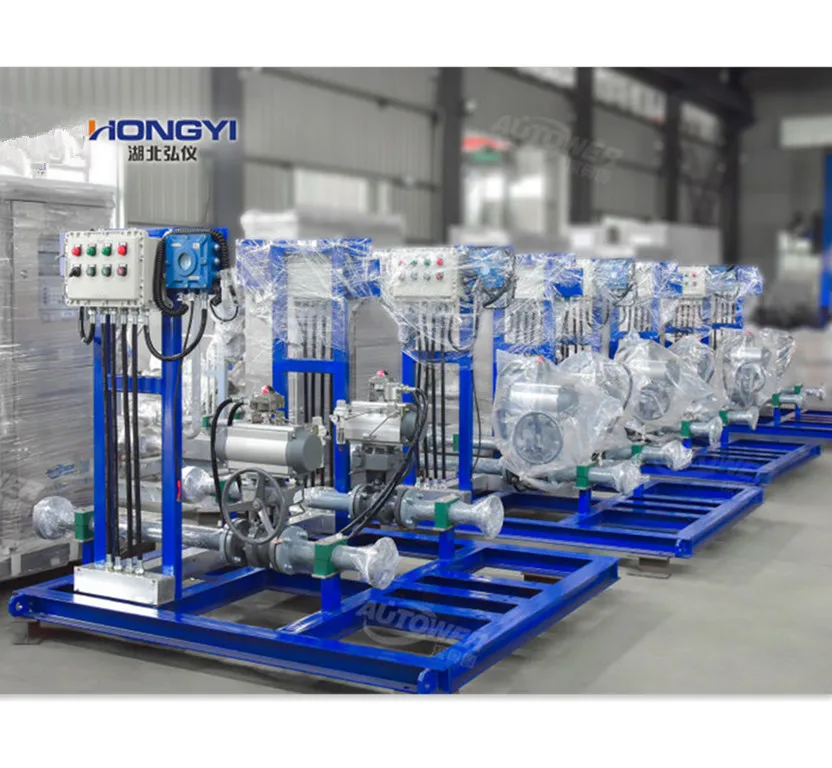

SS316 steel skid mounted filling platform solution with loading arm pump batch controller flowmeter valve for Olefin Methanol
- Category: >>>
- Supplier: Hubei Hongyi Electronic&Technology Co. Ltd.
Share on (1600314049221):
Product Overview
Description
Product Description
Product Application

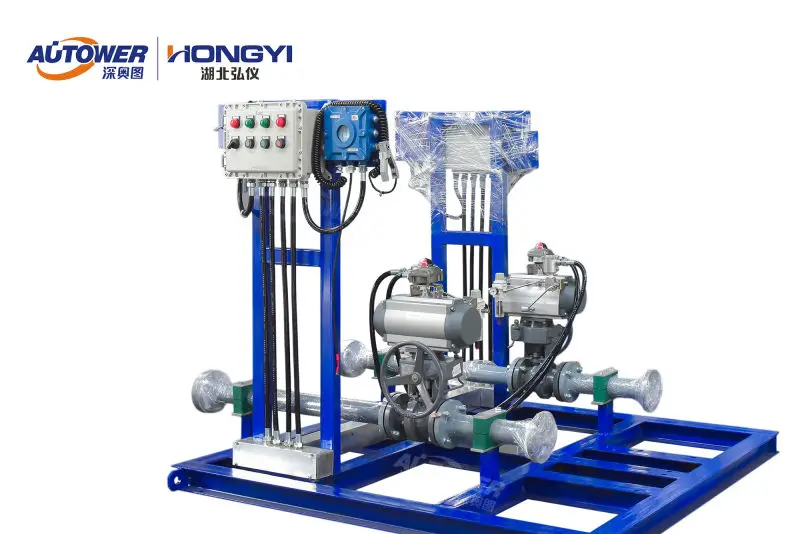

The integration of batch controller, flowmeter, control valves, pipelines, loading arm, cables, grounding and overfill protector etc. on an integrated steel structure platform. The skid will prepare process connections and control power, communication interface for user.

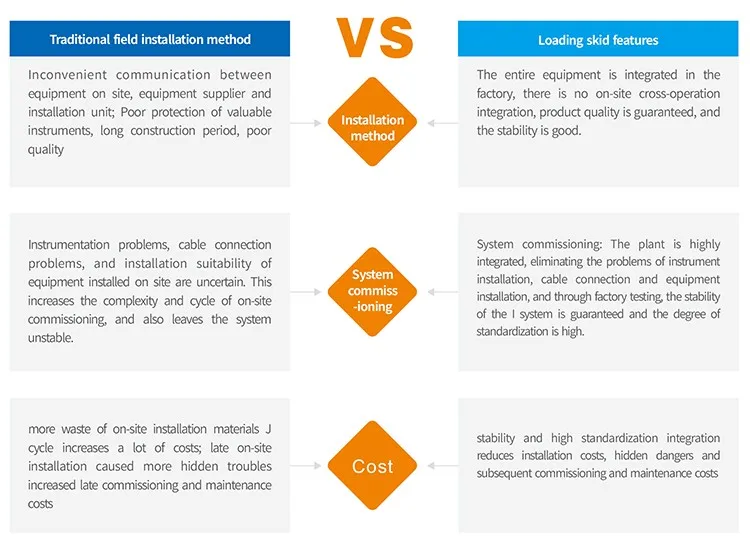

Comparison of traditional field installation and skid
Conventional oil and chemical skid By type of use

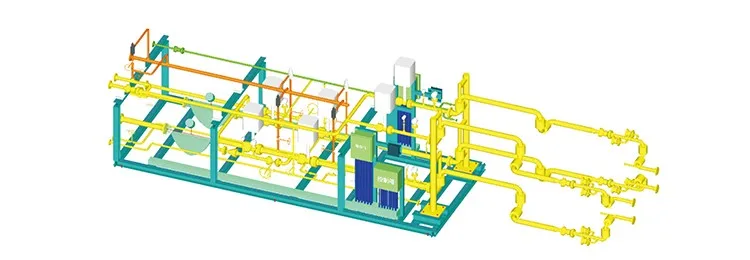

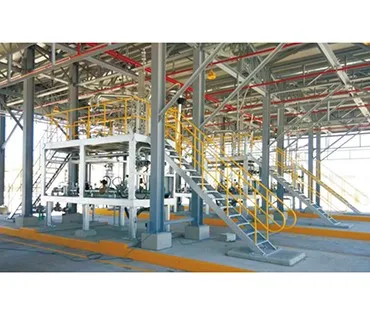

(1)Top loading skid mounted

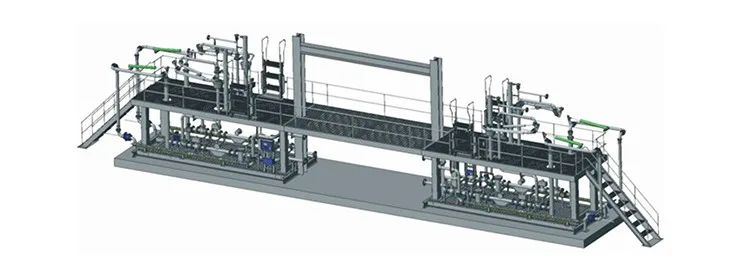

The top skid-mounted means skid-mounted platform which is used as a skid-mounted assembly provided by the entire skid-mounted frame, and its entire skid level is divided into the following structural parts:
1.Steel skid frame
2.Internal process pipeline
3.Skid mounted platform
4.Bobbin platform fence
5.Skid ladder
6.All equipment in the skid: batch controller\\flow meter\\control
7.valve\\static oil spill protector\\crane pipe\\activity ladder
(2)Bottom loading skid
The bottom loading skid is provided by the entire armored frame, suitable for the bottom loading vehicle medium,generally the gas-liquid two-phase medium and other required bottom loading and unloading vehicle media; the wholemodule is divided into the following Several parts
1.steel skid frame
2.inner pipe line and cable
3.skid frame
4.All instruments and equipment in the skid such as: batch controller\\flow meter/ control valve\\static grounding and overfill protector\\loading arm
(3)Simple skid
The simple loading skid is suitable for the existing loading platform and frame on site. It only needs to integrate some parts of the automated loading equipment into a small skid group. The whole skid is divided into the following parts:
1.steel skid frame
2.inner pipe line and cable
3.All instruments and equipment in the skid such as: batch controller\\ control valve\\flow meter/static grounding and overfill protector\\loading arm

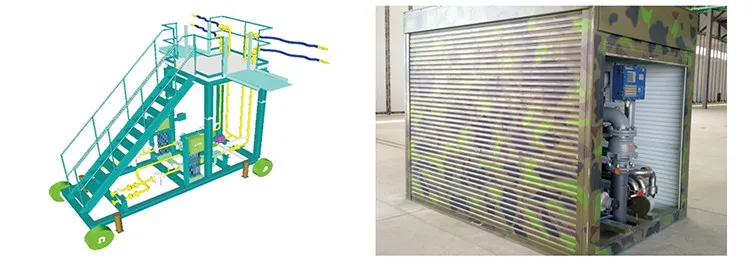

(4)Movable loading skid
The movable loading skid is suitable for the loading platform which is not fixed on site. The Skid-mounted system group is made into a movable skid, and the skid has a movable structural device, and the whole skid is divided into the following parts:
1.steel skid frame
2.inner pipe line and cable
3.All instruments and equipment in the skid such as: batch controller\\ control valve\\flow meter/static grounding and overfill protector\\loading arm
Recommend Products
Overseas Project
Company Information
HUBEI HONGYI ELECTRONIC & TECHNOLOGY CO., LTD Supply high quality top loading arm or bottom loading arm system which including top loading arm or bottom loading arm should have sufficient horizontal range to reach the farthest compartment without re-spotting the vehicle. Sufficient vertical movement and drop-pipe lengths to service vehicles of varying heights is also necessary. A properly designed top loading arm or bottom loading arm system can achieve this requirement. Top loading arm and bottom loading arm can also be used for tight-fill and vapor recovery applications when used with specially designed and engineered components, such as vapor plates, tapered hatch plugs, and inflatable hatch seals.
