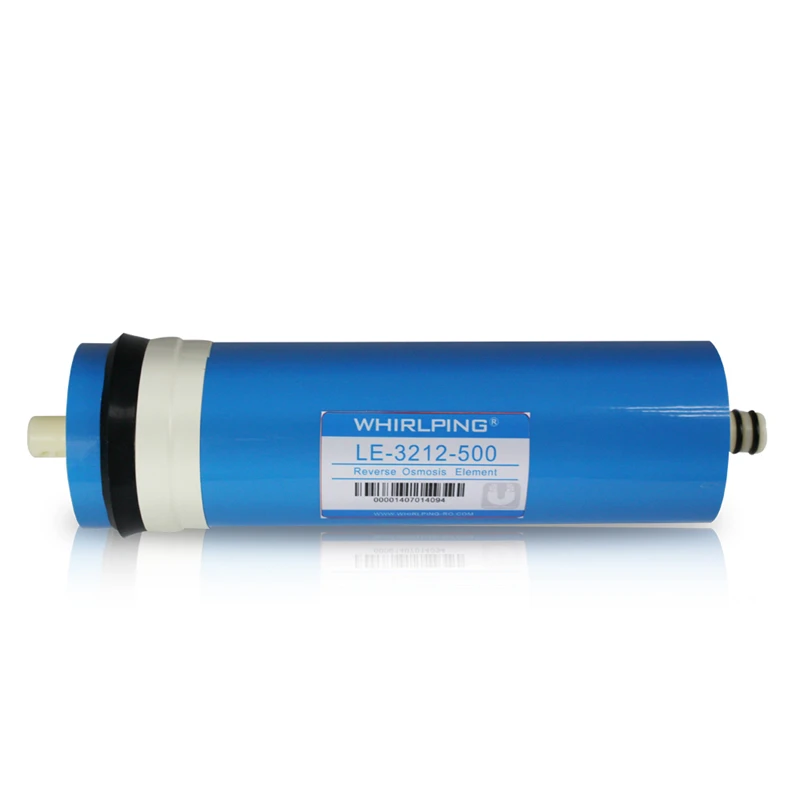

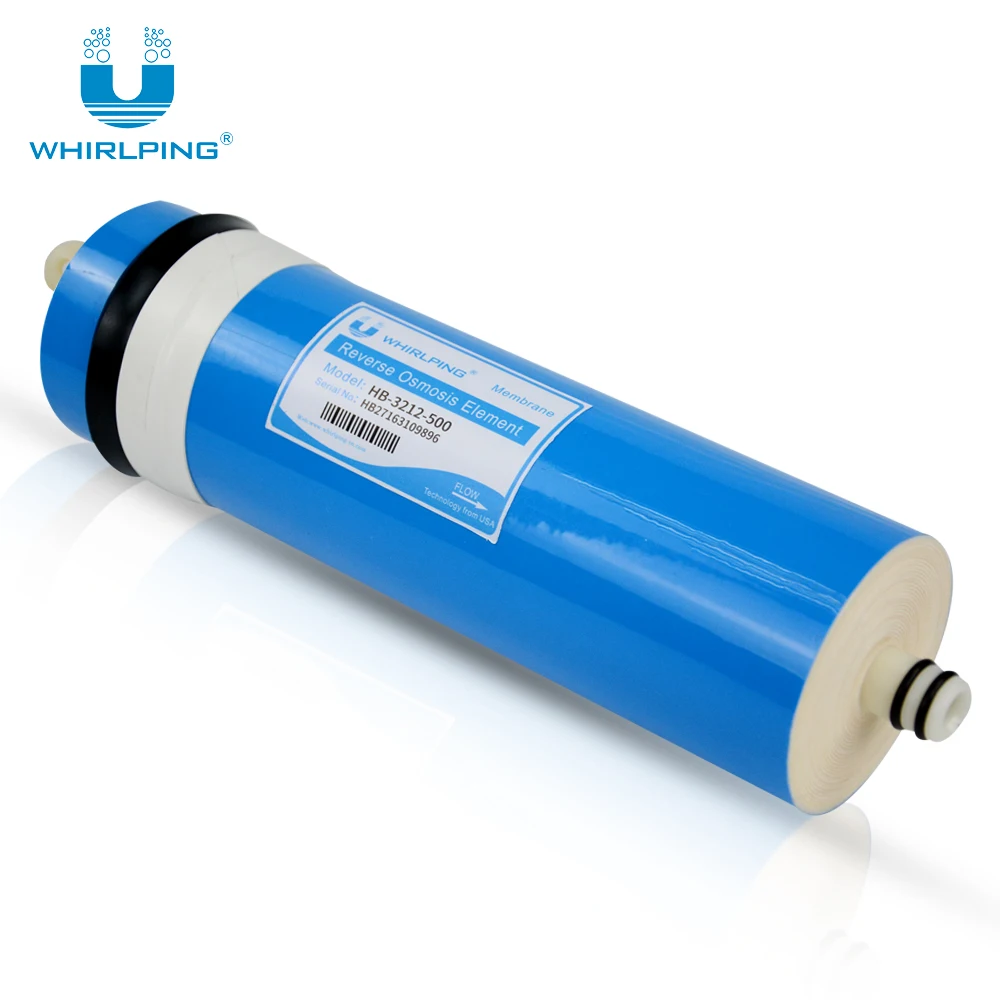

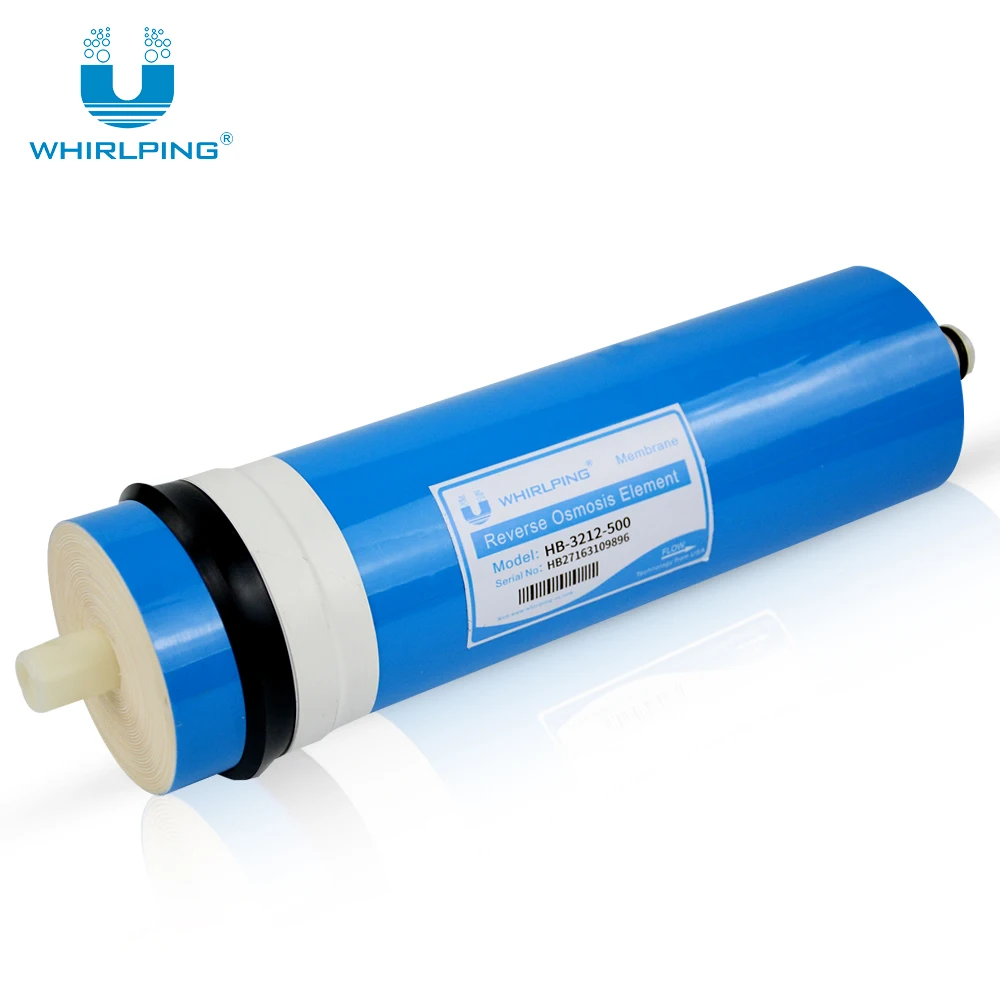

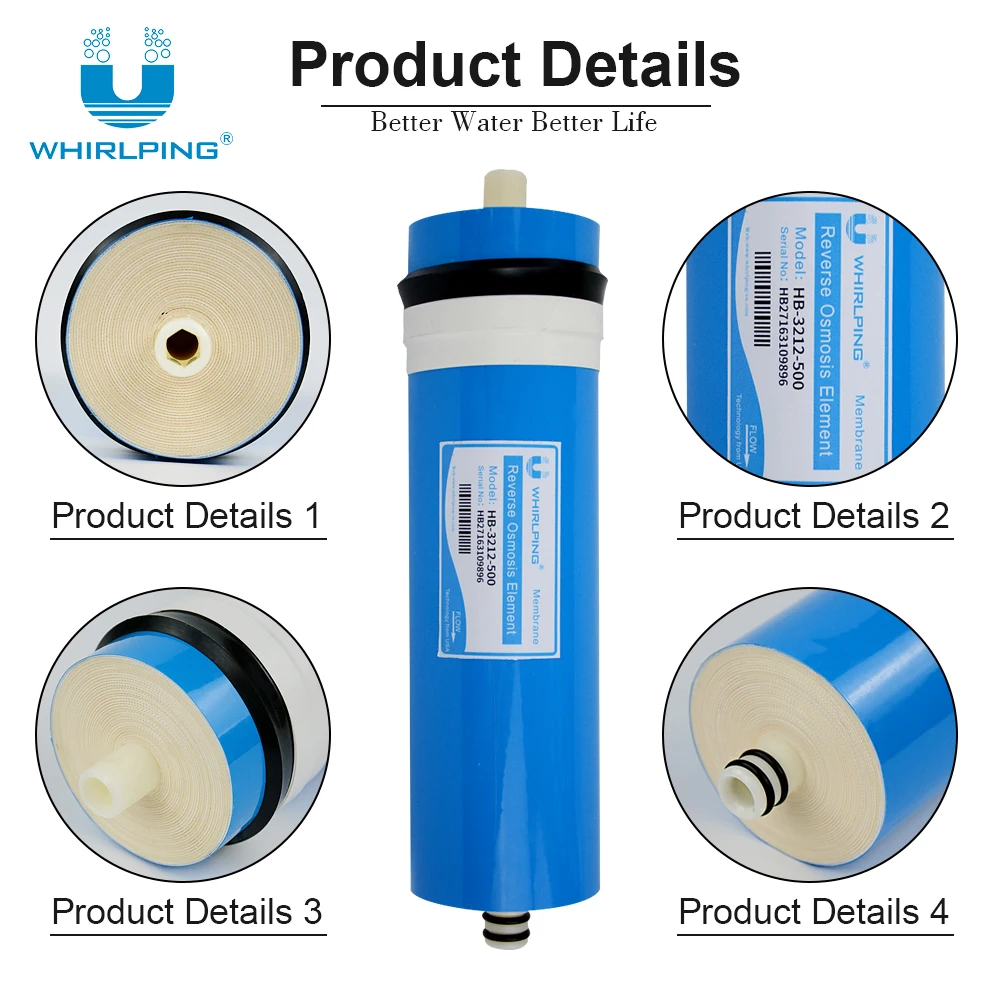

  • Вихревая membrane ro 3012 500gpd 400gpd 600 GPD high quality RO membrane
Вихревая membrane ro 3012 500gpd 400gpd 600 GPD high quality RO membrane
Вихревая membrane ro 3012 500gpd 400gpd 600 GPD high quality RO membrane
Вихревая membrane ro 3012 500gpd 400gpd 600 GPD high quality RO membrane
Вихревая membrane ro 3012 500gpd 400gpd 600 GPD high quality RO membrane
Вихревая membrane ro 3012 500gpd 400gpd 600 GPD high quality RO membrane
Вихревая membrane ro 3012 500gpd 400gpd 600 GPD high quality RO membrane
Вихревая membrane ro 3012 500gpd 400gpd 600 GPD high quality RO membrane

Вихревая membrane ro 3012 500gpd 400gpd 600 GPD high quality RO membrane

Share on (1600314111908):


Price:$19.00 - $23.00

Quantity:


Product Overview

Description

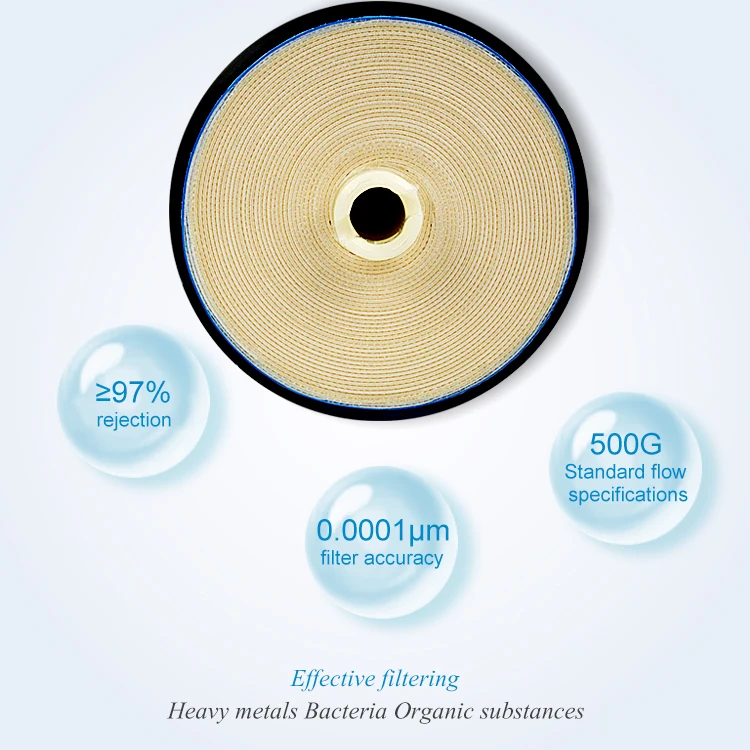

Membrane Performance Specifications:


1. Permeate flow rate and salt rejection is based on testing conditions: 25⁰C, pH 7.5, 20% recovery.
2. Stabilized salt rejection is generally achieved within 24-48 hours of continuous use, depending upon feedwater characteristics and operating conditions.


Model
HB-3012-200
HB-3012-300
HB-3012-400
HB-3013-400
HB-3213-600
HB-3213-800
HB-3020HF
Performance
Stable Desalination %
97
97
97
97
97
98
Min. Desalination %
95
95
95
95
95
97
Mean Permeable Flow GDP (L/d)
200 (760)
300 (1135)
400 (1512)
600 (2270)
800 (3030)
600 (2280)
Active Film Area ft2(m2)
10 (1.0)
14 (1.4)
16 (1.92)
27.5 (2.56)
34 (3.2)
26 (2.4)
Test Conditions
Pressure
65psi
(0.45Mpa)
150psi
(1.03Mpa)
Water Temp.
25℃
25℃
Concentration(NaCl)
500ppm
500ppm
Water PH
6.5 to 7.5
6.5 to 7.5
Recovery Rate %
15
15
Operating Conditions
Max. Operating Pressure
300psi
(2.07Mpa)
500psi
(3.45Mpa)
Max. Feed Water Temp.
45℃
45℃
Max. Feed Water Silt Density Index (SDI)
5
5
Feed Water Chlorine Tolerance
< 0.1ppm
< 0.1ppm
Feed Water PH Range, Continuous Operation
3 to 10
3 to 10
Feed Water PH Range, Short-Term Cleaning
2 to 12
2 to 12
Max. Pressure Drop of Single Membrane
10psi
(0.07Mpa)
10psi
(0.07Mpa)

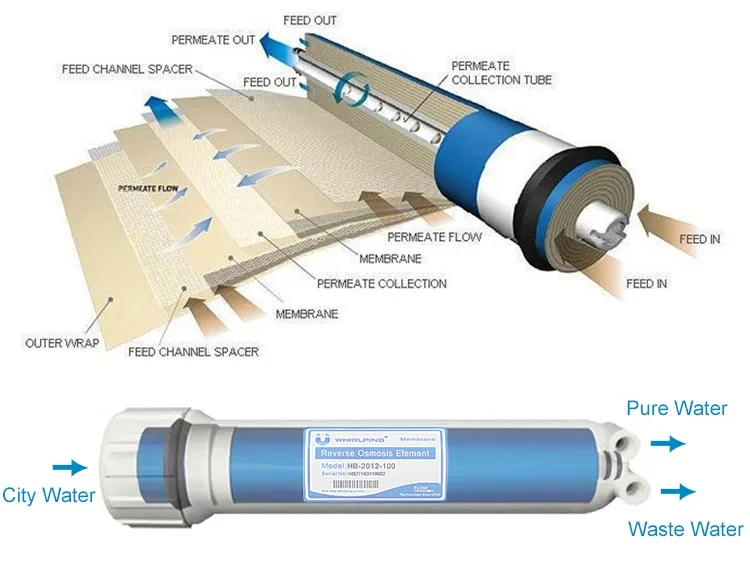

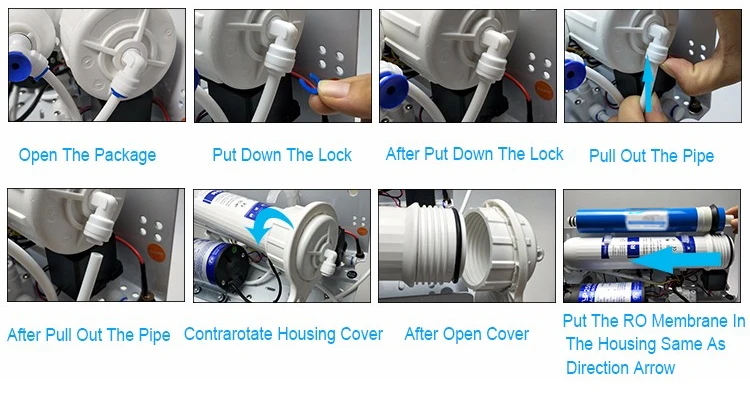

Installation diagram：




Customization:
RO Membrane Wrapping Tape - Available √
RO Membrane Center Tube - Available √
RO Membrane Fabric Tricot - Available √
RO Membrane Spacer - Available √
RO Membrane Gasket - Available √
RO Membrane Stickers Design - Available √
RO Membrane Packing Bags - Available √
RO Membrane Packing Cans - Available √
RO Membrane Packing Cartons Design - Available √

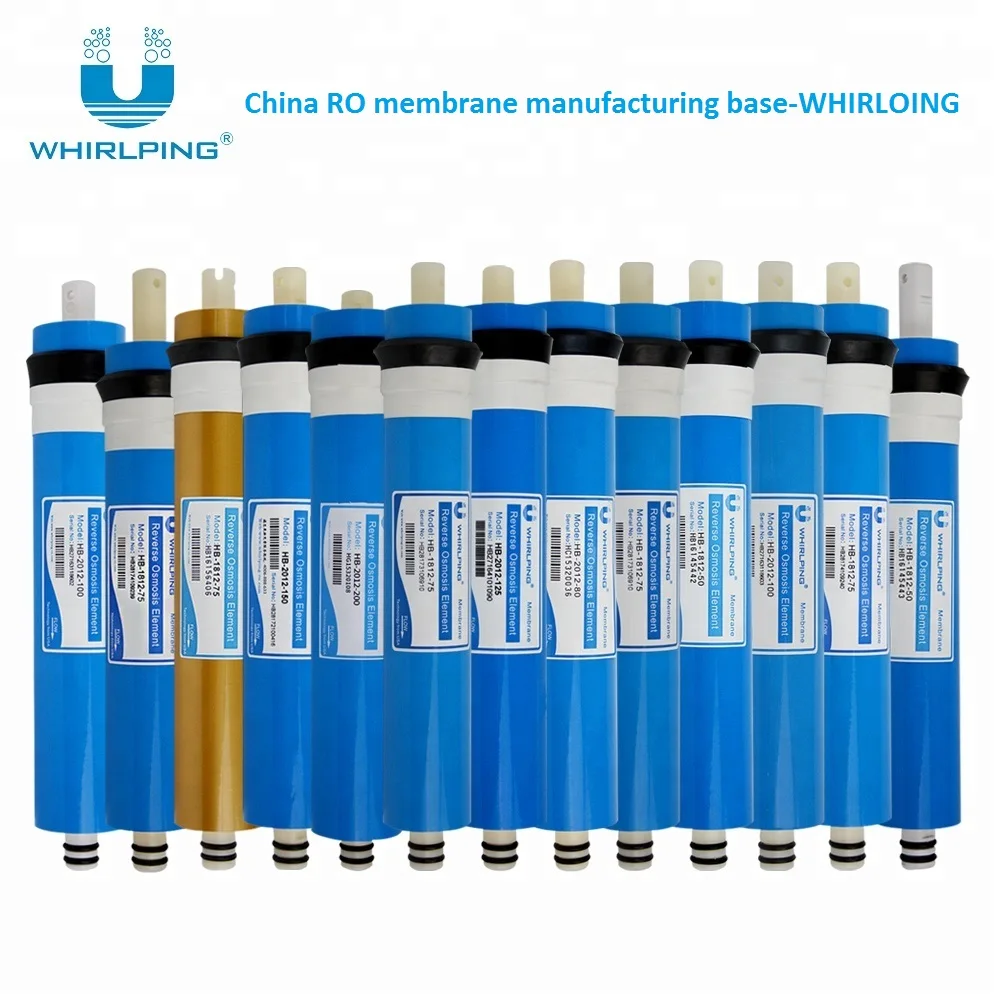

WHIRLPING is one of the manufacturers of reverse osmosis membrane in China and has been engaged in the production of reverse osmosis membrane for many years.So far, our reverse osmosis membranes have been well supplied to the global market and have been well recognized! WHIRLPING has an automatic production line for residential/commercial/industrial reverse osmosis film production, with an annual output of 3 million pieces. Models range from 50GPD / 75GPD / 100GPD / 200GPD to 300GPD / 400GPD / 600GPD and up to 4040/8040!
With the help of our latest automatic flat (film) production line and test equipment, WHIRLPING can provide you with the most reliable quality control and cost effectiveness!












FAQ
Q: Are you a trading company or a manufacturer?
A: we have been engaged in the production of RO film, we have 3 automatic rolling line production line!
Q: Where is your factory?How can I visit it?
A: We are located in Shicheng County, Ganzhou City, Jiangxi Province.
Q: Can we OEM from your factory?
A: Yes.Usually, we export under the Whirlping brand.If you have any request, we also provide OEM, ODM service.
Q: Can I take some samples?Can I place an order before I buy in bulk?
A: We are happy to provide free samples. Welcome to try it for the first time. Please contact us.
Q: How do I place an order?How should I pay?
A: You can contact us via email for details of your order, or you can order offline.After you confirm our PI.We provide the USD account of (Bank of China) to you after payment, we will arrange shipment, which is the most common way for our offline orders.
Q: How long is your lead time?
A: It usually takes 3-7 days if available.Or 7-15 days if not available, depending on the quantity.
