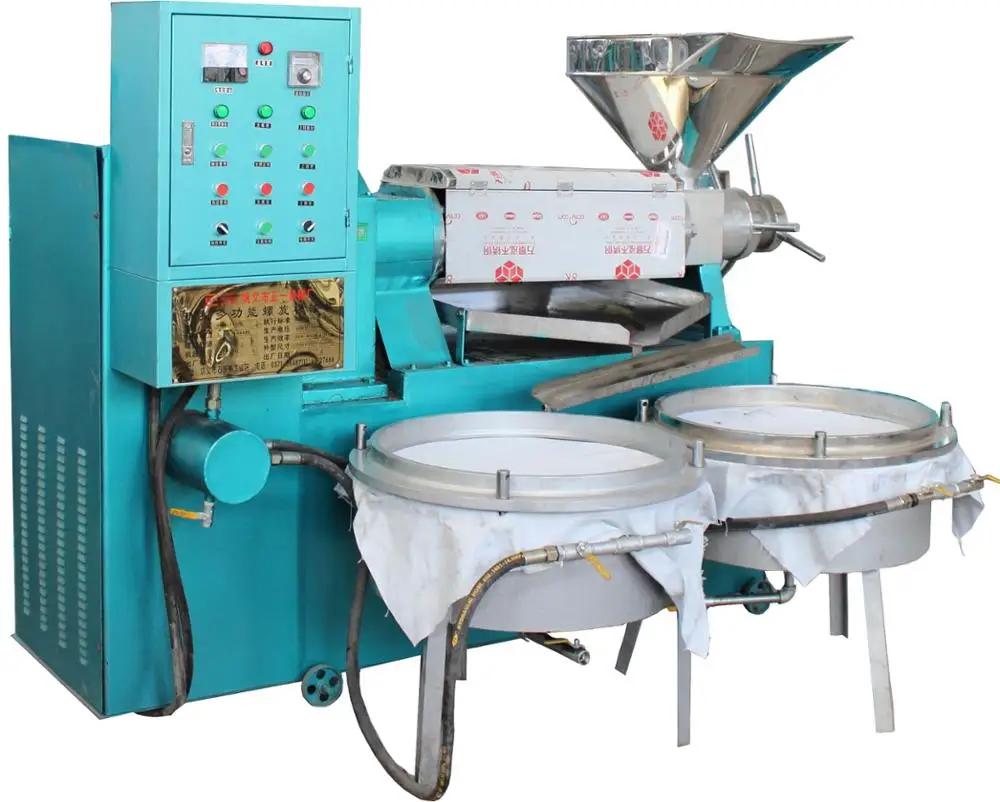

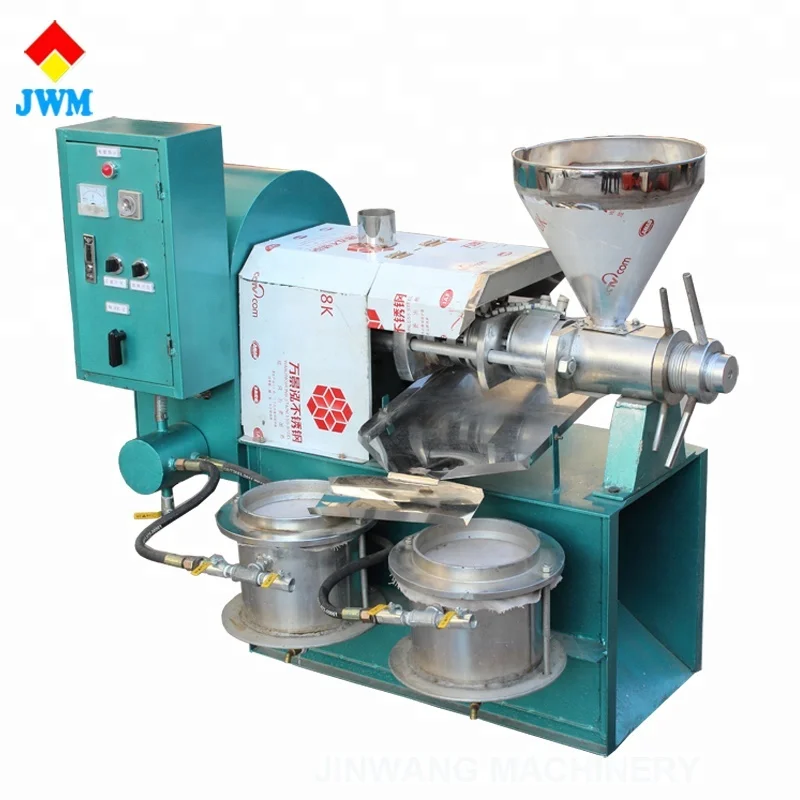

Screw oil extraction/coconut oil press/Screw copra oil press machine At present, oil press machine home is the most advanced oil press equipment in oil extracting and processing machine. Screw press is through forced feed by a screw shaft which produce high temperature and pressure under the rotation and squeeze between screw shaft and pressing ring. It is a extracting oil technique that make materials from crush and squeeze to oil and cake, which belongs to physical press.
Advantages
1,The structure is sample: easy to operate and maintain. 2,High extraction rate 3,Saving energy 4,Saving labor 5,Widely-used 6,Pure oil quality
Main technical parameters
Classification
Hot press
Cold press
Model
JW40
JW60
JW80
JW100
JW125
JW150
JW120
JW150
Throughput
25kg/h
40kg/h
80-120kg/h
150-230kg/h
300-350kg/h
450-500kg/h
300-350kg/h
450-500kg/h
Screw diameter
38.5mm
53mm
80mm
100mm
125mm
150mm
100mm
130mm
Screw speed
84r/min
54r/min
35r/min
37r/min
34r/min
34r/min
80r/min
58r/min
Main motor
1.5kw
2.5kw
4kw
7.5kw
15kw
22kw
15kw
22kw
Total weight
126kg
268kg
880kg
1100kg
1400kg
1500kg
1400kg
1500kg
Heater power
0.5kw
0.9kw
2.2kw
3kw
3.75kw
3.75kw
Vacuum pump
0.25kw
0.37kw
0.55kw
0.75kw
0.75kw
2.2kw
0.75kw
2.2kw
Sizes
700*700*940mm
1040*790*1100mm
1700*1100*1600mm
1900*1200*1600mm
2600*1300*2300mm
2600*1500*2300mm
2100*1500*1800mm
2500*1500*1800mm
Product Application and oil yield
Materials
Extraction rate
Peanut
42-55%
Sesame
40-50%
Soybean
10-16%
Sunflower
30-38%
Rapeseed
28-38%
Copra
59±10%
Tea seed
23-36%
Almond
45-55%
Detailed Images
1,Screw thread
The screw thread adopts three-grade press, which can press the materials completely. It's made of Cr12 die steel which has high strength and good abrasion performance so as to prolong the service life of machine.
2,Screw row A lot of screw row surround the screw thread, with grooves in both side of each screw row, can make sure materials pressed completely and improve the extraction rate by 5%.
3,Heating ring a,There is a heating ring on hot press, raising temperature of the chamber, then increased oil temperature and extraction rate.
b,Cold press machine doesn't have heating ring.. In normal situation, the chamber's temperature is no more than 60 degrees, which produced by the friction between press and materials.
4,Operation system Our machine is easy to operate. After debugging, fully automatic and convenient, reduce labor intensity and improve work efficiency.
5,Vacuum filter
Our screw oil press with vacuum filter, and achieve the integration of extraction and filtration, improved the automation degree of oil press and make the oil purer after filtration and ensure the good quality of oil.

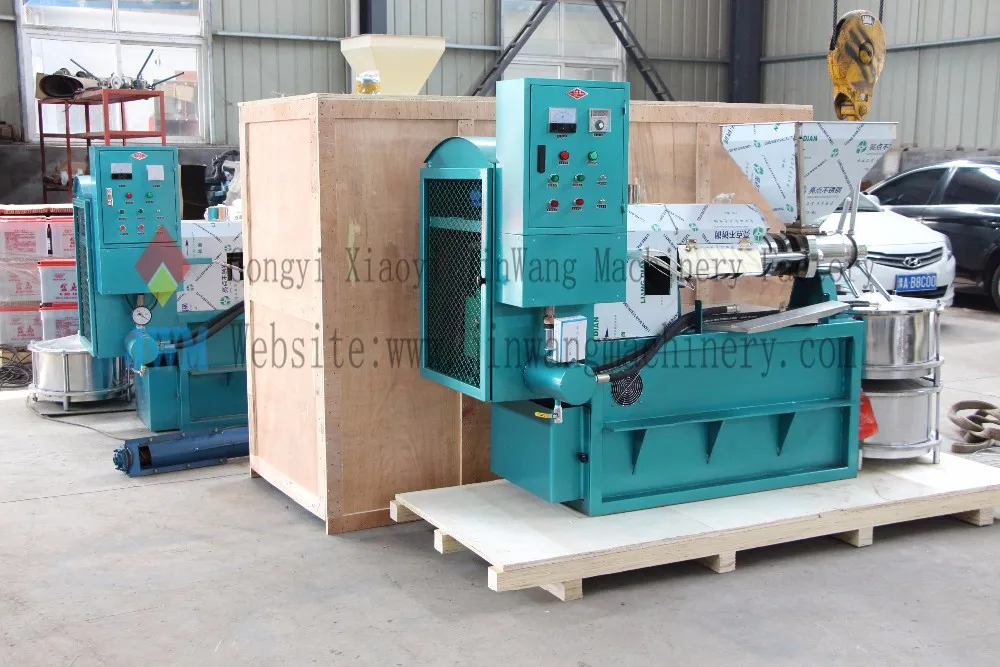

Packing & Delivery
