Best Selling 1.25kA White LED lighting ceramic multi layer Variable resistance SMD chip Varistors

Product Overview

Description

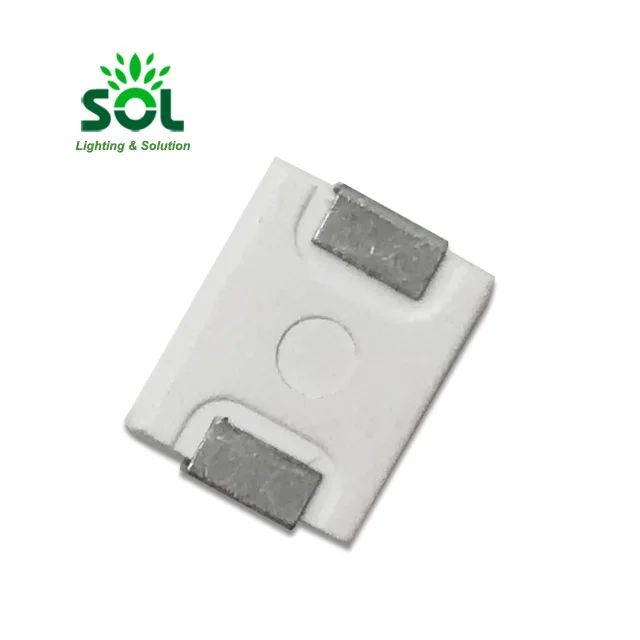

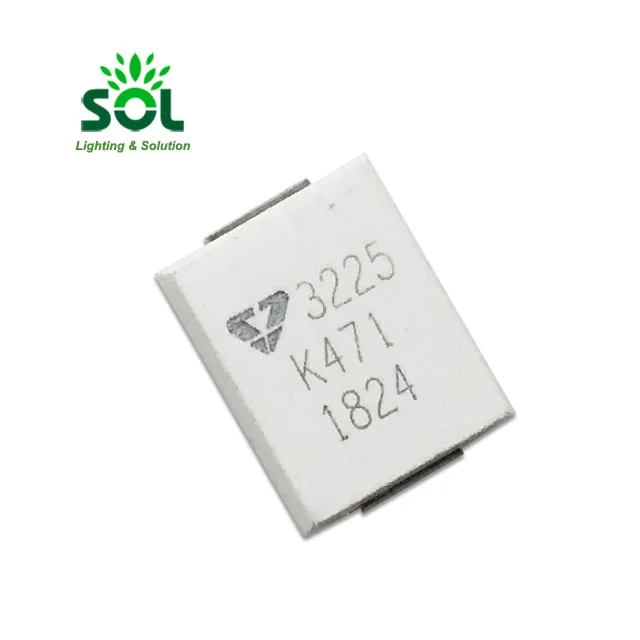

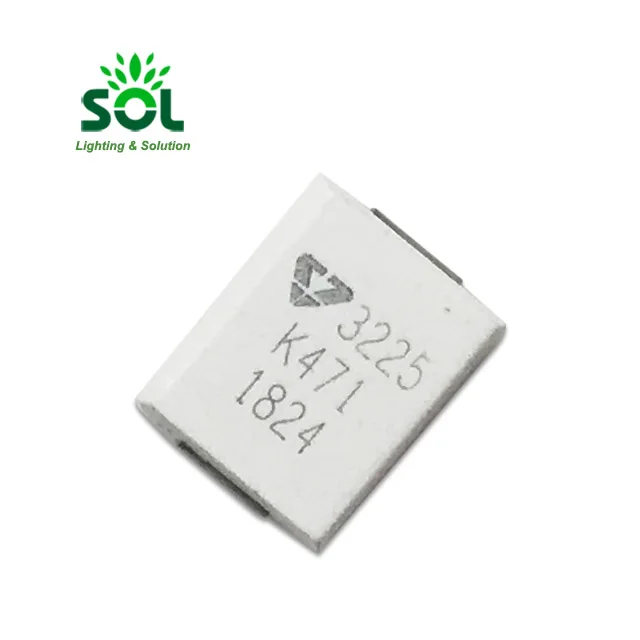

SMD Varistor

SMD Varistor of Features:

· Improved component design in a compact case
· High surge current capability of up to 1.25kA
· Superior performance at high temperature
· White package design without shadow in LED lighting application

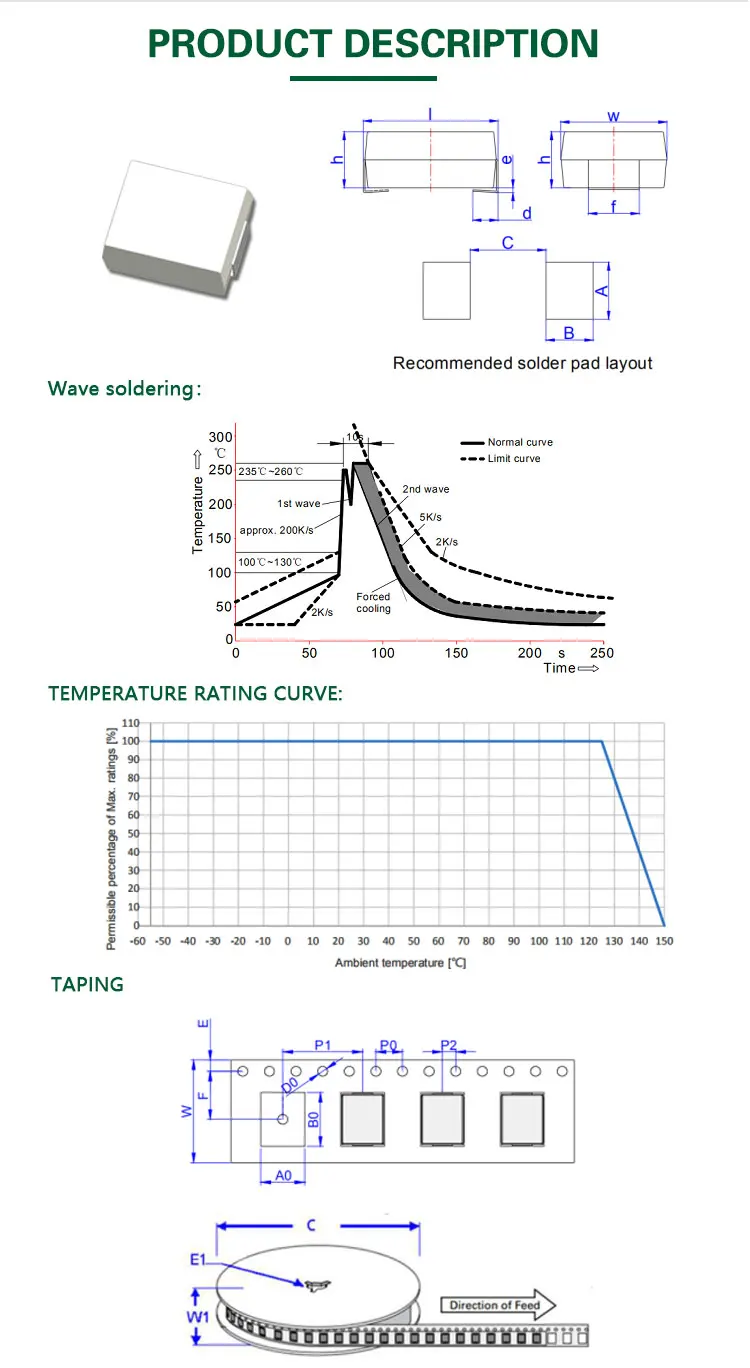

· SMD mountable disk varistors, suitable for lead-free Reflow/wave soldering

Applicable standards:

· UL1449
· IEC61051-1, -2, -2-2, IEC60950-1 Annex Q
· GB/T10193, GB/T10194, GB4943.1, GB8898
· IEC61000-4-5

GENERAL TECHNICAL DATA:

Parameter	Value	Unit
Operating temperature	-55 to +125	℃
Storage temperature	-55 to +150	℃
Electric strength	≥2.5	kVRMS
Insulation resistance	≥100	Megohm



ELECTRICAL CHARACTERISTICS(TA=125℃):

SMD Types (EIA Case 32×25 in inch)	Continuous Voltage		Peak Current (8/20µs)		Energy (2 ms)	Rated Power
	Max		Max		Max
	VRMS	VDC	(1 time)	(2 times)	(1 time)
	[V]	[V]	[A]	[A]	[J]	[mW]
SOLSV3225K560G2	35	45	500	250	1.3	20



ELECTRICAL CHARACTERISTICS(TA=25℃,contiuned):

SMD Types (EIA Case 32×25 in inch)	Varistor Voltage at 1 mA	Clamping Voltage at Class Current  (8/20µs)	Class Current               (8/20µs)	Capacitance
	(±10%)			Max
				(at 1 kHz)
	[V]	[V]	[A]	[pF]
SOLSV3225K560G2	56	110	2.5	1250



Q1.Can I get your samples first?

A1: Yes. Samples order is welcome, however we will charge samples cost, which will be return in your mass order.

Q2: Do you have the ability to do independent research and development?

A2: yes,we have research and development capabilities.We also collect regularly each customer feedback, to improve products and make new product launches.

Q3: What is the lead time for production?

A3: 3-5 days for samples, 12-15 days for mass order.

Q4: How many SMD Varistor are there?

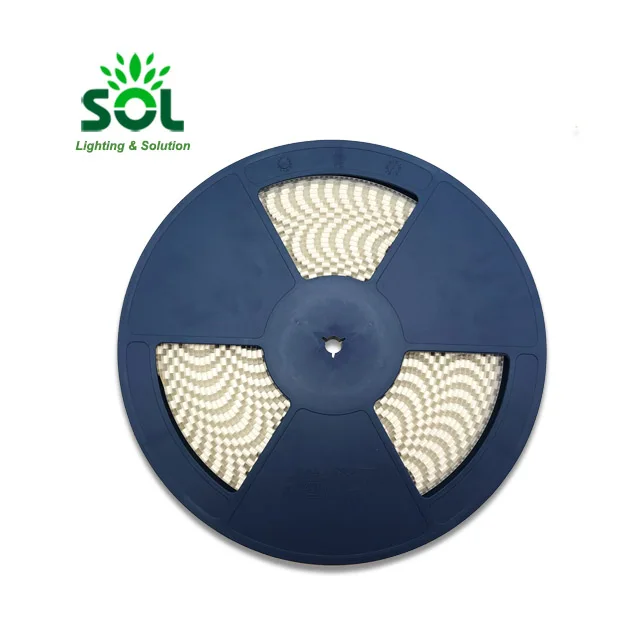

A4:1000pcs/roll
