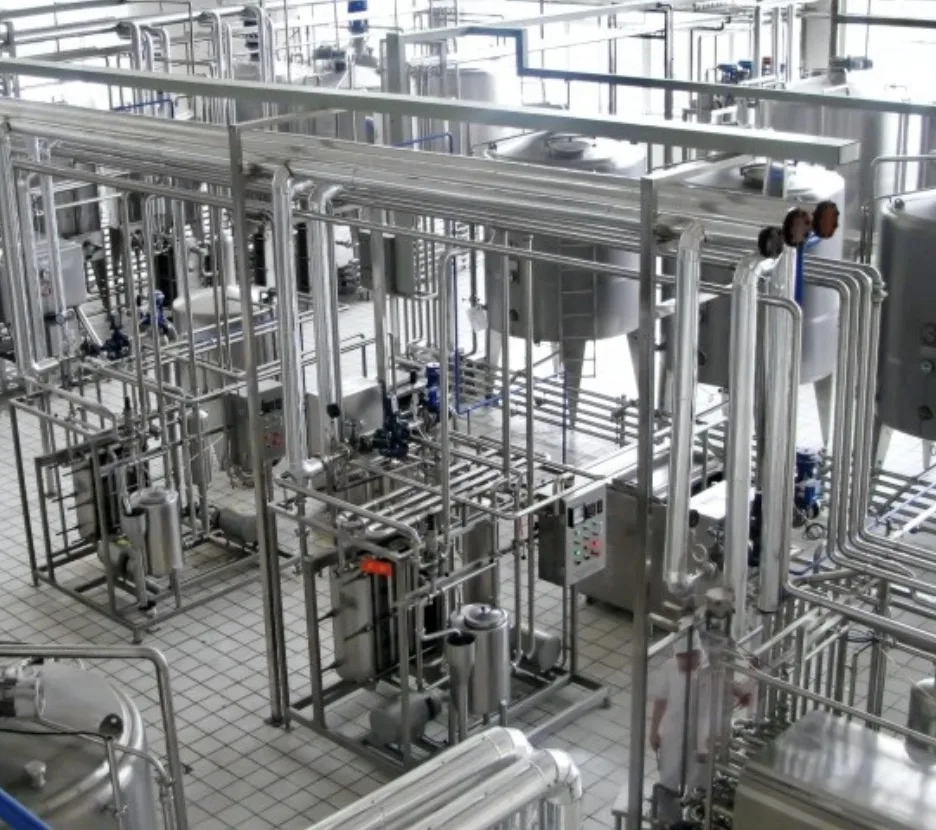

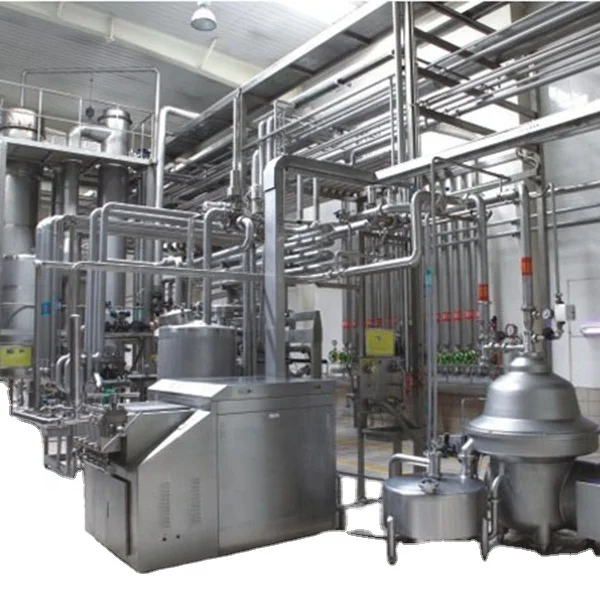

Integrated Dairy Production plant/ Milk Yoghurt Butter processing machine
- Category: >>>
- Supplier: Shanghai Qingji Beverage Machinery Co. Ltd.
Share on (1600314415908):
Product Overview
Description
Product Description

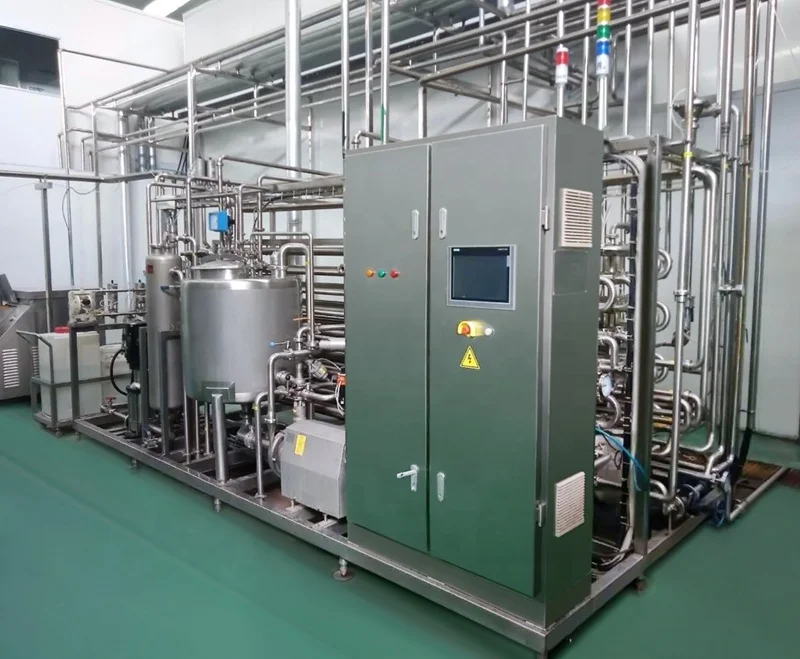

Milk Production Line
The integrated system compose by collection tank, mixing tank, homogenizer, sterilizer system at one platform. which makes it easy and safe to use and simple to maintain a integrated configuration, with a compact design based on standardized building blocks. the combo plant remains easy operation, service-friendly.Advantage:
with preparation tank, sterilization, homogenizer, mixing/fermentation tank ,CIP system etc. integrated with ready pump and pipe fitting to convenient site connection. Which could custom made and be flexible for milk, yoghurt, cream, beverage etc product.
Project Name | Milk Production Line | Data |
1 | Milk collection tank | 100-500L |
2 | Cooling system | plate heat exchange + chiller |

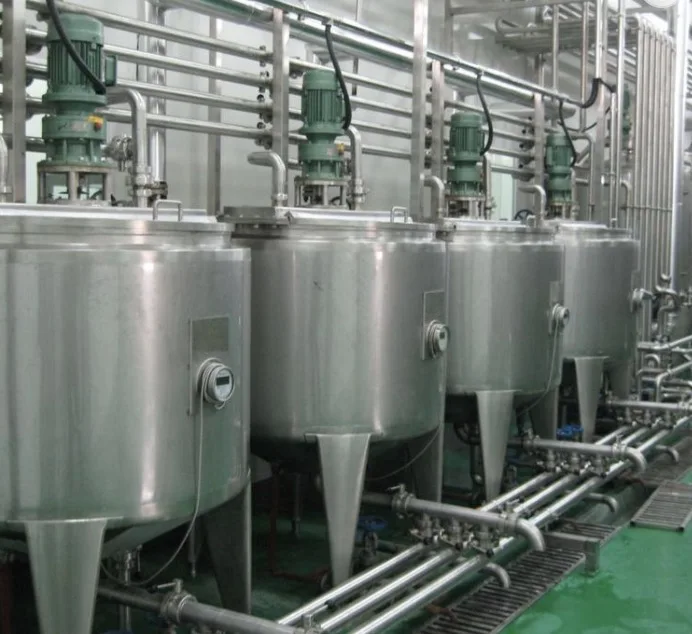

3 | Blending tank | 500L/1000L/2000L |
4 | Transfer pump | centrifugal type, 3000L/h |
5 | Homogenizer | 500-2000L/h,, 25Mpa |
6 | Sterilizer | plate structure |

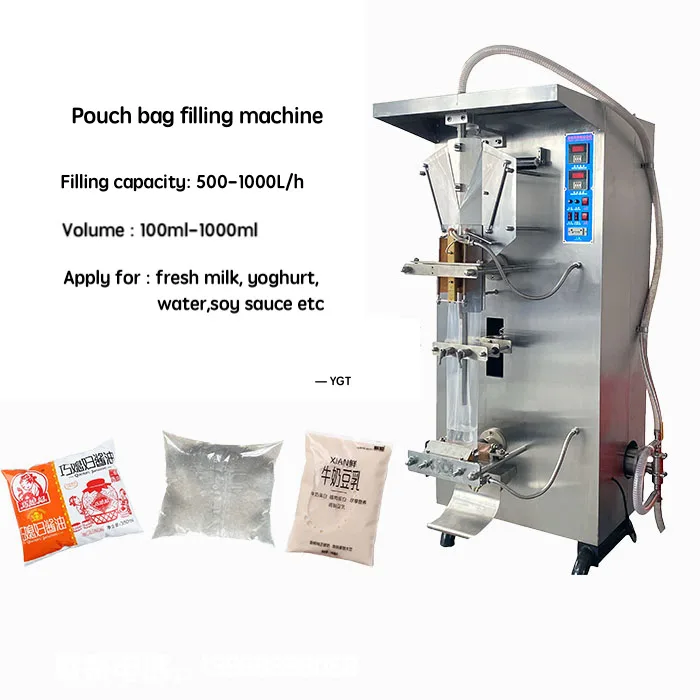

7 | Filling machine | pouch bag cold filling |
8 | pipe connection and PLC control | integrated on platform with cabinet |
Capacity apply for 500-2000L/h milk , 2000L-5000L daily.
Detailed Images

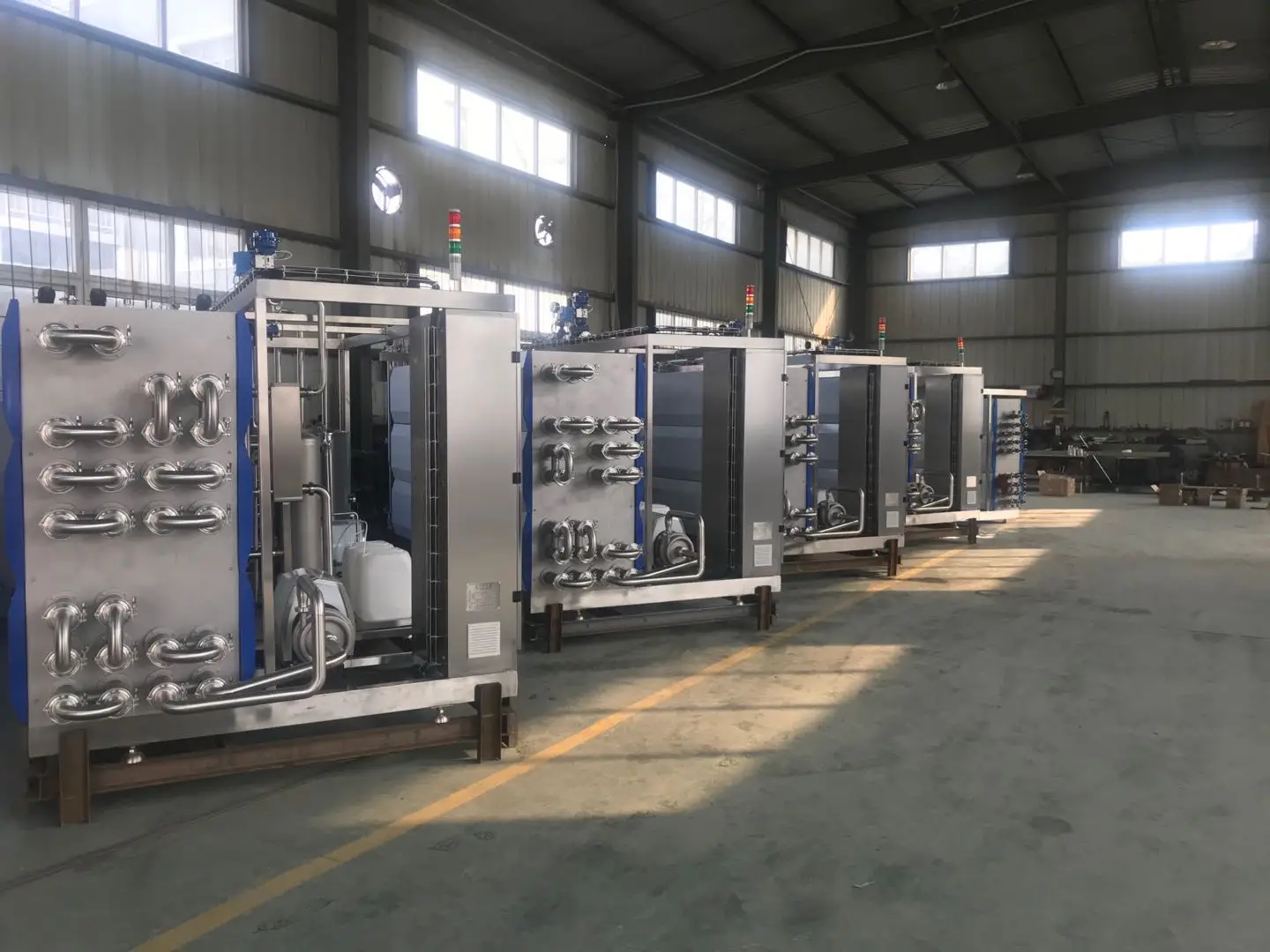

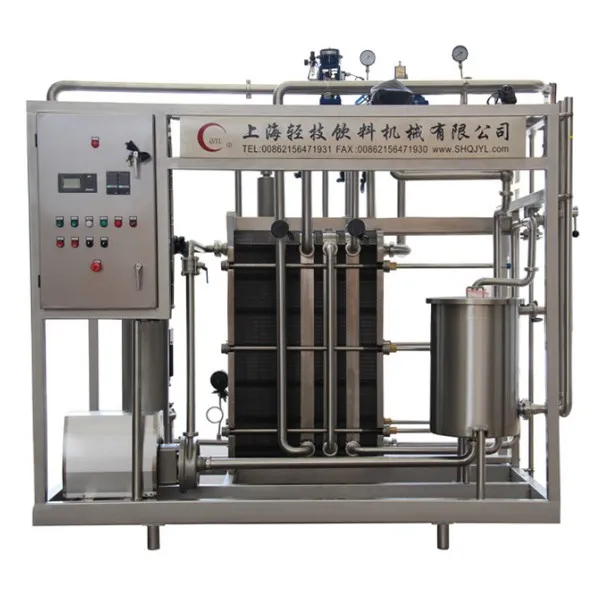

Plate Sterilizer Description
Structure: plate type
Composed by PHE, tank, pump, steam valve, PLC, pipping as one system
Function: to heat and cool milk, prolong the milk shelf time, also keep milk taste and nutrition, this is most economical equipment for dairy milk , beverage juice industry
Capacity: 500Lph as mini, with 1000L/h and 2000l/h for monoblock system optional
Material: SUS304
Temperature Flowchart: 4c-85c/20s-4c
(temperature and holding time could adjustable as per site need)
(temperature and holding time could adjustable as per site need)

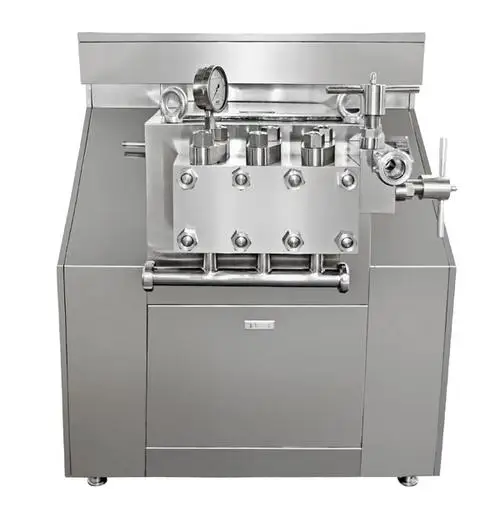

Homogenizer Description
Max pressure: 25Mpa
Flow: 500L/h as mini, with 1000L/h and 2000l/h for monoblock system optional
Feeding pressure: 0.2-0.3Mpa
Structure: 3piston,2stage
Material: SUS304
Function: by high pressure to emulsify molecular and make liquid more even, prevent separation and improve taste
Application: for milk, juice etc food
Related Products
tubular sterilizer
plate heat exchange
cooling tank
Packing&Shipping

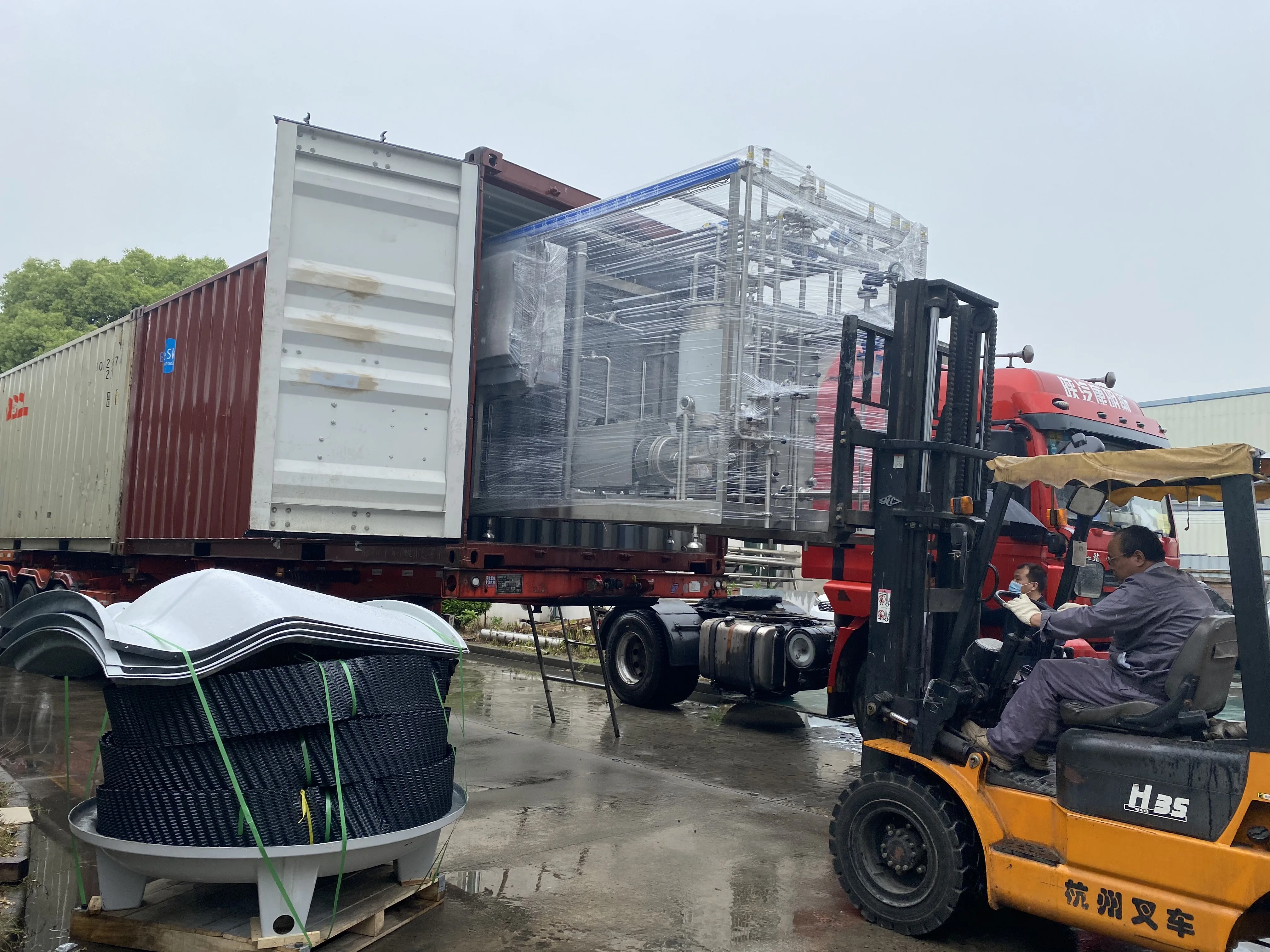

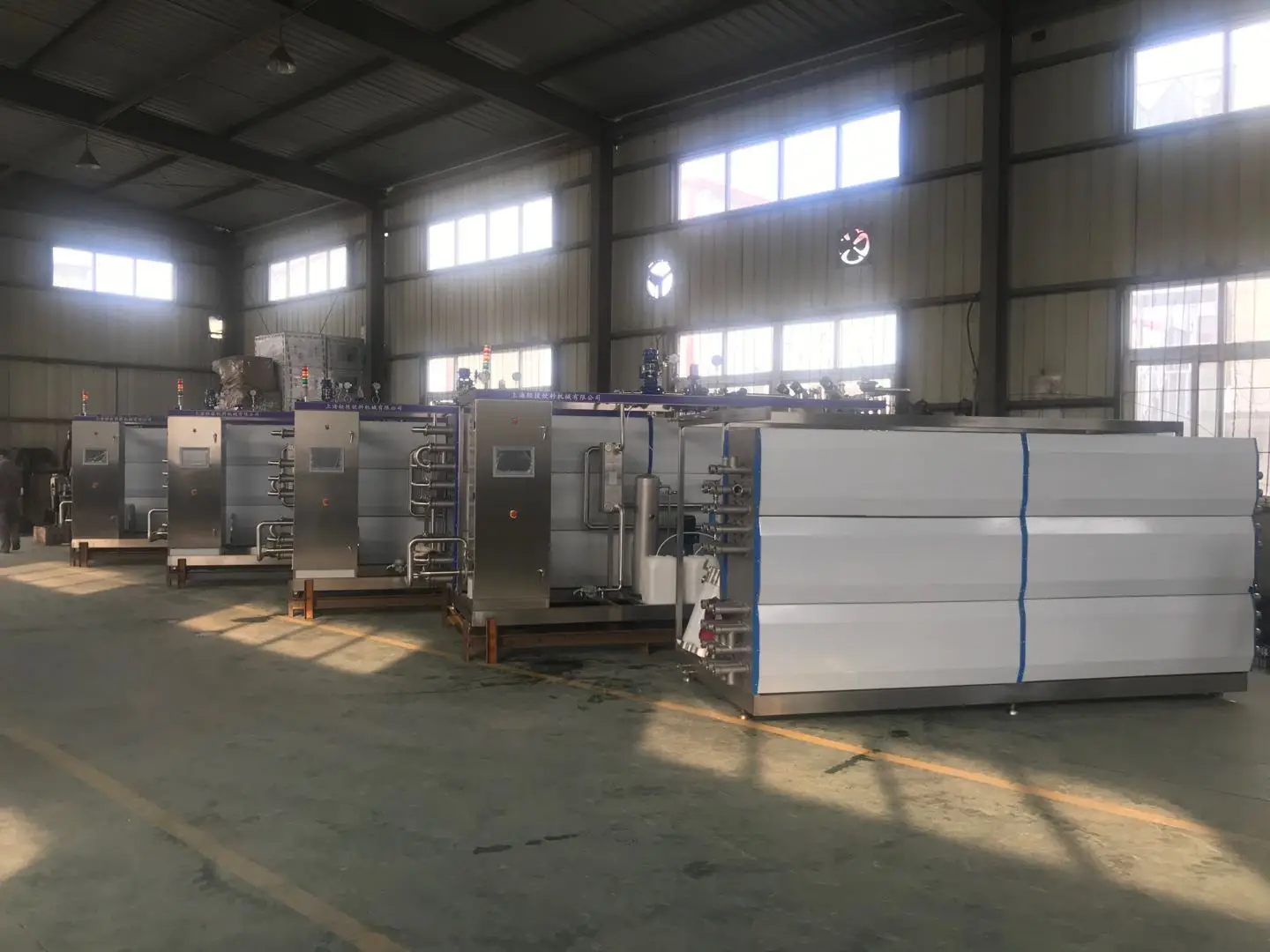

shipment of milk plant equipment
Company Introduction
Shanghai Qingji Beverage Machinery Co., Ltd. is a leading technology manufacturing enterprise since 2006, with an elite
engineering team expert at the heat exchange and flow design,research and development, forcus on dairy and beverage processing industry.
Our main products are Plate Heat Exchanger, UHT Sterilizer, milk Pasteurizer, CIP system, sanitary centrifugal pump etc,a lso have the ability to handle turnkey project .
engineering team expert at the heat exchange and flow design,research and development, forcus on dairy and beverage processing industry.
Our main products are Plate Heat Exchanger, UHT Sterilizer, milk Pasteurizer, CIP system, sanitary centrifugal pump etc,a lso have the ability to handle turnkey project .
Our Services & Strength
- technical consultant for dairy processing
- project layout design for new system line
FAQ
Q: What are the main configurations of the milk plant?
A: Main configuration: material system, high-temperature hot water system, degassing system (optional), high-pressure homogenizing system (optional), CIP system, self-sterilizing aseptic system (optional) and control system.
Q: Where is the sterilizer mainly used?
A: Food industry: tea drinks, ice cream, fruit juice and jam, dairy products, plant protein plants and other food and beverage
B.Beverage industry: alcoholic beverage, fruit juice beverage, mixed dairy products, sugar, ice cream, fruit juice, pasteurized
milk, peanut milk, protein milk, soy milk, dairy products, beverage, etc
Q: How long is the warranty?
A: 1-2 years
A: Main configuration: material system, high-temperature hot water system, degassing system (optional), high-pressure homogenizing system (optional), CIP system, self-sterilizing aseptic system (optional) and control system.
Q: Where is the sterilizer mainly used?
A: Food industry: tea drinks, ice cream, fruit juice and jam, dairy products, plant protein plants and other food and beverage
B.Beverage industry: alcoholic beverage, fruit juice beverage, mixed dairy products, sugar, ice cream, fruit juice, pasteurized
milk, peanut milk, protein milk, soy milk, dairy products, beverage, etc
Q: How long is the warranty?
A: 1-2 years
