VPN Hardware Firewall ASA5505-K9 Network Security Firewall
US $100.00-$200.00
Сетевой аппарат с 8 портами ethernet LAN, сетевой мини-ПК OPNsense pfSense, шлюз VPN, сетевой сервер
- Category: Firewall & VPN >>>
- Supplier: Shenzhen,Evolution,Computer,Co.,Ltd.
Share on:
Product Overview
Description
Product Description

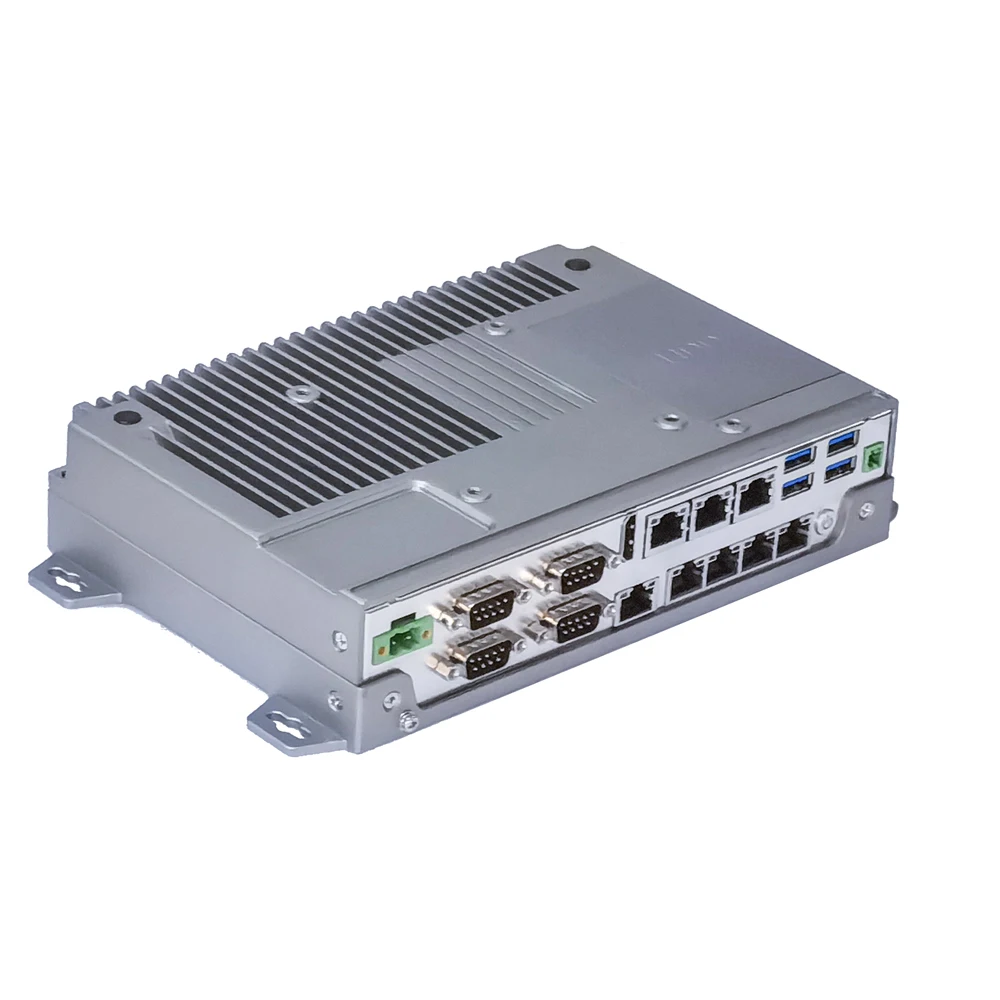

8 ethernet LAN ports network appliance mini PC OPNsense pfSense gateway VPN Firewall computer network server

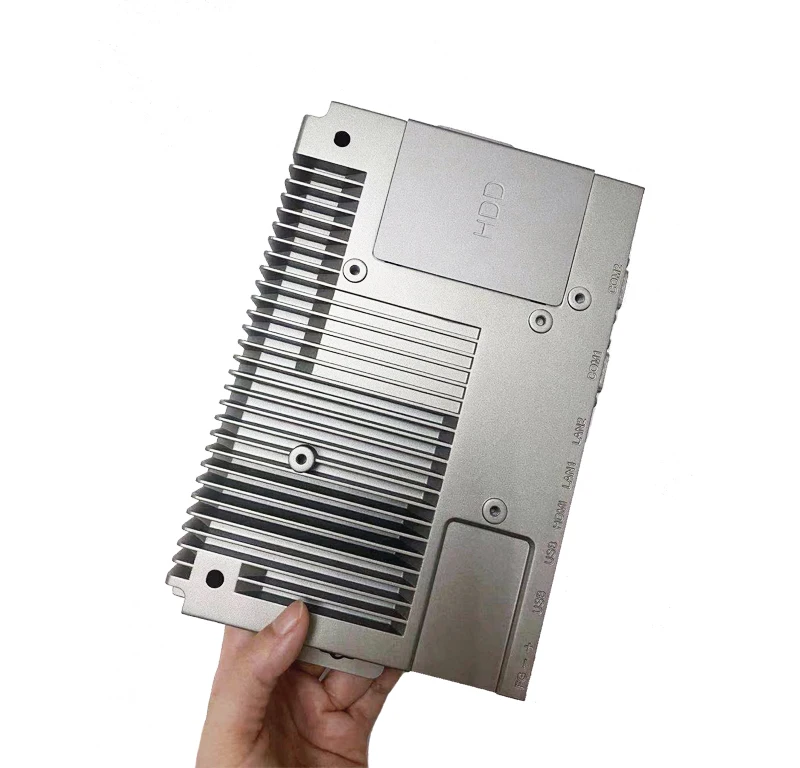

*Copper tube+ one molding casting Aluminum alloy fin heat dissipating housing

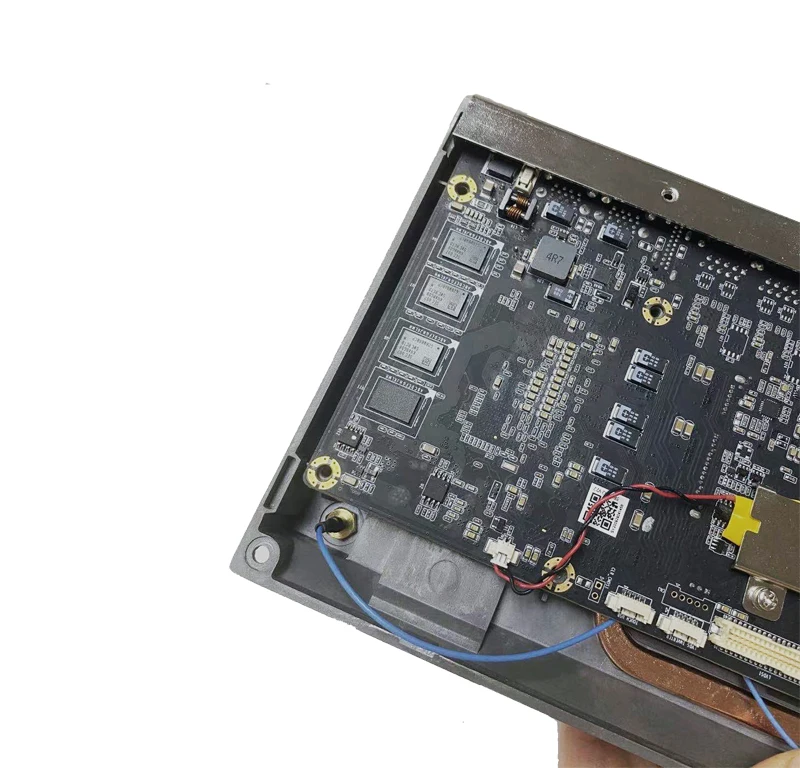

*Cordless PCB Design, rugged & stable
*On-board I5/I7 8th/10th generation U series low power consumption CPU
*On-board DDR4 8GB RAM(16GB for customized), 1x SODIMM RAM Slot
*2.5” HDD & M.2(NVME) SSD can be installed simultaneously
*1x MINI PCIE slot, support mSATA SSD

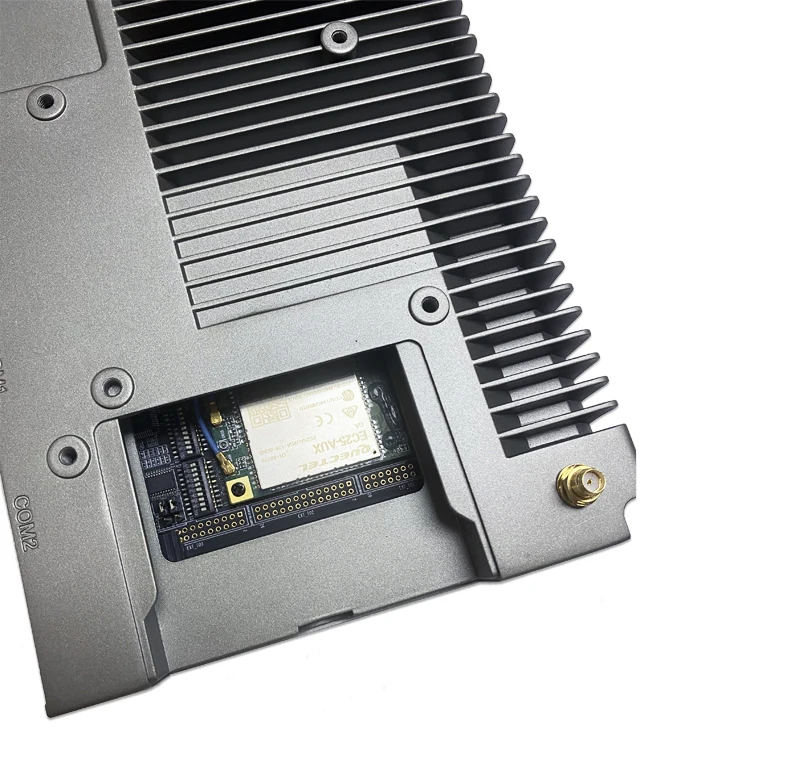

*1x M.2 Wifi/4G module slot

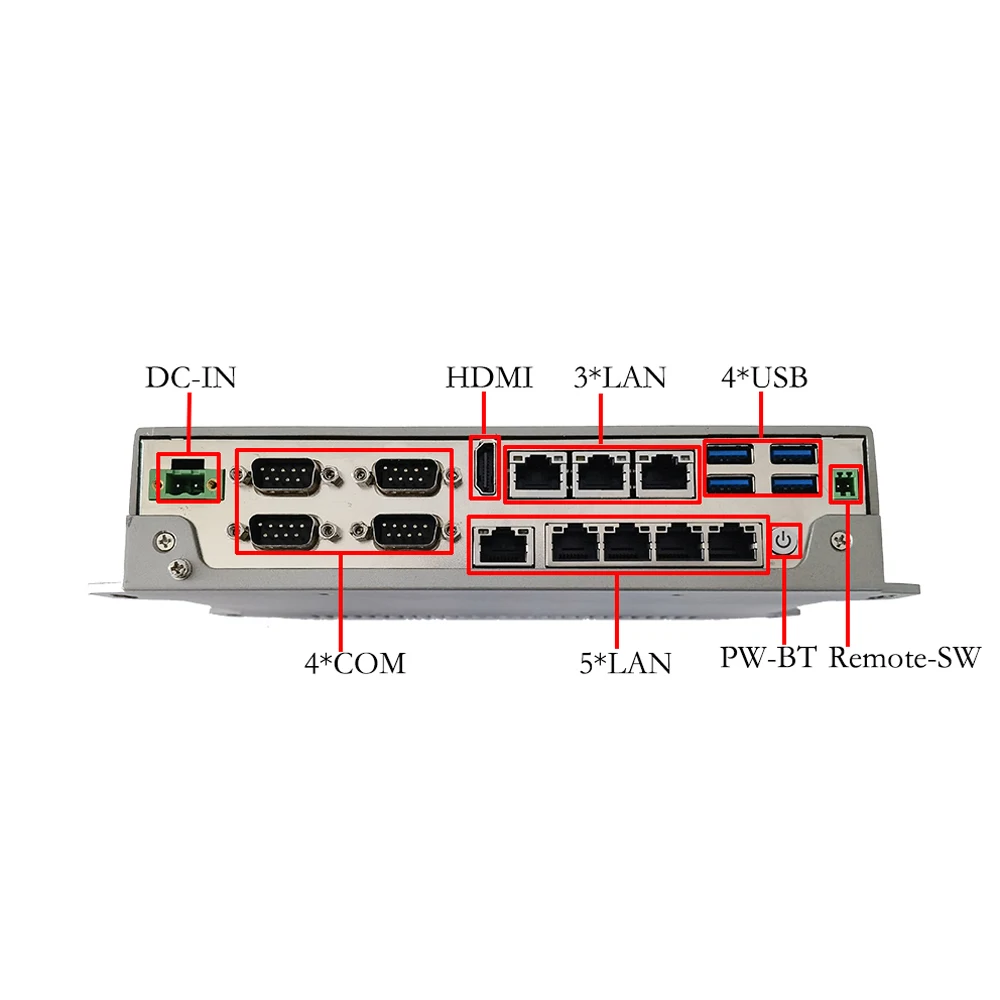

*8x Intel GbE Lan ports,Built-in filter lightning protection design
*4xCOM(RS-232/485 available)
*4x USB3.0
*DC9-36V wide range power input
| Category | Descriptions | |
| Model | No. | EVC-8001 |
Nucleus Module | CPU | On-board I5/I7 8th/10th generation U series |
| RAM | On-board DDR4 8GB RAM(16GB for customized), 1x SODIMM RAM Slot | |
| Storage | 1x mSATA slot; 1x 7P+15P 2.5” HDD extension; 1x M.2(NVME) slot | |
| Graphic | 8th Gen CPU: Integrated UHD Graphics for Core 8th Gen Processors | |
| Network | On-board 7x In-tel I211-AT GbE Lan; 1x In-tel I219-LM GbE Lan | |
| I/O | Lan | 8*RJ45 (Gigabit Ethernet) |
| USB | 4*USB3.0 | |
| Display | 1*HD-MI, | |
| WIFI | 1*WiFi module with 2 antennas(Optional) | |
| COM | 4*COM(RS-232, 485) | |
| Button | 1*Power Button | |
| SIM | 1*SIM Card socket(support 3G/4G module) | |
| Expansion | 1*mini-PCIe(support WiFi) | |
| OS | Operating System | Win10, Lin-ux |
| Structure | Dissipation | high-quality profile case for quick heat dissipation |
| Housing | aluminum alloy | |
| Bracket | Wall mount bracket | |
| Dimensions | 235.5(W, bracket included)*141.5(D)*46.4(H) | |
| Weight | around 1.5KG(N.W.) | |
| Power | DC In | DC 9~36V |
Temperature & Humidity | Working Temp. | -45°C~ 65°C (-49°F~149°F) |
| Storage Temp. | -45°C~ 80°C (-49°F~176°F) | |
| Working Humidity | 10% - 95% @40°C non-condensing | |
| Environment | Safety | CE,FCC,RoHS |
| Package | Items | pc, power adapter, Power cord, screw package & 2 Antennas(Optional) |
Packaging
Company Information
Praise
FAQ
1.Q: What's the Minimum Order Quantity(MOQ)?
A: Just 1 piece is OK.
2.Q: Are you a factory or a trading company?
A: We are one of the professional computer manufacturers located in Shenzhen, China.
3.Q: What about the after-service?
A: Two-year warranty except human error. As for the following 2 years, we can repair it for free, but charge for parts is needed. please contact us at any time when necessary. We besides our professional technicians are at your service.
4.Q: Can you provide DIY/OEM/ODM service?
A: Yes, please advise the CPU, memory, SSD or HDD, WIFI, interface ports and OS, the package box and housing(outer shell)as you wish, prices will be varied according to the quantity and specification.
5.Q: Can I have my logo printed on the computers?
A: Sure, MOQ is 100 pieces, or surcharge is required for less quantity.
6.Q: What’s your OEM Service for my bulk order?
A: 1). Put your brand on the device housing by laser printing
2). Put your own label below the device housing;
3). Supply Warranty Card in the package for free;
4). Make the booting interface with your company logo or brand for free.
7.Q: What Operating System is installed before delivery?
A: Our computers support all kinds of main operating systems. Most buyers prefer Windows and Linux. Unactivated Windows 7 for testing is pre-installed.
8.Q: How long is the lead time?
A: General speaking, 1-3 days for samples, 7 working days for bulk order.
9.Q: What's your payment term?
A: We offer EXW,FOB,CIF & CNF price and accept T/T, L/C,Western Union, Paypal & MoneyGram. For bulk order by T/T, Western Union and L/C, 30% deposit in advance and 70% balance before delivery. For OEM or ODM order, 50% deposit is required.
10.Q: Can you arrange the shipment? Since it's my first time to buy from China.
A: Yes, for small order, DHL/FedEx/TNT/UPS/EMS will be OK. Sea or air freight is also applicable for bulk order according to your requirement.
