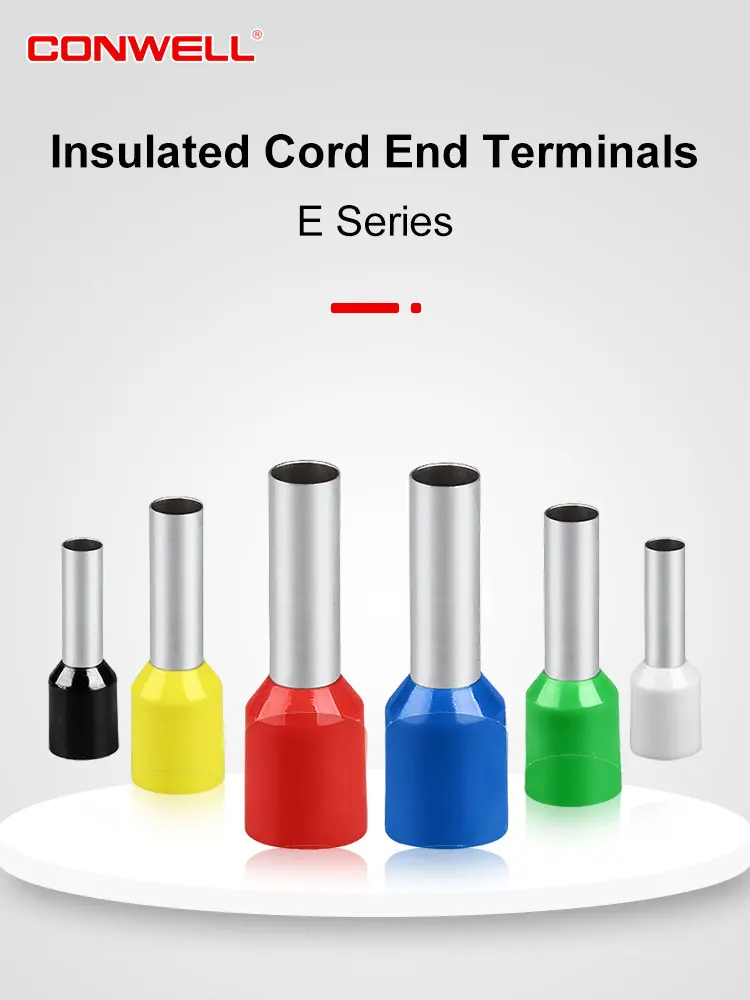

E6012 Wire Connectors Electrical Insulated Ferrules Terminals End Cord Terminals
- Category: >>>
- Supplier: Zhejiang Keyi Electric Co. Ltd.
Share on (1600314539660):
Product Overview
Description
Product Description

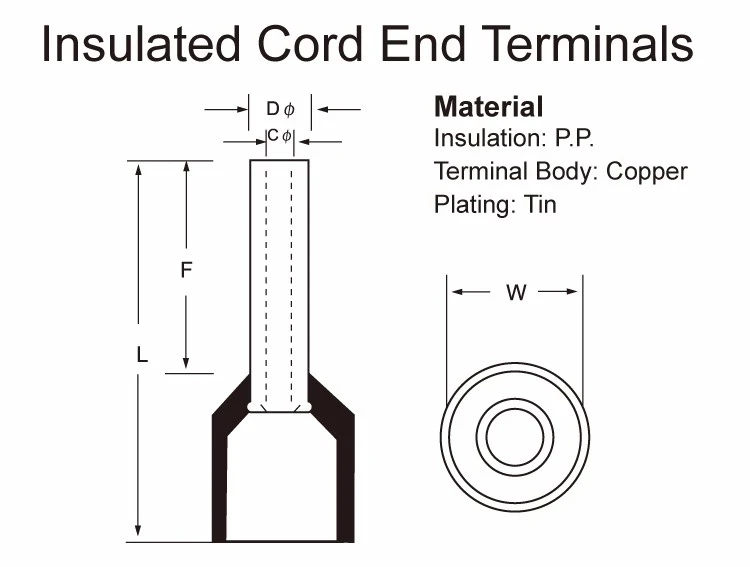

Type | Dimension(mm) | Cable Size | Color | ||||
F | L | A.W.G | mm² | ||||

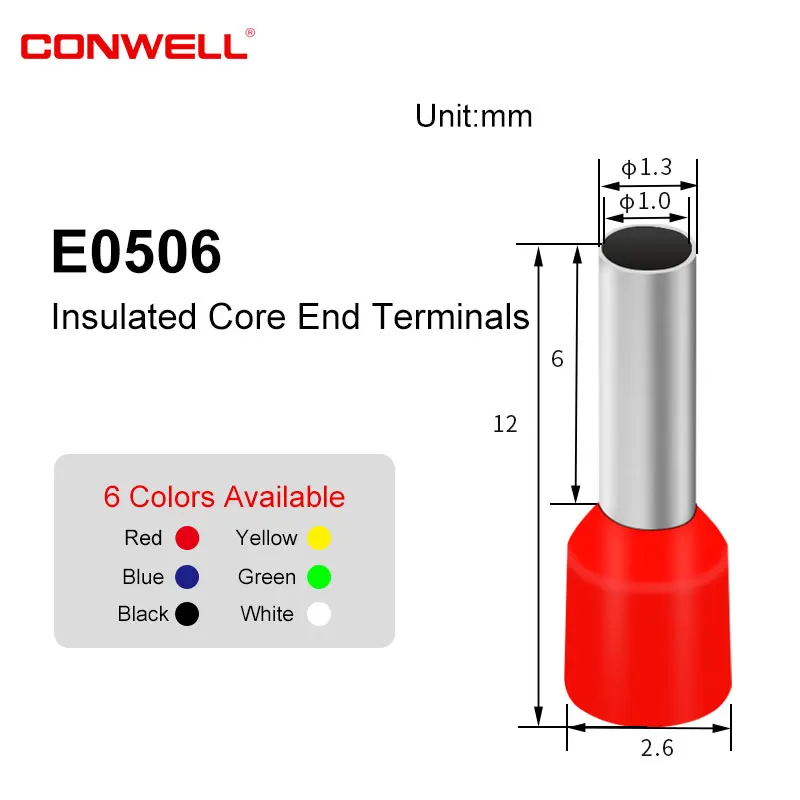

E0506 | 6.0 | 12 | #22 | 0.5 | Orange | ||
E0508 | 8 | 14 | |||||
E7506 | 6.0 | 12.4 | #20 | 0.75 | White Blue | ||
E7508 | 8.0 | 14.6 | |||||
E7510 | 10.0 | 16.4 | |||||
E7512 | 12.0 | 18.4 | |||||
E7518 | 18 | 24.4 | |||||
E1006 | 6 | 12.4 | #18 | 1 | Yellow Red | ||
E1008 | 8 | 14.6 | |||||
E1010 | 10 | 16.4 | |||||
E1012 | 12.0 | 18.4 | |||||
E1508 | 8.0 | 14.6 | #16 | 1.5 | Red Black | ||
E1510 | 10.0 | 16.4 | |||||
E2508 | 8.0 | 15.2 | #14 | 2.5 | Blue Grey | ||
E2512 | 12.0 | 19.0 | |||||
E4009 | 9.0 | 16.5 | #12 | 4 | Grey Orange | ||
E4012 | 12.0 | 19.5 | |||||
E6012 | 12.0 | 20.0 | #10 | 6 | Black Green | ||
E6018 | 18.0 | 26.0 | |||||
E10-12 | 12.0 | 21.5 | #7 | 10 | Milky White Brown Green | ||
E10-18 | 18.0 | 27.5 | |||||
E16-12 | 12.0 | 22.5 | #5 | 16.0 | Green Milky White | ||
E16-18 | 18.0 | 28.2 | |||||
E25-16 | 16.0 | 29.0 | #4 | 25.0 | Brown Green Black | ||
E25-22 | 22.0 | 35.0 | |||||
E35-16 | 16.0 | 30.0 | #2 | 35.0 | Gray Brown | ||
E35-25 | 25.0 | 39.0 | |||||
E50-16 | 20.0 | 36.0 | #1 | 25.0 | Olive | ||
E50-25 | 25.0 | 41.0 | |||||
Packing & Delivery
Packaging
1.Normal Package: Inner Bag + Inner Box + Carton.
2.Specific packaging can be made to order.
Shipping
You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the shipping cost after receipt of your order.
And also can send by sea or air, kindly send me the port of yours.
1.Normal Package: Inner Bag + Inner Box + Carton.
2.Specific packaging can be made to order.
Shipping
You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the shipping cost after receipt of your order.
And also can send by sea or air, kindly send me the port of yours.
Company Profile
Zhejiang Keyi Electric Group Co.,Ltd., founded in 2004, is located in chengdong industry zone Yueqing, Zhejiang province,China. It is a hi-tech enterprise specialized in designing and producing insulation piercing connector, anchor clamp, suspension clamp, waterproof box and other connecting accessories according to NFC, IEC, EN, UL standards. Besides, it has achieved ISO9001 Quality Management system, ISO14001 environmental management system, OHSAS18001 occupational health and safety management system, CE, ROHS and other certificates, as well as many invention and utility model patents in China.
We are Electric Power Association member and government authorized quality supplier, only focus on ABC accessories scope for 13 years. Our concentration makes us professional and capable enough for all ABC accessories production and invention.
About Testing
Quality management system: test strictly done by ISO, EN, NFC, UL and other relative standards. It has a lab (city-level technology research and development center) with full testing facilities for physical, chemical, electrical tests.
About Technology:
We have R&D team, technology team, quality team, mould development&production team.
Our products sell to all over the world. The main market is Europe. We have patient sales, good technical support, strict quality control, deep in ABC cable fittings. You will find business is an enjoyment. We will always be here for you!
We are Electric Power Association member and government authorized quality supplier, only focus on ABC accessories scope for 13 years. Our concentration makes us professional and capable enough for all ABC accessories production and invention.
About Testing
Quality management system: test strictly done by ISO, EN, NFC, UL and other relative standards. It has a lab (city-level technology research and development center) with full testing facilities for physical, chemical, electrical tests.
About Technology:
We have R&D team, technology team, quality team, mould development&production team.
Our products sell to all over the world. The main market is Europe. We have patient sales, good technical support, strict quality control, deep in ABC cable fittings. You will find business is an enjoyment. We will always be here for you!
