Heal Force Mobile PCR диагностическая лабораторная камера подходит для больниц занимающего мало места

12 meters

2.4 meters

2.9 meters

Three partitions

With independent equipment room and decontamination room

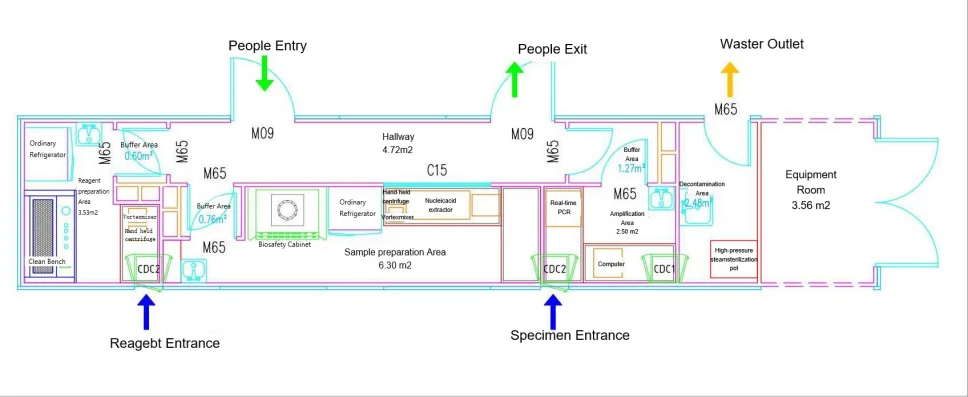

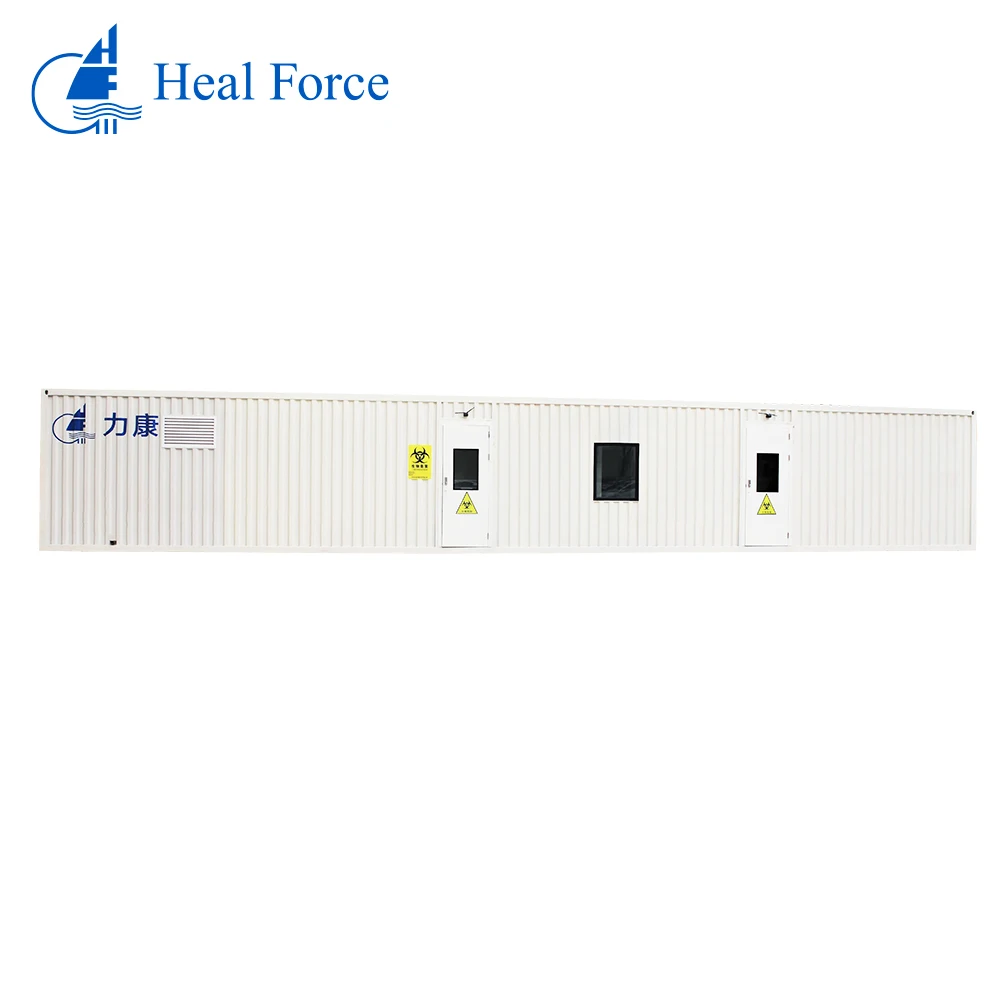

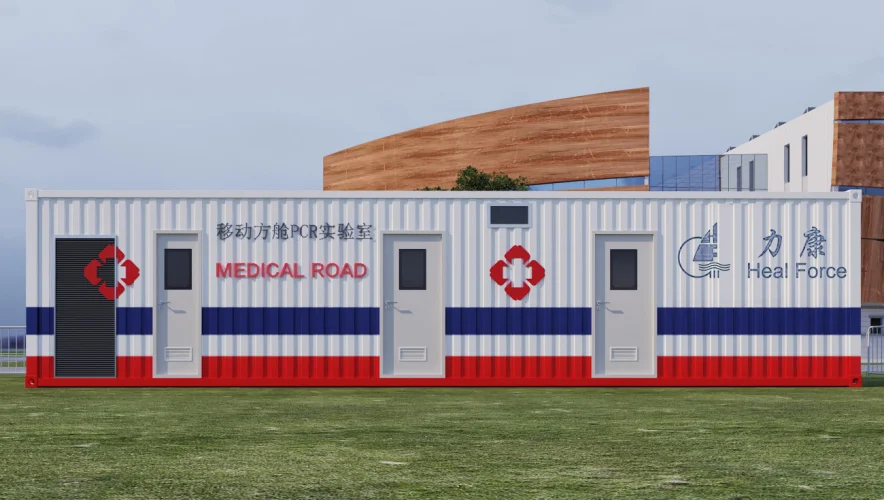

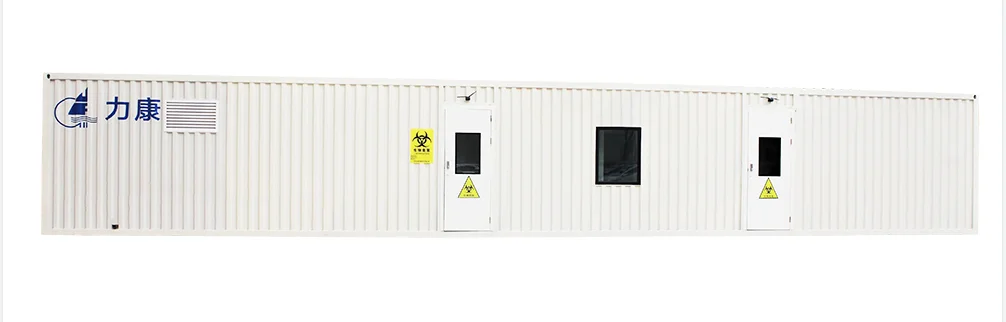

P2 Laboratory Structure layout Enclosure 1.Standard 40 feet container structure, factory molding processing 2.
Specifications：12192mm×2438mm×2896mm； 3. 2mm corrugated steel plate Exterior wall, 50mm glass magnesium sandwich plate for
inner，wall; 20mm cement fiber floor, high bearing strength 4. Full steel door, with access control system, 5. Waterborne coating
for container, safe and environment-friendly, anticorrosive, all-weather and durable. Interior decoration 1.The partition wall and
ceiling :50mm laboratory special antibacterial and purified glass magnesium sandwich color steel plate, fireproof, moisture-proof,
antibacterial, high strength, sound-absorbing and heat insulation. 2.The corner of the wall with special circular arc aluminum
profile for clean room, inside wall is smooth, no ash, mold 3.2mmPVC environment-friendly adhesive, The floor is fireproof,
antibacterial, skid proof and wear-resistant 4.Special steel sealed door, with glass observation window, buffer room two doors
interlock design, with emergency opening device, safe and reliable Air conditioning system 1.PCR laboratory air supply and exhaust
design to ensure the air volume and ventilation times in the experimental area; 2.The fresh air unit has three filters of primary
effect, medium effect and high efficiency to ensure the cleanliness of the room; Combined air conditioning unit, indoor
temperature constant 18℃-26℃, relative humidity does not exceed 70%; 3.Independent exhaust system, laboratory negative pressure
type high efficiency exhaust fan, effective filtration of indoor biological aerosol, avoid pollution to the environment. Water

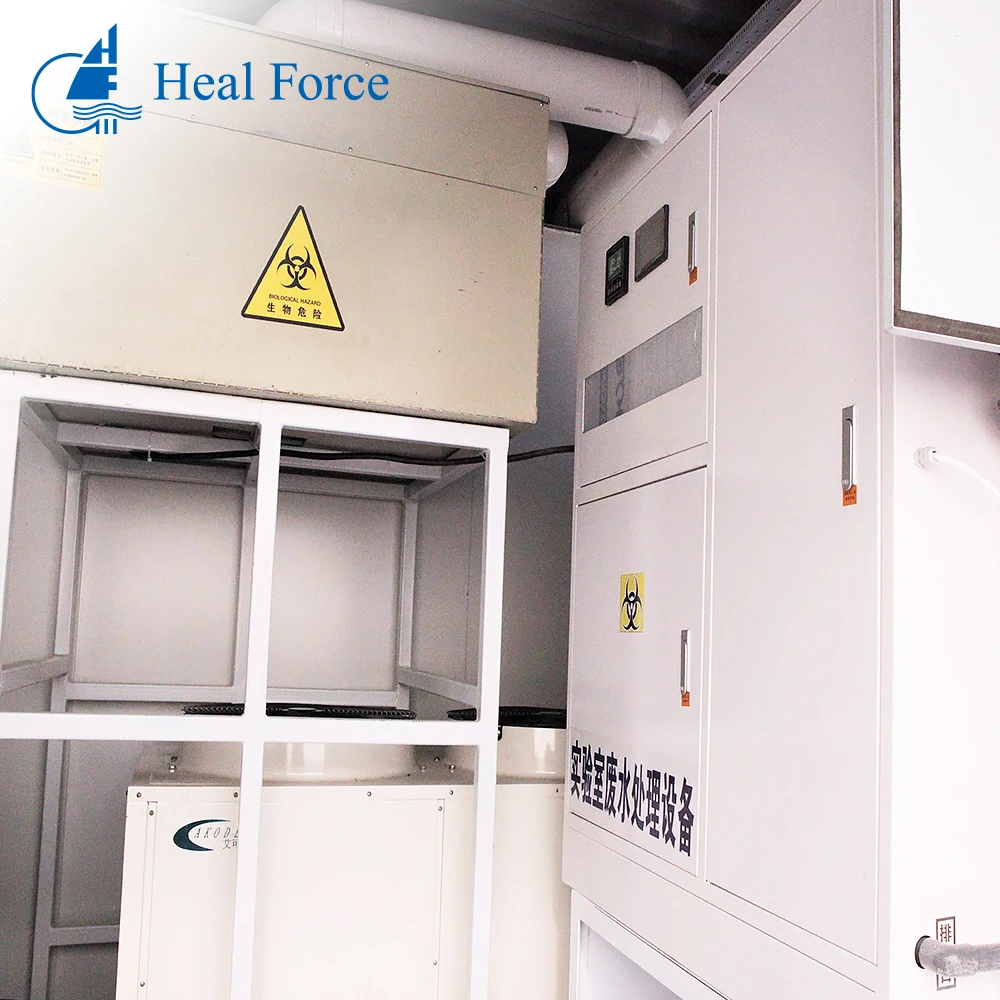

purification sewage system 1.Equipment integrated clean water tank and wastewater treatment equipment, Centralized control, high
degree of automation, without special person on duty; 2.The wastewater is collected, purified and discharged to meet the relevant
national standards； 3.Treat Various pollutants in wastewater by acid-base neutralization, precipitation, compound disinfection and

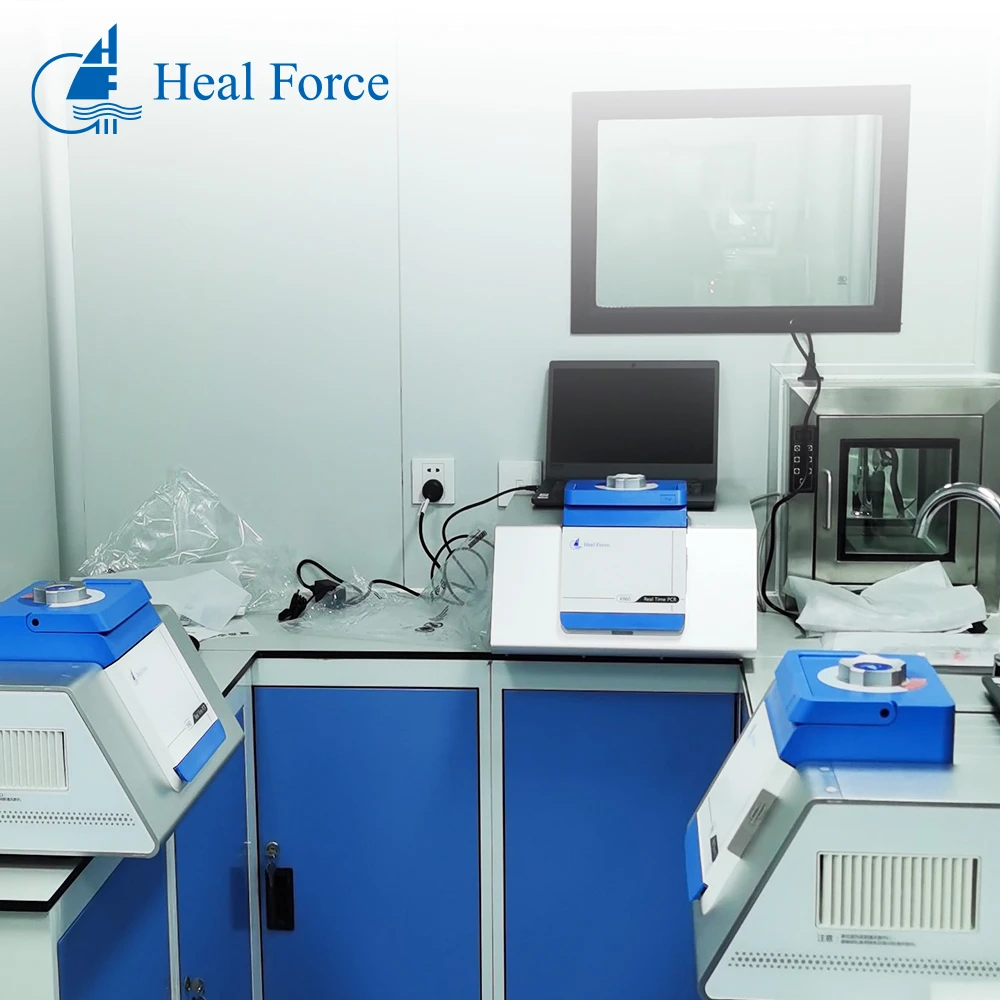

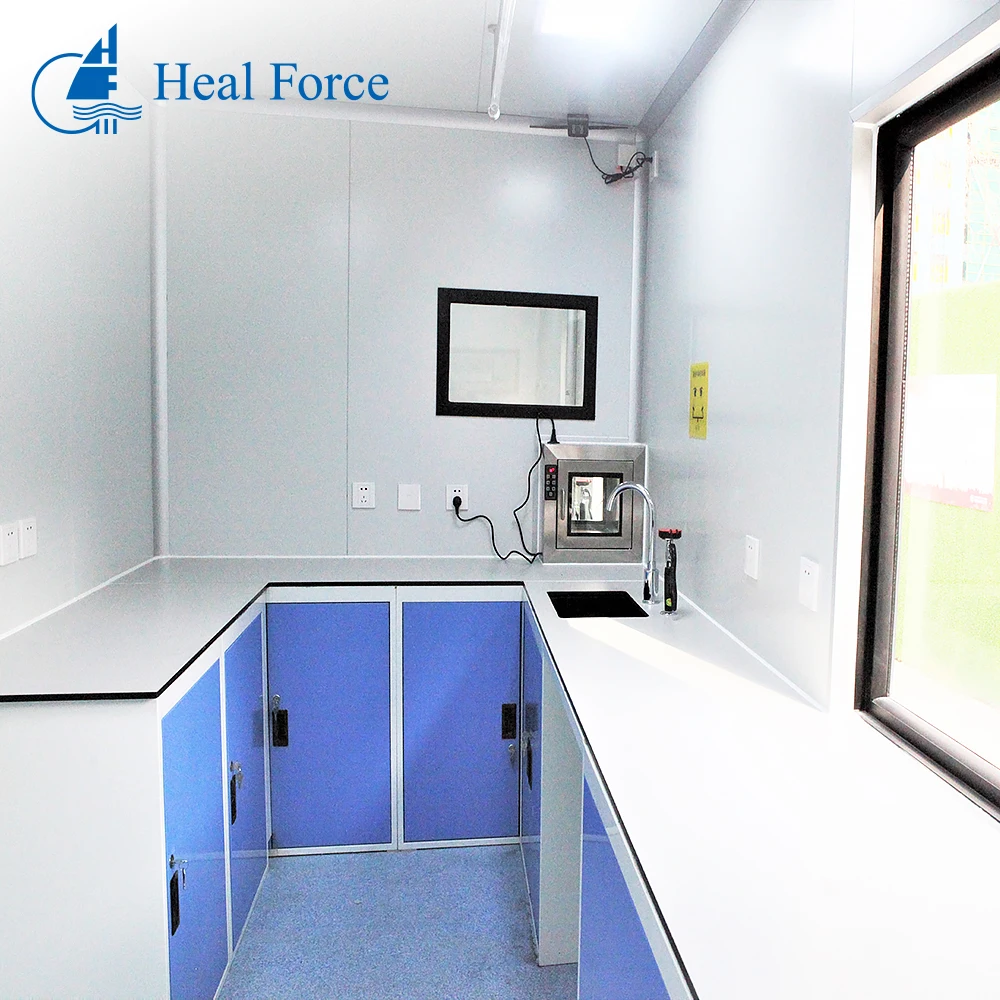

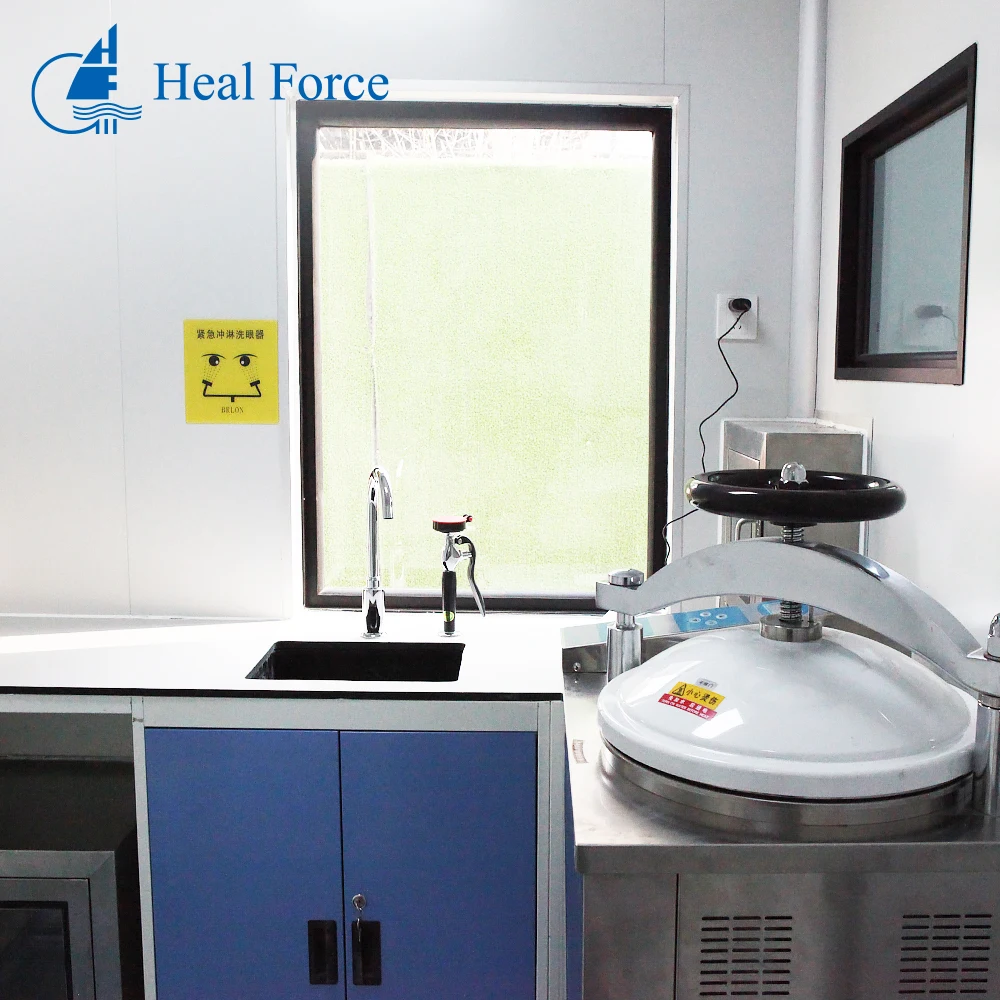

multi-medium filtration technology. Test bench 1.Solid core physical and chemical board table, corrosion resistance, wear
resistance, strong acid and alkali resistance, high temperature resistance, fire resistance; 2. Steel and wood frame, good
stability, adjustable foot support at the bottom; 3. Anticorrosive, antibacterial and anti-doubling board cabinet body; 4. Special
laboratory faucet, PP sink, eye washer, etc Intelligent control Unit 1.Intelligent control system, room temperature and humidity,
pressure gradient, lighting, UV lamp control; 2.Dynamic pressure control, automatic balance differential pressure change； 3.24
hours internal monitoring system to ensure the safety of the working area； 4.Communication telephone module, with external
communication function.
