Product Overview
Description
Product Overview

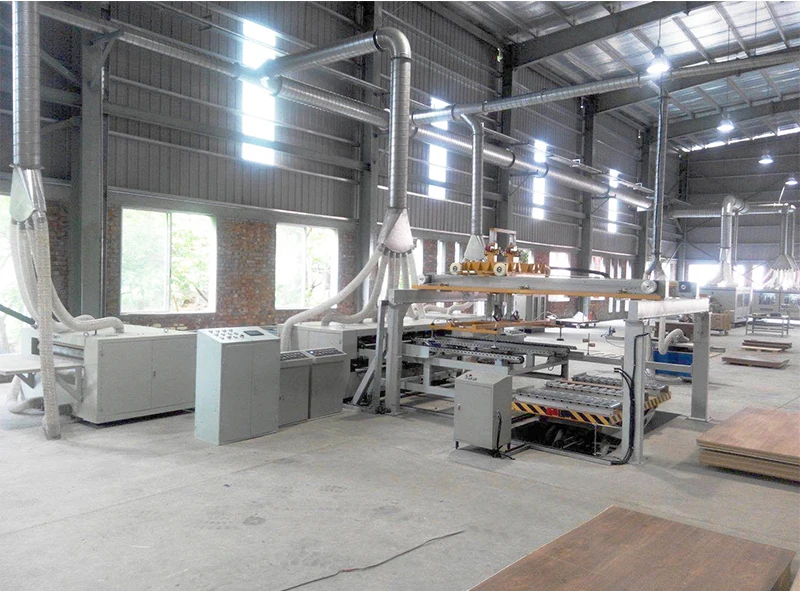

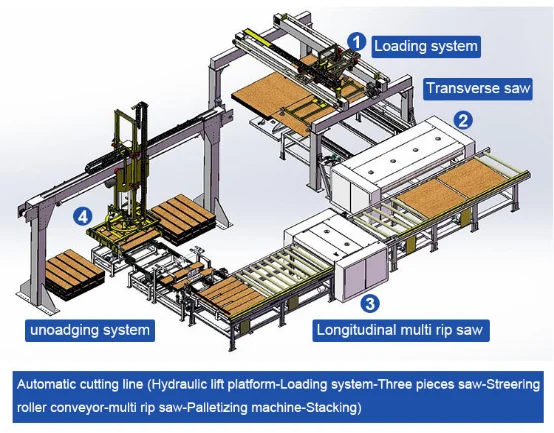

Automatic cutting line for laminate flooring
This cutting line main function is cut big board into some small boards.
High degree of automation, save labor, improve efficiency

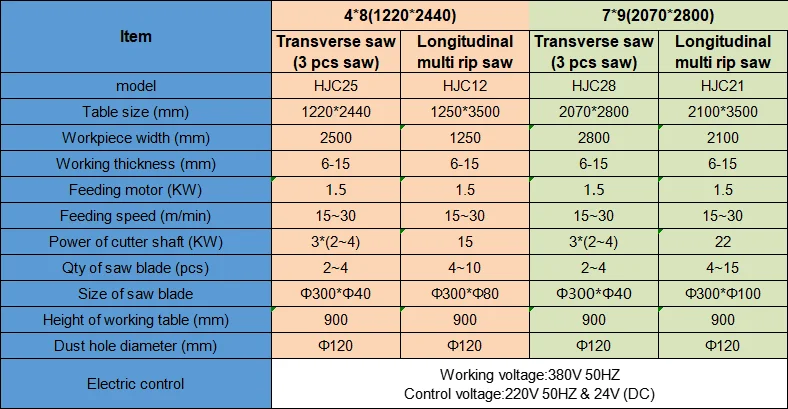

Equipment parameters
Details Images

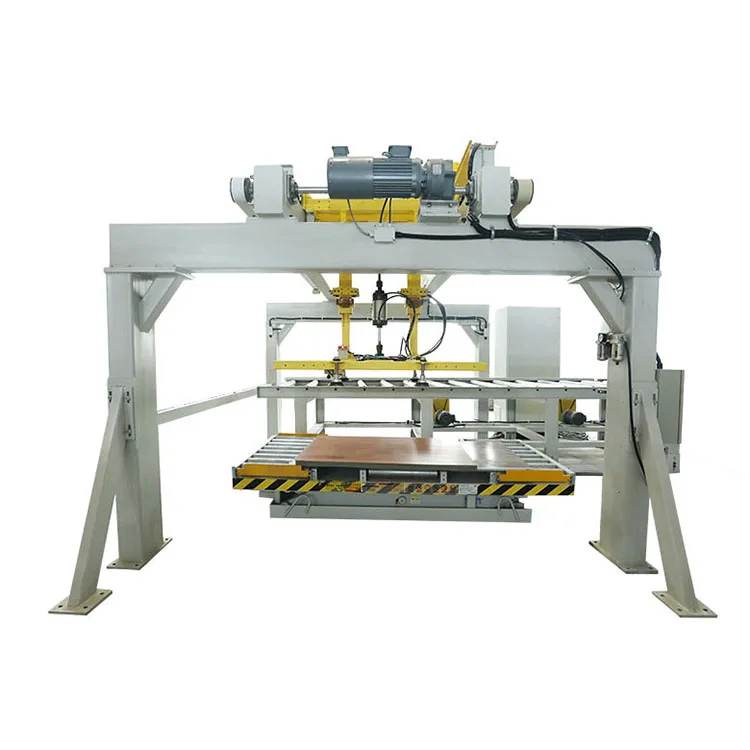

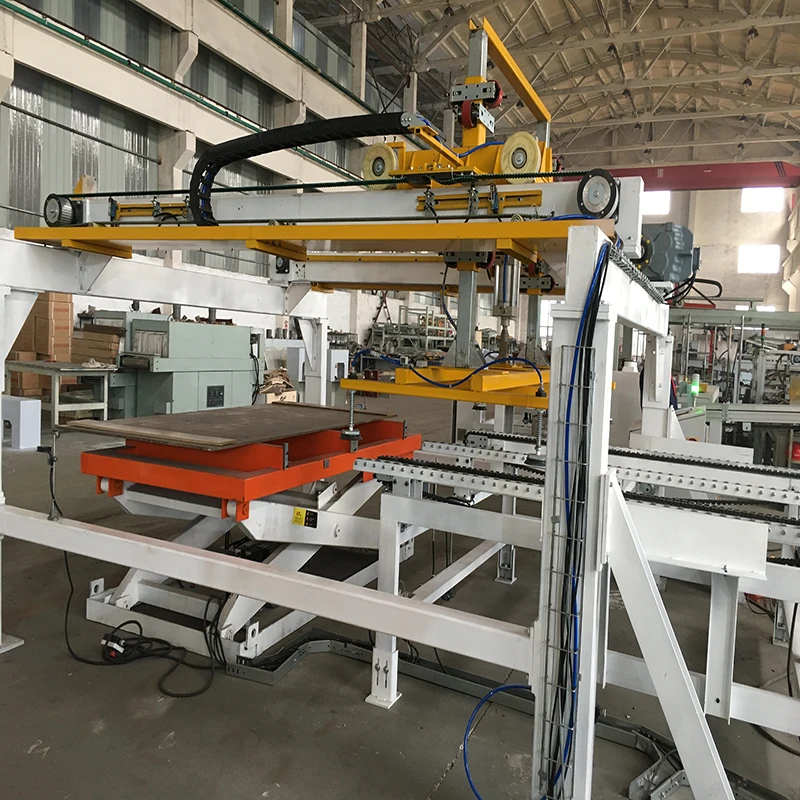

Automatic loading system
Include:lifting table,Automation suction feeding machine,Pull plate positioning machine.
Size:3700*3700*2680mm
Size:3700*3700*2680mm
Speed :5-8 pcs/min
Total power:6.25kw

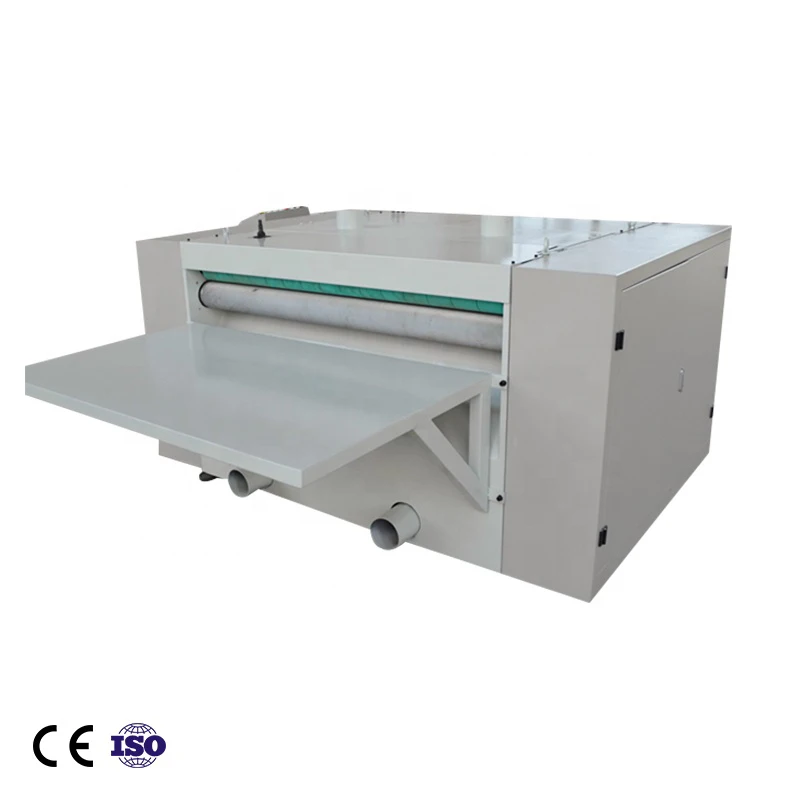

Transverse saw ( 3 pcs saw)
Cut the big plate(4*8,7*9 etc.) into two small pieces,prepare for cutting into multiple small plates.
Table size:1220*2440mm
Width:1200mm
Spindle power of saw:3KW*(2~4)
Feeding motor:1.5kw
Speed:15-30m/min
Table size:1220*2440mm
Width:1200mm
Spindle power of saw:3KW*(2~4)
Feeding motor:1.5kw
Speed:15-30m/min

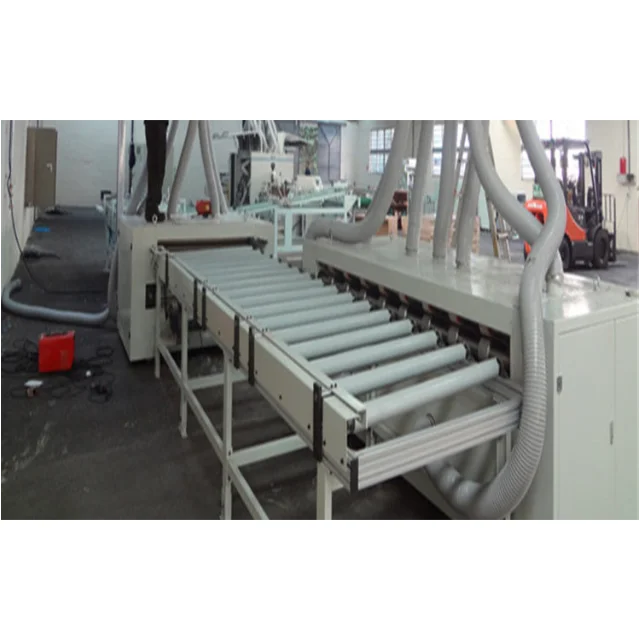

Roller conveyor
Speed：15-30m/min
Motor power：1.5KW
Motor power：1.5KW

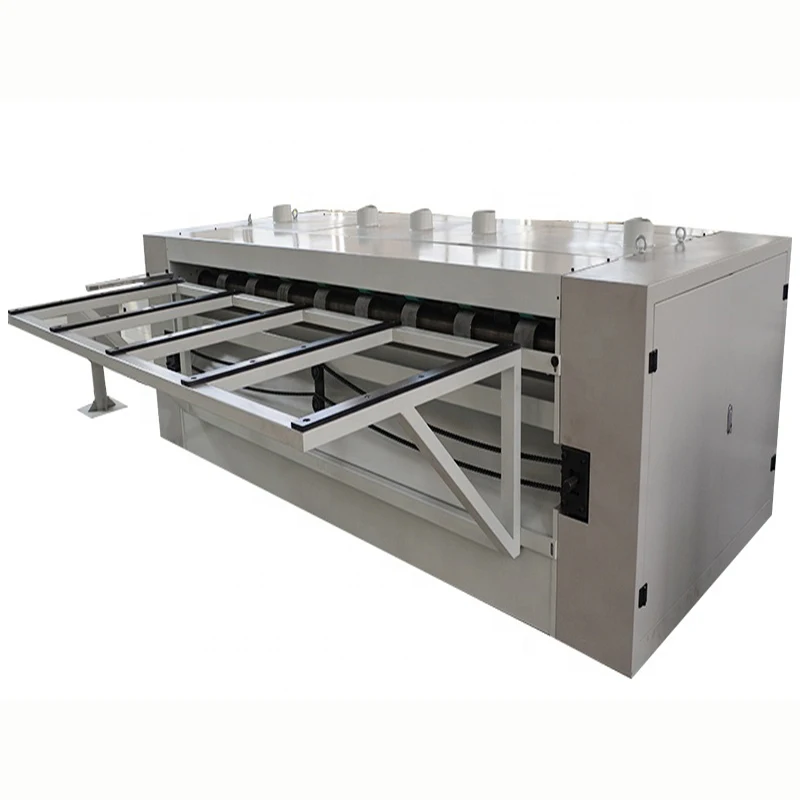

Longitudinal multi rip saw
Cut the board into small boards as needed width.
Table size: 1250*3500mm；
Width:1250mm；
Spindle power of saw：15KW; Outer dia:300*80 mm
Feeding motor:1.5 kW. Speed: 15~30m/min
Table size: 1250*3500mm；
Width:1250mm；
Spindle power of saw：15KW; Outer dia:300*80 mm
Feeding motor:1.5 kW. Speed: 15~30m/min

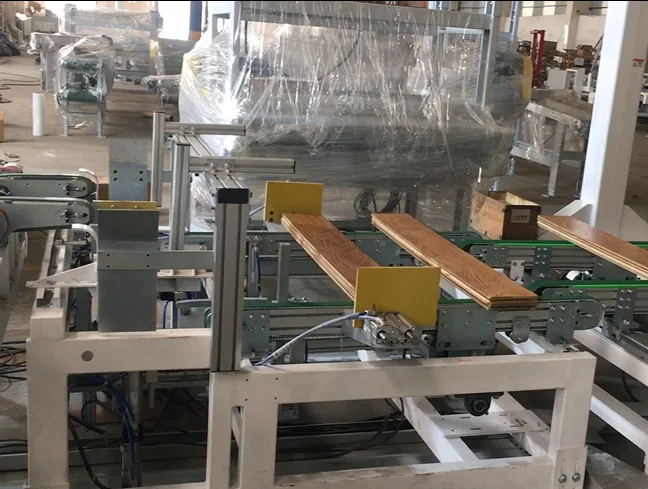

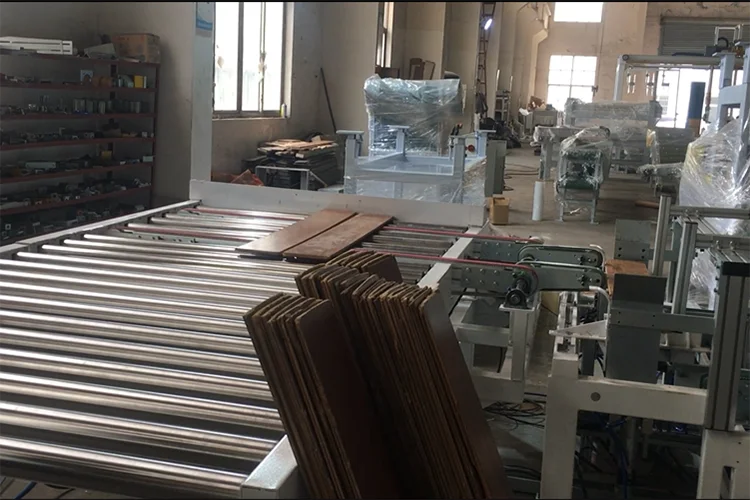

Roller conveyor+reversing conveyor
The board cut by multi -rip saw is sent to the reversing roller conveyor,then be reversed 90° and transported to the pallet machine.
Max speed:60 m/min
Power:0.75kw+0.75kw*2
Max speed:60 m/min
Power:0.75kw+0.75kw*2

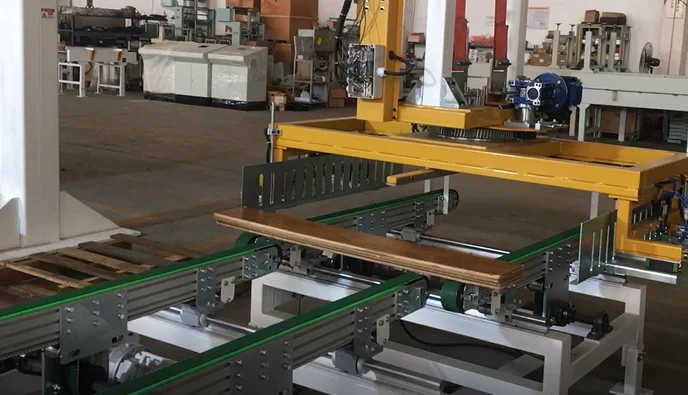

Palletizing machine
The board is laminated according to the required number of pieces ,positioning and then sent to the buffer belt conveyor.
Max speed:20 m/min
Power:0.75kw
Max speed:20 m/min
Power:0.75kw
Belt conveyor
Storage and transportation of stacked sheet,convey to the lower part of the stacking machine for palletizing.
Max speed:20 m/min
Power:0.75kw+0.75kw
Max speed:20 m/min
Power:0.75kw+0.75kw

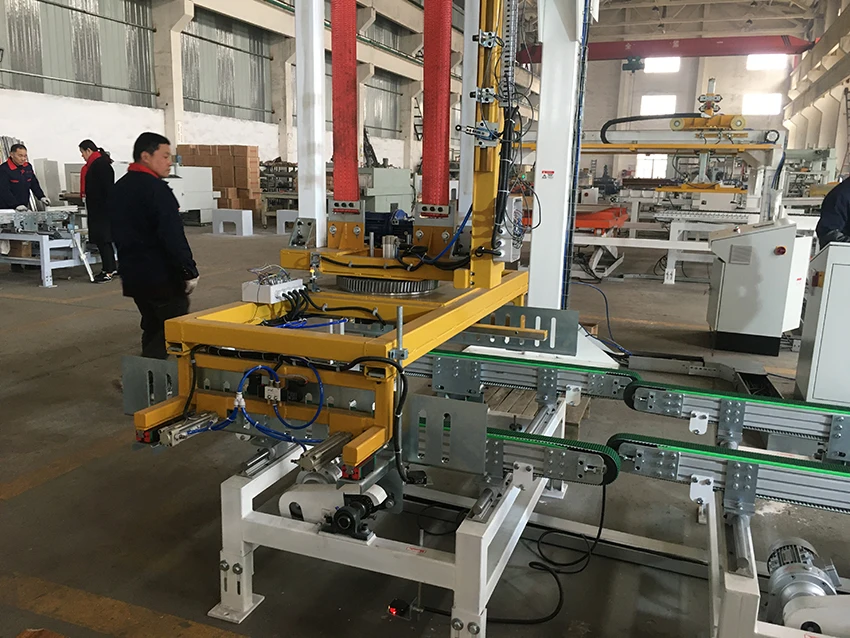

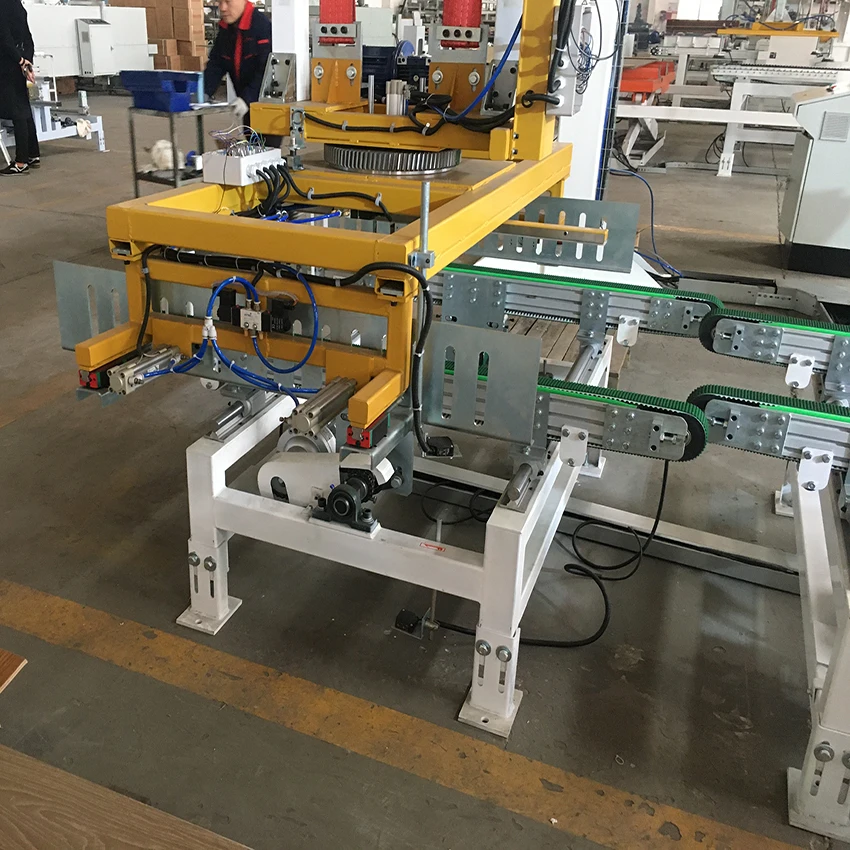

Automatic stacking machine
Automatic stacking of pallet board for storage.
Speed:5~6 times /min
Power:5.5kw+1.5kw
Speed:5~6 times /min
Power:5.5kw+1.5kw
