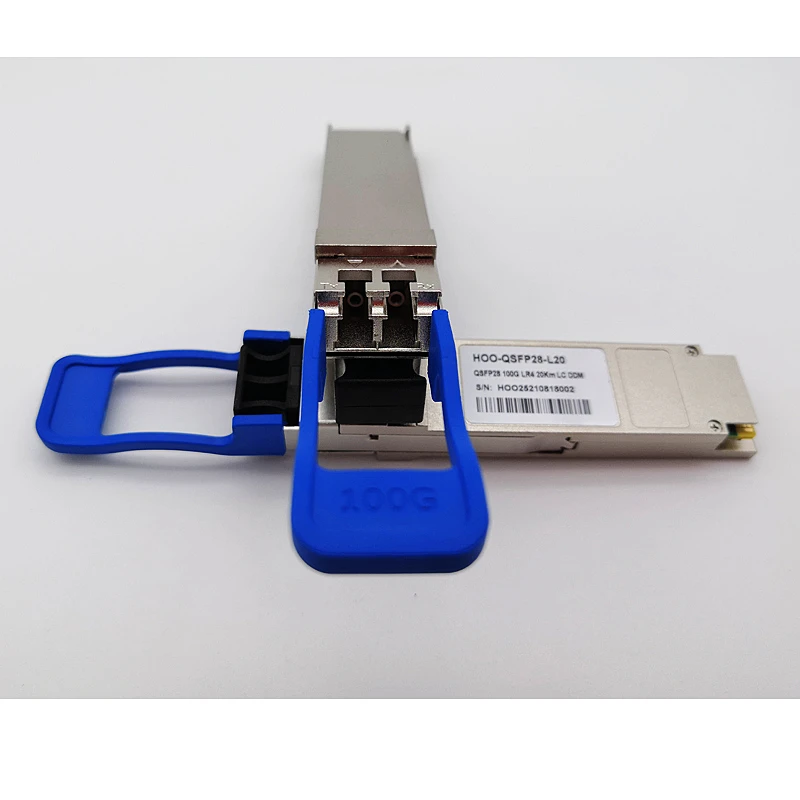

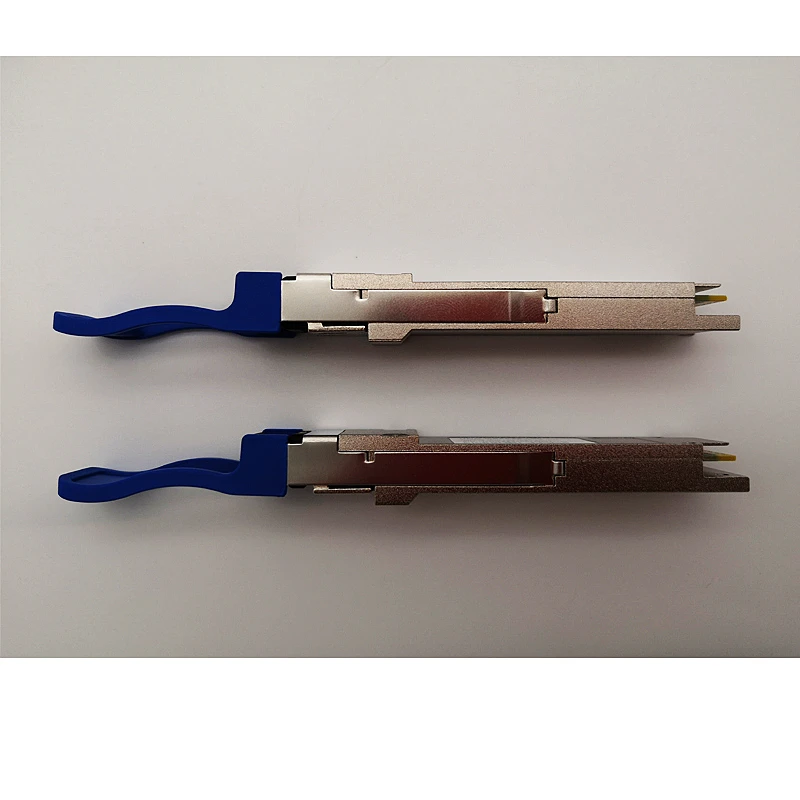

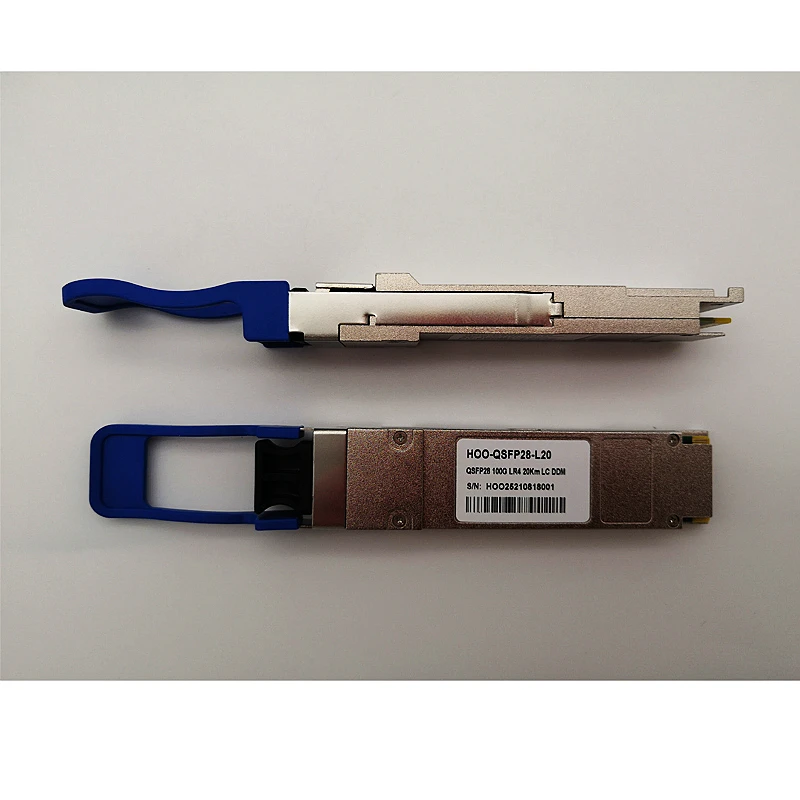

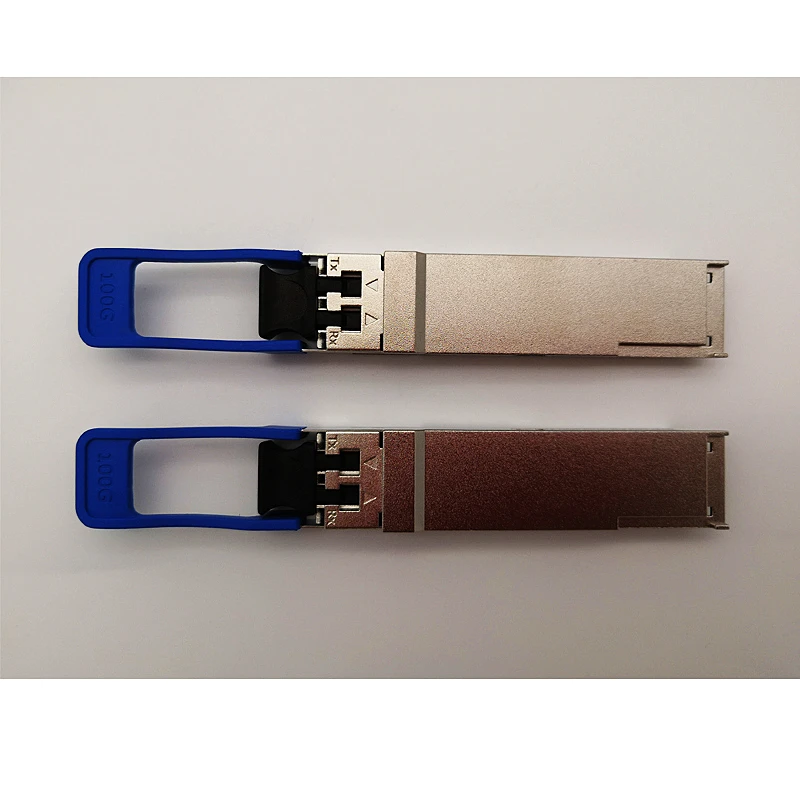

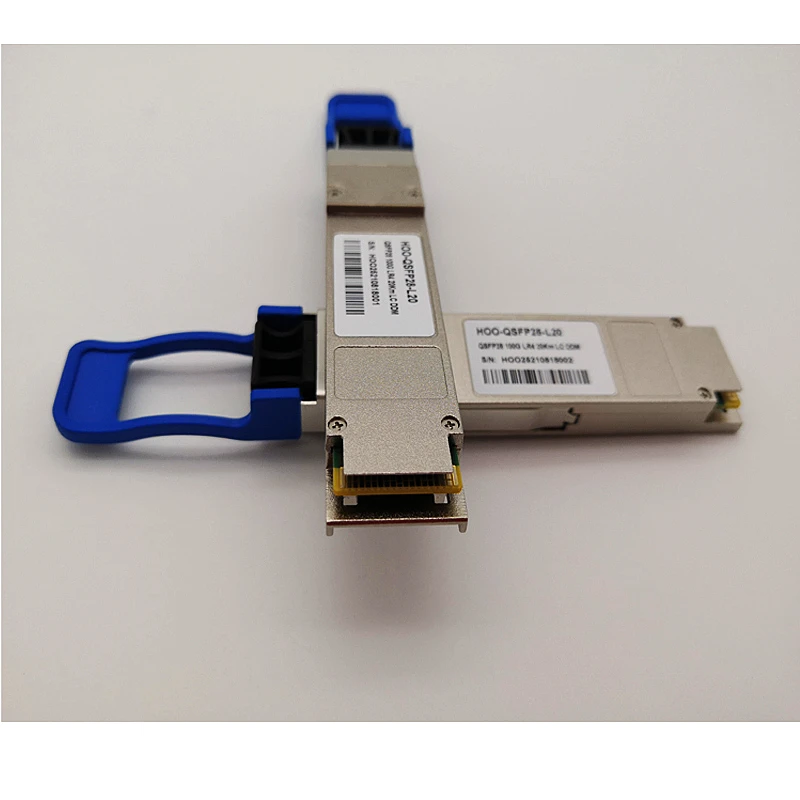

100G QSFP28 LR4 20KM Singlemode Dual fiber CDR Factory Price

·     Model No: HOO-100G QSFP28-LR4 20

·     data rate: 100G

wavelength (nm): 1310

Source: DFB-PIN

Media Type: SMF

 tx power (dBm): -4.3~4.5

 rx sens (dBm): -10.6

temp.: 0°C~+70°C

connector: 2xLC

DDM: with

reach: 20KM

certificate: CE,RoHs,FCC

brand: HOOOSI

Features

 Supports 103.1Gbps aggregate bit rates

Single 3.3V Power Supply and Low Power dissipation

 Up to 100m transmission on MMF OM4 and 10km/2km over SMF.

 Hot-Pluggable QSFP Footprint

 Class 1  and IEC60825-1 Laser Safety Compliant

 RoHS6 Compliant

Operating Case Temperature Standard: -5~+75C

 Compliant with QSFP MSA Specification

I2C interface with integrated Digital Diagnostic Monitoring

 4x25G electrical interface

Applications

High-speed interconnects within and between switches, routers and transport equipment

Server-Server Clusters, Super-computing interconnections

Proprietary backplanes

Interconnects rack-to-rack, shelf-to-shelf, board-to-board, board-to-optical backplane

100GBASE-LR4 Ethernet links

100GBASE-SR4 applications

100GBASE-LR4 Lite 2km applications
