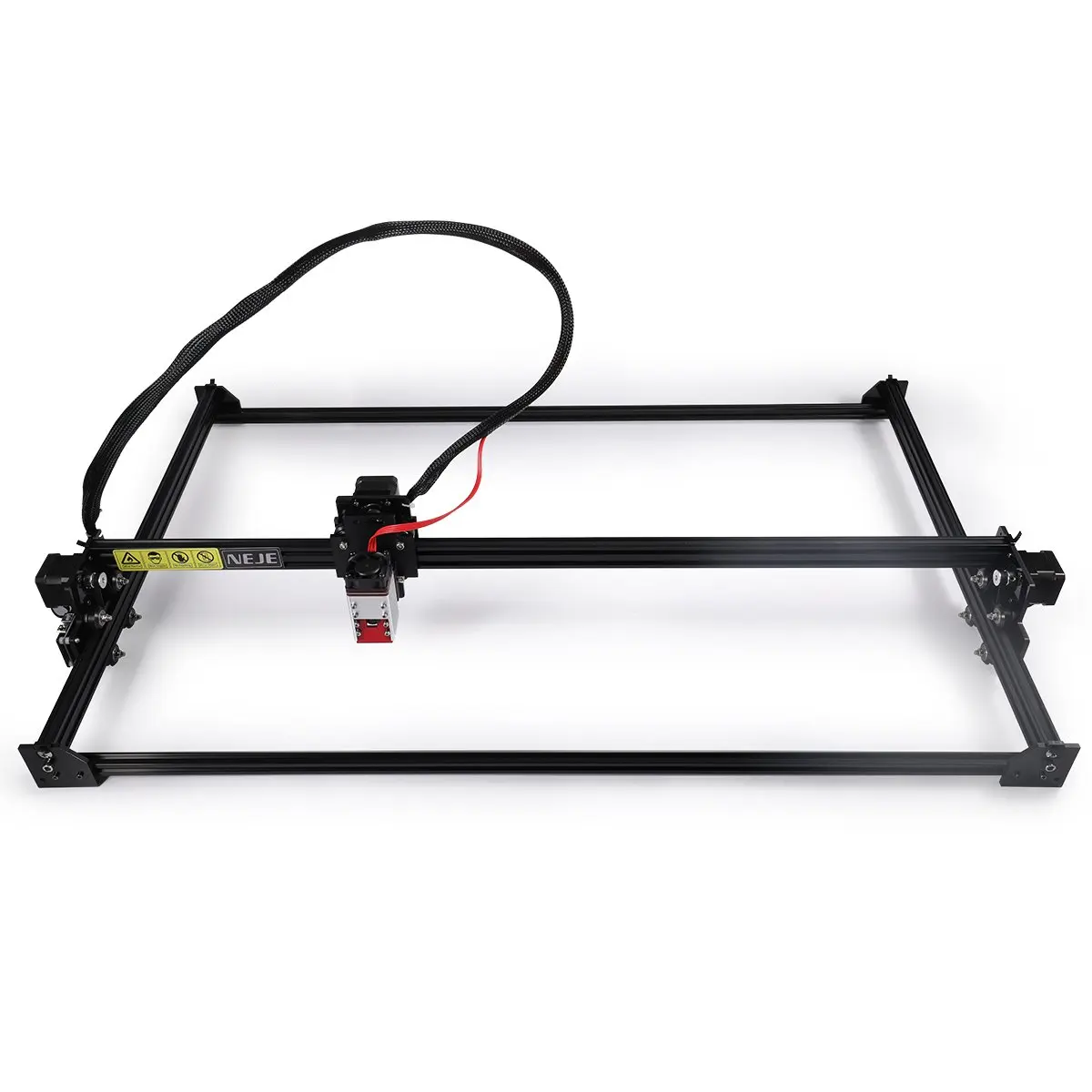

NEJE MASTER 2S MAX 30W LASER ENGRAVER / CUTTER WITH N40630 MODULE 460 X 810 MM LASERGRBL LIGHTBURN APP CONTROL

NEJE MASTER 2S MAX 30W LASER ENGRAVER / CUTTER WITH N40630 MODULE - 460 X 810 MM - LASERGRBL - LIGHTBURN - APP CONTROL

Features

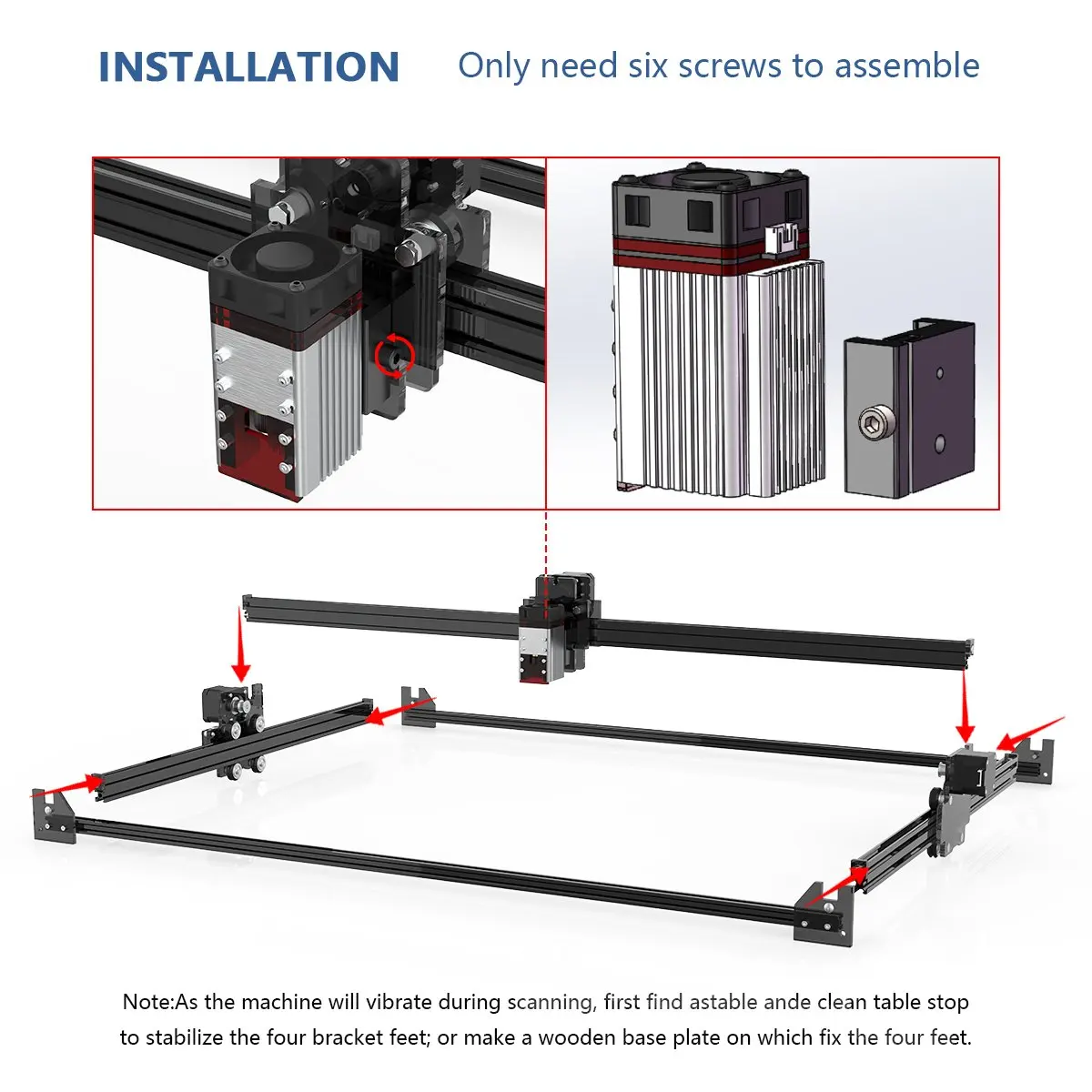

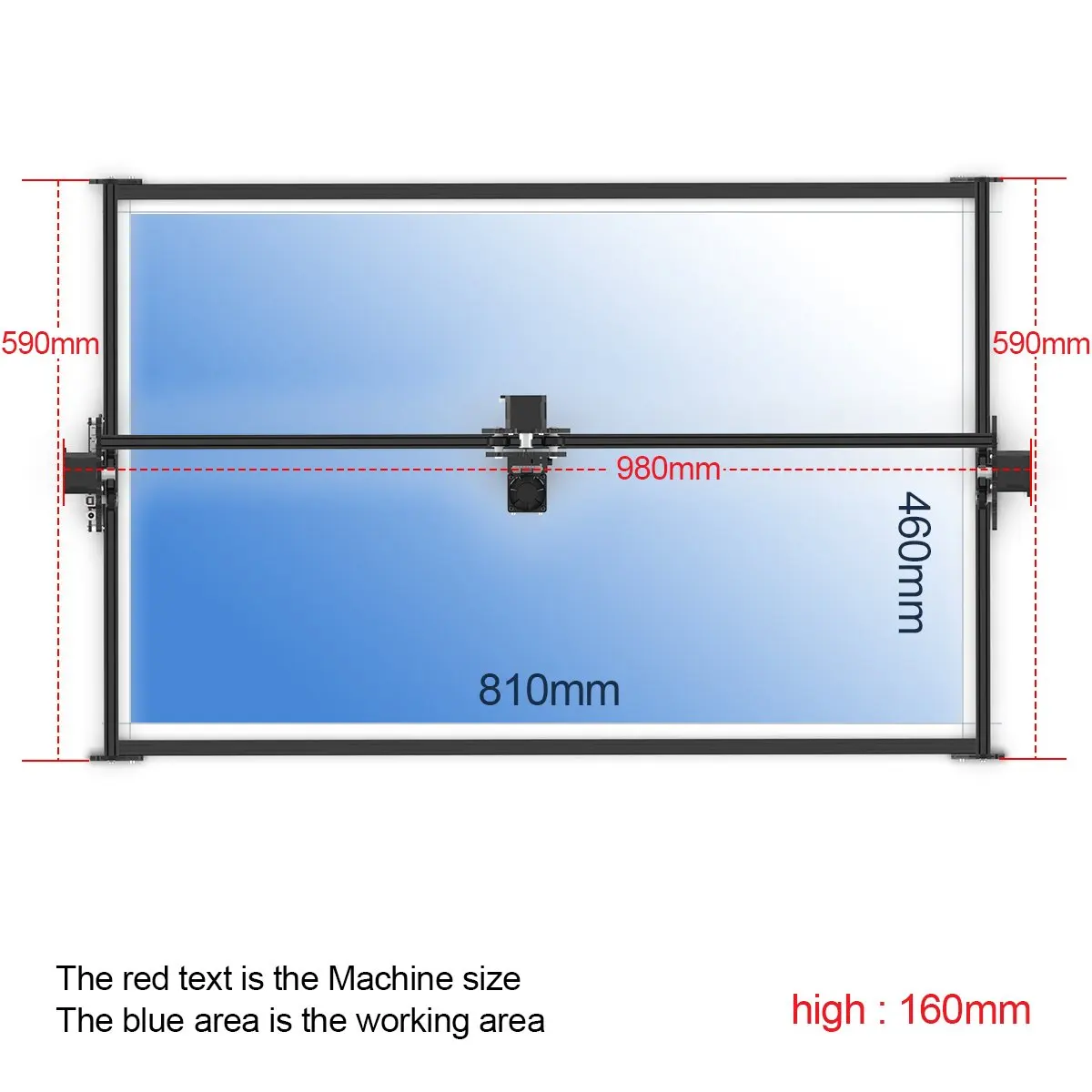

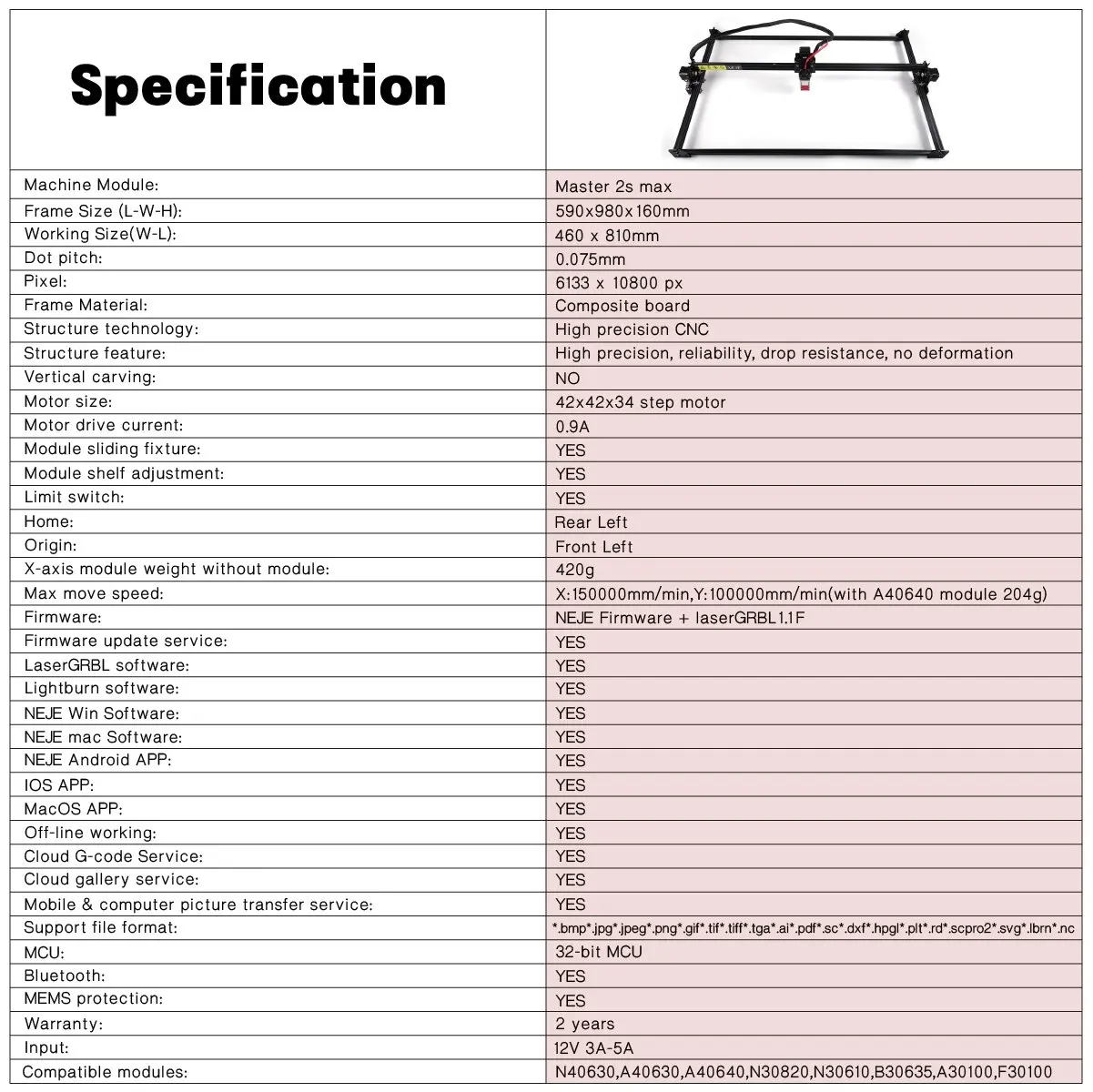

- [810 x 460 mm] large engraving area. 6133 x 10800 px, Engraving accuracy: 0.075mm Dot pitch, 339 dot/inch. The whole machine is tested and shipped, and only 6 screws are required to complete the installation.

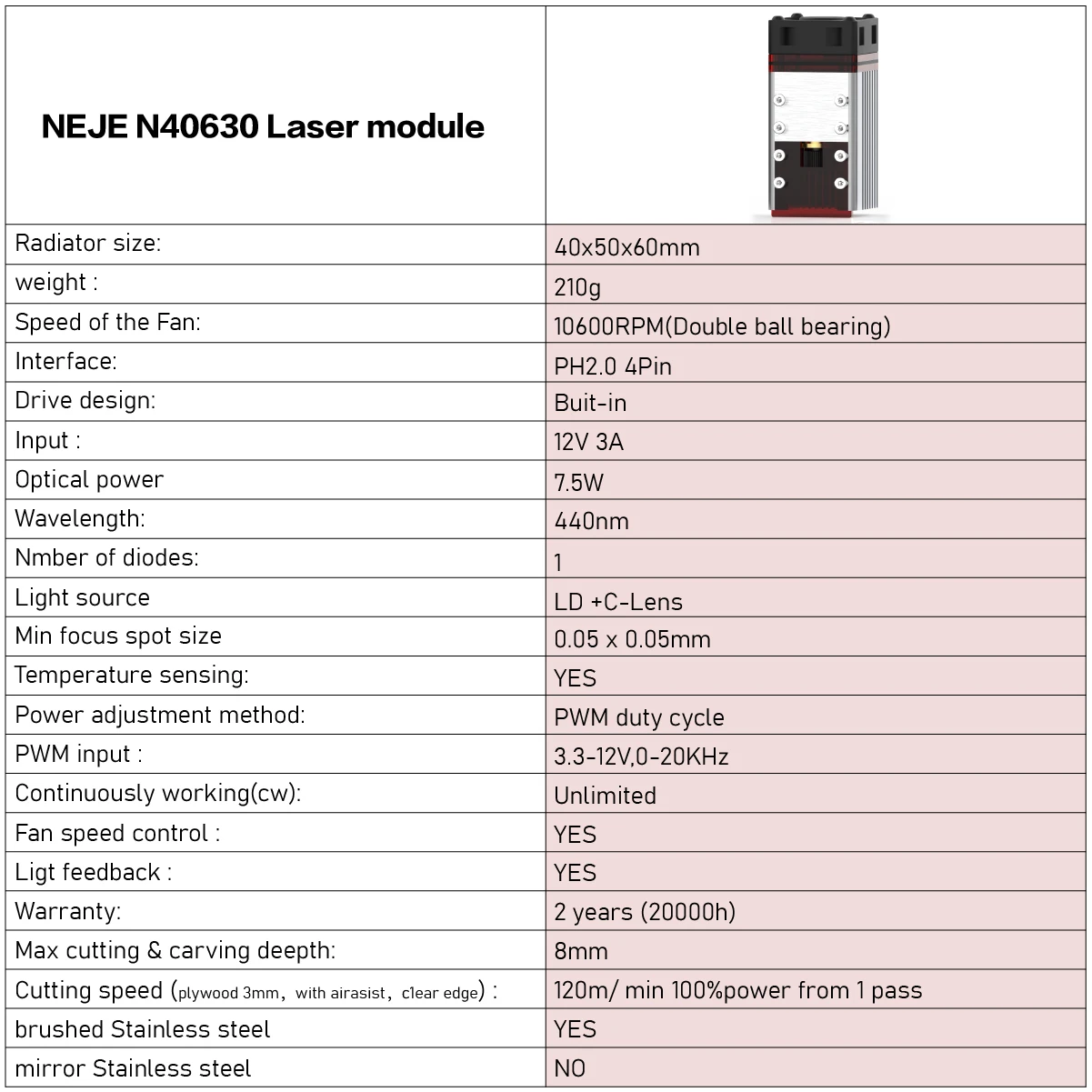

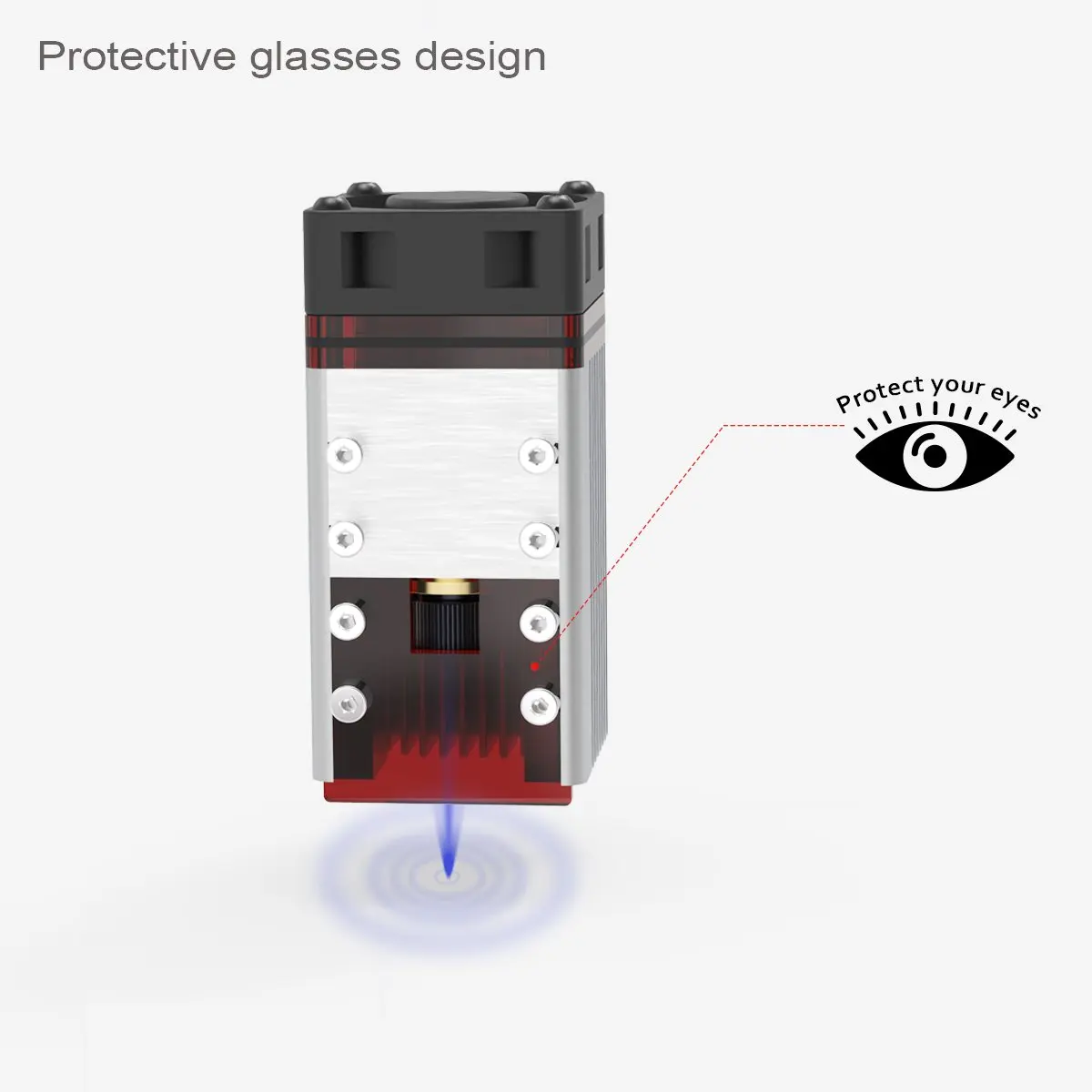

- [Advanced laser module] Support NEJE advanced laser module, Built-in fast intelligent drive, temperature feedback can be timely, and intelligently adjust fan heat dissipation. Safe and quiet to use. The minimum focus point reaches 0.05x0.05mm.

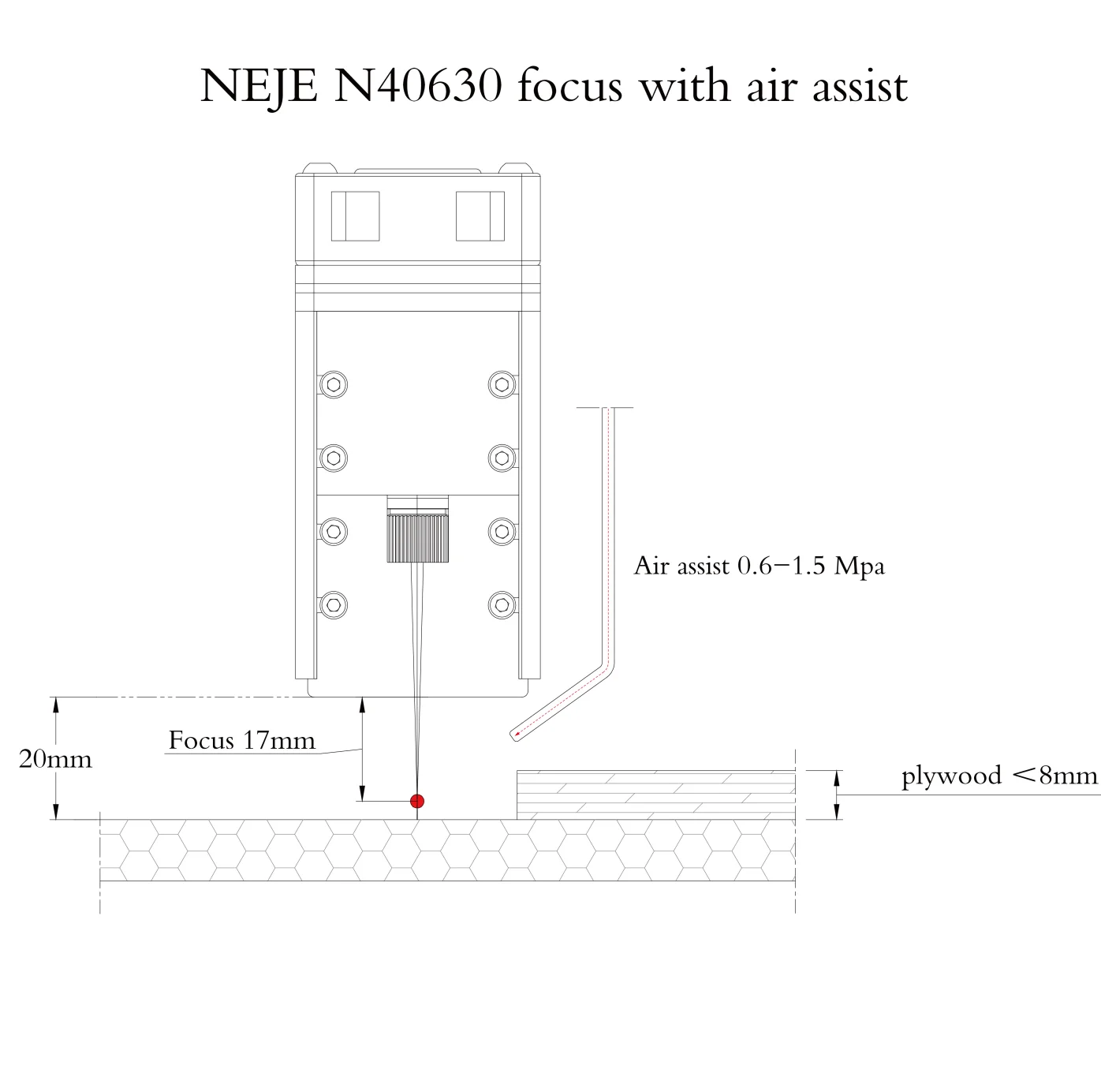

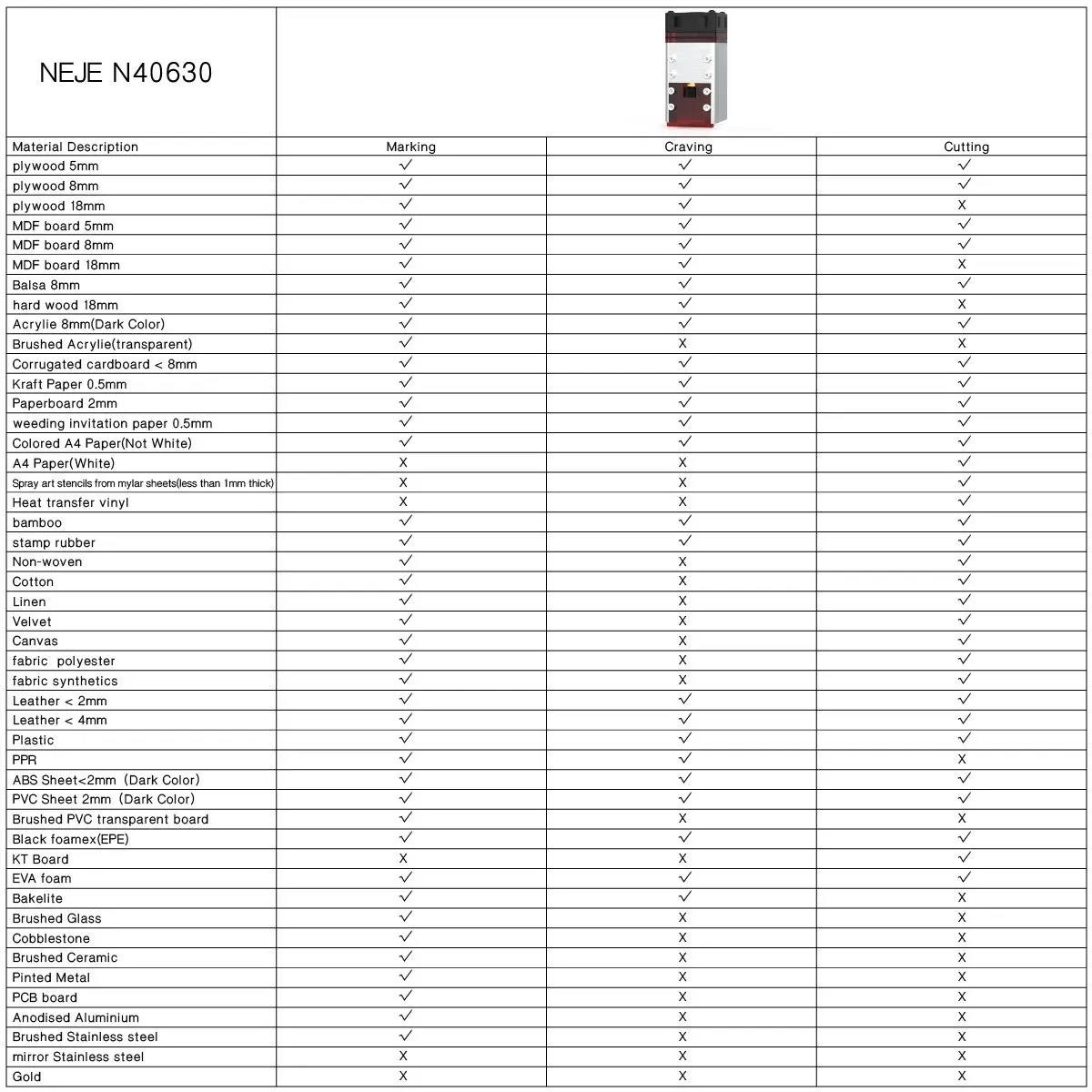

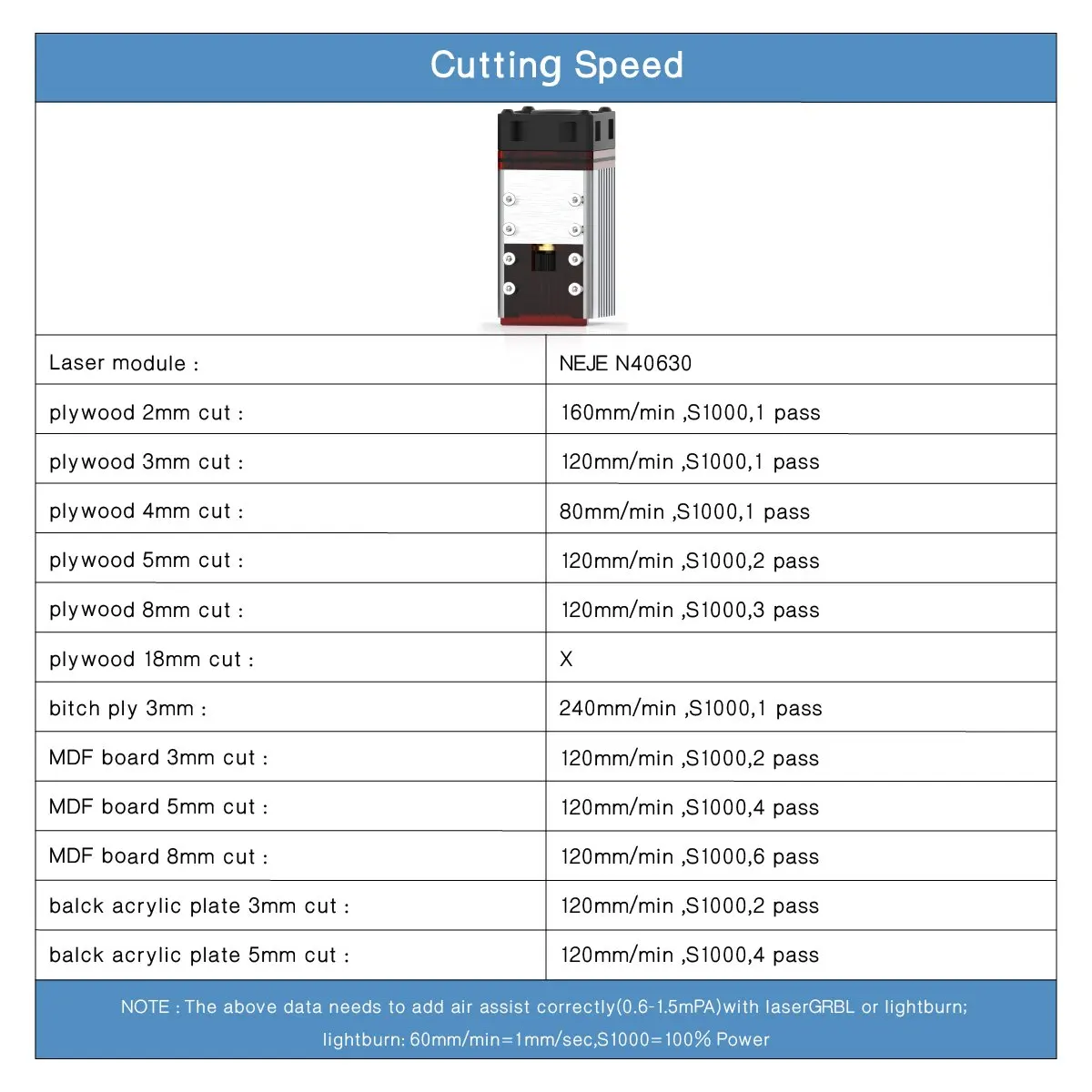

- [More materials and more clear] Wood, MDF, leather, paper, cotton etc. are all supported, 3mm plywood only needs to be cut once with air asist, the cut is very clean. Stainless steel, glass, transparent acrylic and other materials can be engraved in a certain way.

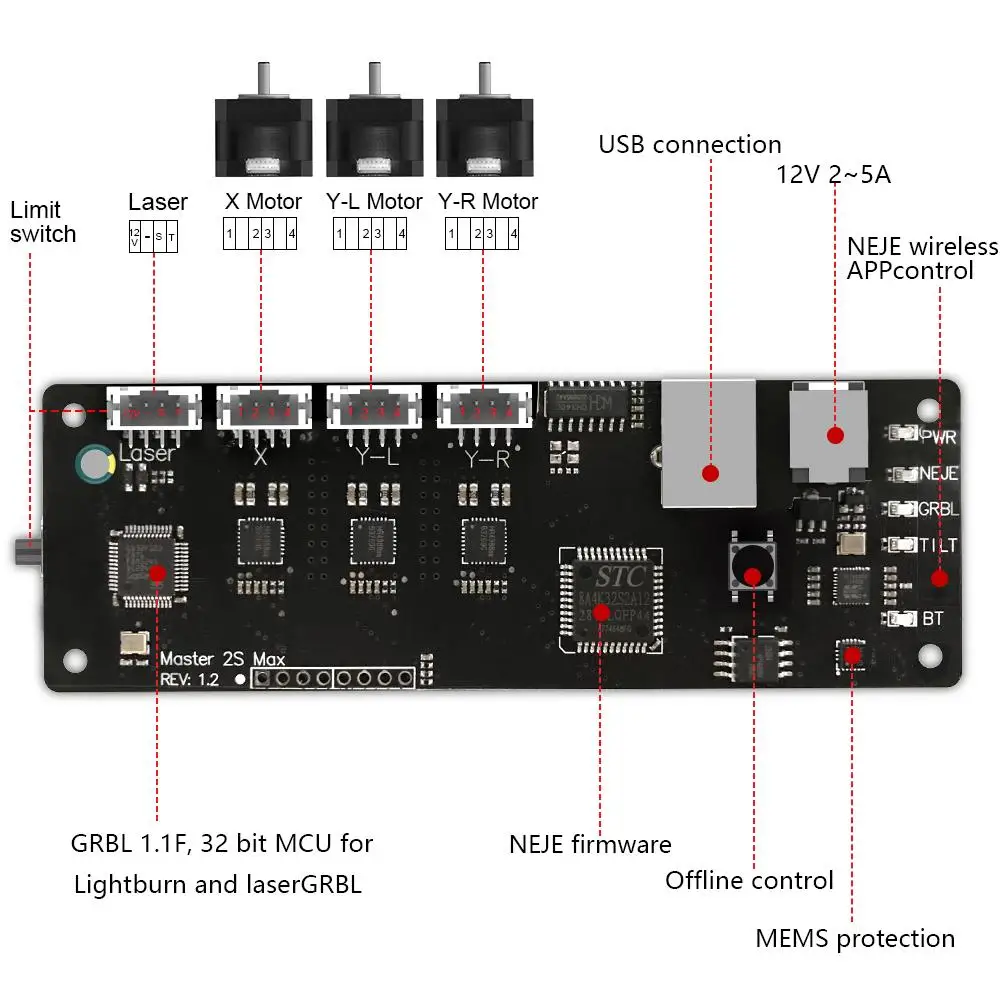

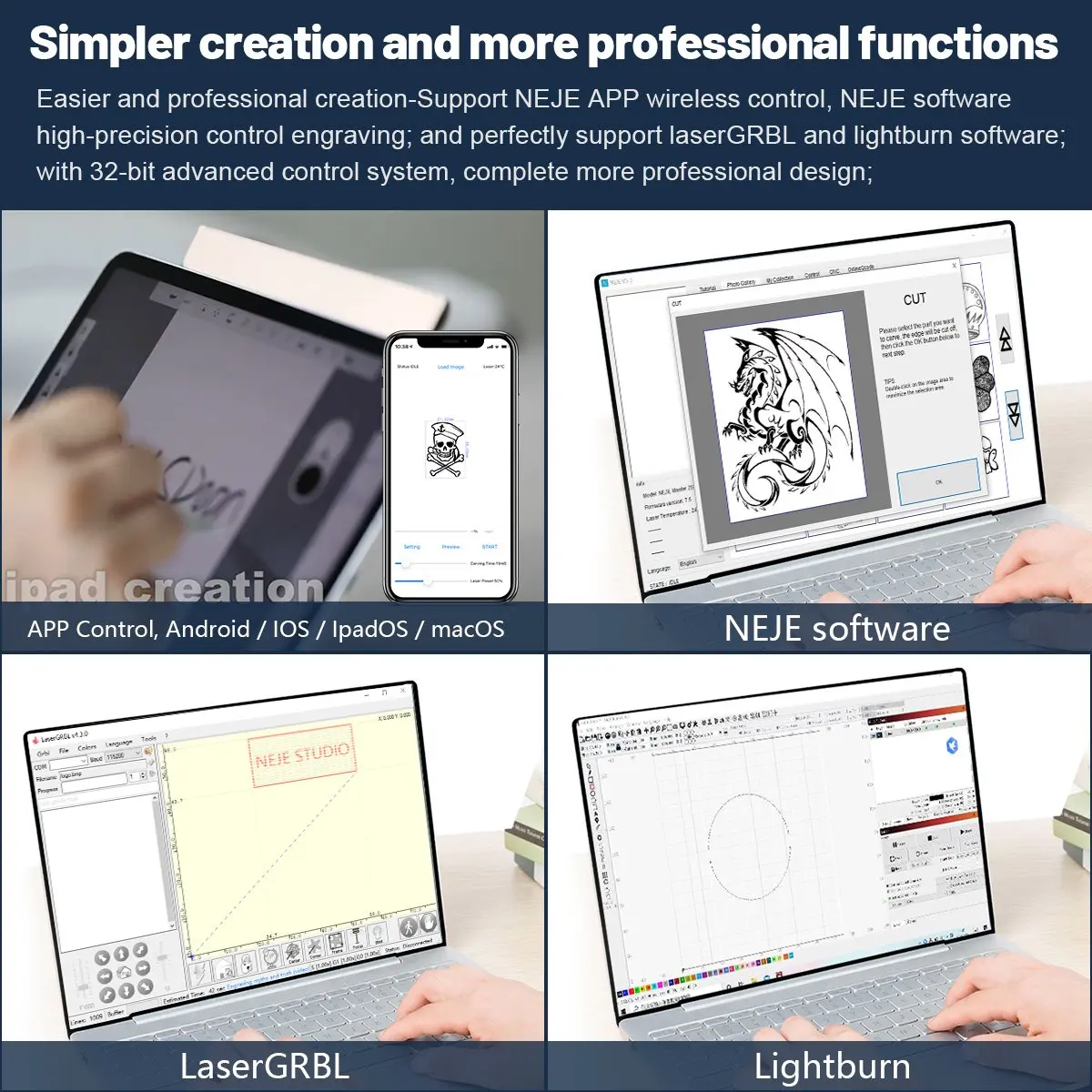

- [Portable professional control software] 32-bit control system, the fastest speed reaches 150000mm/min, supports LaserGRBL, Lightburn, NEJE software, NEJE APP (Android, iOS, ipadOS, macOS).

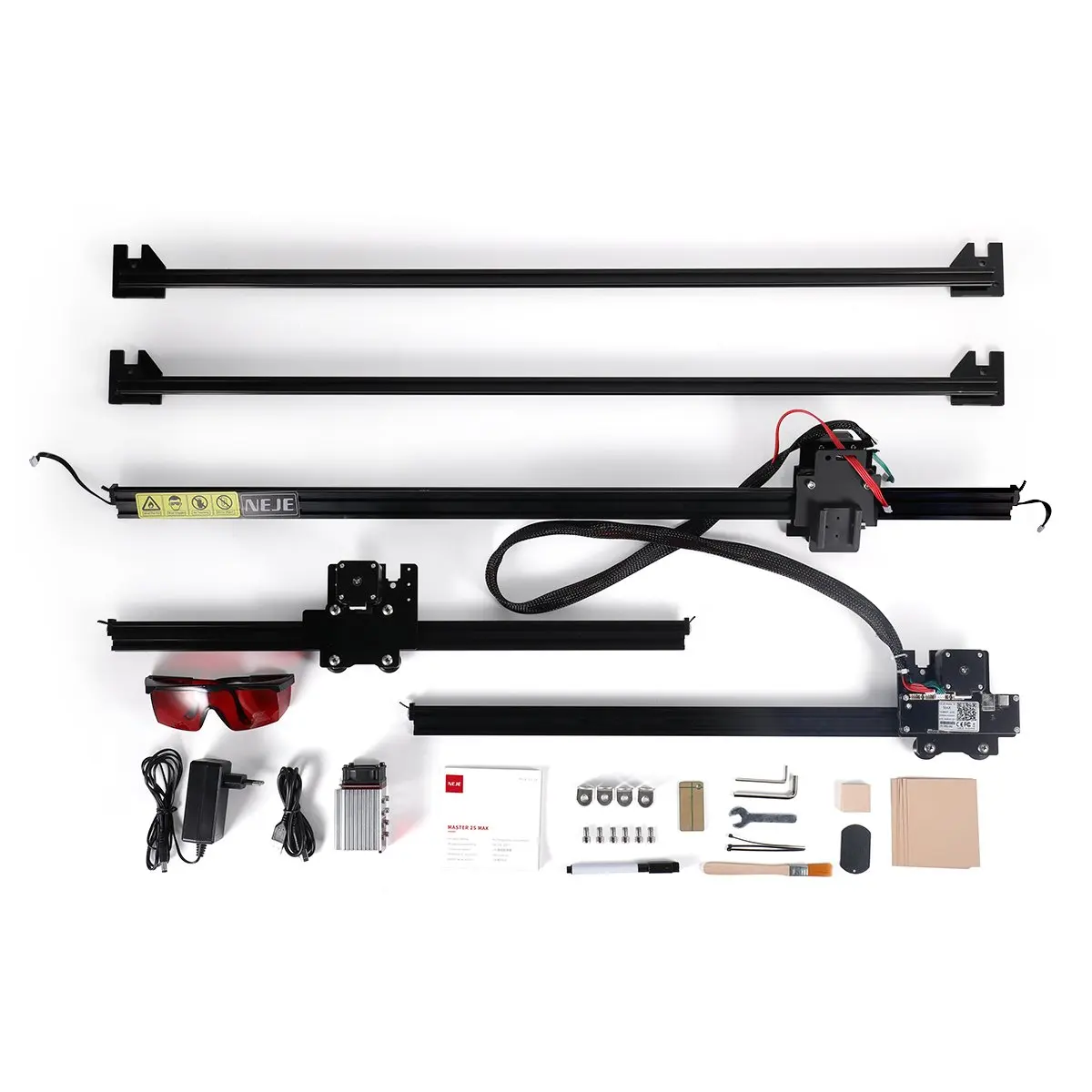

Package List:

Laser engraving machine x1
N40630 laser module x1
12V3A power supply x1
Manual x1
Goggles x1
(Data cable 1, wooden board 1, paper 5, pen 1, brush 1, focusing film 1, angle iron 4, alumina film 1, cable tie 3, nut 5, large hexagon wrench 1, small hexagon wrench 1, Open wrench 1)

Shipping Methods:

1. 1)Express(door to door):DHL/UPS/Fedex/TNT etc.

    2)Air/Sea Shipment: Please provide us your air port information.

2. The shipping cost depends different weight,we will choose the cheapest and safest way according your order.

3. Shipping time:Usually it will take around 4-5days by Express from China to destination country.Please note that 1-3 more days     will be needed for some remote place.

Shipment Time:

1. For samples within 1-3 workdays

2. Wholesales Orders : 2-5 workdays according to different quantities

3. OEM orders:7-10 days after receiving your sample confirmation and payment.

1 Q: Does this machine need to be assembled when I received it?

  A: This machine comes as a kit. You need to assemble it yourself. All tools and part are included

      in the kit.

2 Q:  How to assemble the kit?

   A:We'll provide whole assemble and operating manual,please share your email address,then we'll send to you.

3 Q: Are there software and instructions can I get it?

  A:You can get the software with machine which is a CD ,contact us for instructions.

4 Q: And what image format the software supports? Engrave Mode?

   A: Supported Image Format: jpg, bmp, svg, G-code

       Supported Engrave Mode: Photo, Word, Scan, Outline, Pixel Laser Engraving

5 Q: Whick type computer system can run its software?

  A:The software only support the Windows XP/7/8/10.

6 Q: What's the laser's lifetime?

   A: The laser module have over 6,000 hours lifetime.

 7 Q: What material can it engrave?

   A:Wood, bamboo, plastic, paper, leather, rubber,MDF.

8 Q:What material can it cut?

  A:wood, paper, thin leather.

9 Q:Can I use it to cut or engrave on metal?

   A:It can not engrave or cut on any metal.

10 Q: Can I regulate the laser power or the laser power is adjustable?

   A: Sorry that the Fixed laser power is not adjustable, but the engraving speed is adjustable.

11 Q: How long can the machine work continuously?

   A: It can work continuously about 45 minutes, after the laser mould cool down(about half of an hour), then start work again. Long time work continuously with shorten the laser module lifetime.

12 Q:My laser doesn't work, what should I do?

If the machine does not work, it might because:

A The wire connection is wrong.Please check the connection like the picture shown.

B Your computer could not support the software.Please use Win XP 7/8/10 to check it.

C Software problem .Please check whether wires are inserted rightly. And then check your data setting.

D The kit misses some accessories. Please compare with the instruction and tell us, we will solve it once you send us the email.

E Laser module/ driver board/power supply is broken.

   Please check which part is the main problem, and then send us a video to prove it.

   Or you can send us a video about your software setting, working laser and driver board. We will analyze it and give you a solution.

For more information,please contact us directly.
