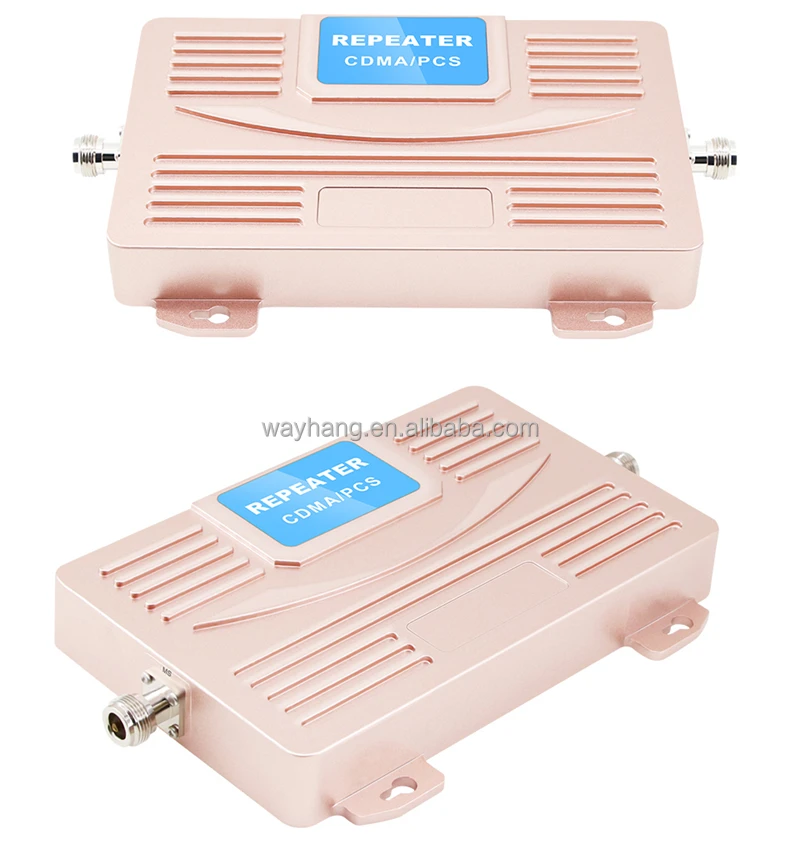

Dual Band Speed 2G 4G LTE CDMA PCS Smart mobile signal booster 4g cell phone signal repeater amplifier kit

Product Overview

Description

Why we should buy mobile signal repeater/ signal booster/ CDMA PCS amplifier :



Cell phone becomes especially helpful when people get into critical situations. In case of emergency a timely call can save somebody’s life.

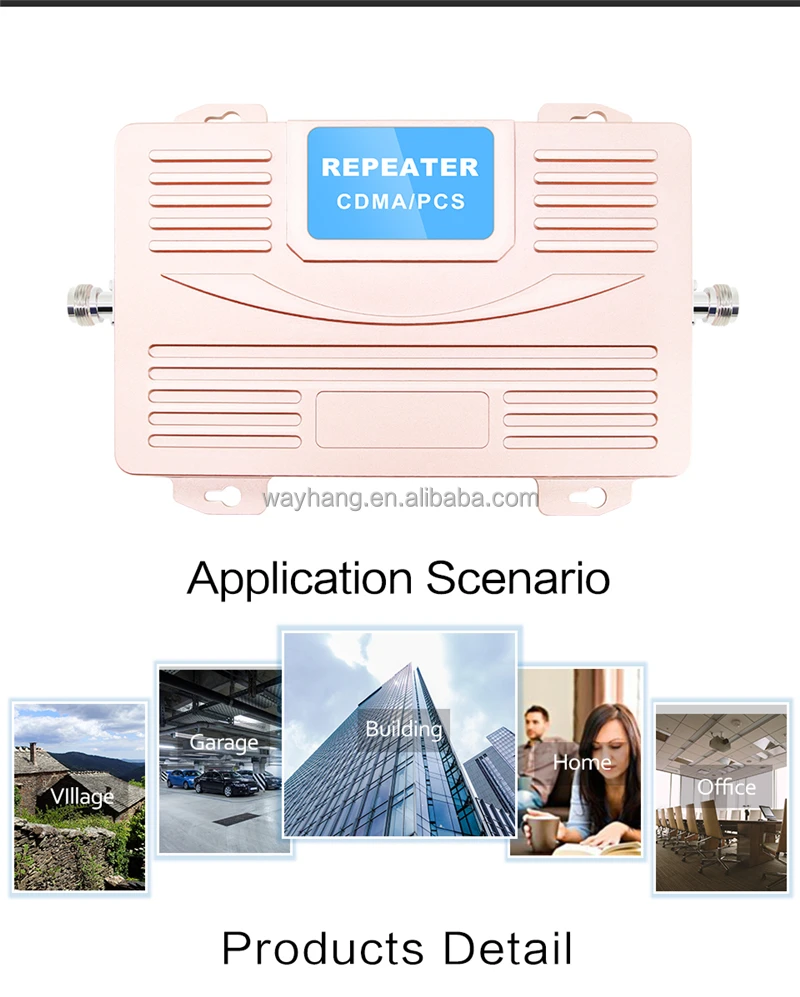

Unfortunately, there are still some places where one can find themselves “out of coverage”. Usually those places are either too far from the cell phone base station or located inside underground constructions, for example:



Parking lots, tunnels

Big stores, office buildings

Cars, boats etc.

House in remote areas etc



How is  mobile phone signal repeater GSM/DCS/ 2G/3G/4G WORKING ?



•The outside antenna catches the low signal from the mobile base station and delivers it to the cell phone amplifier through the connection cable (coax).

•After the signal is accepted by the phone amplifier, the device amplifies it.

•Then this amplified signal goes through the connection cable (coax) to the inside antenna.

•And after that, the amplified signal transmits to the cell phone.







Features:
The mobile signal repeater provides the ultimate solution in any area where communications can not work properly due to signal leakage, without interference, and could also improve the indoor electromagnetic environment.
Economical and practical, safe and reliable, communication fluency.
LCD display, mini design, lighting protection, wide coverage.
Use ALC technology, adjusting the range automatically.
Easy to install and use, can solve the signal problems.
Low radiation value, safer and no harm to the human body.
Perfect for house, home, office and so on to use.

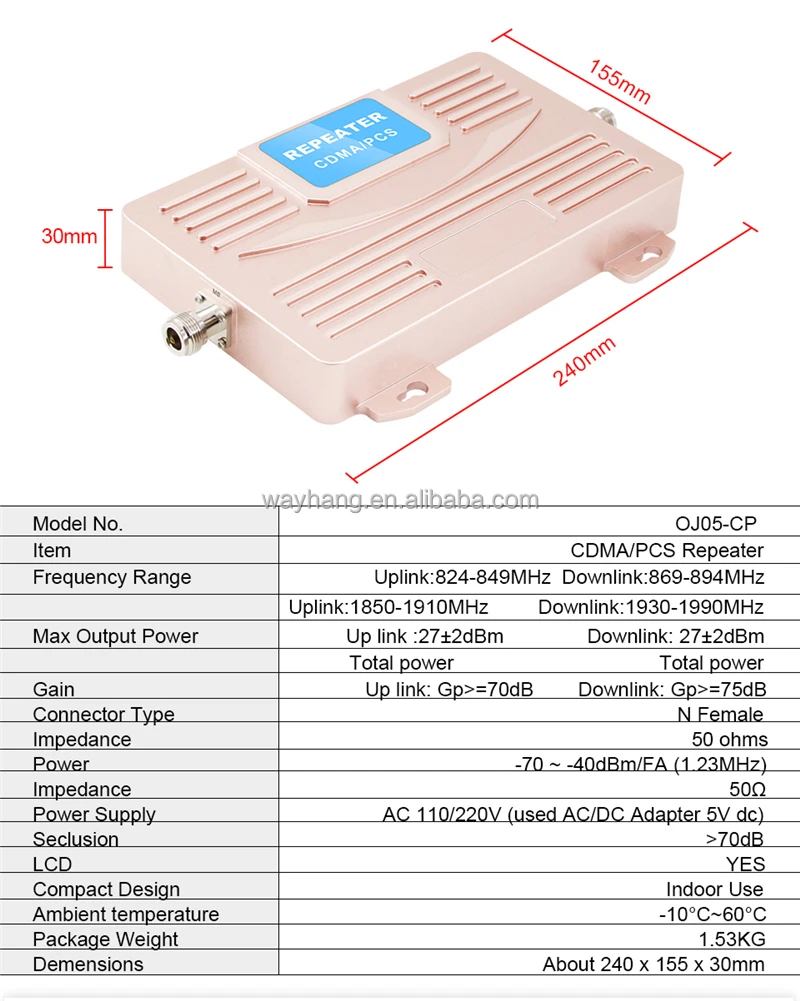

Specifications:
Main material: ABS+metal
Color: white+black

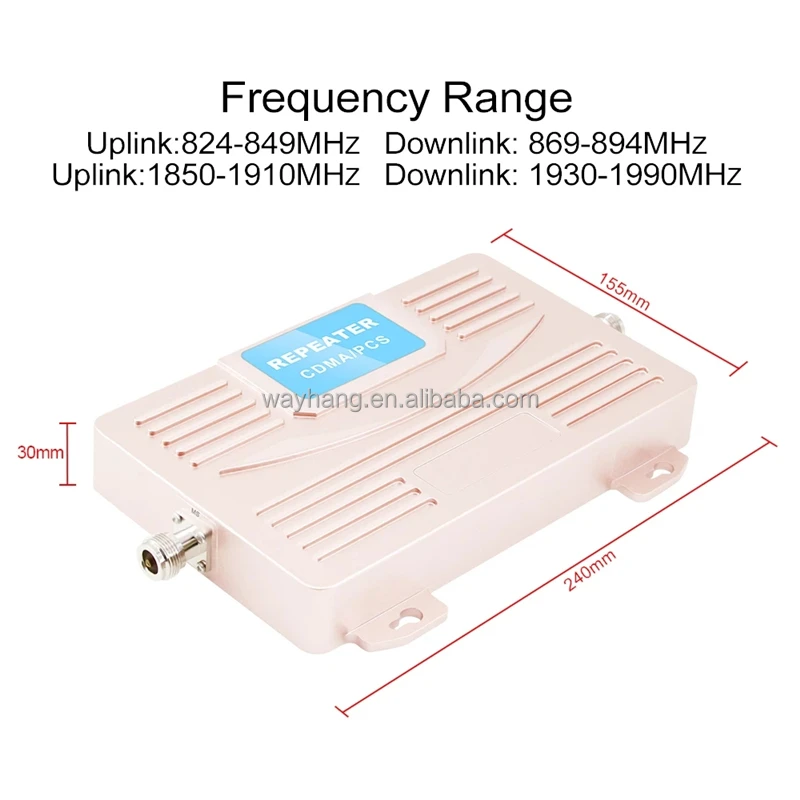

Uplink frequency: 824-849MHz /1850-1910MHZ
Downlink frequency: 869-894MHz/1930-1990MHz
Power: -70~-40dBm / FA (1.23MHz)
Gain: 68±3DB
Max output power: +23dBm / ±3DBM total power
Impedance: 50Ω
Seclusion: >70dB
Power supply: AC 110-220V
Connector type: N female connector

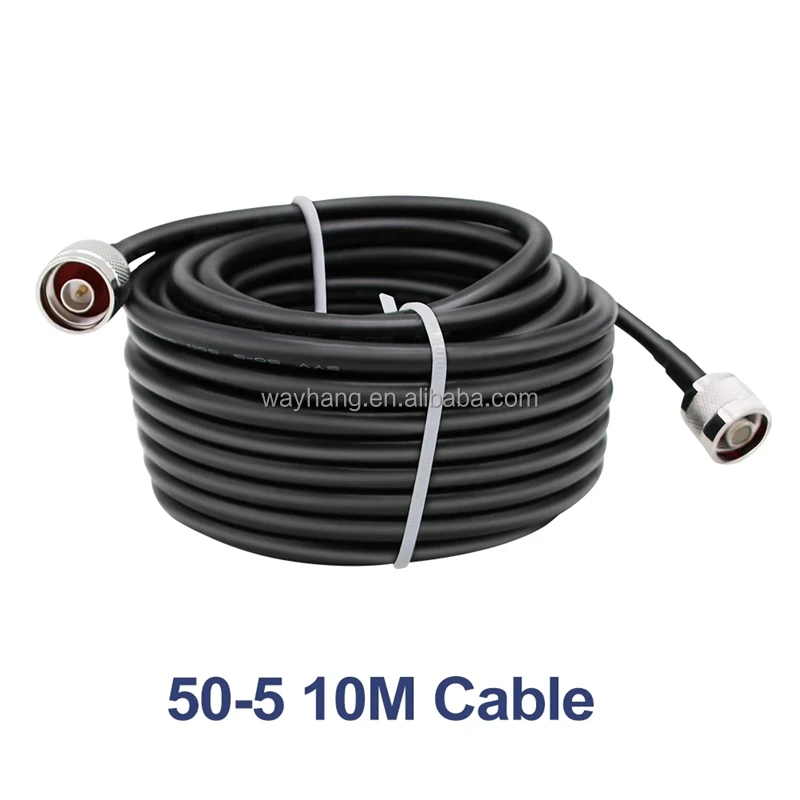

Black cable length: 10 meters

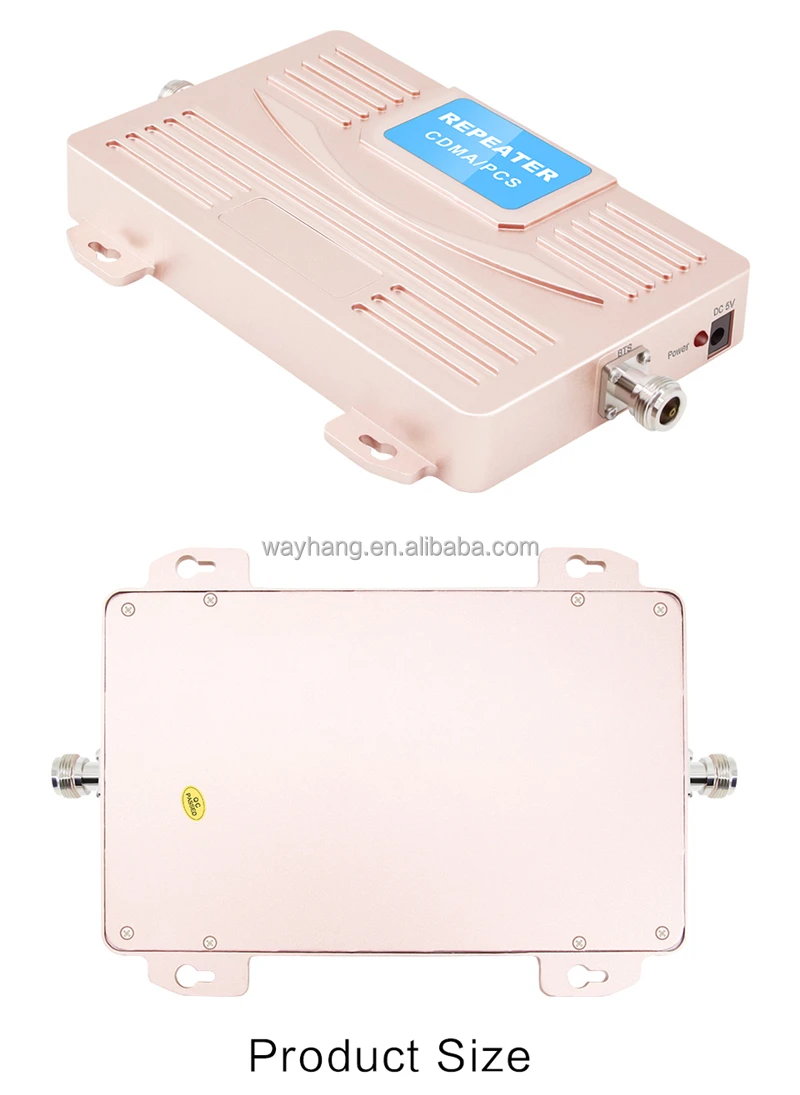

Package size: 185 * 135 * 20mm
Package weight: 0.69kg

Note:
Not applicable to 800 and 2600MHz of 4G.

Package list:
1 * Repeater
1 * Plug

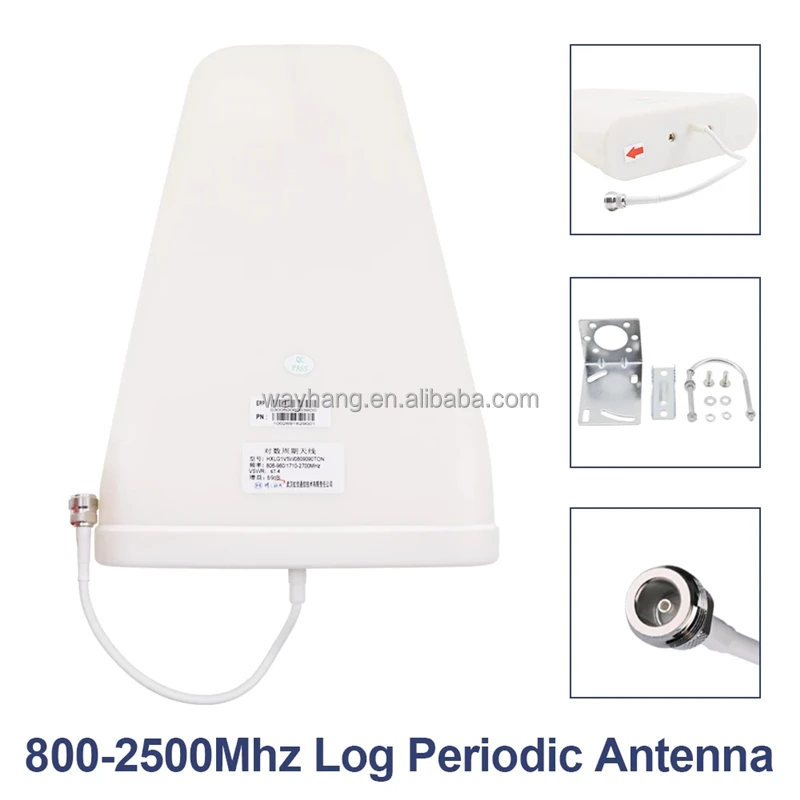

1 * LPDA Antenna
1 * Indoor Ceiling Antenna
1 * Black Cable
1 * Bag of Mounting Accessories





Signal repeater Installation diagram (very convenient and easy to install)

How should you install repeater (very easy and simple):

Step 1: Use your mobile phone to test signal strength outside house or on roof, -70dbm is the basic requirement (full bar).



Step 2 Install outdoor antenna in that location and keep adjusting, point it to signal tower station, try to get best signal.



Step3: Run outdoor coaxial cable into building in a convenient location to connect with signal repeater.



step 4: Mount your indoor antenna with signal repeater

step5:  Power up signal repeater device to check the signal inside, moving outdoor antenna until you get satisfied signal.

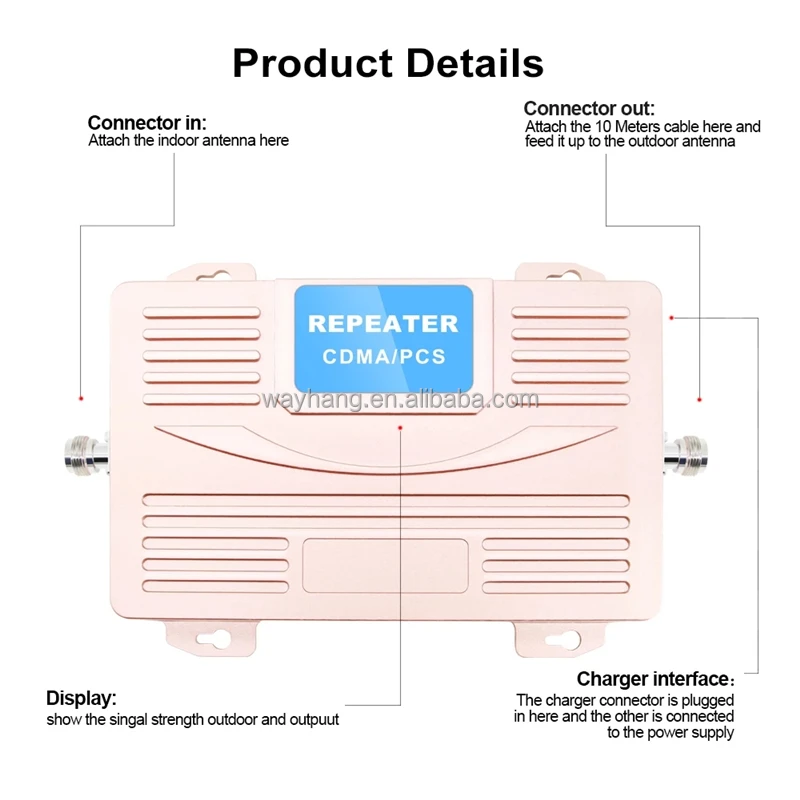

Note: Connect outdoor (BTS) port with outdoor antenna, connect indoor ANT(MS) port with indoor antenna, outdoor antenna is mounted at a higher position. Both antennas should be 10 meters far away from each other at least.

Indoor and outdoor antenna must be separated by wall.



Signal problem & installation technique supporting

1.If still weak signal receipt after installation, please check if outdoor antenna point to signal tower correctly or elsewhere has stronger signal and confirm signal strength achieve-70DBM.



2.If still have no signal after installation, please check our device power adapter whether connected perfectly? And connectors connect well.



3. If strength is not steady, please check if outdoor and indoor antenna is too close; please ensure outdoor antenna has distance of 10 meters at least, with a barrier and not in a same horizontal line.



4. Packed the outdoor connector by waterproof glue, otherwise wet reduce the signal cover area.
