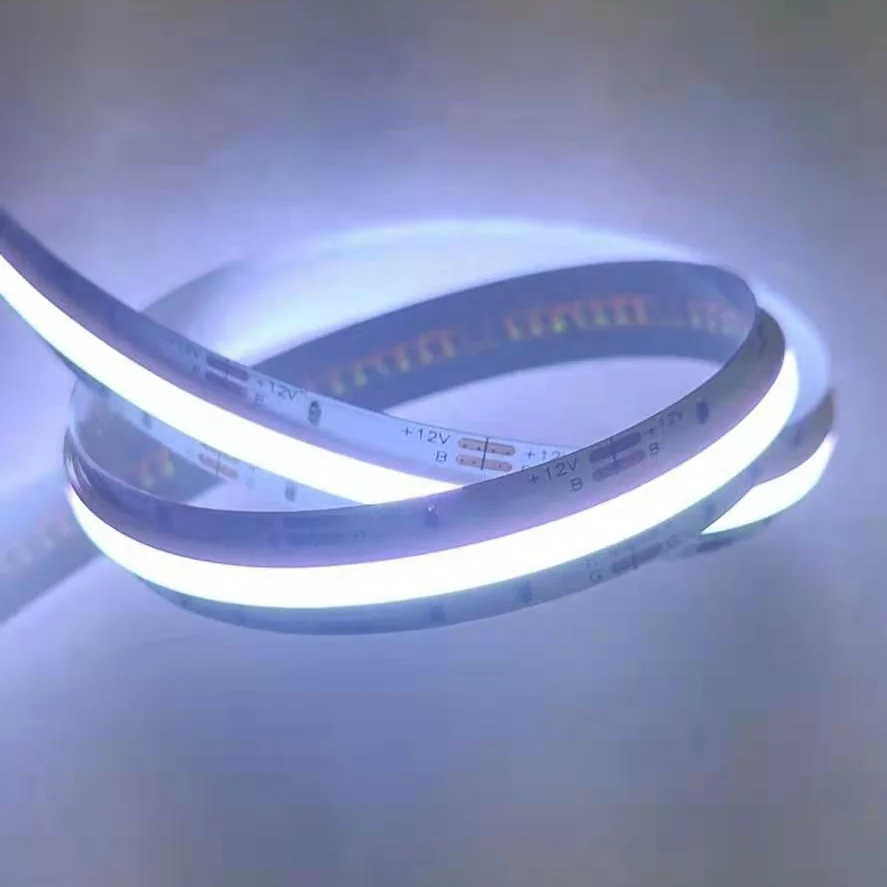

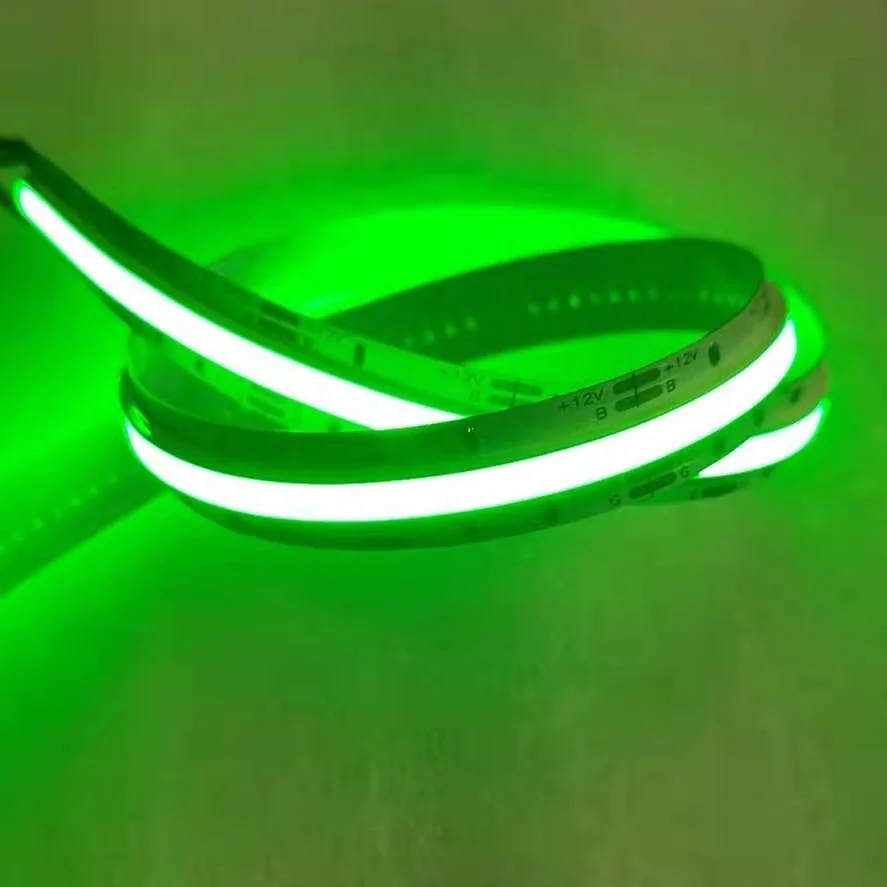

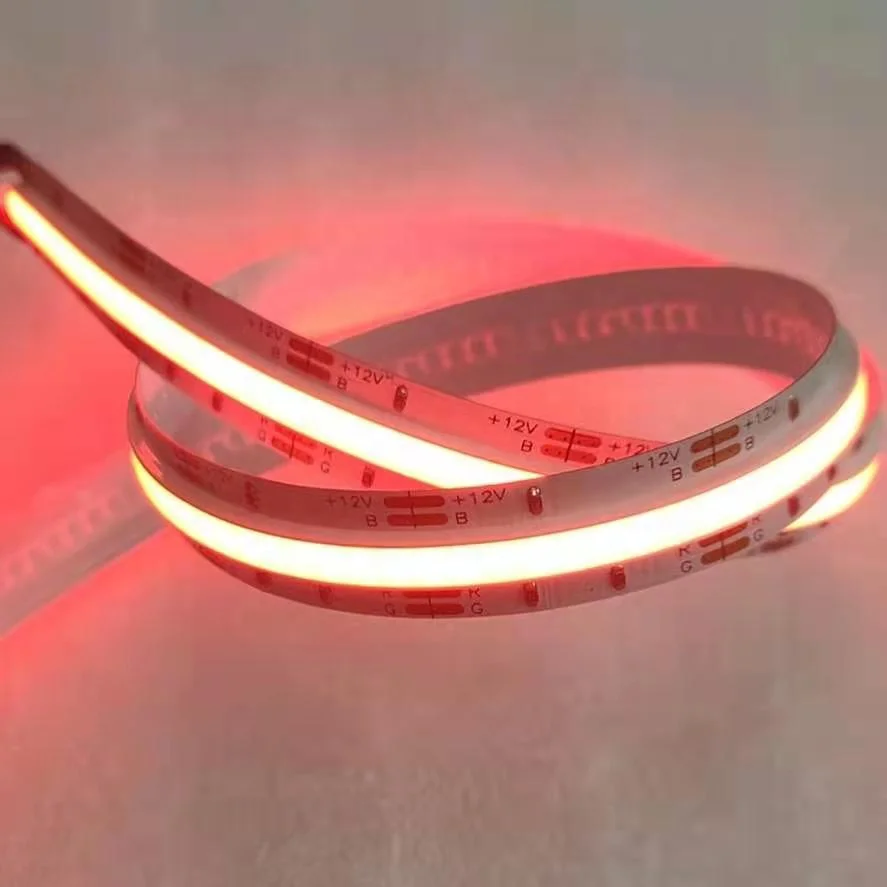

RTS Wholesale LED Tape Ribbon Light DC12V 24V 1134leds 12mm IP20 15W/M Dotless Flexible Strip Led Rgb
- Category: >>>
- Supplier: Shenzhen M-Lighting Technology Co. Ltd.
Share on (1600314768857):
Product Overview
Description
Product Description

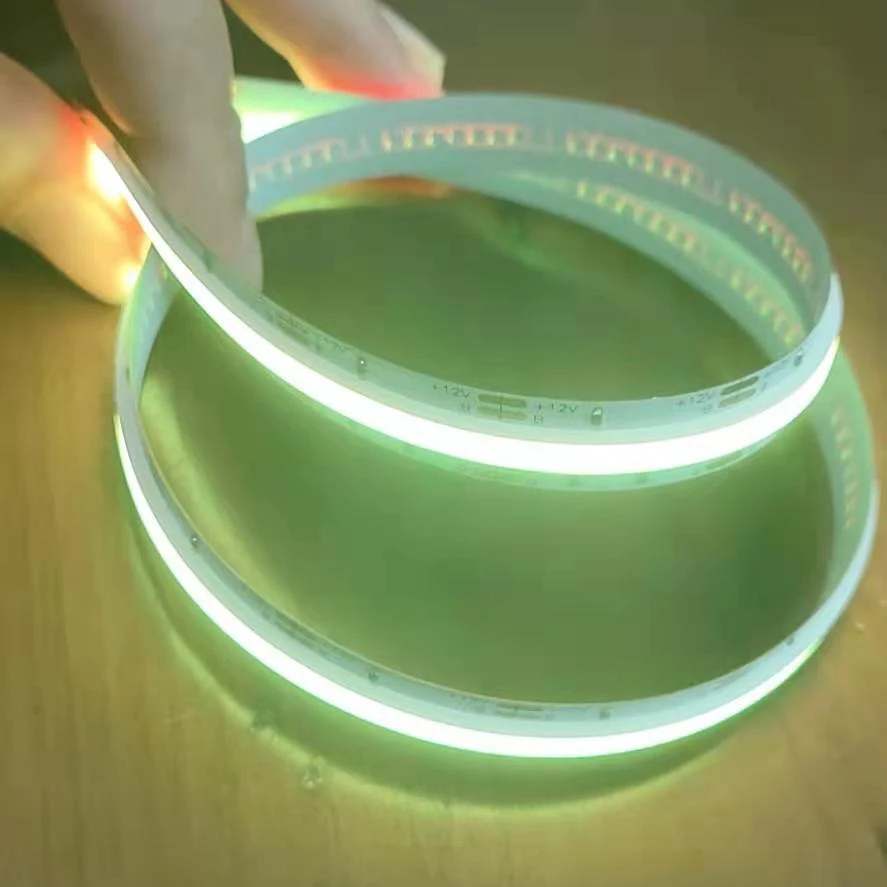

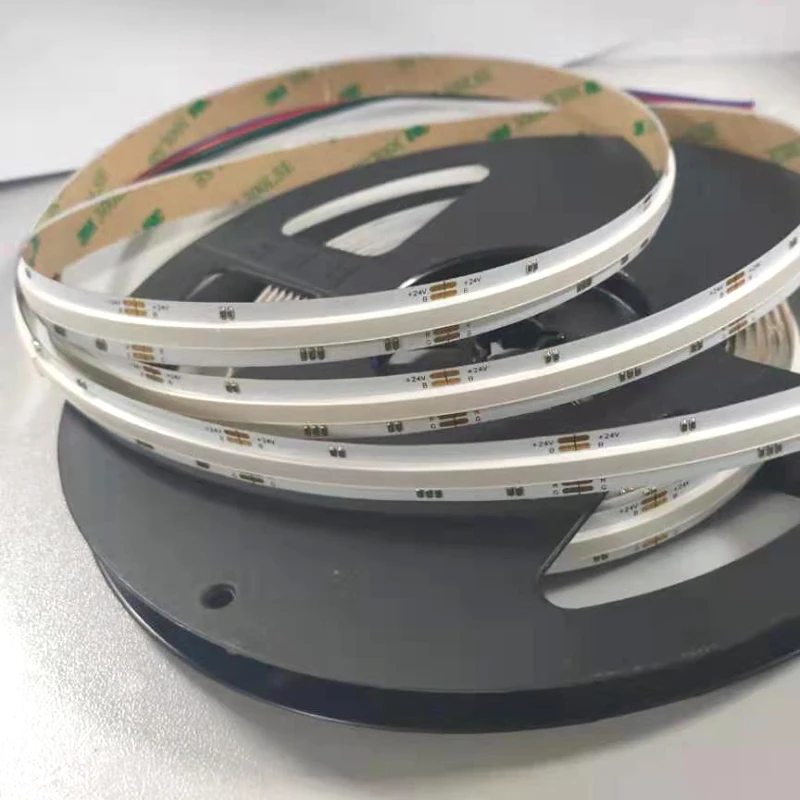

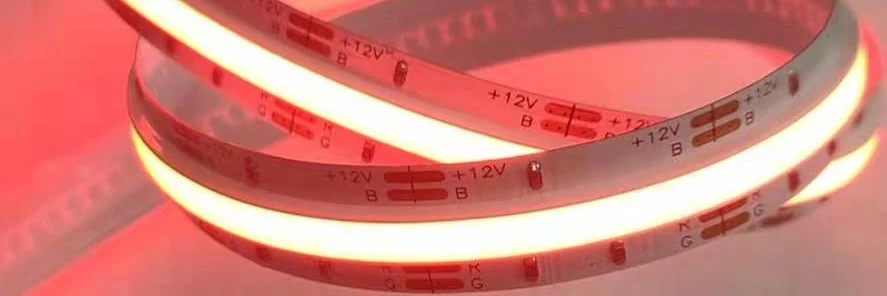

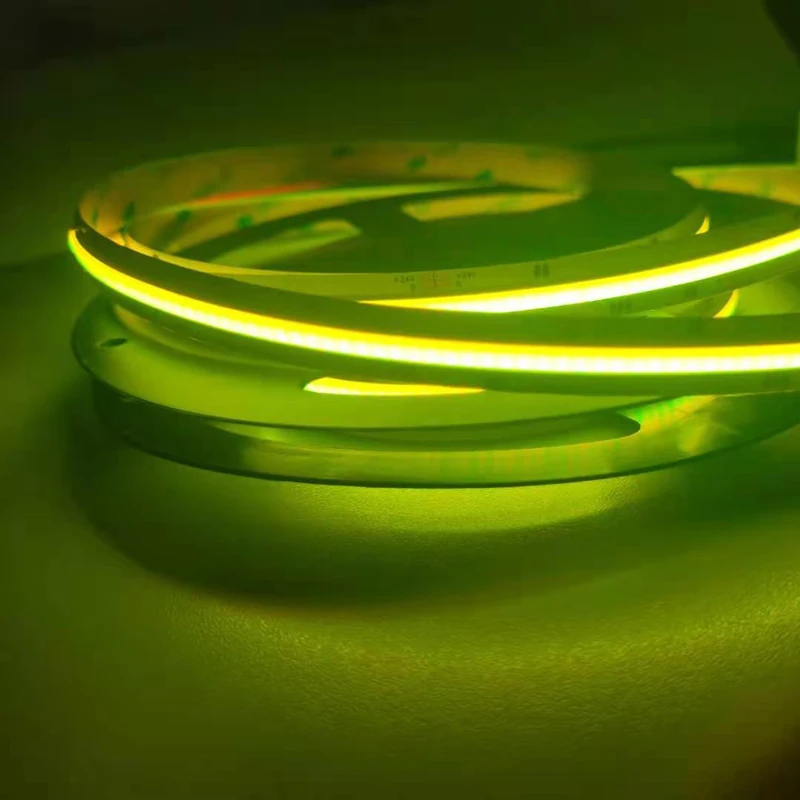

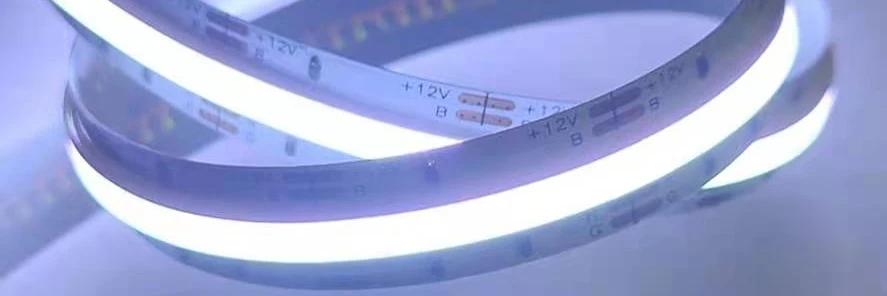

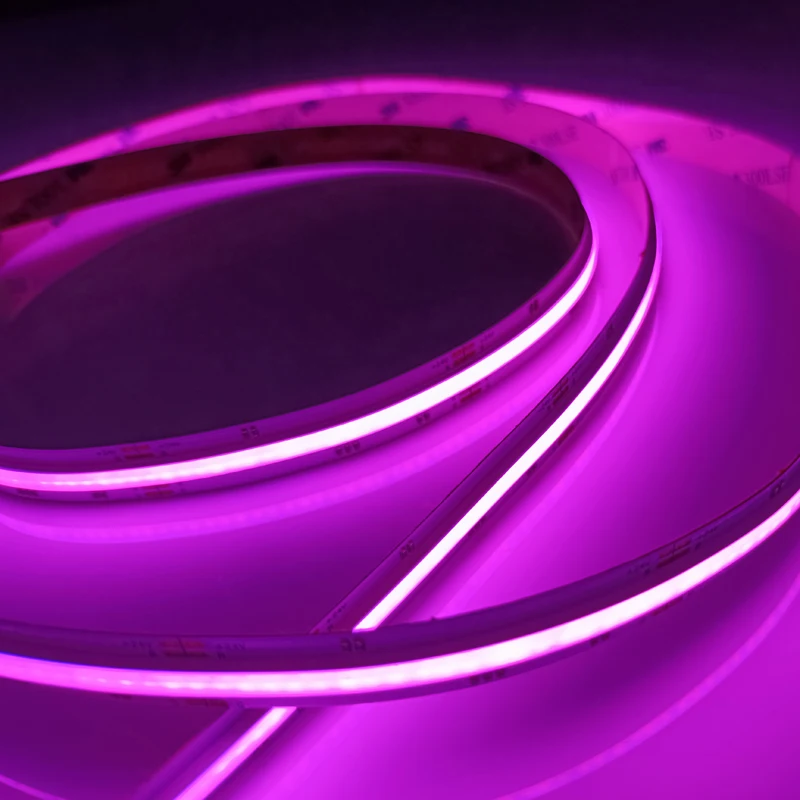

Flexible COB LED strip, also called FOB LED Strip, It took the flip chip technical to die-bond the chip directly on the FPC board and then cover it by phosphor & silicone gel.
Compare with traditional SMD led strip, there are several main advantage for COB led strip:
1) Smooth light(no light dots) and bigger view angle(180 degree)

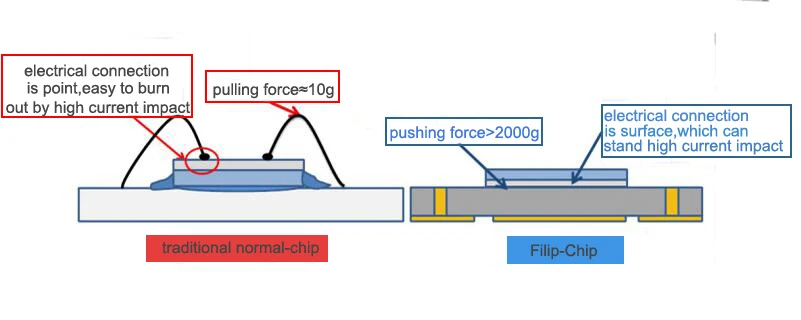

2)The filip-chip could be die-bond on the FPC directly which makes the strips more flexible and with better heat radiation.
3) For the Filip-chip the electrical connection is surface(not point as normal-chip), it can stand higher current impact. And it can stand higher pushing force(2000g compare to 10g).
Easy Connection

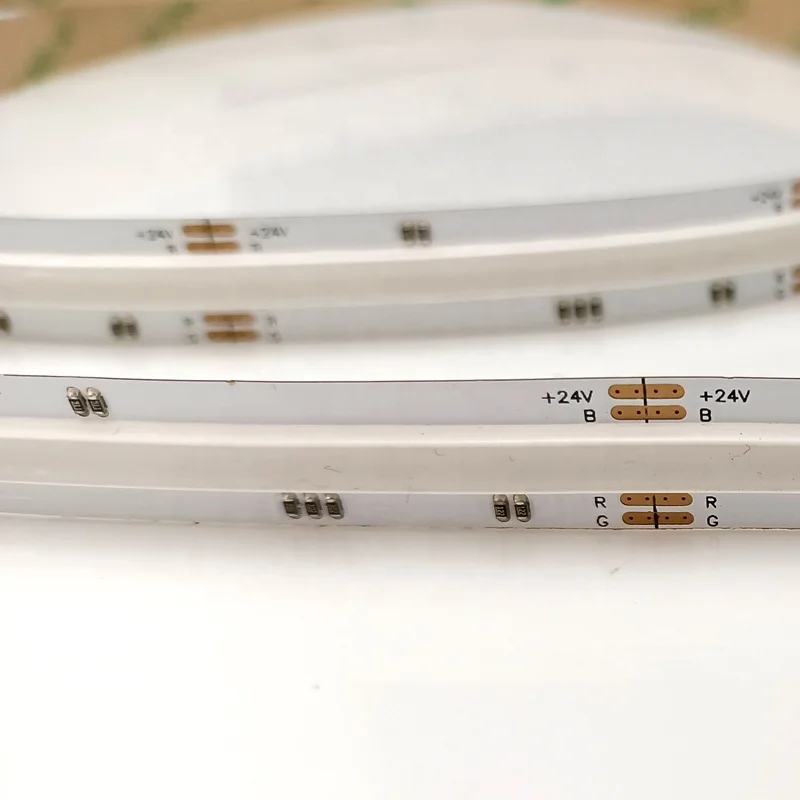

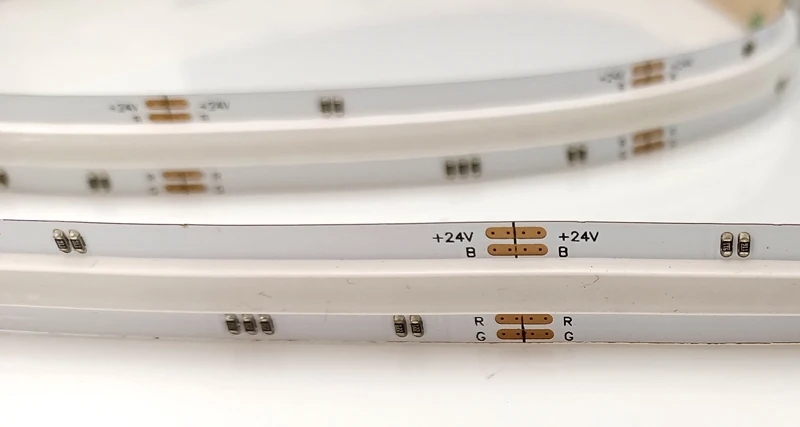

You can cut the strips to the length you like according to the cutting mark(55.5mm for DC24V,25mm for DC12V).
Application

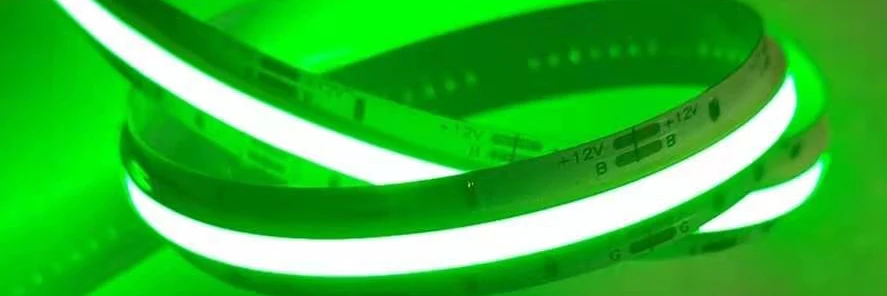

Just use it to replace the normal RGB SMD led strip as a lighting source. No lighting spots and high brightness can provide better wall washing effect.
Application

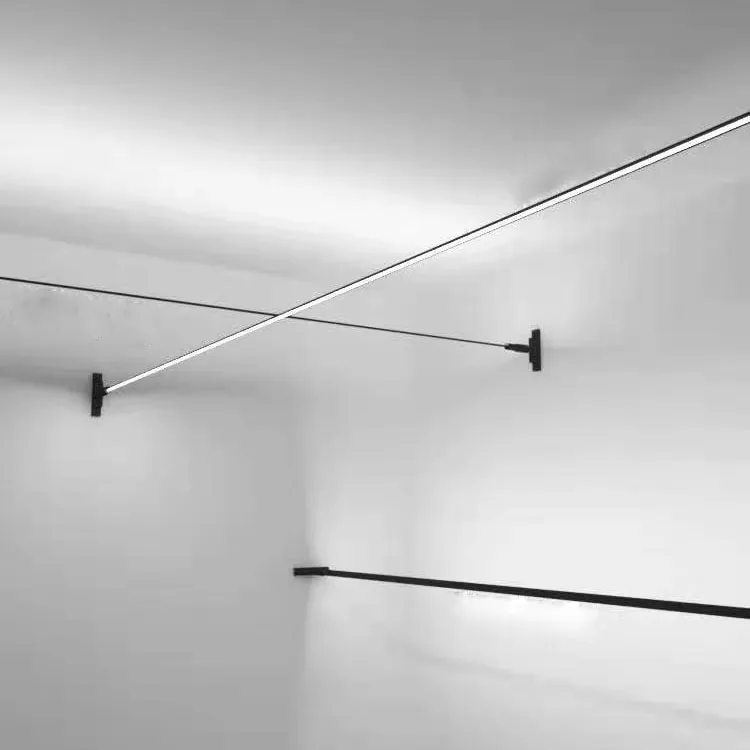

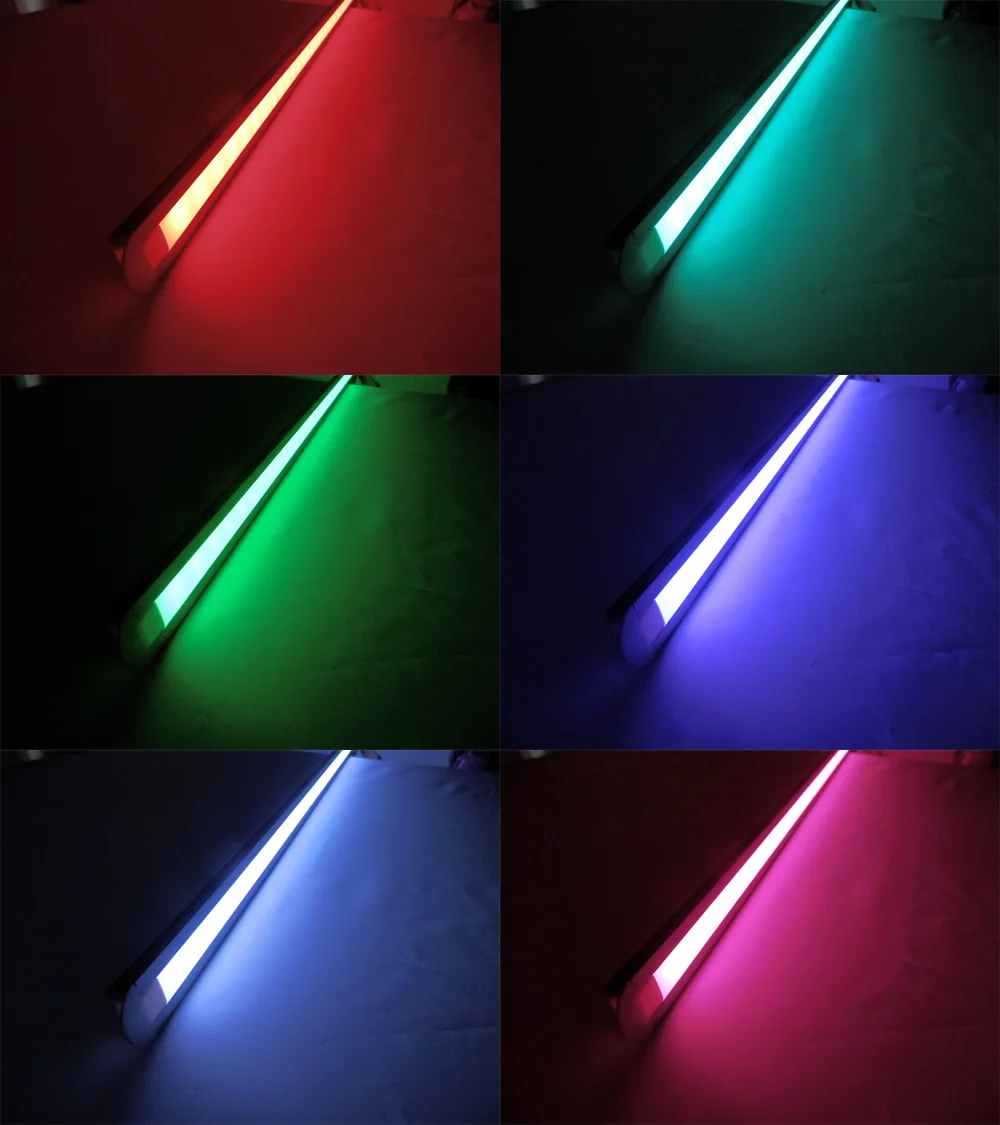

Put the cob strip into the led profile. No dots can be saw even in very thin&narrow profile.
Application

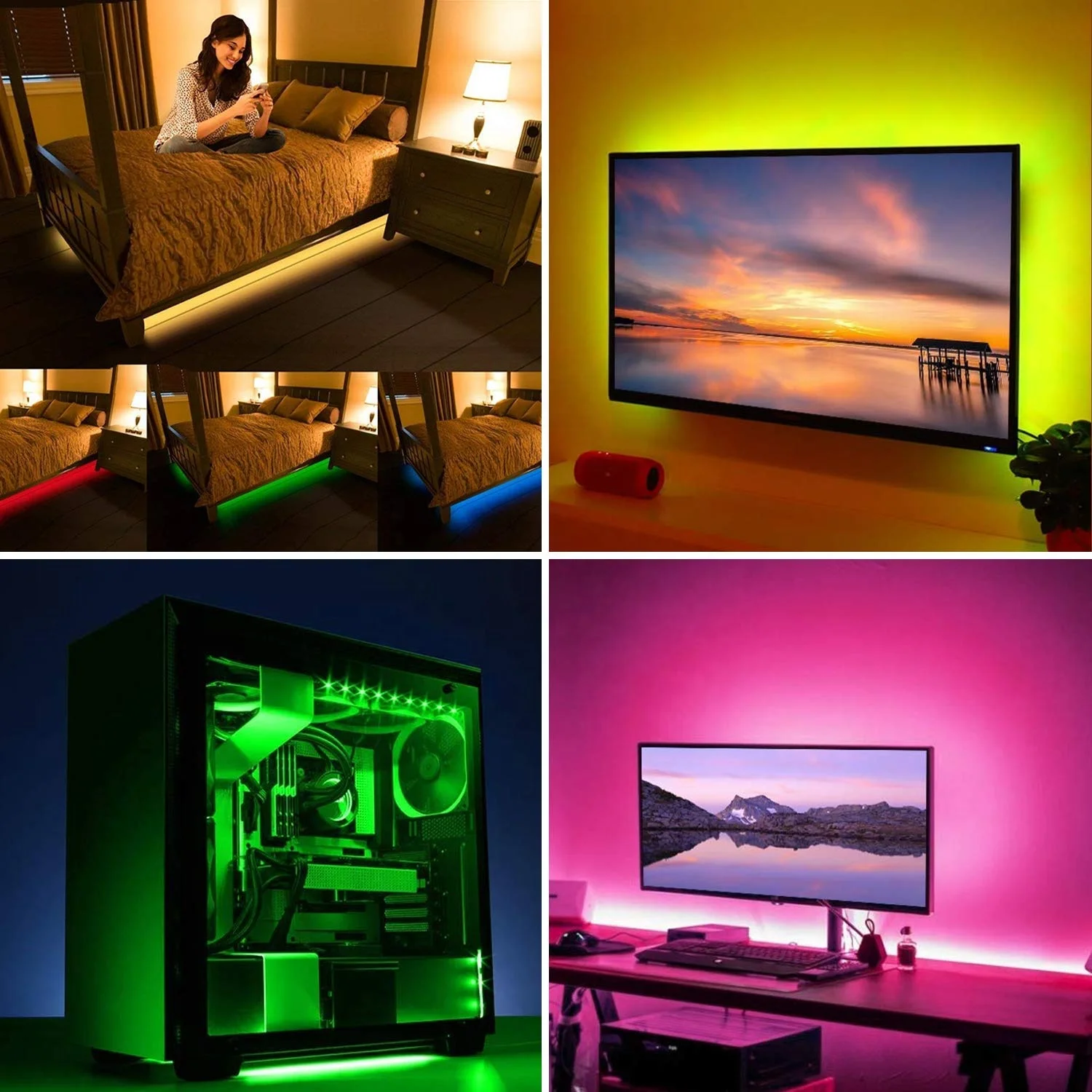

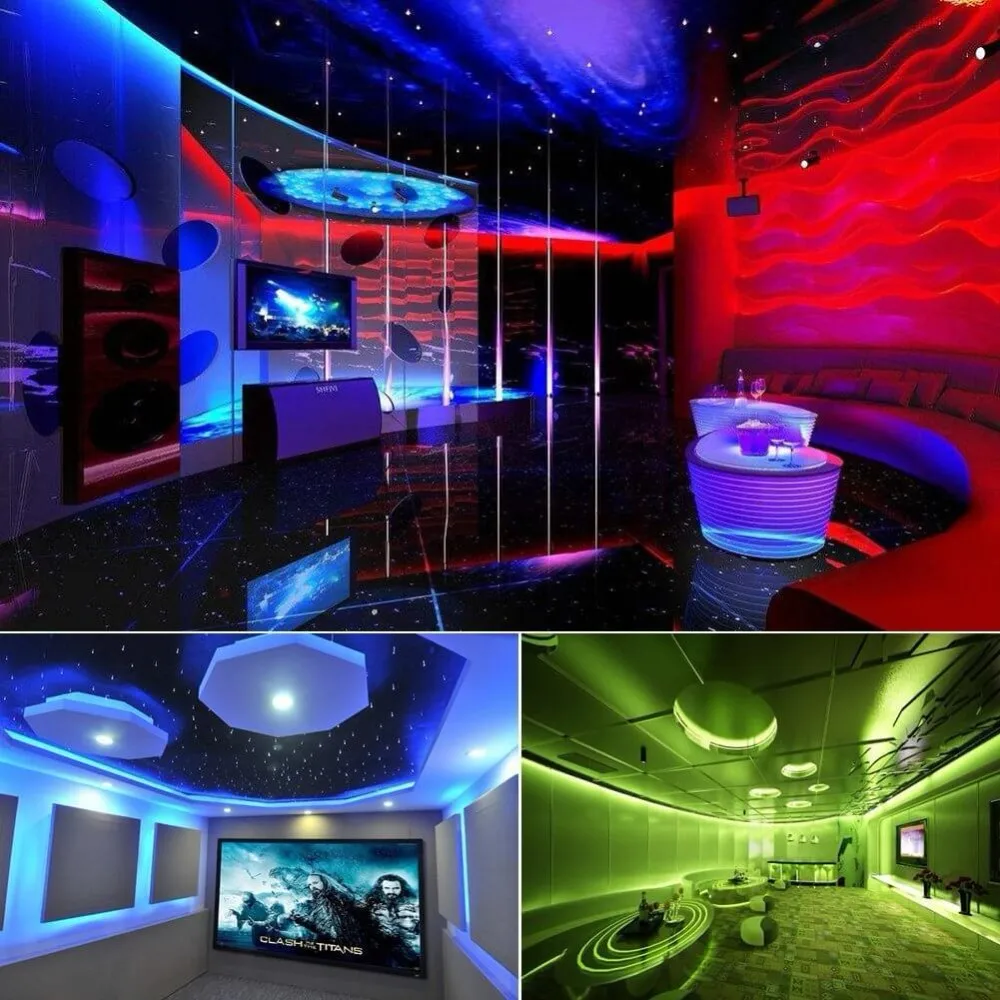

To use this dotless cob rgb strips as backlight in the home.
Specification
Product Name | RGB COB Led Strip Light |
Model No. | LR7002 (5m per Roll) |
LED Qty(pcs/m) | 1134 (DC24V) 1080(DC12V) |
Voltage | DC24V/DC12V |
Power | 15W/m |
Emitted colors | RGB changeable |
Cutting Size | 55.5mm for DC24V, 25mm for DC12V |
Ra | 90 |
PCB Width | 12mm |
IP Rating | IP20/IP65/IP67/IP68 |
Bean Angel | 180° |
Certification | CE/RoHS |
We provide a wide range of flexible cob led strip lights: 5mm 8mm 10mm 320leds 384leds 480leds 528leds CCT608leds RGB768leds RGB1134leds in DC12V/24V. For more information please kindly click.
Packing & Delivery

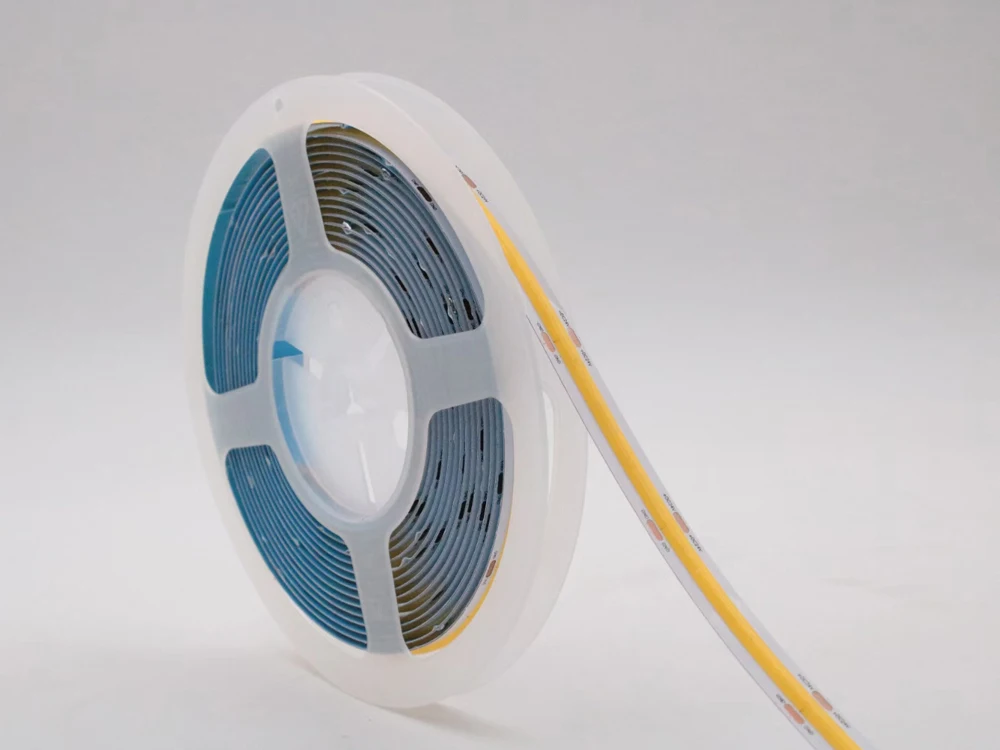

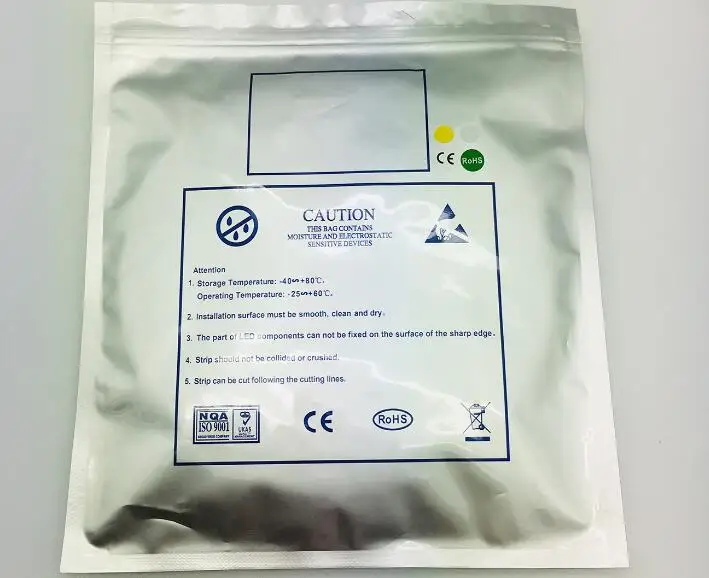

5m Rolled with plastic shell and then in anti Static Bag
5m,10m and 15m package (16*16*5cm)
300m per box(58*24*28cm)
By DHL,Fedex,UPS,TNT | 4~7days | Fast |
Standard shipment | 10~15days | Economical |
By air | 7~14days | For goods above 100kgs |
By sea | Above 20days | For bulk shipment |

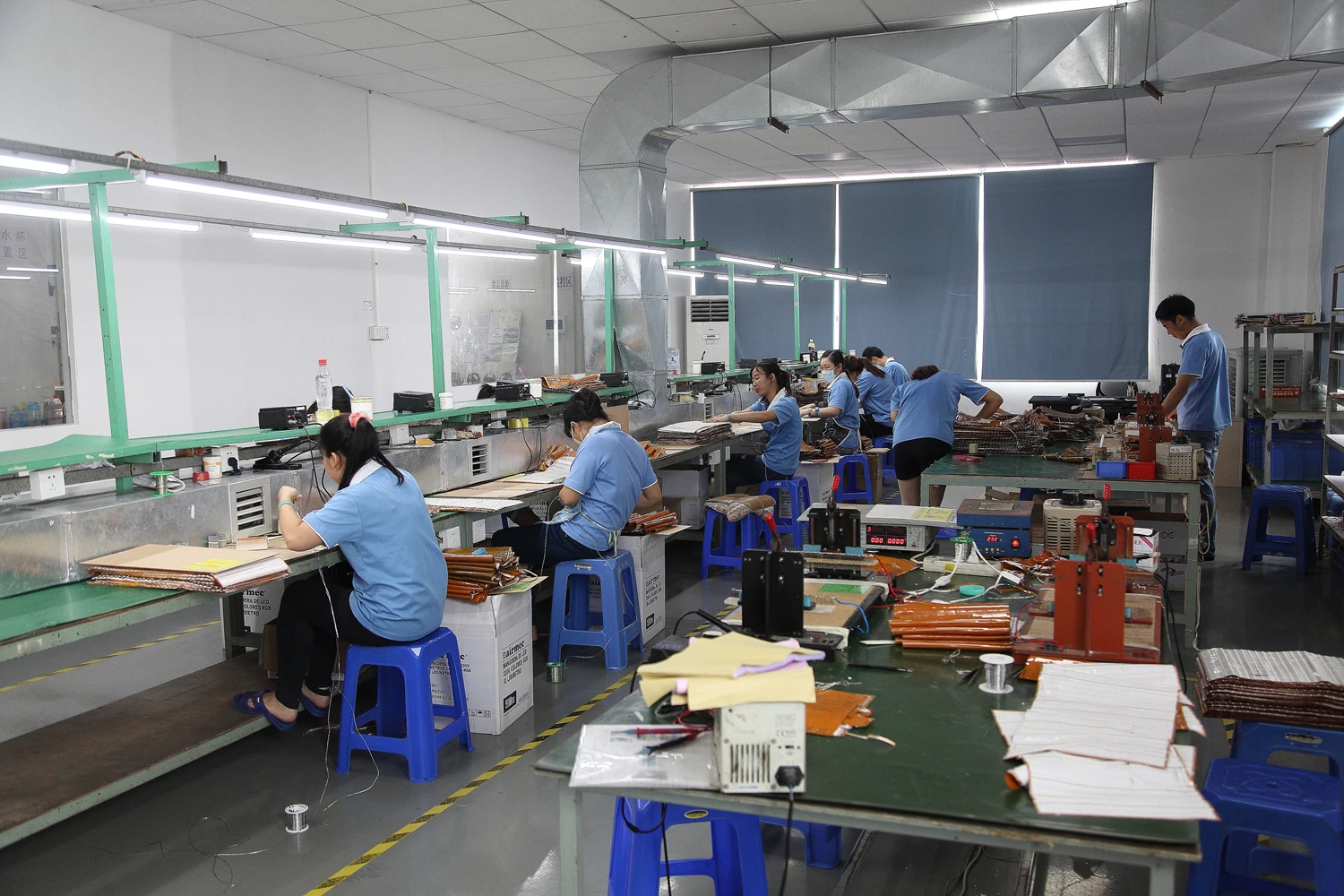

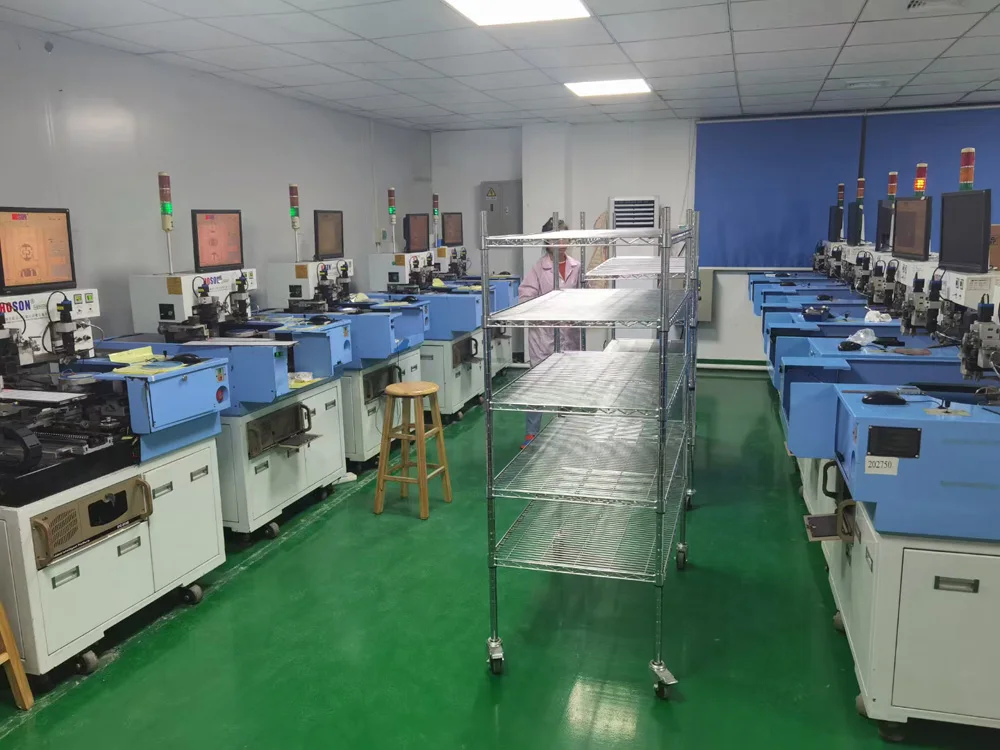

Company Profile

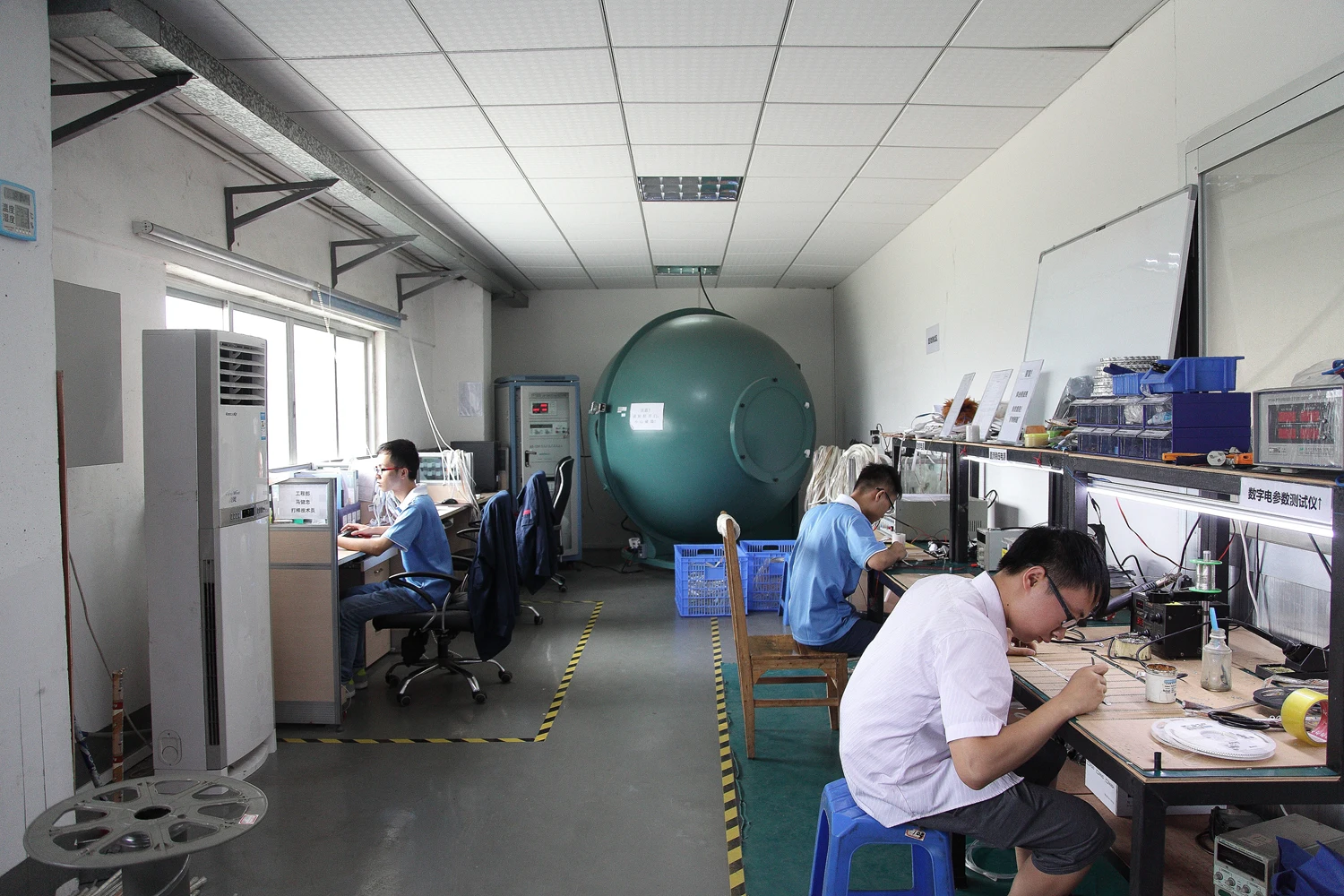

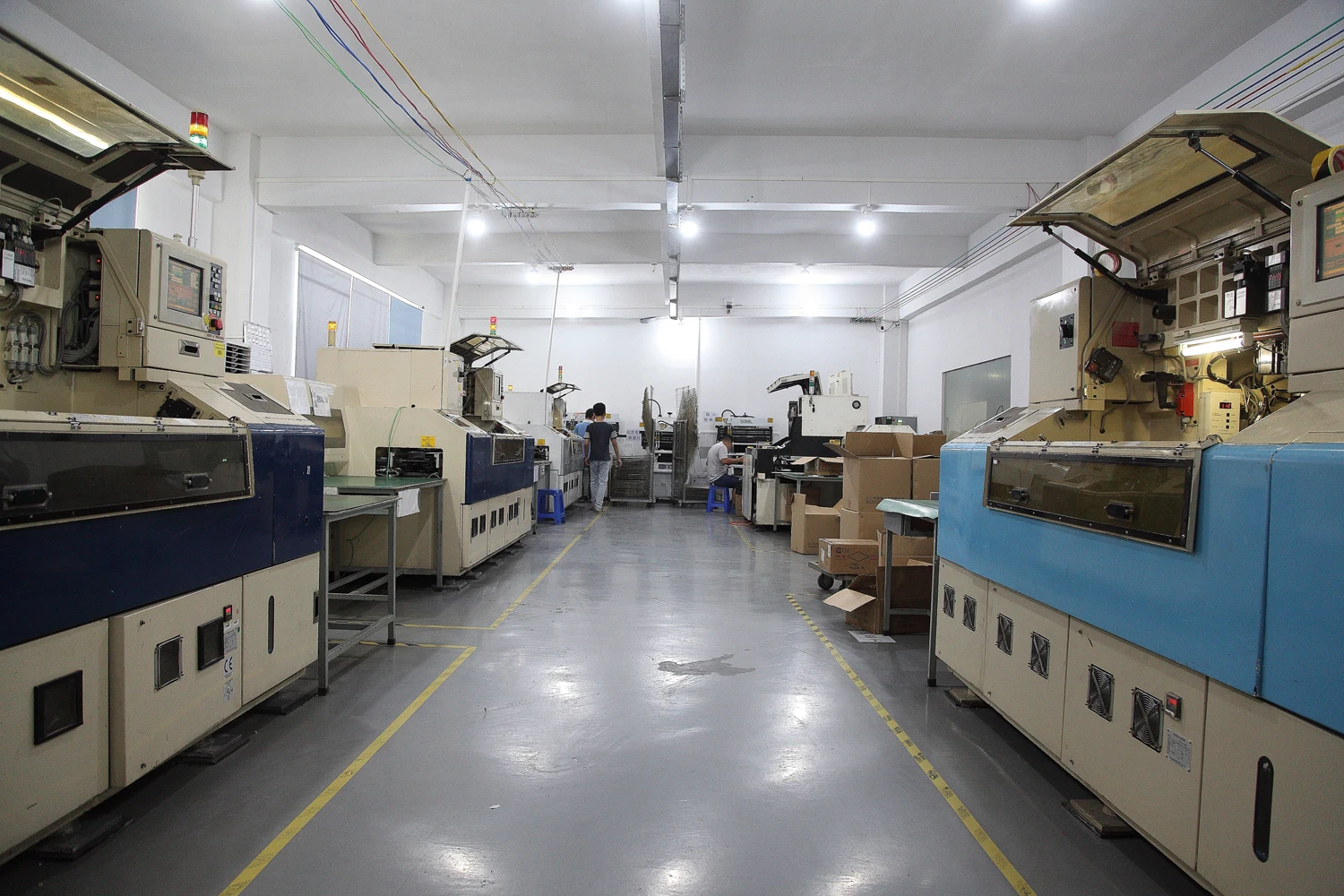

Shenzhen M-Lighting Co. Ltd i a high-tech enterprise, founded in 2008, which is professionally engaged in researching, developing and manufacturing energy saving products, mainly specialize in led lighting products. The factory is located in ShenZhen City of Guangdong province (factory area about 3,000sqm) which started the production since 2008. We cooperated assisting with many overseas importers and manufacturers to increase their market shares.
Certificates and Patents
FAQ
Q1 How about your product's quality A: We use the big chip which is different with the cheap small chip, to make sure good quality.
Q2: Can I take samples?A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.Q3. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q4. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products.
Q6: How do you ship the goods and how long?
A: Usually by international express delivery such as DHL, UPS, FEDEX, TNT (3-7 working days), air or sea
