Small gold silver copper induction melting furnace/induction heating furnace / metal induction melting machine
- Category: >>>
- Supplier: Zhengzhou Daqing Automation Equipment Co. Ltd.
Share on (1600314911481):
Product Overview
Description

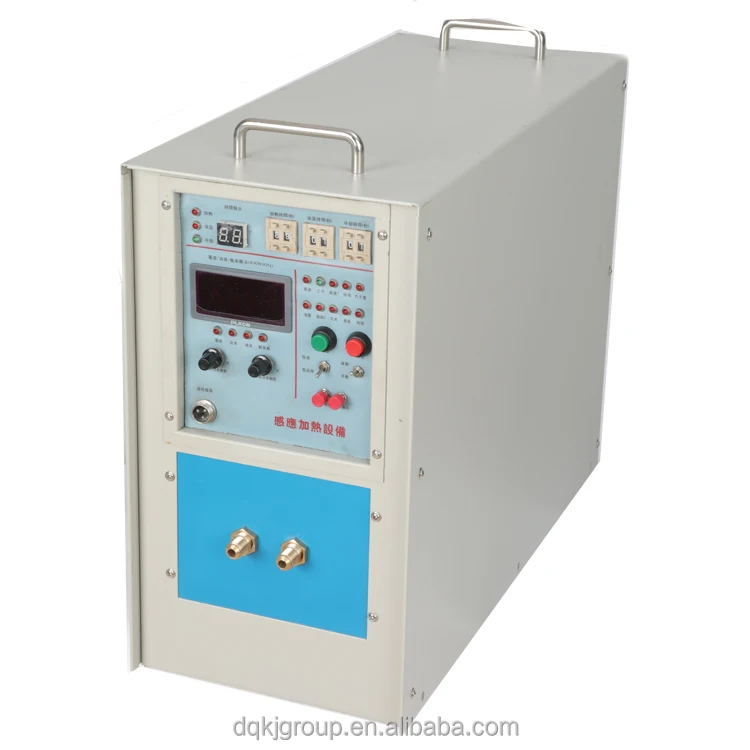

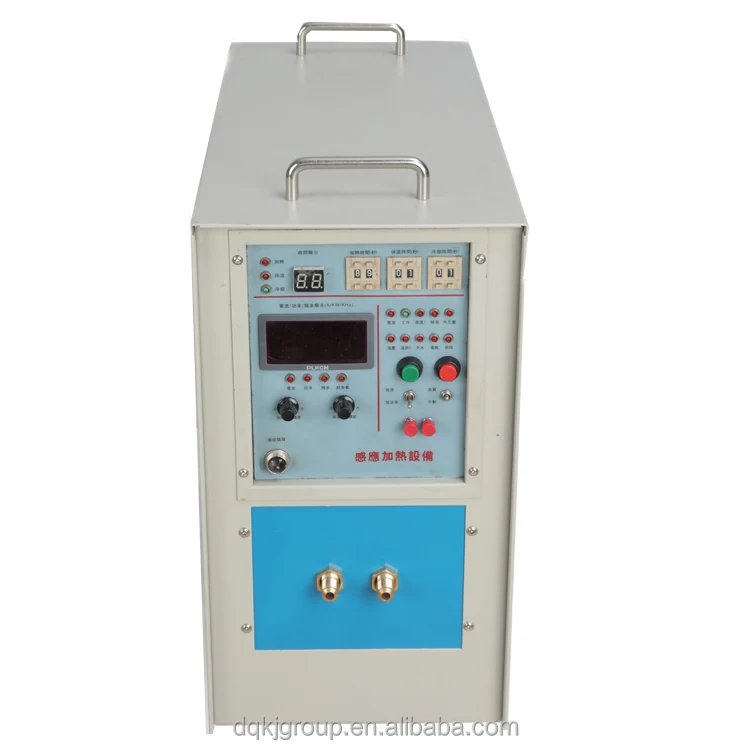

Small gold silver copper induction melting furnace/induction heating furnace / metal induction melting machine
Product Description
IGBT
Board
Product Paramenters
SMC-15KW
SMC-35KW
SMC-45KW
High Frequency Induction Heating Machine | ||||||||||
Model | SMC-15KW | SMC-35KW | SMC-45KW | SMC-60KW | SMC-80KW | |||||
Input voltage | 220V,380V,480V | |||||||||
Output power | 15kw | 35kw | 45kw | 60kw | 80kw | |||||
Frequency | 30-80KHZ | 30-80KHZ | 30-80KHZ | 30-80KHZ | 30-80KHZ | |||||
Output current | 200-600A | 400-1600A | 400-2000A | 400-2400A | 400-3200A | |||||
Timing | 1-99s | 1-99s | 1-99s | 1-99s | 1-99s | |||||
Cooling water | 0.06-0.12Mpa 7.5L/min | 0.08-0.16Mpa 7.5L/min | 0.08-0.16Mpa 7.5L/min | 0.08-0.16Mpa 7.5L/min | 0.08-0.16Mpa 7.5L/min | |||||
Alarm temperature | 40°C | 40°C | 40°C | 40°C | 40°C | |||||
Generator weight | 25kg | 35kg | 35kg | 37kg | 54kg | |||||
Transformer weight | / | 10kg | 10kg | 36kg | 47kg | |||||

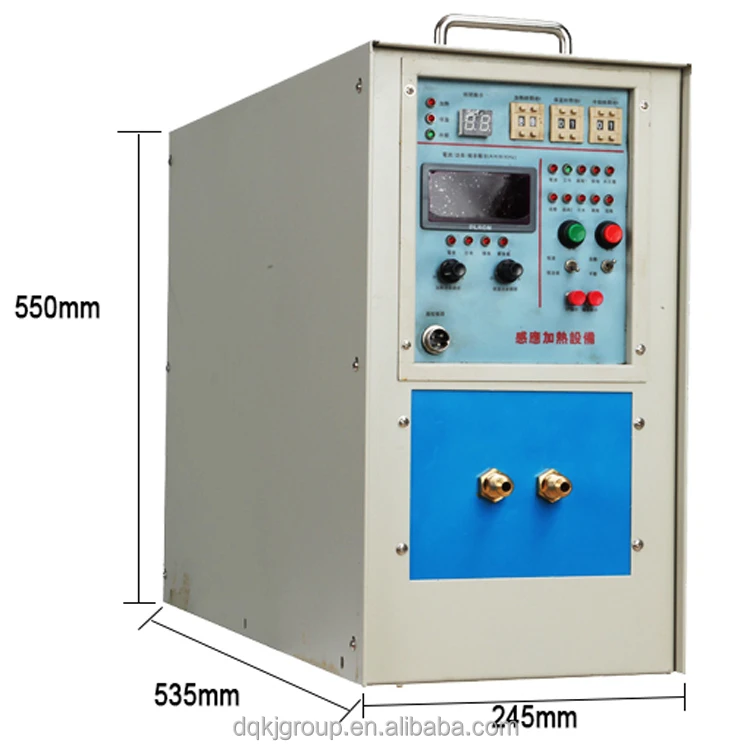

Generator dimension(mm) | 535*245*550 | 595*275*580 | 595*275*580 | 650*320*590 | 745*345*600 | |||||
Transformer dimension(mm) | / | 485*275*450 | 485*275*450 | 485*275*450 | 790*425*580 | |||||
Induction Melting Machine | ||||||
Model | Steel/Iron | Aluminum | Copper/Gold/Silver/Noble metal | |||
SMC-15KW | 3KG | 3KG | 3KG,5KG,10KG | |||
SMC-25KW | 5KG | 5KG | 20KG | |||
SMC-35KW | 10KG | 10KG | 30KG | |||
SMC-45KW | 18KG | 18KG | 50KG | |||
Application
Melting metal materials such as steel, stainless steel, iron, copper, aluminum, aluminum alloy, gold, silver.
1. No flame, no emissions, environmentally-friendly.
2. Small in size, light in weight.
2. Small in size, light in weight.
3. Smelting volume 3-600KG.
4. There are three types of induction smelting furnaces: dumping type, ejecting type and fixed type.
5. There are three types of dumping furnaces: mechanical dumping, electric dumping, and hydraulic dumping.
6. According to different application requirements, it can be equipped with infrared thermometer, temperature controller and other devices.
TUBE WELDING
PIPE BRAZING
SHAFT HARDENING
GEAR HARDENING

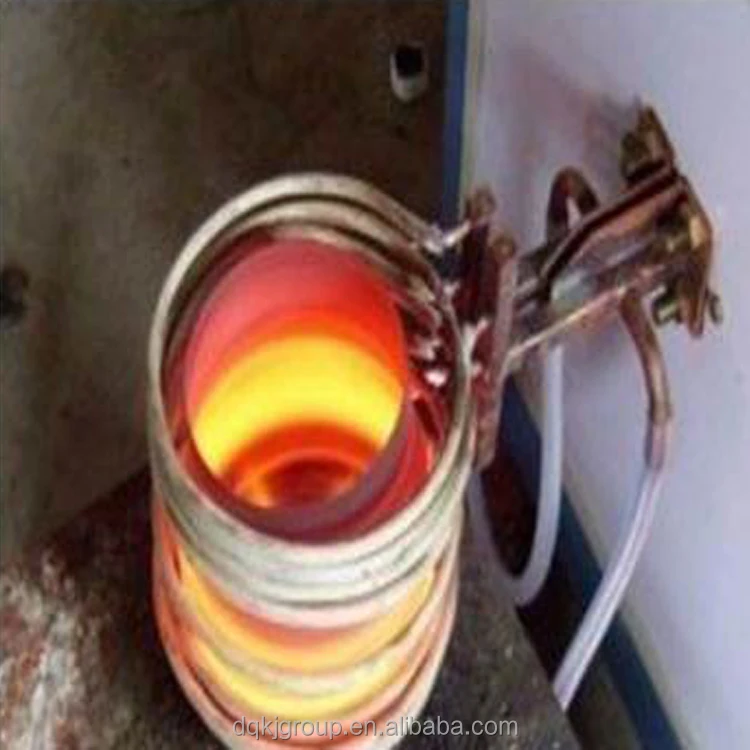

MELTING METAL
GOLD MELTING
ROD FORGING
STEEL BARS FORGING
Recommend Products

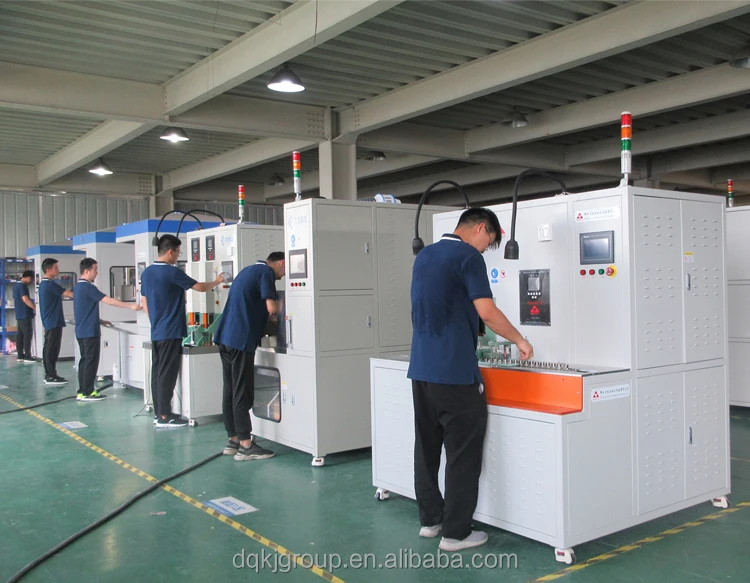

Production Process
