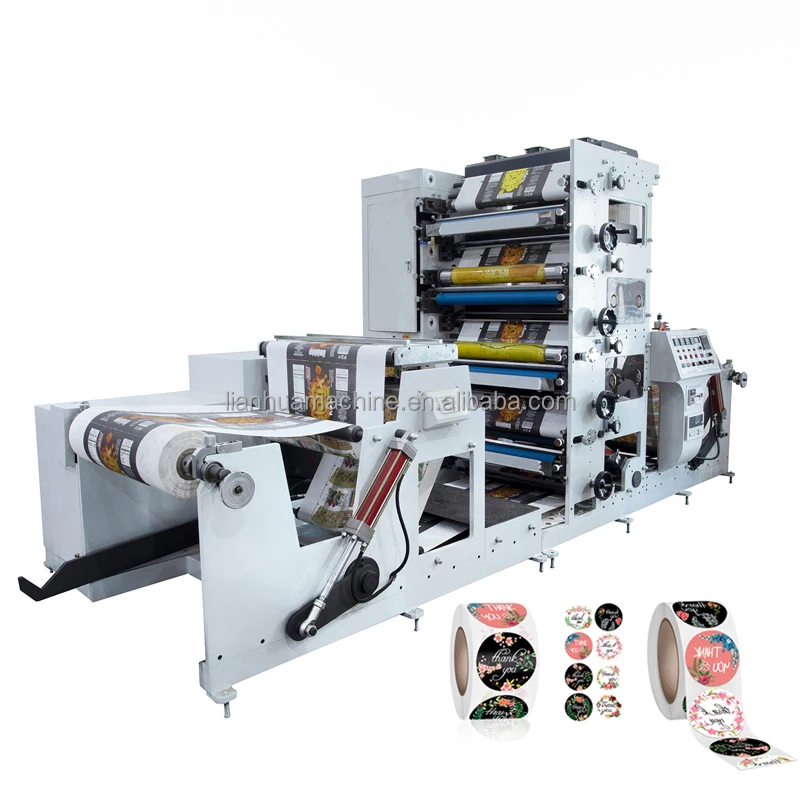

HJRY1000 paper flexography printer 1 8 color letterpress adhesive label flexo printing machine with slitting
- Category: >>>
- Supplier: Ruian Lianhua Printing Machinery Co. Ltd.
Share on (1600314912355):
Product Overview
Description
product description:
1)Ceramic anilox cylinder to transfer the ink
2)Automatic magnetic powder brake controller for unwinding & rewinding

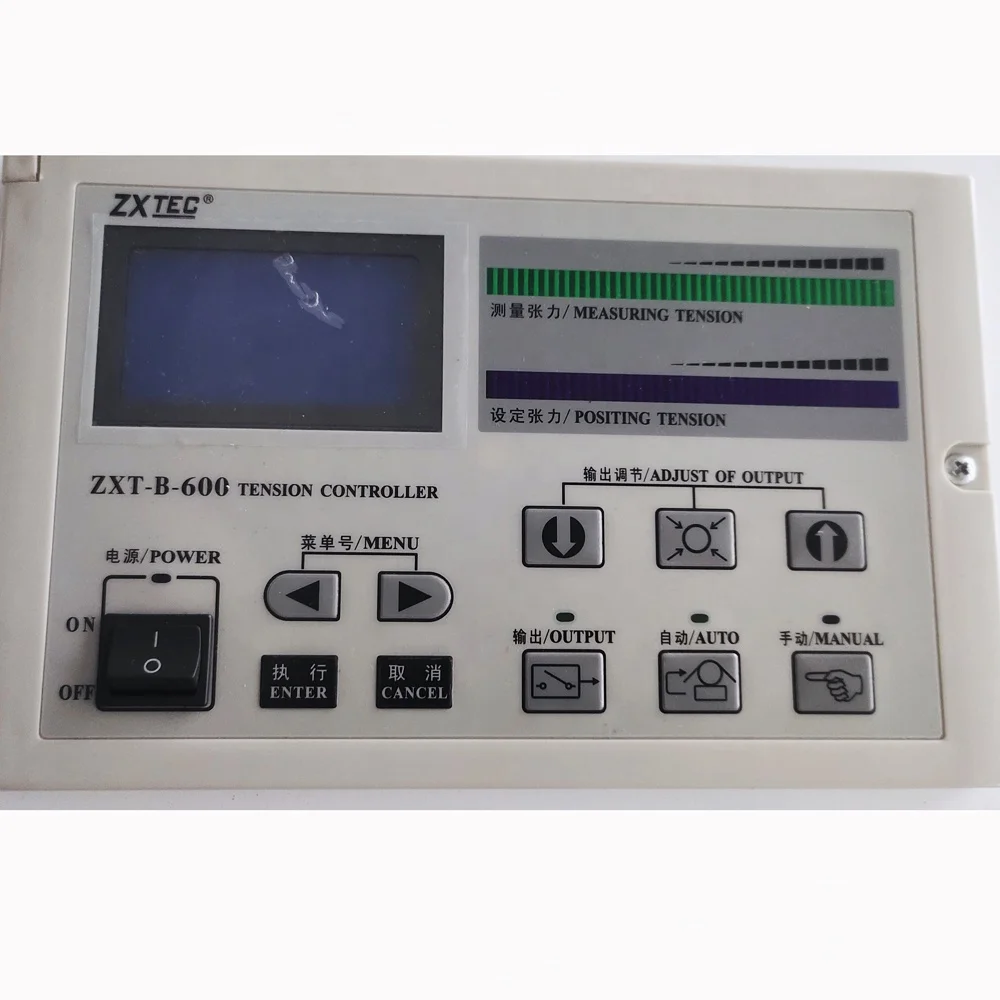

3)Tension controller for unwinding
4)Tension controller for rewinding
5)Printing unit: 360°Plate-adjustment
6)IR dryer for each printing unit.
7)The ink rollers will be separated from the printing roller, and keep running, when machine stopped.
8)Frequency inverter for speed controlling

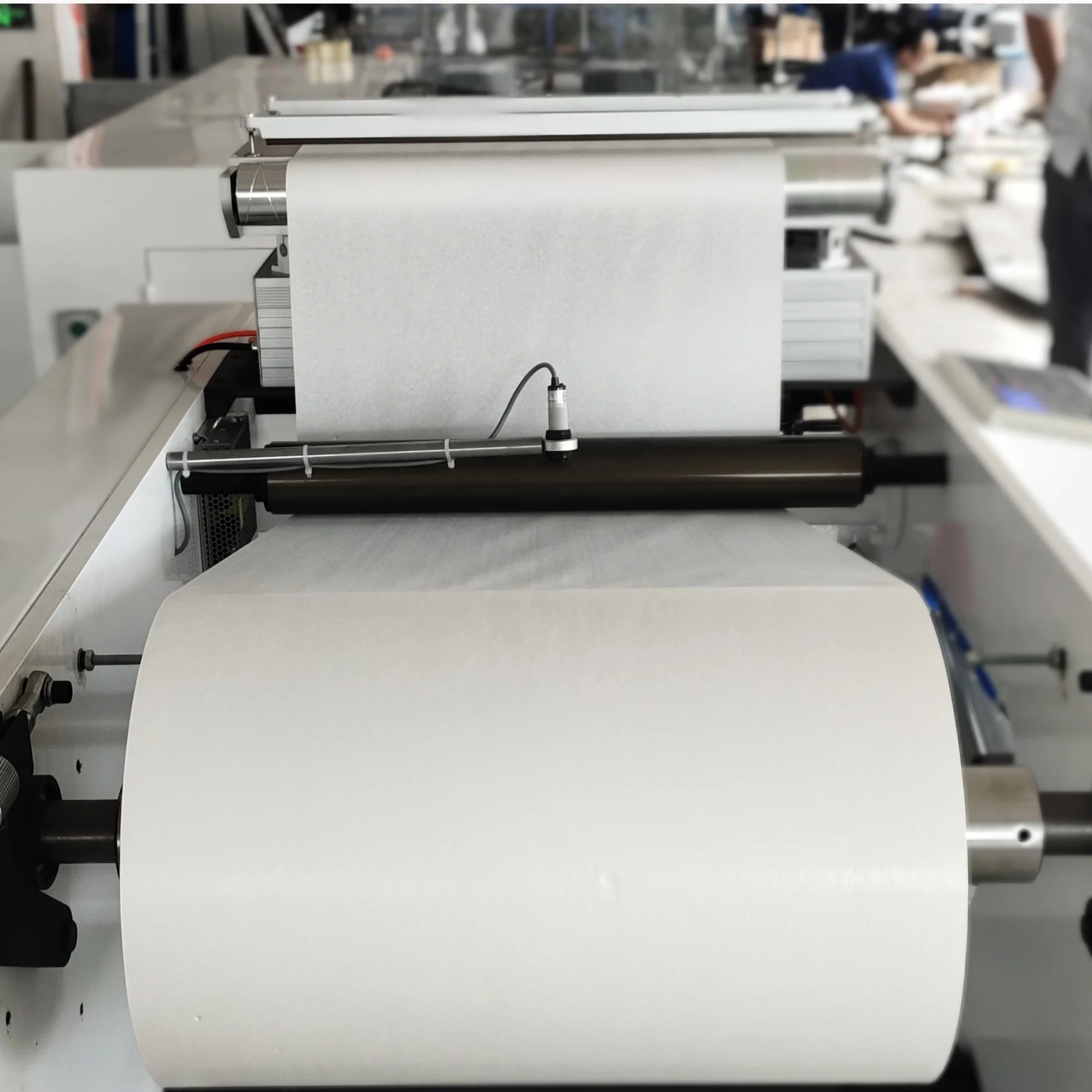

9)Feed paper form roll material, print, coating, dry automatically by infrared ray and rewinding completed in one time.
10)It is an ideal machine for printing trade invoice and top-grade adhesive label paper material.
2)Automatic magnetic powder brake controller for unwinding & rewinding
3)Tension controller for unwinding
4)Tension controller for rewinding
5)Printing unit: 360°Plate-adjustment
6)IR dryer for each printing unit.
7)The ink rollers will be separated from the printing roller, and keep running, when machine stopped.
8)Frequency inverter for speed controlling
9)Feed paper form roll material, print, coating, dry automatically by infrared ray and rewinding completed in one time.
10)It is an ideal machine for printing trade invoice and top-grade adhesive label paper material.
Laminating Set
Protect and increase the gloss of printed products
Web Guide
Keep the track when the material is conveyed without deviation.
Rotary Die Cutting
die cutting machine is one of the machines that make labels.
if you want printing adhesive label ,you can add die cutting unit to making printing and die cutting together.
if you want printing adhesive label ,you can add die cutting unit to making printing and die cutting together.
Model | HJRY-1000 |
Printing speed | 80m/min |
Printing color number | 1-8color |
Max width of paper | 1000mm |
Max printing wide | 1000mm |
Max unwinding diameter | 1000mm |
Max rewinding diameter | 1000mm |
Printing length | 175-400mm |
Thickness of flexo plate | 1.7mm |
Precision of overprint | ±0.1mm |
Overall dimension | 3.2*2.2*1.7m |
Weight | about 4800kg |
