Prima Power Genius Laser Cutting Machine 4020
$13,550.00-15,800.00

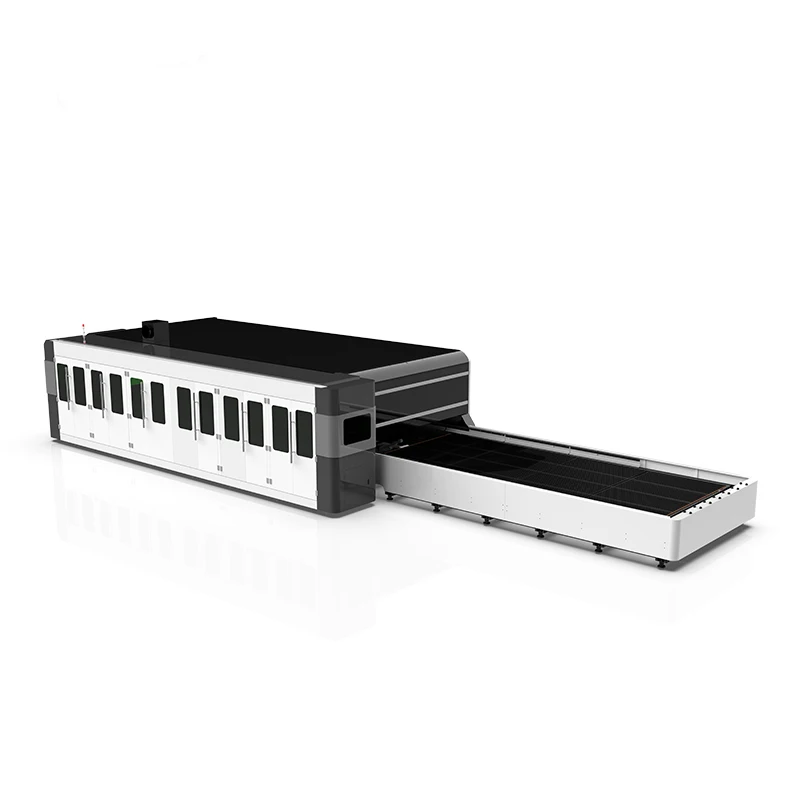

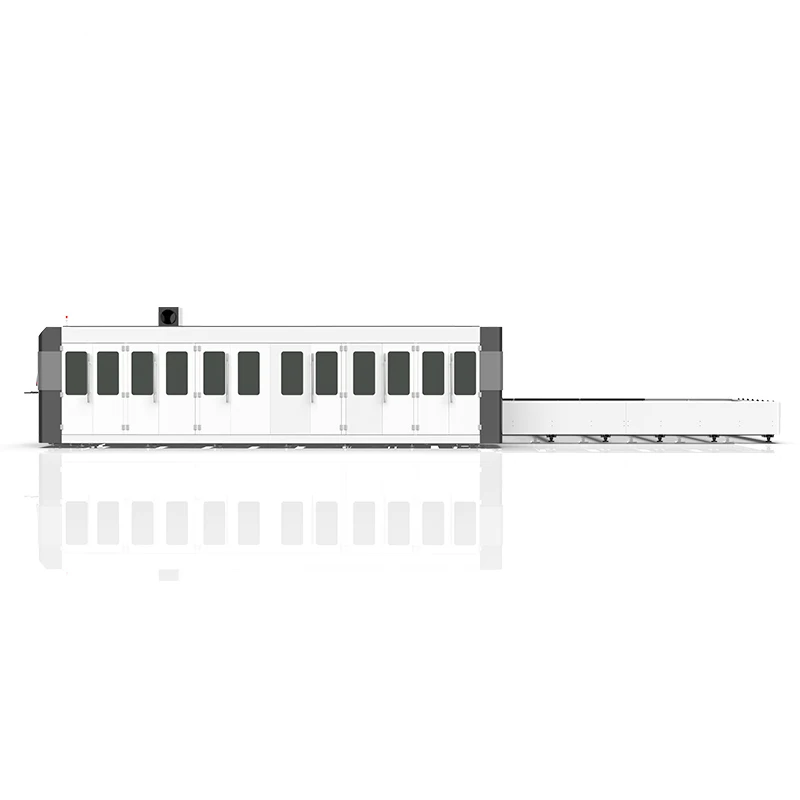

2560 Fiber cutting laser machine 3kw size 6m*2m fiber laser cutting machine 3000w laser power
- Category: >>>
- Supplier: Jinan Hitec Machinery Co. Ltd.
Share on (1600314975928):
Product Overview
Description
Product Description

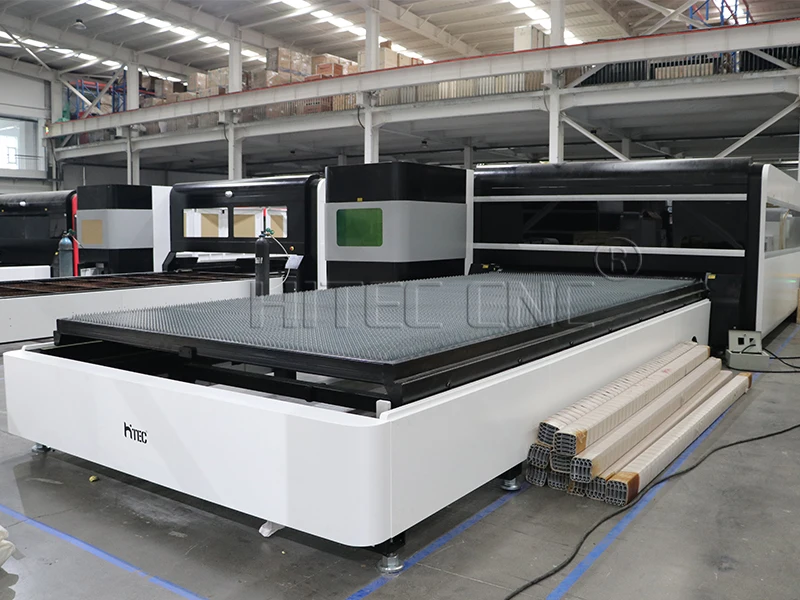

Metal Sheet Fiber Laser Cutter
2020 metal sheet tube fiber laser cutting machine HTF3015RC series is a plate and tube integrated fiber laser cutting equipment for customers who need sheet cutting and tube cutting at the same time. It has the advantages of stable performance, high efficiency, energy saving and high cost performance. Professionally cutting various types of pipes such as square pipes, round pipes, rectangular pipes, D-shaped pipes and hexagonal pipes.
Metal Sheet Fiber Laser Cutter Technical characteristics::
1. Standard equipped with Raycus or IPG fiber laser, low operation and maintenance cost, realizing long-term return on investment and greater profit.
2. The two-dimensional movement of the worktable ensures excellent laser output beam quality.
3. Special X-Y working platform for cutting, servo drive, ball screw and guide rail transmission.
4. Through the friendly interface dedicated control software, it is convenient to edit and modify the cutting path.
5. Compatible with AutoCAD,CorelDRAW and other special cutting software. 6. Randomly modify the processing program in the software to achieve the ideal cutting pattern.
Metal Sheet Fiber Laser Cutter Segmented rectangular tube welding bed advantage
The internal structure of the bed adopts the aircraft metal honeycomb structure, which is welded by a plurality of rectangular tubes. The inside of the tube is provided with reinforcing ribs to increase the strength and tensile strength of the bed, increase the tensile strength and stability of the guide surface, and effectively avoid deformation of the bed. .
High strength, stability, tensile strength, guarantee no deformation after 20 years of use;
The rectangular tube has a wall thickness of 10 mm and the entire body weighs 4,500 kg.
High strength, stability, tensile strength, guarantee no deformation after 20 years of use;
The rectangular tube has a wall thickness of 10 mm and the entire body weighs 4,500 kg.
Metal Sheet Fiber Laser Cutter User-friendly design:
No need to manually adjust the focus, the software automatically adjusts the focusing mirror to control the height of the upper and lower, so as to realize the automatic perforation cutting of different thickness plates. The software memorizes the focal length of different plates, and the operation is simpler, which is ten times the artificial speed.
Large adjustment range: +10~——10, precision 0.01mm, suitable for different types of plates from 0~20mm.
Long life: collimating lens focusing lens double water cooling, reducing cutting head temperature and improving cutting head life.
Large adjustment range: +10~——10, precision 0.01mm, suitable for different types of plates from 0~20mm.
Long life: collimating lens focusing lens double water cooling, reducing cutting head temperature and improving cutting head life.
Metal Sheet Fiber Laser Cutter Industry application
Applicable materials: It is suitable for stainless steel, carbon steel, alloy steel, aluminum, copper, titanium and other metal
pipes, and has excellent processing effect on various high-hardness and brittle alloy materials.
pipes, and has excellent processing effect on various high-hardness and brittle alloy materials.
Description | Parameter |
Machine Model: | HTF2560GAR |
Laser type : | IPG Fiber Laser Source |
Laser power ： | 3000W |
Weight | 19000kg |
Dimension | 1430* 4340*2620mm |
Working area: | 6000mm x 2500mm |
Repeated positioning accuracy ： | ±0.02mm |
Max.Running Speed: | 120m/min |
Max. Acceleration: | 1.5G |
transmission : | Double driver rack gear |
Power consumption : | <10KW |
Specified voltage and frequency ： | 380V 50Hz/60Hz/60A |
Detailed Images

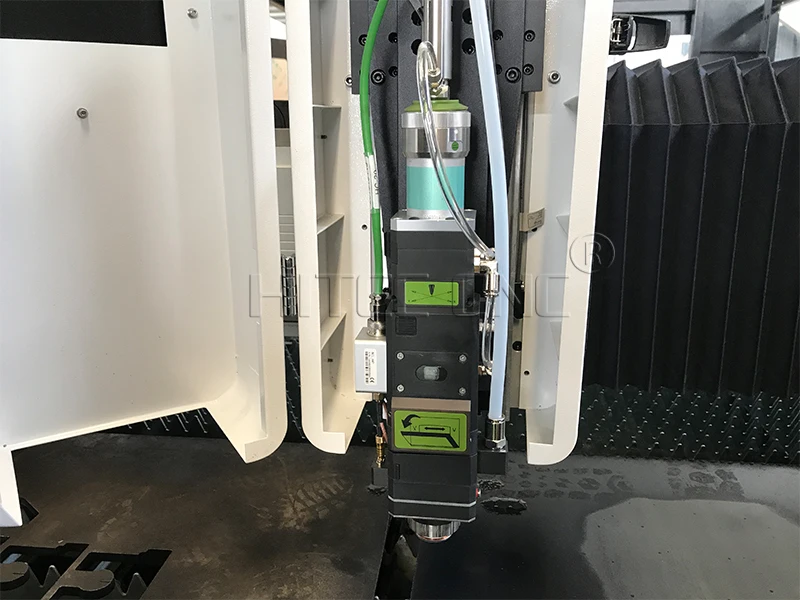

Metal Sheet Fiber Laser Cutter Raytools laser head
Advantages:
--High Precision: without manual, zero fault.
--High Effectiveness: Without manual,Save time
--High Safety: Anti-collision design, height adjustment
--High sensitivity
--High Precision: without manual, zero fault.
--High Effectiveness: Without manual,Save time
--High Safety: Anti-collision design, height adjustment
--High sensitivity
Metal Sheet Fiber Laser Cutter Laser generator
Raycus 3 Kw Laser Source
Advantage:
100,000 hours life time More stable and
cost-efficient Free maintenance
The good brand in the world, quality has assurance.
Advantage:
100,000 hours life time More stable and
cost-efficient Free maintenance
The good brand in the world, quality has assurance.
Metal Sheet Fiber Laser Cutter CYPCUT control system
Auto edge seeking function and flying cutting function, Intelligent typesetting etc. Supported Format: AI, BMP, DST, DWG, DXF, DXP, LAS, PLT,NC,GBX etc
CYPCUT control system
Auto edge seeking function and flying cutting function, Intelligent typesetting etc. Supported Format: AI, BMP, DST, DWG, DXF, DXP, LAS, PLT,NC,GBX etc
Metal Sheet Fiber Laser Cutter Control cabinet
All electrical components and laser source are built-in to the independent control cabinet with a dust-proof design to prolong the lifespan of the electrical components.
The control cabinet is equipped with air conditioner for automatic constant temperature.
This can prevent excessive temperature damage to components in summer.
This can prevent excessive temperature damage to components in summer.
Water Cooling System
Brand: TongFei Chiller
Details: Dual cooling function,Hot water for laser
Head and cool water for laser source to keep them around a certain temperature and guarantee their normally work.
Environmentally coal added, more environmentally and friendly for the workers.
Details: Dual cooling function,Hot water for laser
Head and cool water for laser source to keep them around a certain temperature and guarantee their normally work.
Environmentally coal added, more environmentally and friendly for the workers.
The Beam of Metal Sheet Fiber Laser Cutter
Type: Aviation aluminum Beam
Structure:Manufactured with aerospace standards
And formed by 4300 tons Press extrusion molding.
After aging treatment, its hardness can reach 6061 T6.
Advantages:Good toughness,light weight, stronger
corrosion resistance,anti-oxidation,low density to
increase the moving speed of laser head.
Comparison:
--Steel Gantry: 280kg;
--Cast aluminum Gantry: 180kg;
--Aviation aluminum Gantry: 138kg.
With alight weight, it will greatly increase the processing speed.
Type: Aviation aluminum Beam
Structure:Manufactured with aerospace standards
And formed by 4300 tons Press extrusion molding.
After aging treatment, its hardness can reach 6061 T6.
Advantages:Good toughness,light weight, stronger
corrosion resistance,anti-oxidation,low density to
increase the moving speed of laser head.
Comparison:
--Steel Gantry: 280kg;
--Cast aluminum Gantry: 180kg;
--Aviation aluminum Gantry: 138kg.
With alight weight, it will greatly increase the processing speed.

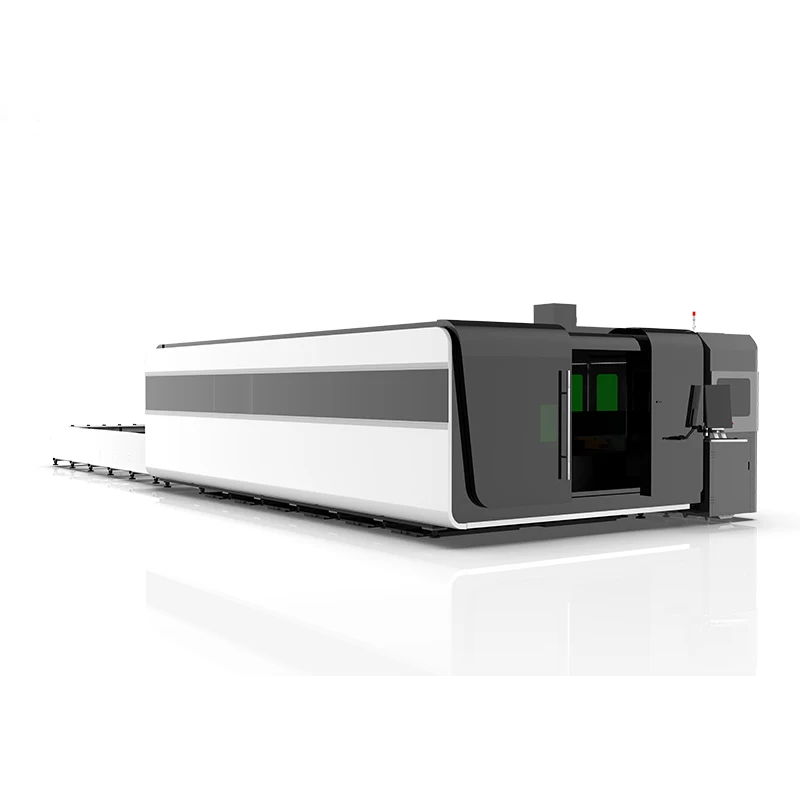

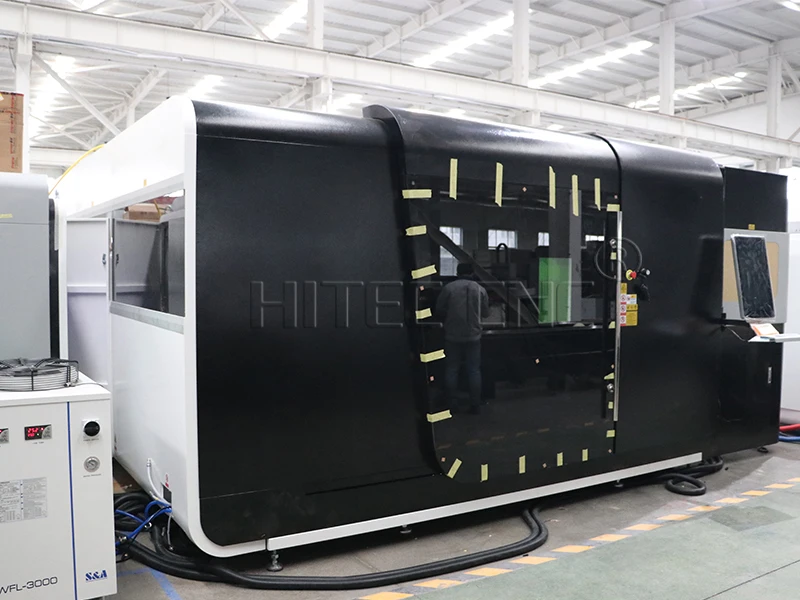

Metal Sheet Fiber Laser Cutter With a fully enclosed design
Safety and No Pollution;The observation window adopts an European CE Standard laser protective glass;
The smoke produced by cutting can be filtrated inside, it's non-polluting environmentally friendly;
The advantage of pneumatic chuck advantage than electric chuck
Double jaw designFast clamping speed
High clamping accuracy
The remaining material of the pneumatic chuck is 100mm shorter than that of the electric chuck
Cutting thin plate without deformation
High clamping accuracy
The remaining material of the pneumatic chuck is 100mm shorter than that of the electric chuck
Cutting thin plate without deformation
air conditioner
The control cabinet is equipped with air conditioner for automatic constant temperature. This can prevent excessive temperature damage to components in summer.

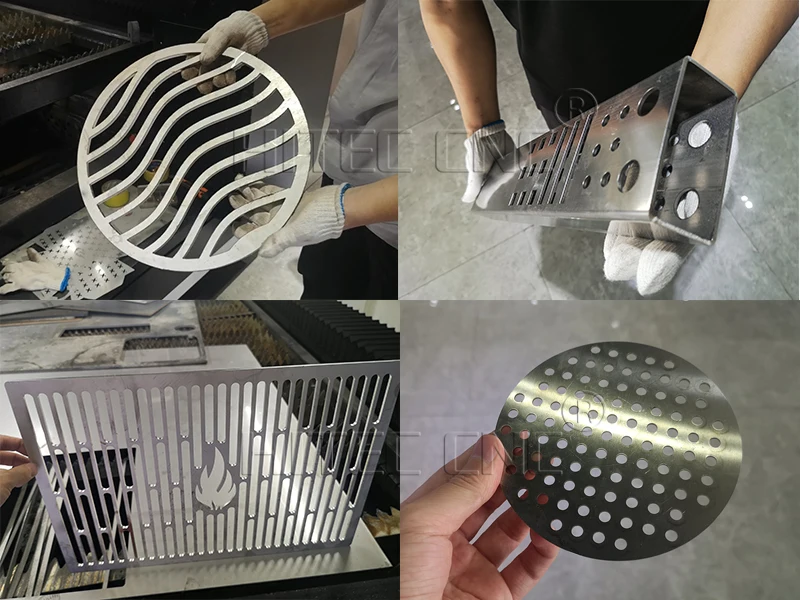

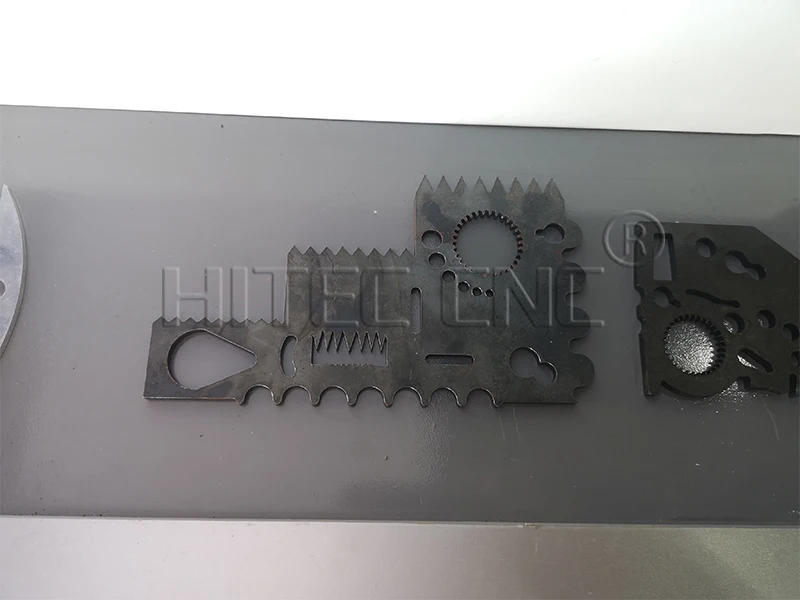

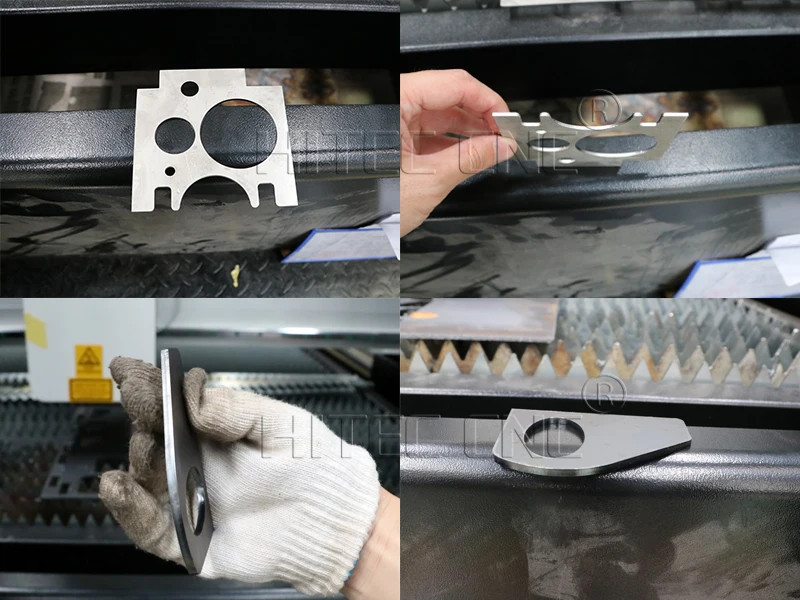

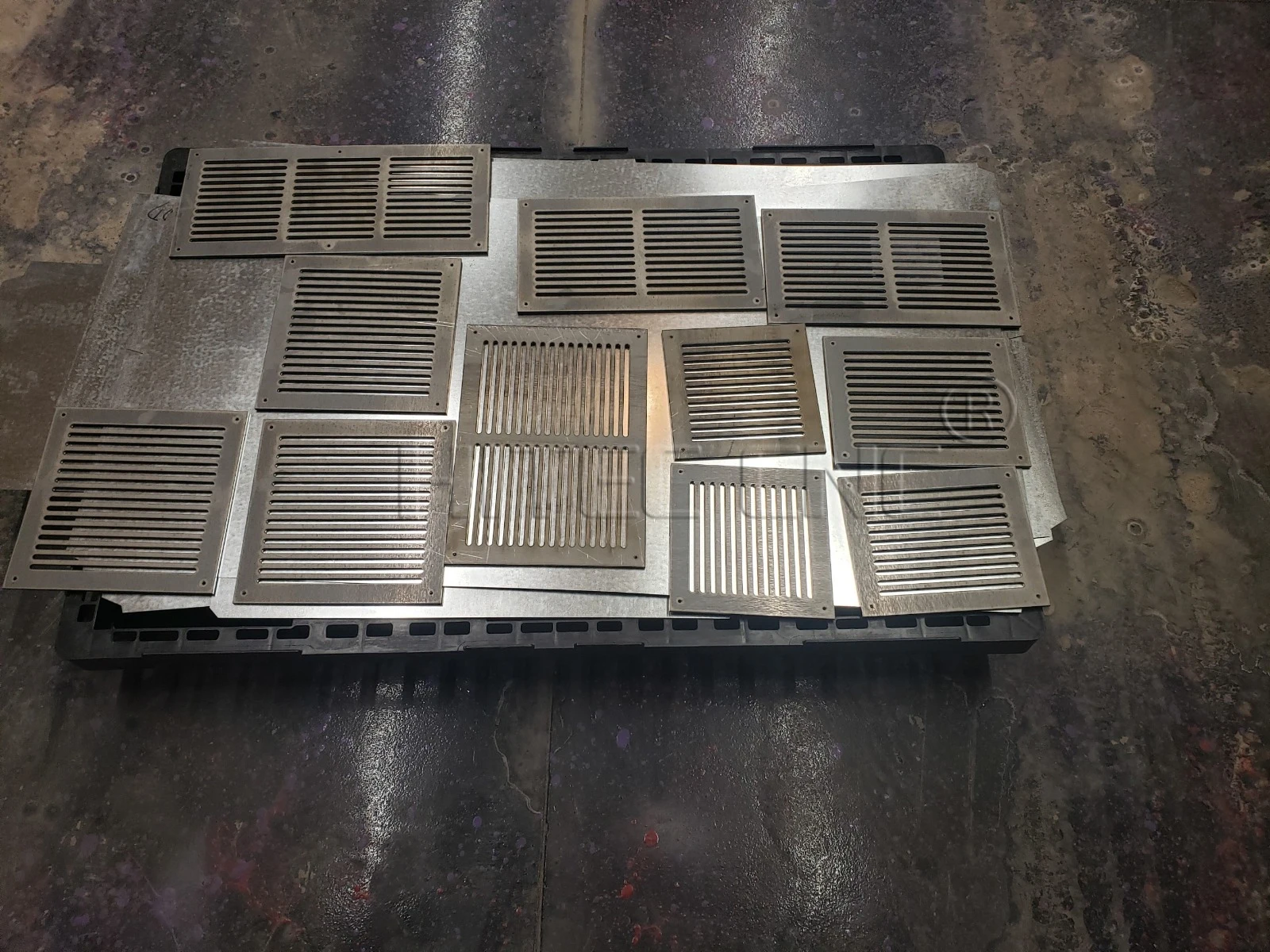

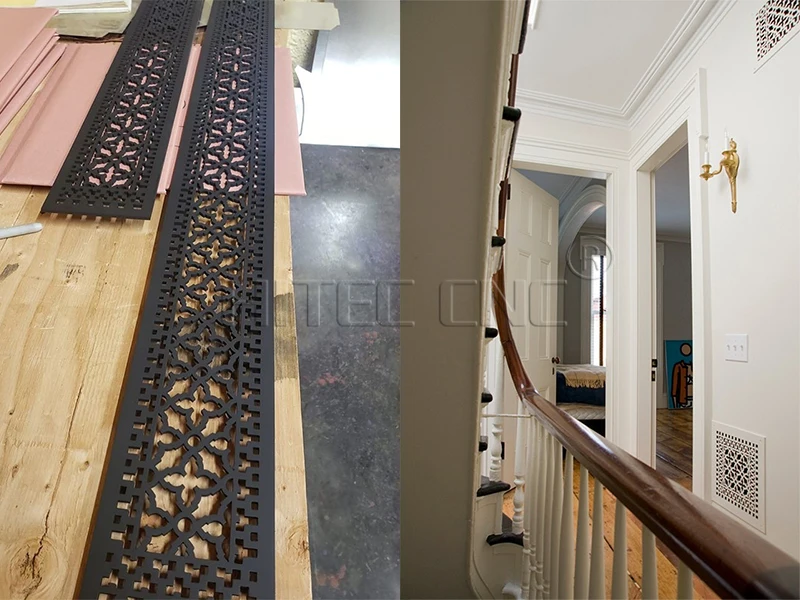

Samples
Cutting advantage of Metal Sheet Fiber Laser Cutter
1. High cutting precision: fiber laser cutting machine positioning accuracy 0.05mm, repeat positioning accuracy 0.03 mm.
2. fiber laser cutting machine slit narrow: the laser beam is focused into a small spot, so that the focus reaches a very high power density, the material is quickly heated to the degree of gasification, evaporation to form holes. As the beam moves relatively linearly with the material, the holes are continuously formed into slits having a narrow width, and the slit width is generally 0.10-0.20 mm.
3. The cutting surface of the fiber laser cutting machine is smooth: the cutting surface has no burrs, and the surface roughness of the cutting surface is generally controlled within Ra6.5.
4, fiber laser cutting machine speed: cutting speed up to 10m / min maximum positioning speed up to 30m / min faster than wire cutting speed.
5. fiber laser cutting machine cutting quality is good: no contact cutting, cutting edge is affected by heat, there is basically no thermal deformation of the workpiece, completely avoiding the collapse formed when the material is punched and sheared, the slit generally does not require secondary processing.
6, no damage to the workpiece: the fiber laser cutting head will not contact the surface of the material to ensure that the workpiece is not scratched.
7, not affected by the shape of the workpiece: laser processing is flexible, can process any graphics, can cut pipes and other profiles.
8. fiber laser cutting machine can cut a variety of materials: such as plastic, wood, PVC leather, textiles, plexiglass and so on.
9. Saving mold investment: laser processing does not require molds, no mold consumption, no need to repair molds, saving mold time, thus saving processing costs and reducing production costs, especially suitable for processing large products.
10. Material saving: computer programming can be used to cut products of different shapes to maximize the utilization of materials.
11. Improve the speed of sample delivery: After the product drawings are formed, laser processing can be performed immediately, and the new product can be obtained in the shortest time.
12, safety and environmental protection: laser processing waste, low noise, clean, safe, non-polluting, greatly improving the working environment.
2. fiber laser cutting machine slit narrow: the laser beam is focused into a small spot, so that the focus reaches a very high power density, the material is quickly heated to the degree of gasification, evaporation to form holes. As the beam moves relatively linearly with the material, the holes are continuously formed into slits having a narrow width, and the slit width is generally 0.10-0.20 mm.
3. The cutting surface of the fiber laser cutting machine is smooth: the cutting surface has no burrs, and the surface roughness of the cutting surface is generally controlled within Ra6.5.
4, fiber laser cutting machine speed: cutting speed up to 10m / min maximum positioning speed up to 30m / min faster than wire cutting speed.
5. fiber laser cutting machine cutting quality is good: no contact cutting, cutting edge is affected by heat, there is basically no thermal deformation of the workpiece, completely avoiding the collapse formed when the material is punched and sheared, the slit generally does not require secondary processing.
6, no damage to the workpiece: the fiber laser cutting head will not contact the surface of the material to ensure that the workpiece is not scratched.
7, not affected by the shape of the workpiece: laser processing is flexible, can process any graphics, can cut pipes and other profiles.
8. fiber laser cutting machine can cut a variety of materials: such as plastic, wood, PVC leather, textiles, plexiglass and so on.
9. Saving mold investment: laser processing does not require molds, no mold consumption, no need to repair molds, saving mold time, thus saving processing costs and reducing production costs, especially suitable for processing large products.
10. Material saving: computer programming can be used to cut products of different shapes to maximize the utilization of materials.
11. Improve the speed of sample delivery: After the product drawings are formed, laser processing can be performed immediately, and the new product can be obtained in the shortest time.
12, safety and environmental protection: laser processing waste, low noise, clean, safe, non-polluting, greatly improving the working environment.
Certifications
Customer feedback
Customer feedback
Customer feedback

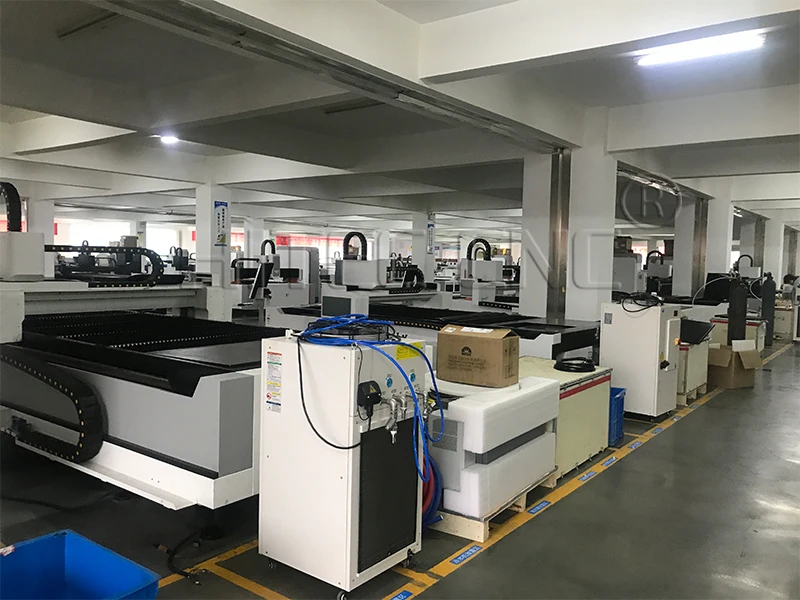

QC And Service
QC
5 face cnc milling machine which process accurancy can be 0.001mm,to improve all the machine hardware precision,from machine bed,gantry parts to tapping.
All the machine parts Assembe by our machine milling and lathe machine,can be guarantee the machine precision and fast delivery time
All the machine parts Assembe by our machine milling and lathe machine,can be guarantee the machine precision and fast delivery time
Service
Technology support
We welcome all our buyers come to visit our factory for directly free training, our professional engineer will support you to study the machine operation.
We will supply machine operation manual, training videos and machine parameters, our engineer will supply online machine installation and training.
The customers’ technicians can keep in touch with our engineer at any time, through wechat/whatsapp/mobile phone or email, our engineer will help to solve your problems as soon as possible.
If customer need, we will send our engineer to the customers’ place to provide install and train the customer to use the
machine,our engineer will stay at customers’ place for 5-7days,customers should pay the round-trip airkets/hotels/food for our engineer.
We welcome all our buyers come to visit our factory for directly free training, our professional engineer will support you to study the machine operation.
We will supply machine operation manual, training videos and machine parameters, our engineer will supply online machine installation and training.
The customers’ technicians can keep in touch with our engineer at any time, through wechat/whatsapp/mobile phone or email, our engineer will help to solve your problems as soon as possible.
If customer need, we will send our engineer to the customers’ place to provide install and train the customer to use the
machine,our engineer will stay at customers’ place for 5-7days,customers should pay the round-trip airkets/hotels/food for our engineer.
The main purpose of pre-sales service is to assist customers to do engineering planning and system requirements analysis, so that
our products can meet the needs of users to the greatest extent, and at the same time make the customer's investment play the
largest comprehensive economic benefit.
our products can meet the needs of users to the greatest extent, and at the same time make the customer's investment play the
largest comprehensive economic benefit.
1. Strengthen user communication and exchange on project progress at any time; 2. As far as possible to meet the changes of the
user's reasonable temporary needs;
3. Collaborate friendly with users to deliver qualified products.
user's reasonable temporary needs;
3. Collaborate friendly with users to deliver qualified products.
Guarantee Policy
The guarantee period of quality shall be 3 years counting from the date on which the commodity arrives at the port of destination.
Except the damage is artificial, we are responsible for offering the fittings free of charge during the guarantee period, but you
need to send the damaged fittings to us by courier with your charge before we send back the alternative fittings to you. Out of
the guaranteed period, should the parts required to be repaired or replaced, if any, the parts will be charged.
Except the damage is artificial, we are responsible for offering the fittings free of charge during the guarantee period, but you
need to send the damaged fittings to us by courier with your charge before we send back the alternative fittings to you. Out of
the guaranteed period, should the parts required to be repaired or replaced, if any, the parts will be charged.
Company Introduction
Established in the year 2002,An ISO 9001 Firm.We are manufacturer and develop of the high technology machines.Hitec products are used in a wide variety of industries,markets and applications thoughout all over the world.Hitec is highly committed to offering the most advanced,capable and efficient manufacturing technology backed by unsurpassed service and support.
We offer cnc wood router,cnc laser,cnc plasma,cnc parts.
We offer cnc wood router,cnc laser,cnc plasma,cnc parts.
