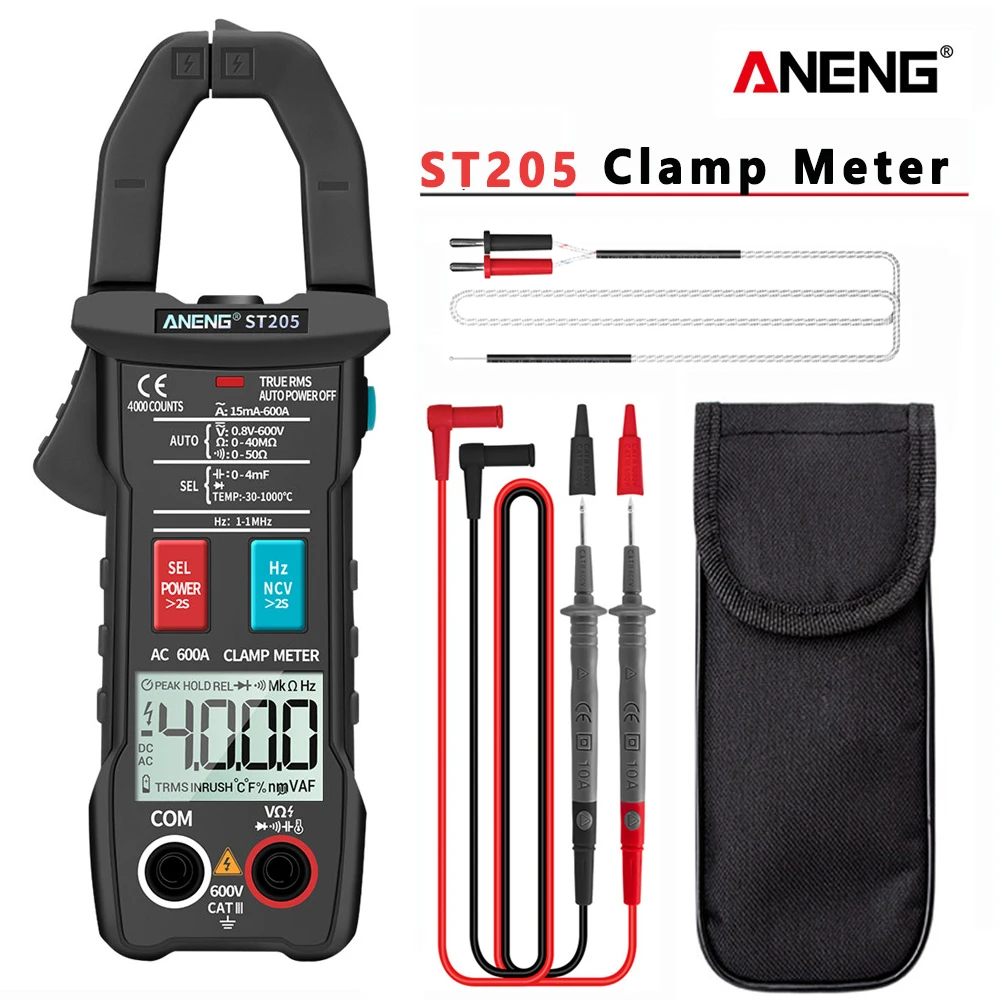

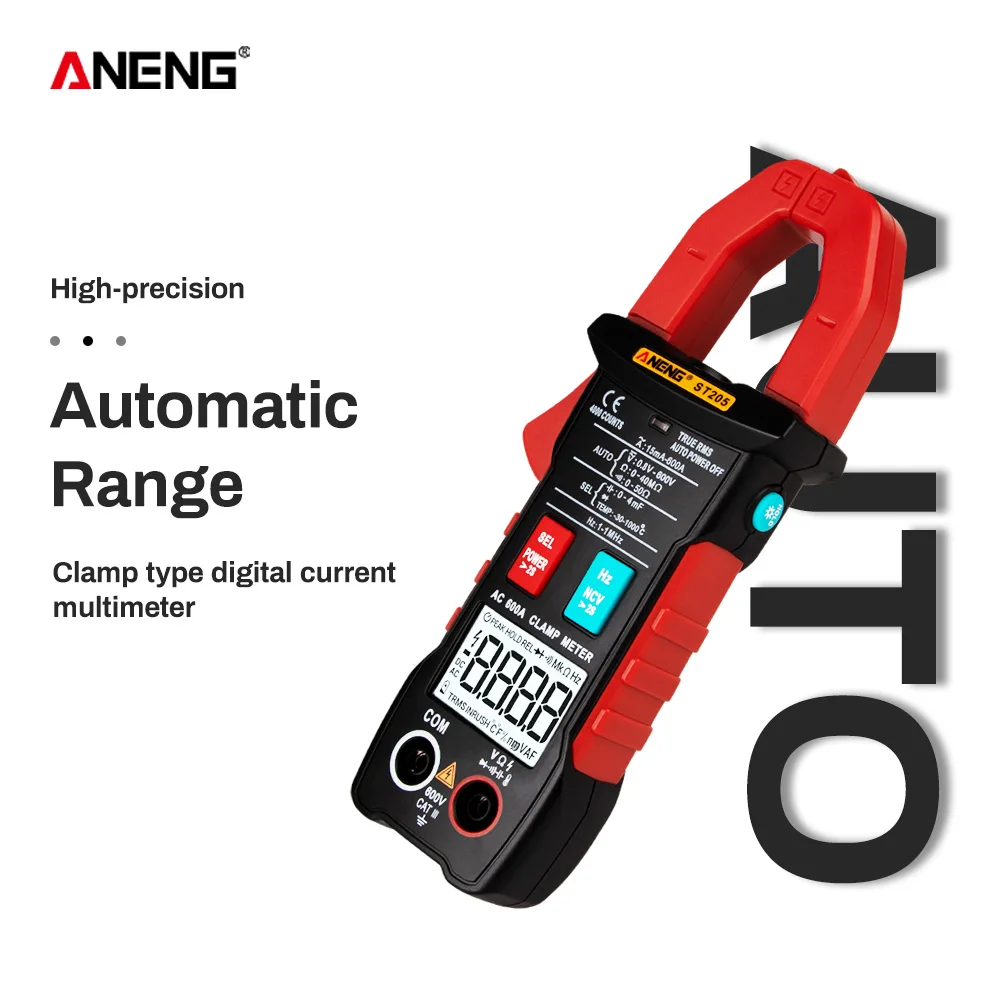

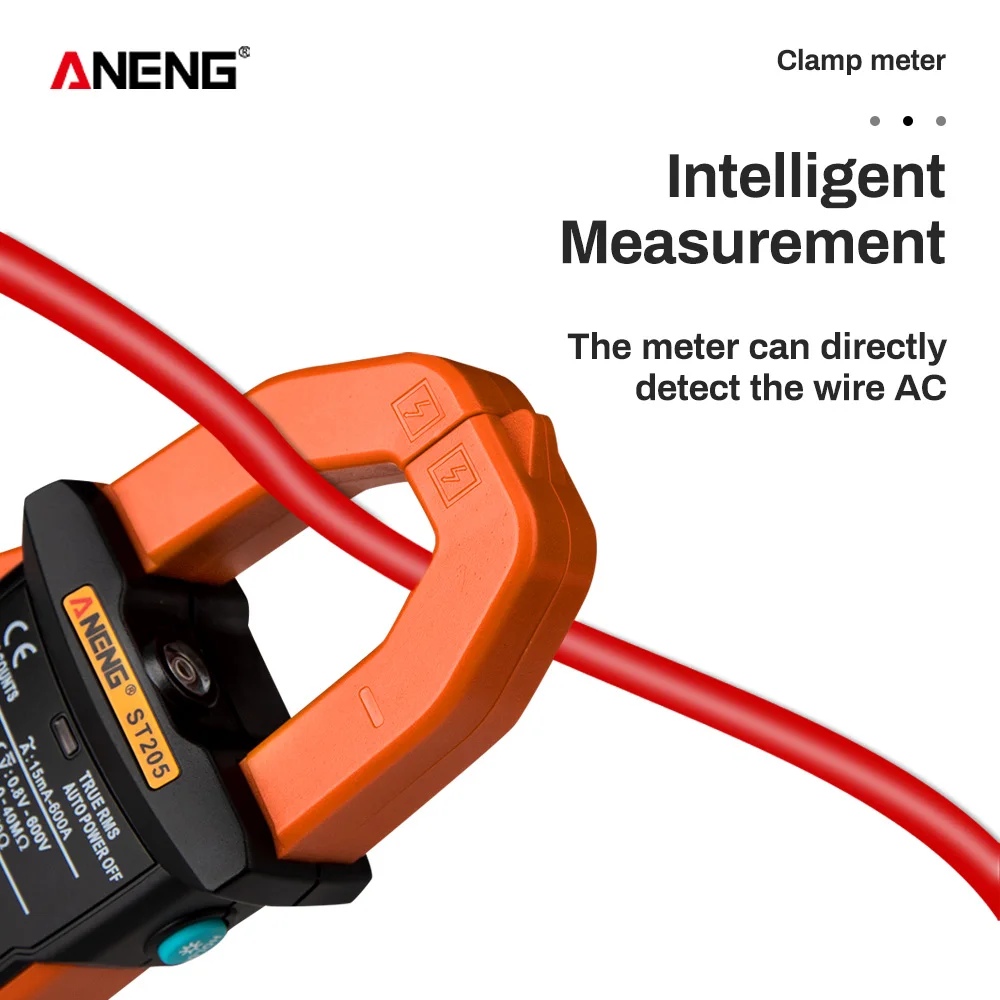

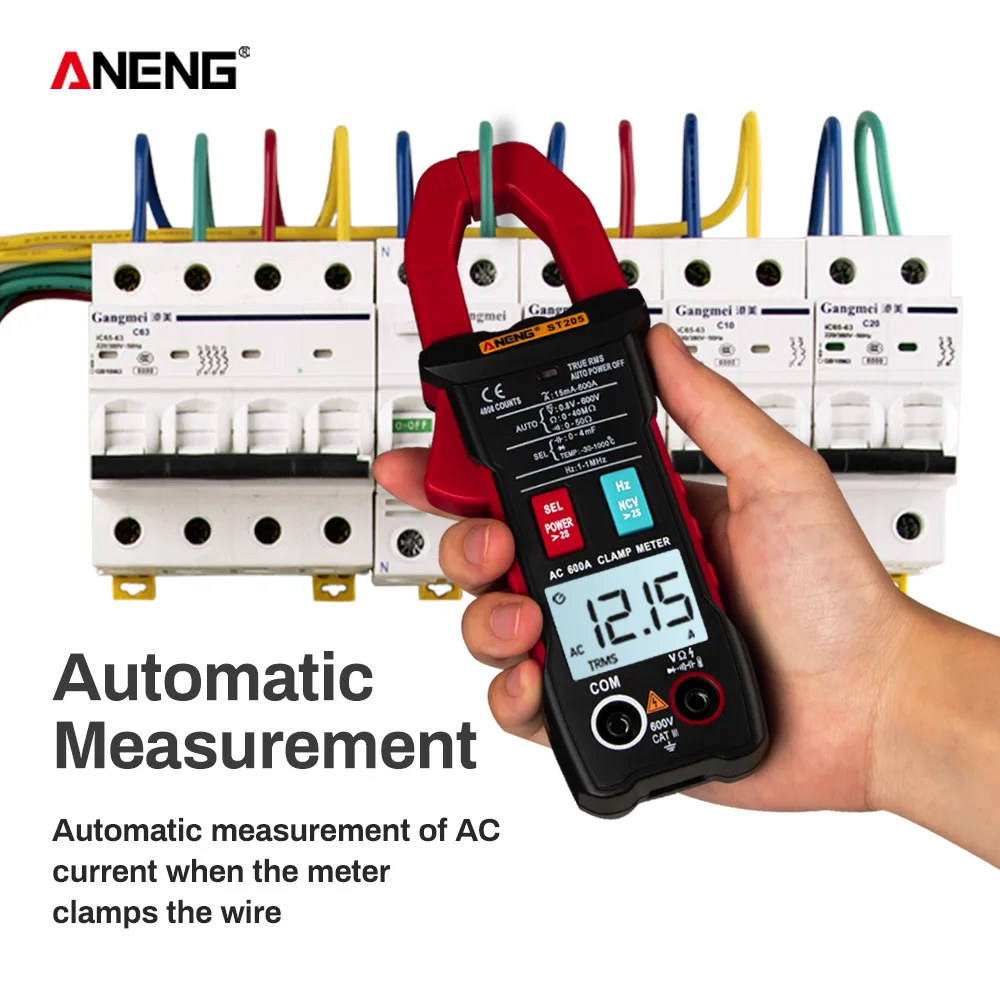

ANENG ST205 Digital Clamp Meter Analog Multimeter Current Clamp DC/AC Intelligent AUTO range meter with temperature tester
- Category: >>>
- Supplier: Zhenjiang Zhongtuo Electronic Technology Co. Ltd.
Share on (1600315330845):
Product Overview
Description
ANENG ST205 4000 digital fully intelligent automatic range digital current multimeter (with temperature measurement)
General Characteristics
1. Display: liquid crystal display (LCD);
2. Maximum display: 4000 (3 3/4) bit automatic polarity display;
3. Measurement method: double integral A/D conversion;
4. Sampling rate: about 3 times per second;
5. Over range display: The highest position shows “OL”;
6. Low voltage display:symbol appears;
7. Working environment:(0~40)°,relative humidity<80%;
8. Power: AAA 1.5V battery (Batteries excluded)

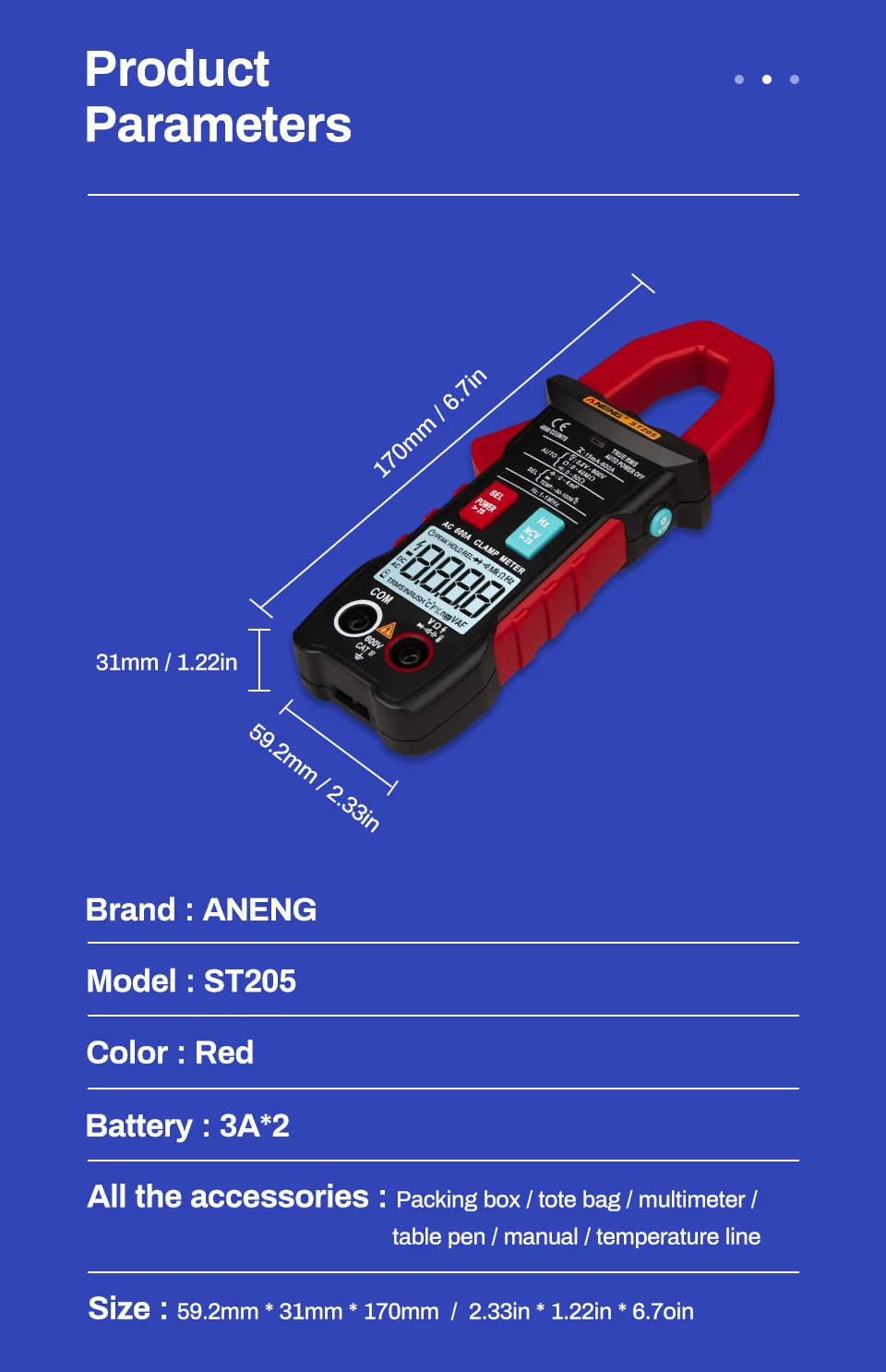

9. Volume (size): 170×65×30mm (L×W×H);
10. Weight:about160g(Batteries excluded 1.5V battery);
General Characteristics
1. Display: liquid crystal display (LCD);
2. Maximum display: 4000 (3 3/4) bit automatic polarity display;
3. Measurement method: double integral A/D conversion;
4. Sampling rate: about 3 times per second;
5. Over range display: The highest position shows “OL”;
6. Low voltage display:symbol appears;
7. Working environment:(0~40)°,relative humidity<80%;
8. Power: AAA 1.5V battery (Batteries excluded)
9. Volume (size): 170×65×30mm (L×W×H);
10. Weight:about160g(Batteries excluded 1.5V battery);
Functional parameters
DC voltage DCV :yes
AC voltage ACV :yes
AC current ACA :yes
Capacitance measurement :yes
Resistor / On-Off Test :yes
Diode measurement:yes(Diode forward voltage drop. Forward DC current is about 1mA, open circuit voltage is about 3V)
Buzzer:yes (The buzzer sounds long and the resistance of the test is less than (50±20) Ω. auto recognition (AUTO)
temperature measurement :yes
Frequency :yes

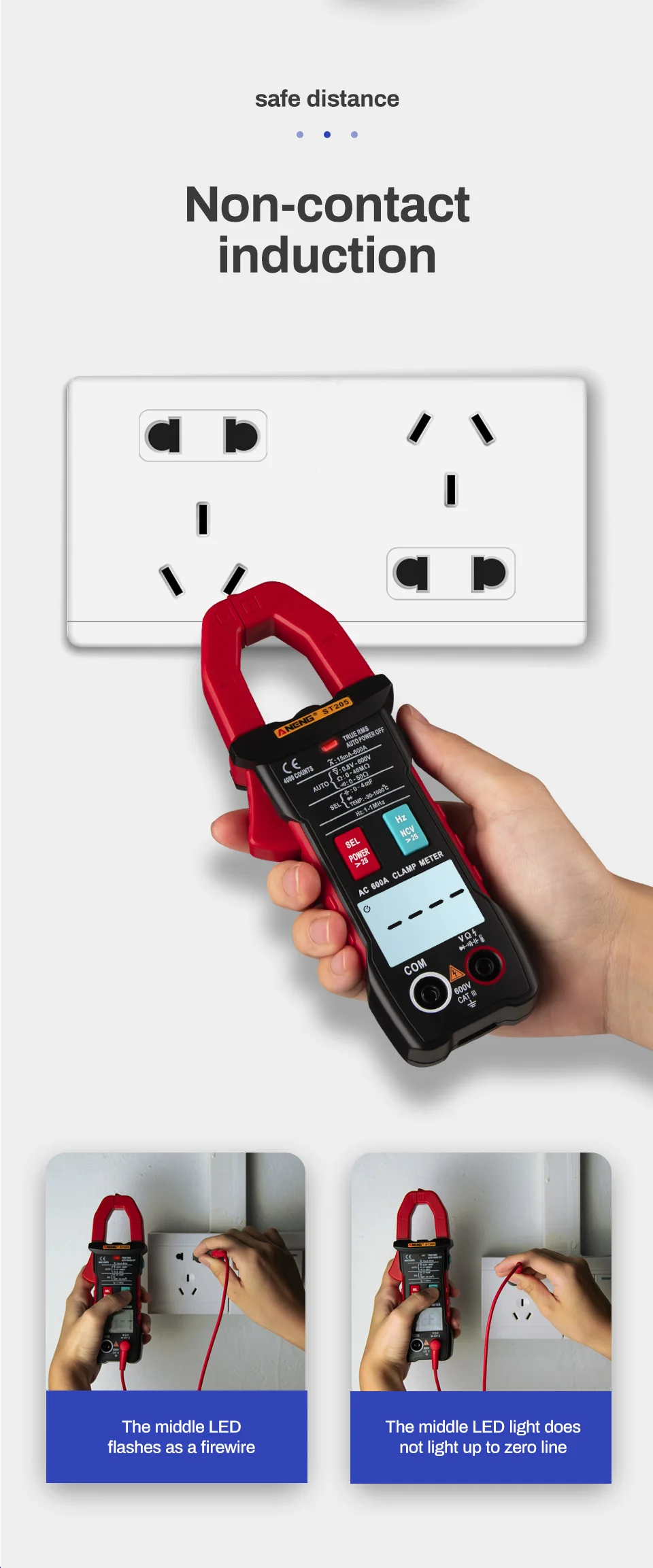

NCV :yes
Zero line / Fire line test :yes
Full unit symbol :yes
Backlight manual/Auto off :yes
True RMS measurement :yes
Flashlight lighting :yes
HOLD :yes
DC voltage DCV :yes
AC voltage ACV :yes
AC current ACA :yes
Capacitance measurement :yes
Resistor / On-Off Test :yes
Diode measurement:yes(Diode forward voltage drop. Forward DC current is about 1mA, open circuit voltage is about 3V)
Buzzer:yes (The buzzer sounds long and the resistance of the test is less than (50±20) Ω. auto recognition (AUTO)
temperature measurement :yes
Frequency :yes
NCV :yes
Zero line / Fire line test :yes
Full unit symbol :yes
Backlight manual/Auto off :yes
True RMS measurement :yes
Flashlight lighting :yes
HOLD :yes
Technical Specifications
DC voltage (DCV):4V-40V-400V-600V ±(0.5%+3)
AC voltage (ACV): 4V-40V-400V-600V ±(1%+3)
AC current(ACA):0.1A-4A-40A-400A-600A ±(2.5%+8)
Resistance: 4kΩ-40kΩ-400kΩ-4MΩ-40MΩ ±(0.5%+3)
Frequency measurement: 4Hz-40Hz-400Hz-4kHz-40kHz-400kHz-1MHz ±(0.1%+2)
Capacitance measurement:4nF-40nF-400nF-4μF-40μF-400μF-4mF ±(2%+5)
temperature measurement : -30~1000° / 22~1832° ±(2.5%+5)
DC voltage (DCV):4V-40V-400V-600V ±(0.5%+3)
AC voltage (ACV): 4V-40V-400V-600V ±(1%+3)
AC current(ACA):0.1A-4A-40A-400A-600A ±(2.5%+8)
Resistance: 4kΩ-40kΩ-400kΩ-4MΩ-40MΩ ±(0.5%+3)
Frequency measurement: 4Hz-40Hz-400Hz-4kHz-40kHz-400kHz-1MHz ±(0.1%+2)
Capacitance measurement:4nF-40nF-400nF-4μF-40μF-400μF-4mF ±(2%+5)
temperature measurement : -30~1000° / 22~1832° ±(2.5%+5)

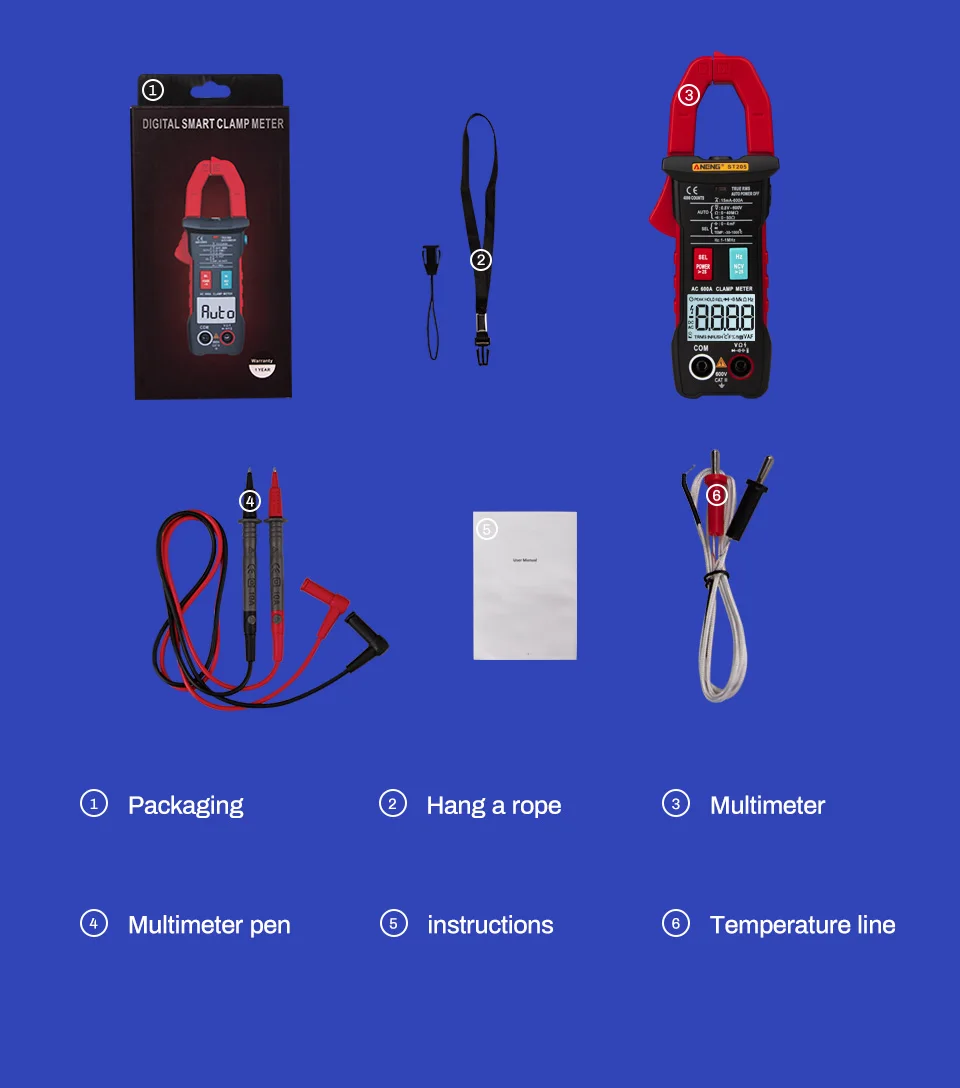

Attachment:
1* instruction manual,
1* outer packaging box,
1* pair of test leads,
1*Thermocouple,
1*Portable storage bag
1* instruction manual,
1* outer packaging box,
1* pair of test leads,
1*Thermocouple,
1*Portable storage bag
Product Description
Specification
item | value |
Place of Origin | China |
Brand Name | ANENG |
Model Number | ST205 |
Display Type | Analog and Digital |
Measuring Current Range | 0.1A-4A-40A-400A-600A ±(2.5%+8) |
Measuring Voltage Range | 4V-40V-400V-600V ±(0.5%+3) |
Measuring Resistance Range | 4k-40k-400k-4M-40M ±(0.5%+3) |
Measuring Capacitance Range | 4nF-40nF-400nF-4F-40F-400F-4mF ±(2%+5) |
Measuring Inductance Range | 4Hz-40Hz-400Hz-4kHz-40kHz-400kHz-1MHz ±(0.1%+2) |
Operating Temperature | 0-40℃ |
Dimensions | 170*65*30 mm |
Weight | about 330g |
COLOR | Red/Black/Blue/Orange |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile

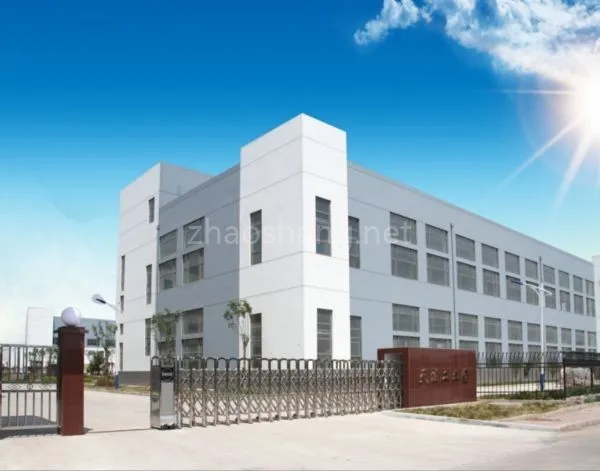

Zhenjiang Zhongtuo Electronic Technology Co., Ltd. is one of the pioneers who have been dealing with engineering construction laser system. Zhongtuo located in Zhenjiang Industry Park, accounting for an area around 20000 square meter. The company is furnished with standard workshop and professional production lines. Now, Fukuda has employed over 500 staffs, including 30 leading engineers and designers.
