SKA F101 Water Oil Tank Level Vertical Float Sensor
- Category: Measuring & Gauging Tools >>>
- Supplier: Shanghai Kara Instruments Co. Ltd.
Share on (1600315420826):
Product Overview
Description

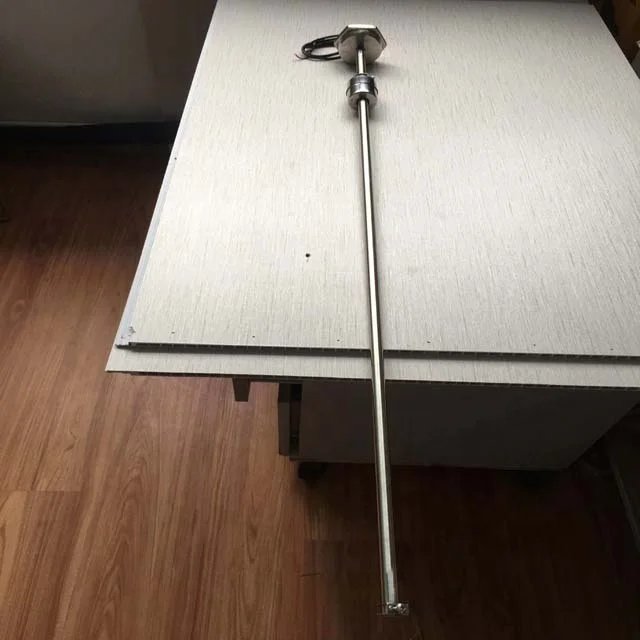

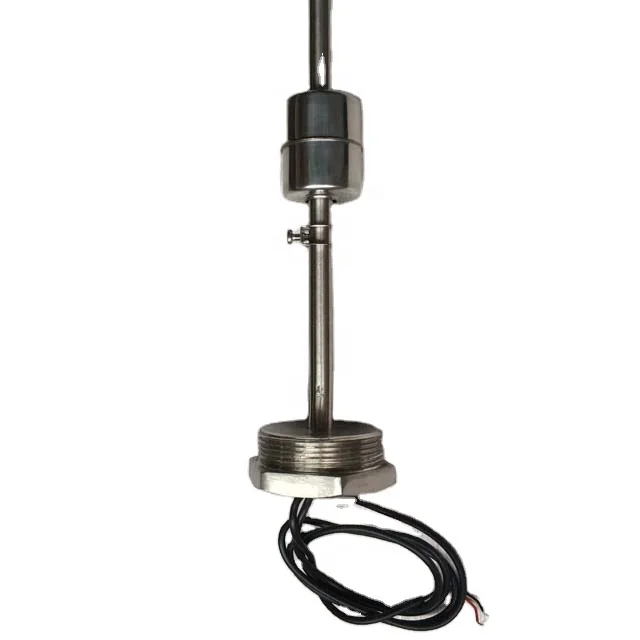

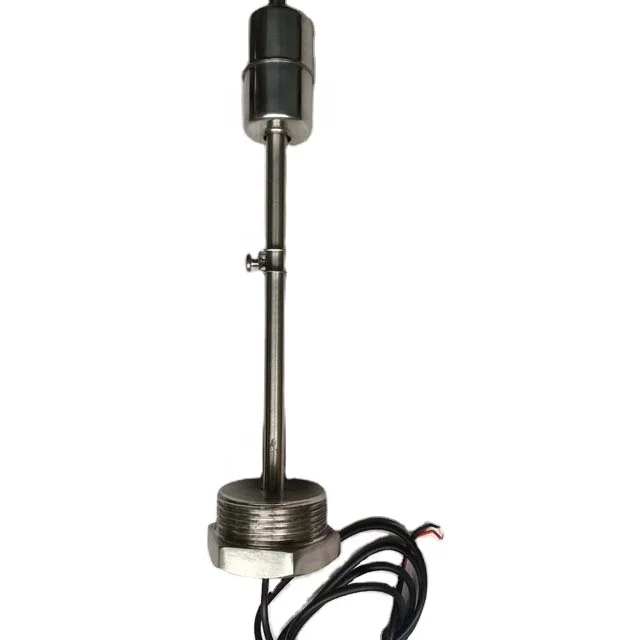

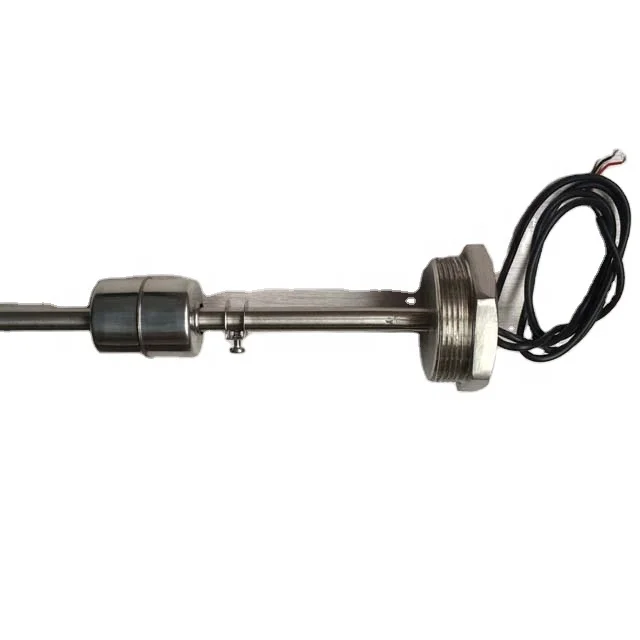

SKA-F101 Water Oil Tank Level Vertical Float Sensor
Description:
The electric liquid level Vertical Float Sensors are widely used in marine, on‐road, off‐ road, generator set, and industrial
applications. The electric liquid level Vertical Float Sensors utilizes reed switch and magnetic field technology. The advantage
of reed switch type level sender over thick‐film swing arm type level sender is the reed switch’s durability and reliability.
Additionally, in reed switch level senders the float is the only moving part of the sender, thereby minimizing potential
mechanical failures.
Product Type: Electric Liquid Level Vertical Float Sensors
Material: Body: SUS 304 or SUS 316 Stainless Steel
Cable: PVC
Float: SUS 304 or SUS 316 Stainless Steel
Mounting Method: 1.5" NPT or 2“ NPT
Protection Rating: IP 65
Output Signal: 0-5VDC
Power supply：5VDC
Accuracy: 5mm
60%--90% high alarm trigger (Customized)
Voltage output available upon request
Current output available upon request
Customized output curve available upon request
Operation Temperature: ‐40°F ~ +185°F (‐40°C ~ +85°C)
Length as below:
The electric liquid level Vertical Float Sensors are widely used in marine, on‐road, off‐ road, generator set, and industrial
applications. The electric liquid level Vertical Float Sensors utilizes reed switch and magnetic field technology. The advantage
of reed switch type level sender over thick‐film swing arm type level sender is the reed switch’s durability and reliability.
Additionally, in reed switch level senders the float is the only moving part of the sender, thereby minimizing potential
mechanical failures.
Product Type: Electric Liquid Level Vertical Float Sensors
Material: Body: SUS 304 or SUS 316 Stainless Steel
Cable: PVC
Float: SUS 304 or SUS 316 Stainless Steel
Mounting Method: 1.5" NPT or 2“ NPT
Protection Rating: IP 65
Output Signal: 0-5VDC
Power supply：5VDC
Accuracy: 5mm
60%--90% high alarm trigger (Customized)
Voltage output available upon request
Current output available upon request
Customized output curve available upon request
Operation Temperature: ‐40°F ~ +185°F (‐40°C ~ +85°C)
Length as below:
American Standard | European Standard | ||||
length | length | length | length | ||
4" | 33" | 100 mm | 1550 mm | ||
5" | 34" | 150 mm | 1600 mm | ||
6" | 35" | 200 mm | 1650 mm | ||
7" | 36" | 250 mm | 1700 mm | ||
8" | 37" | 300 mm | 1750 mm | ||
9" | 38" | 350 mm | 1800 mm | ||
10" | 39" | 400 mm | 1850 mm | ||
11" | 40" | 450 mm | 1900 mm | ||
12" | 41" | 500 mm | 1950 mm | ||
13" | 42" | 550 mm | 2000 mm | ||
14" | 43" | 600 mm | 2050 mm | ||
15" | 44" | 650 mm | 2100 mm | ||
16" | 45" | 700 mm | 2150 mm | ||
17" | 46" | 750 mm | 2200 mm | ||
18" | 47" | 800 mm | 2250 mm | ||
19" | 48" | 850 mm | 2300 mm | ||
20" | 49" | 900 mm | 2350 mm | ||
21" | 50" | 950 mm | 2400 mm | ||
22" | 51" | 1000 mm | 2450 mm | ||
23" | 52" | 1050 mm | 2500 mm | ||
24" | 53" | 1100 mm | |||
25" | 54" | 1150 mm | |||
26" | 55" | 1200 mm | |||
27" | 56" | 1250 mm | |||
28" | 57" | 1300 mm | |||
29" | 58" | 1350 mm | |||
30" | 59" | 1400 mm | |||
31" | 60" | 1450 mm | |||
32" | 1500 mm | ||||
