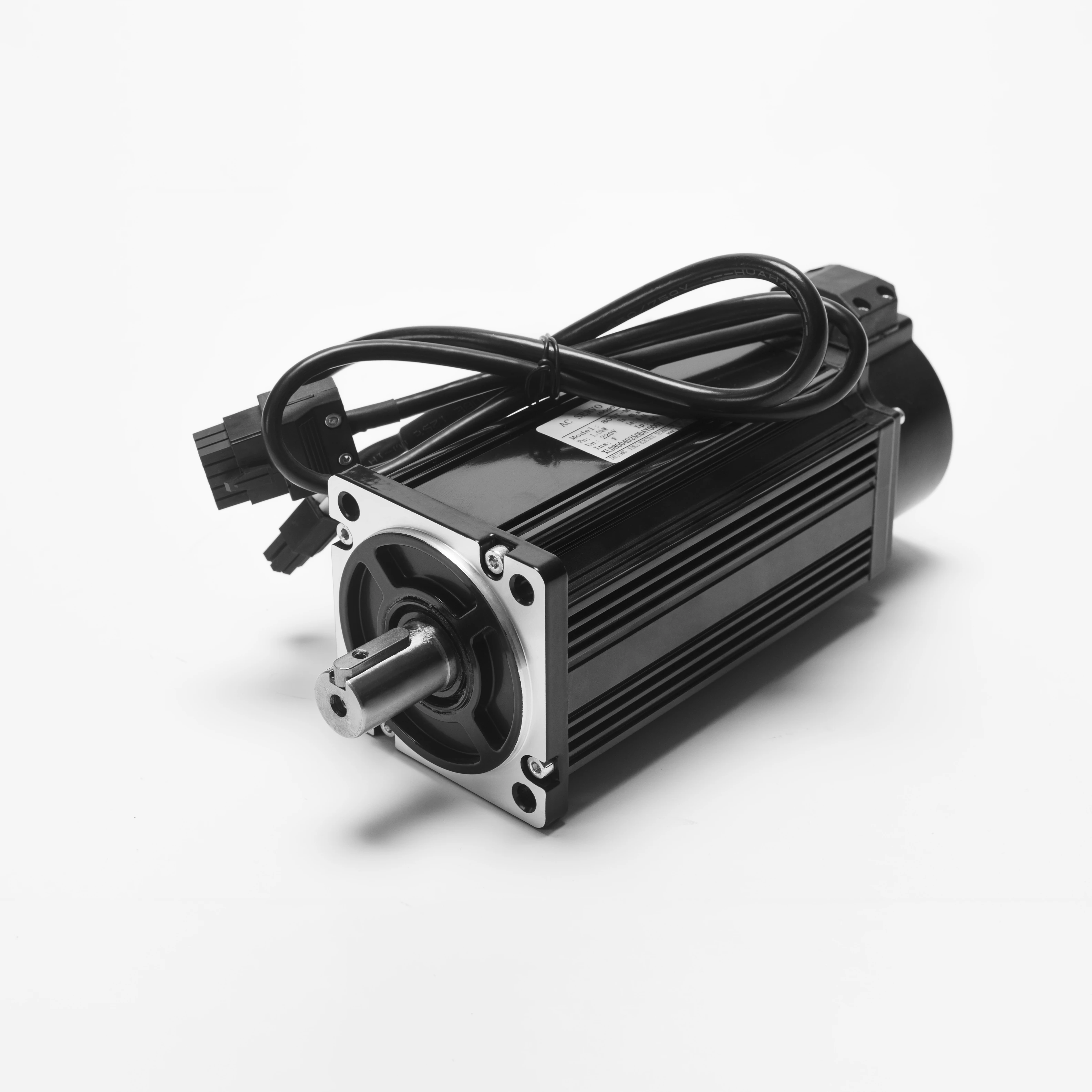

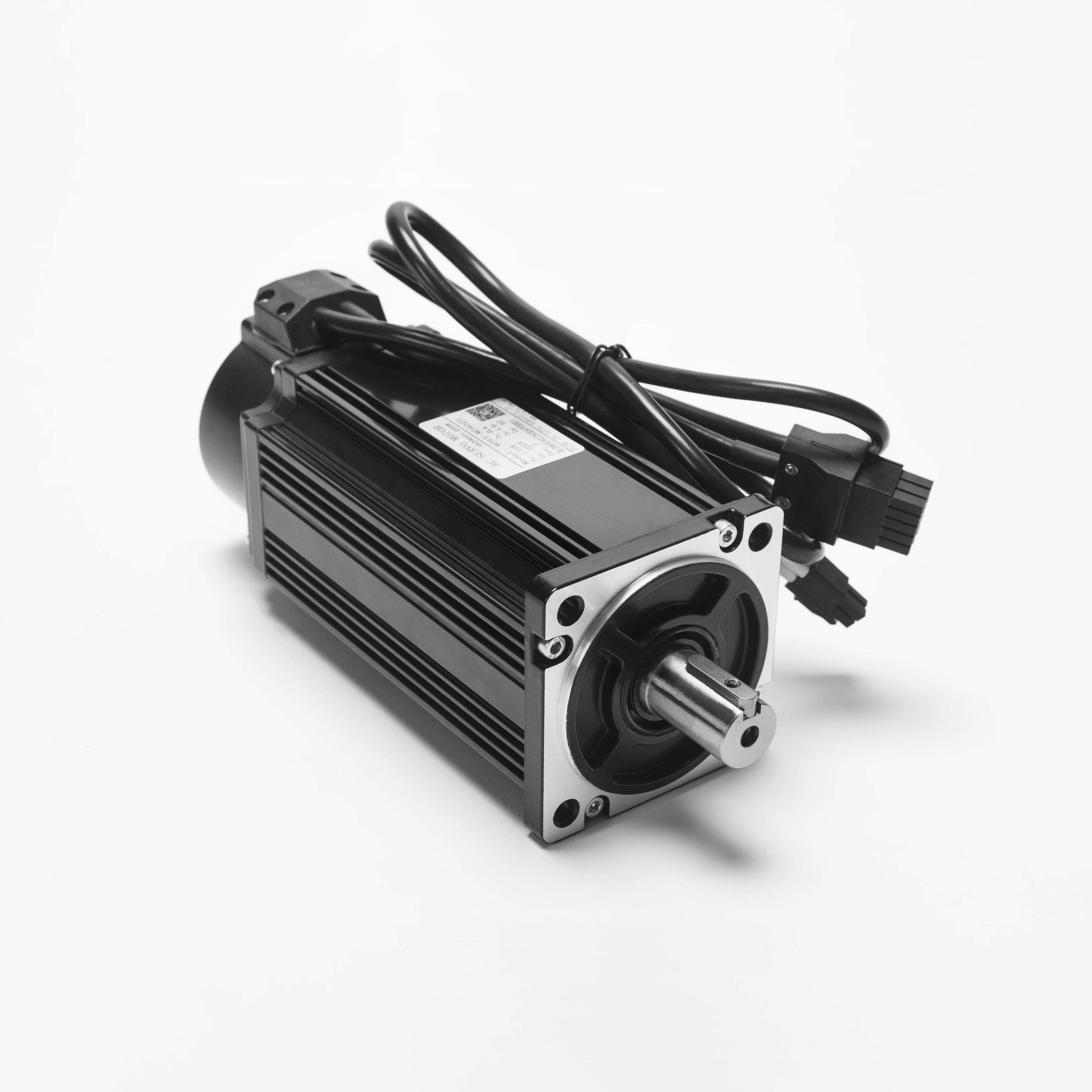

24v 750w 2kw 3000 rpm encoder digital DC SERVO MOTOR for overlok sewing machine
- Category: >>>
- Supplier: Zhejiang Xinli Electric Technology Co. Ltd.
Share on (1600315545632):
Product Overview
Description
Product Description
Motor Model | 80ST-M02430 |
Rated Voltage (V) | 24 |
Rated Power (KW) | 0.75 |
Rated Torque (N.m) | 2.39 |
Peak Torque (N.m) | 7.1 |
Rated Current (A) | 34 |
Rated Speed (rpm) | 3000 |
Voltage Constant(V/1000r/min) | 4.6 |
Torque Coefficient (N.m/A) | 0.07 |
Rotor Inertia (KG.M2) | 1.82x10-3 |
Line-line Resistance (Ω) | 0.028 |
Line-line Inductant (mH) | 0.054 |
Electrical Time-constant (ms) | 1.93 |
Encoder Line Number (ppr) | 2500 |
Insulation Class | ClassF |
Safety Class | IP65 |
Environment | Temputer: -20~+50℃ Humidity Below 90%RH No Dewing |
Specification
1. Q: Are you manufacturer ?
A:Yes, we are the manufacturer with continuous and improved R & D, production, sales and service supply.
2.Q: What are your main products ?

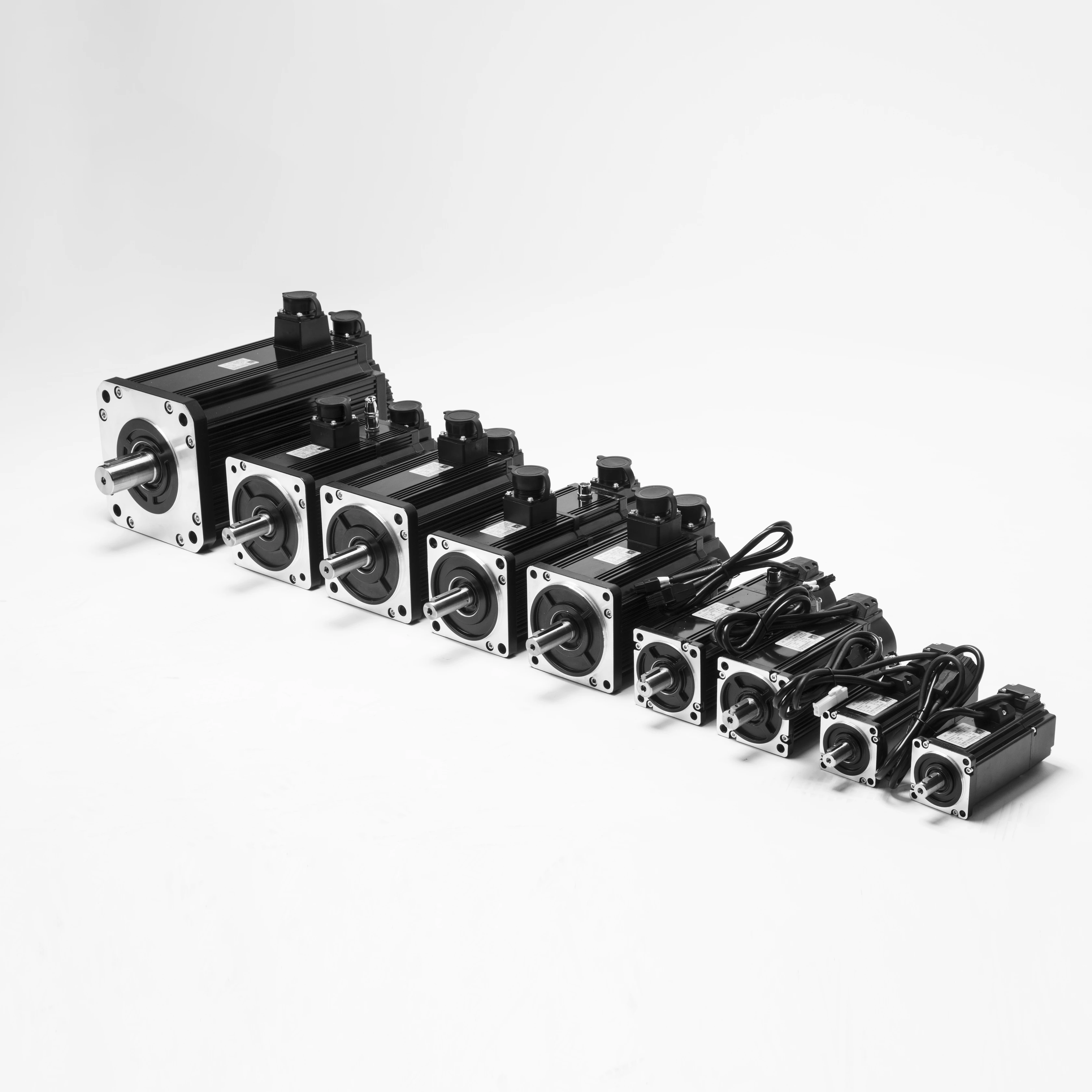

A: Our products are AC servo motors and drives, brushless DC motors, micro asynchronous motors and related products.
3.Q: How to get a quotation ?
A: In order to send you our best price, please kindly inform us detailed product parameters.
4.Q: Could you provide free sample ?
A: Yes, we could provide free sample if the value is not big, but the courier charge will be on your side.
5. Q: Can I choose the different brake to the motors?
A: Yes, you can choose the different kinds of brake or without brake.
6.Q: What’s your payment terms ?
A: Mainly accept T/T, L/C is also available if order amount big. Other payment terms can be further discussed.
7.Q: What is your delivery time ?
A:In normal condition, small order needs around 5-10 working days. 20’container needs about 15-20 days, 40’container needs about 30 days.
8.Certicification:
We are ISO9001, ISO14001, CE certified.
9.Shipping :
If your order is not big enough , Door to Door Service is the best choice via UPS,FEDEX,DHL,.
For big quantity, by air or by sea through your forwarder is a Normal Way , we also can provide cost-effective forwarder for your reference.
A:Yes, we are the manufacturer with continuous and improved R & D, production, sales and service supply.
2.Q: What are your main products ?
A: Our products are AC servo motors and drives, brushless DC motors, micro asynchronous motors and related products.
3.Q: How to get a quotation ?
A: In order to send you our best price, please kindly inform us detailed product parameters.
4.Q: Could you provide free sample ?
A: Yes, we could provide free sample if the value is not big, but the courier charge will be on your side.
5. Q: Can I choose the different brake to the motors?
A: Yes, you can choose the different kinds of brake or without brake.
6.Q: What’s your payment terms ?
A: Mainly accept T/T, L/C is also available if order amount big. Other payment terms can be further discussed.
7.Q: What is your delivery time ?
A:In normal condition, small order needs around 5-10 working days. 20’container needs about 15-20 days, 40’container needs about 30 days.
8.Certicification:
We are ISO9001, ISO14001, CE certified.
9.Shipping :
If your order is not big enough , Door to Door Service is the best choice via UPS,FEDEX,DHL,.
For big quantity, by air or by sea through your forwarder is a Normal Way , we also can provide cost-effective forwarder for your reference.
