XB 8608G Desktop Hands Free 2D Omnidirectional barcode Scanner Pos qr code scannering
- Category: >>>
- Supplier: GUANGZHOU SYBLE CO. LTD
Share on (1600315565839):
Product Overview
Description
Product Description

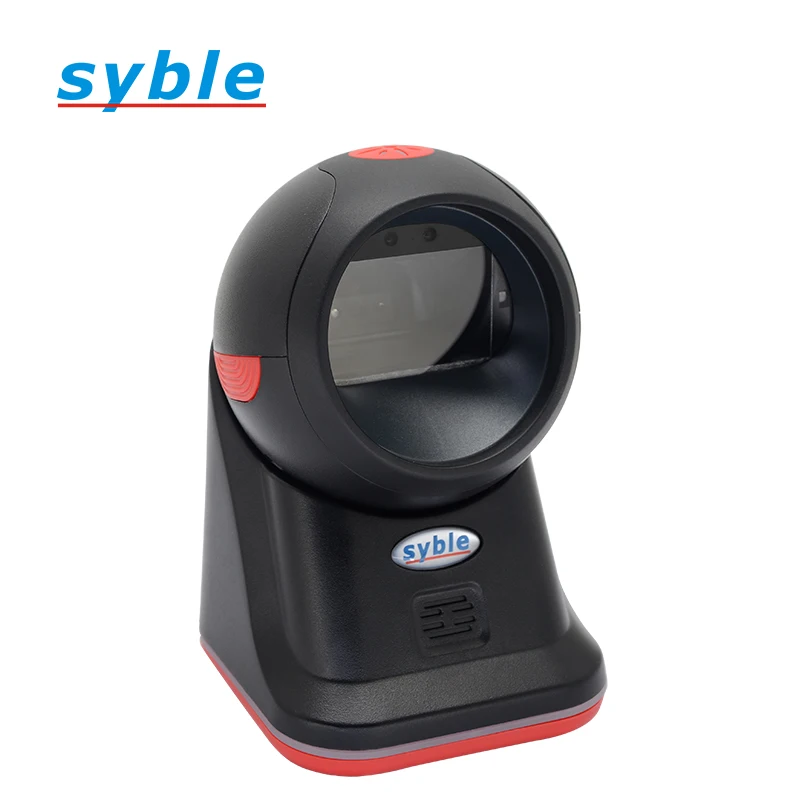

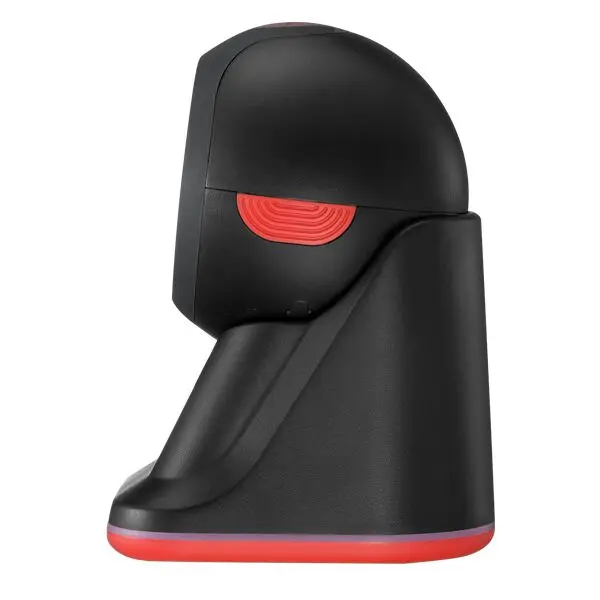

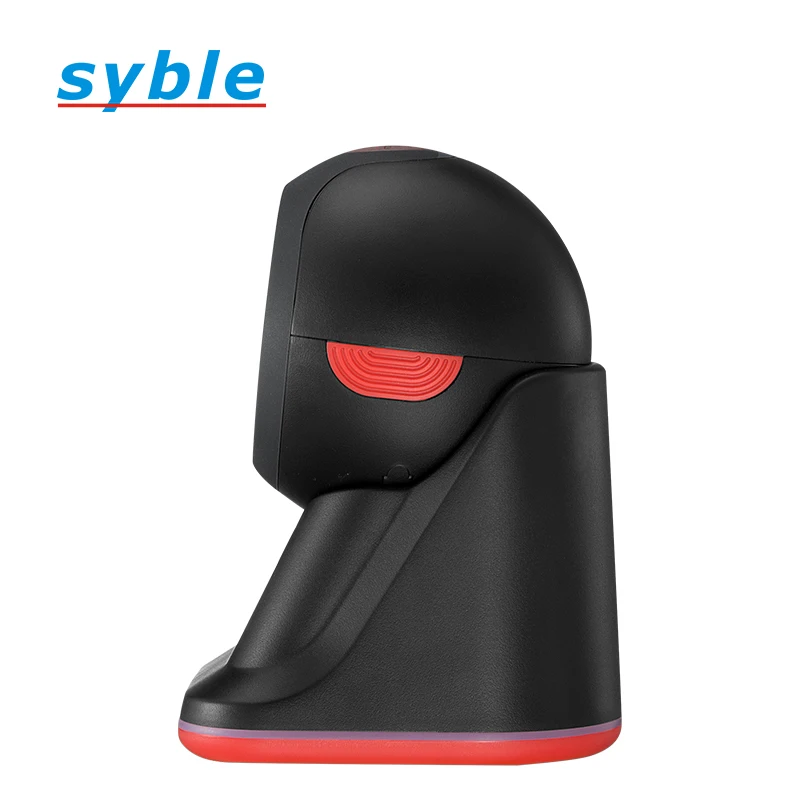

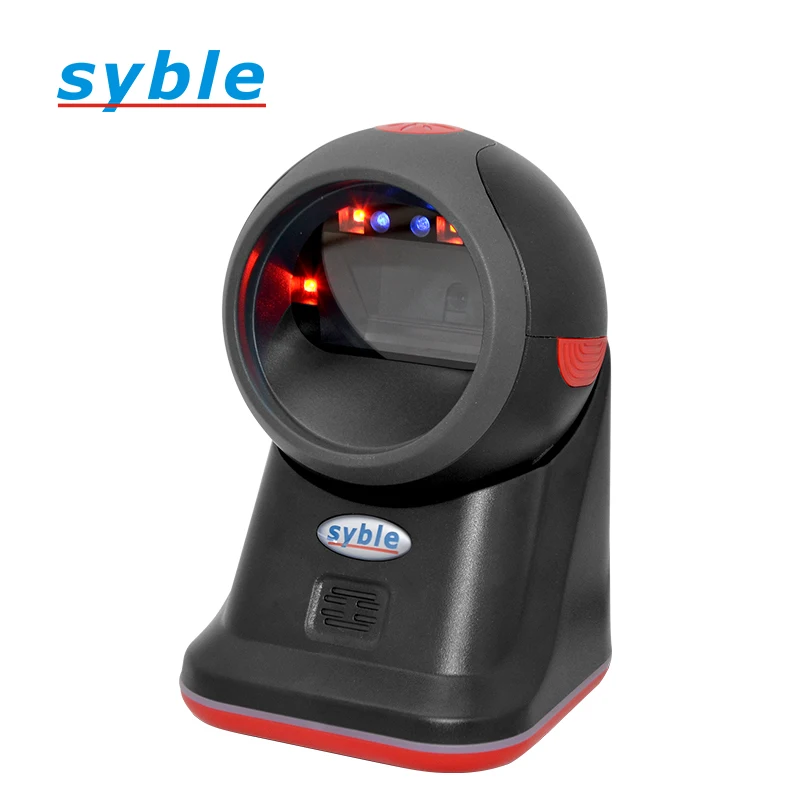

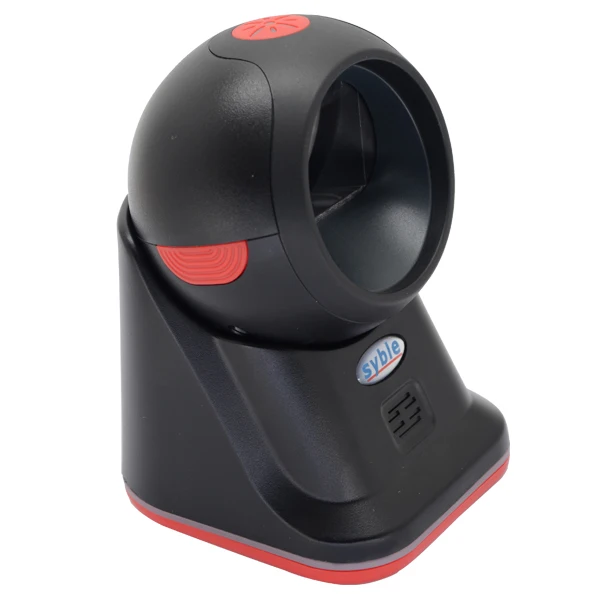

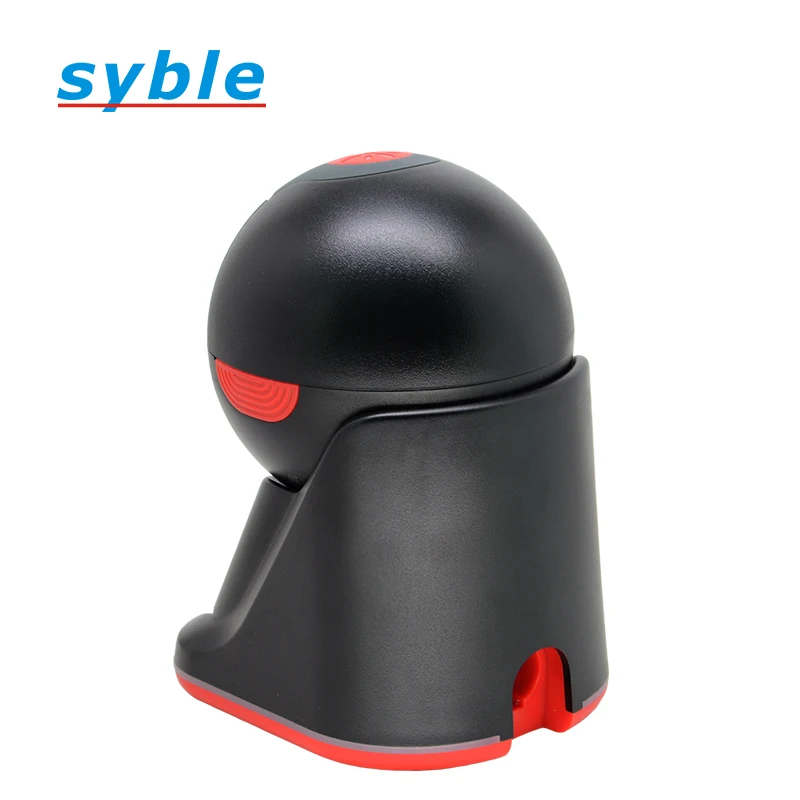

2D Omnidirectional Barcode Scanner XB-8608G
Presentation 2D Imager Syble XB-8608 has fashion and excellent design together with powerful scan engine create unmatched performance and reliability ,this on counter 2D Barcode Scanner features are high inerrability ,flexibility ,scanning and decoding capability .it is suitable to supermarkets ,pharmacies stores ,petrol stations and other similar retails stores
Model XB-8608G
Features:
Scanner head can tilt up to 30degrees to accommodate different objects
Read 1d and 2d barcodes from paper printed as well as mobile devices displays
Compact and rugged design withstand multiple 1.5m drops to concrete
Compatible with all point of sale systems ( Windows ,Linux ,IOS etc)
Automatic sleep and wake up mode which save power and improve life time
High performance with competitive price
| Performance Parameters | |
| Light Source: | 625nm LED sigle dot. 630nm LED |
| Decoded Capability: | 1D: UPC/EAN, UPC/EAN with Supplementals, Bookland, SG1-128, ISBT 128, Code 39, Code, 93, Full ASCII, Trioptic Code 39, Code 32, Code 11, Codebar, Matrix 2 of 5, Interleaved 2 of 5, Discrete 2 of 5, MSI, Chinese 2 of 5, GS1 Databar Variants, Korean 3 of 5, ISBT Concat
2D: PDF417, MicroPDF417, Composite Codes, TLC-39, Data Matrix, Maxi Code, QR Code, Micro QR, Aztec. U.S. Posnet and planet, U.K. Post, Janpan Post, Australian Post, Netherlands KIX Code, Royal Mai 4 state Customer, UPU FICS 4 state Postal, USPS 4CB
|
| Optical System: | 752H*480V pixel (Wide VGA) |
| Resolution: | 4mil(Code 39), 75mil(Data Matrix), 5mil(PDF417) |
| Focusing Distance: | manually / successive scanning (optional) |
| Fiel of View: | yaw 55°, rotation 30°, pitch 65° |
| Precision: | 4 mil (0.1mm) |
| Depth of Scan Field: | Horizontal: 46.1°; Vertical: 30.4° |
| Indicating Method: | LED speaker |
| Supported Interface: | USB-HID, USB-COM, RS232 |
| Physical Parameters | |
| Dimension: | 140mm(L)*73mm(W)*70mm(H) |
| Weight: | 300g including 2m cable |
| Material: | ABS+PC |
| Cable Length: | 2m |
| Environmental Parameters | |
| Operating Temperature: | 00°C~40°C (32°F to 104°F) |
| Storage Temperature: | -40°C~70°C |
| Relative Humidity: | 5~95% relative humidity, non-condensing |
| Drop Resistance: | withstand multiple times 1.5m drop on to concrete |
| Electrical Parameters | |
| Input Voltage: | DC 5V±1% |
| Operating Current: | <260mA |
| Approval Certificates | ISO9001, RoHS, FC, CE |

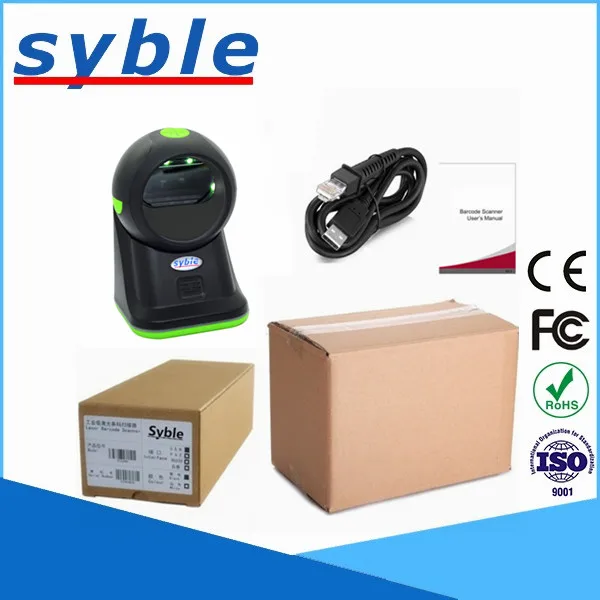

Packaging & Shipping
Packaging Details:
1*2D Fixed Mount Barcode Scanner
1*2m Cable
1*User Manual(English Version)
Dimensions per Unit: 24*8*10CM
Weight per Unit: 0.5KG
Units per Export Carton: 20 Units
Export Carton Dimensions: 46*30*60CM
Export Carton Weight: 17KG
Product details :
Our Advantage:
1:Fast and On Time Delivery
2:Professional hardware and software technology team
3:Competitive price and reliable performance
4:Skilled labors guarantee products quality
Our Services
The Warranty on this Wireless Laser Barcode Scanner is 24 month , cable and battery 6month
Details as below
During the warranty period ,if the product proved to be defective ,or any questions during operate ,contact us for instructions .
Regarding to the defective product :
1,we will delivery the replacement to you with your next order
2,if spare parts required urgently , we will delivery it as required and the shipping charge on clients side
Exhibition:
Question and Answer
1:Does this 2D Imager support RS232 interface ?
yes ,it support USB and RS232
2: OEM service of this high quality Omnidirectional 2d Barcode Scanner possible ?
Yes ,OEM service is available with MOQ 200units
3:How many can one standard carton pack this Barcode Scanner ?
Our standard carton can pack 20units
4:Do your company accept Paypal payment for this 2D Omni Scanner ?
yes ,we accept paypal as well as TT ,bank transfer etc
5:Are you a trading company ?
No ,we are professional Barcode Scanner Manufacturer from China
Approval Certificate
Company Information
Guangzhou Xunbao Electronics Technology Co., Ltd is a professional barcode scanner manufacturer in Guangzhou, China, hope there is chance to cooperate with you.
Syble barcode scanners are with CE, RoHS, FCC, IP54 certificates, and we having competitive advantages to be your supplier.
1. Single-minded will, professional skill in the production of barcode scanners.
2. Wide variety of barcode scanners to meet different applications and markets.
3. Strictly control the tests and quality in production.
4. Samples for quality test are available.
5. 2 years warranty to ease maintenance concerns.
