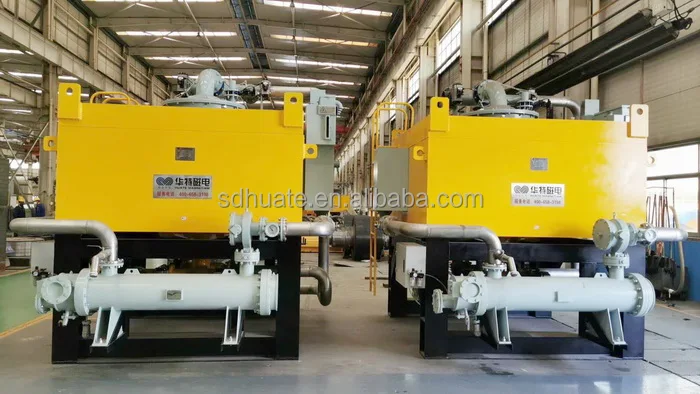

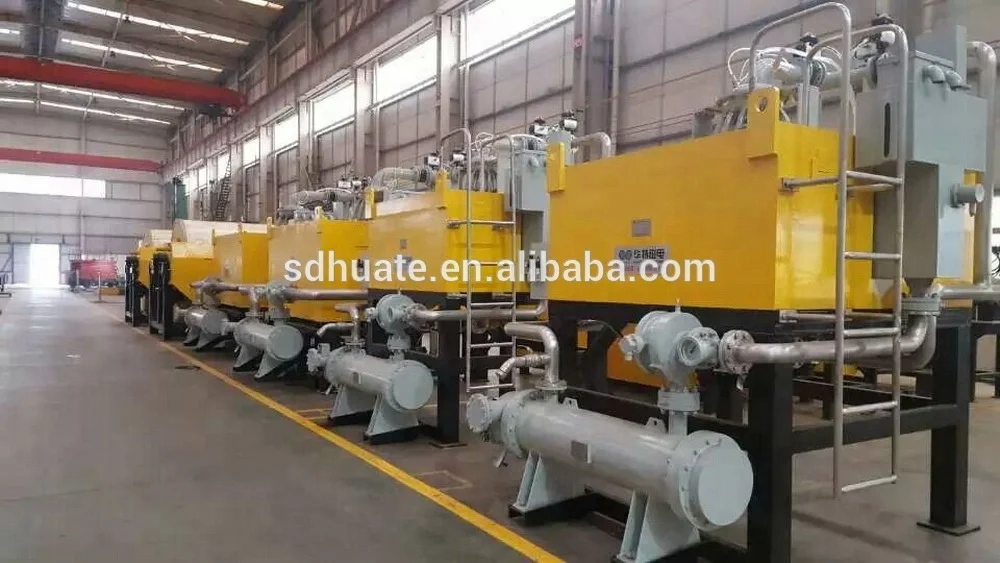

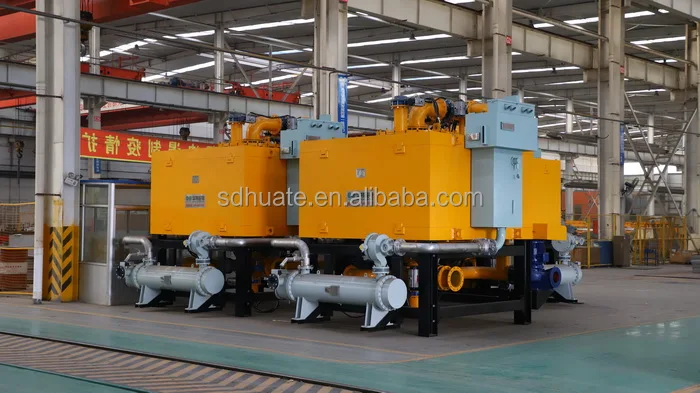

Wet high gradient magnetic separator 20000 gauss induction magnetic field
- Category: >>>
- Supplier: Shandong Huate Magnet Technology Co. Ltd.
Share on (1600315630264):

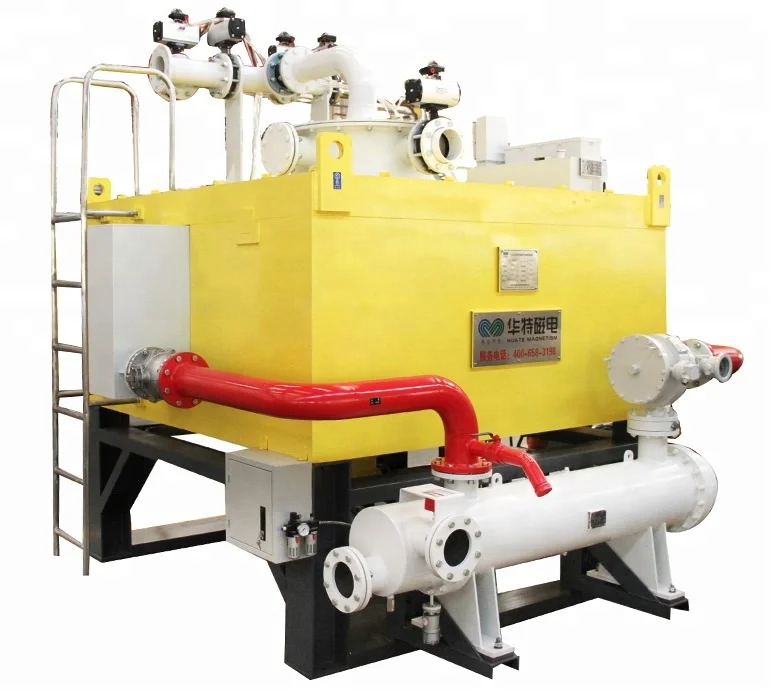

Product Overview
Description
Product Description

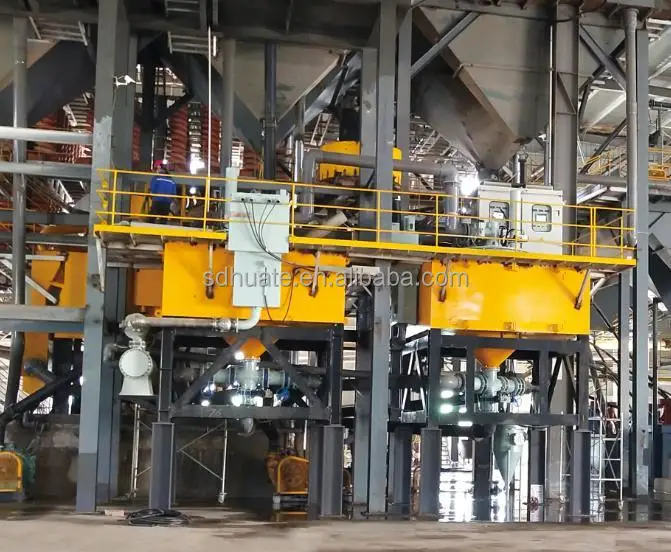

Application:

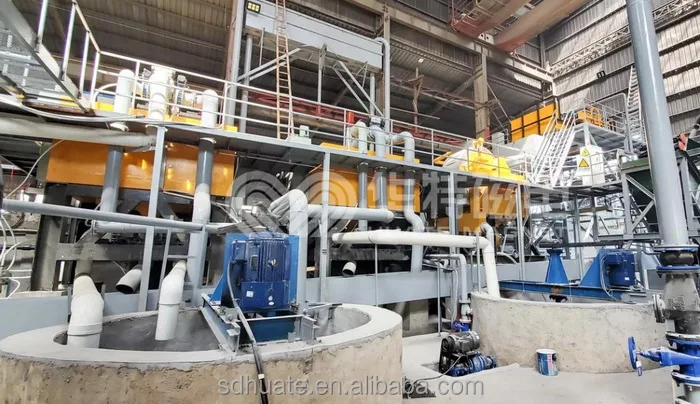

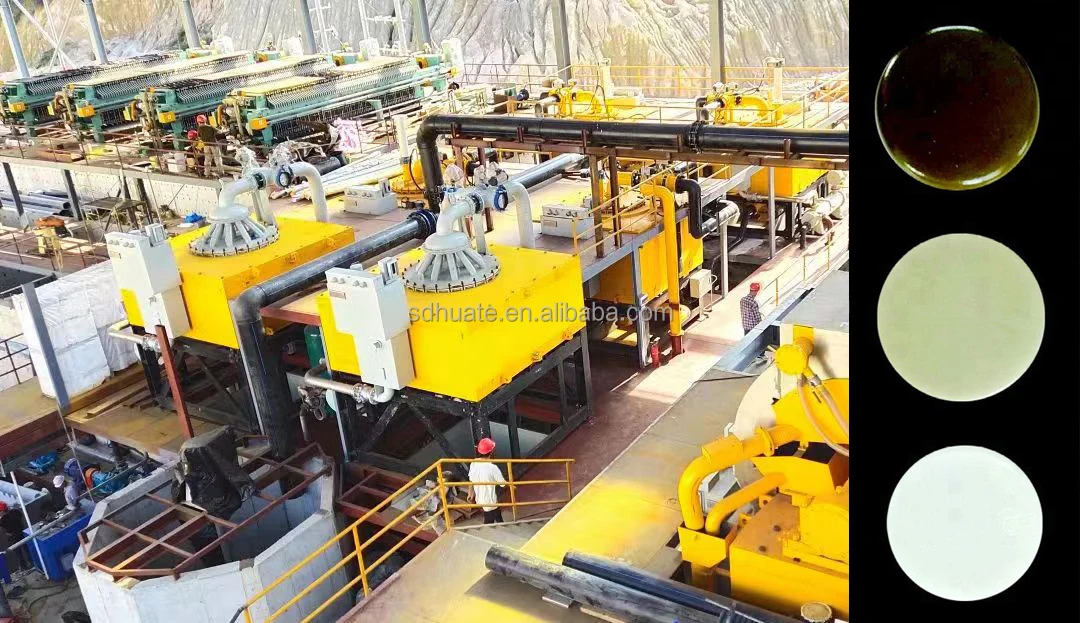

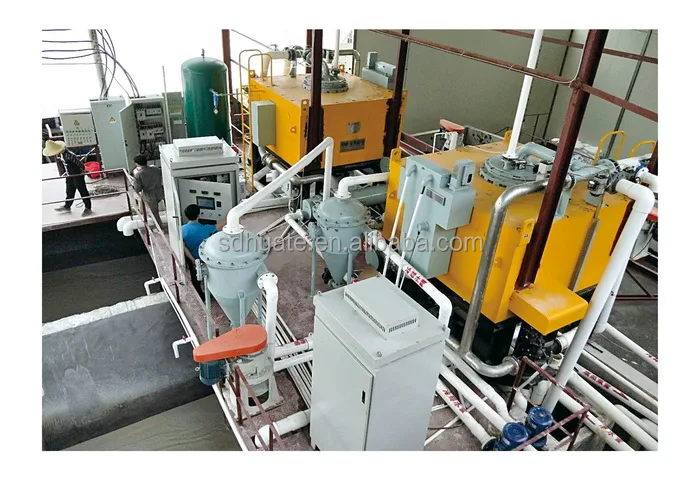

This equipment is mainly used for iron impurity removal and purification of non-metallic minerals such as silica sand, feldspar, Kaolin, clay, mica and so on. It can also be used in other industries, such as sewage water treatment in iron ore mine and power plant, cleaning of polluted chemical materials etc.
Working Principle:

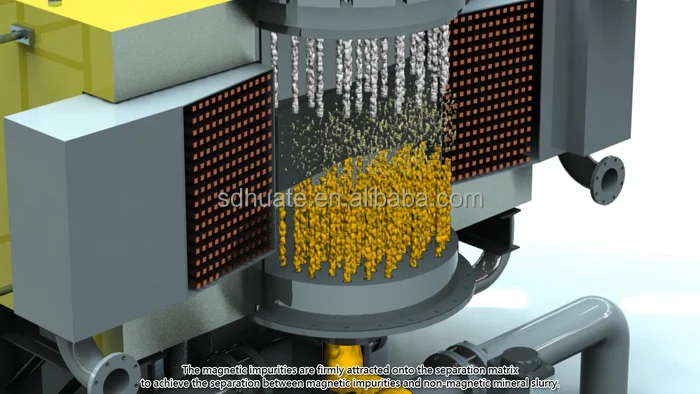

In the separation chamber, a certain amount of magnetically conductive stainless steel wool (or expanded metal) is placed. After the coil is excited, the stainless steel wool is magnetized, its surface produces a highly uneven magnetic field, which is called the high gradient magnetic field.
When the slurry passes through the steel wool in the separation chamber, it will be attracted on the surface of the steel wool, while the non-magnetic materials pass through the magnetic field directly, and pass through the non-magnetic material discharge pipe.
When the weak magnetic material collected by the steel wool reaches a certain amount (determined by the process requirements), stop feeding the mineral. Disconnect the excitation power supply and flush the magnetic material out. Then carry out the second operation, and repeat this cycle.
When the slurry passes through the steel wool in the separation chamber, it will be attracted on the surface of the steel wool, while the non-magnetic materials pass through the magnetic field directly, and pass through the non-magnetic material discharge pipe.
When the weak magnetic material collected by the steel wool reaches a certain amount (determined by the process requirements), stop feeding the mineral. Disconnect the excitation power supply and flush the magnetic material out. Then carry out the second operation, and repeat this cycle.
Technical Features
1. Adopting special design for the electromagnetic coils.
2. Oil & water cooling way with high efficiency.
3. High magnetic field gradient at the nodes of the magnetic medium with better performance.
4. Low energy consumption, completely automatic operation, low costs of operation and maintenance.
5. The brake valve is durable, and the switch is smooth.
6. With high pressure rinsing water, it can remove the ferrous impurities effectively without residue.
7. The magnetic medium adopt highly efficient and inductive stainless steel, which can remove the impurities easily.
2. Oil & water cooling way with high efficiency.
3. High magnetic field gradient at the nodes of the magnetic medium with better performance.
4. Low energy consumption, completely automatic operation, low costs of operation and maintenance.
5. The brake valve is durable, and the switch is smooth.
6. With high pressure rinsing water, it can remove the ferrous impurities effectively without residue.
7. The magnetic medium adopt highly efficient and inductive stainless steel, which can remove the impurities easily.
Technical Specifications
15000 Gauss version:
Model No. | HTDZ-520AF | HTDZ-780AF | HTDZ-1000AF | HTDZ-1200AF | HTDZ-1500AF | ||||
Rated background magnetic field intensity (Gauss) | 15000 | 15000 | 15000 | 15000 | 15000 | ||||
Rated excitation power (kW) | 110 | 146 | 156 | 180 | 210 | ||||
Cooling method | Oil-water cooling | ||||||||
Diameter of separation chamber (mm) | 520 | 780 | 1000 | 1200 | 1500 | ||||
Processing capacity (m³/h) | 8~15 | 15~30 | 20~50 | 30~60 | 40~70 | ||||
Feed size (mesh) | -200 | ||||||||
Solids content of feed slurry | 10%~25% | ||||||||
Outline dimensions (mm) | 2860x3140 x3330 | 3310x3450 x3470 | 3730x3540 x3990 | 4140x4200 x4000 | 5390x4140 x5630 | ||||
Weight (kg) | 23000 | 37000 | 48000 | 60000 | 82000 | ||||
10000 Gauss version:
Model No. | HTDZ-520F | HTDZ-780F | HTDZ-1000F | HTDZ-1200F | HTDZ-1500F | ||||
Rated background magnetic field intensity (Gauss) | 10000 | 10000 | 10000 | 10000 | 10000 | ||||
Rated excitation power (kW) | 83 | 120 | 140 | 150 | 193 | ||||
Cooling method | Oil-water cooling | ||||||||
Diameter of separation chamber (mm) | 520 | 780 | 1000 | 1200 | 1500 | ||||
Processing capacity (m³/h) | 15~25 | 30~40 | 50~70 | 70~90 | 90~110 | ||||
Feed size (mesh) | -24 ~ 200 | ||||||||
Solid content of feed slurry | 10%~25% | ||||||||
Outline dimensions (mm) | 2840x2410 x3360 | 3700x3100 x3350 | 3500x3350 x3720 | 4150x3790 x3840 | 4340x3810 x4630 | ||||
Weight (kg) | 13000 | 21000 | 32000 | 47000 | 60000 | ||||
