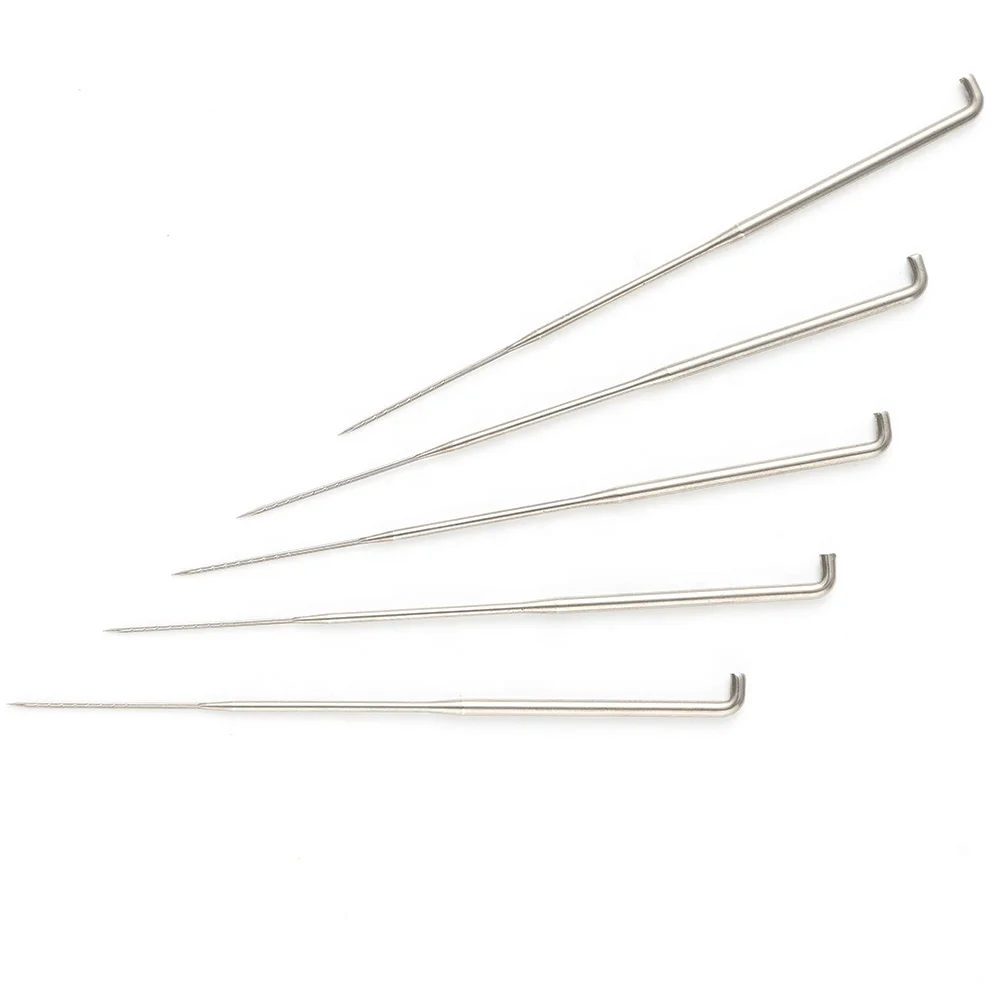

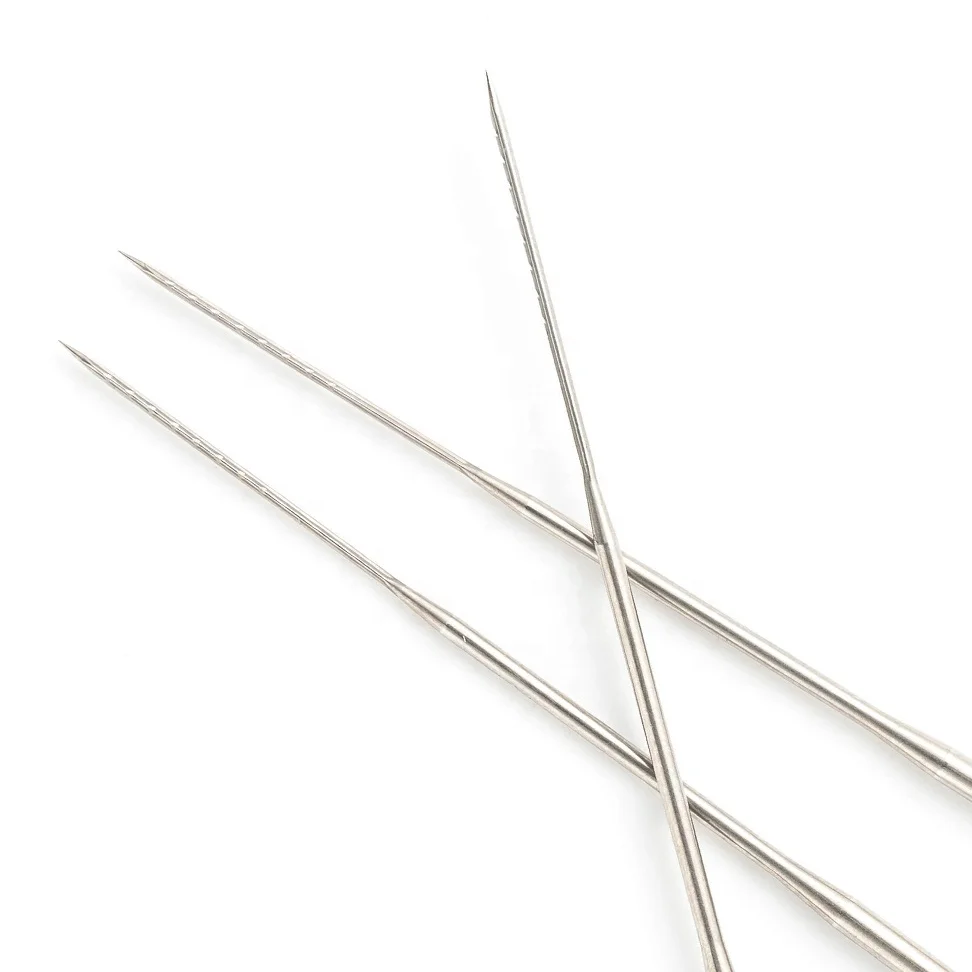

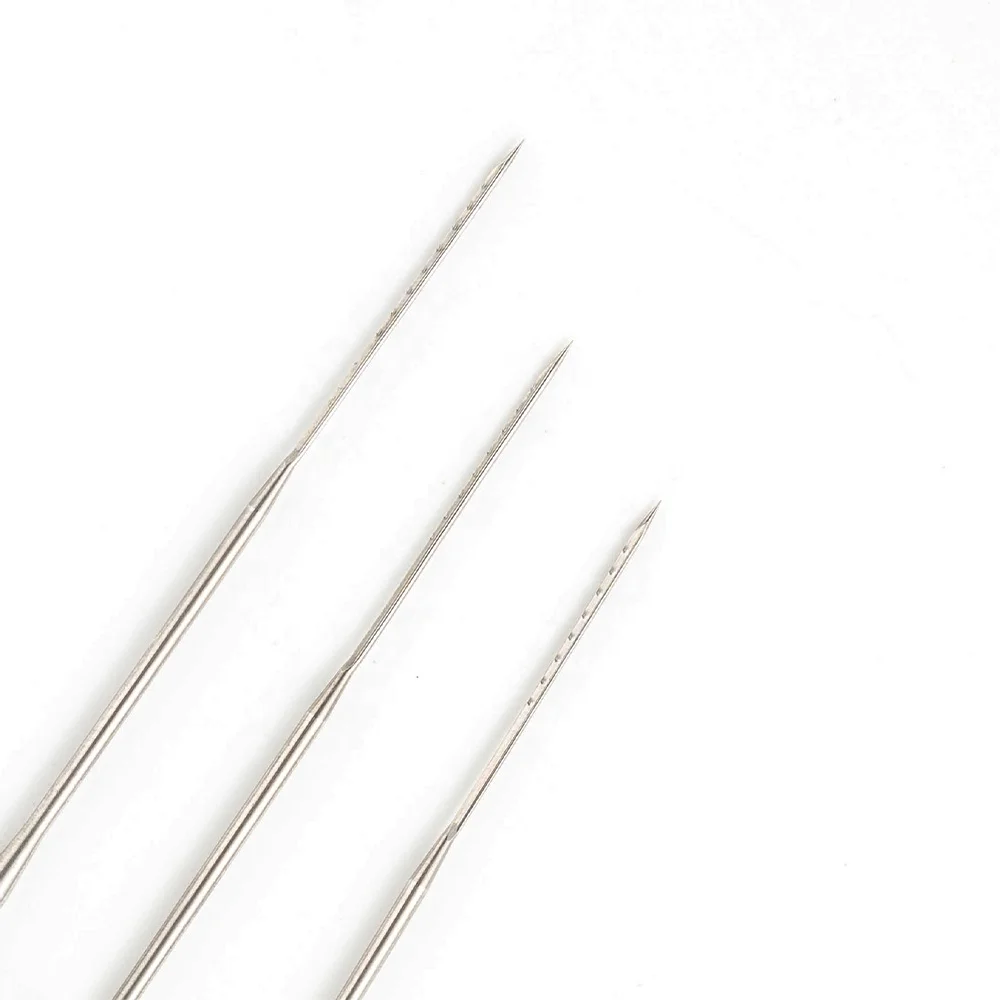

38G Teardrop Needle felting needle for high temperature conveyer belt
- Category: >>>
- Supplier: Taizhou Chengxiang Trading Co. Ltd.
Share on (1600315721815):
Product Overview
Description
Product Description
Product Paramenters

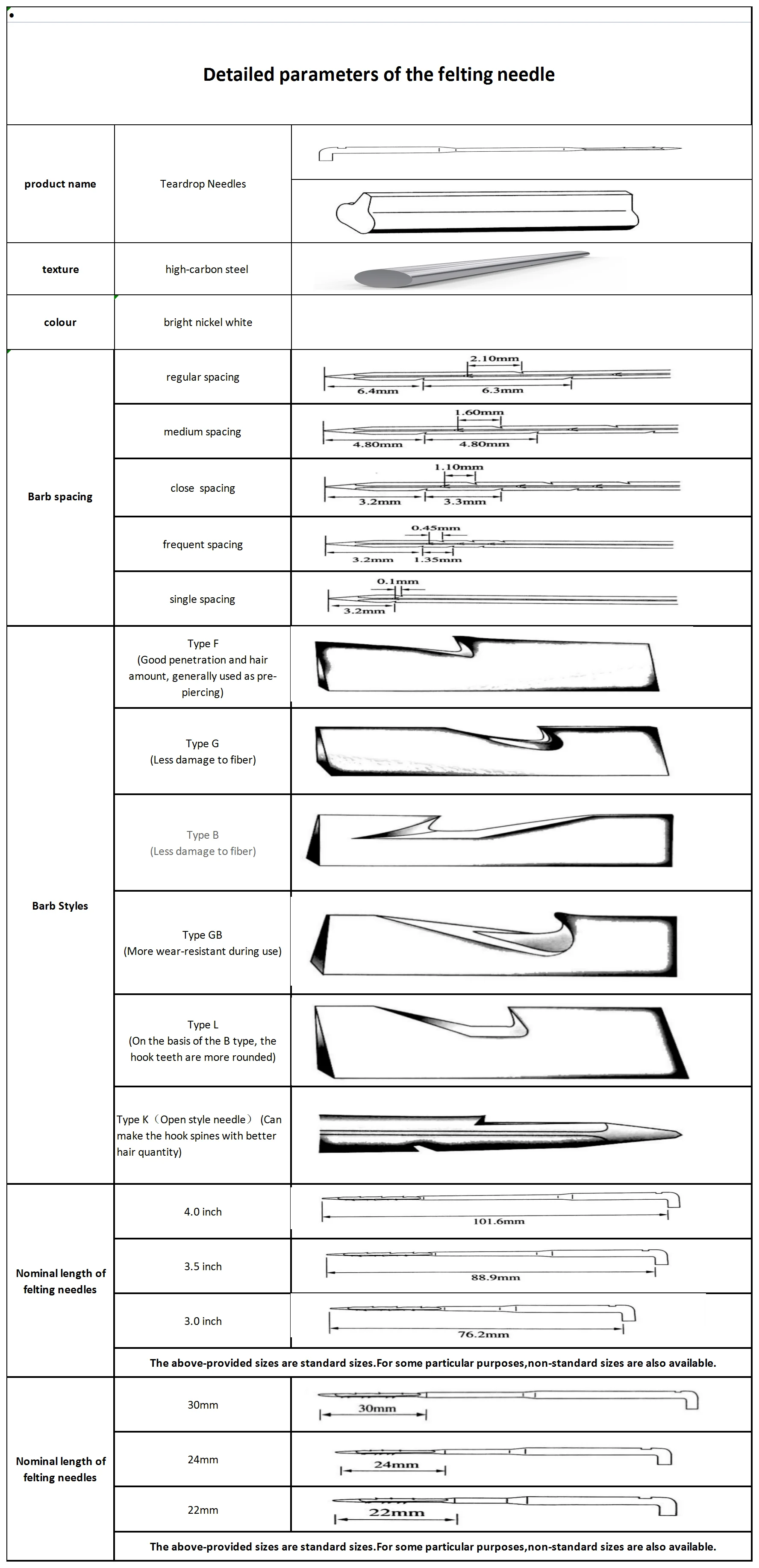

Gauge | Shank (mm) | Intermediate Section (mm) | Working part Triangular blade beight (mm) | |||
9 | 3.56 | |||||
10 | 3.25 | |||||
12 | 2.67 | |||||
13 | 2.35 | 2.50 | ||||
14 | 2.03 | 2.05 | ||||
15 | 1.83 | 1.75 | 1.95 | |||
16 | 1.63 | 1.55 | 1.65 | |||
17 | 1.37 | 1.35 | 1.45 | |||
18 | 1.21 | 1.20 | 1.30 | |||
19 | 1.15 | |||||
20 | 0.90 | 1.00 | ||||
22 | 0.95 | |||||
23 | 0.92 | |||||
25 | 0.80 | 0.90 | ||||
26 | 0.85 | |||||
28 | 0.80 | |||||
30 | 0.75 | |||||
32 | 0.65 | 0.70 | ||||
34 | 0.65 | |||||
36 | 0.60 | |||||
38 | 0.55 | |||||
40 | 0.50 | |||||
42 | 0.45 | |||||
43 | 0.40 | |||||
46 | 0.35 | |||||
The diameter of different parts of needle is indicated by gauge. The smaller gauge meams the larger diameter. When in the working part, the cross-section height is indicated by working part gauge. The cross-section height of conical working part is measured on the position of 5mm from needle point. The other cross-section shape is measured by their height. | ||||||
Teardrop needles come with the most wider range of sizes.

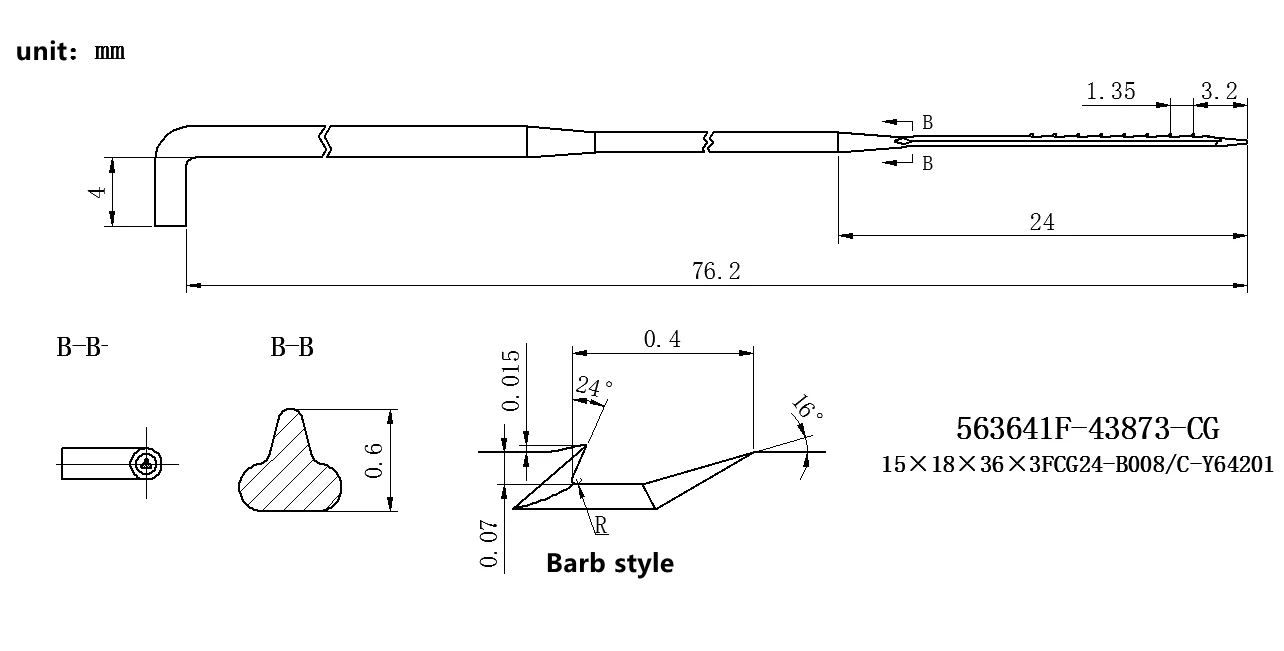

(available sizes – 36G、 38G36G teardrop needle
Application field

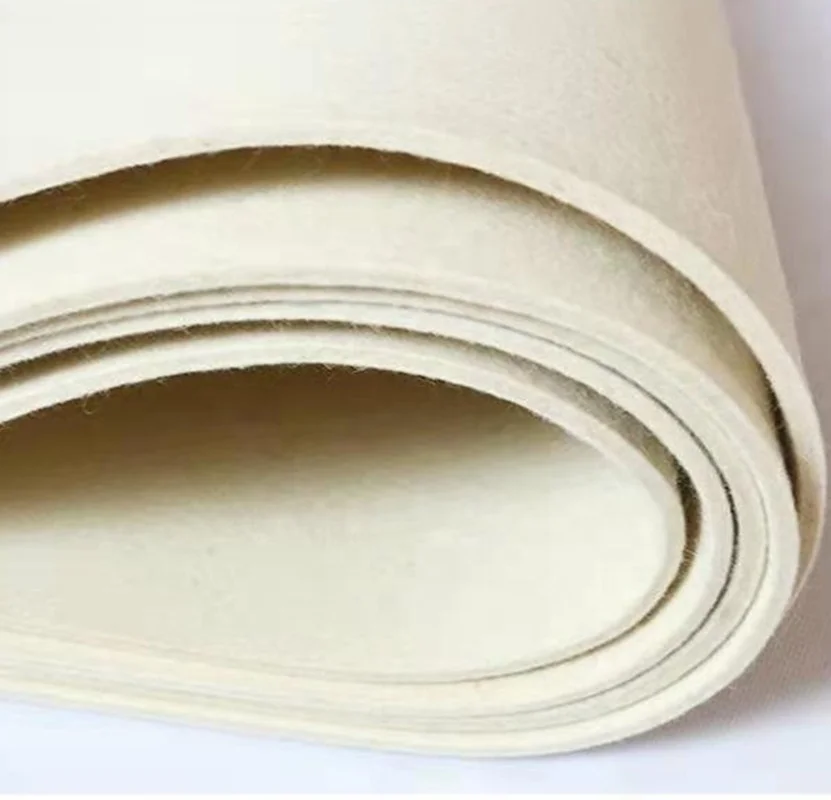

Nonwoven fabrics can be bonded together by high temperature, chemical or mechanical methods, the latter of which requires the use of a needle.When mechanical bonding is used, the fibers are transported by a barbed needle and wound into the fabric.This improves the friction between the fibers to increase the bonding of non-woven fabrics.The needle plate of the needle machine has a large number of needles embedded in it, and these needles will pass through the non-woven fabric in the specified direction.Mainly used in geotextile, press cloth, filter bag, artificial leather, disposable carpet, car interior, handmade wool, cotton, bra cotton and other surface requirements of the production of products.

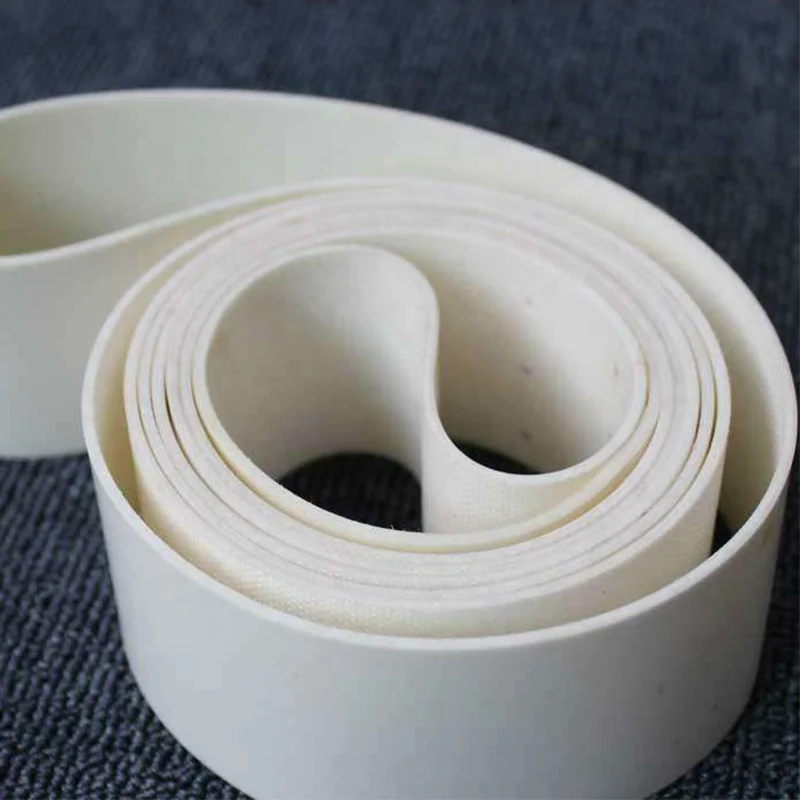

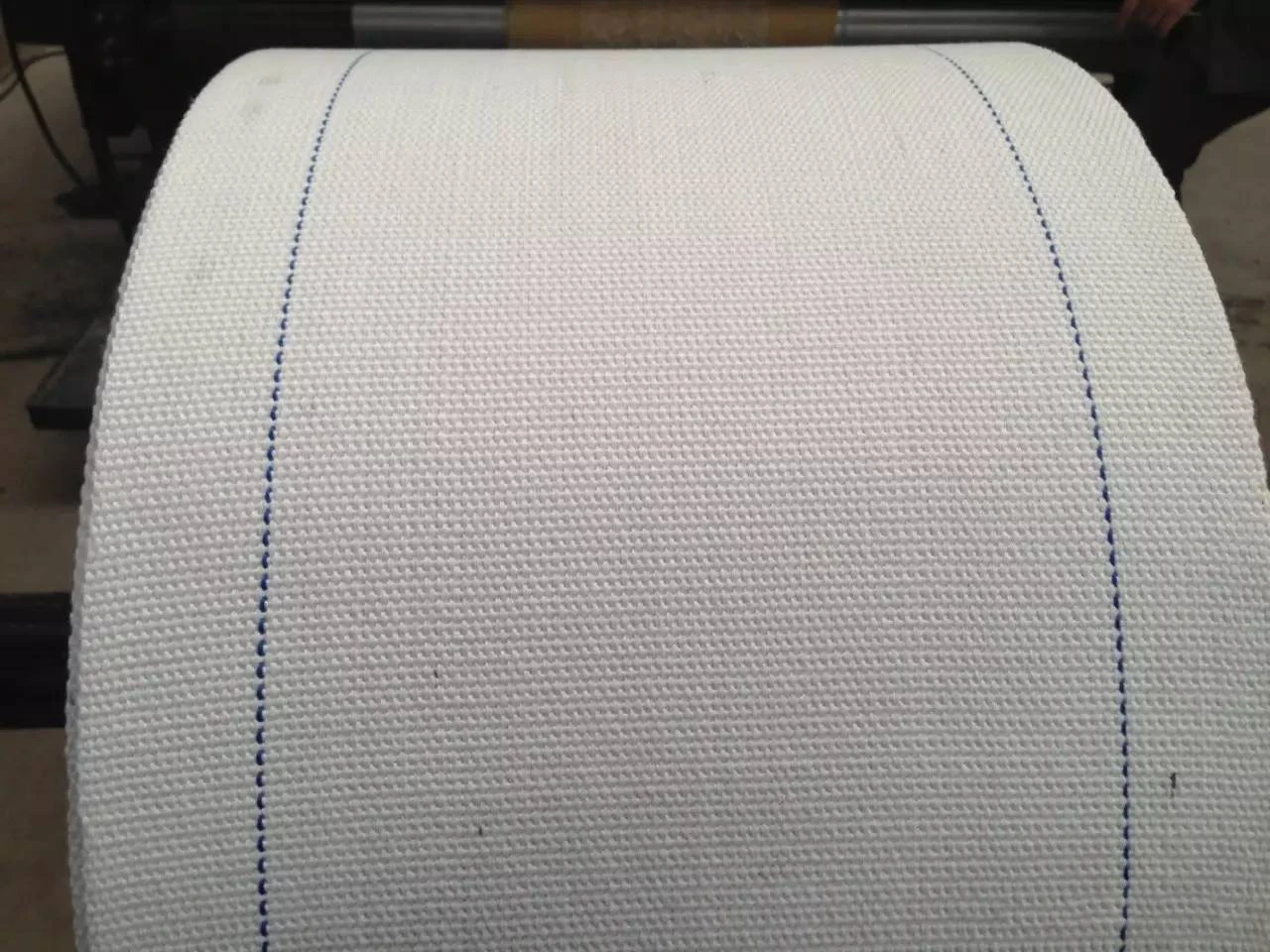

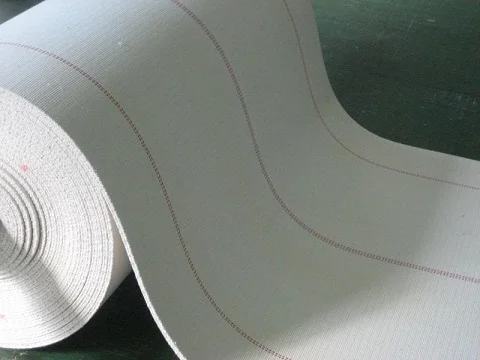

Corrugated board conveyor belt

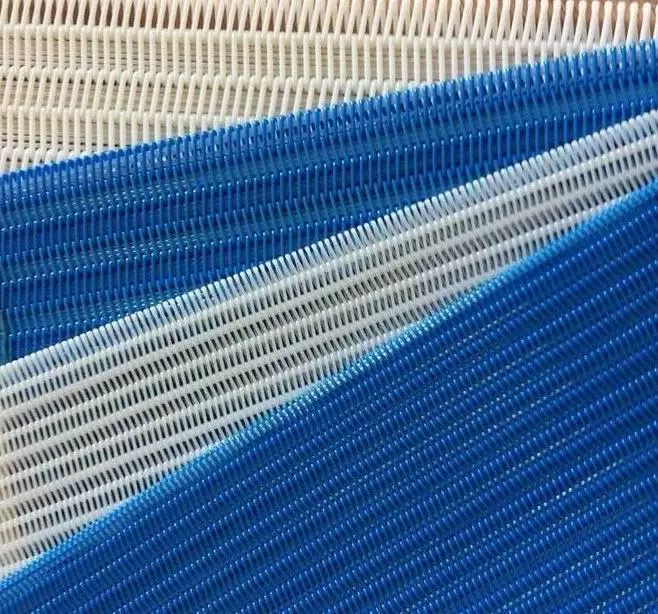

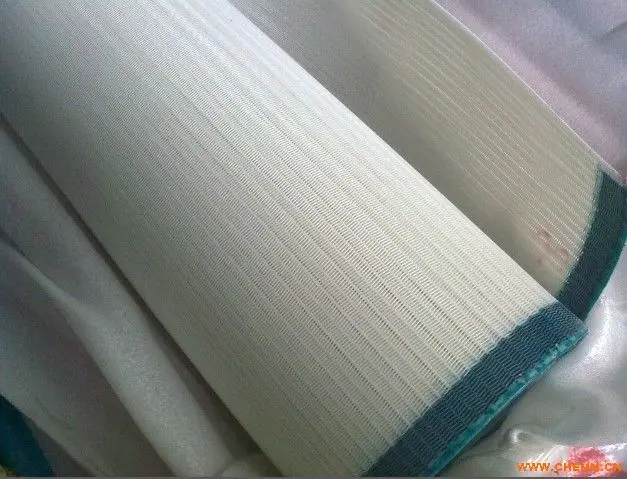

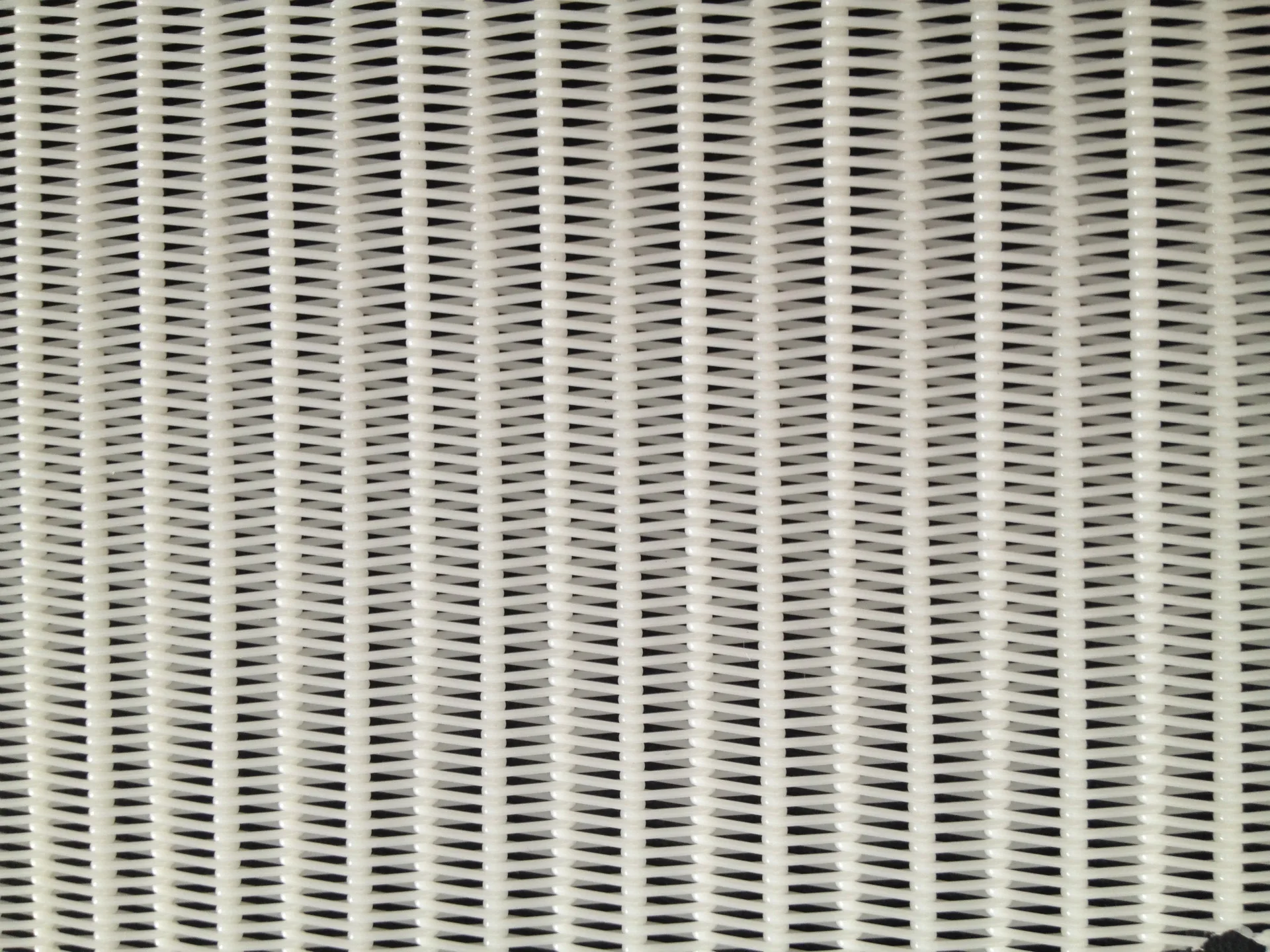

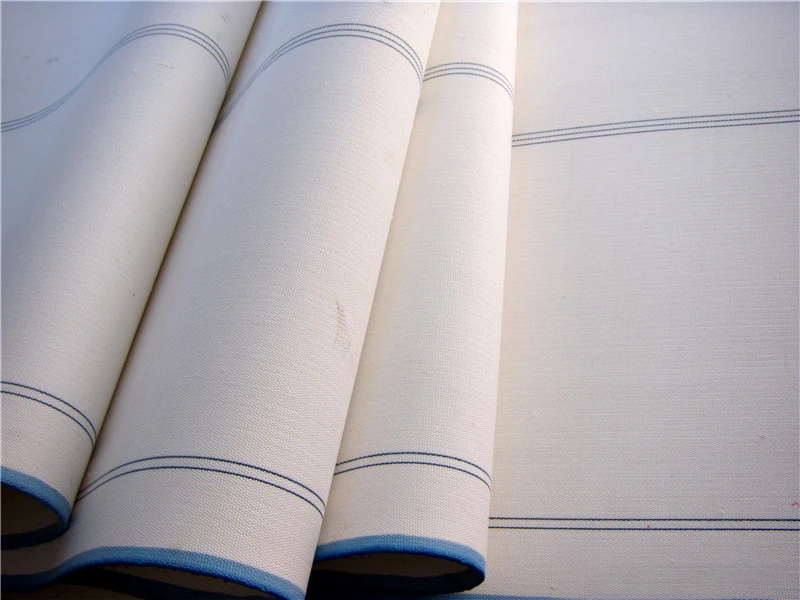

Spiral dry mesh blanket

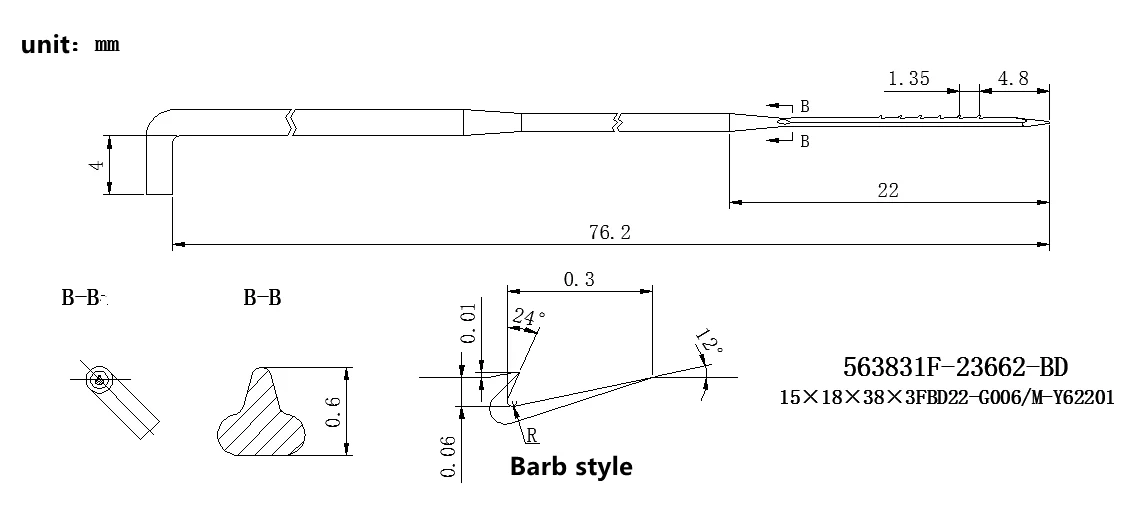

•The cross section of the working site is water droplet
•The working position is parallel between the tip and the tapering cone
•All barbs on one edge are of the same size
•Most common number of barbs: 4, 6, or 8 barbs
•The working position is parallel between the tip and the tapering cone
•All barbs on one edge are of the same size
•Most common number of barbs: 4, 6, or 8 barbs
•Better tangling effect of fiber in the hook thorn area, and better acupuncture efficiency higher
•Extremely light on the warp and weft net of the base cloth
•Extremely light on the warp and weft net of the base cloth
factory
FAQ
A: We are the appointed foreign trade agent for the factory
Q: How long is your delivery time?
A: Generally it is 5-10 days if in stock. 15-20 days customized making and shipment, depends on the product quantity, delivery destination and custom clearance time.
A: Generally it is 5-10 days if in stock. 15-20 days customized making and shipment, depends on the product quantity, delivery destination and custom clearance time.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q:How long do felting needles last?
A:if you are careful and learn how to use the needles correctly, a felting needle can lastfor months or even years with regular use and you can avoid painful puncture wounds.
A:if you are careful and learn how to use the needles correctly, a felting needle can lastfor months or even years with regular use and you can avoid painful puncture wounds.
Q:How can you tell felting needles apart?
A:Felting needles come in different gauges. The gauge number refers to the diameter of the needle. The higher the number, the finer the needle so a 40 gauge needle is finer than a 36 gauge. Different needles come with varying numbers of barb
A:Felting needles come in different gauges. The gauge number refers to the diameter of the needle. The higher the number, the finer the needle so a 40 gauge needle is finer than a 36 gauge. Different needles come with varying numbers of barb
Q:Is needle felting expensive?
A:Needle felting can be as cheap as expensive as you want it to be depending on how much you do and how big your projects are and how complex they are. Also, the wool you buy places a large part in the overall cost.
A:Needle felting can be as cheap as expensive as you want it to be depending on how much you do and how big your projects are and how complex they are. Also, the wool you buy places a large part in the overall cost.
Q:How long is the shelf life of the needle？
A:Unsplit can be stored for up to three years, if split, depending on the condition of preservation.
A:Unsplit can be stored for up to three years, if split, depending on the condition of preservation.
Q:How do I keep the needle？
A：Packed products should be kept in a dry place.Please oil the product if it has been disassembled, and keep away air and moisture.
A：Packed products should be kept in a dry place.Please oil the product if it has been disassembled, and keep away air and moisture.
Q: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 35% T/T in advance ,balance before shippment.
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 35% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below.
