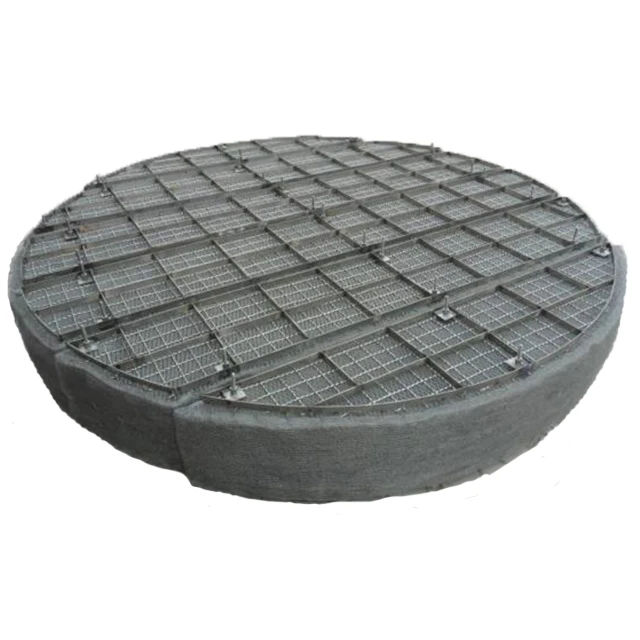

Химическая промышленность, вязаная проволочная сетка, демистер, металлическая проволочная сетка, демистер для внутренней башни

Specifications of embedded demister pad

· Material: stainless steel, Monel, titanium, PP, PVC, PE, PTFE and so on.

· Wire diameter: 0.2 mm, 0.22 mm, 0.23 mm, 0.25 mm, 0.28 mm, 0.3 mm, 0.35 mm.

· Mesh size: 2 mm × 3 mm, 4 mm × 6 mm to 12 mm × 6 mm.

· Height or thickness: 100 mm to 150 mm.

· Pad diameter: 300 mm - 6000 mm.

Features of demister pad

· Simple structure.

· Lightweight and easy to transport.

· High porosity, less pressure drops.

· Large surface area and high separating efficiency.

· Easy to install, operate and maintain.

· Durable and long service life.

· Corrosion and rust resistance.

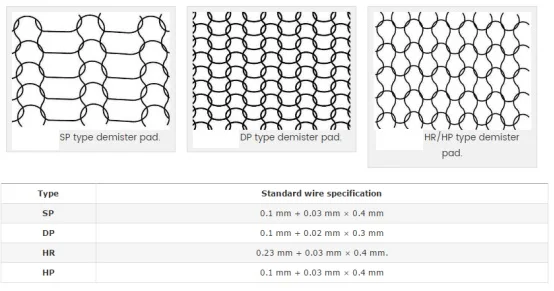

 New standard merges riser type, reducing necking type and full bore type installation form and divide into SP, HP, DP and HR four kinds of network types and expanded the type of material section.

Using method of demisters

Mesh pad installation

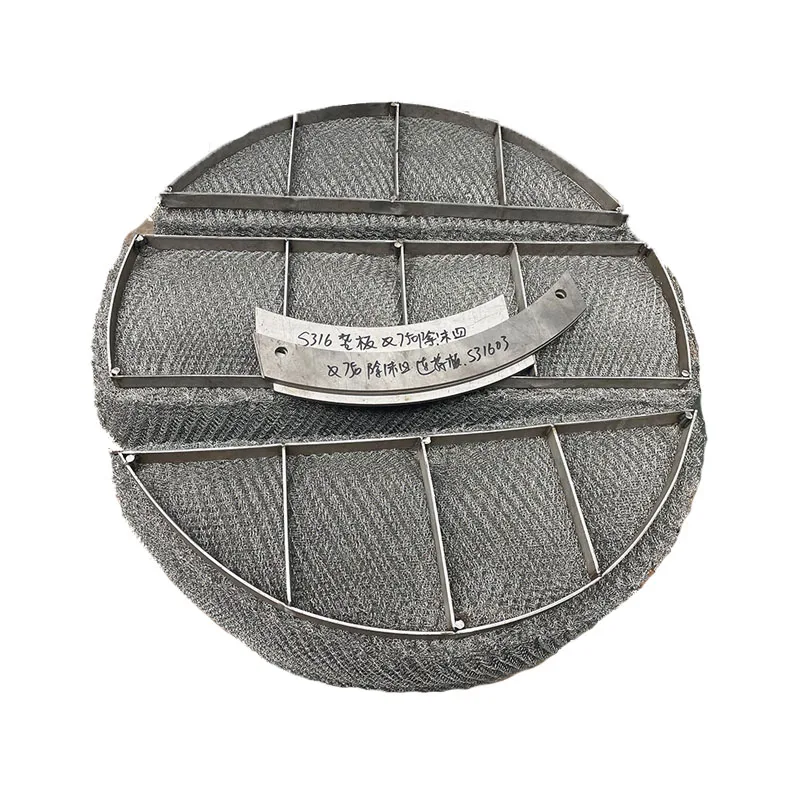

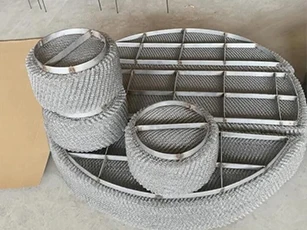

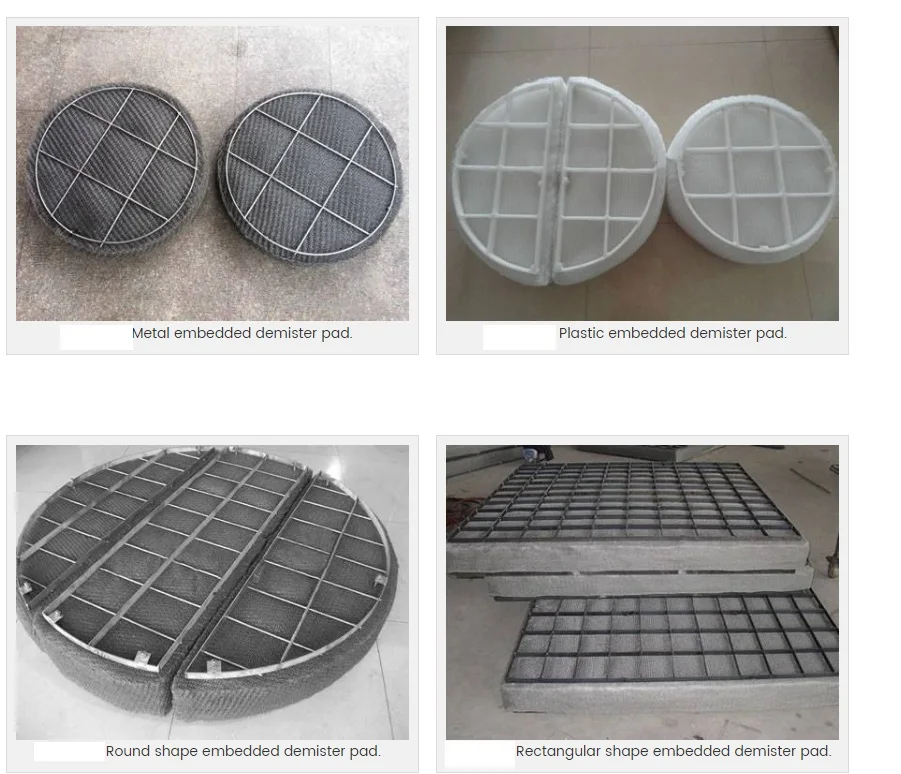

There are two kinds of wire mesh demister pad, which are disk shaped demister pad and bar type demister pad.

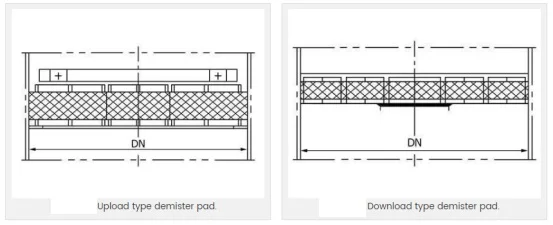

According to different using condition, it can be divided into upload type and download type. When the opening is located in the above of the demister pad or when there is no opening but has flange, you should choose the upload demister pad.

When the opening is in the below of the demister pad, you should choose the download type demister pad.

Working principle of demister pad

When the gas with mist rises at a constant speed and passes through the wire mesh, the rising mist will collided with the mesh filament and attached to the surface filament due to the inertia effect. The mist will be diffuse on the filament surface and the droplet will follow along the filaments of the two wire intersection. The droplet will grow bigger and isolate from the filament until the droplets gravity exceeding gas rising force and liquid surface tension force while there is little gas passing through the demister pad.

Separate the gas in the droplets can improve the operating condition, optimize process indicators, reduce corrosion of the equipment, extend equipment life, increase the amount of processing and recovery of valuable materials, protect the environment, and decrease air pollution.
