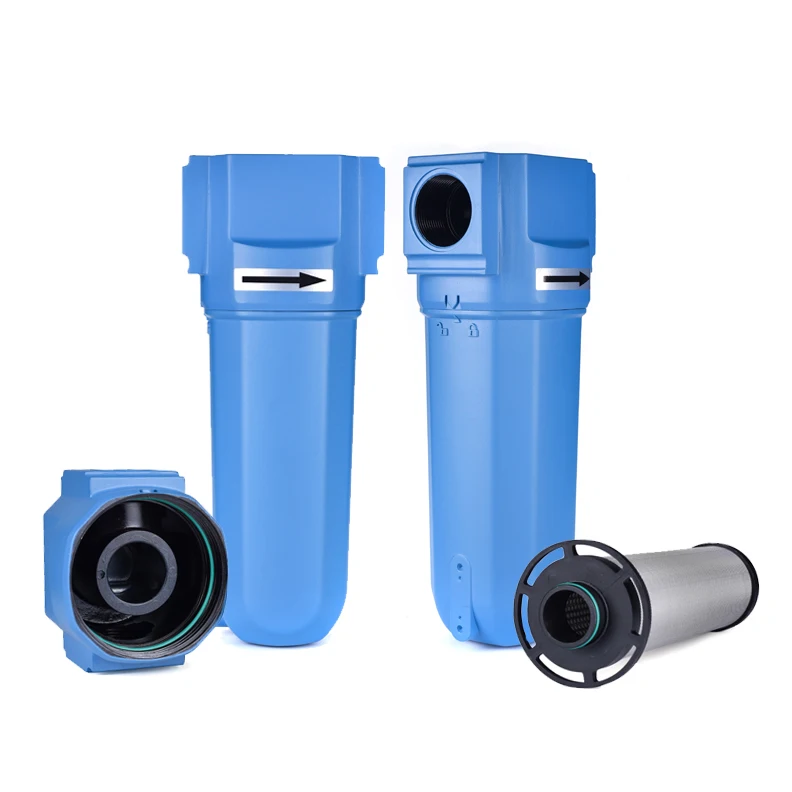

Фильтр для вакуумного насоса, 16 бар

Фильтр для вакуумного насоса, 16 бар

Category: Industrial Compressor Parts >>>
Supplier: Shanghai,Sunwin,Industry,Co.,Ltd.

Price:52,00 $ - 59,00 $

Price in USD:Details

Quantity:

Product Overview

Description

Product

PROTECTION AND RELIABILITY

Compressed air can be contaminated by dirt, water and oil, which can damage the downstream appliances. SUNWIN, thanks to its 15 years experience in this sector offers a wide range of in-line filters for removing these contamination and protecting the equipment served by compressed air, according to the ISO 8573-1 standards.

Working conditions and Technical Data

• Capacity:1.2~25 m³/min
• Max. Working Pressure: 16 bar
• Max.working temperature:80℃
• Differential Pressure: 0.07 bar
• Filter Element Service: 6000 hours
• Air Filter With Differential Pressure Indicator
• Filter housing internal with anti-corrosion treatment.

Features

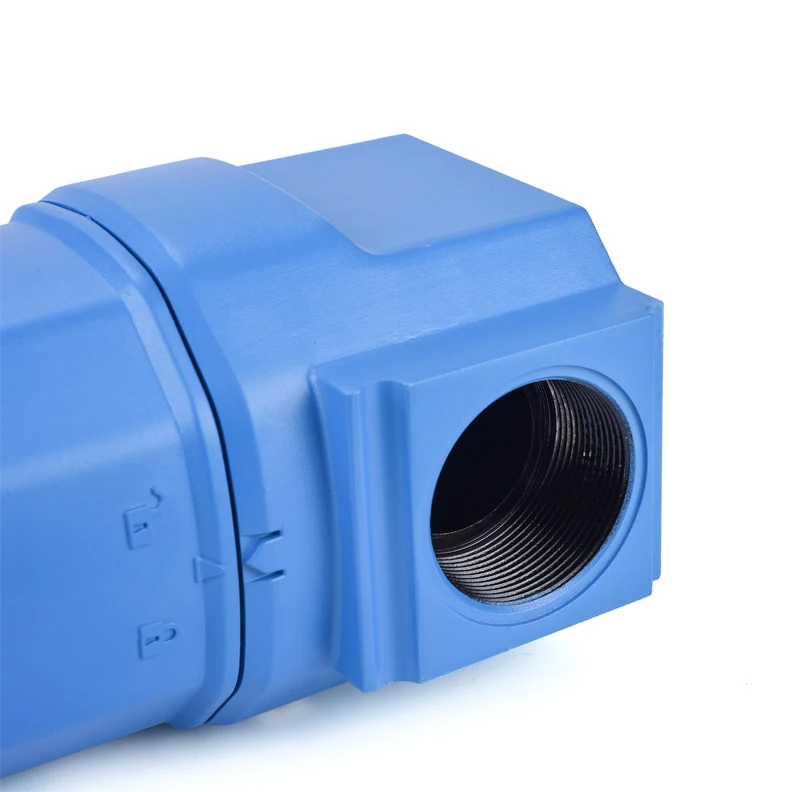

1、Generous aerodynamic flow paths and edged ports for reducing pressure drops.

2、Differential pressure gauges are the Simple Way to Check a Filter Status.It helps the user to determine when to replace the filter element. SUNWIN in standard designs with higher temperature and increased corrosion resistance.

3、The facilitates the element replacement by reducing service clearance, and the absence of tie-rod contributes in precious gain for the flow path through the end cap collar.

4、Cataphoretic coating confers high quality surface finish as well as ensure long high protection against corrosion.

5、Filter elements are characterized by:
* high-quality stainless steel cores ensure extreme strength
* Endcaps made of synthetic material resistant up to 120 °C, ensuring absolutely corrosion free solution
* Outer drainer made of Strong alloy materialthat make drainage more timely and durable.

6、Outer drainer made of Strong alloy material that make drainage more timely and durable.

Optional Parts

Automatic Drainer

Differential Pressure Gauge

Electronic Drainer

Product Paramenters

Model	Capacity Nm³/min	Connections	Dimensions(mm) L*H	Weight (KG)
AW*-001	1.4	G1"	117*293	3
AW*-002	2.4	G1"	117*293	3.2
AW*-003	3.8	G1.5"	133*330	4
AW*-006	6.5	G1.5"	133*428	5
AW*-008	8.5	G1.5"	133*428	5.2
AW*-010	10.7	G2"	159*555	6.5
AW*-013	13.5	G2"	159*555	6.8
AW*-015	18	G2.5"	175*620	12
AW*-020	22	G2.5"	175*620	12.5

Our Company

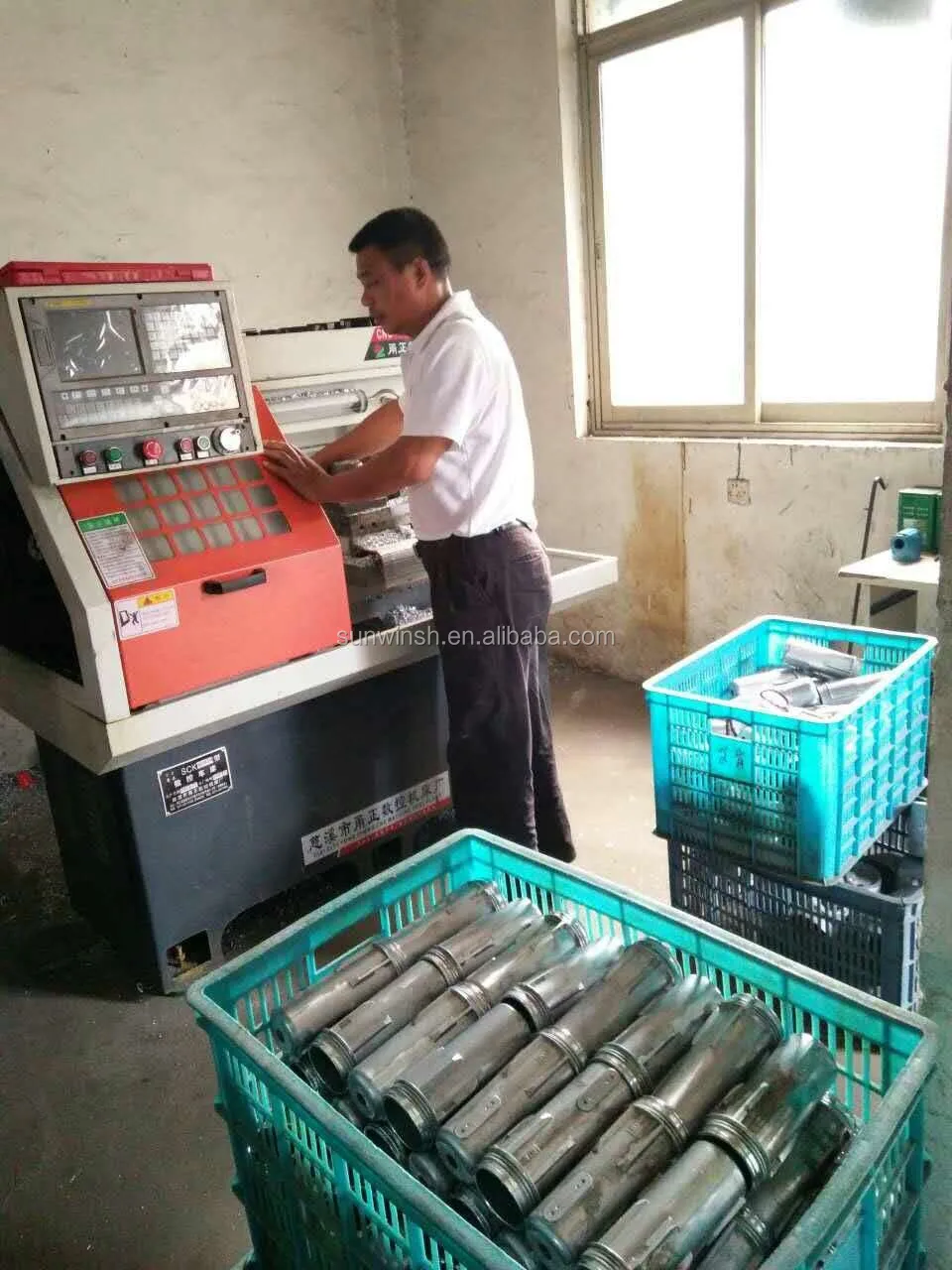

We are a manufacturing and trading combo specialize in compressed air drying and purification equipment for more than 15 years at this field. We have a professional technical team, which can provide professional and reasonable suggestions and technical support according to various customer needs, production needs and site conditions.

Our products are sold to more than 40 countries, including the United States, Germany, Australia, Japan and South Korea.We have full experience in exporting our machines to Southeast Asian market.Our products have passed the latest CE and ISO certificates.

Our Service

Pre-Sales Service

* We have separate testing room;
* To maintain pressure in the production process for 48 hours for testing;
* We will turn on the machine for test before theshipment;
