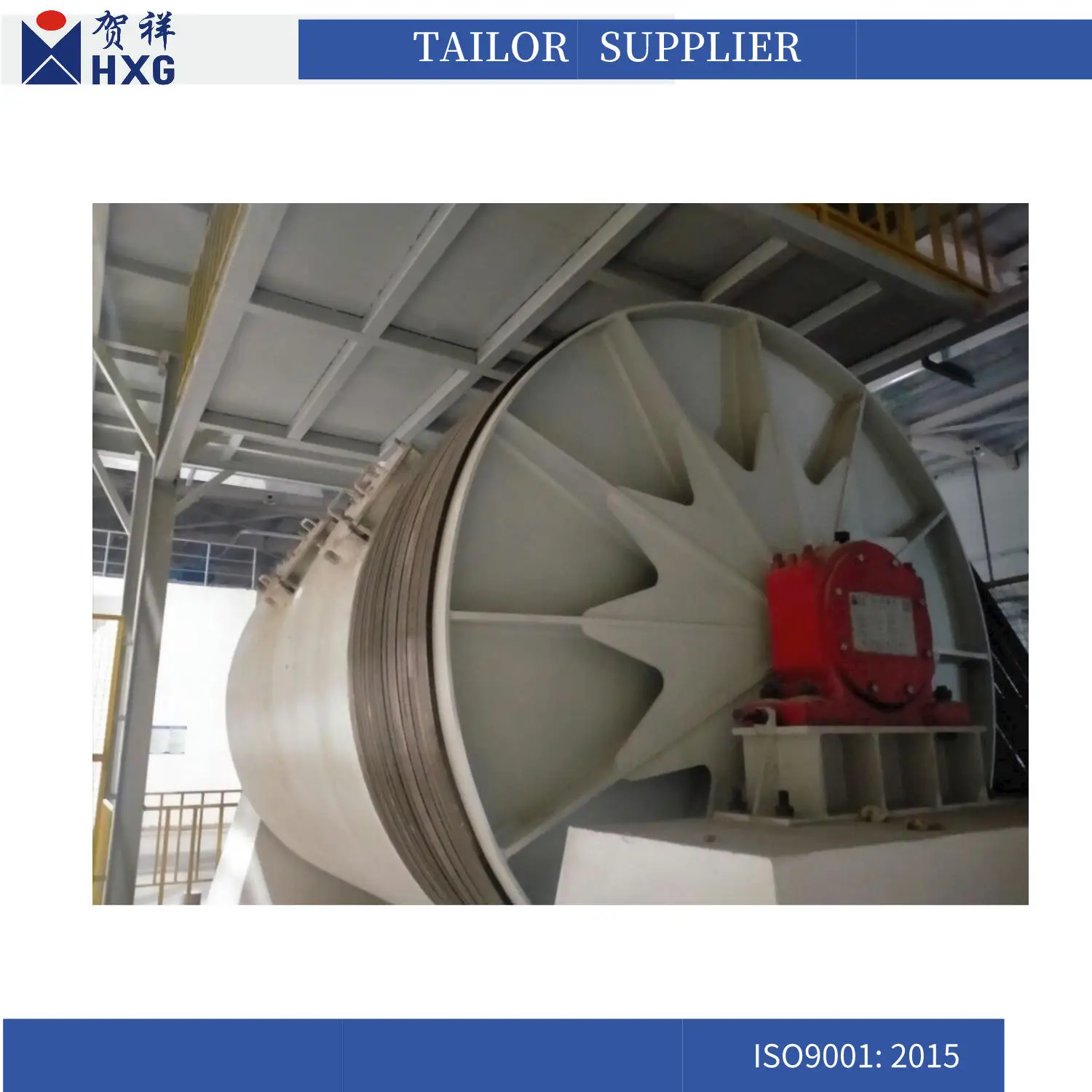

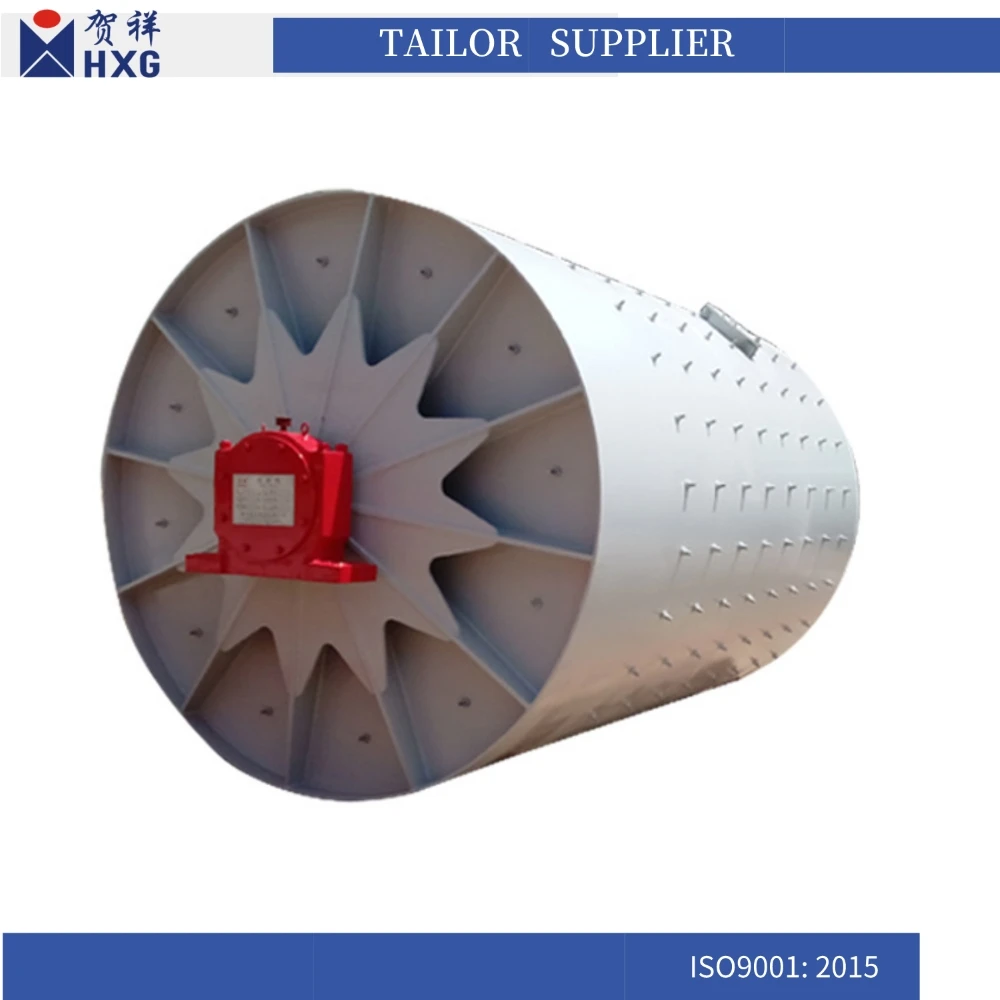

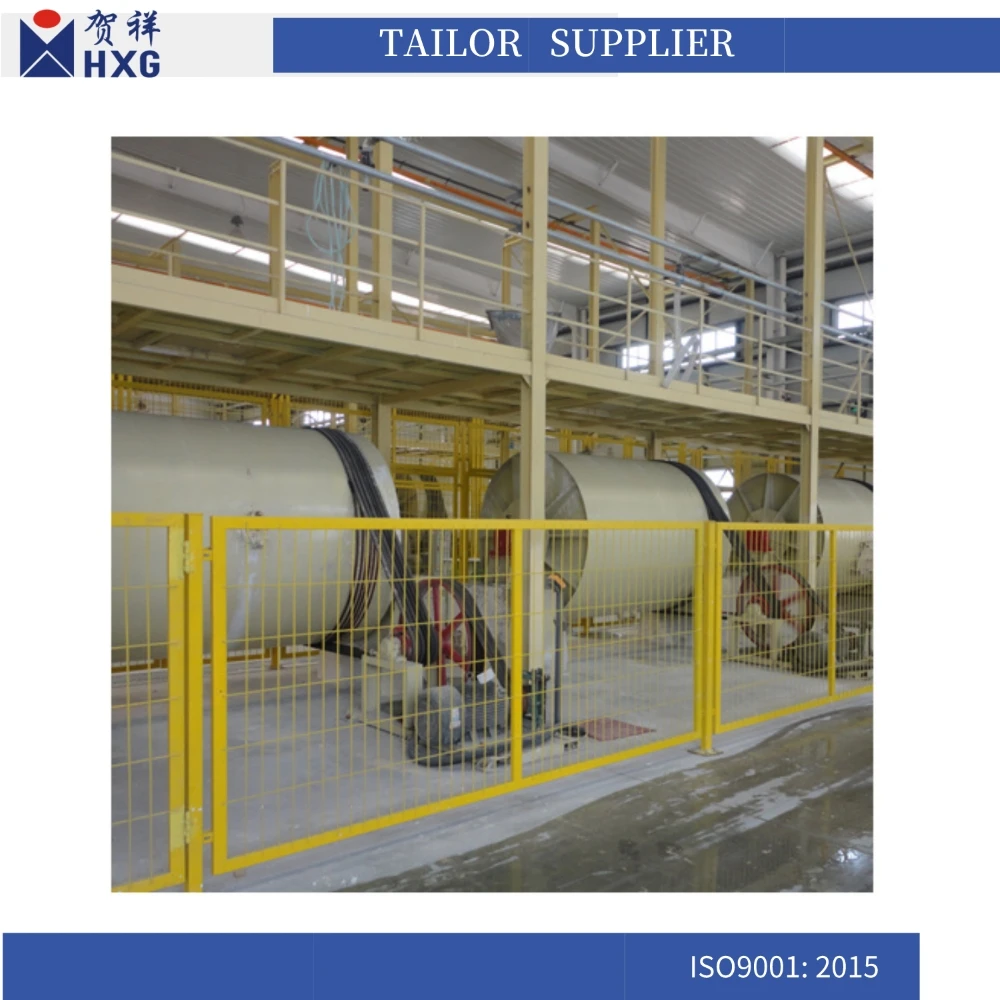

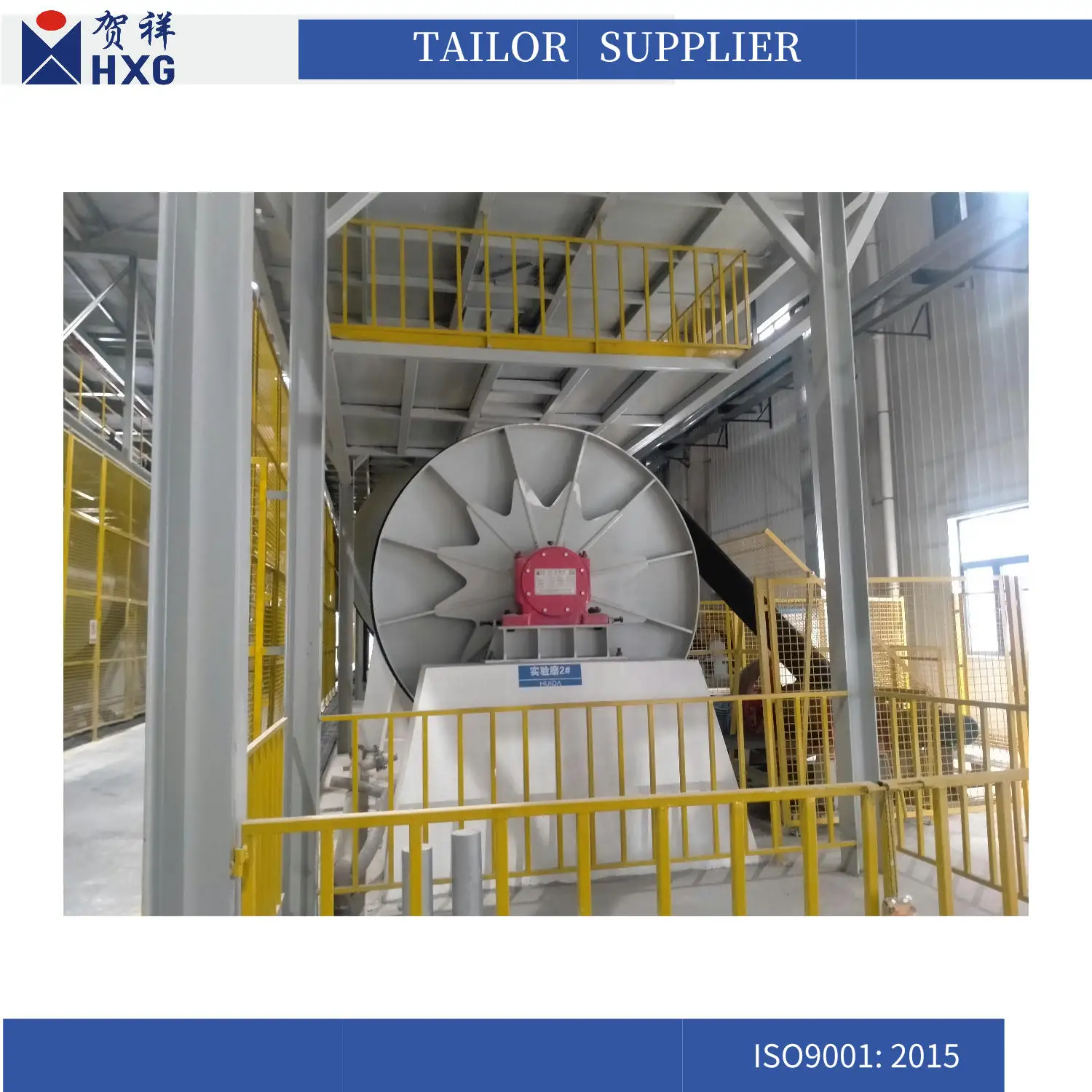

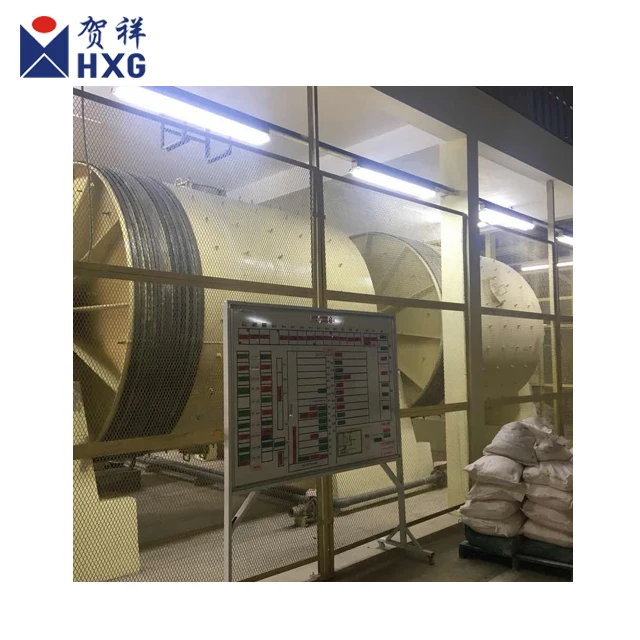

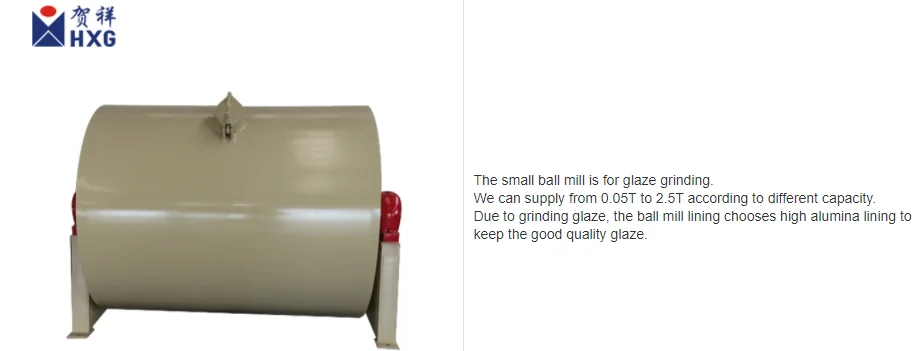

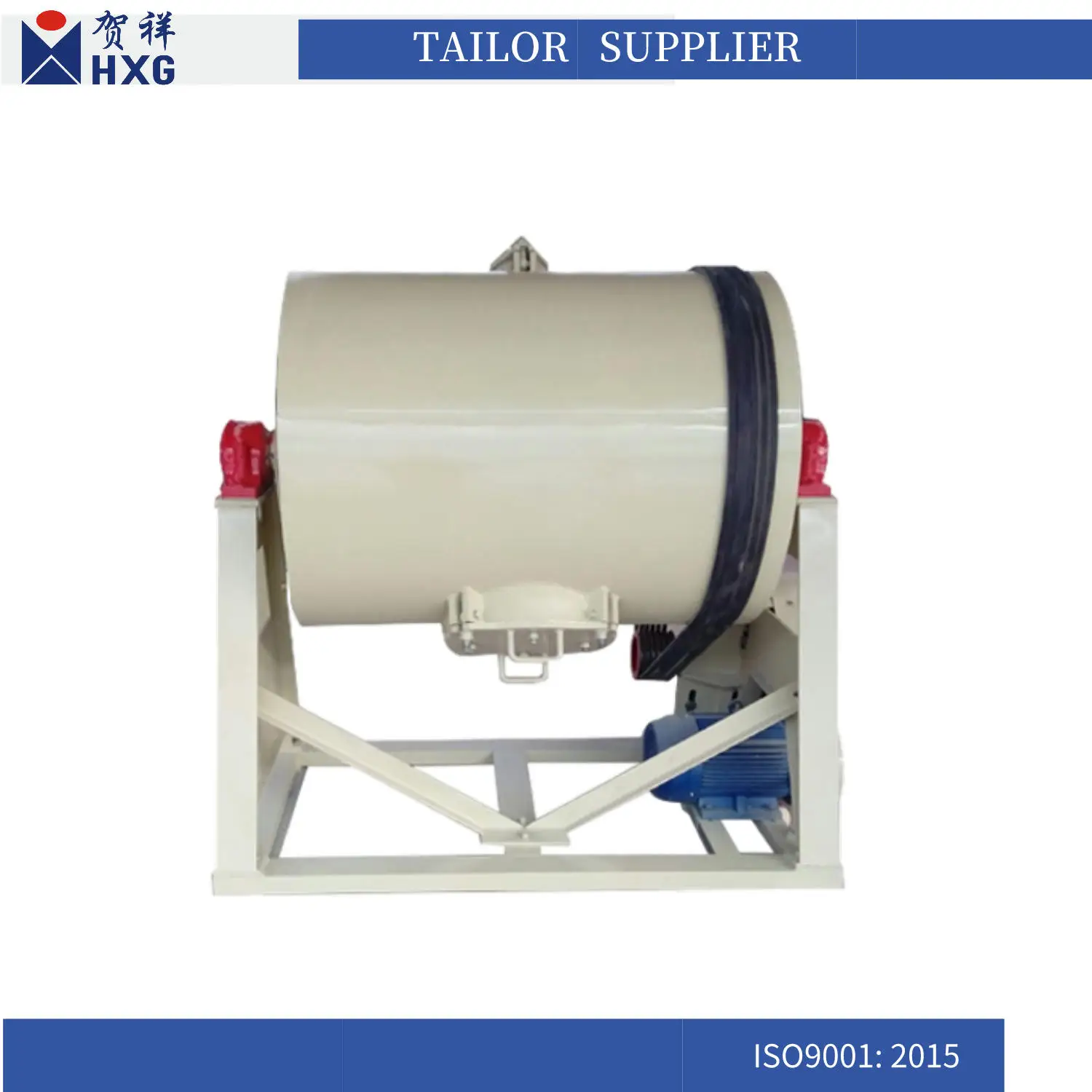

This small capacity ball mill grinding machine with high alumina lining mainly includes: cylinder part, transmission part, electrical control.
Grinding method: wet and intermittent type (fine grinding).
Uses: mainly used for the crushing, grinding and mixing of ceramic raw materials or used in lab for testing
ceramic raw material.
The material in the barrel: raw materials, grinding media and water.





Supply turnkey tailor design of sanitary ware producing line;
Supply sanitary ware slip and glaze formula service;
Supply sanitary ware high pressure casting technical train service;
Supply sanitary ware high pressure mold making and train service;
Supply high quality producing machine;
Supply installation and commissioning service;
Supply producing team building service.
Ball mill technical data | |
Model: | 0.1T |
Drum size: | 660*770mm |
Effective volume: | 0.18m3 |
Main speed: | 50Rpm |
Motor power: | 2.2KW |

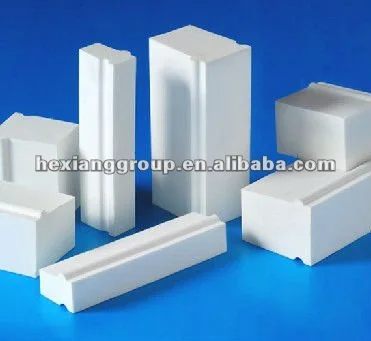

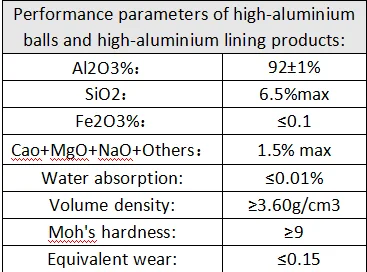

Lining type: | High alumina lining |
Motor brand: | Mengniu |
Bearing brand: | Dalian Yejin |
Floor space: | 1560*1190mm |
Machine weight: | 550kgs |
Inlet size: | 118(113)*69 |
