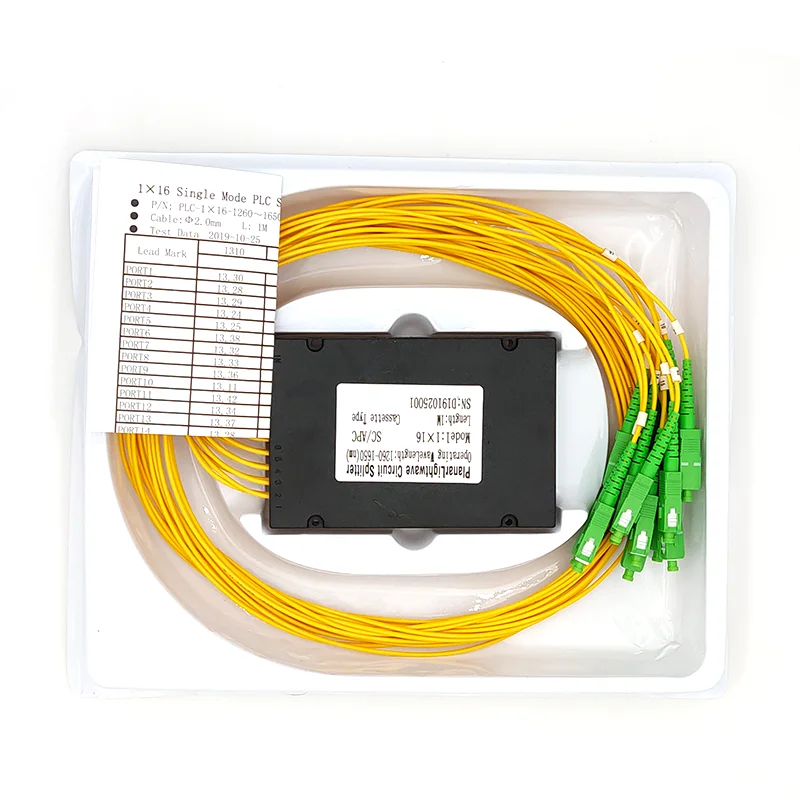

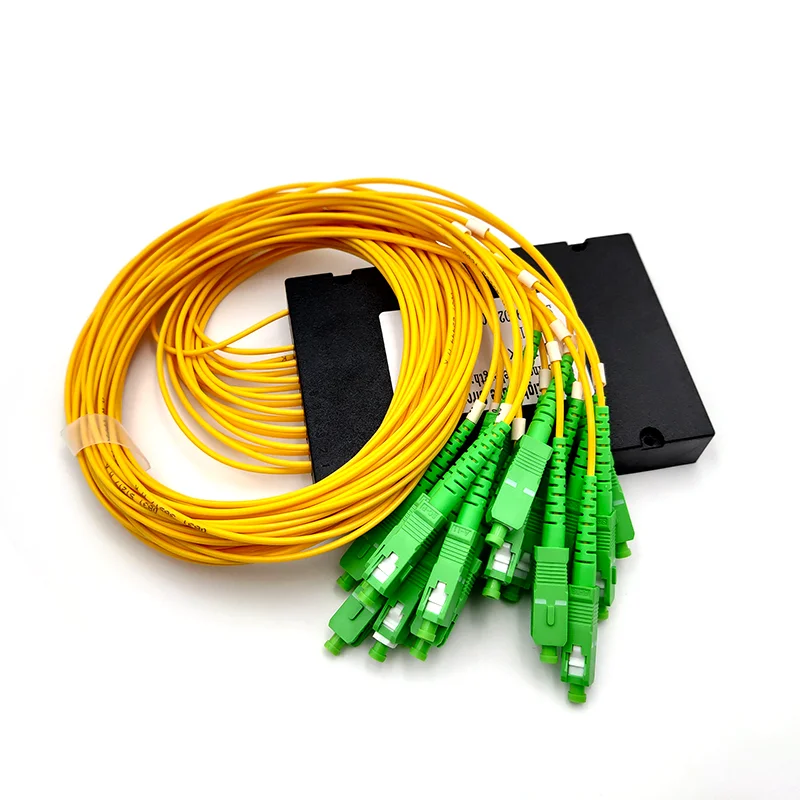

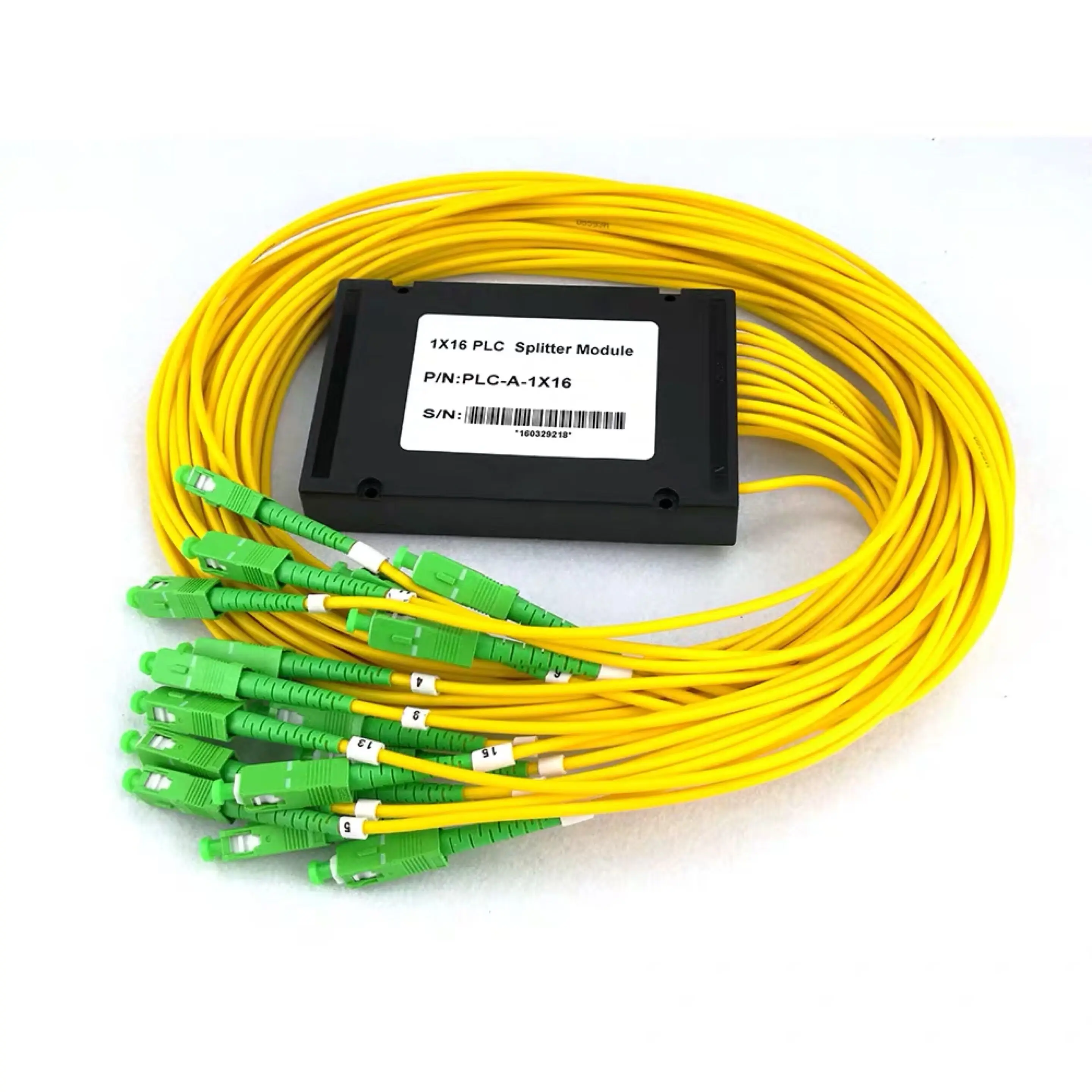

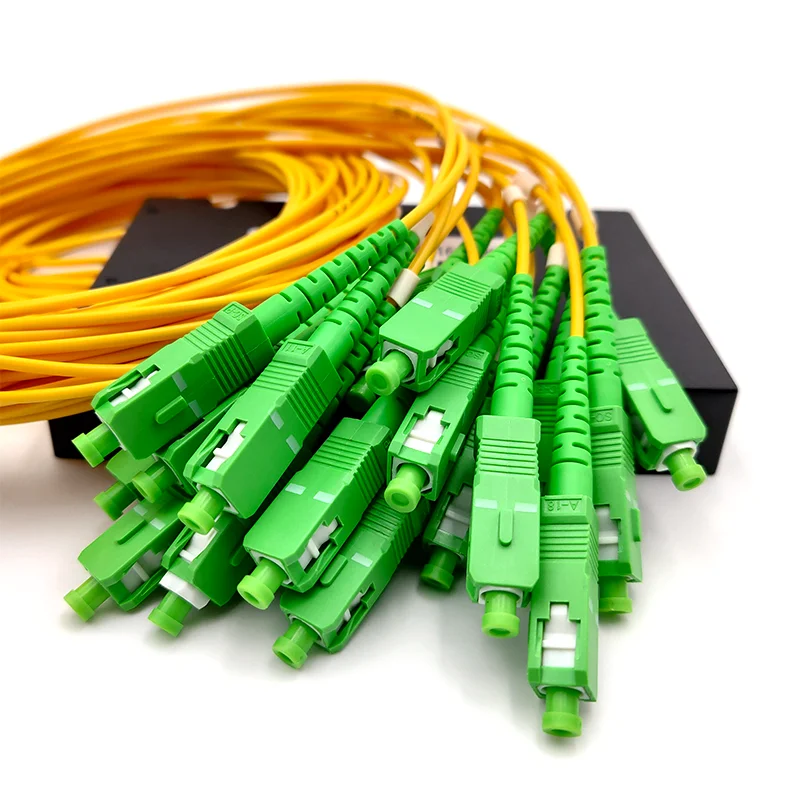

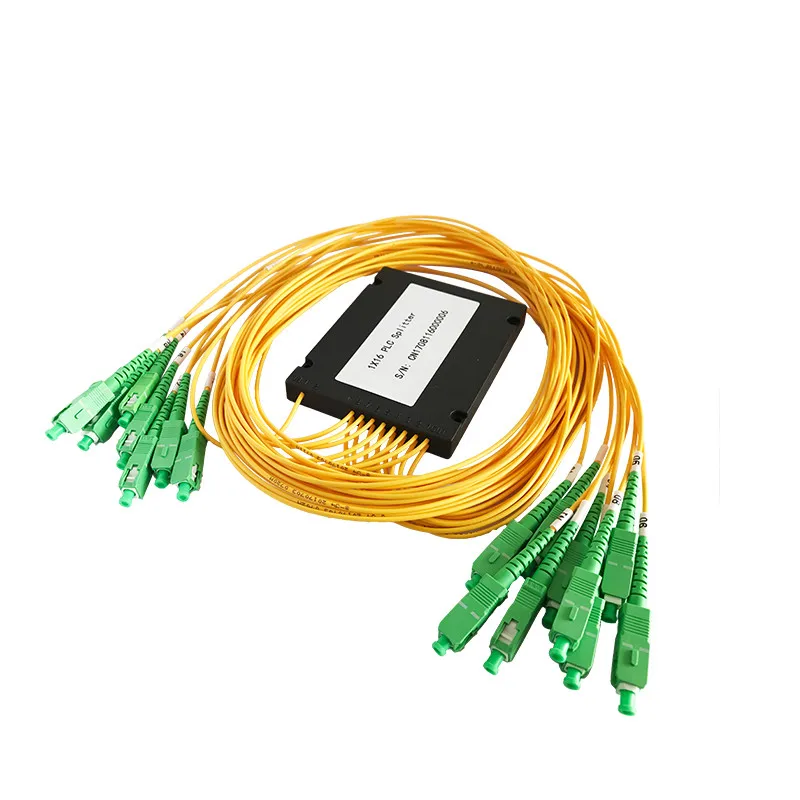

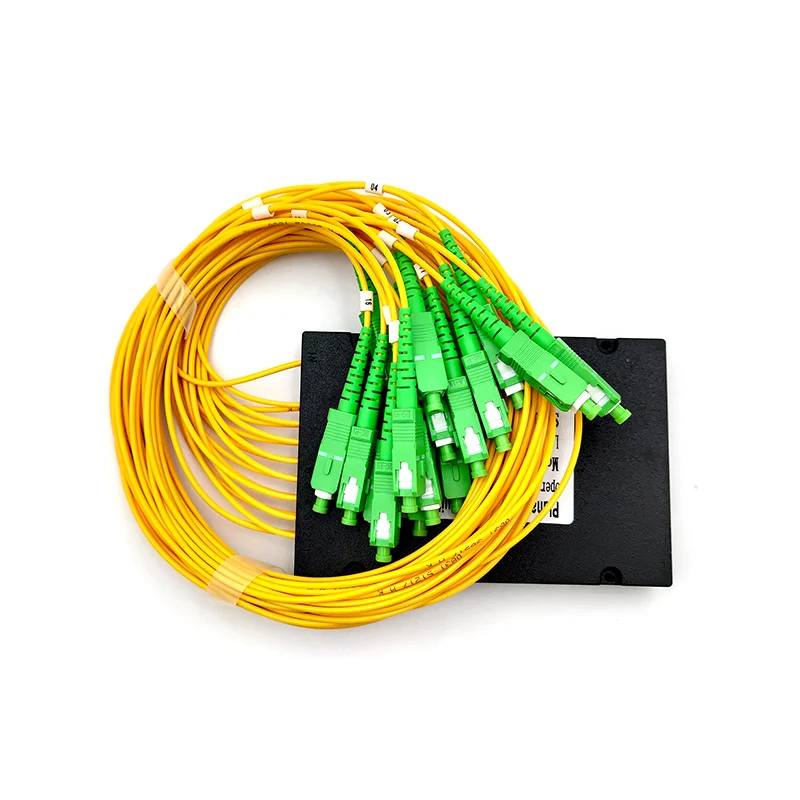

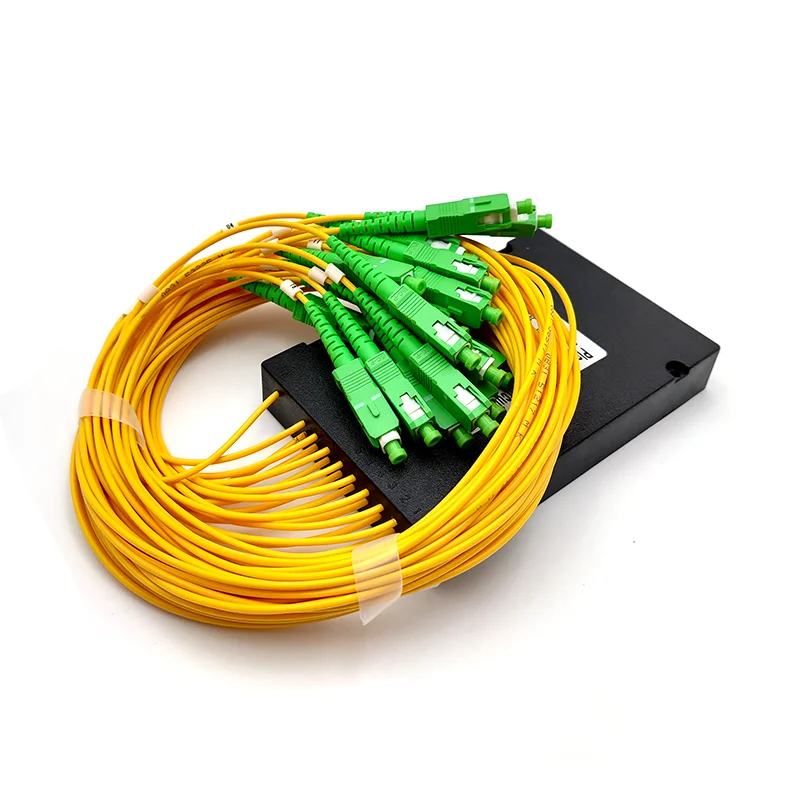

Factory FTTH 1x16 Fiber Optic PLC Splitter SC/APC Connector SC APC
Factory FTTH 1x16 Fiber Optic PLC Splitter SC/APC Connector SC APC
Factory FTTH 1x16 Fiber Optic PLC Splitter SC/APC Connector SC APC
Factory FTTH 1x16 Fiber Optic PLC Splitter SC/APC Connector SC APC
Factory FTTH 1x16 Fiber Optic PLC Splitter SC/APC Connector SC APC
Factory FTTH 1x16 Fiber Optic PLC Splitter SC/APC Connector SC APC
Factory FTTH 1x16 Fiber Optic PLC Splitter SC/APC Connector SC APC

Factory FTTH 1x16 Fiber Optic PLC Splitter SC/APC Connector SC APC

Share on (1600315841990):


Price:

Quantity:


Product Overview

Description



Product Description










Product Features:
* Good uniformity and low insertion loss
* Low Polarization Dependent Loss
* Excellent Environmental Stability
* Excellent Mechanical
* Stability Telcordia GR-1221 and GR-1209

Application:
* Fiber to The Home (FTTH)
* Passive optical networks (PON)
* Local Area Networks (LAN)
* Cable Television (CATV)
* Test Equipment





























































































Parameter


Specification


Operating Wavelength (nm)


1260 ~ 1650


Type


1x4


1x8


1x16


2x4


2x8


2x16


1x32


2x32


1x64


Insertion Loss (dB) Max. *


<7.3


<10.5


<13.5


<7.6


<11.2


<14.5


<16.2


<18.2


<20.5


Uniformity (dB) Max.*


<0.8


<1.0


<1.5


<1.0


<1.5


<2.0


<2.0


<2.5


<2.5


PDL(dB)Max.*


<0.2


<0.2


<0.3


<0.3


<0.3


<0.4


<0.3


<0.4


<0.3


Directivity (dB) Min *


55


Return Loss (dB) Min *


55(50)


Operating Temperature (°C)


-5~ +75


Storage Temperature (°C)


-40 ~ +85


Fiber length


1m or custom length


Fiber Type


Corning SMF-28e fiber


Connector Type


Custom specified


Power Handling (mW)


300

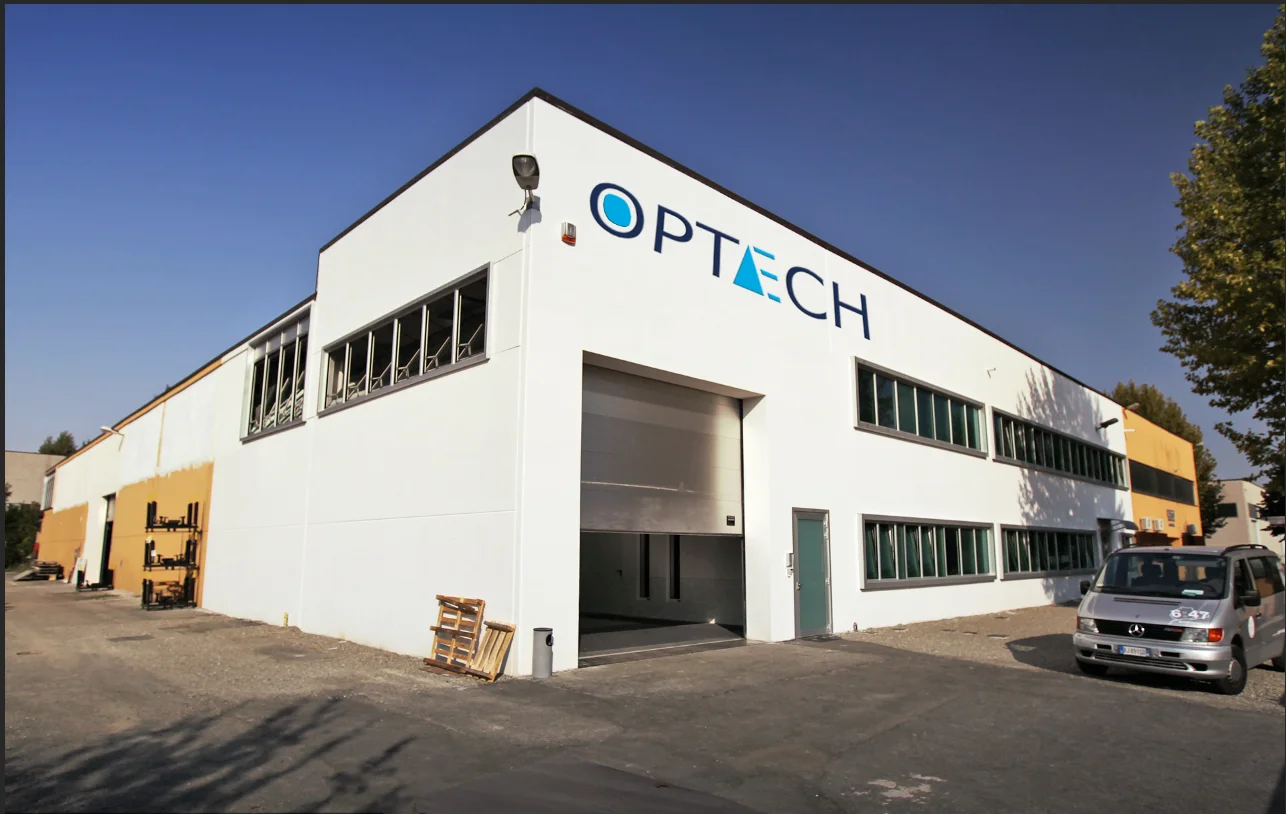

Company Profile































XI’AN GUANGLIANKE ELECTRONIC COMMERCE CO., LTD ESTABLISED IN 2017, It’s majored in fiber optic communication and Lan cabling network system, owning a professional manufacture for fiber optic cable. We also cooperated with other network products factories, we can provide Network cable rack and switch, router and other network field accessories. Our brand is OPTECH, we have very widely overseas market, welcome to contact us and we will try best give best service.







































Q1. What is the advantage about your company?A1. Our company has professional team and professional production line. Q2. Why should I choose your products?A2. Our products are high quality and low price. Q3. Any other good service your company can provide?A3. Yes,we can provide good after-sale and fast delivery.
