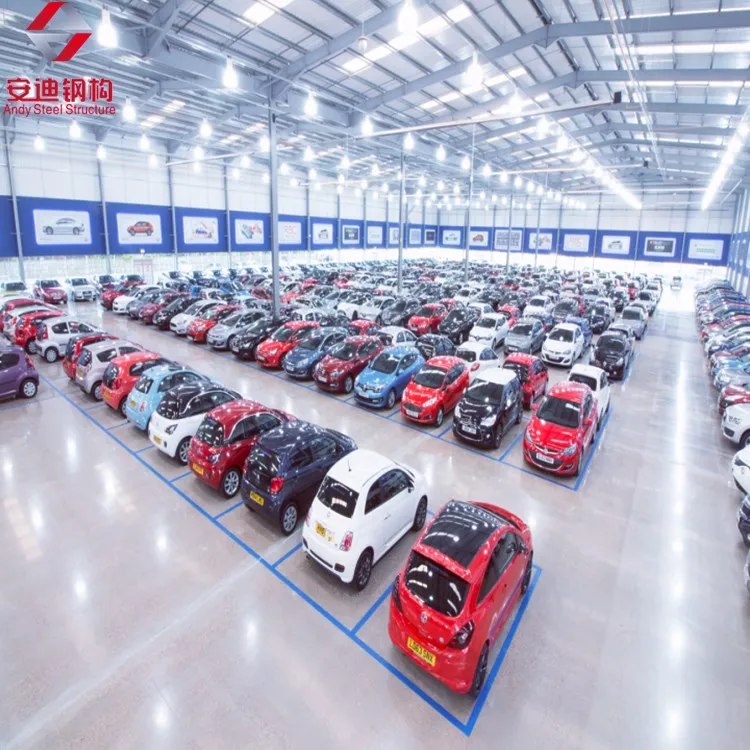

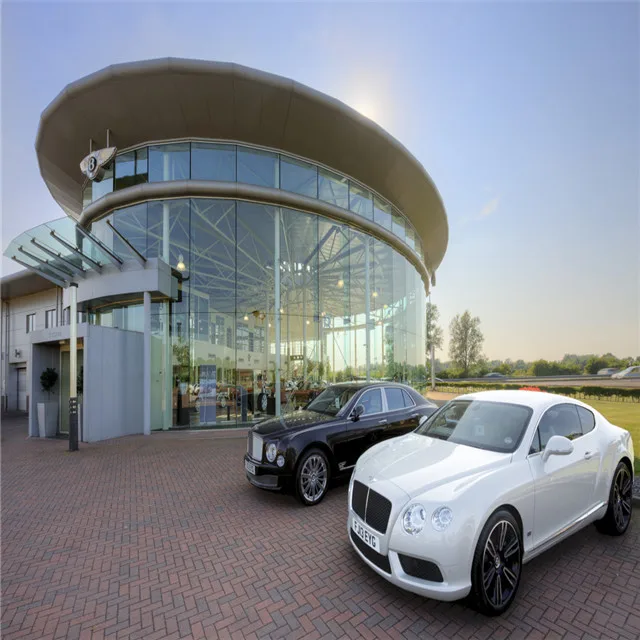

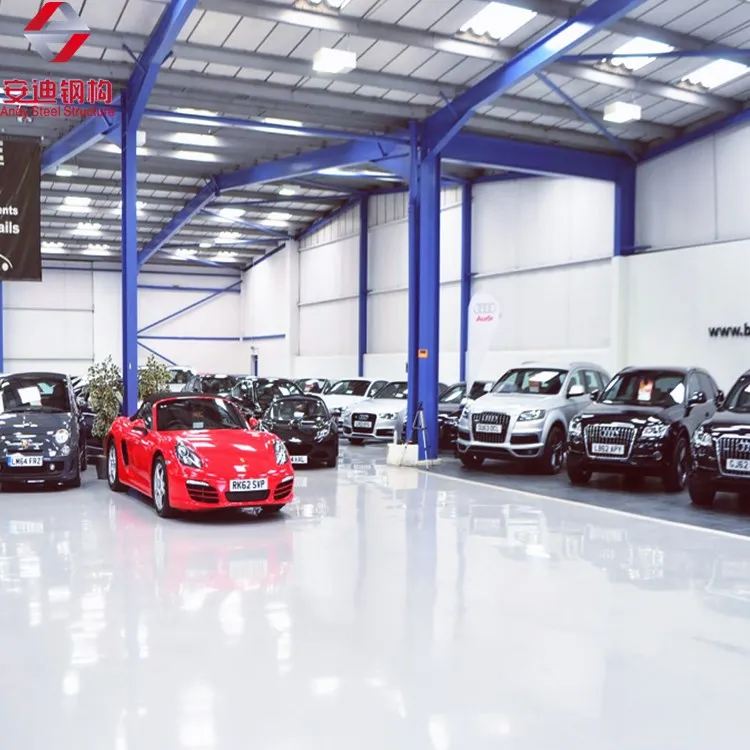

Modern Designed Prefabricated Light Weight Steel Structure Car Showroom Car Exhibition Hall
- Category: Warehouses >>>
- Supplier: Jiangsu Andy Steel Structure Co. Ltd.
Share on (1600315909017):
Product Overview
Description
Modern Designed Prefabricated Light Weight Steel Structure Car Showroom Car Exhibition Hall
Modern Designed Prefabricated Light Weight Steel Structure Car Showroom Car Exhibition Hall
PRODUCT DESCRIPTION
| Items | Specification | |
| Main Steel Frame | Column | Q235, Q345 Welded H Section Steel |
| Beam | Q235, Q345 Welded H Section Steel | |
| Secondary Frame | Purlin | Q235 C and Z purlin |
| Knee brace | Q235 Angle Steel | |
| Tie rod | Q235 Circular Steel Pipe | |
| Brace | Q235 Round Bar | |
| Vertical&Horizontal support | Q235 Angle Steel, Round Bar or Steel Pipe | |
| Maintenance system | Roof panel | EPS Sandwich Panel / Glass Fiber Sandwich Panel / |
| Rock Wool Sandwich Panel / Pu Sandwich Panel /Steel Sheet | ||
| Wall panel | Sandwich Panel / Corrugated Steel Sheet | |
| Accessories | Window | Aluminiumn Alloy Window / PVC Window / Sandwich Panel Window |
| Door | Sliding Sandwich Panel Door / Rolling Metal Door / Personal Door | |
| Rainspout | PVC | |
| Live load on Roof | In 120kg/Sqm (Color steel panel surrounded) | |
| Wind Resistance Grade | 12 Grades | |
| Earthquake-resistance | 8 Grades | |
| Structure Usage | Up to 50 years | |
| Finishing Options | Vast array of colors and textures available | |
| Paint Options | Alkyd paiting, two primary painting, two finish painting | |
| (gray paint, red paint, white paint, epoxy zinc etc.) Or Galvanized. | ||
PRODUCT DESCRIPTION
Ⅰ. Material grade
1.Carbon structural steel: Q235.
2.High-strength structural steel :Q345
3.Special purpose steel t
ⅡQuality standard
1.Certificate: ISO9001:2000
2.Code for design of steel structure: GB 50017-2003
3.Technical code of cold-formed thin-wall steel structure: GB50018-2002
4.Load code for the design of building structures. GB 50009-2006
5.Construction quality acceptance of steel: GB50205-2001
6.Code for design, construction and acceptance of high strength for steel structure, JGJ82-2011
7.Technical specification for welding of steel structure building: JGJ 81-2002
8.Technical specification for steel Structures of tall buildings: (JGJ99-98)

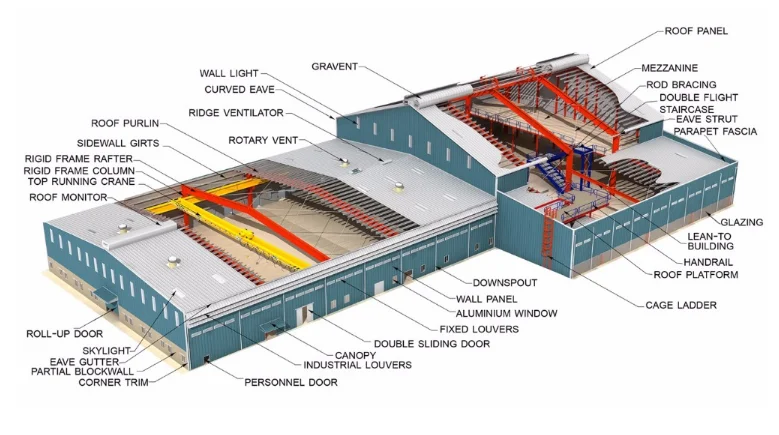

Ⅲ. Structure Assembly

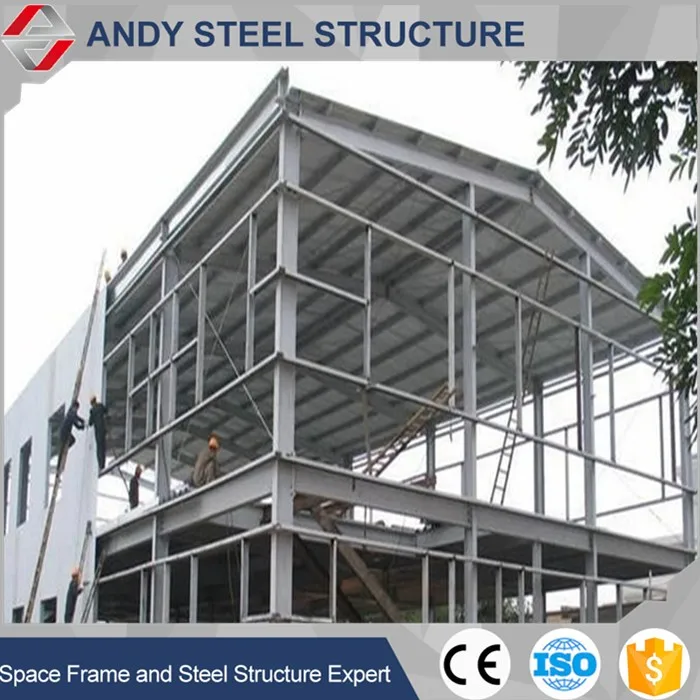

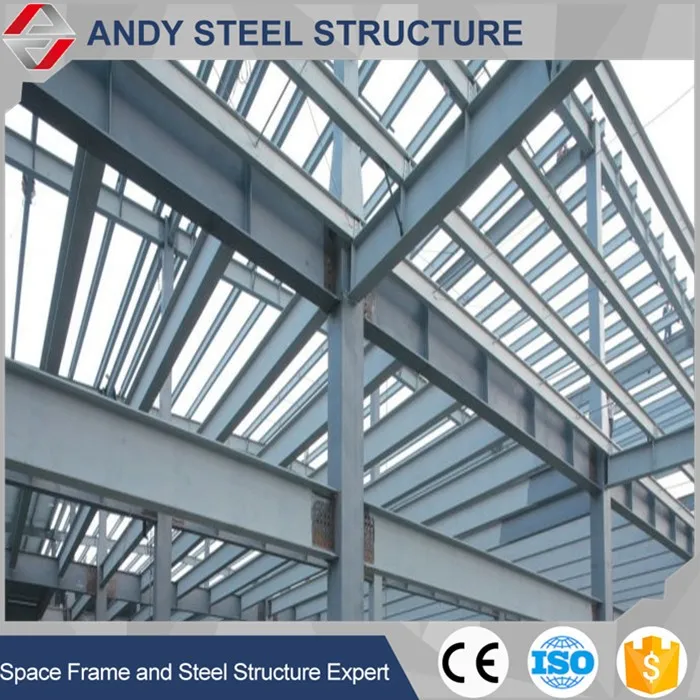

1.Steel Framework:
Component: H-Column, H-Beam & C/Z-Purlin
Connection of steel structure method: Welding, Bolted
2.Surface treatment: Painting, Galvanized
3.Roof &Wall: colored steel tiles or colored steel sandwich panel as per
request
4.Doors: Rolling or Pushing, as request
V. Steel characteristics
1.Environmental protection
2.Higher reliability of steel work
3.Strong quakeproof
4.Higher degree of industrialization
5.Quick to be assembled accurately
6.Larger interior space
