Best price blade for wood crusher/doubleinlet wood crusher
Product Description
Description of diesel wood crusher
It is hammer-shape pulverizer and ordinary wood chip machine perfect union, and together the two machine function, make the function of the machine more powerful and application wider.

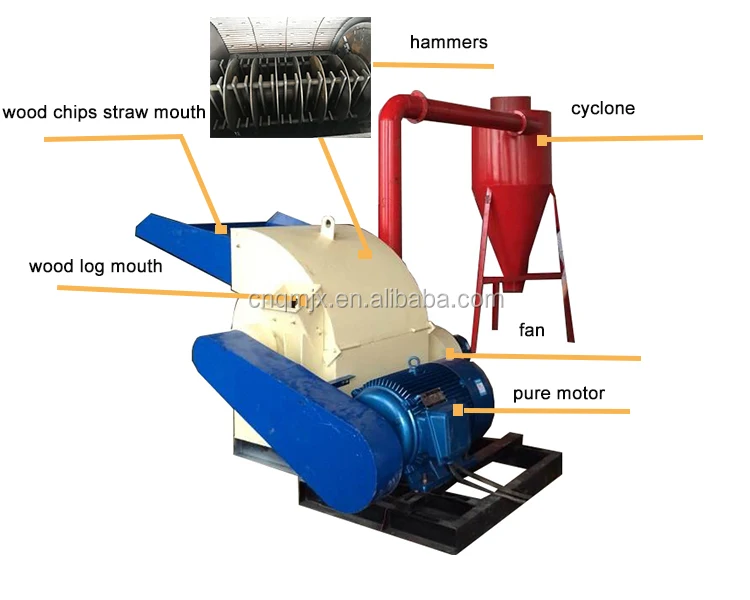

This wood hammer mill has two mouth which has function of hammer mill and wood log crusher.
See as below photos.(You can customer for one mouth log crusher or for one mouth hammer mill)
Rectangle shape mouth for crush wood chips,straw,husk,etc
Cubic shape mouth for crush wood logs,cotton straw,etc.

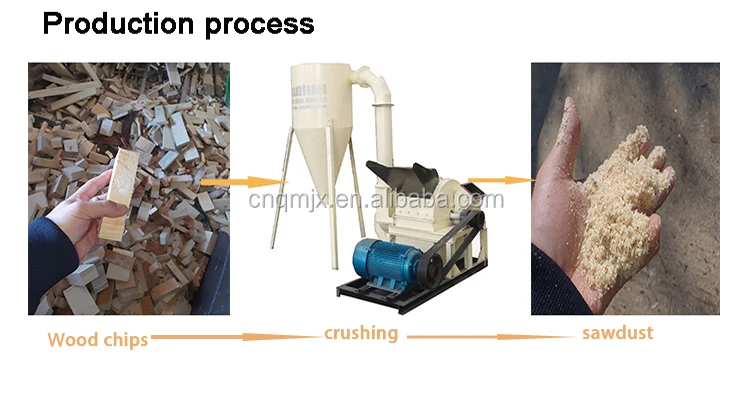

The effect after crushing
diesel wood crusher can crush the raw material to size <2mm also can reach to 20mm,which suitable for making wood pellet and sawdust wood briquette.We aslo has flat die /ring die pellet machine,sawdust briquette machine,please see related products part.

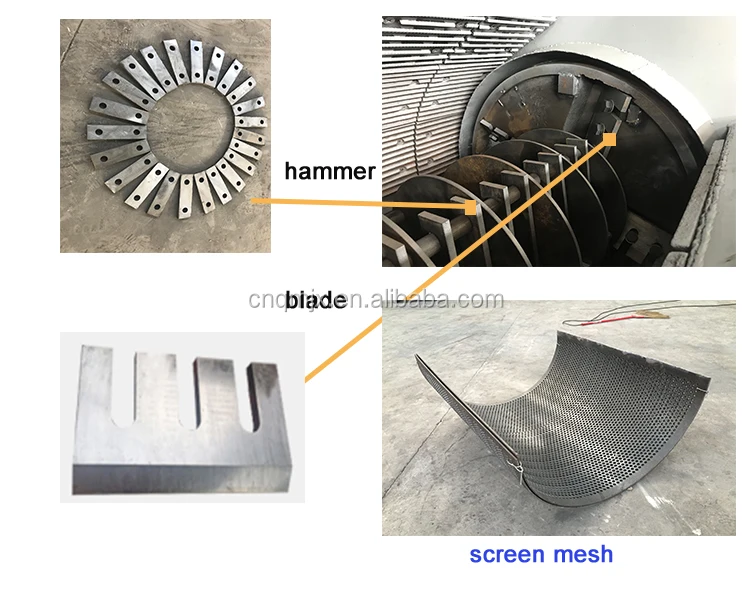

Product Details of diesel wood crusher
Technical date of diesel wood crusher
Modle
Specification
Speed
(r/min)
Power
(KW)
Capacity
Dimension
weight
CDF-400
blade qty:4pcs;
hammer qty:20pcs
feeding port:350*150mm;
outlet port:200mm
2500
18.5
400-500kg/h
1000*550*1000mm
1T
CDF-500
blade qty:4pcs;
hammer qty:32pcs
feeding port:450*180mm;
outlet port:200mm
2500
22
600-700kg/h
1250*750*1300mm
1.5T
CDF-600
blade qty:4pcs;
hammer qty:48pcs
feeding 530*200mm;
outlet port:200mm
2500
30
800-1000kg/h
1750*900*1550mm
2T
CDF-800
blade qty:4pcs;
hammer qty:54pcs
feeding 800*250mm;
outlet port:250mm
2500
45+11
1500-2000kg/h
2200*1780*1500mm
3.3T
CDF-1000
blade qty:4pcs;
hammer qty:88pcs
feeding1000*350mm;
outlet port:300mm
1480
75+11
2500-3000kg/h
2500*2600*2200mm
3.9T
CDF-1300
blade qty:4pcs,
hammerqty:120pcs
feeding1300*450mm;
outlet port:350mm
1480
90+15
3500-5000kg/h
4230*2200*4500mm
4.5T
CDF-1500
Blade qty:4pcs
hammer qty:180pcs
feedingport:1500*500mm;
outlet port:400mm
1480
110+15kw
5500-7000KG/H
4530*2600*4500mm
5.5T

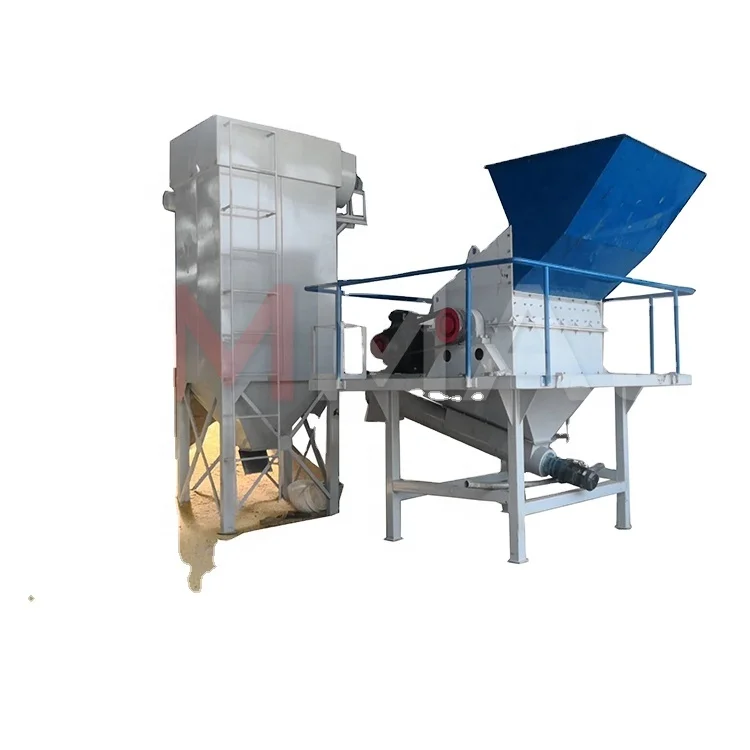

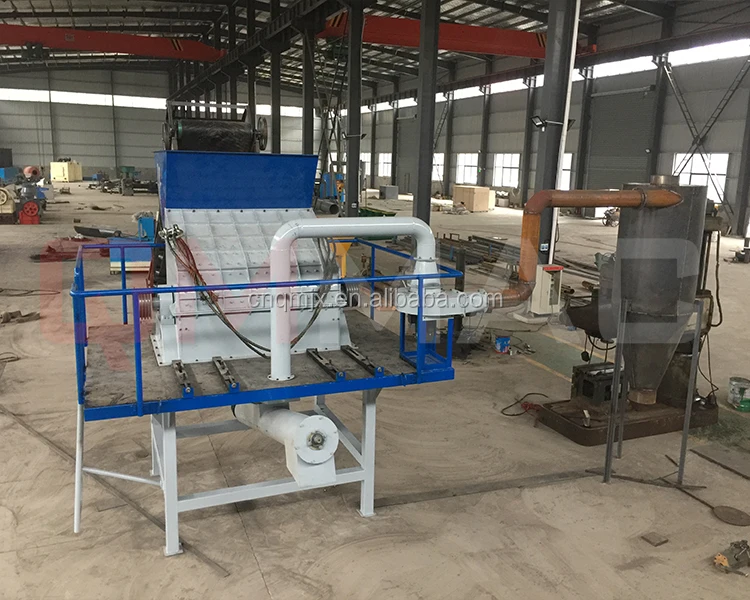

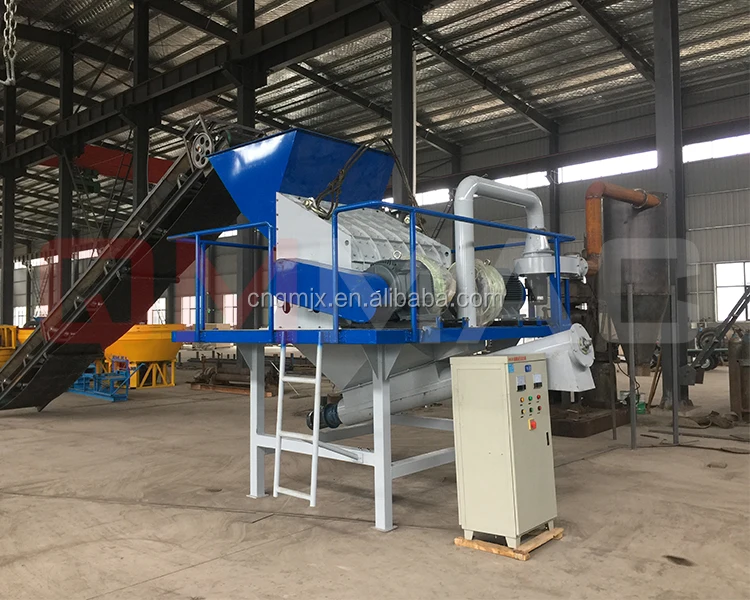

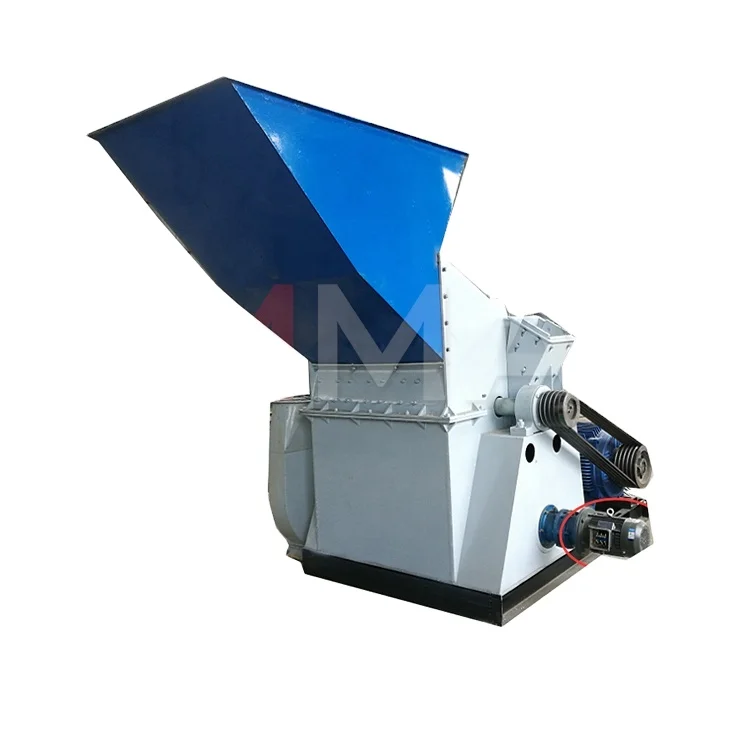

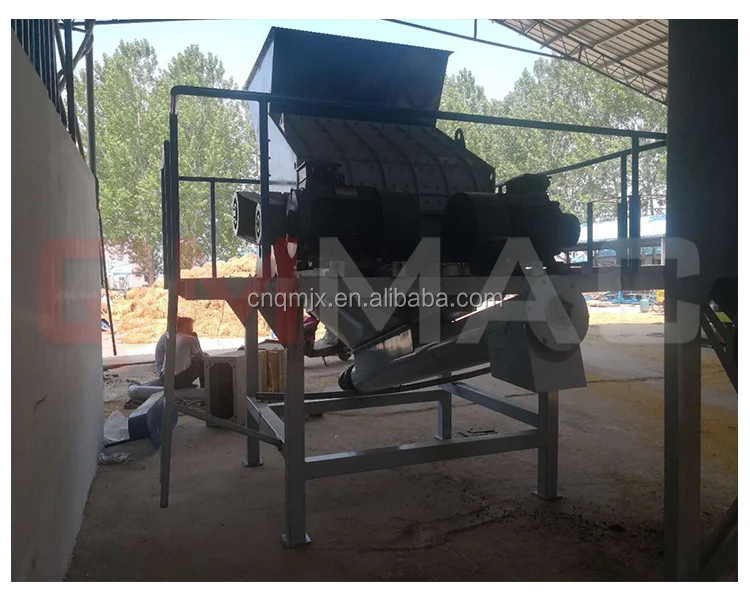

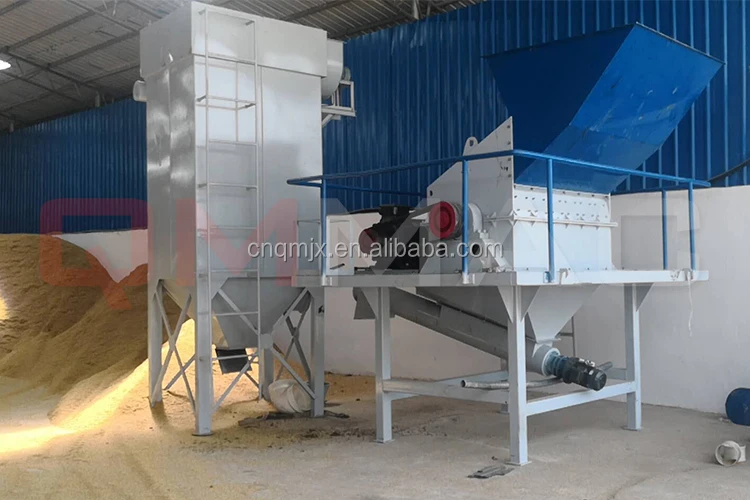

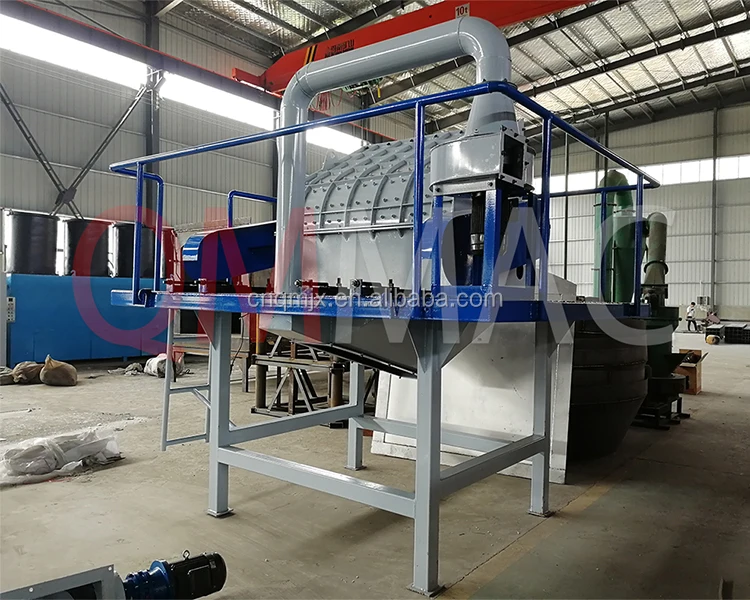

Pictures of diesel wood crusher taken from our factory

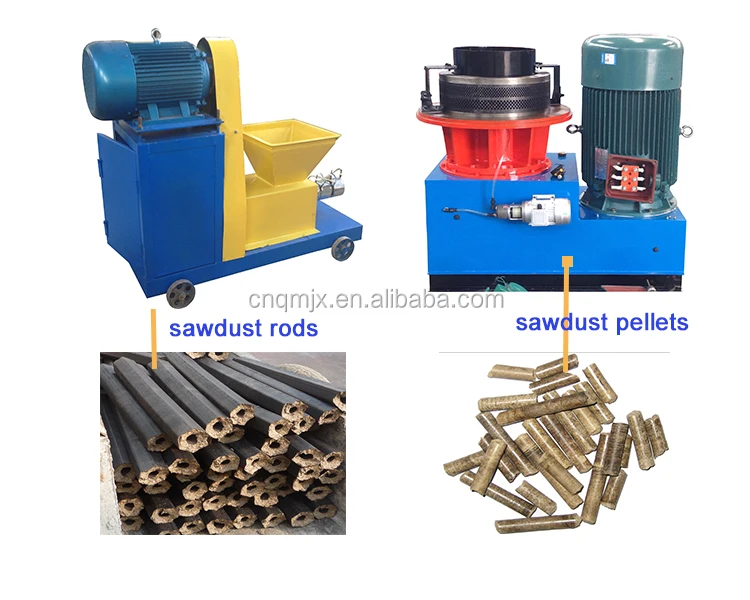

Related Products
Click the photos then you can see each machine detail

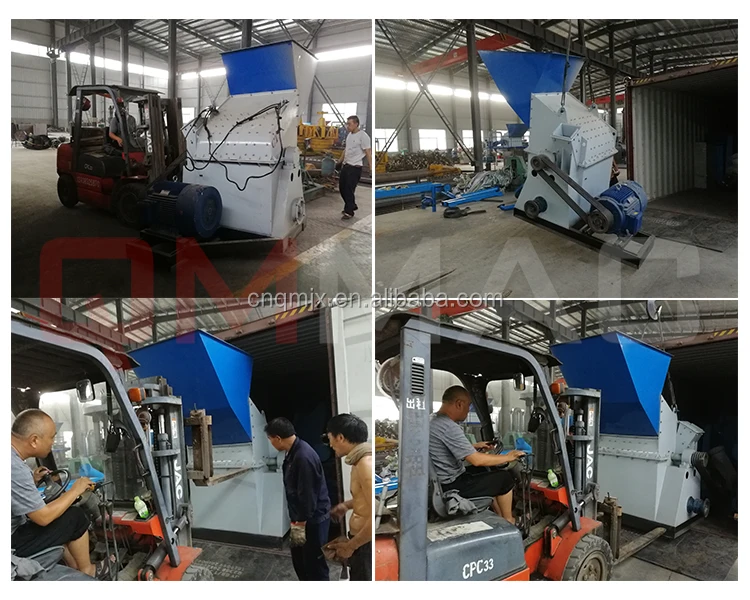

After packing to wooden case,our factory will delivery machine to you ASAP
