fan water spray,nozzle sprayer v nozzle 11005
US $1.40-$1.54

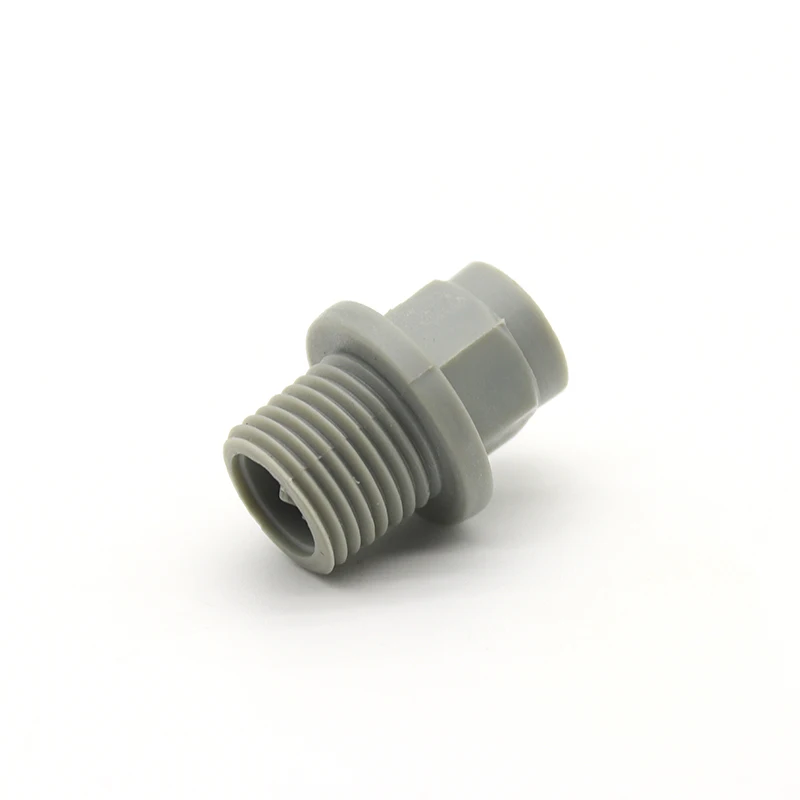

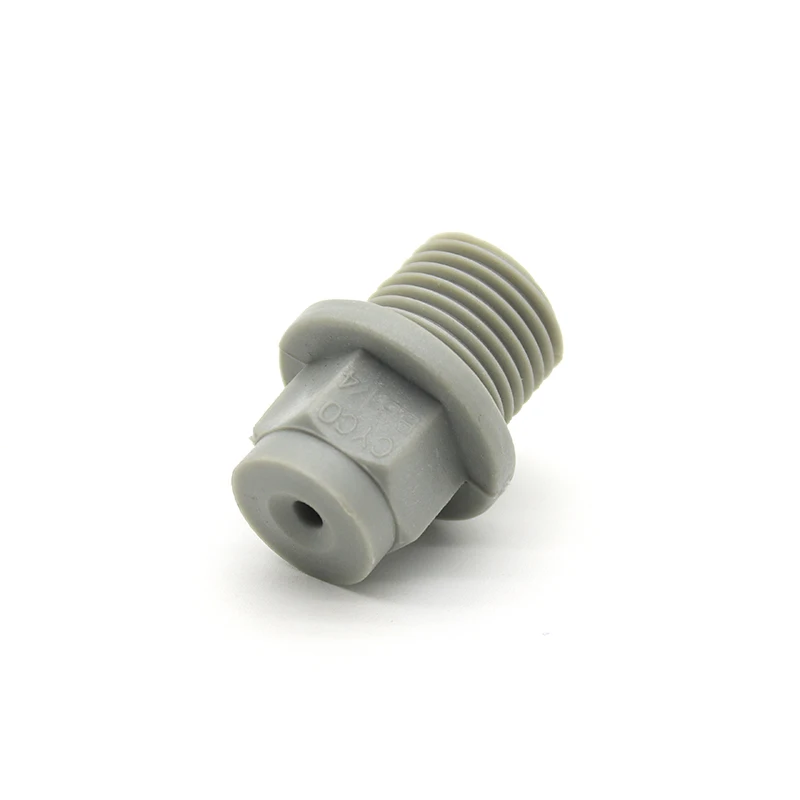

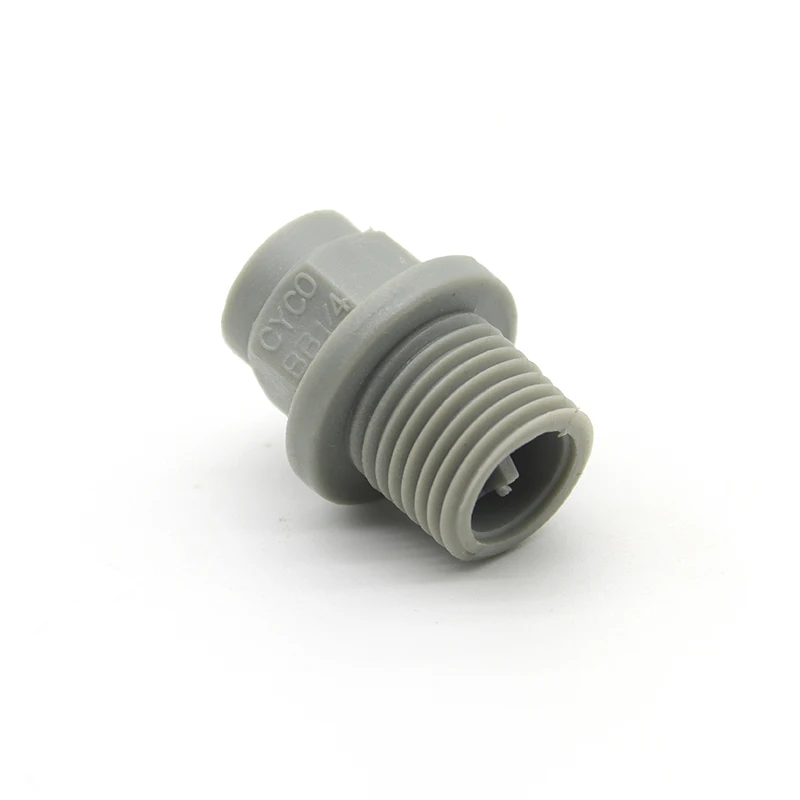

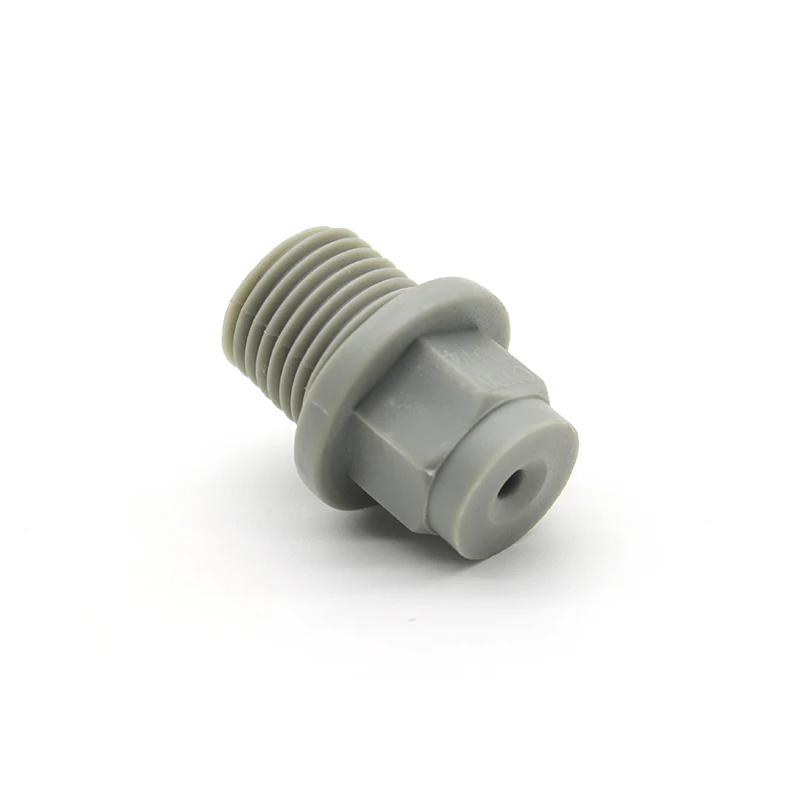

Factory Direct Agriculture Machinery Parts Jet BB KY PP/PVDF Full Cone Spray Nozzle
- Category: >>>
- Supplier: Dongguan Changyuan Spraying Technolgoy Co. Ltd.
Share on (1600315948525):
Product Overview
Description
Products Description

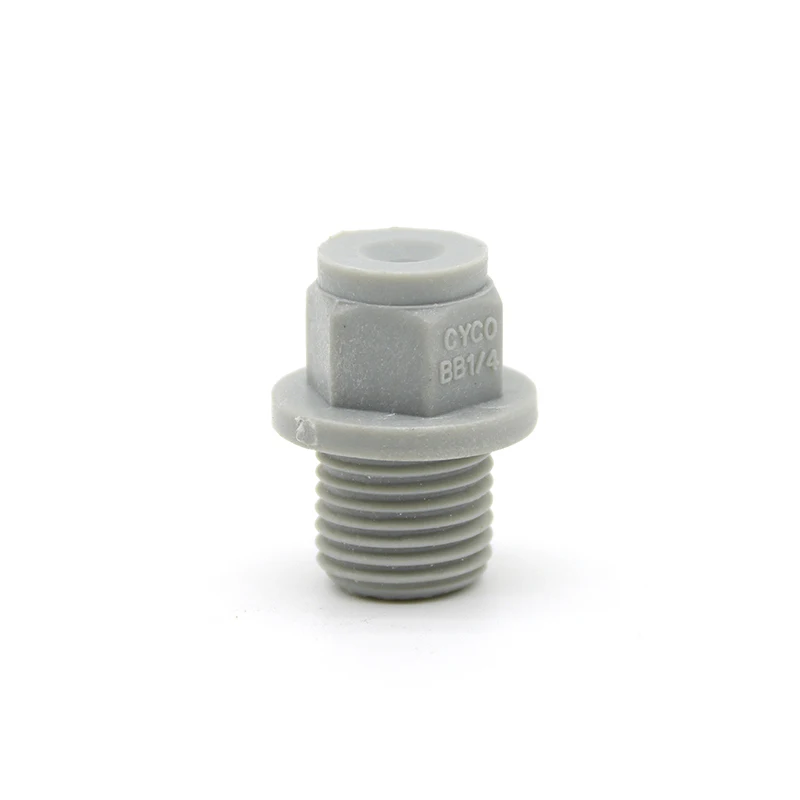

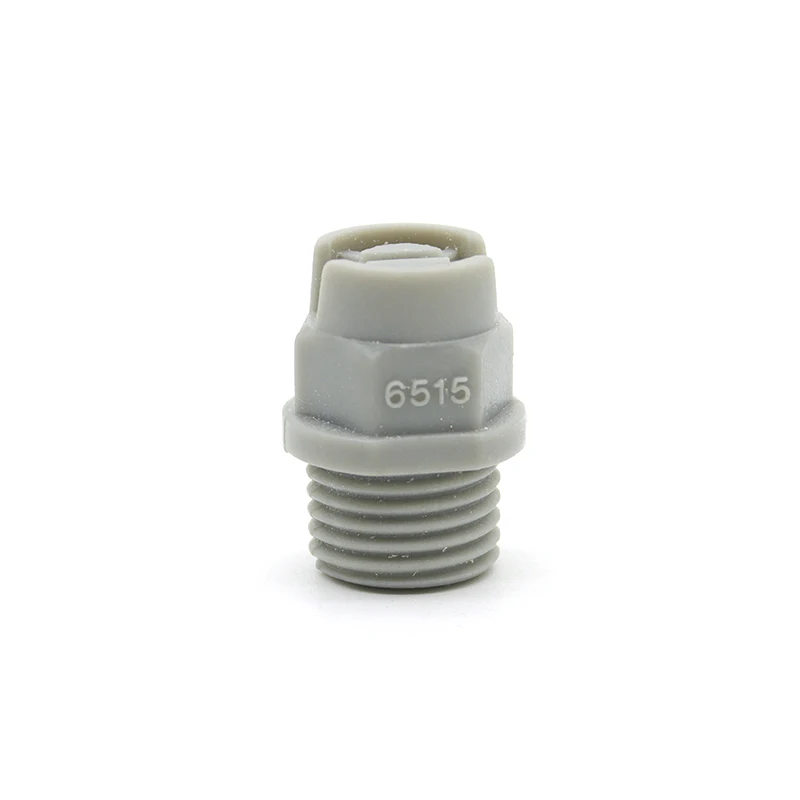

KY 1/8" 1/4" 3/8" full cone flat fan plastic micro fine droplet water misting spray nozzle
1. High Purity PVDF nozzle is made of PVDF, which is a sort of natural & pure material without pigment. It can keep high
clarification in processing and meet the requirements high.
1. High Purity PVDF nozzle is made of PVDF, which is a sort of natural & pure material without pigment. It can keep high
clarification in processing and meet the requirements high.
2. Heat Resistance Max temperature of PVDF nozzle is 148°C with 7kg press; Suitable for PCB printing course, including development, plating, etching and film removal.
3. Anti Corrosive PVDF has good anti corrosion; The PVDF nozzle can be widely used in spraying of chlorid, acid, alkali and amidoc-yanogen with good anti-aging performance.
4. Wide Scope and Long Life Available sizes of PVDF nozzle: 1/8″, 1/4″, 3/8″ Three available size for common pipes
with different spraying capacity and angle to meet various requirements. As high hardness material, it is wearable and impact resistant with high-intensity.
with different spraying capacity and angle to meet various requirements. As high hardness material, it is wearable and impact resistant with high-intensity.
Application:
1. PCB Wash & Rinse
2. Dust Removing
3. Quenching & Cooling
4. Gas Filtration
5. Oxidization, Forth,
6. Extinguishment & aeration
Specification
Product name | KY plastic spray nozzle |
Material | PP, PVDF |
Thread size | 1/8", 1/4",3/8" |
Thread type | BSPT |
Spray pattern | Flat fan, Full cone |
Pressure | 0.3bar - 10bar |
Capacity | 0.25~22L/min |
Spray angle | 50-110 degree |
Drop size | 100-300μm |
Application | 1. PCB Wash & Rinse 2.. Dust Removing 3. Quenching & Cooling 4. Gas Filtration 5. Oxidization, Forth, 6. Extinguishment &aeration |
Net weigh | 12g |

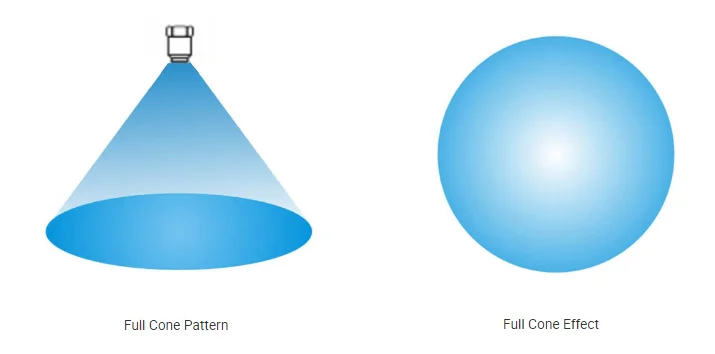

Spraying Pattern:

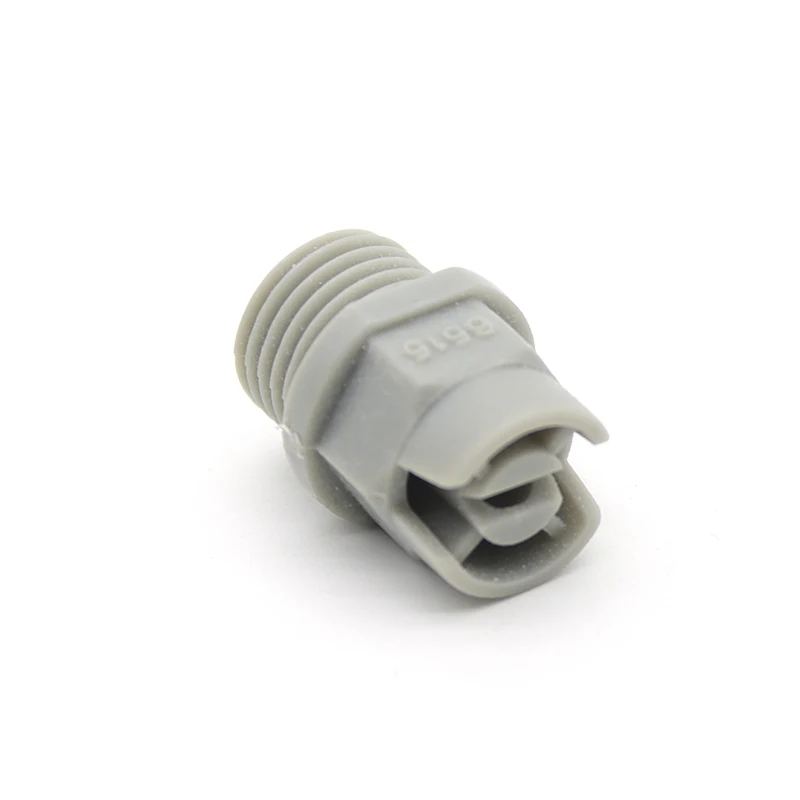

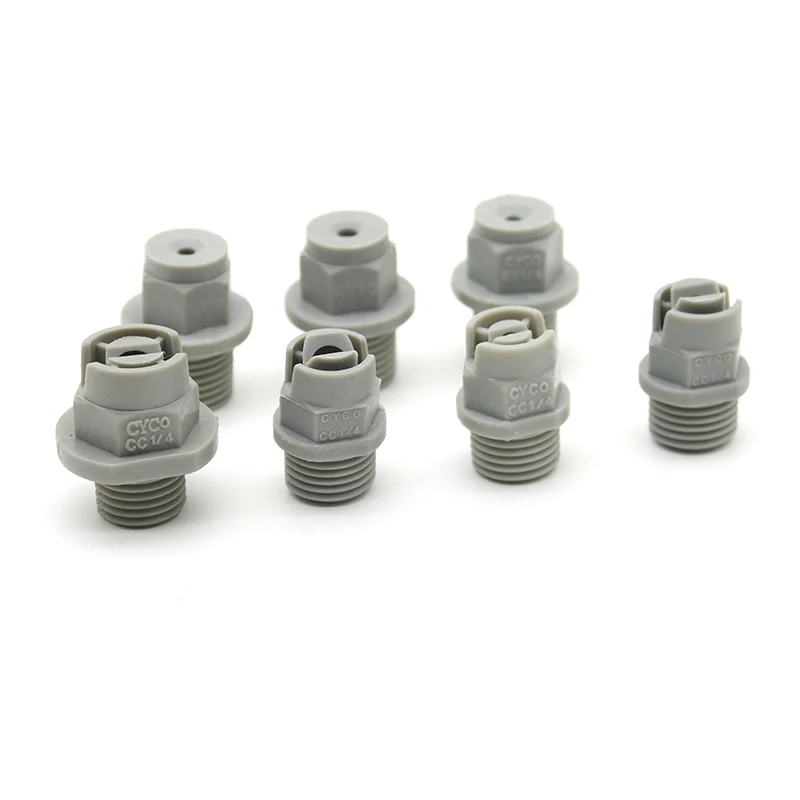

There are two spraying patterns available for this plastic nozzle: full cone and flat fan. You can choose the best one
according to your actual needs.
There are two spraying patterns available for this plastic nozzle: full cone and flat fan. You can choose the best one
according to your actual needs.

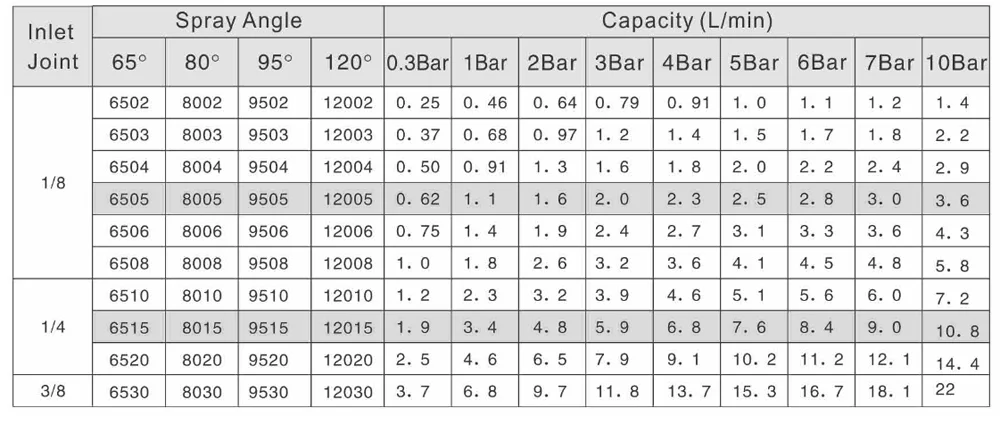

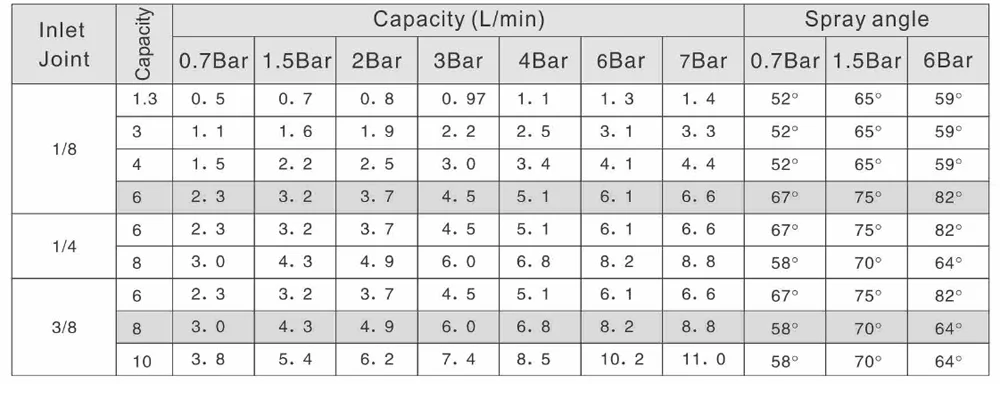

Flat fan performance data
Full cone performance data
Company Profile
CYCO(Dongguan Changyuan Spraying Technology Co., Ltd.) which was found in the year 1997 is a professional Hi-tech Spraying & Purification company with branches in Beijing, Shanghai and Shenzhen. We specialize in manufacturing and selling of spray nozzle products and accessories. Our company has won ISO9001, ISO14001, IATF 16949, and SGS Certificates. Strict quality control is performed in every procedure from material sourcing, processing and testing to packing. Rich experience in massive production of abilities of its high quality and excellent performances of its goods. It obtains the good reputations all these years from customers around the earth for its highest quality, short lead-time, fast delivery, and timely after-services.
CYCO offers a wide range of highly competitive spray nozzle products. Our main products include spray nozzle,water
mist nozzle, tank wash nozzle, dry fog humidifier, air atomizing nozzle, fire fighting nozzle, dry fog nozzle, flat fanspray
nozzle, hollow cone nozzle, full cone nozzle, spiral nozzle, oil burner & snow making nozzle, spiral nozzle, plastic nozzle,pulp and paper nozzle.
Our products are widely used in washing, cooling, dust control, fire protection, spraying, coating, surface treatment and so
on.And our products have been exported to many foregin countries, such as USA, German, England, Japan, Korean, Russia,
India,UAE,Brazil and many other countries. We have established long-term cooperation with our partners in these countries.
mist nozzle, tank wash nozzle, dry fog humidifier, air atomizing nozzle, fire fighting nozzle, dry fog nozzle, flat fanspray
nozzle, hollow cone nozzle, full cone nozzle, spiral nozzle, oil burner & snow making nozzle, spiral nozzle, plastic nozzle,pulp and paper nozzle.
Our products are widely used in washing, cooling, dust control, fire protection, spraying, coating, surface treatment and so
on.And our products have been exported to many foregin countries, such as USA, German, England, Japan, Korean, Russia,
India,UAE,Brazil and many other countries. We have established long-term cooperation with our partners in these countries.
Production Process
Product packaging
Transportation
FAQ
Q1. Can you help me with my project?
-Yes, of course. Let us help you to design the right misting system for you. Send to us an email with description, drawings, pictures of the area you want to cool/mist and we'll send you a quote for free.
Q2. Can I have a sample order for this nozzle?
-Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q3. What about the lead time?
-Usually, sample needs 1-2 days, mass production time needs 1-3 weeks.
-Usually, sample needs 1-2 days, mass production time needs 1-3 weeks.
Q4. How do you ship the nozzles and how long does it take to arrive?
-We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. Do you offer guarantee for the products?
-Yes, we offer 3 months warranty to our formal products.
Q6. How to order?
-Step 1 : send an inquiry
-Step 2 : confirm the operating conditions
-Step 3 : product recommendation and quotation
-Step 4 : sampling
-Step 5 : confirm order details and make a payment
-Step 6 : proceed with product preparation upon receipt of payment
-Step 7 : shipping
Q7. Nozzle Questions?
-With over 21 years experience and 5,000,000+ nozzles shipped, you can trust us with your spray application. Call or contact us today to learn how partnering with CYCO can make your project a success.
