Iron or Processing High Frequency Dry Drum Magnetic Separator Fine Iron Ore Separator China Supplier
- Category: >>>
- Supplier: LONGi Magnet Co. Ltd.
Share on (1600315965823):
Product Overview
Description
Products Description

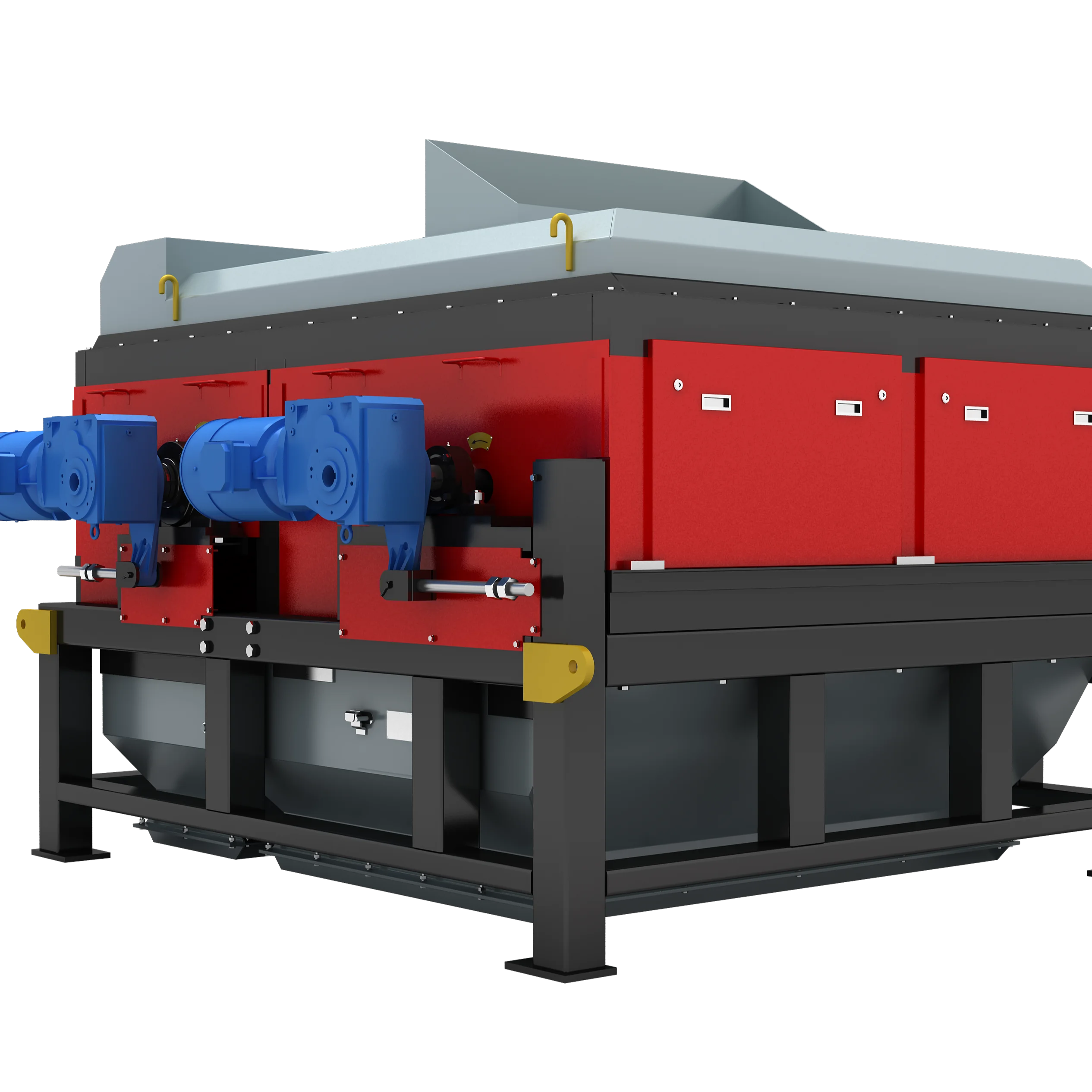

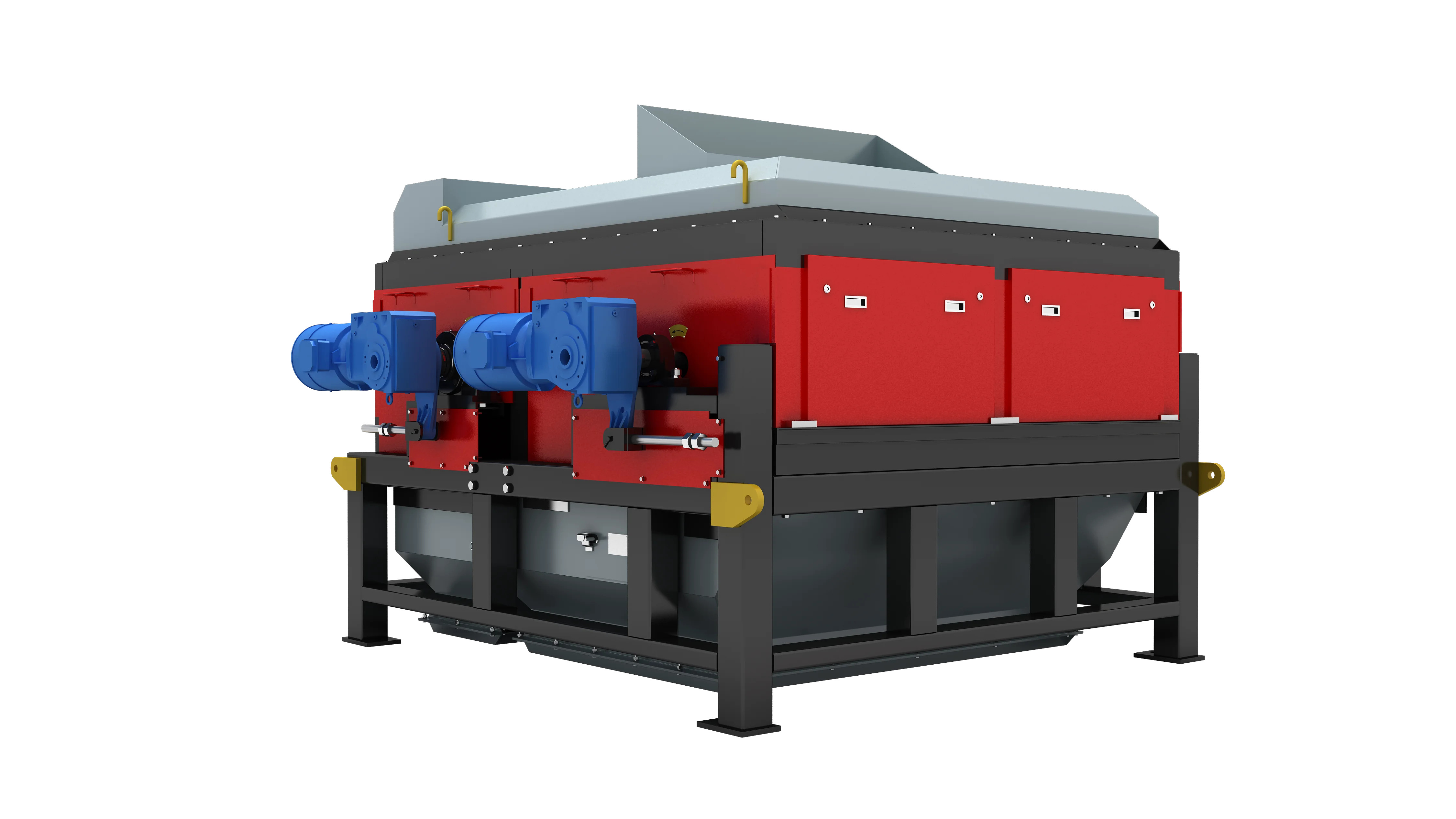

High Frequency Dry Drum Magnetic Separator
LONGi’s high frequency dry drum magnetic separator has a unique design that uses high frequency magnetic fields which alternate in order to give a better grade of concentrate in dry conditions. This is very important for areas where water is sparce.
Products features
The high frequency dry drum magnetic separator has a unique design that uses high frequency magnetic fields which alternate in order to give a better grade of concentrate in areas where water is not feasible to be used. The size of the feed material should be below 12mm.
Does not use any water.
Uses only the best magnetic material to make sure that it it offers long lasting and dependable results.
By design, the magnetic material left in the tails is less than 1%
It uses a highly gradient, full circle, multiple polarity design.
It is controlled by a control panel to give the best results safely and easily.
It has a magnetic field which alternates and is very high frequency.
There is very little sound even with a high rotation speed.
Uses only the best magnetic material to make sure that it it offers long lasting and dependable results.
By design, the magnetic material left in the tails is less than 1%
It uses a highly gradient, full circle, multiple polarity design.
It is controlled by a control panel to give the best results safely and easily.
It has a magnetic field which alternates and is very high frequency.
There is very little sound even with a high rotation speed.

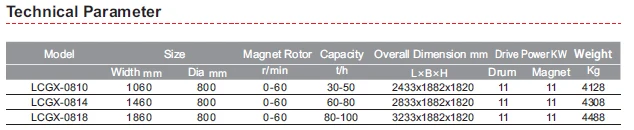

Product Paramenters
Size（width*dia）mm | Magnet Rotor r/m | Capacity t/h | Drive Power KW Drum | Drive Power KW Magnet |
1060*800 | 0-60 | 30-50 | 11 | 11 |
Applications
LONGi’s high frequency dry drum magnetic separator is able to greatly increase the grade of the concentration and attain a
high-quality end product. The feed size should be less than 12mm.
high-quality end product. The feed size should be less than 12mm.
