Product Overview
Description

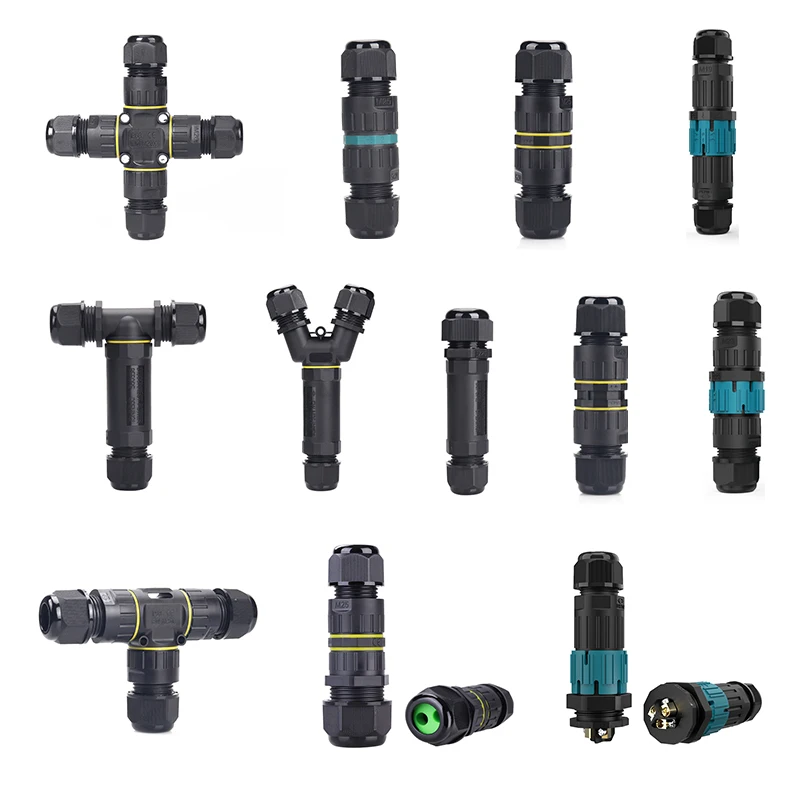

Different Sizes And Types IP68 Cable Electrical Cable 3 Pin 4 Pin 5 Pin Waterproof Wiring Connector
Product Description
| WHAT ARE THE DETAILS OF E-WEICHAT IP68 WATERPROOF CONNECTOR? | |
| Number of Poles | 2 Pin 3 Pin 4 Pin 5 Pin |
| Operating current | 17.5(24)A |
| Operating voltage | 400(450)V |
| MECHANICAL CHARACTERISTICS | |
| Protection against solid/water (IP) | IP68 Waterproof(4m, 365 days) |
| CABLE CHARACTERISTICS | |
Wire cross-section min.-max. (stranded cable) | 0.5~1.5mm2,0.5-2.5mm2 |
| Wire cross-section min.-max. (solid cable) | 0.5~1.5mm2,0.5-2.5mm2 |
| Cable Diameter min-max | 3.5-7mm; 7-10mm 9-12mm (for cables with diameter cables please take the proper accessory) |
| WORKING CHARACTERISTICS | |
| Temperature | -40℃ - 105℃ |
| MATERIAL CHARACTERISTICS | |
| Connector housing | PA66 UL94-V2 |
| Cable gland | |
| Sealing | Silicone |
| Contacts | Nickel-plated Brass |
| Screws | Zinc |
| Material properties | Halogen Free |

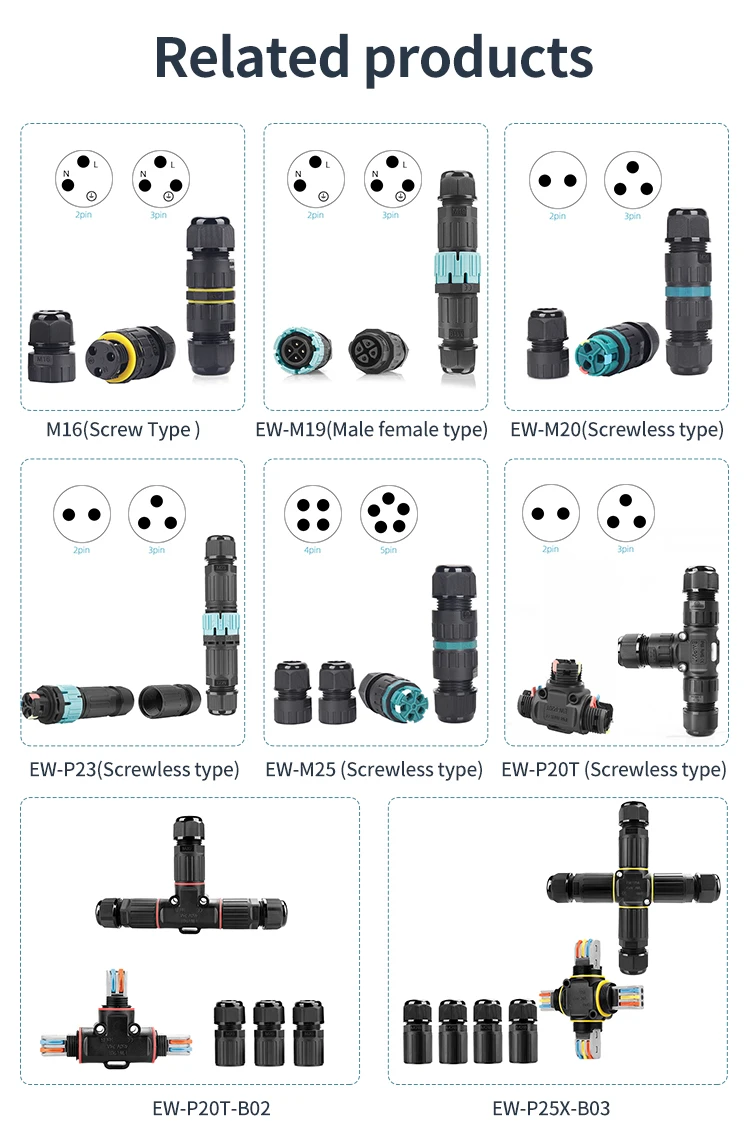

Related Products
