Product Overview
Description
Product Description
It has the functions of spot welding, drag welding, arc welding, oblique welding, shaking welding, etc.
With the function of automatic cleaning of the soldering iron tip, it stabilizes the soldering quality to a certain extent and prolongs the service life of the soldering tip. The soldering effect is good, and the soldering is accurate and there is no tin explosion phenomenon when soldering:
The soldering tin control system adopts the world motion control card, which is more humane than PLC programming
The working program of the equipment can be copied from point to point and block to block, shortening the programming time: *Applicable 0.3-1.6MM tin wire

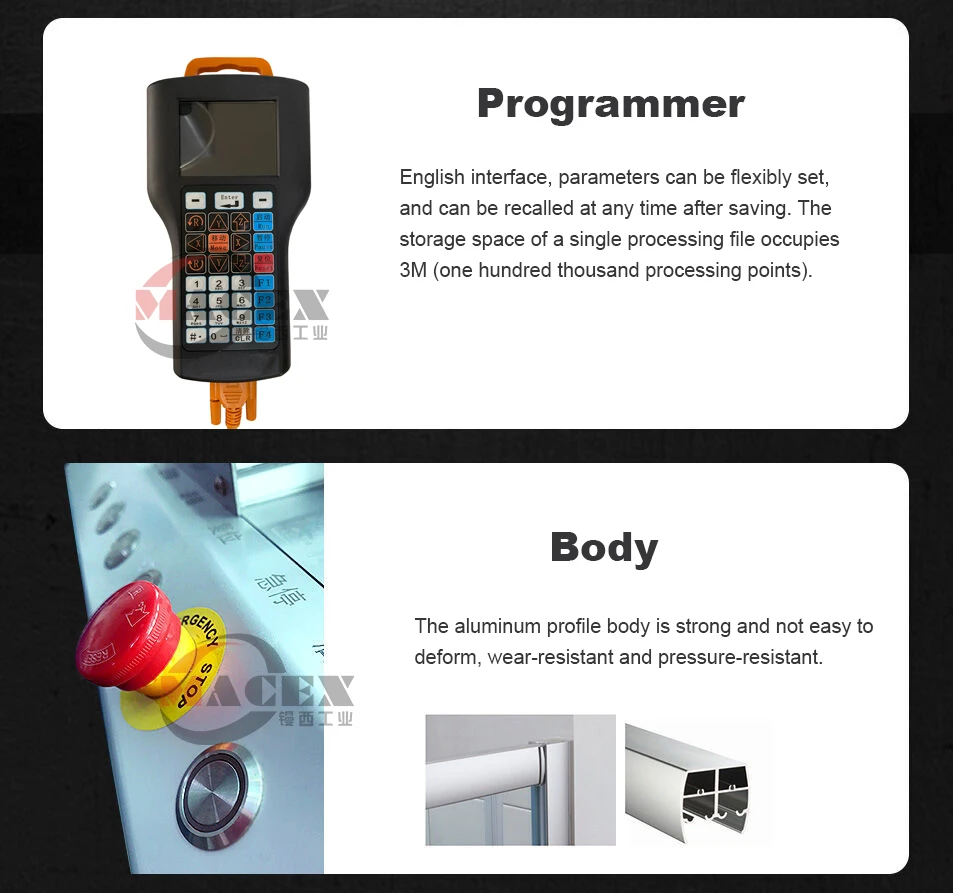

The teaching box with graphical button design allows users to easily complete path setting at the fingertips, and easily complete matrix copy, offset modification, and correction point setting of various paths
The mechanical arms of the equipment are all aluminum mold casting, no deformation, no rust, and stable operation; *The bearing load capacity is up to 10KG, and the Z bearing load capacity is 5KG, which is twice that of the ordinary sheet metal body; *Stepping (Japan Shinano )/Servo (YAKo, Panasonic, etc.) motor selection;
Temperature control system (imported WELLER)/(Quick, etc.) optional* Soldering control system independent research and development by our company/others can be equipped
With the function of automatic cleaning of the soldering iron tip, it stabilizes the soldering quality to a certain extent and prolongs the service life of the soldering tip. The soldering effect is good, and the soldering is accurate and there is no tin explosion phenomenon when soldering:
The soldering tin control system adopts the world motion control card, which is more humane than PLC programming
The working program of the equipment can be copied from point to point and block to block, shortening the programming time: *Applicable 0.3-1.6MM tin wire
The teaching box with graphical button design allows users to easily complete path setting at the fingertips, and easily complete matrix copy, offset modification, and correction point setting of various paths
The mechanical arms of the equipment are all aluminum mold casting, no deformation, no rust, and stable operation; *The bearing load capacity is up to 10KG, and the Z bearing load capacity is 5KG, which is twice that of the ordinary sheet metal body; *Stepping (Japan Shinano )/Servo (YAKo, Panasonic, etc.) motor selection;
Temperature control system (imported WELLER)/(Quick, etc.) optional* Soldering control system independent research and development by our company/others can be equipped
Applications

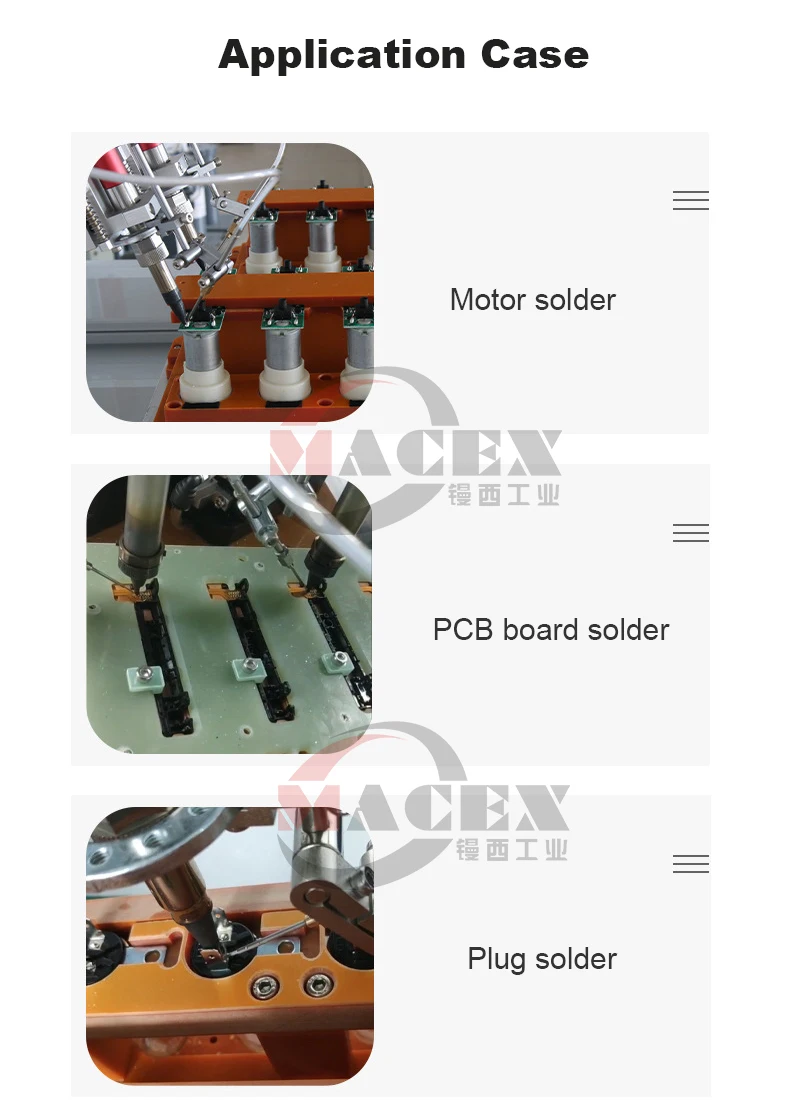

Automatically soldering for Auto Electronics, digital electronics, LCD, PCB, connector, RJ/45, FFC, FPCB, computer board, cable, speaker, wires, HDMI, LED, toy etc.
Feature
1.\tDesktop type, can be placed on the production line.
2.\tOptional Full English marked machine body, to be international application.
3.\tDouble Y axis type, automatic working alternatively, saving the time of placing object.
4.\tPerfect soldering program, with spot/line/circle soldering function.
5.\tCan set the length of the Tin, pre-heat time, soldering time, height of backward.etc parameter.
6.\tWith auto cleaning soldering tip function.
7.\tInterface both English and Chinese available.
8.\tFixture and tooling available.
2.\tOptional Full English marked machine body, to be international application.
3.\tDouble Y axis type, automatic working alternatively, saving the time of placing object.
4.\tPerfect soldering program, with spot/line/circle soldering function.
5.\tCan set the length of the Tin, pre-heat time, soldering time, height of backward.etc parameter.
6.\tWith auto cleaning soldering tip function.
7.\tInterface both English and Chinese available.
8.\tFixture and tooling available.
Specification
Model | Macex-T3311 | Macex -T4411 | Macex -T5511 | Macex -T43311 | Macex -T44411 | Macex -T53311 | Macex -T54411 | Macex -T64411 | |||||||
Stroke X | 300mm | 400mm | 500mm | 400mm | 400mm | 500mm | 500mm | 600mm | |||||||
Stroke Y1 | 300mm | 400mm | 500mm | 300mm | 400mm | 300mm | 400mm | 400mm | |||||||
Stroke Y2 | no | no | no | 300mm | 400mm | 300mm | 400mm | 400mm | |||||||
Stroke Z | 100mm | 100mm | 100mm | 100mm | 100mm | 100mm | 100mm | 100mm | |||||||
Rotary R axis | with R axis (optional no R axis) | ||||||||||||||
Rated speed | 500mm/s (X-Y-Z) ,Max:1000mm/s | ||||||||||||||
Soldering Tip | Default 1 PC (optional 2 PCS) | ||||||||||||||
Tin thickness | 0.3-1.6mm | ||||||||||||||
Temperature | normal—500℃ | ||||||||||||||
Heating | 150w, 5 second to 300℃ | ||||||||||||||
Drive | Precision stepping motor/servo motor+synchronous belt/ball screw | ||||||||||||||
Motion mode | Point to point; line; circle | ||||||||||||||
Positioning Accuracy | +- 0.02(mm) | ||||||||||||||
Program | Control Teaching Box/PC | ||||||||||||||
External | RS232 | ||||||||||||||
Program storage | 100groups/1000points per group | ||||||||||||||
Power | 2*220V50Hz | ||||||||||||||
Air | 0.5Mpa | ||||||||||||||
Dimension L | 580mm | 580mm | 780mm | 580mm | 680mm | 580mm | 680mm | 780mm | |||||||
Dimension W | 520mm | 620mm | 720mm | 520mm | 620mm | 720mm | 720mm | 820mm | |||||||
Dimension H | 603mm | 603mm | 603mm | 603mm | 603mm | 603mm | 603mm | 603mm | |||||||
Weight | 60kg | 70kg | 80kg | 75kg | 80kg | 80kg | 85kg | 90kg | |||||||
