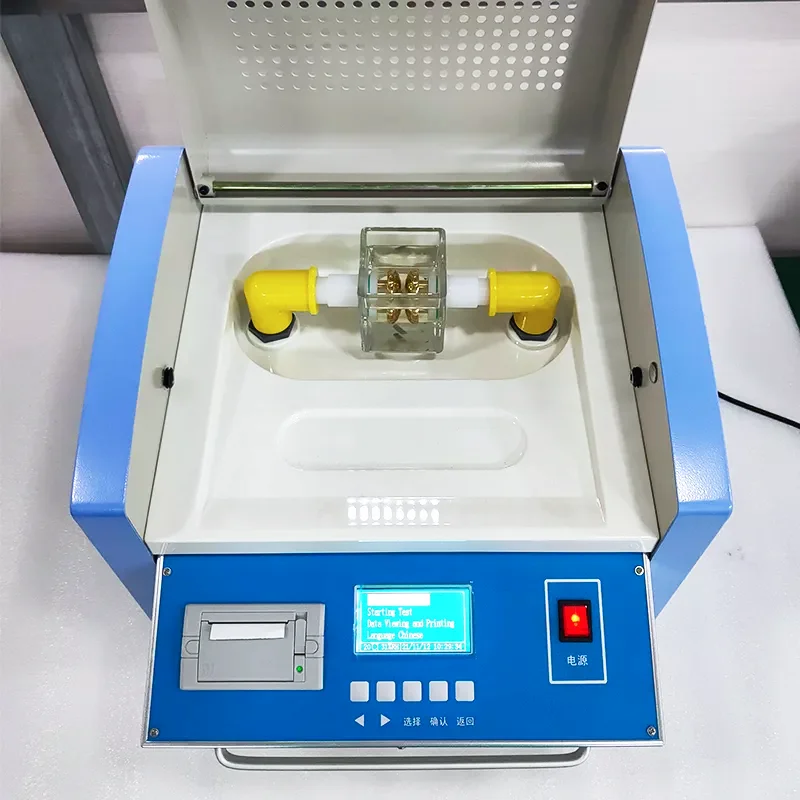

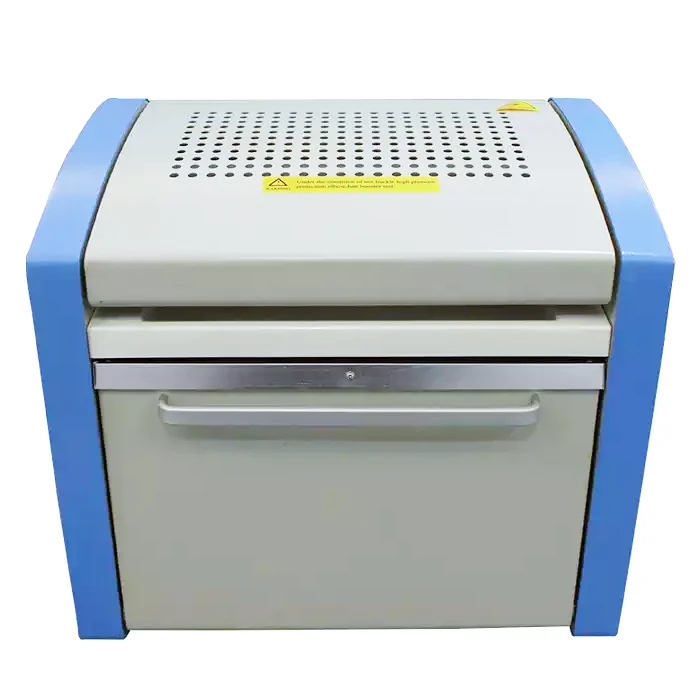

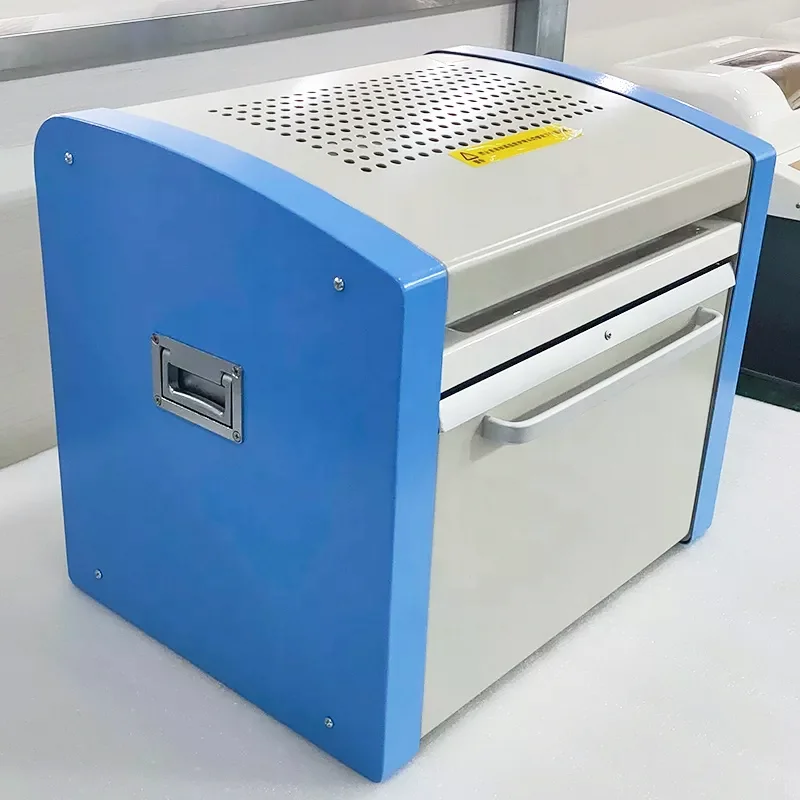

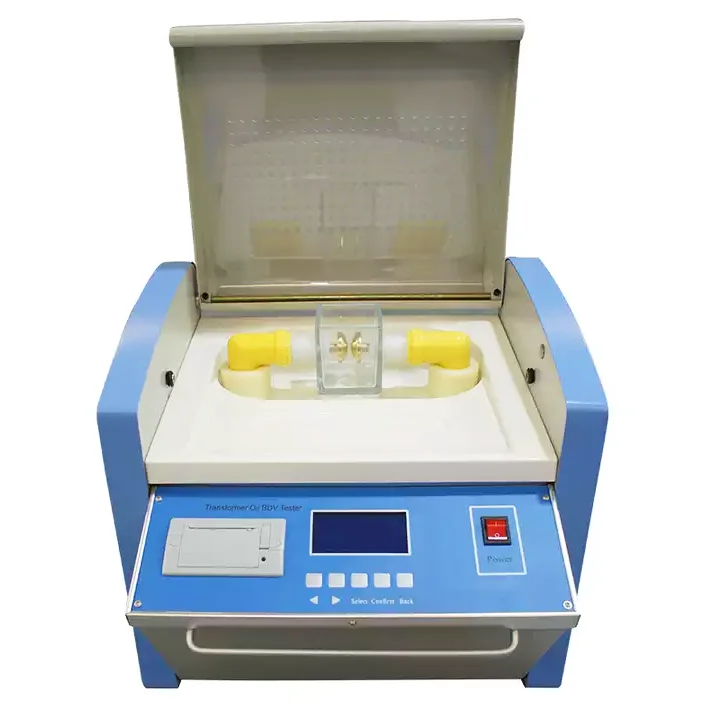

100 kv 80kv Dielectric Strength Tester Insulating Transformer Oil Test Equipment breakdown voltage oil tester
- Category: >>>
- Supplier: Rui Du Mechanical and electrical (Shanghai) Co. Ltd.
Share on (1600316054071):
Product Overview
Description
Product Description
In the power system, railway system and large petrochemical plants and mines, enterprises have a large number of electrical equipment. The internal insulation is mostly oil-filled insulation type and the dielectric strength of insulating oil is a routine test. In order to meet the needs of the market, our company has developed and produced a series of dielectric strength tester for insulating oil according to relevant standards. The instrument takes single chip microcomputer as the core, which realizes all the automation of the test, high measurement accuracy, greatly improves the work efficiency, greatly reduces the labor intensity of the staff, at the same time, the appearance of the instrument is small, easy to carry.
Product features
1. Microprocessor is used in this instrument, which can automatically complete the operation of boosting, holding, stirring, static setting, calculation, printing, etc. it can carry out oil circulation withstand voltage test in the range of 0-100kV.

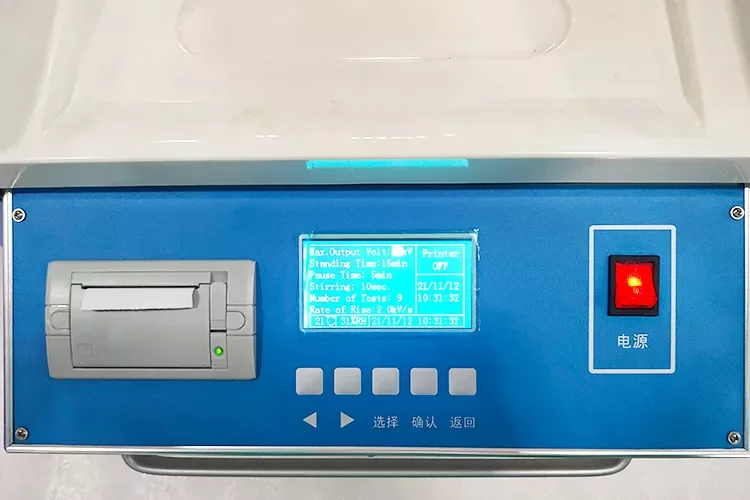

2. Large screen LCD display, Chinese menu prompt.
3. The operation of the instrument is simple. The operator only needs to make simple settings. The instrument will automatically complete the pressure test of one cup of oil sample according to the settings. The breakdown voltage value and cycle times of 1-6 times will be automatically stored. After the test, the thermal printer can print out the breakdown voltage value and average value of each time.
4. Power down hold, 100 experimental results can be stored, and the current ambient temperature and humidity can be displayed.
5. The single chip microcomputer is used to control the constant voltage rise, and the voltage frequency is accurate to 50 Hz, which makes the whole process easy to control.
6. It has over-voltage, over-current and limit protection to ensure the safety of operators.
7. It has the function of temperature measurement display and system clock display.
8. Standard RS232 interface, can communicate with computer.
Product technical parameters
Output voltage | 0 ～ 100kV |
Electrode spacing | 2.5mm |
Voltage distortion rate | < 3% |
Boost speed | 0.5-5kv/s (adjustable) |
Standing time | 15 minutes (adjustable) |
Boost interval | 5 minutes (adjustable) |
Boost times | 1-9 times (optional) |
Booster capacity | 1.5KVA |
Measurement accuracy | ± 3% |
Power supply voltage | AC220 V ± 10%, 50 Hz ± 1 Hz |
Power | 200W |
Applicable temperature | 0 ℃～ 45 ℃ |
Applicable humidity | < 75% RH |
