CE new SFSP soybean corn grain grinder mill, poultry /livestock feed hammer mill / feed pulverizer machine

Product Overview

Description

Looking For Agent To Get Big Win-Win And Share Markets Together, U Can Get:
1. China 20years top professional manufacturer technology and VIP service support.
2. Top quality, with longer quality warranty.
3. Very competitive price, near cost price, can earn more money and hold the market.
4. Fast delivery time, will deal with your orders first time.
5. Customers resources support, we share our customers with u, and one area only one agent.
6. China travelling and visiting. We provide government offical invitation letter to help u to get Chinese Visa, and we bear the travelling fee in China.
7. Other more benefit or right, we discuss.



CE SFSP Wide-type hammer mill corn /wheat /soybean /maize grinding machine feed grinder

1.Advantage:

1.1.The grinding chamber is designed with regrinding,which can increase its output by more than 15% and the sizes are more even.

1.2.Equipped with wear resistant hammer that is alternate permutation,the finished products ane high in accuracy and uniform in size.

1.3.Vacuum welded hammers and surface hardened hammer pin extend the service life and futher decrease the consumption of accessories.

1.4.By changing the hammer position on the rotor,two crush of gaps are formed between hammers and screen,which are fit to normal crushing and fine crushing.When in normal crushing,it can crush evenly and improve the production capacity. When the gap between hammer and screen is smaller,it fit to fiber crushing and fine crushing.

1.5.The rotor os rotatable clockwis and counterclockwise and materials can be fed bidirectionally,which decreases the wear of hammers and thus lowers the consumption of accessories.The rotor has experienced dynamic balance test,ensuring less vibration and long service life.

1.6.There are quick access doors set on both sides of the mill to facilitate maintenance and change of screen,and doors can be locked quickly.

2.Technical Parameters:

Item		66*40		66*60		66*80		66*100		66*120
Rotor diameter (mm)		660		660		660		660		660
Spindle rotate speed (rpm)		2960		2970		2970		2980		2980
Hammer line speed (m/s)		102		102		102		102		102
Grinding room width (mm)		400		600		800		1000		1200
Hammer quantity (fine grinding)		40		56		84/116		120		136
Power( kw)		37	45	55	75	90	110	132	160	200	220
Capacity(t/h)		1-3	2-5	3-6	5-7	6-8	8-10	10-12	12-15	15-20	20-25
Normal air volume ( m3/min)	Fine grinding	55	60	72	78	95	102	145	155	190	205

Photos:

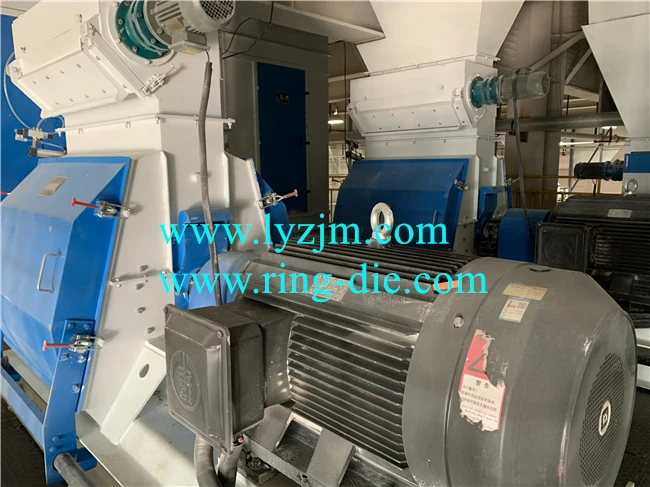

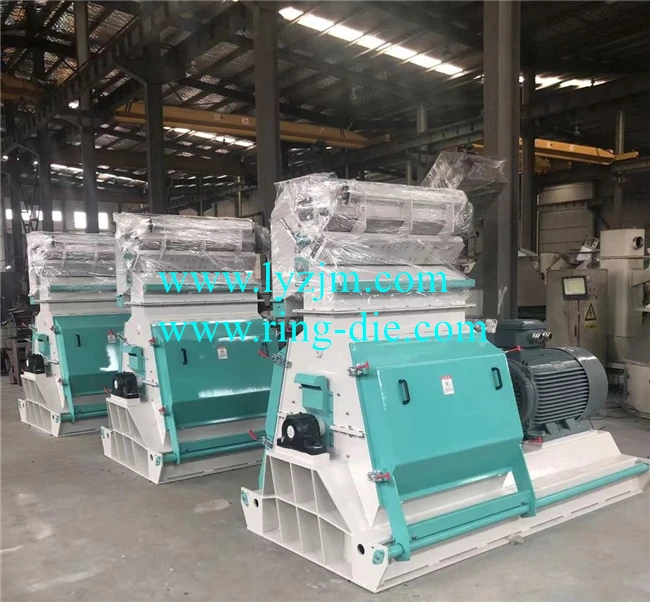

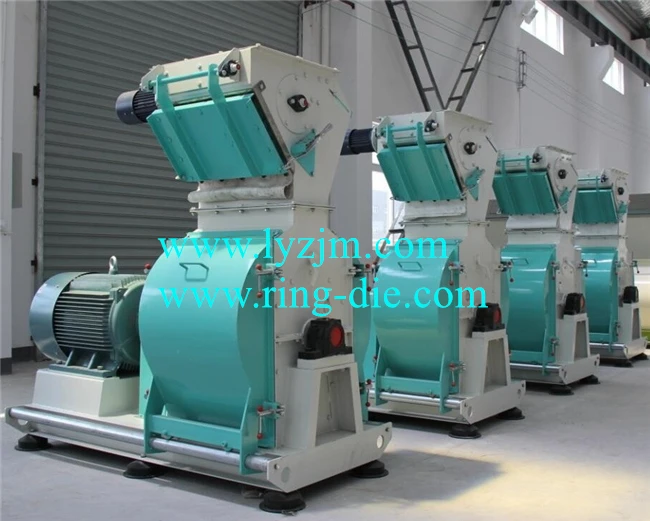

Real Photos:

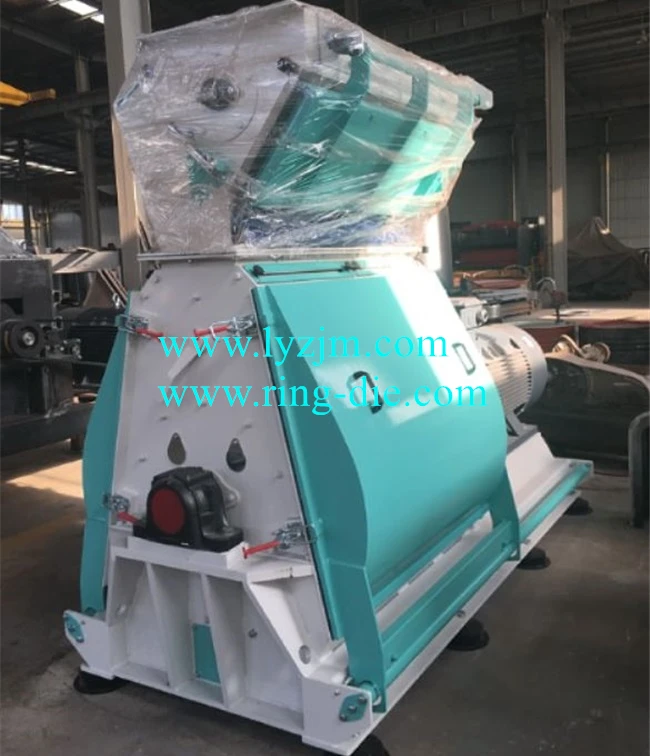

Stainless steel hammer mill:

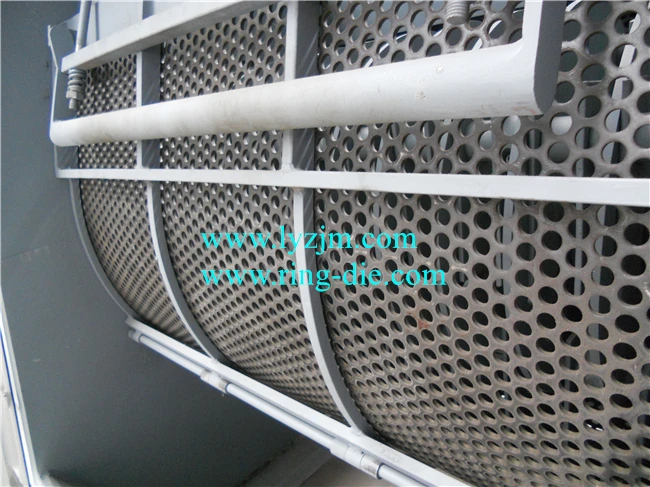

Details:

Making:

Used in feed pellet line:

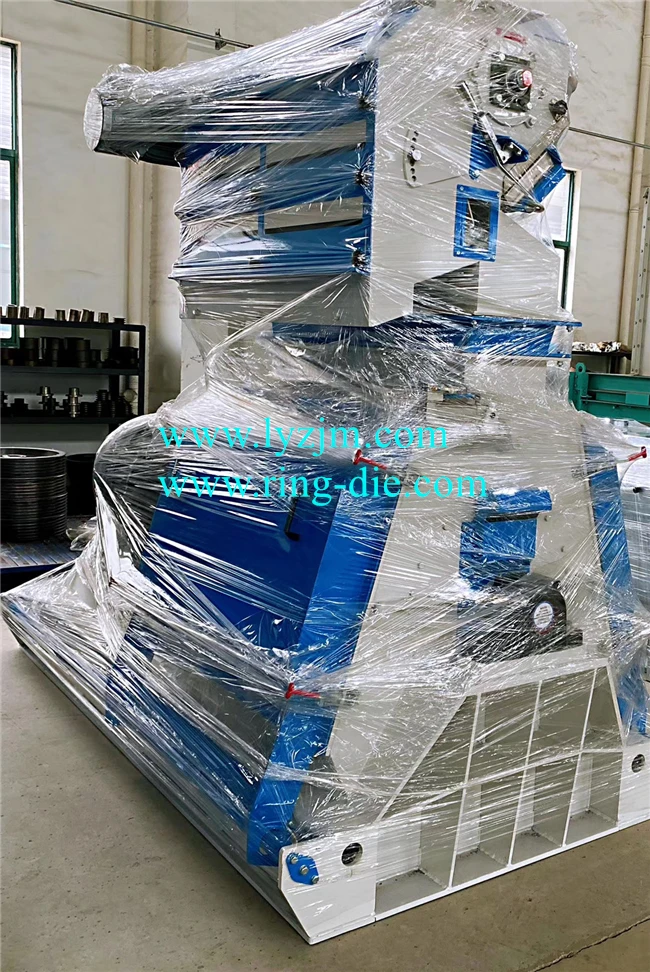

Delivery:

Customer visiting:

About us:

Our company Liyang Zeji Machinery Co., Ltd. is a professional manufacturer focus on: hammer mill, mixer, feed/wood pellet machine, cooler, crumbler, screener, extruder, dryer, packing machine, liquid adding machine, conveyors and spare parts: wood chipper fly-knives, hammer mill blades/screen, ring die, roller and other pellet machines’ spare parts.

For machines, we have own laser cutter, CNC machining center, welding machines. For ring die, we have own auto gun-drilling machines (12 sets), auto counter-sinking machines, auto lathing machines, vacuum heat treatment machines.

We insist on high quality and competitive price, looking for long term business and win-win.

Certificate:

Why choose us:
1. Manufacturer with over 20 years experience.
2. All use top brand parts.
3. Overseas engineers’ installing+testing+training.
4. 3 years quality warranty+lifetime engineers online after sale service.
5. Machines' using life can be over 30 years.
