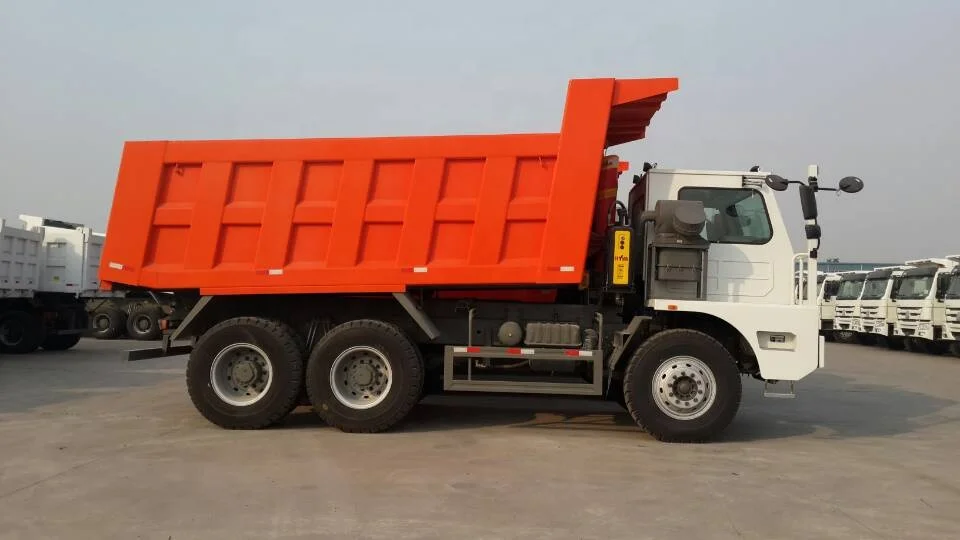

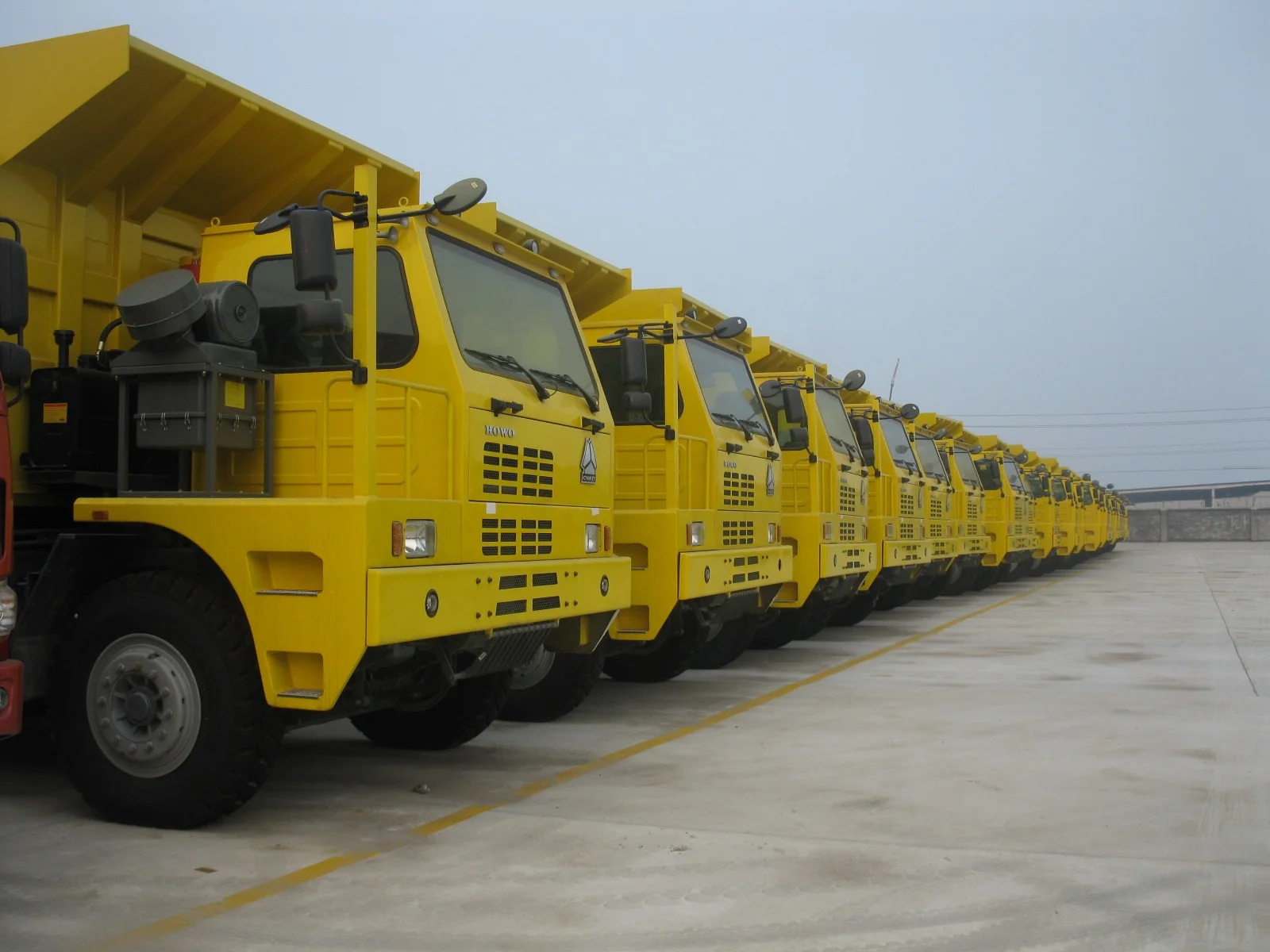

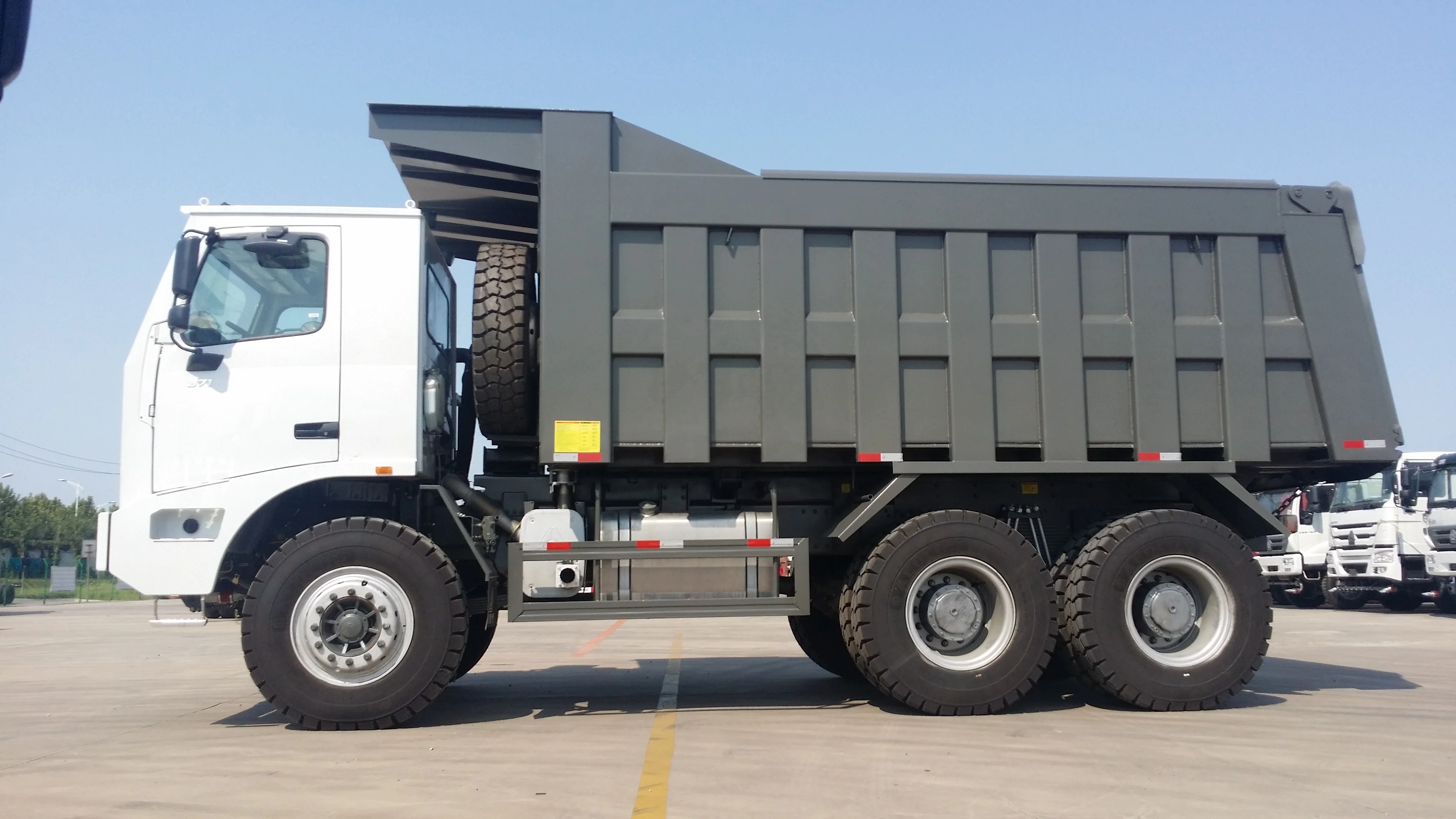

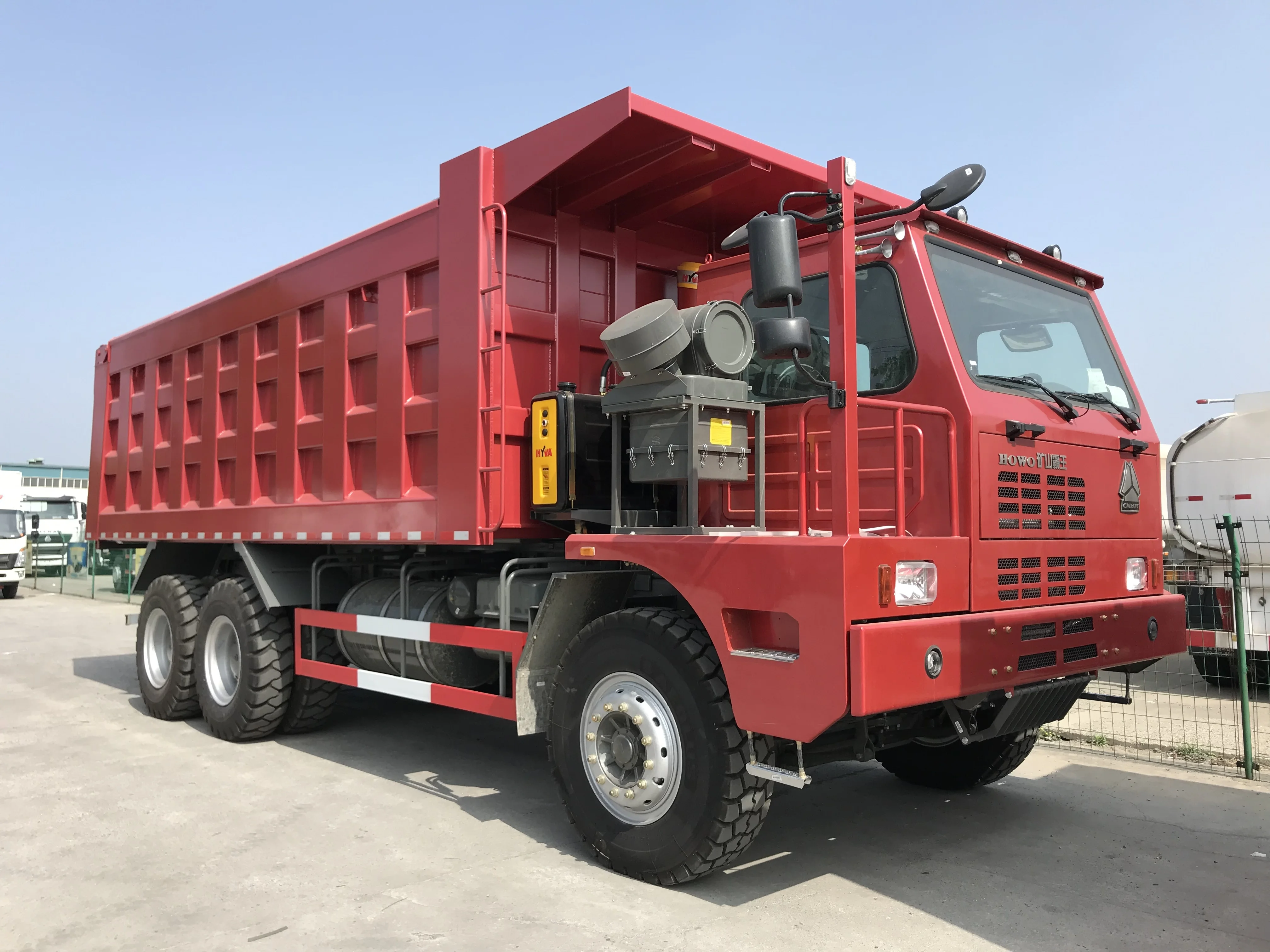

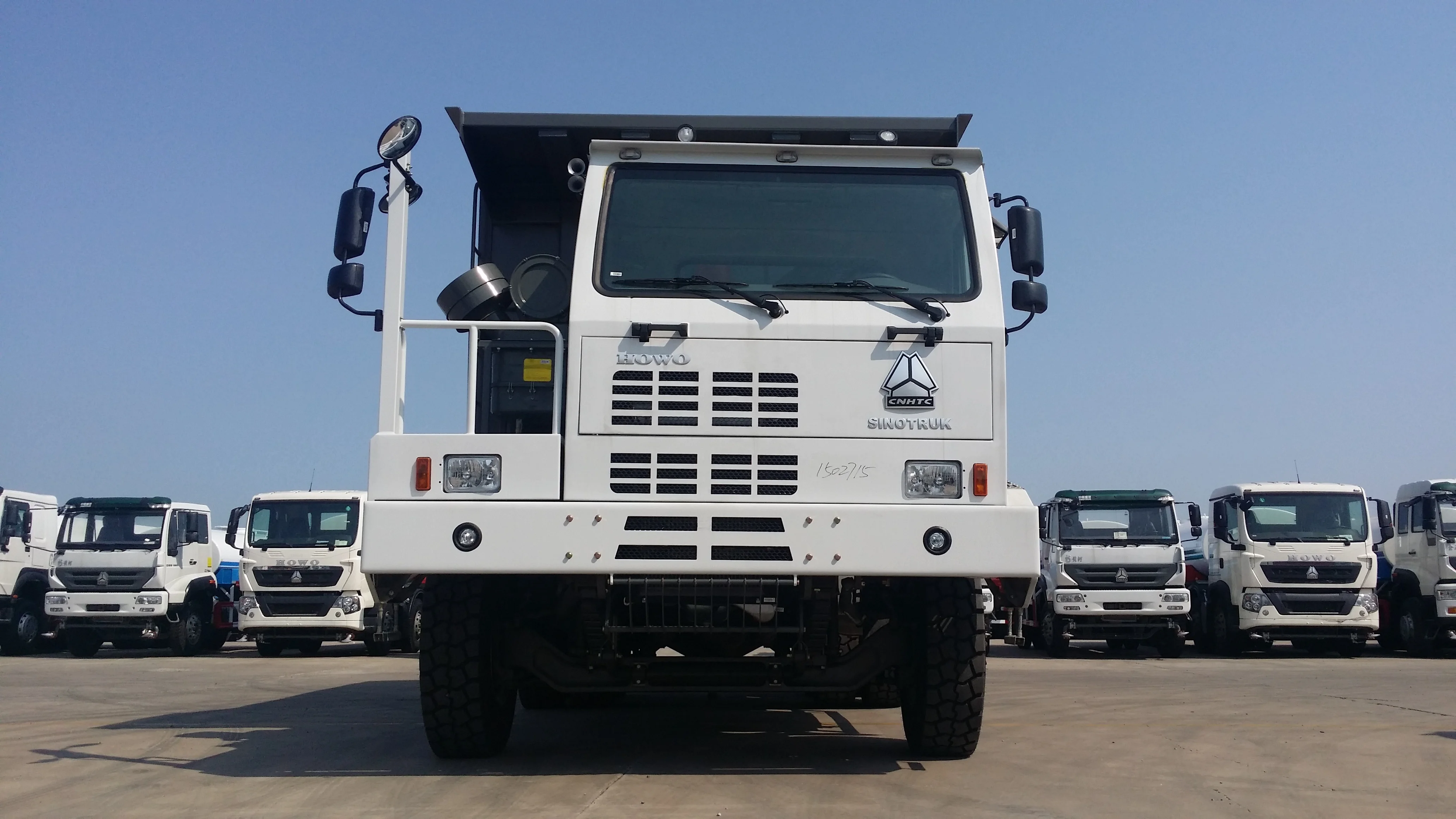

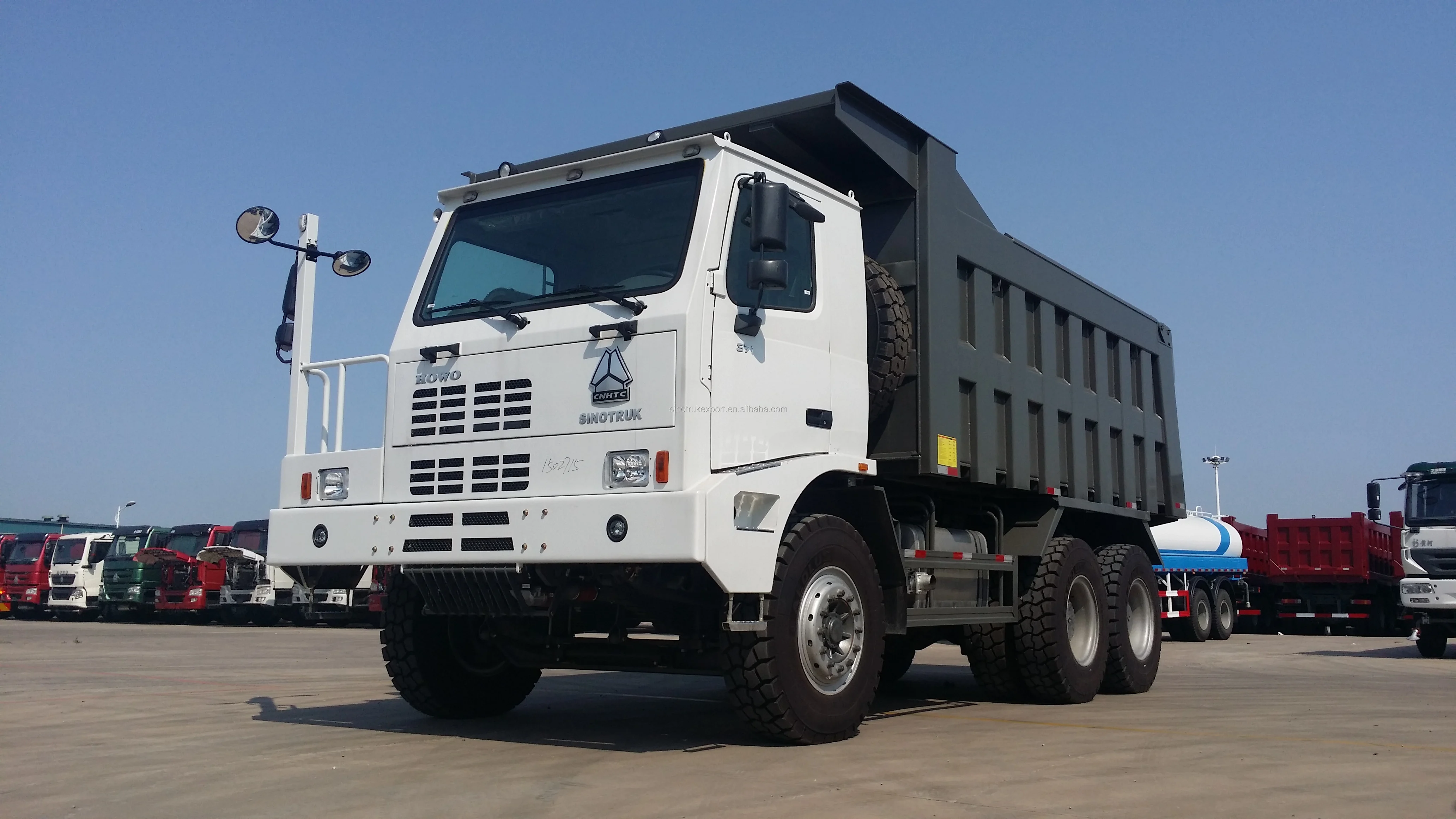

HOWO mining dump truck for sale 70 ton dump truck



Product Description




























































































































SPECIFICATION



Dimension(Lx W xH)(unloaded)(mm)



8400×3300×4340



Cargo body size (LxWxH) (mm)



5500x3100x1800 ,Front lifting, Bottom 12 mm, Side 10 mm



Approaching angle/Departure angle(°)



32/40



Overhang(front/rear) (mm)



1500/1800



Wheel base (mm)



3600+1500



Max speed(km/h)



60



Curb weight(kg)



29300



Min. ground Clearance(mm)



340



Max. gradeability(%)



42



Min. turning Radius(e)



22



Engine(Steyr technology, made in China)



Model



WD615.47,water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and inter-cooling, directly injection



Fuel type



Diesel



Power, max(kw/rpm)



371HP



Emission



EUROII



Fuel tanker capacity(L)



500L aluminum oil tank



Transmission



Model



HW19712, 12 speeds forward and 2 reverse



Brake system



Service brake



Dual circuit compressed air brake



Parking brake



spring energy, compressed air operating on rear wheels



Steering system



Model



ZF8118



Front axle



HF12,Steering with double T-cross section beam



Rear axle



AC26, (cast steel 2×26ton hub-reduction axle)



Tire



14.00R25 (Radial Tyre)



Cab



HW7D cab, (with air-condition),  Unilateral cab



Electrical system



Battery



2X12V/165Ah







Alternator



28V-1500kw




Starter



7.5Kw/24V








Sinotruk Information


 China National Heavy Duty Truck Group Co.,Ltd is the biggest prduction base of heavy duty truck industry in China. It is famous for developing and manufcturing the first heavy duty truck HUANGHE in China.


CNHTC mainly focus on various trucks R&D, producing and sales, such as special vehicles, buses, special purpose vehicles, retrofitting vehicles, engines, auto parts and special chassis etc. CNHTC supplies more than 3, 000 models of heavy duty truck, light duty truck, Urban waste residue, mining tipper, special vehicle and bus, covering a wide randge of drive mode and power. CNHTC produces the domestics advanced D10 and D12 diesel engines and generator sets; T10, T12 MT07 and MT13 natural gas engines; the internationally advanced MC11, MC13 MC07 and MC05 Euro III-V engines, ranging from 140 to 560ps; the international level series single stage reduction axle, hub reduction axle and 16.5-22.5 in. disc brake; Key assemble such as series 5, 6, 7, 8, 10, 13, 16 gear light, medium and heavy- duty single intermediate shaft and countershaft transmission, and AMT transmission etc, which form the perfect power chain consisting of the engine, pull-type clutch, transmission and driving axle. With the highest home-made factory production rate among the numerous Chinese heavy duty truck manufacturers, CNHTC effectively guarantees the after sales services and spare parts supplying over ten years, as well as providing the training platform to the end-users.




 CNHTC had set up perfect sales, service and spare parts networks with 600 vehicle distributors, over 1,000 after-sales service stations, and 1,500 spare parts supplying stations. Aimed at the after-sales service,TC propose "Three disciplines" and make" eight commitments", providing " family service”. Production and sales scales now rank at the top of the global heavy duty truck manufacturers.







Work Shop







Packaging & Shipping












FAQ


1. Q: What is your main advantages compared with other cpmpanies?


    A: First, we are manufacturer of HOWO trucks not a trading company. The quality of every spare part can be guaranteed.


    Second, we have our own R&D center to produce most advanced design according to customers' reqquirements.





2. Q: What about the delivery time?


    A:  40 days after receiving deposit.





3. Q: What is the warranty of the trucks?


    A: 12 months about engine, axle and transimission, some spare part can be 18 months. And we can help you solve every problem about the truck by email and phone whole life.
