Left, right vertical spindle, upper horizontal spindle
kW/HP
3x7.5/10
3x7.5/10
3x5.5/7.5
Left, right saw spindle motor
kW/HP
2x18.5/25
2x18.5/25
2x15/20
Saw spindle Dia.
mm
Φ50
Φ50
Φ50
Saw spindle speed
r/min
4000
4000
4000
Planer spindle Dia.
mm
Φ40
Φ40
Φ40
Planer spindle speed
r/min
6800
6800
Bottom former 6800 / Other 8000
Feeding speed
m/min
6~30
6~30
6~30
Total power
kW/HP
72.75/97
72.75/97
58.25/80
Feeding motor
kW/HP
5.5/7.5
5.5/7.5
5.5/7.5
Rear auxiliary feeding motor
kW/HP
2x0.75/1
2x0.75/1
2x0.75/1
Beam lifting motor
kW/HP
0.75/1
0.75/1
0.75/1
Air supply pressure
MPa
0.3~0.6
0.3~0.6
0.3~0.6
Suction hood Dia.
mm
6x Φ150
2x Φ150 + 4x Φ120
2x Φ150 + 4x Φ120
Overall dimension
mm
4420x1790x1750
4420x1550x1720
4170x1530x1720
Weight
kg
4850
4000
3750
Our Advantages
Product Main Features

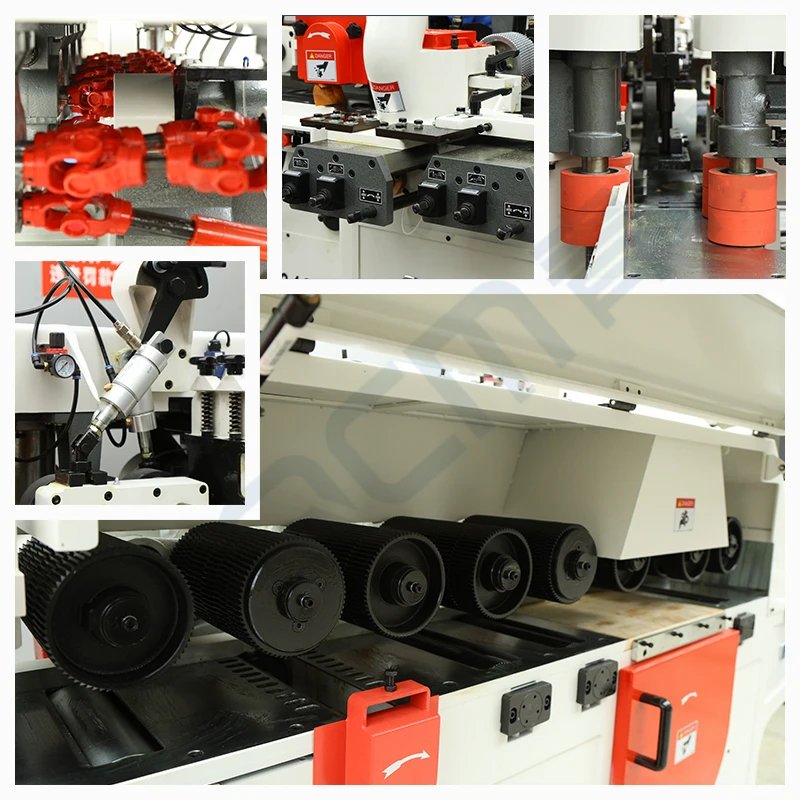

1. This machine adopts integral casting body with stable performance, good precision and good rigidity.
2. Anti-Rebound Safety Device
The anti-rebound safety device located on the infeed ensures operational safety.
3. Wear Resistance Guide Track The casting guide track and chain plate are made of special materials, specially processed and precisely processed, with high surface hardness, high precision and good wear resistance;
4. Automatic lubricator The automatic lubricator delivers frequent lubrication oil to the caterpillar chain.
5. Dust Removal Brush The dust removal brush made of special materials is matched with a quantitative oil injection device to clean and lubricate the chain plates in real time.
6. High Precision Spindle All spindles are precision constructed and specially heat treated to provide maximum cutting stability and permanent accuracy.
7. Professional Electrical Appliances Siemens and Schneider electrical products and appliances insure the whole machine run well with a stable performance.
8. Cast Iron Chromed Feed Table The entire Cast Iron – Chromed Infeed table is normalization heat treated for maximum stability. Infeed Table & Fence adjustment is quickly accomplished by means of a quick-setting levers.
Related Products
Company Information
Certificate & Delivery
HUZHOU QINGCHENG MACHINERY CO., LTD
QCM Machinery was established in 1970 and have been specializing in production of woodworking machinery for more than 50 years now.
We have our own casting workshop and more than 300 sets of modern CNC machining equipment and testing equipment. Strong R&D team with 55 people can provide our customers with the biggest professional technical support.
Choose our machinery, to help you improve productivity, processing quality, and profit.
1. Manufacturer or Trading company?
QCM (Qingcheng Machinery) is a professional manufacturer of woodworking machinery since 1970. With more than 50 years experience, we have developed to be the top and most powerful manufacturer of woodworking machinery in China.
2. Payment Term?
TT , 50% advance payment and 50% balance before delivery.
3. Lead Time?
Within 15 days for regular stock machine after receiving advance payment.
45-60 days for customized machines.
4. Warranty ?
3 years for machine, 3 years for the core components.
5. Spare Parts?
Unified standards spare parts are available anytime. It will not be a problem if you want to replace spare parts of the machine you bought anytime.
6. Pre-sale Service?
As a leader in woodworking machinery field for more than 50 years, professional and efficient proposals can be provided anytime. Our strong R&D team with more than 50 persons are also your team.
7. After-sale Service?
Professional after-sales service team, 24 hours technical support by email, call and video.
If remote support is not workable, our engineer is available to visit at your expenses of accommodation and round tickets.
8. Why us?
1). 50 years experience in wood working machinery since 1970.
2). Our own casting workshop to insure extra heavy one-piece cast iron machine body for maximum stability and rigidity by standard configuration.
3). All spindles are precision constructed and specially heat treated to provide maximum cutting stability and permanent accuracy. Spindle is processed in constant temperature workshop to insure high precision and stability, +-0.1mm high accuracy.
4). Warranty: 3 years for machine, 3 years for the core3 years for machine, 3 years for the core components.

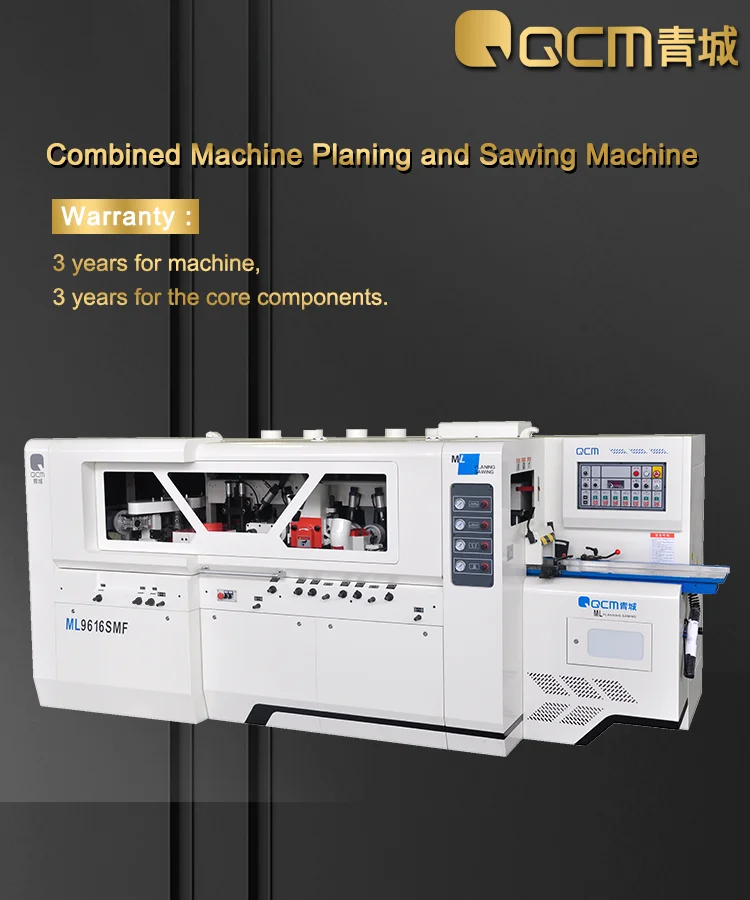

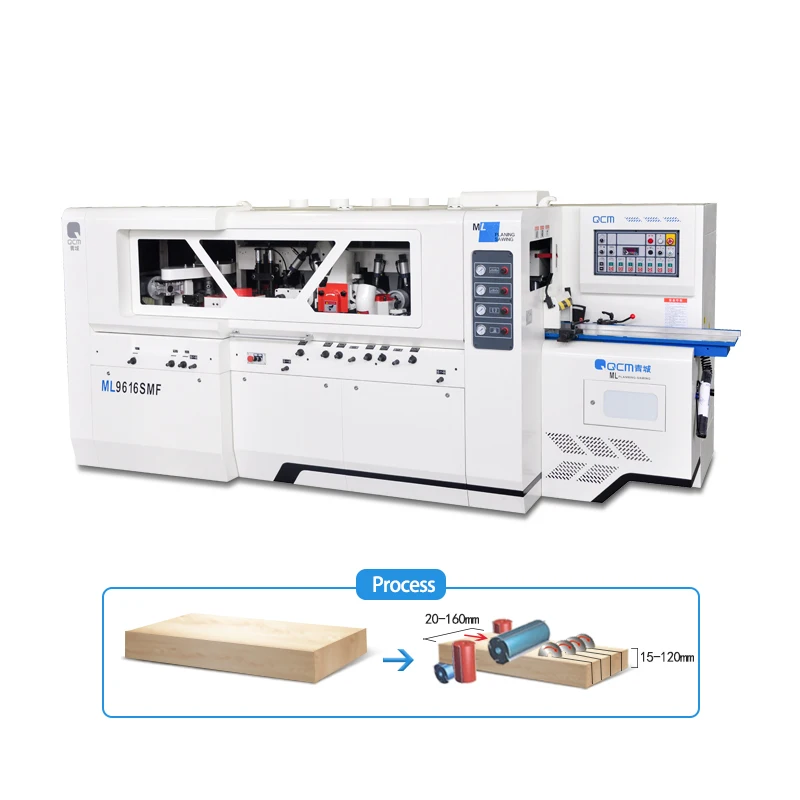

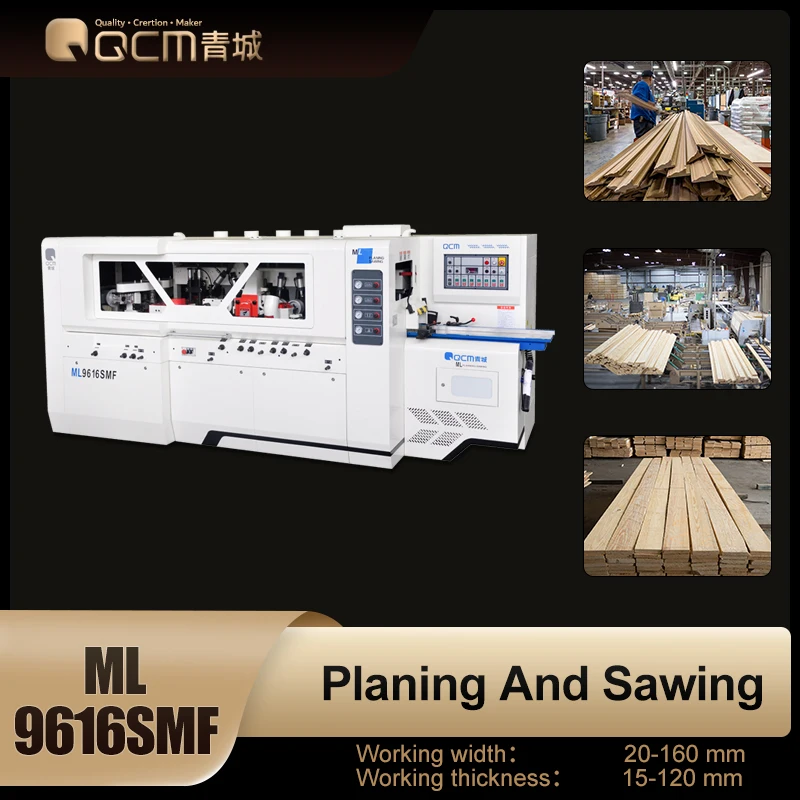

QCM ML9616SMF Planing and Sawing Machine Saw Combination Machine China And Router Table Wood Planer With Band Saw
