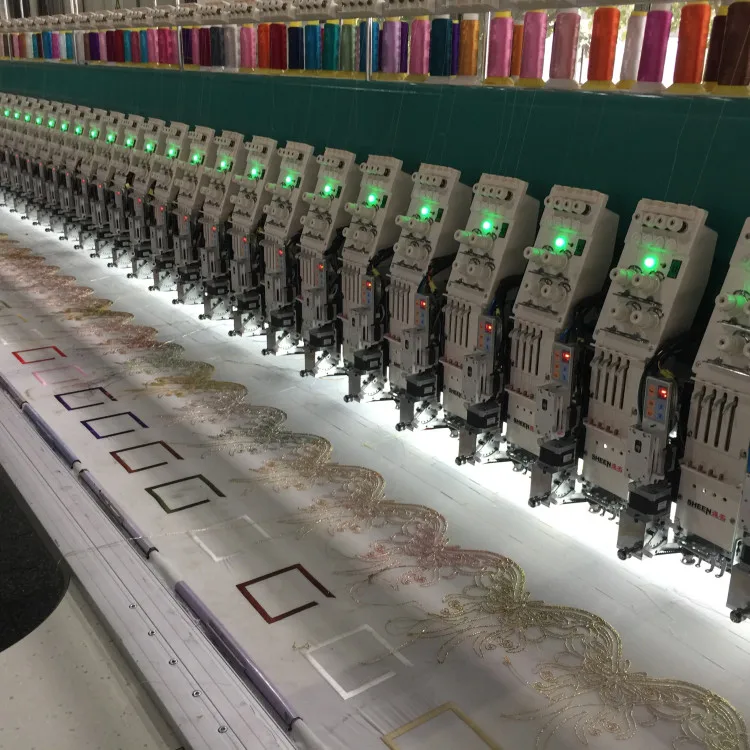

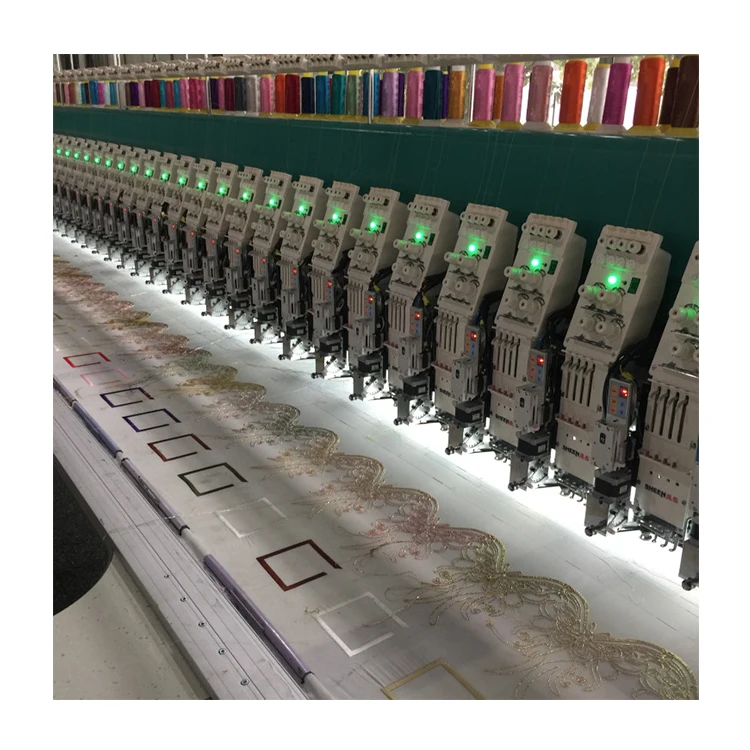

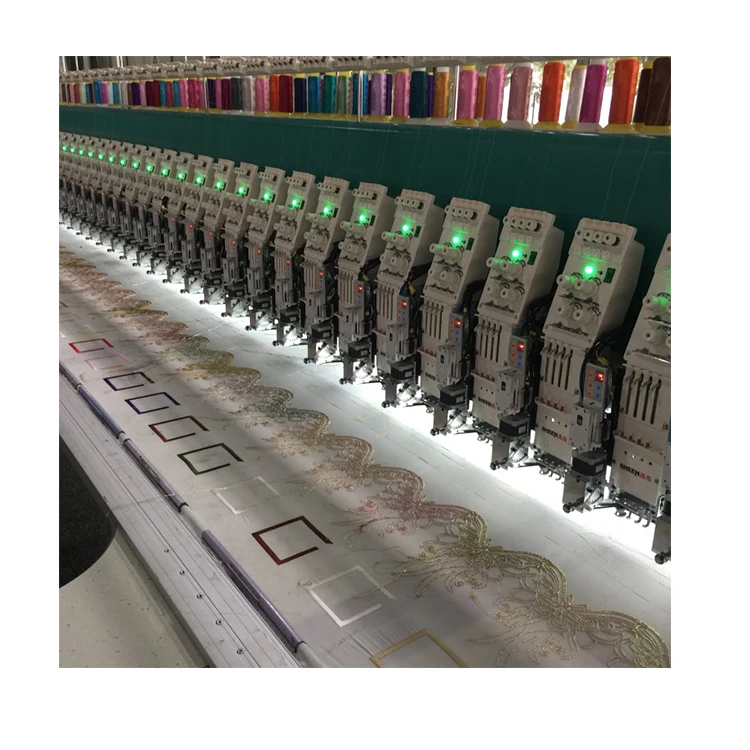

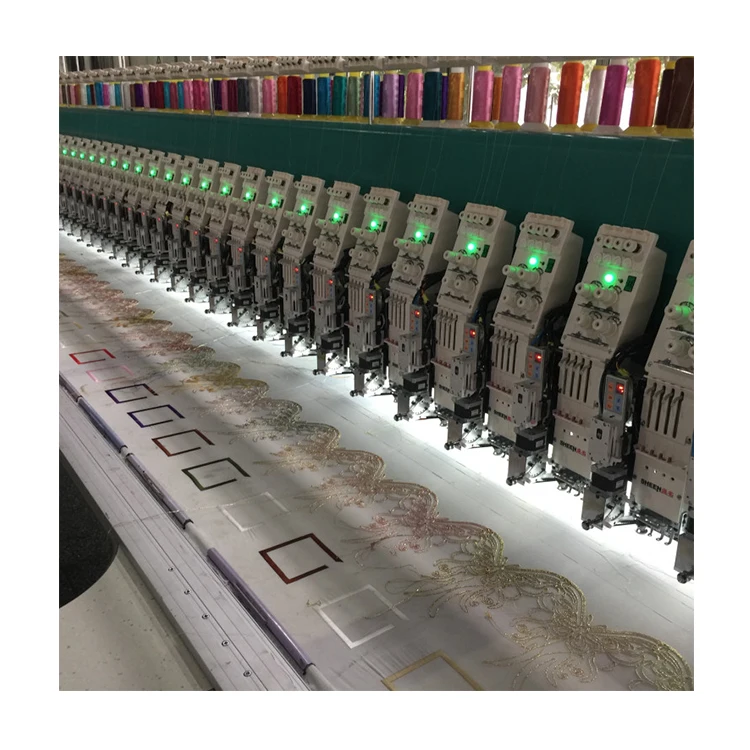

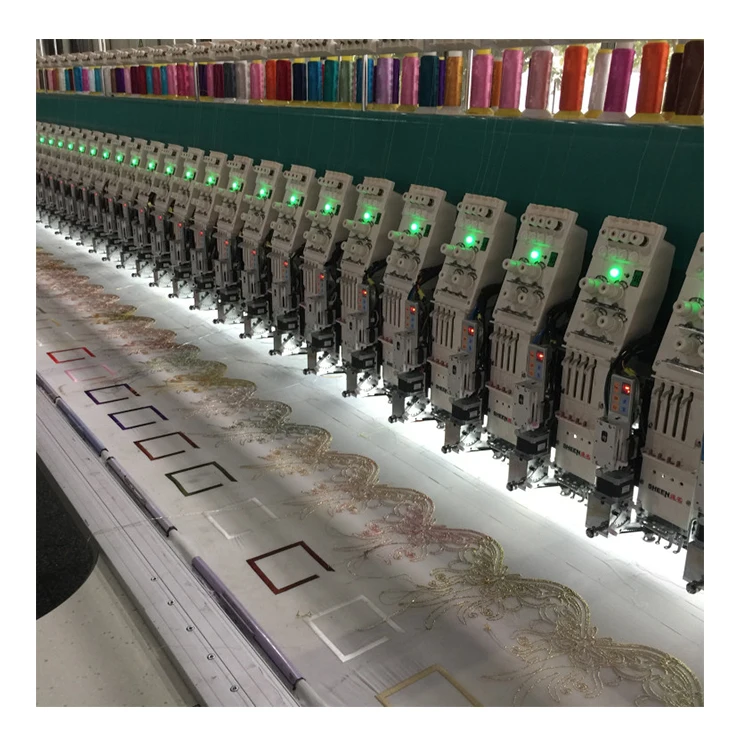

High quality Lace Embroidery machine with cording device
- Category: >>>
- Supplier: Zhejiang Shengming Electromechanic Manufacturing Co. Ltd.
Share on (1600316467696):
Product Overview
Description
Product Description
The main configurations:
* Adopt DAHAO computerized control system, BECS-528 (8 inch LCD), A18 (10 inch touch screen), A58 (10 inch touch screen), A98 ( 15 inch touch screen)
* Main drive: DAHAO servo motor drive
* Frame drive: DAHAO servo motor drive
* Motor trimmer
* Available in motor jump and solenoid jump
* Rotary hook:available in ordinary size, 1.6 times , 2 times and 3 times
* Pantograph Suspend technology

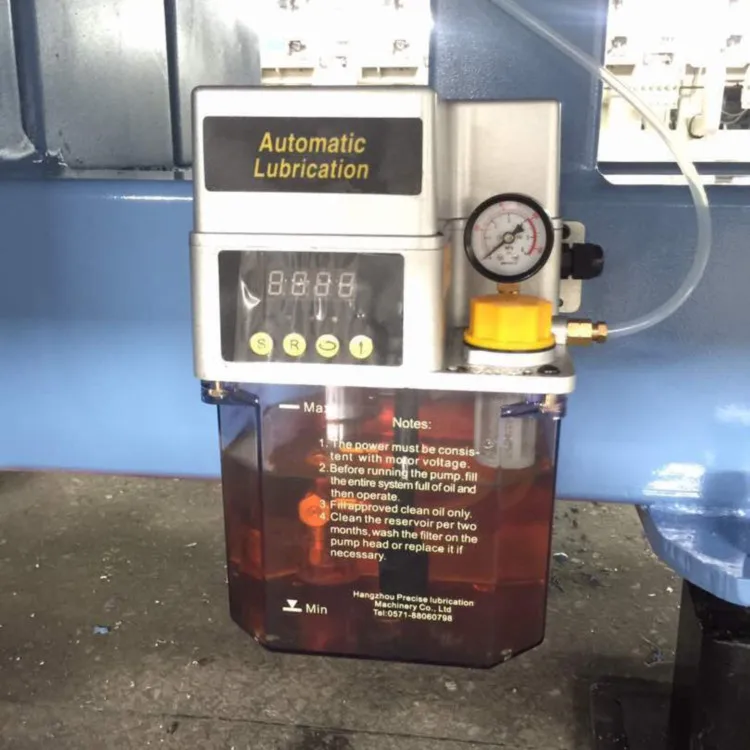

* Lubricating system
* Thread locking system
* Available in double color –change, double drive, double trimmer
* Specially equipped with anti-vibration pad(patent)
* Optional device: Sequin, simple cording, loose bead, thermal cutting, boring, laser cutting , auto bobbin changer etc.
* Suitable embroidery mode: flat embroidery , water-solubleembroidery ,boring embroidery, sequin embroidery, simple cording embroidery, emboss embroidery
The recommended models (customized) :
* Adopt DAHAO computerized control system, BECS-528 (8 inch LCD), A18 (10 inch touch screen), A58 (10 inch touch screen), A98 ( 15 inch touch screen)
* Main drive: DAHAO servo motor drive
* Frame drive: DAHAO servo motor drive
* Motor trimmer
* Available in motor jump and solenoid jump
* Rotary hook:available in ordinary size, 1.6 times , 2 times and 3 times
* Pantograph Suspend technology
* Lubricating system
* Thread locking system
* Available in double color –change, double drive, double trimmer
* Specially equipped with anti-vibration pad(patent)
* Optional device: Sequin, simple cording, loose bead, thermal cutting, boring, laser cutting , auto bobbin changer etc.
* Suitable embroidery mode: flat embroidery , water-solubleembroidery ,boring embroidery, sequin embroidery, simple cording embroidery, emboss embroidery
The recommended models (customized) :
Model No. | Head | Heads interval | Needle No. | Embroidery area (X) | Embroidery Area( Y) | Overall size L*W |
GG758-SML-468 | 68 | 165mm | 4 | 500mm | 1500mm | 8410*2930mm |
GG758-SML-652 | 52 | 250mm | 6 | 500mm | 1300mm | 5730*2536 mm |
GG758-SML-656 | 56 | 300mm | 6 | 800mm | 1500mm | 8130*2536 mm |
GG758-SML-658 | 58 | 330mm | 6 | 660mm | 1500mm | |
GG758-SML-4128 | 128 | 110mm | 4 | 500mm | 1520mm |
Functions and features:
* The head quantity can be made to order according to customers’requirements ,it can be selected between 65 to 120 heads and even minimum head interval can reach 82.5mm. This series may replace “ SCHIFFLI”
* Comparing with the traditional“SCHIFFLI”, it has more advantages like boring embroidery, overlapping embroidery, flexible color-change and larger embroidery area.
* Taking advantage of overlapping embroidery function, the embroidery width can be enlarged exponentially, this series is
suitable for various wide width of fabric, especially for embroidery on home textile products like curtain, bedding etc.
* This series has many patents, good stabilities, which can meet the market’s requirements of small batch, multispecies and quick change.

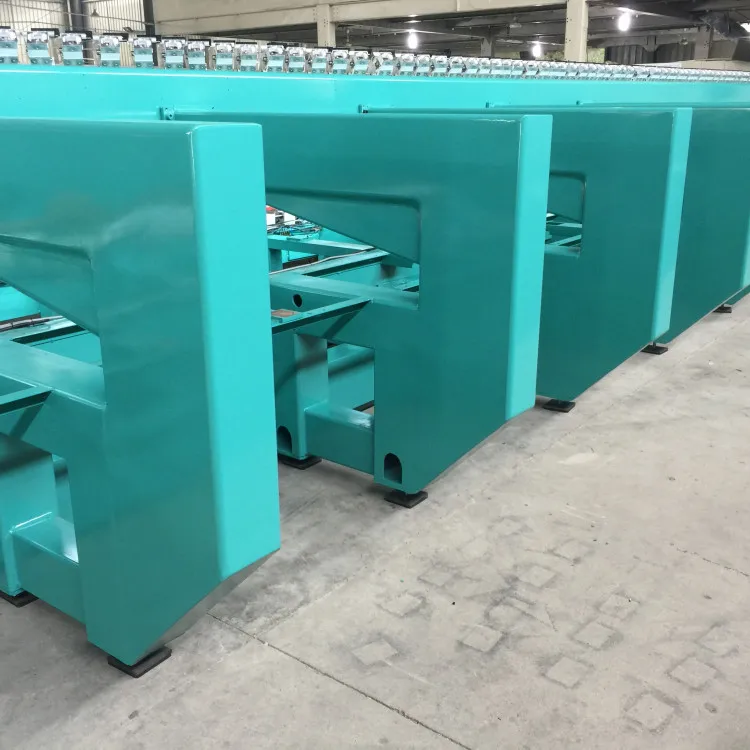

* The machine body uses high strength steel to be made with novel design, which helps to make machine running steady and improve working efficiency
* Adopting double color-change、double main- drive and double trimmer designs to make the driving smooth and reliable, which effectively improve the embroidery quality
* Sheen dedicated main-drive, driving motor dedicated driver and widened driving belt: make machine running high accuracy, steady and low noise, and lengthen working life
* Pantograph moving guide rail takes advantage of new type wear resisting guide rail driving system, stable running, less wear, high accurate embroidery, low maintenance
* Through computersetting, any alternative embroidery ( overlapping ) functions can be carried out , adapts to embroider various thread like cotton thread, composite embroidery thread, metallic yarn etc.
* The head quantity can be made to order according to customers’requirements ,it can be selected between 65 to 120 heads and even minimum head interval can reach 82.5mm. This series may replace “ SCHIFFLI”
* Comparing with the traditional“SCHIFFLI”, it has more advantages like boring embroidery, overlapping embroidery, flexible color-change and larger embroidery area.
* Taking advantage of overlapping embroidery function, the embroidery width can be enlarged exponentially, this series is
suitable for various wide width of fabric, especially for embroidery on home textile products like curtain, bedding etc.
* This series has many patents, good stabilities, which can meet the market’s requirements of small batch, multispecies and quick change.
* The machine body uses high strength steel to be made with novel design, which helps to make machine running steady and improve working efficiency
* Adopting double color-change、double main- drive and double trimmer designs to make the driving smooth and reliable, which effectively improve the embroidery quality
* Sheen dedicated main-drive, driving motor dedicated driver and widened driving belt: make machine running high accuracy, steady and low noise, and lengthen working life
* Pantograph moving guide rail takes advantage of new type wear resisting guide rail driving system, stable running, less wear, high accurate embroidery, low maintenance
* Through computersetting, any alternative embroidery ( overlapping ) functions can be carried out , adapts to embroider various thread like cotton thread, composite embroidery thread, metallic yarn etc.
Company Introduction
CUSTOMER & TEAM PHOTO
Certifications
Packing&Shipping
FAQ
Q1:How many days about delivery time?
20-30 days after TT deposit
Q2.How about your company strength?
We have 20 years experience in manufacturing machines,we are the professional embroidery machine manufacture integrated with R&D,spare parts producing,machine body making and complete machine assembling.It is one of the leading enterprises in embroidery machine industry in China,covering more than 50000 square meters,and it has more than 200 employees including 20 senior engineers.
Q3.What is the packing?
General machines are with vacuum packing. Particular machine are packing with vacuum and wooden case. Container loads as per the machine size.
Q5.Can you provide OEM service?
we can provide OEM service. It will depend on your requests; your logo will be customized on our products.
Q6: What information may contain in my inquiry?
Your request your machine’s embroidery area /needle number /head number/head interval/other function need.
For more or quotation, Click "Send" Now!
20-30 days after TT deposit
Q2.How about your company strength?
We have 20 years experience in manufacturing machines,we are the professional embroidery machine manufacture integrated with R&D,spare parts producing,machine body making and complete machine assembling.It is one of the leading enterprises in embroidery machine industry in China,covering more than 50000 square meters,and it has more than 200 employees including 20 senior engineers.
Q3.What is the packing?
General machines are with vacuum packing. Particular machine are packing with vacuum and wooden case. Container loads as per the machine size.
Q5.Can you provide OEM service?
we can provide OEM service. It will depend on your requests; your logo will be customized on our products.
Q6: What information may contain in my inquiry?
Your request your machine’s embroidery area /needle number /head number/head interval/other function need.
For more or quotation, Click "Send" Now!
