hot chamber die casting machine zamak moulding injection machine
US $23850-$29270

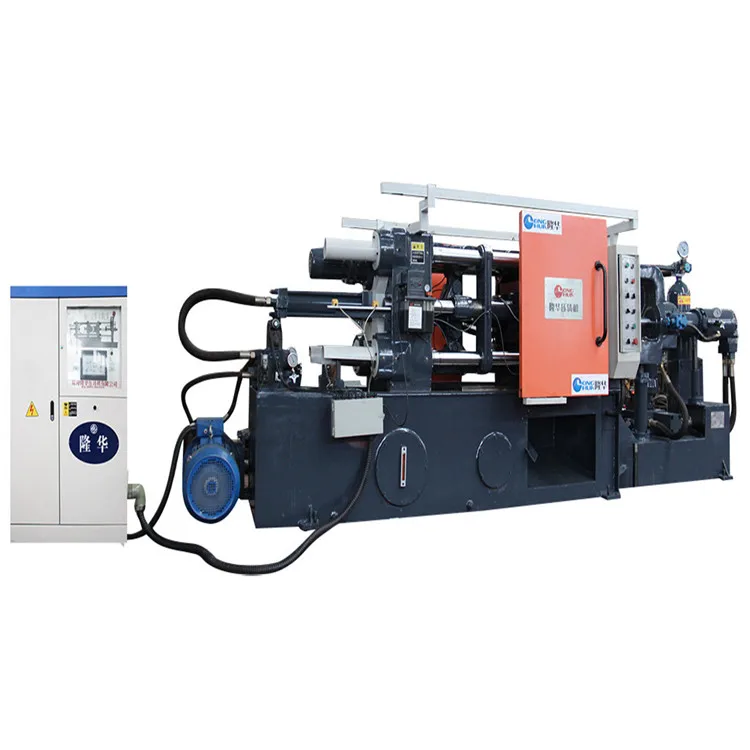

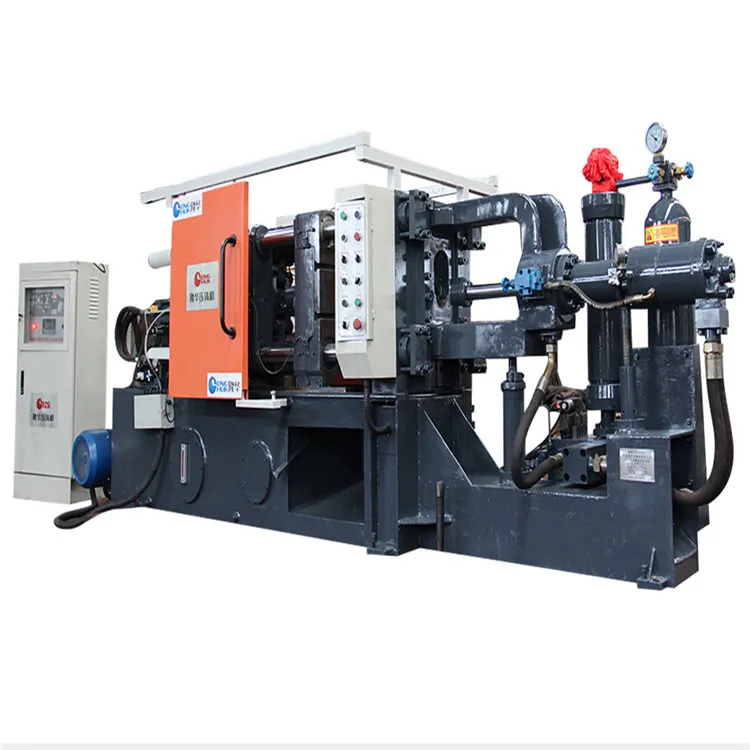

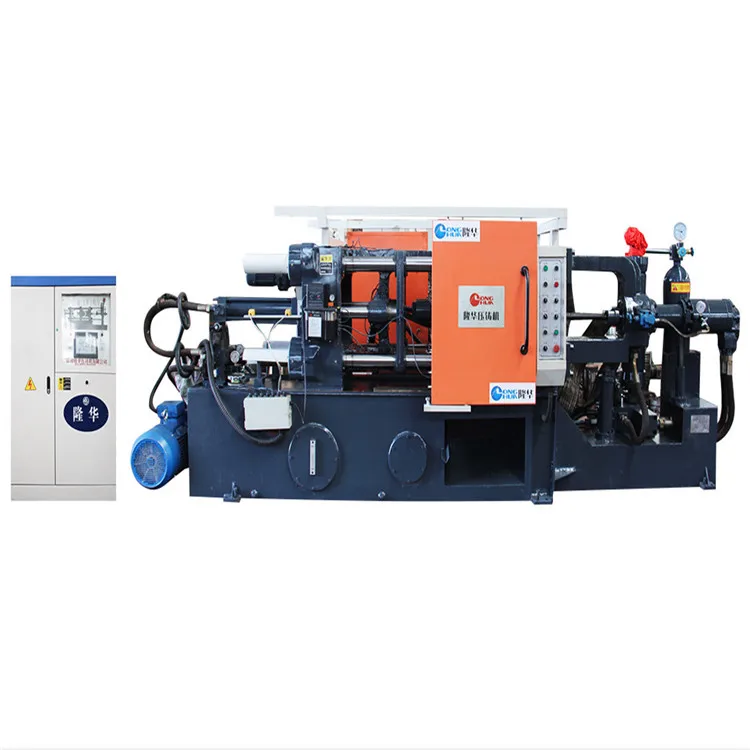

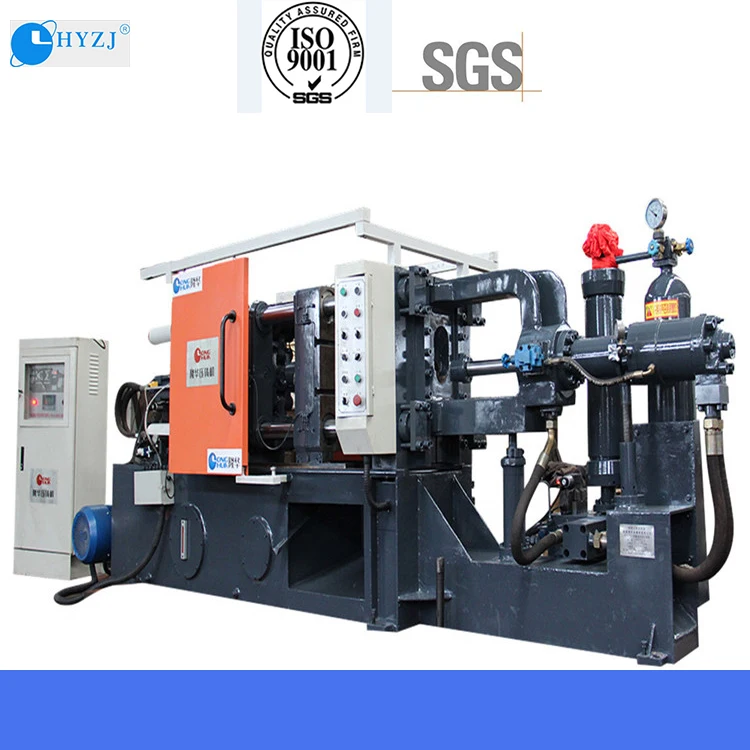

150T new metal alloy cold chamber die casting machines for sanitary ware
- Category: Die Casting Machine >>>
- Supplier: Anhui Anchine Machinery Co. Ltd.
Share on (1600316510237):
Product Overview
Description
Product Description
Specification
ITEM | Unit | Specification |
HYDRAULIC WORKING PRESSURE | MPa | 7 |
CLAMPING FORCE | KN | 1500 |
SPACE BETWEEN TIE BARS | mm | 440*440 |
Tie Bar Diameter | mm | ￠80 |
DIE OPENING STROKE | mm | 350 |
INJECTION FORCE(intensify) | KN | 220 |
Plunger launch distance | mm | 120 |
Injection position | mm | 0 -- 140 |
PLUNGER DIAMETER | mm | ￠40----￠60 |
INJECTION STROKE | mm | 320 |
Casting pressure (intensify) | MPa | 143/92/64 |
Casting Flange Protrusion | mm | 10 |
Casting Flange Diameter | mm | 110 |
MAX CASTING AREA UNDER 40Mpa | CM2 | 390 |
injection Weight(Al) | Kg | 1.8 |
Die Height(Min--Max) | mm | 200～550 |
EJECTOR FORCE | KN | 100 |
EJECTOR STROKE | mm | 80 |
Motor Capacity | Kw | 11 |
Machine Dimensions (L*W*H) | m | 5*1.4*1.6 |
Referential Machine Weight For Uplifting | T | 4.8 |
Oil Tank Capacity | L | 300 |

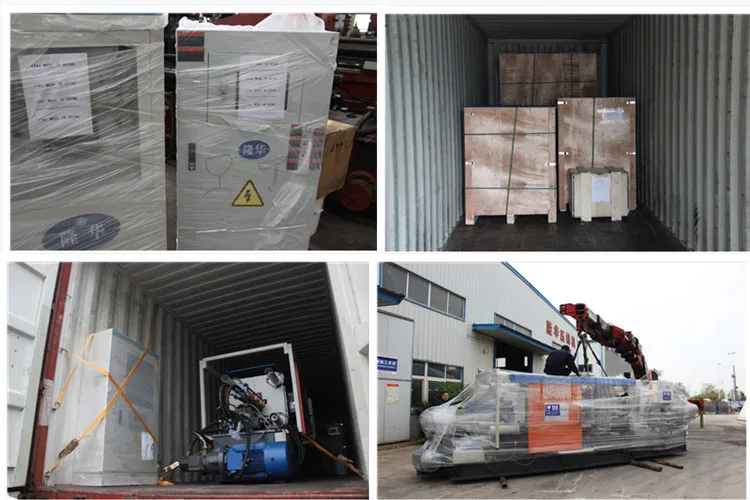

Packing & Delivery
OUR SERVICE
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.

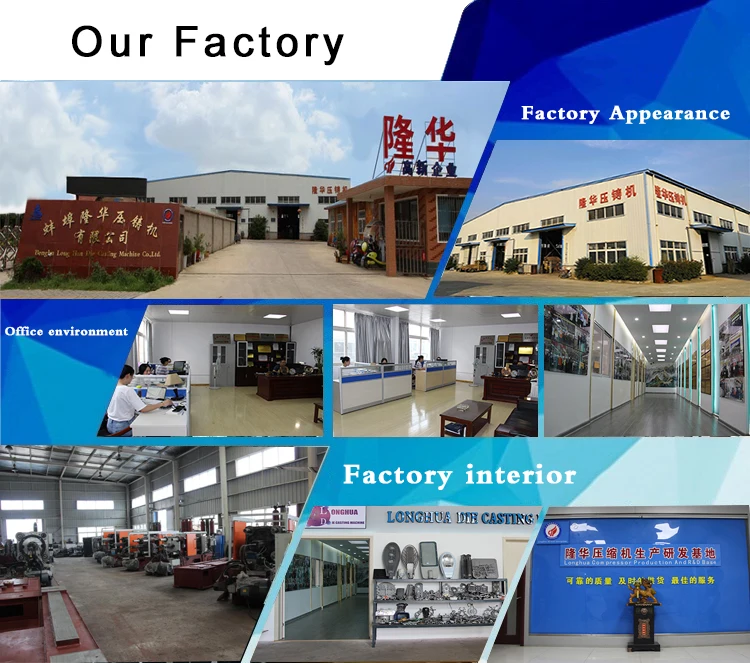

* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.

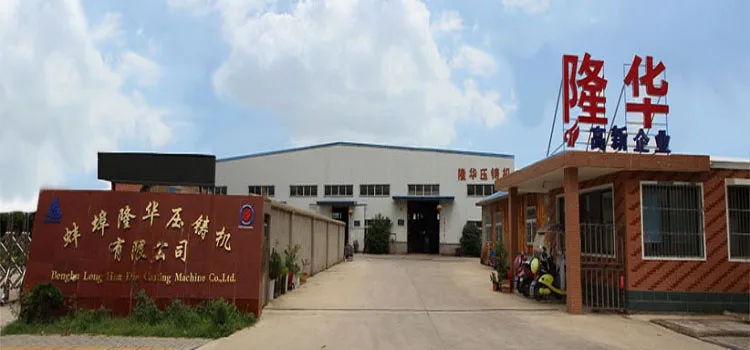

Company Profile
FAQ
1.who are we?
We are based in Anhui, China, start from 2014,sell to Domestic Market(50.00%),Southeast Asia(15.00%),South Asia(12.00%),South America(8.00%),Eastern Asia(8.00%),Africa(5.00%),Mid East(2.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?

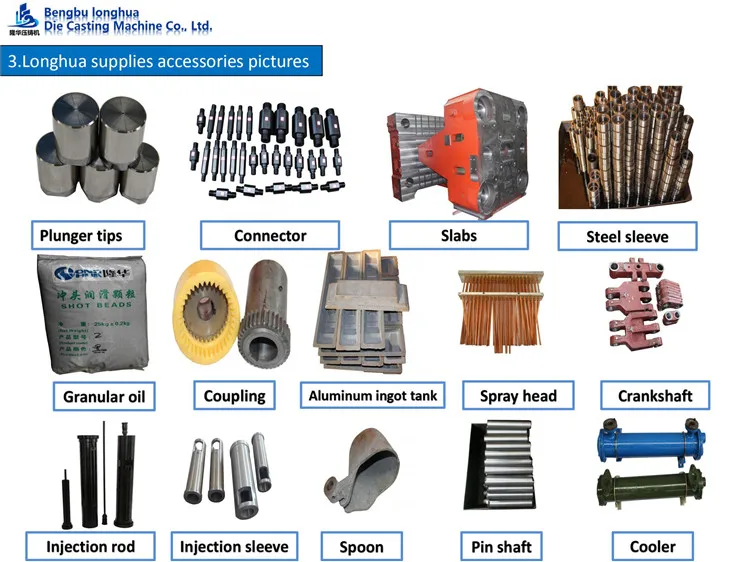

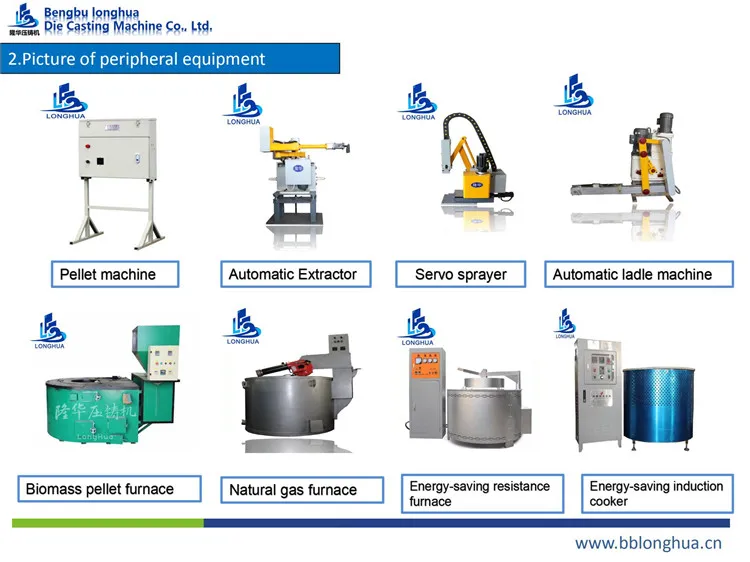

Die Casting Machine,Compressor,Die Casting Machine Parts,Mould And Castings,Robot For Die Casting Machine,Melting Furnace
4. why should you buy from us not from other suppliers?
Longhua Die Casting Machine has 39 years of production experience, and cooperate with the Chinese Academy of Science and Technology, you know that China's space shuttles are cooperating with the Chinese Academy of Science and Technology.
5. what services can we provide?
Accepted Delivery Terms: FOB；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,Cash;
Language Spoken:English,Chinese
We are based in Anhui, China, start from 2014,sell to Domestic Market(50.00%),Southeast Asia(15.00%),South Asia(12.00%),South America(8.00%),Eastern Asia(8.00%),Africa(5.00%),Mid East(2.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Die Casting Machine,Compressor,Die Casting Machine Parts,Mould And Castings,Robot For Die Casting Machine,Melting Furnace
4. why should you buy from us not from other suppliers?
Longhua Die Casting Machine has 39 years of production experience, and cooperate with the Chinese Academy of Science and Technology, you know that China's space shuttles are cooperating with the Chinese Academy of Science and Technology.
5. what services can we provide?
Accepted Delivery Terms: FOB；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,Cash;
Language Spoken:English,Chinese
