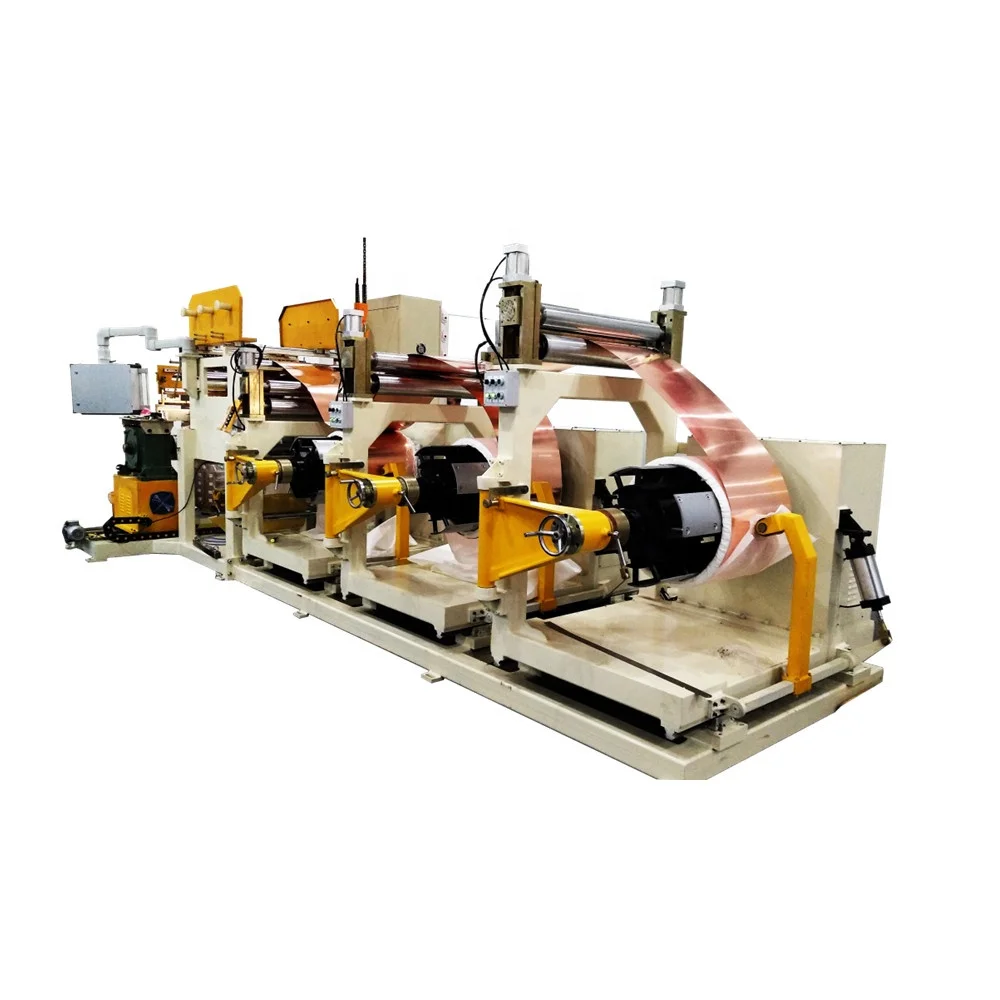

GYBRJ 1500 Transformer Rectangular core HV coil Foil Winding Machine with Cu
- Category: >>>
- Supplier: Jiangxi Hongjun Environmental Protection Technology Co. Ltd.
Share on (1600316513243):
Product Overview
Description
Production Description
Typical standard specifications are shown below, these can be easily modified as requested. | ||||
No. | Items | Datas | ||
1 | Model | GYBRJ-1500 | ||
2 | Coil Width | 50-1500mm | ||
3 | coil form | Rectangular/Oval/Round | ||
4 | Coil material | Cu/Al | ||
5 | Foil thickness(mm) | 0.3-1.6mm | ||
8 | Central height | 800 mm | ||
10 | working pressure | 0～0.6Mpa | ||
11 | way of rectifying | automatic | ||
12 | winding speed | 1-35 RPM | ||
13 | work torque (Max) | 2300 N | ||
14 | wind power | 7.5 KW | ||
15 | Winding shaft | 50*50 or 60*60 mm | ||
16 | welding way | TIG | ||
17 | way of rectifying | photoelectric system | ||
18 | correction precision | ±0.5 mm | ||
19 | counting number | Five（0～9999.9） | ||
Brief Introduction:
GYBRJ-1500 High Voltage foil winding machine is designed for efficient and safe production of segmented, round/oval transformer foil coils. The coil is a single layer of copper foil or aluminum foil segmented coil with no more than two layers of insulation between the layers. The incoming and outgoing leads of the coil are welded at the customer's discretion. This high pressure foil winding machine is designed for efficient and safe production of segmented CNC moving position, circular/oval foil coil design.Main features:
1)The device can be started after setting the total number of coil hits, the number of each hit and the distance between each interval in the touch screen.
2)After winding a section, the servo motor is used to automatically move each distance. Therefore, the design process of each interval is blocked with different sizes, requiring the automatic displacement of starting foot points.
3)The tension of insulating paper is controlled by electric tension, the digital control is direct and accurate, and the tension of foil tape is controlled by gas-electric mixing system.
Main Products
Why Choose Us
About Us
Exhibition And Customers
Certifications
Packaging & Shipping
FAQ
