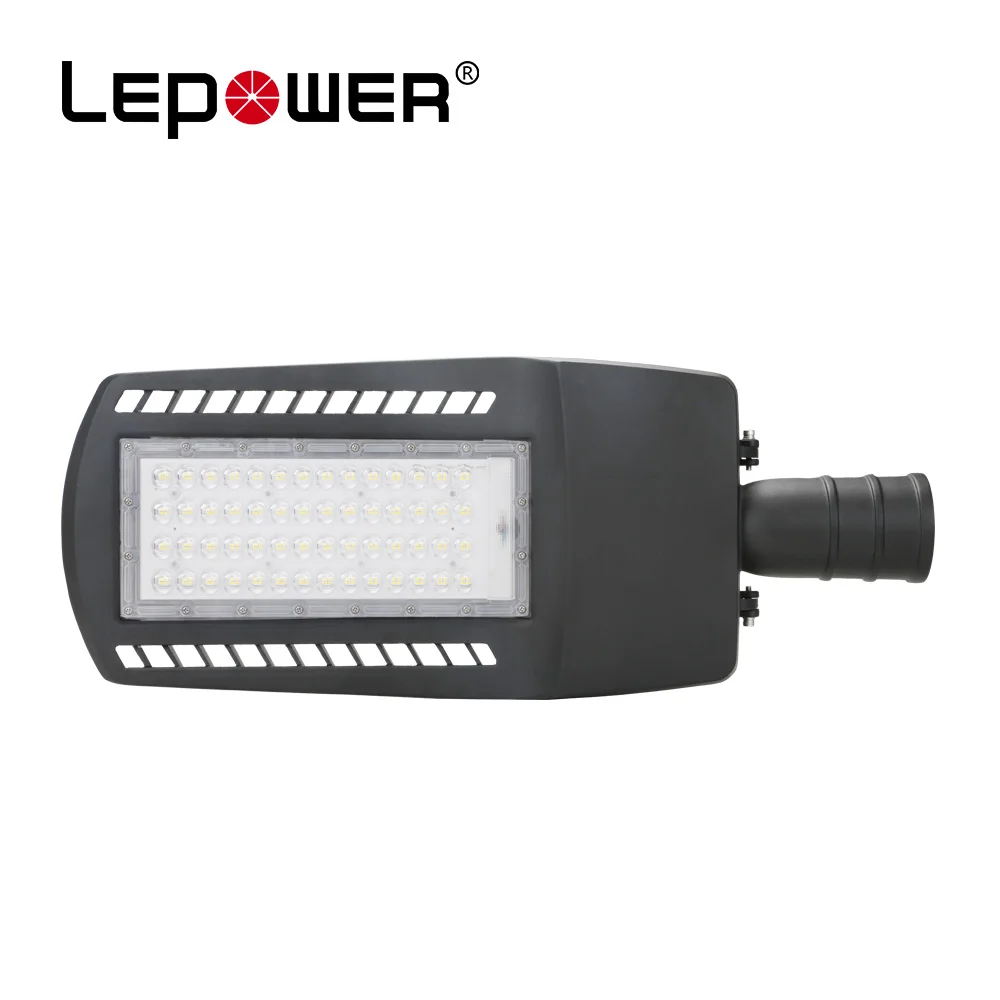

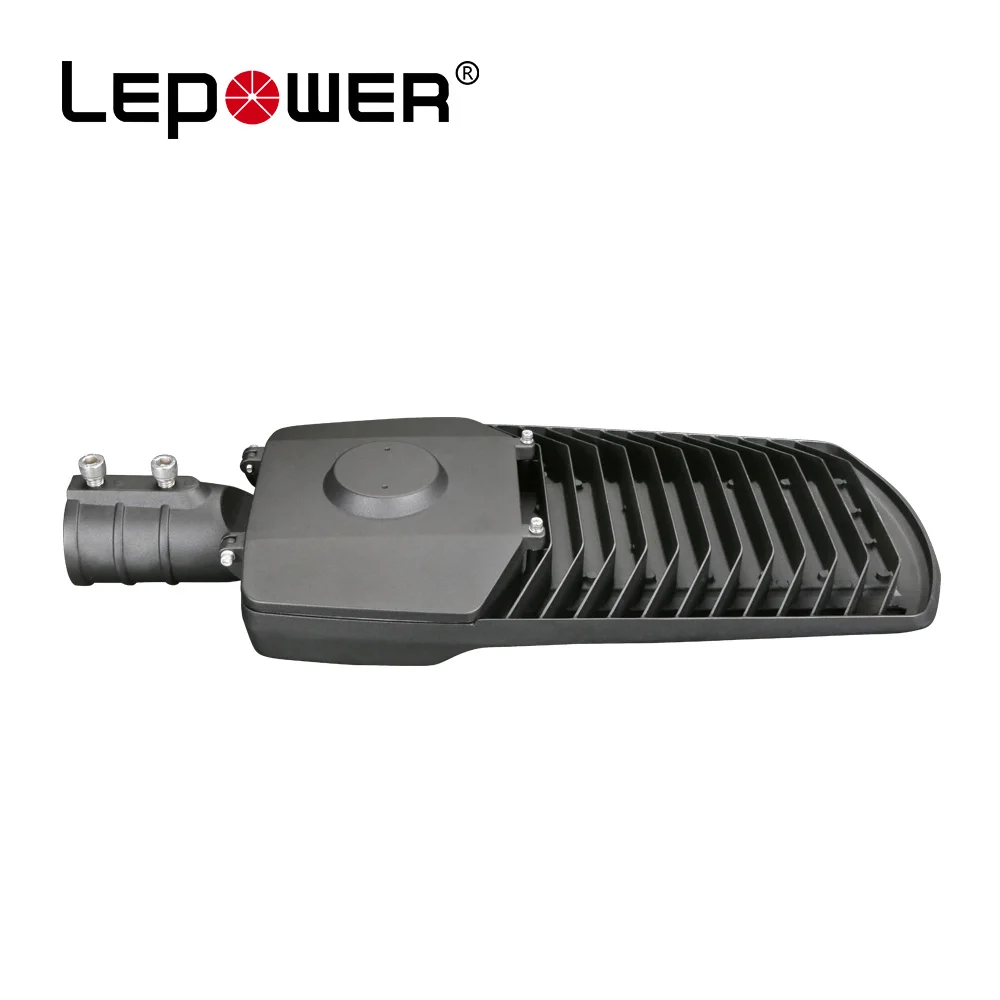

NEMA socket available LED Street Light CE ROHS 30w 200w Road Lamp Manufacturers

Product Overview

Description



Product Features of L60 LED Street Light

1.High quality die-cast aluminium alloy design housing.
2.Adopt multi-chips 3030 LED with long lifespan >50,000 hours.
3.Lighter weight design and excellent heat dissipation by cooling fins structure.
4.Type III-M optical lens available for 2/3 lanes lighting.
5.The whole lamp reach IP66 IK10 rating.
6.Easier maintenance design.
7.Dimming and smart lighting system available upon request.
8.The LED source get report of IEC 62471,TM21,LM80.





Specification of L60 LED Street Light

Name	Nominal Value
Type	LY-L601-30W	LY-L601-50W	LY-L602-100W	LY-L603-150W	LY-L603-180W
Power	30W	50W	100W	150W	180W
Luminous Efficiency	120-130lm/w±5lm
CCT	3000K/4000K/5000K/6000K
CRI	>70
Brand of Chips	Bridgelux 3030/Lumileds 3030
LED Qty.	36pcs	56pcs	128pcs	176pcs	224pcs
Beam Angle	Type III-M
IP Rate	IP66
Voltage	AC 90-305V
Inclination Angle	-10~10°
Working Environment	-40℃~50℃,20%~90% R.H
Storage Temperature	-40℃~85℃10%~90% R.H
Driver Efficacy	0.92
PF	>0.98
Lifetime	>50,000 Hours
Size of light pole	φ60mm
SPD	10KV/20KV
Size of Lamp	424x160x84 mm	424x160x84mm	535x247x96mm	616x247x96mm	616x247x96mm
N.W.	1.8KG	1.8KG	3.1KG	3.7KG	3.7KG

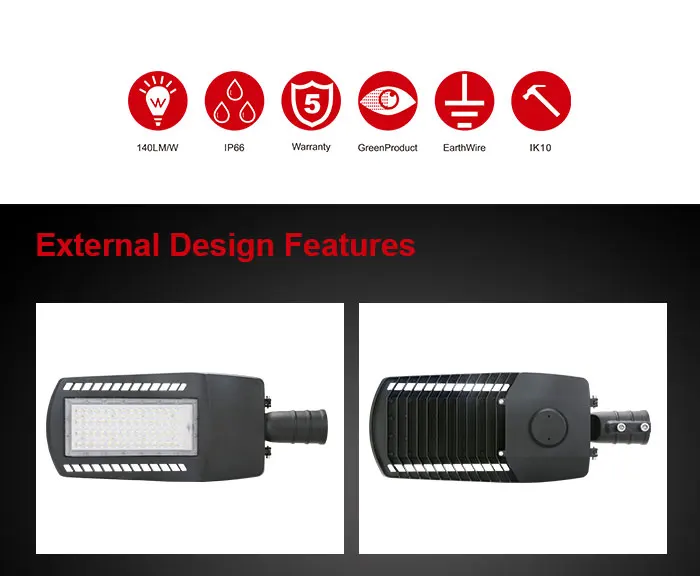

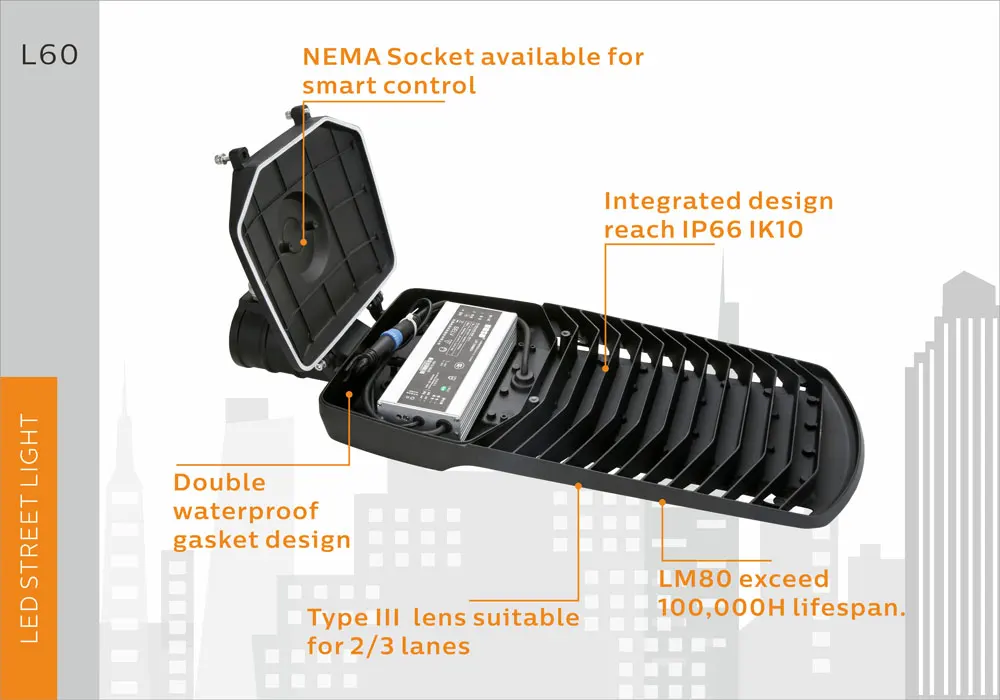

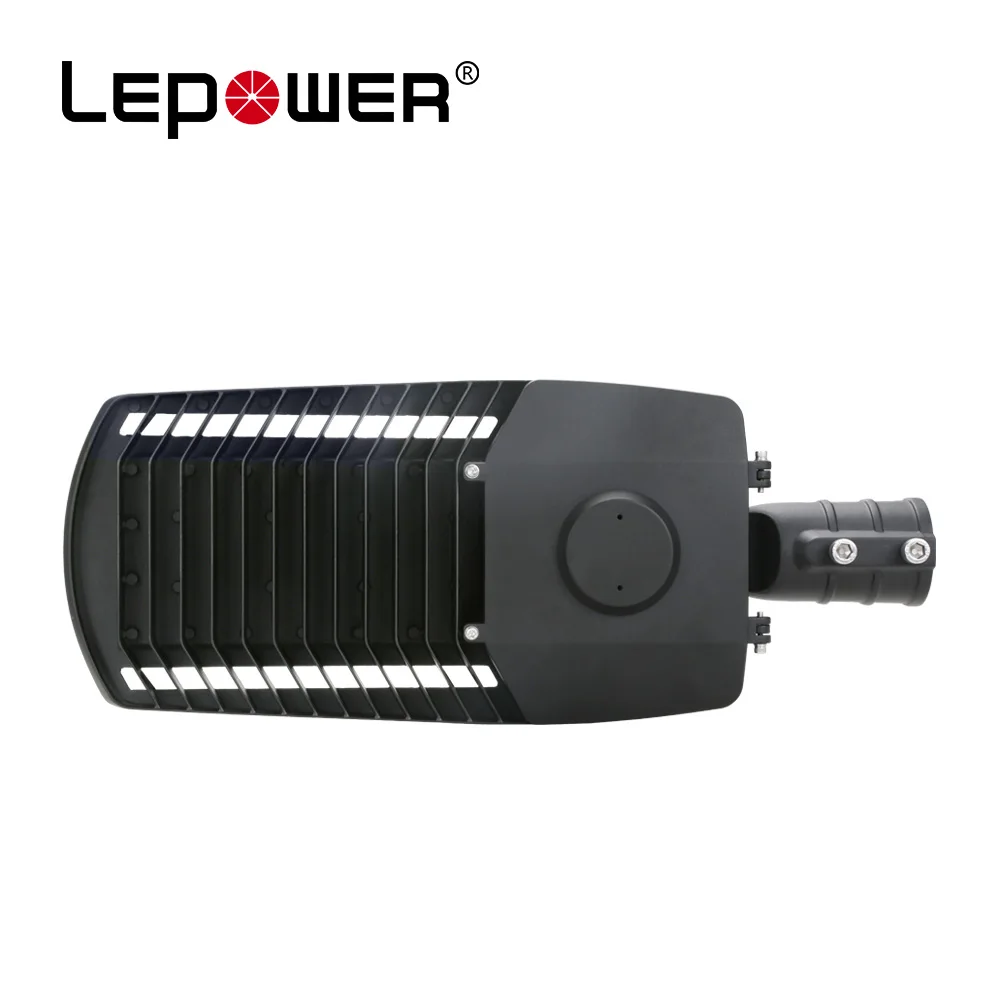

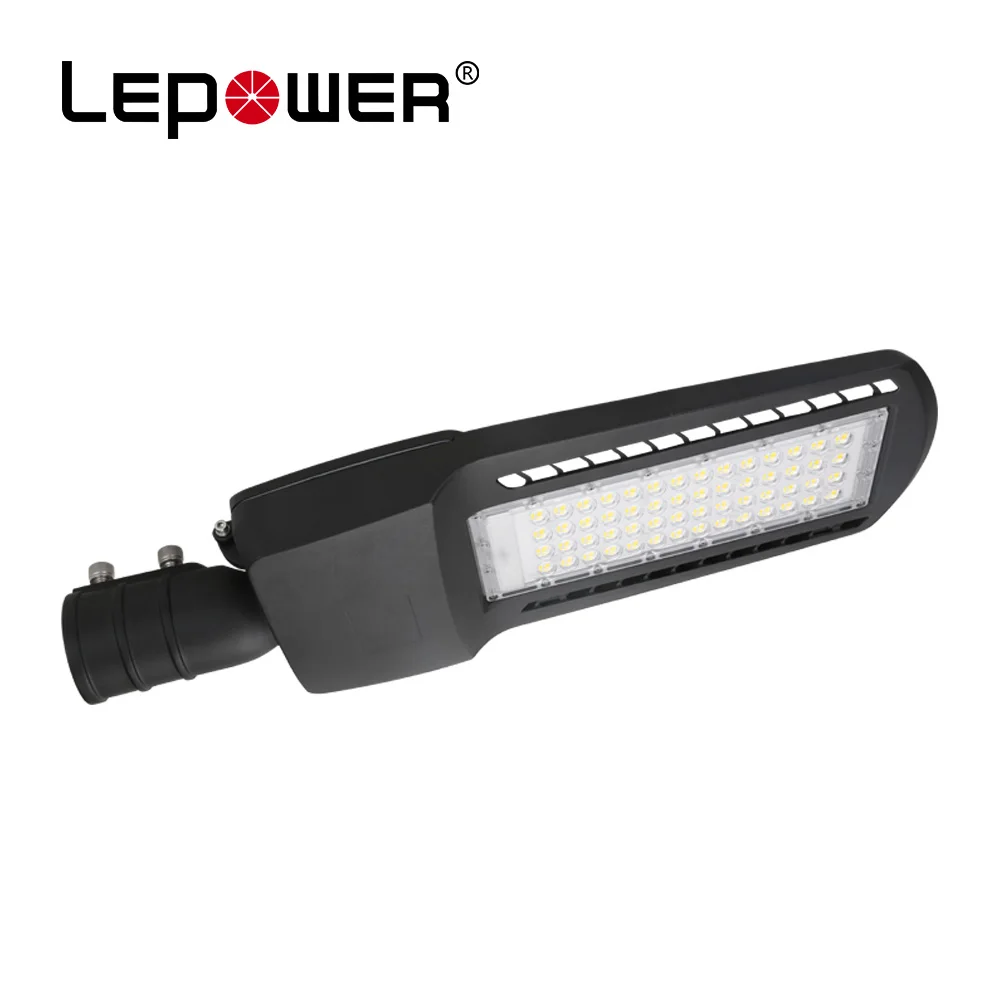

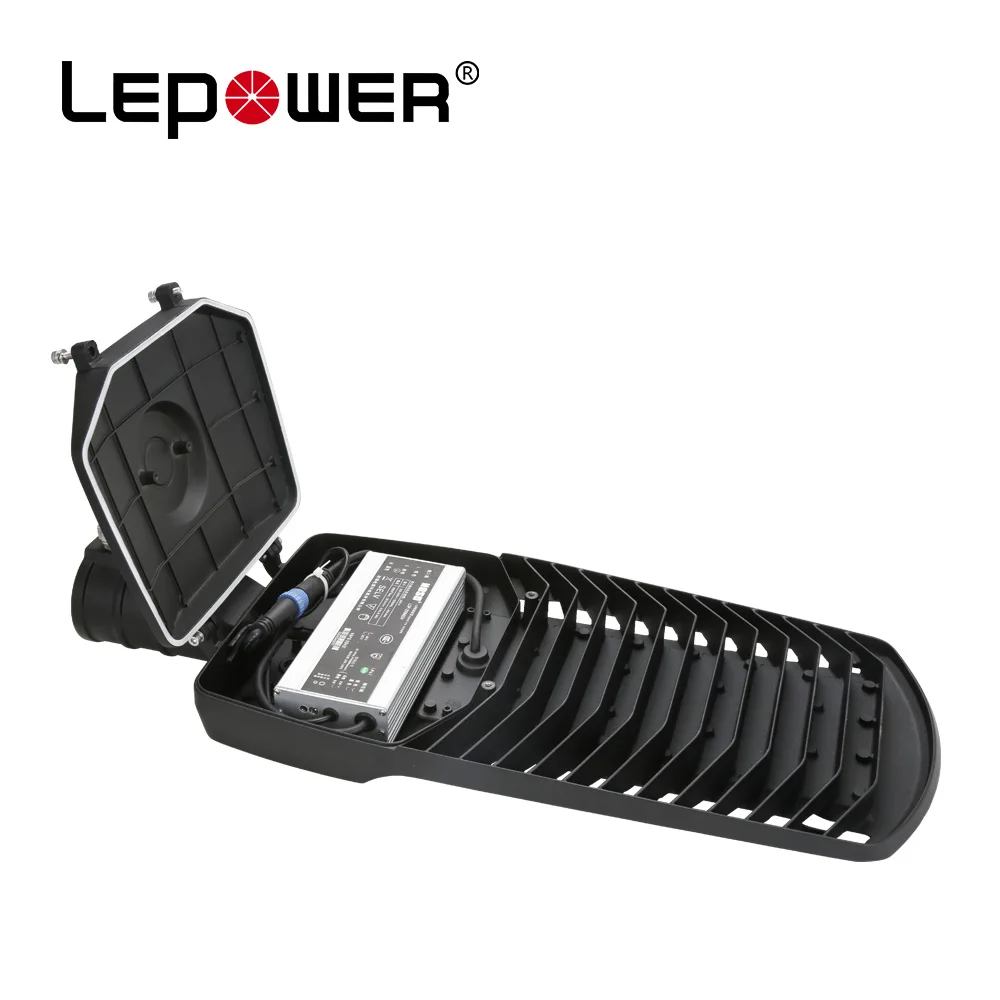

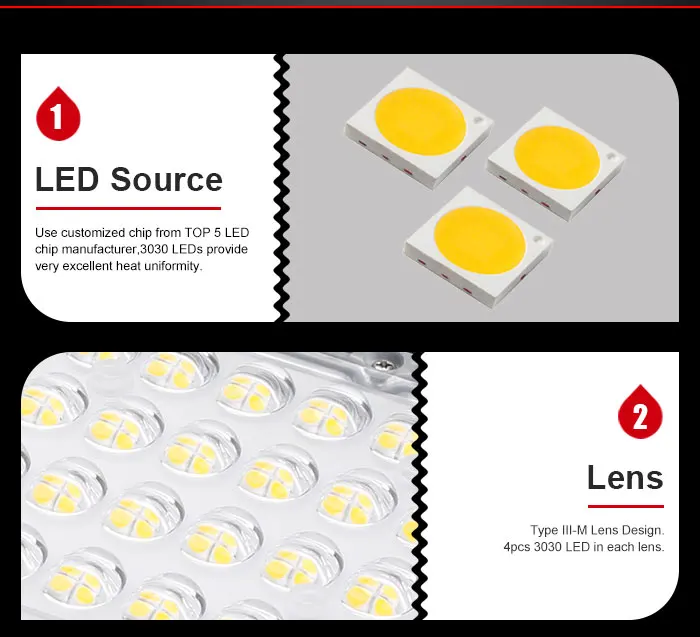

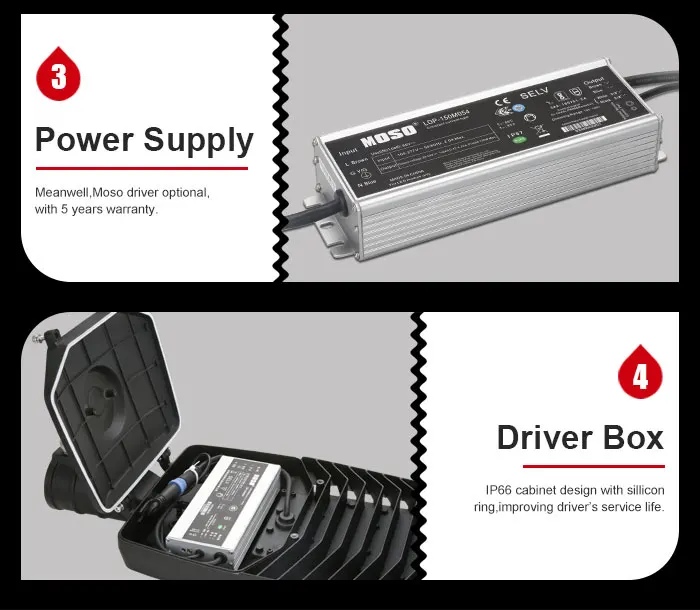

The detail pictures of LED street light 30w-200w series.

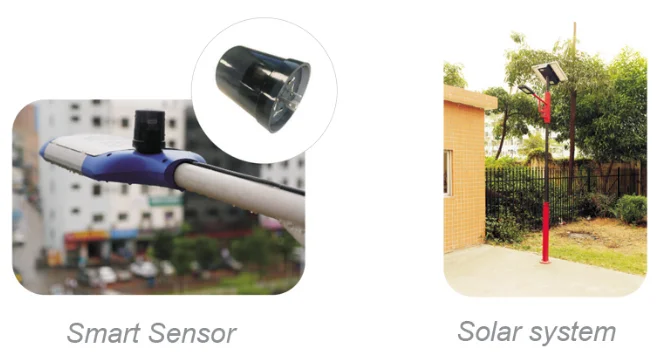

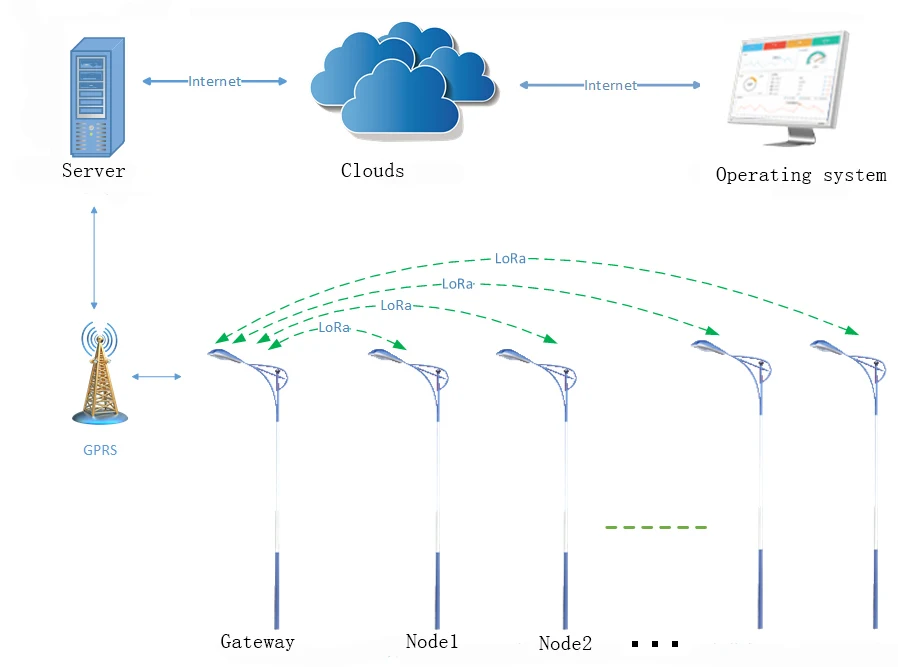

LORA controller



Shenzhen Lepower Opto Electronics Corp.,Ltd (STOCK CODE:838452) founded in 2008, is a professional comprehensive LED lighting enterprise engaged in high power LED encapsulation,optical design and LED lighting researching and developing It has been honored as Chinanational high-tech enterprise,China Top 100 LED Lighting Application Enterprise, Forbes China Top 100 Up-and-Comer Private Unlisted Company.



Lepower, with more than 16,000 square meters modern productionplant and ten thousand-grade static dust-free workshop, is one of the few companies which own strong independent R&D and innovation capability in China’s LED industry. Lepower has got many national patents, which is able to offer customers professional LED lighting solutions.Lepower strictly carry out ISO9001:2008 quality management system, and most of the products got ETL,DLC,SAA,CB,CE,ROHS,LM-80,LM-79,CQC certification etc.



Trading Conditions

1. Payment term: 30% deposit by T/T or Western union; 70% before delivery.

2. Delivery time: 10-15 days for 50pcs; 15-25 days for 500pcs.

3. Samples time: 5 days.

4. Shipping terms: FOB Shenzhen.

5. Discounts will be determined by quantity.

6. Welcome distributors to cooperate together.



Quality Control

1. Before the order to be confirmed, we will check the material & colour temperature by sample which should be strictly.

2. We will be tracing the different phase of production from the beginning.

3. Every LED lights quality checked & cleaned before packing.

4. Before delivery clients could send one QC or point the third party to check the quality.

5. We will try our best to help clients when problem occurred.



Warranty terms

1. 3/5 years warranty.

2. Under the terms of this warranty, if the product have a failure occurs under normal usage within warranty period, We will provide free/rework new products based on the proof-documents

3. If Failure or damage due to incorrect operation, wire connection, or anything other do not follow our instuction, We will provide paid maintance within warranty period.

4.  SAA/CE/RoHS/TUV/CB/ETL/DLC



FAQ:

Q1.Can we make our own label on the sample lights?
Yes, we can use the label you offer,we can also do OEM & ODM.



Q2.Our project is on seaside, what if your lights be corrosion by sea water?
Metal has high corrosion resistance.Besides, we do best on light surface treatment,

electrostatic spraying and electrophoresis can effectively protect our lights from salt water corrision.



Q3. I really would like to try a sample first ,is that possible?
Yes,that's sure. Our MOQ only 1 pieces,easy know each other better via samples, we look on the long term and win-win cooperation.



Q4. We now have outdoor projects need to do the lighting design,can you help us?
Sure we can, we are the leader of outdoor high power LED light supplier, our design teams can provide  you the best solution.

And if you have the tech to make design yourself , we can provide the IES files for you.



Q5.I have a street/high way ,what's your suggestion?

Please give me the below information:
A:the wide of the street.
B:the arrangement and the height of the light poles
C:the requirement of the illumination.
