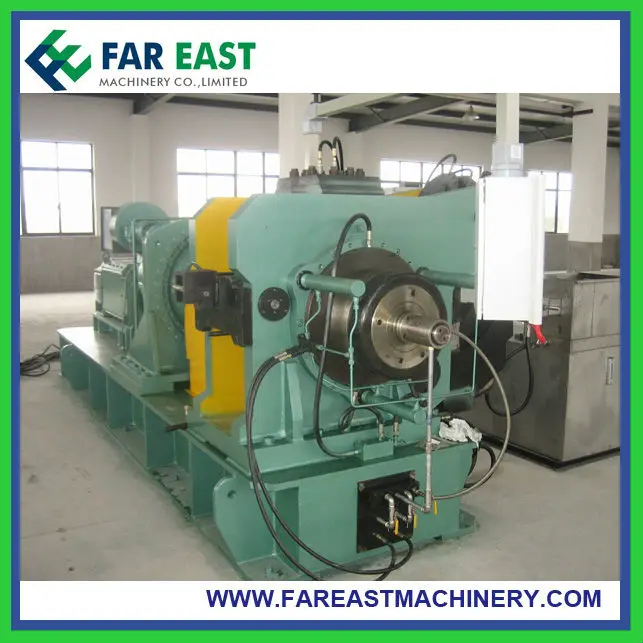

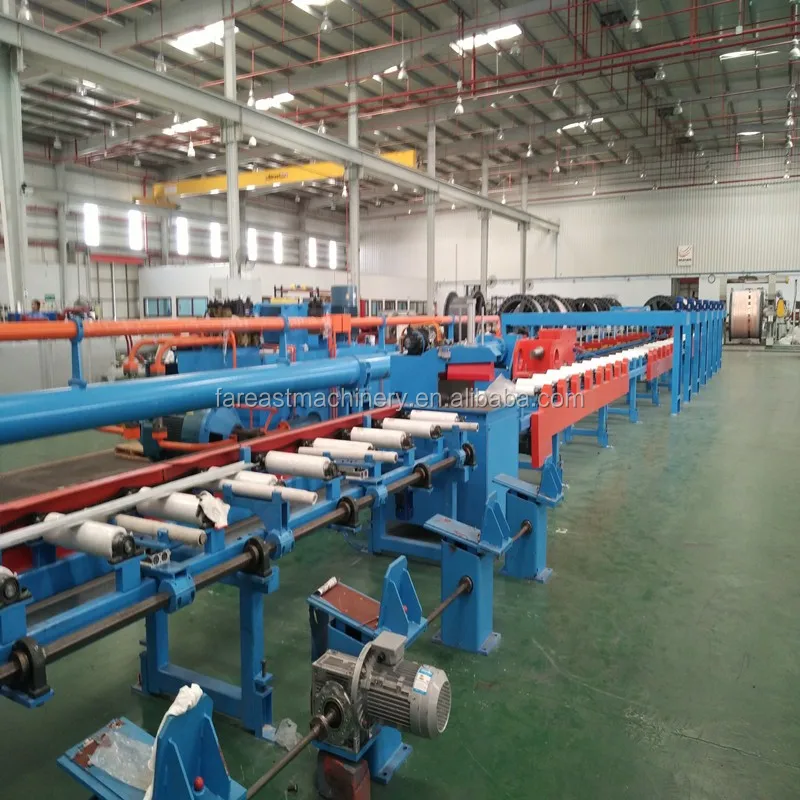

Continuous copper flat Extrusion Machine for Copper Flat Wire 80mm copper bar drawing extrusion production line

No.

Item

F-HAD50-12

F-HAD50-10

F-HAD50-8

1

Effective drawing length(m)

12

10

8

2

Nominal drawing force(t)

50

50

50

3

Extrusion specifications(mm)

Width

30~170

30~170

30~170

4

Thickness

3~30

3~30

3~30

5

Drawing speed(m/min)

3~10

3~10

3 ~10

6

Return speed(m/min)

40

40

40

7

Oil supply pressure(hydraulic statio

-n)(MPa)

20

20

20

8

Inner diameter of the cylinder(mm)

200

200

200

9

Piston rod diameter(mm)

100

100

100

10

Main motor power(kw)

75

75

75

11

Installed capacity(kw)

88

88

88

12

Drawing bench machine dimension

(mm)

Length

27000

23000

19000

13

Width

4300

4300

4300

14

Height

1500

1500

1500

15

Minimum workshop length(mm)

40

36

32

16

Total weight(t)

32

31

30

No.

Part name

Quantity

(F-HAD50-12)

Quantity

(F-HAD50-10)

Quantity

(F-HAD50-8)

1

Center-positioning type material-

unwinding machine

1

1

1

2

Position correction unit

1

1

1

3

Straightener and traction machine

1

1

1

4

Center-positioning mechanism

1

1

1

5

Die cooling and lubrication system

1

1

1

6

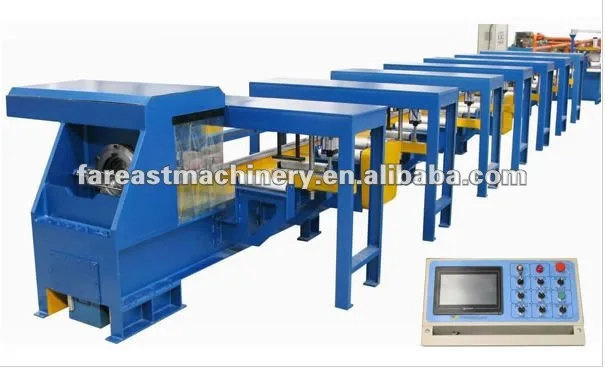

Draw bench machine

1

1

1

7

Sawing and cutting machine

1

1

1

8

Trolley

7

6

5

9

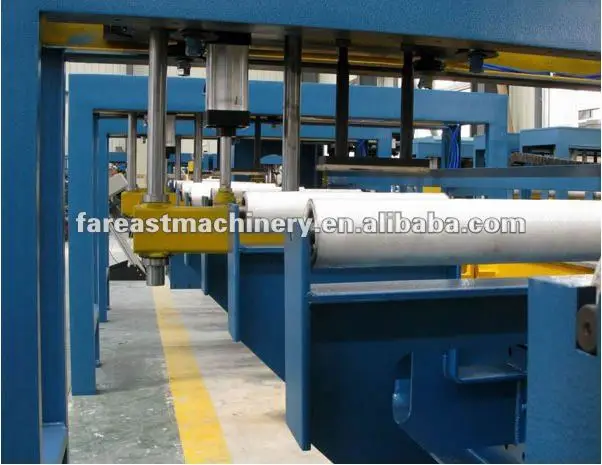

Automatic conveying roller table

1

1

1

10

End product sawing and cutting

machine

1

1

1

11

Roller table for end product conveyin

-g(include sizing unit)

1

1

1

12

Automatic unloading system(include product stacking system)

1

1

1

13

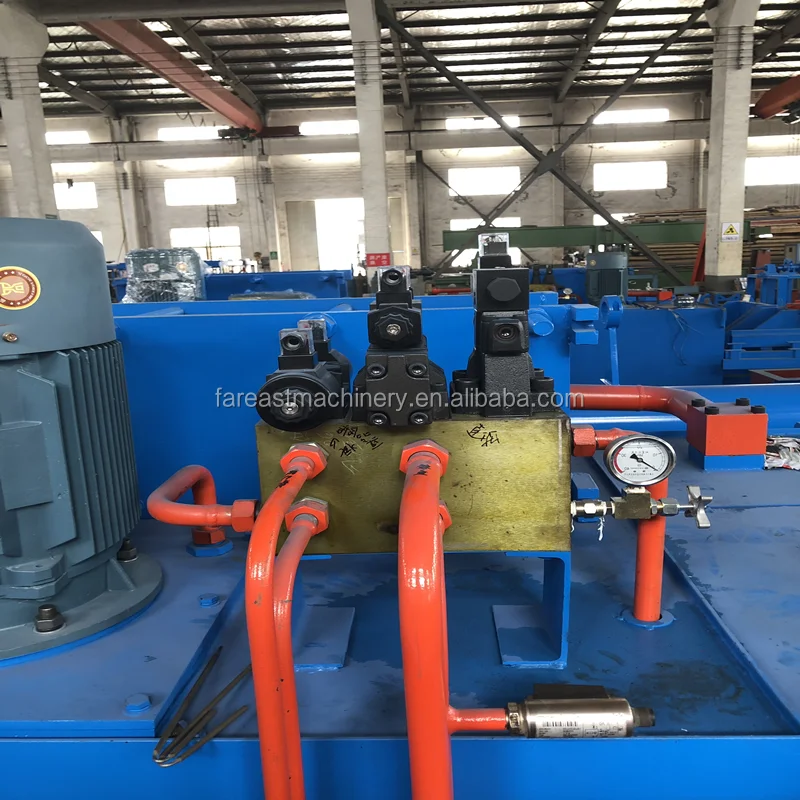

Hydraulic system(oil cylinder,hydrauli

-c station

1

1

1

14

Electrical control system(Electrical co

-ntrol cabinet,touch screen operation

system)

1

1

1
