Constant Pressure Pneumatic Carbonated Drink Filling Machine Soda Fill Machine

Share on (1600316617469):


Price:$1,150.00

Quantity:


Product Overview

Description

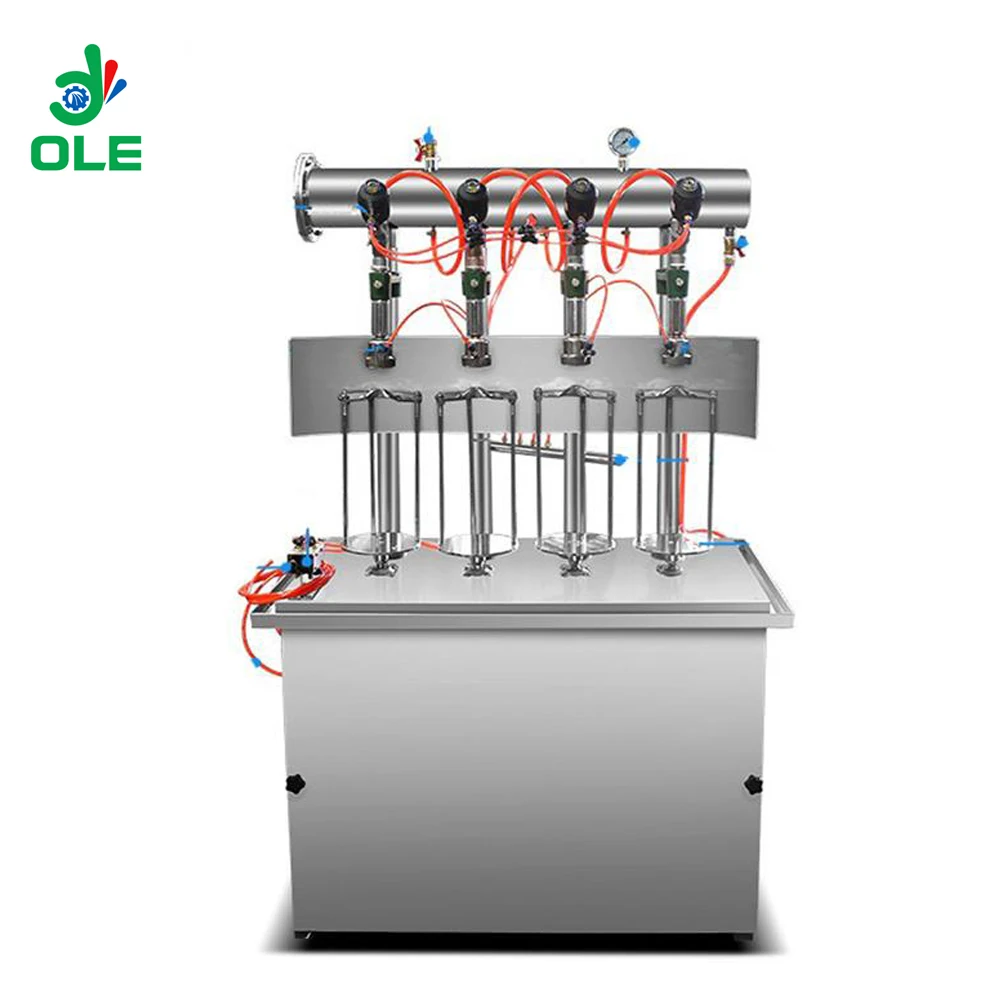

Constant Pressure Pneumatic Carbonated Drink Filling Machine Soda Fill Machine




Product Paramenters


Model
OLGZ-4
Filling Capacity
200-1000ml
filling heads
4
Filling accuracy
99.9%
voltage
220V

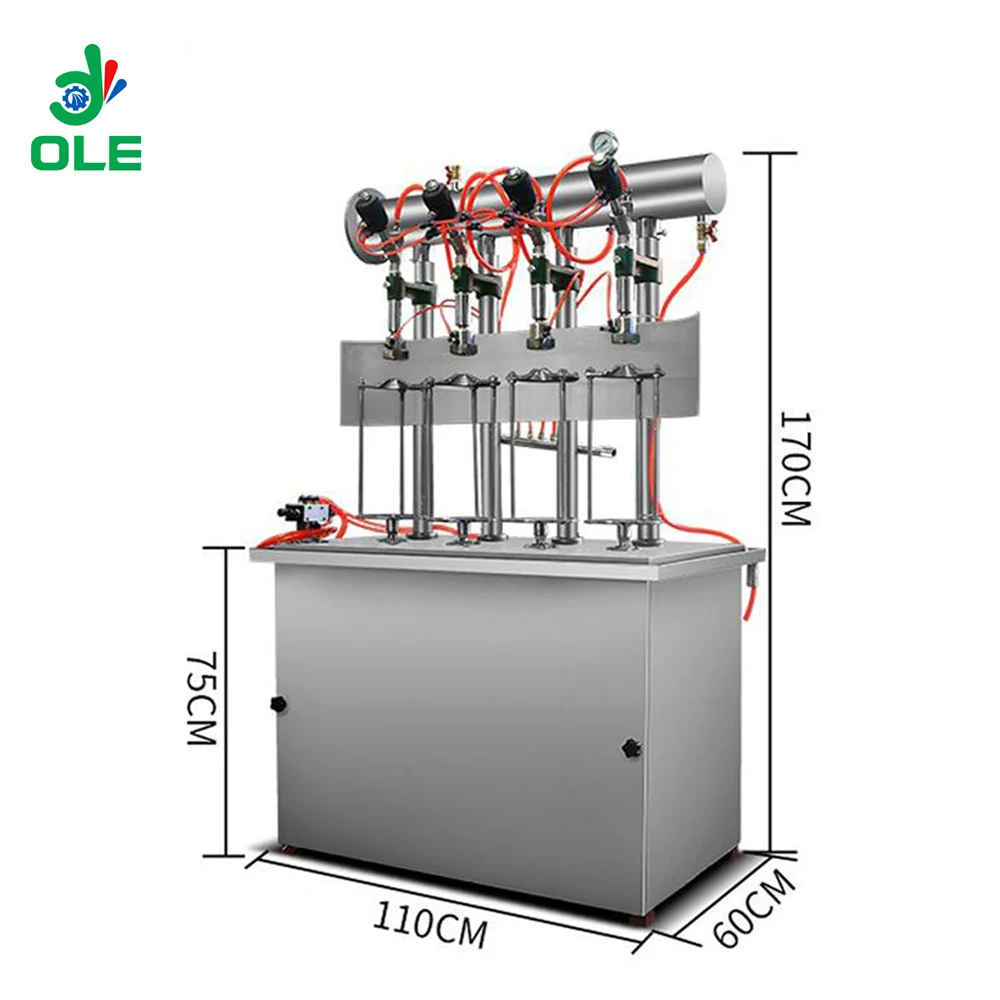

Dimension
110*60*170cm
Bottle Height
90-320mm
Bottle Diameter
10-30mm
weight
60kg
capacity
1200B/H
power
0.75Kw


Details Images




1. Adjust the volume of each bottle, you can fill in batches, 4 filling heads, can fill 1200 bottles of liquid material per hour, large output, high efficiency, save manpower
2. Adopt high-precision pneumatic solenoid valve, with accurate quantitative, high precision, no dripping, safe and hygienic. Pneumatic operation is simple and easy to use.
3. This machine can be used for bottle filling with bottle height of 90-320mm and bottleneck of 10-30mm. It is not limited by the bottleneck and can be filled for various bottles.
4. All parts in contact with the filling machine are made of food-grade 304 stainless steel or environmentally friendly polypropylene materials to ensure that the filling liquid is not contaminated and meets food hygiene standards.
