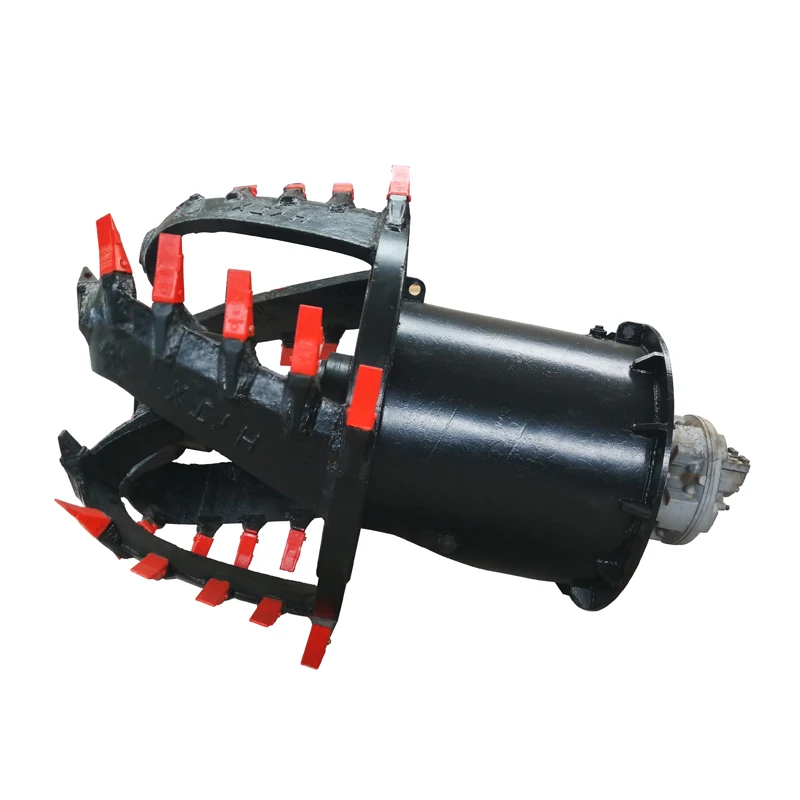

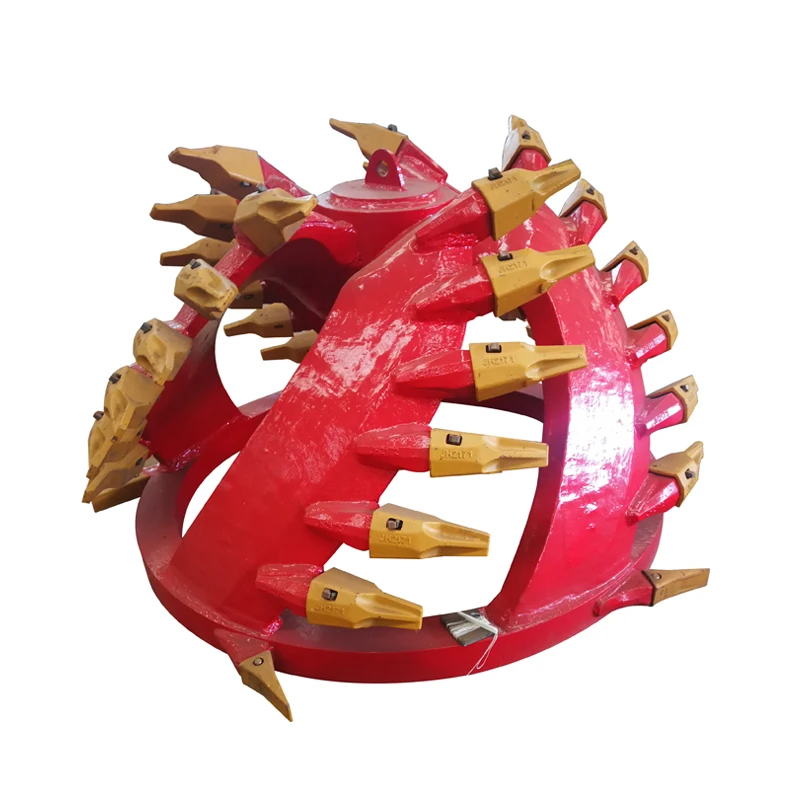

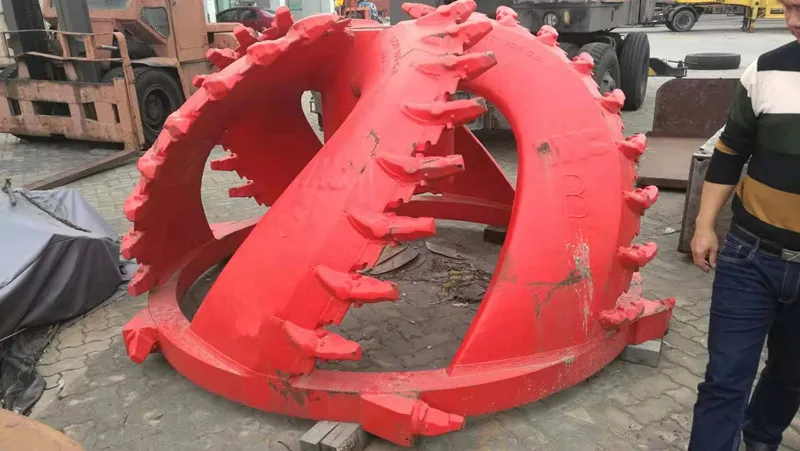

Ready stock Hydraulic Suction Dredger Cutter Head for Bangladesh customers
- Category: >>>
- Supplier: Qingzhou Best Environmental Protection Equipment Co. Ltd.
Share on (1600316632922):
Product Overview
Description
Products Description
Dredge Cutter Head Application

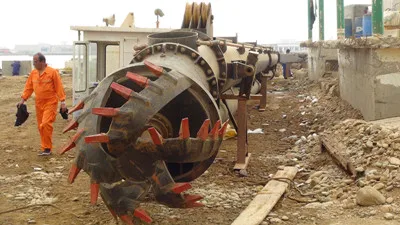

The Cutter head is equipped at the forefront of the cutter suction dredger. Since the dredging process starts with excavation and slurry creation, a cutter suction dredger's performance is mainly defined by its cutter head.According to the usage and working environment, the cutter head can be divided into Multi-purpose Cutter head, Loose-sand Cutter head, Light-duty Rock Cutter head, Cutter head with cutting edges and other customized cutter heads, etc.

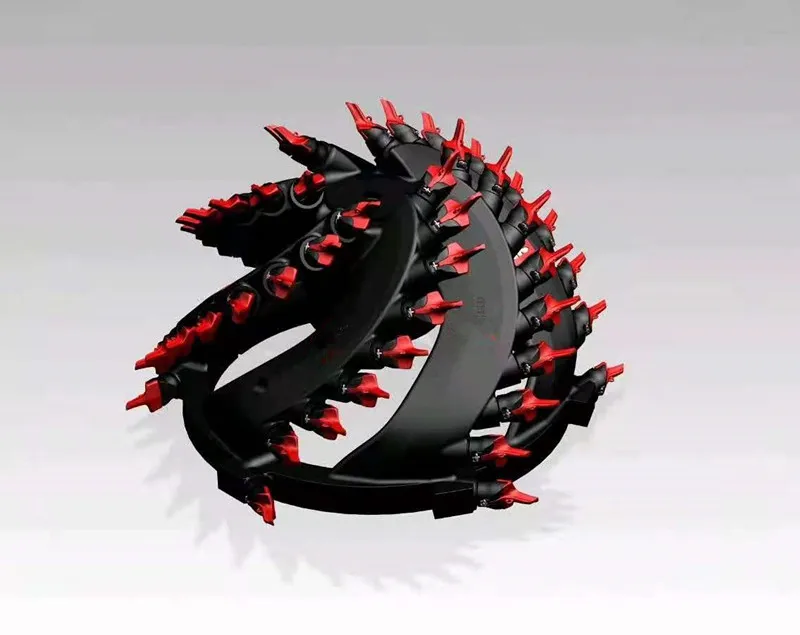

The Multi-purpose cutter head is most commonly used cutter head for the cutter suction dredger because of its replaceable tooth system. And it can be equipped with pick points, narrow or flared chisels, depending on the soil encountered in the specific area. The replaceable tooth system is designed for easily changing the teeth after they have worn out, using a simple yet effective locking system. The size of the teeth depend on the size of the cutter head.
Main feature of sand dredger cutter
1.Number of blade:5 or 6
2.various types of cutter heads and easily replaceable tooth
3.Refined tooth and cutting edge design
4.Exceptional wear resistance, simplified maintenance and low spill
5. Low cost for productivity
6.Cutter shaft, bearing and others can be optional
7.Products can be customized
2.various types of cutter heads and easily replaceable tooth
3.Refined tooth and cutting edge design
4.Exceptional wear resistance, simplified maintenance and low spill
5. Low cost for productivity
6.Cutter shaft, bearing and others can be optional
7.Products can be customized
PRODUCT SPECIFICATIONS
Parameter for dredge cutter head | ||||||||||||||
Model | CSD150 | CSD250 | CSD300 | CSD450 | CSD500 | CSD600 | CSD650 | |||||||
Cutter Dia. (mm) | 1000 | 1000 | 1300 | 1500 | 1700 | 2050 | 2150 | |||||||
Motor power (KW) | 30KW | 30KW | 50KW | 80KW | 170KW | 300KW | 450KW | |||||||
Motor Qty. (pc) | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||
Displacement (ml) | 3960 | 3960 | 10170 | 11870 | 21490 | 42000 | 42000 | |||||||
Speed in RPM | 30 | 30 | 10/20/30 | 10/20/30 | 10/20/30 | 10/20/30 | 10/20/30 | |||||||
Torque (KN.M) | 9.5 | 9.5 | 22 | 25 | 50 | 96 | 143 | |||||||
Cutting force (N) | 700 | 700 | 1500 | 1600 | 2700 | 4100 | 4100 | |||||||
Cutting speed (m/s) | 1.6 | 1.6 | 2.0 | 2.4 | 2.7 | 3.2 | 3.2 | |||||||
Working pressure (Mpa) | 16 | 16 | 16 | 16 | 16 | 16 | 16 | |||||||
Cutter teeth Qty. | 25 | 25 | 25 | 30 | 35 | 40 | 40 | |||||||
Cutter teeth material | ZGMn13 | ZGMn13 | ZGMn13 | ZGMn13 | ZGMn13 | ZGMn13 | ZGMn13 | |||||||
Cutter blade Qty. | 5 | 5 | 5 | 5 | 5 | 5 | 5 | |||||||
Cutter blade material | ZG35SiMn | ZG35SiMn | ZG35SiMn | ZG35SiMn | ZG35SiMn | ZG35SiMn | ZG35SiMn | |||||||
PRODUCT CONFIGURATION
Refined tooth and cutting edge design
Low cost for productivity
Exceptional wear resistance, cutter teeth and blade are made of wear-resistant materials
Successful Project
Dredging project in Nigeria
Dredging project in UAE
Dredging project in Indonesia
Dredging project in India
Dredging project in Bangladesh
Dredging project in Argentina
Similar Products
Sand dredge cutter ladder
Cutter suction dredger with submersible pump
Multi-function service work boat
Jet suction dredger
Cutter suction dredger with anchor boom
Cutter suction dredger
Company Profile
Qingzhou Best Environmental Protection Machinery Co., Ltd. is a professional manufacturer, over 20 years development, company covers the products are of a great variety including 500-20000m³/h large scale dredging and sand mining equipments, gold panning ship，sand transport ship, multifunctional service work boat, iron extraction equipment, sand screening machine, crusher, magnetic separator, sand washing machine and so on, more than 80 specifications for customer choice. We can also design and produce special types of machinery according to customer’s requirement. Widely used in sand-excavating, river dredging, channel maintenance and broaden, desilting, blow fields stretched, port construction, etc., It formed the complete ship machinery industry chain.
Our company have been through ISO 9001 Quality System Certification and CE Certification .The design, construction, quality inspection is according with the standards and regulations of CCS.
Our company have been through ISO 9001 Quality System Certification and CE Certification .The design, construction, quality inspection is according with the standards and regulations of CCS.
Why to choose us? Where is our advantage？
Best dredger is a professional factory to manufacture dredger.
Best dredger has 30 years of production experience.
Best dredger has exported more than 30 countries.
Best dredger will be fully tested before delivery.
Best dredger has passed marine ship quality control certificate.
Best dredger can be customized according to customer requirements.

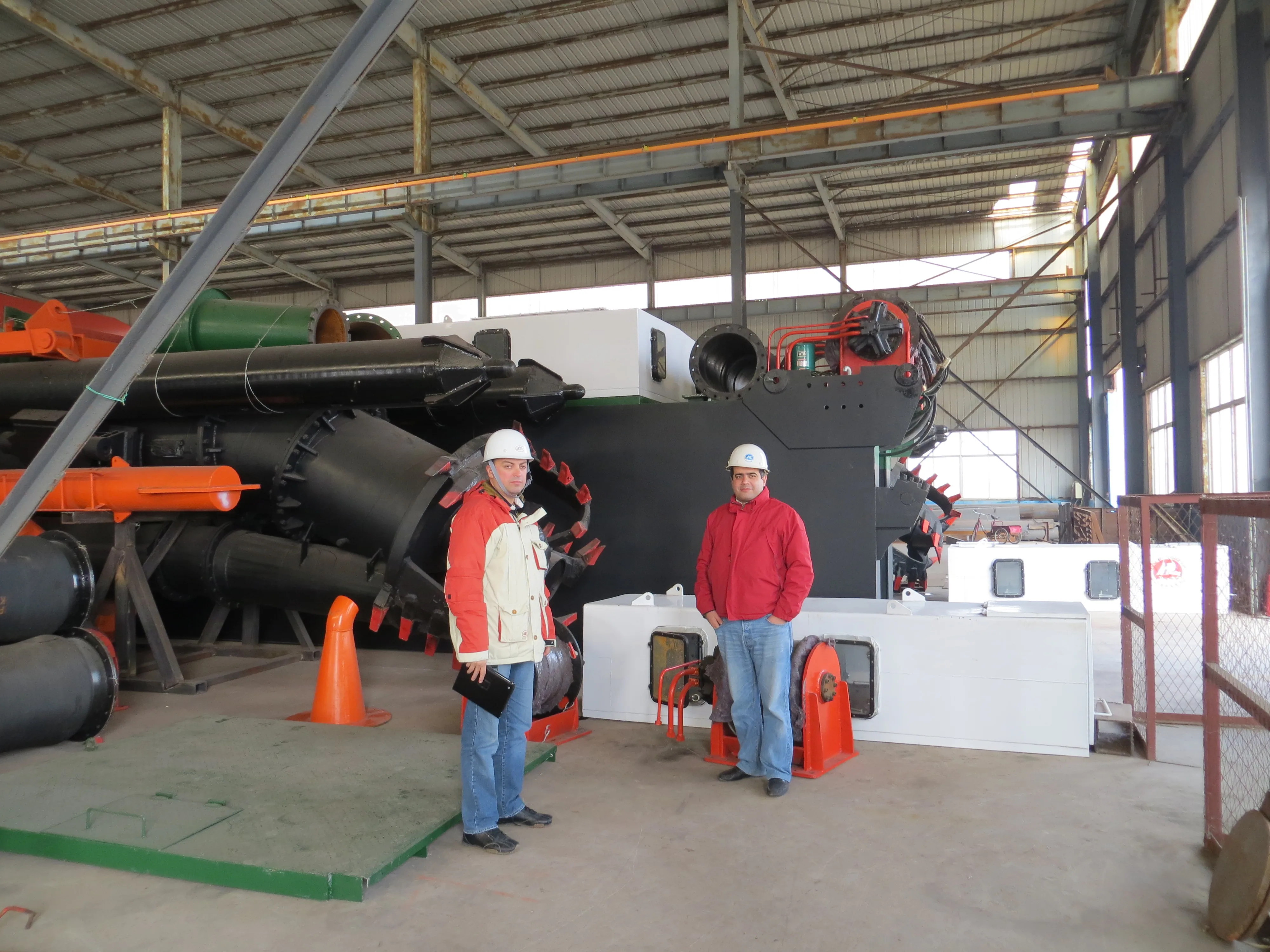

Workshop photo

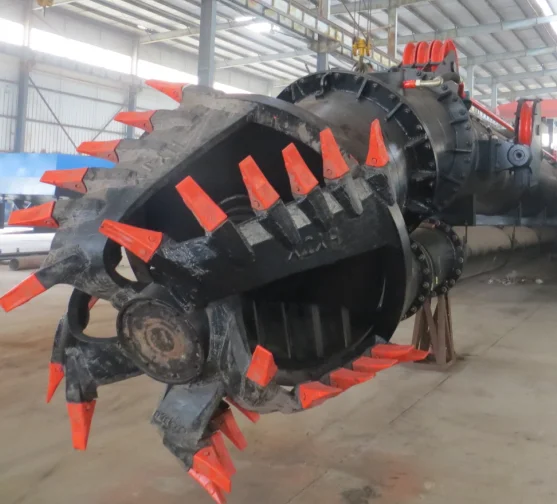

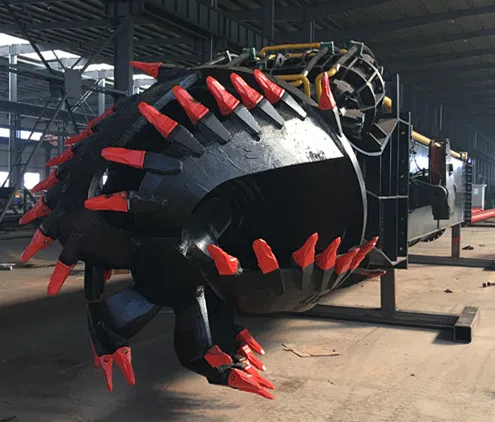

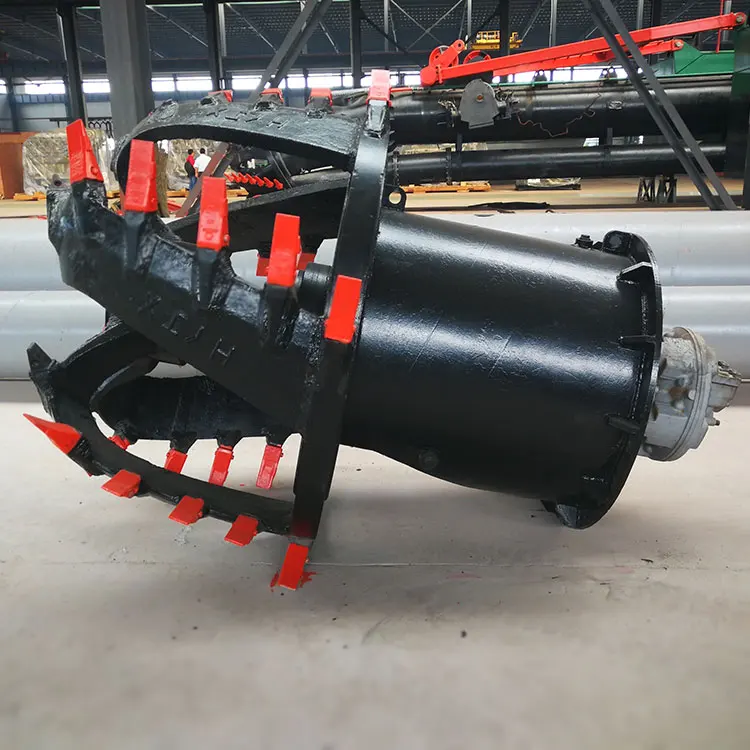

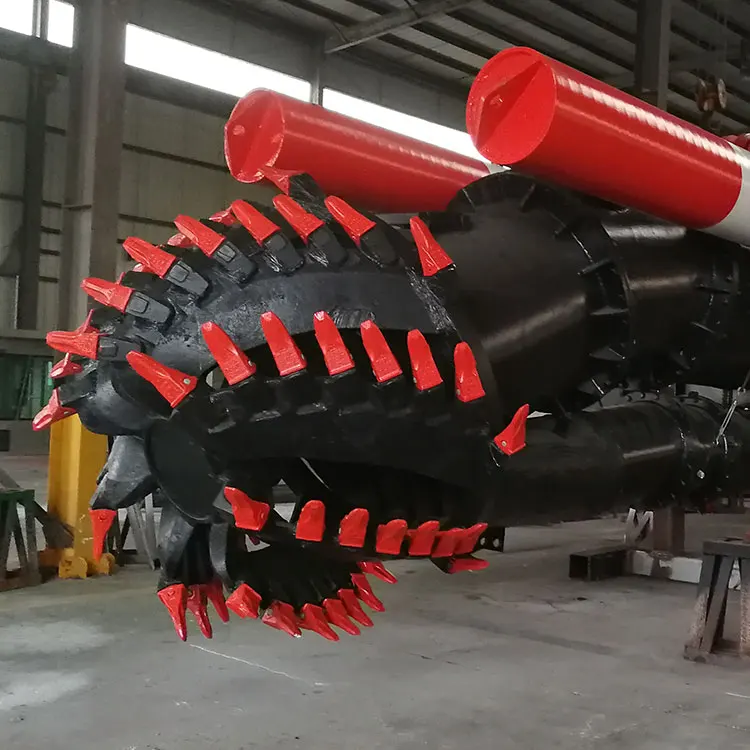

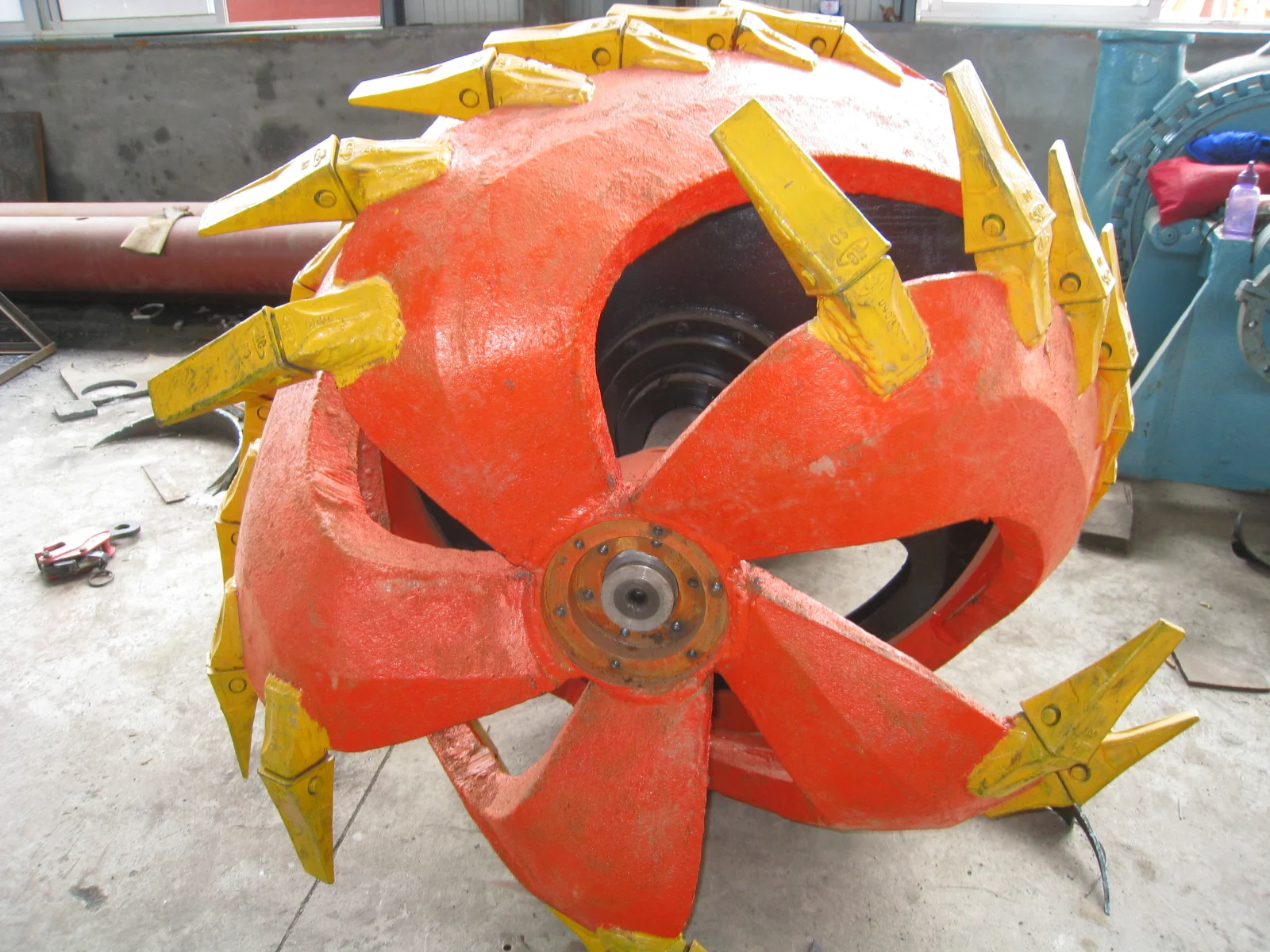

Dredger cutter head in workshop
Dredger cutter head in workshop
Dredger cutter head in workshop
Dredger cutter head in workshop
Dredger cutter head in workshop
Dredger cutter head in workshop
Our service
Pre-Sales Service
Receive client’s inquiry
Introduce dredging machine to clients
Visit and study clients mining conditions
Propose the most suitable solution
Recommend and design reasonable dredger type to clients
Receive client’s inquiry
Introduce dredging machine to clients
Visit and study clients mining conditions
Propose the most suitable solution
Recommend and design reasonable dredger type to clients
After-Sales Service
Inspection and testing before delivery
Engineers installation and training service
Supply all relevant drawings to clients
Timely supply of required accessories
Core equipments have office all over the world
Inspection and testing before delivery
Engineers installation and training service
Supply all relevant drawings to clients
Timely supply of required accessories
Core equipments have office all over the world
Product packaging and shipment
Cutter with ladder separate package in factory
Cutter head can be shipped separately or with the dredger.

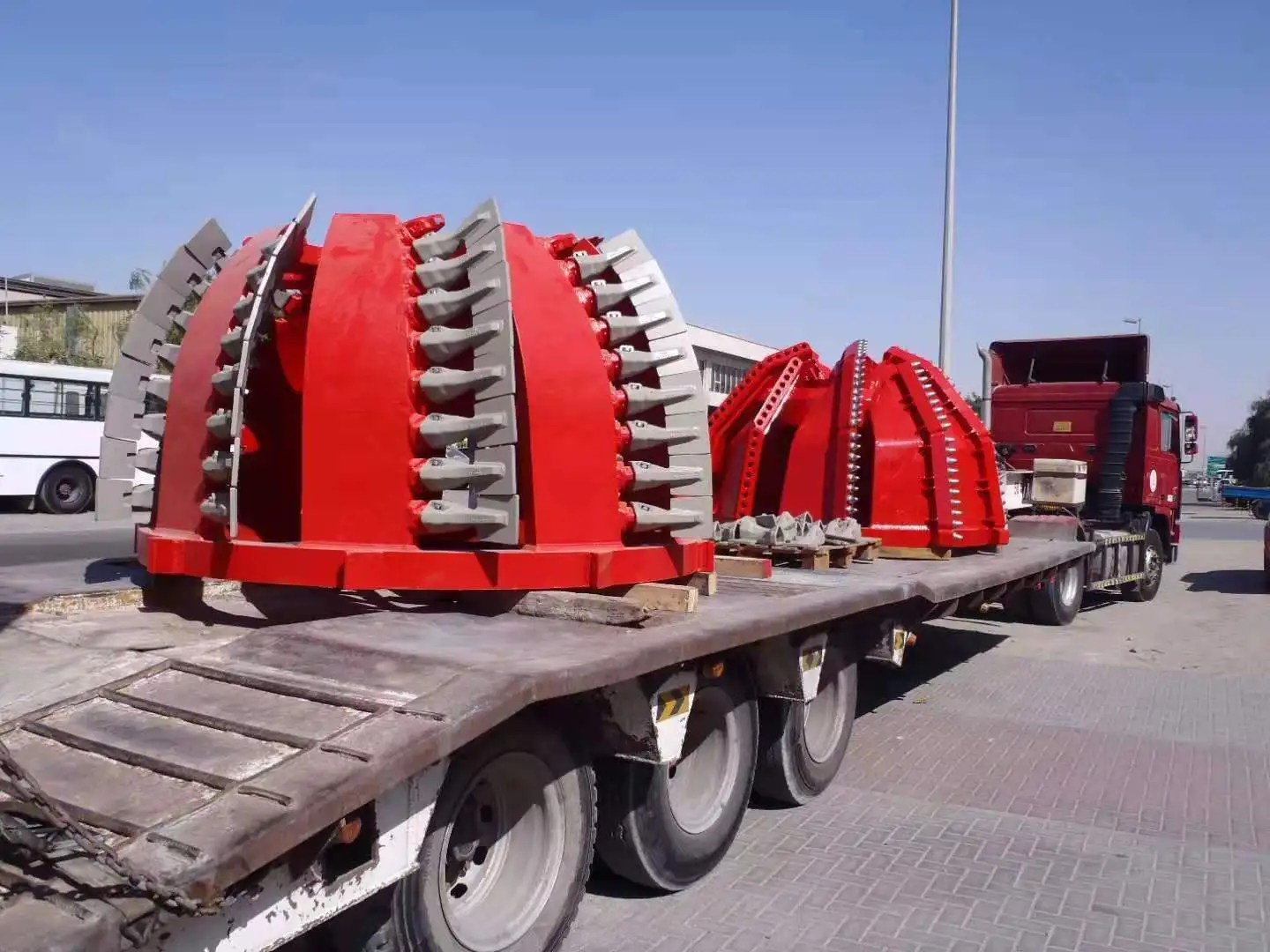

From factory to port can be transported by truck.
Cutter shipped by container or in bulk.

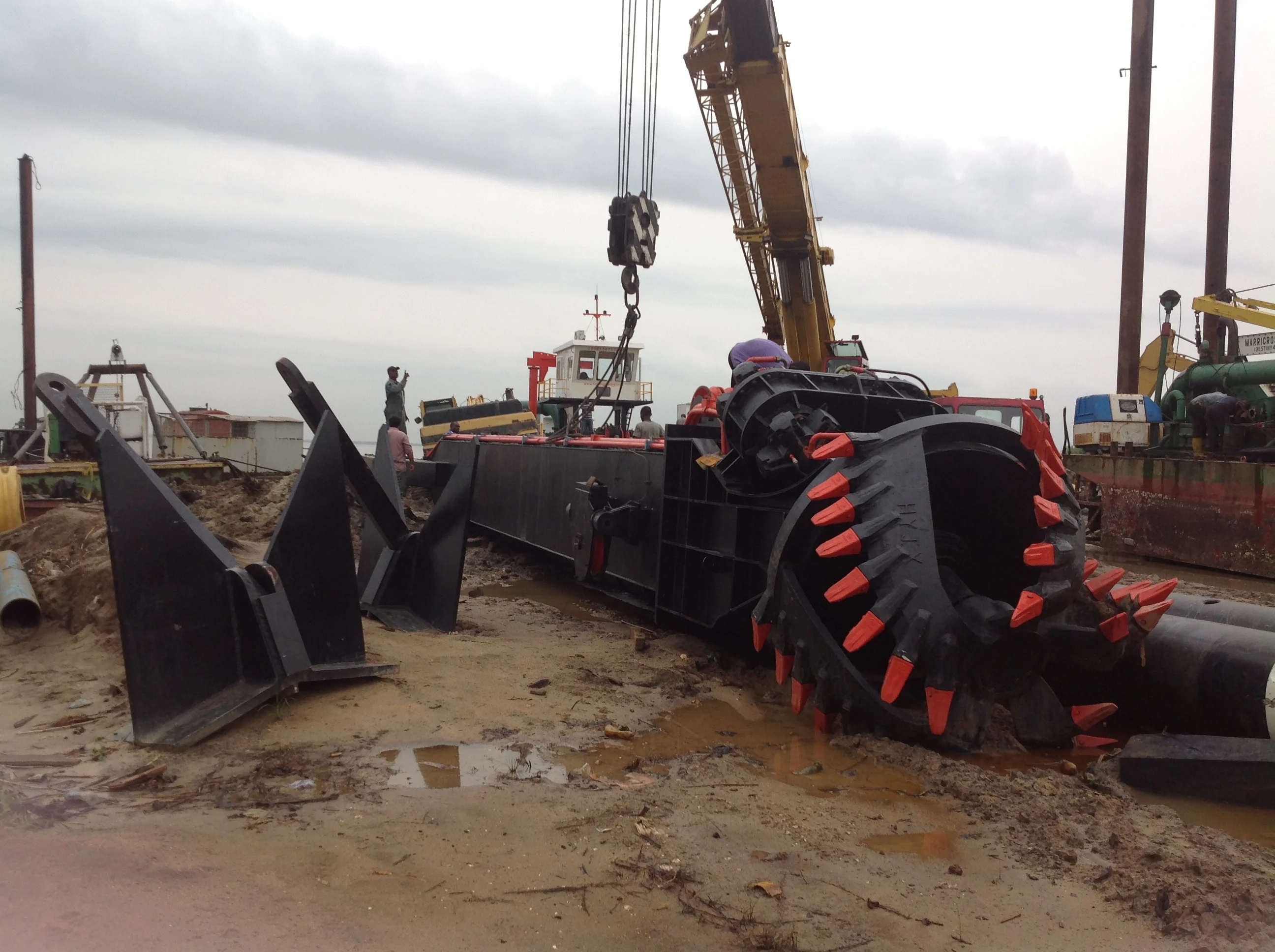

Cutter is loaded onto the ship at the port .
Cutter is loaded onto the ship at the port.
FAQ
Q1: What's the payment method?
We can accept T/T, L/C, WESTERN UNION and so on.
Q2: What about the delivery?
We have cutter and spare parts in stock, can finish manufacture in short time.
Q3: What's the warranty?
We provide one-year warranty period, free maintenance and repair if any quality problem.
Q4: Do you have after-sales service?
Yes.
Free installing and training operation and maintenance of dredger, including cutter.
Free repair if have any quality problems during working.
Lifetime service for dredger, including cutter.
Q5: How will the cutter be transported to the customer's country?
They can be transported by sea in containers or in bulk, can with dredger to ship, can be shipped separately.
We can accept T/T, L/C, WESTERN UNION and so on.
Q2: What about the delivery?
We have cutter and spare parts in stock, can finish manufacture in short time.
Q3: What's the warranty?
We provide one-year warranty period, free maintenance and repair if any quality problem.
Q4: Do you have after-sales service?
Yes.
Free installing and training operation and maintenance of dredger, including cutter.
Free repair if have any quality problems during working.
Lifetime service for dredger, including cutter.
Q5: How will the cutter be transported to the customer's country?
They can be transported by sea in containers or in bulk, can with dredger to ship, can be shipped separately.
