Product Overview
Description
Product Description
Production Application:

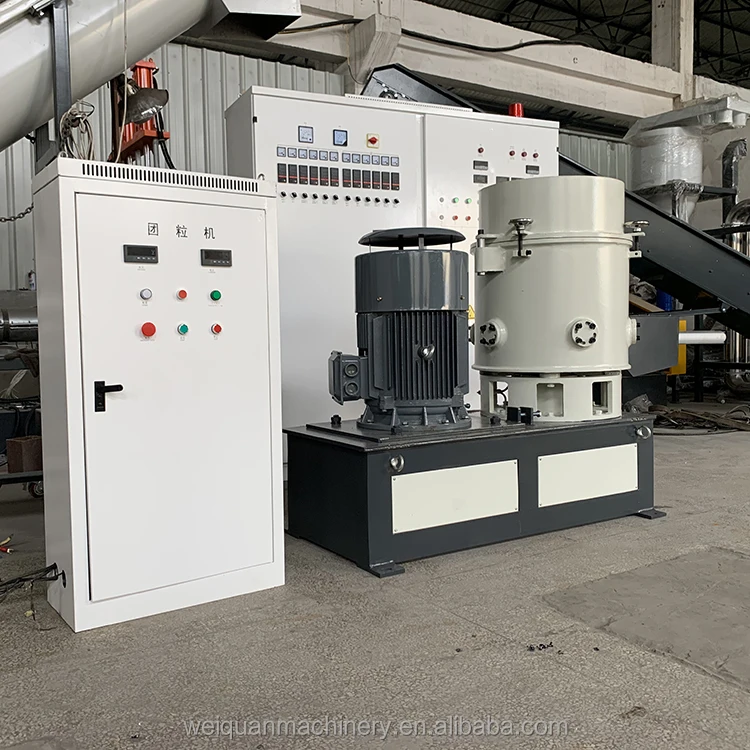

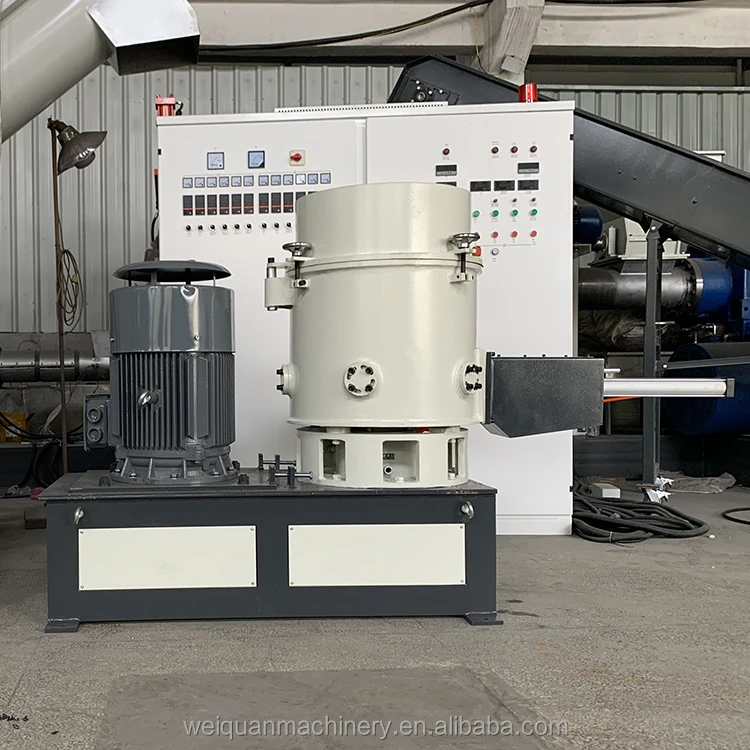

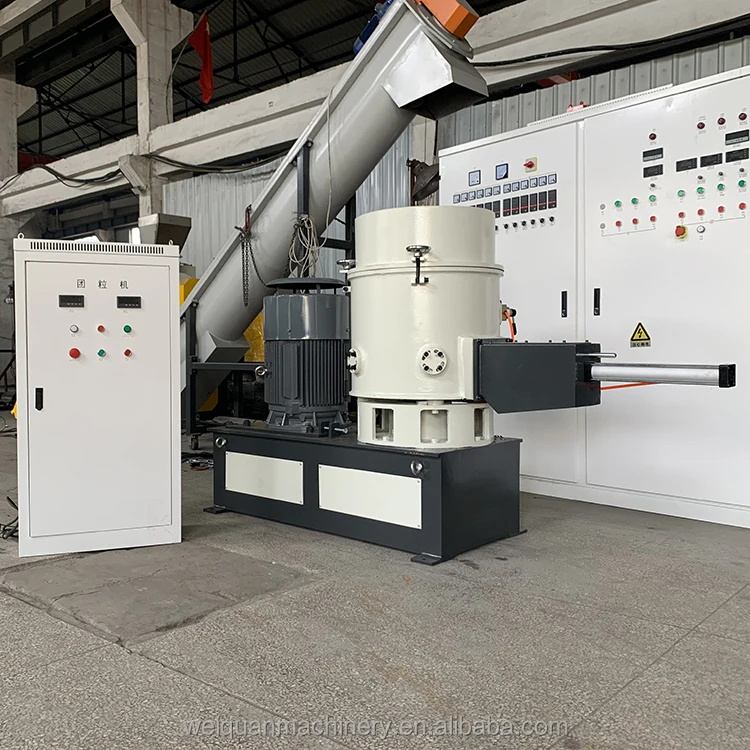

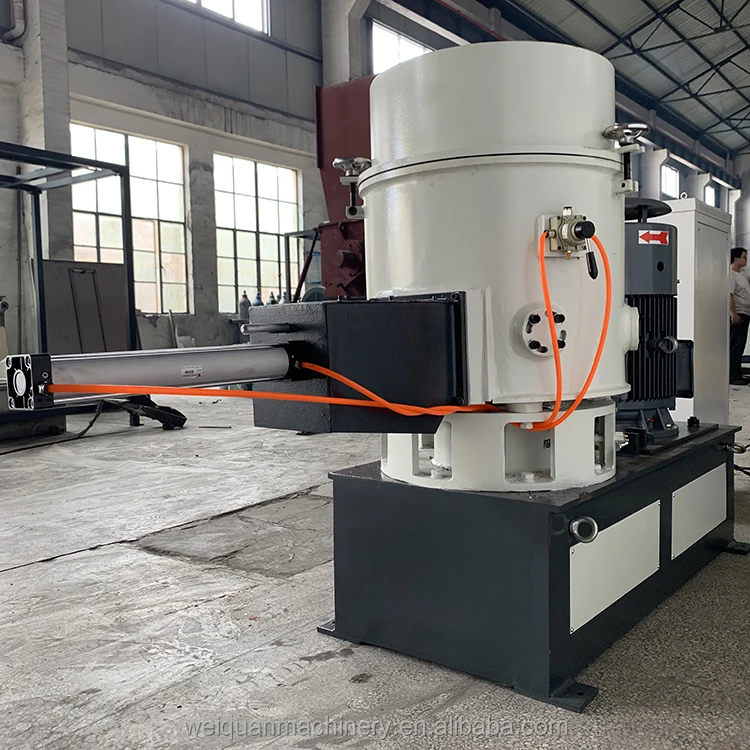

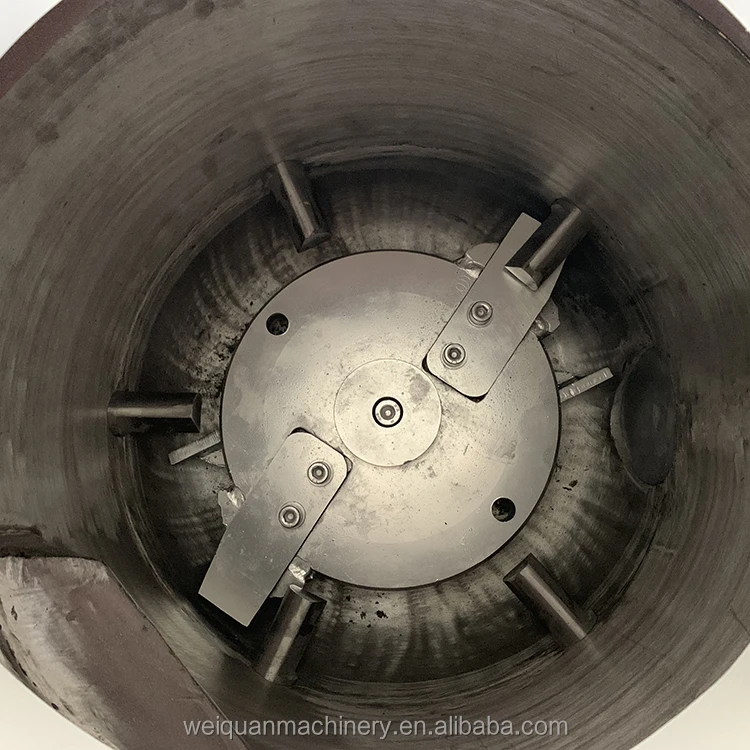

Plastic Agglomerator can directly recycle the waste plastic films and other products less than 2 mm wall thickness into granules, like films made of soft PVC, HDPE, LDPE, PP and other thermo plastics. When the waste plastic is put into the chamber, it will be cut into smaller chips due to the crushing function of the rotating knife and fixed knife.
During the crushing processing, the material that soaked up lots heat from the frictional movement of material being crushing and the material will be going to become semi-plasticizing state.
Before it sticks each other completely, the cold water pre-prepared is sprayed into the material being crushed. So the material being crushed will become small particles or granules.
During the crushing processing, the material that soaked up lots heat from the frictional movement of material being crushing and the material will be going to become semi-plasticizing state.
Before it sticks each other completely, the cold water pre-prepared is sprayed into the material being crushed. So the material being crushed will become small particles or granules.
Features:
1. Strong design of double-bearing for holding the main shaft
2. High performance blades
3. Temperature control
4. Water flushing automatically
5. Motor power from 18.5kw to 160kw
6. Processing capacity from 50kg/h to 800kg/h
| Model | GHL-100 | GHL-200 | GHL-300 | GHL-500 | GHL-600 | GHL-800 |
| Volume(L) | 100 | 200 | 300 | 500 | 600 | 800 |
| Effective Volume(L) | 75 | 150 | 225 | 375 | 450 | 600 |
| Rotary Speed(RPM) | 1050 | 1000 | 950 | 750 | 750 | 750 |
| Capacity(KG/H) | 100-150 | 150-200 | 200-350 | 300-400 | 350-500 | 400-650 |
| Main Motor(KW) | 37 | 45 | 75 | 90 | 110 | 132 |
| Dimension(M) | 1.7*0.75*1.5 | 1.7*0.85*1.5 | 2*0.85*1.6 | 2.3*0.95*1.7 | 2.3*1.1*1.75 | 2.5*1.25*1.8 |
| Weight(KG) | 1000 | 1200 | 1800 | 2500 | 2700 | 3000 |
| Qty. of Rotary Blades | 2 | 2 | 2 | 4 | 4 | 4 |
| Qty. of Fixed Blades | 6 | 6 | 8 | 8 | 8 | 8 |
| Blades Material | 9CrSi | |||||
| Tank Material | Stainless Steel | |||||
| Discharging Mode | Pneumatic Control | |||||
Company Profile
Zhangjiagang WeiQuan Machinery Co., Ltd. is located in the Zhangjiagang City, which in the Shanghai economic circle. Our company specializes producing plastic recycling and extrusion machinery.
The recycling part includes but is not limited to PE/PP/PET waste plastic crushing, washing and granulating machines, and also auxiliary machines.
The extrusion part includes but is not limited to PVC/PE/PPR pipe machine, PVC/PE/WPC profile machine and also auxiliary machines.
We have our own R&D team and factory. All equipment is constantly updated to meet customer requirements. The equipment is exported to more than 100 countries and regions overseas and is well received by users. We uphold all the tenet of setting up factories based on the interests of customers, treat people honestly, make machines seriously, serve every customer with heart, support customers' various tasks, and achieve a win-win situation is our ultimate goal.
Exhibition
Package & Shipment
FAQ
Q1: Are you a factory or trading company?
A1: We are a factory and can provide customized services.
Q2: What services will you provide?
A2:
We will provide all the machines for the complete production according to customer's requirements.
We will provide complete service for factory layout and other information to help customer to build the factory.
We will provide good service for machine installation and training, until the customers can run the machines and make stably production.
Except one year quality guarantee, we will provide after-sell service for all the life.
Q3: What can i buy from you?
A3: Plastic crusher, Plastic Washing Recycling Line, Plastic Pelletizing Recycling Line, Pet Bottle Recycling Line, Plastic Squeezing Machine, Plastic Pipe/ Profile Extrusion Line...etc. We are a factory and can provide customized services.
Q4: Why should i buy from you not from other suppliers?
A4: We have more than 10 years experience in fabricating the machine, we can fabricating the machine according to customer request.
Q5: What basic terms can you accept?
A5: Accepted Delivery Terms: FOB,CFR,CIF,EXW;
Accepted Payment Currency: USD,EUR,CNY;
Accepted Payment Type: T/T,L/C.
