Factory Price IP68 Waterproof M G PG NPT Thread Multi Conductor Holes Nylon Cable Gland
- Category: >>>
- Supplier: Jiaxing Shengyang Electric Co. Ltd
Share on (1600316699817):
Product Overview
Description

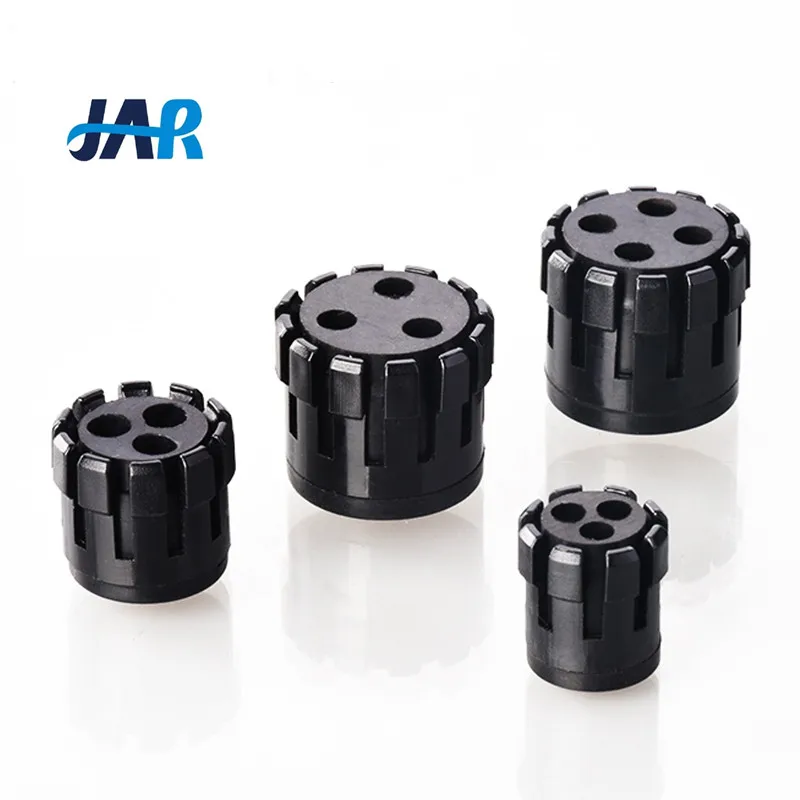

SY IP68 Nylon M G PG NPT Thread Multi Conductor Holes Cable Gland
Product Description
1. Thread specifications: G Thread (M PG NPT Available)

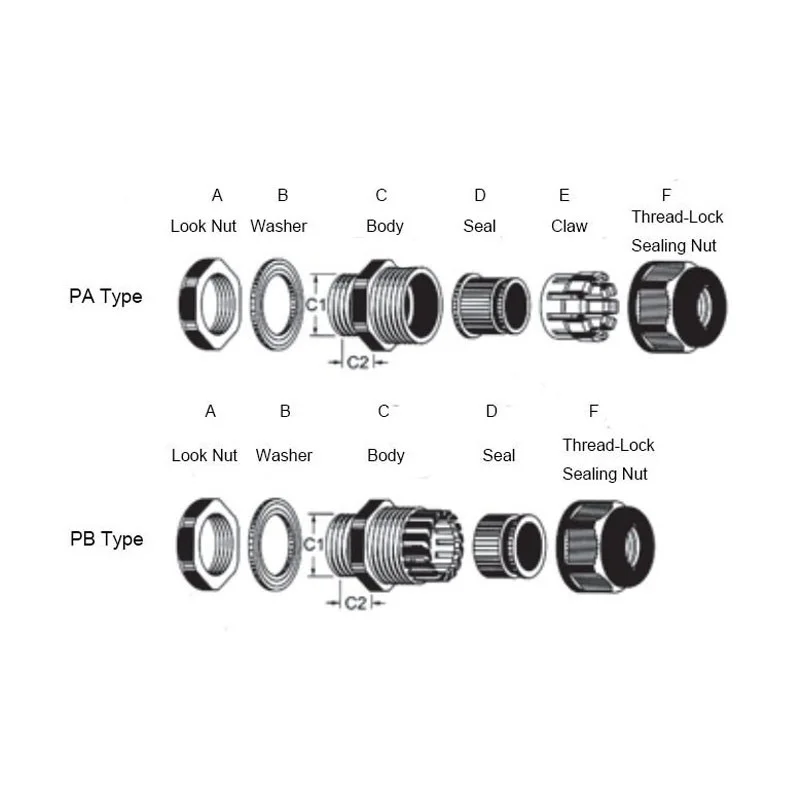

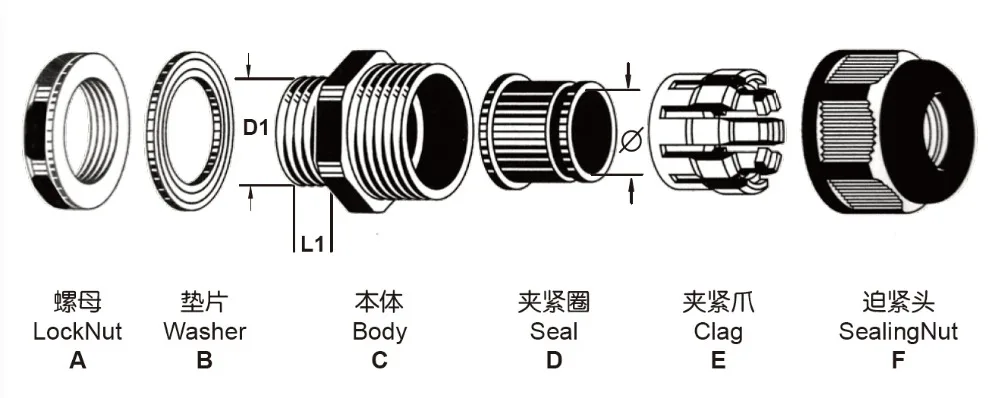

2. Product material: A C F part adopts UL certified Nylon 66, B&D part adopts the EPDM rubber (NBR)
3. Protection Level : Within the scope of the provisions of card buckle, and use of type O sealing screw tight tight head, achieve IP68-5 bar.
4. Product certification: European CE certificate,European environmental SGS certificate,The United States UL certification, and explosion-proof certification of the EX.
5. Fire rating: Part D UL94V - 2, low smoke zero halogen.
6. Product features: Special clamping claw, and the design of the clamping ring is concave and convex clasped with forced tight head assembly time-savers, cable clamping range is big, strong tensile resistance, can waterproof, dustproof, salt resistance, resistance to acid and alkali, alcohol, grease and common solvent.

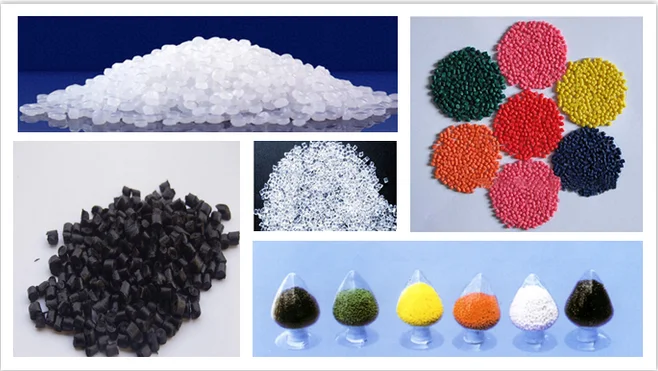

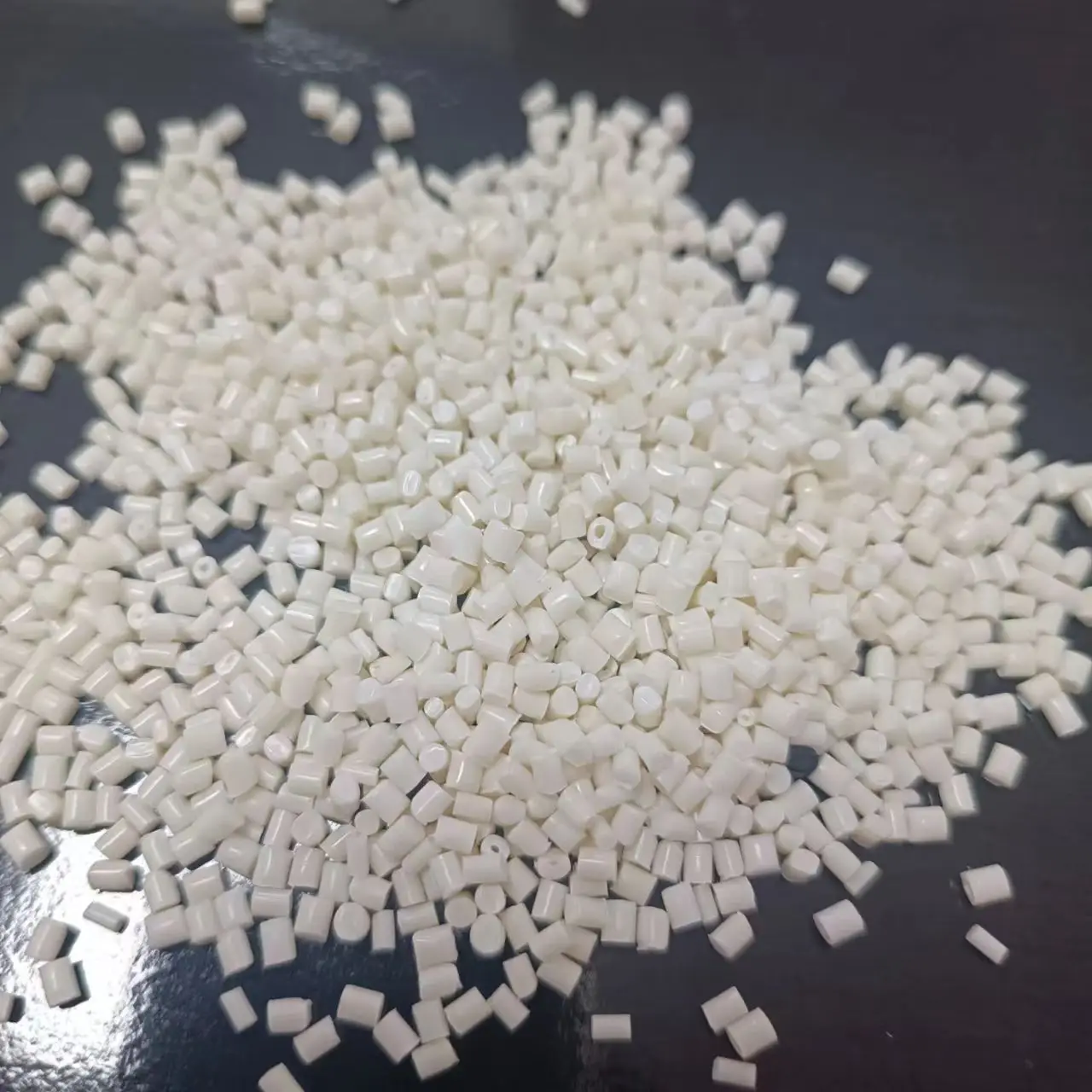

Best Importer Raw Material: Netherlands Nylon PA66
Applications of Nylon flexible cable gland

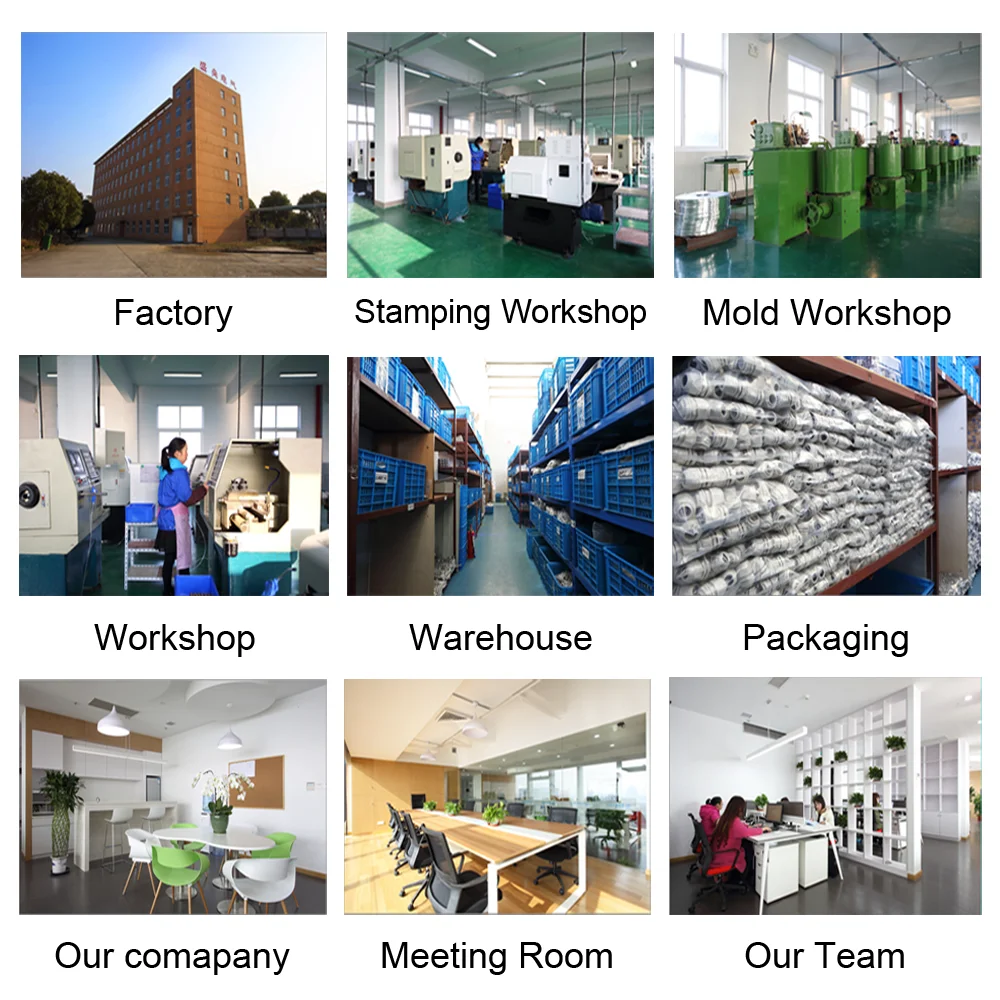

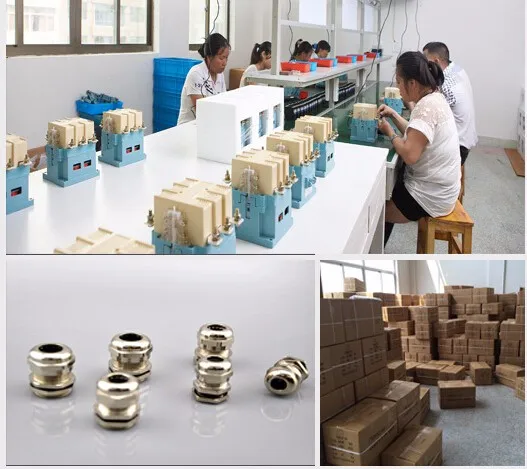

Production Line

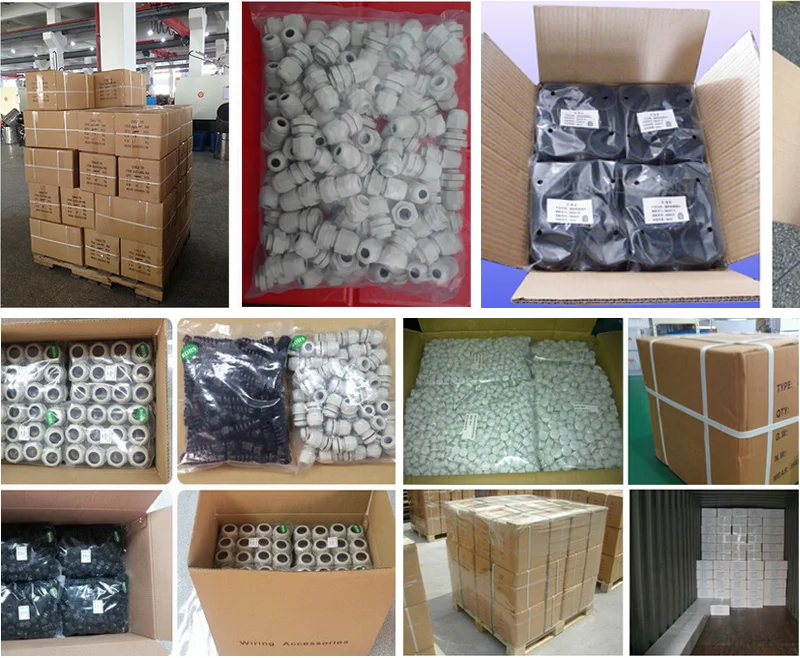

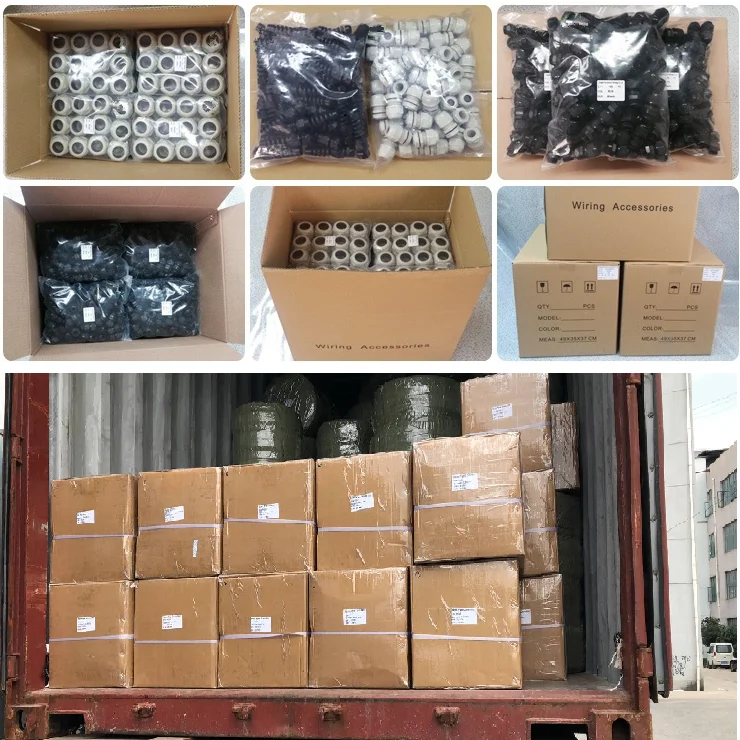

Packaging of Nylon flexible cable gland

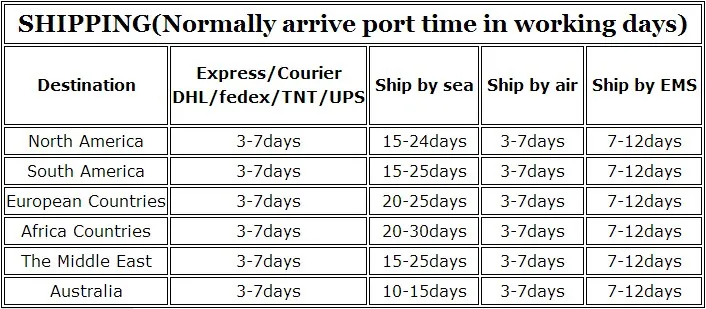

Delivery and Payment Way
Detailed Images
Specifications of Nylon flexible cable glands
| flexible cable glands Feature: | Multi Hole Cable Gland |
| HS Code Number: | 8547200000 |
| Materials of Cable Gland: | Nylon PA66 for A.C.E.F Parts, EPDM Rubber for B.D Parts |
| Product Advantage: | More Waterproof More Dustproof and Good Sealing |
| Cable Glands MOQ: | We have NO MOQ ! |
| Company Advantage: | We are factory, We can provide Factory Price ! |
| Protection Level: | IP68 Protection Level |
| Standard Thread: | Metric PG G NPT Thread |
| Payment Item: | 30% deposit, 70% balance payment against for large quantity |
Unit: mm
| Iterm No. | Order No. | Cable Diameter | Thread Diameter | Length of thread | Spanner Diameter | Packaging | |
G (PF) | 1/4 | G1/4-05 | 3~5.5 | 13.15 | 8 | 19/15 | 50 |
| G1/4-07 | 4~7 | 13.15 | 8 | 19/15 | 50 | ||
| 3/8 | G3/8-07 | 4~7 | 16.66 | 10 | 22/22 | 50 | |
| G3/8-10 | 6.4~10 | 16.66 | 10 | 22/22 | 50 | ||
| 1/2 | G1/2-08 | 4~8 | 20.95 | 10 | 27/24 | 50 | |
| G1/2-12 | 7~12.5 | 20.95 | 10 | 27/24 | 50 | ||
| 3/4 | G3/4-12 | 8~12 | 26.44 | 15 | 33/33 | 50 | |
| G3/4-18 | 14~18 | 26.44 | 15 | 33/33 | 50 | ||
| 1 | G1-12 | 9~12 | 33.25 | 15 | 42/42 | 10 | |
| G1-25 | 18~25 | 33.25 | 15 | 42/42 | 10 | ||
| G1 1/4 | G1 1/4-25 | 21~26.5 | 41.91 | 15 | 53/52 | 10 | |
| G1 1/4-30 | 24~31 | 41.91 | 15 | 53/52 | 10 | ||
| G1 1/2 | G1 1/2-25 | 21~26 | 47.8 | 15 | 52/53 | 10 | |
| G1 1/2-32 | 23~32 | 47.8 | 15 | 52~53 | 10 | ||
| G2 | G2-35 | 29~35 | 59.61 | 15 | 64/64 | 10 | |
| G2-44 | 37~44 | 59.61 | 15 | 64/64 | 10 | ||

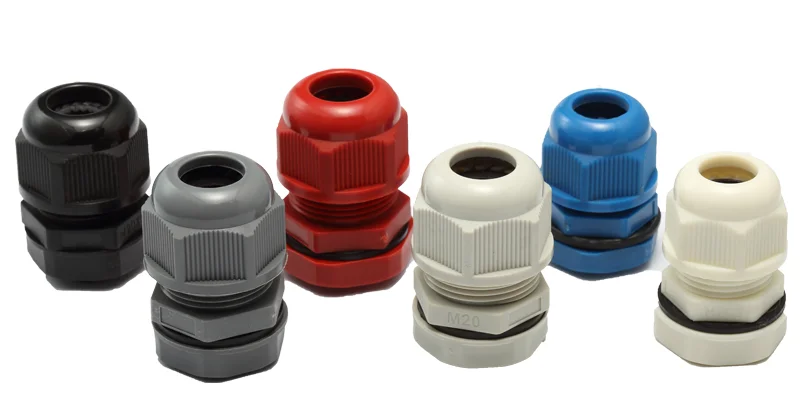

Product Show
Related Products
Company Information
Welcome To Jiaxing Sheng Yang Eletcric Co., Ltd
Our Comprehensive Strength
We are in exhibitions
Certifications

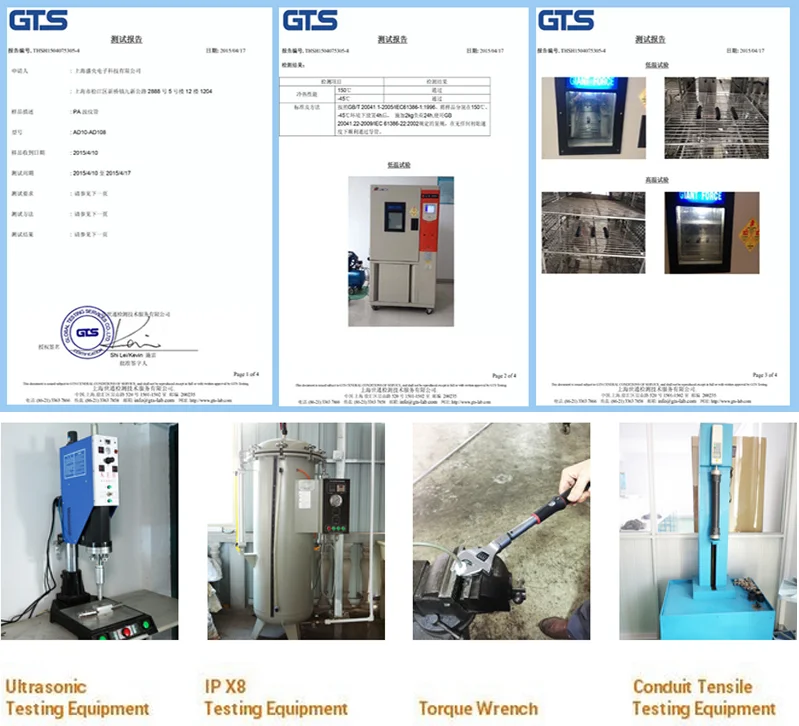

Test Equipments and Certificates
Our Services
1.Online Service and Perfect After-sell Service
24-hour online service, Pls feel free to contact with us.
2.Manufacturer
We are Factory Direct Sales, Ensuring Competitive Price, High Quality and Quick Delivery.
3. OEM/ODM
We have our own Professional Team for more than 10 Years, can make as you require.
4.Payment Term
Usually by T/T, if other terms, welcome to disguss with us.
5.Delivery
Within 5-20 Days after receipt of the deposit.
6.Certificate
ROHS,CE,REACH, IP68,ISO9001,SGS
7.Free sample
We provide samples for Free, and you pay for the express fees.
24-hour online service, Pls feel free to contact with us.
2.Manufacturer
We are Factory Direct Sales, Ensuring Competitive Price, High Quality and Quick Delivery.
3. OEM/ODM
We have our own Professional Team for more than 10 Years, can make as you require.
4.Payment Term
Usually by T/T, if other terms, welcome to disguss with us.
5.Delivery
Within 5-20 Days after receipt of the deposit.
6.Certificate
ROHS,CE,REACH, IP68,ISO9001,SGS
7.Free sample
We provide samples for Free, and you pay for the express fees.
