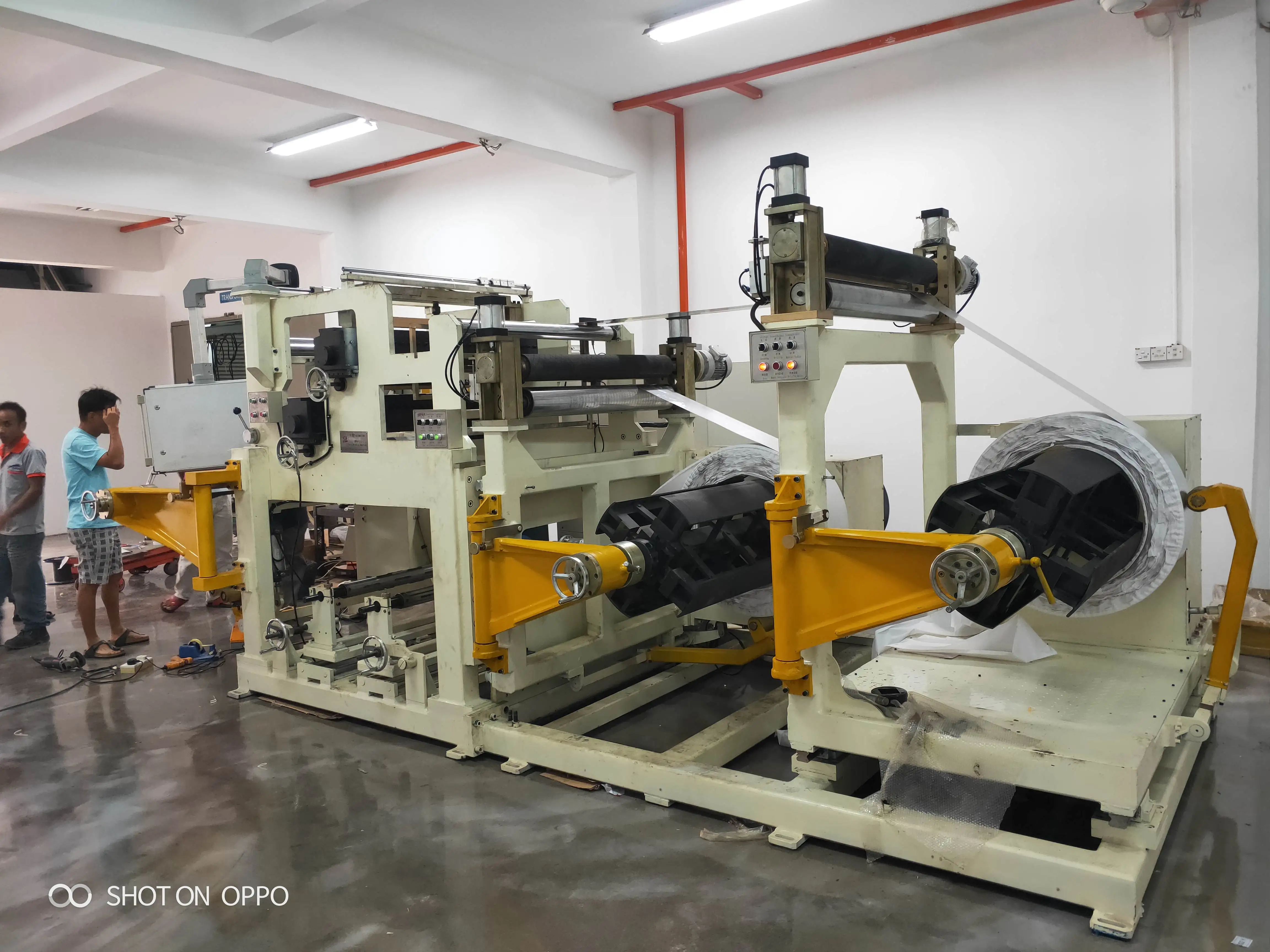

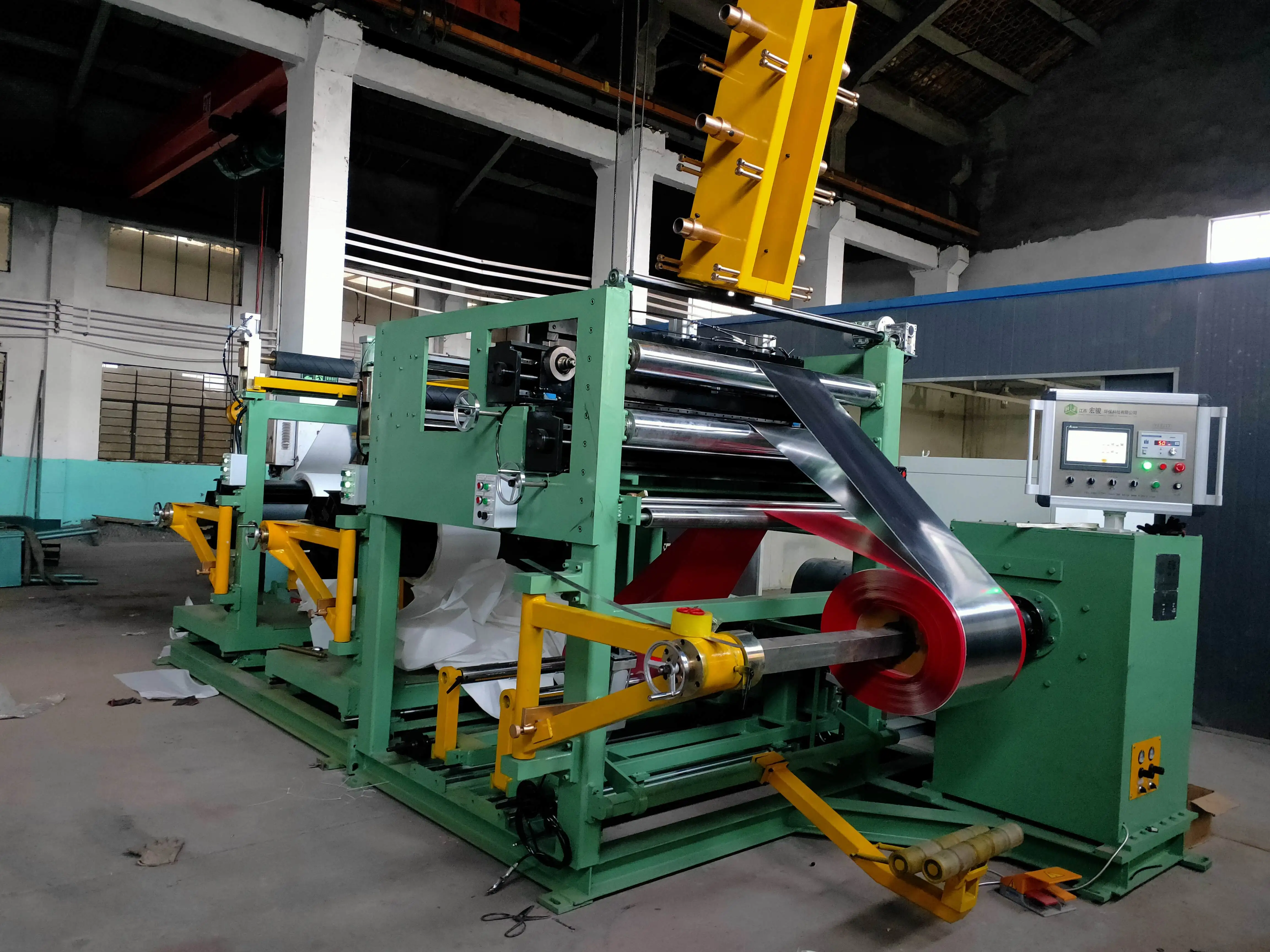

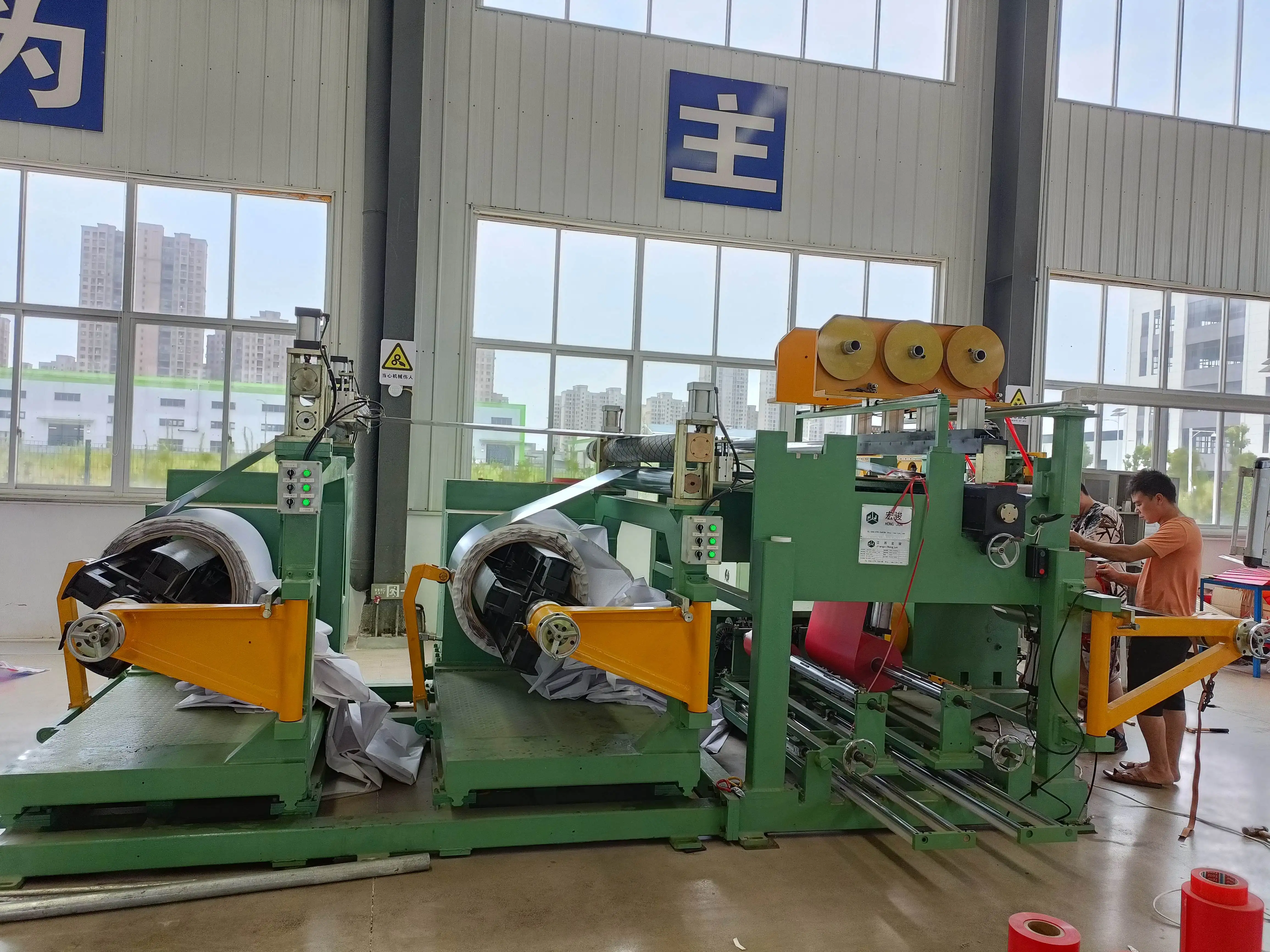

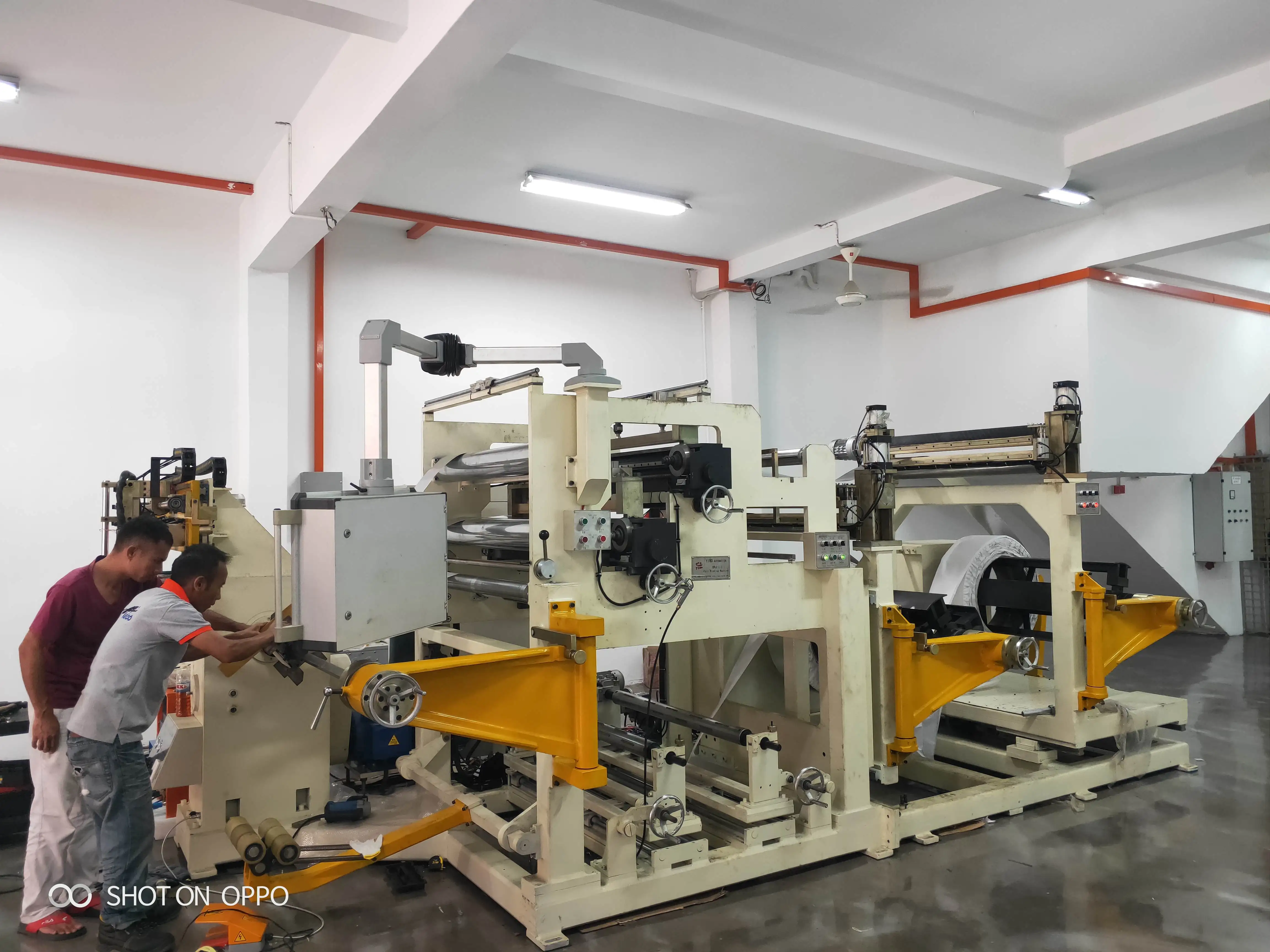

BRJ 1000 2 Automatic Double Layers Copper Strip Winder Foil Winding Machine for Transformer LV Coil Manufacturing
- Category: Foil Winding Machine >>>
- Supplier: Jiangxi Hongjun Environmental Protection Technology Co. Ltd.
Share on (1600316746162):
Product Overview
Description
Production Description
No. | Items | Data |
Model | BRJ-1000-2 | |
1 | Coil processing range | |
1.1 | Coil Width | 1000 mm |
1.2 | coil form | round, rectangle |
2 | Coil material | |
2.1 | Coil material | Cu/Al |
2.2 | foil thickness(mm) | Cu: 0.5~1.8 |
Al :0.5~2.0 | ||
3 | Uncoiler 2 sets | |
3.1 | loading tube length | 1050 |
3.2 | bearing cylinder loading (Max) | 2500kg |
3.3 | expansion force | 10000N |
3.4 | Expanding pressure | 0～0.6Mpa |
3.5 | way of rectifying | automatic |
4 | Winder | |
4.1 | winding speed (stepless speed regulation) | 0～20 r／min |
4.2 | work torque (Max) | 8000N |
4.3 | wind power | 18.5 KW |
4.4 | Dimension of winding axis | 70×70×1470 mm |
4.5 | welding way | TIG |
1.Brief introduction :
BRJ-1000-2 Automatic Low Voltage Dry Type Transformer Making Equipment Foil Winding Machine is used to wind coils made of copper or aluminum foil. This kind of Automatic Transformer Foil Traverse Winding Machine can handle one or two layers of conductor foil and one or two layers of insulation material (such as paper or similar). Bus bars are welded with TIG welding process. The automatic foil edge alignment will make sure that the coil edges are straight and smooth.Programming of this machine is done by means of a touch screen user interface.
2.Main Features：
1）Tension system can avoid the loss , adjust air pressure size, guarantee the stability of the whole process of winding tension.
2）adjusting system adopts photoelectric sensor, through the motor dynamic action, the system of high precision, fast response,can ensure the winding coil end face and tidy.
3）Foil belt tension, insulating layer and the parameters of the coil and winding tension state, such as digital setting and
display, intuitive and accurate.
4）Open book brake motor (linkage), can foil belt tension feedback to winding machine or grid control, brake create tension.The tension is stable and reliable.
5）Because using compressed air to generate tension, the whole machine hydraulic system, the whole machine without
vulnerability consumable, less point of failure, reduce maintenance cost, less mechanical adjustment point, improve production efficiency, low noise, no pollution of hydraulic mechanical friction, environmental protection.
3. Equipment main part：
1.Uncoiling and rectifying device: (1 set)
2. Charging and wool pressing device;(1 set)
3. Cleaning device; (1 set）
4. Deviation correction sensor device;(1 set)
5.Scissors device; 5. (1 set)
6. (insulation layer and winding device: (2 sets）
7. End insulation unwinding device; (3 sets left and 3 sets right)
8. Welding device; (1 set ）
9. Winding device;(1 set）
10. Winding and pressing device;(1 set）
11. Layer insulation unwinding device; (2 sets)
BRJ-1000-2 Automatic Low Voltage Dry Type Transformer Making Equipment Foil Winding Machine is used to wind coils made of copper or aluminum foil. This kind of Automatic Transformer Foil Traverse Winding Machine can handle one or two layers of conductor foil and one or two layers of insulation material (such as paper or similar). Bus bars are welded with TIG welding process. The automatic foil edge alignment will make sure that the coil edges are straight and smooth.Programming of this machine is done by means of a touch screen user interface.
2.Main Features：
1）Tension system can avoid the loss , adjust air pressure size, guarantee the stability of the whole process of winding tension.
2）adjusting system adopts photoelectric sensor, through the motor dynamic action, the system of high precision, fast response,can ensure the winding coil end face and tidy.
3）Foil belt tension, insulating layer and the parameters of the coil and winding tension state, such as digital setting and
display, intuitive and accurate.
4）Open book brake motor (linkage), can foil belt tension feedback to winding machine or grid control, brake create tension.The tension is stable and reliable.
5）Because using compressed air to generate tension, the whole machine hydraulic system, the whole machine without
vulnerability consumable, less point of failure, reduce maintenance cost, less mechanical adjustment point, improve production efficiency, low noise, no pollution of hydraulic mechanical friction, environmental protection.
3. Equipment main part：
1.Uncoiling and rectifying device: (1 set)
2. Charging and wool pressing device;(1 set)
3. Cleaning device; (1 set）
4. Deviation correction sensor device;(1 set)
5.Scissors device; 5. (1 set)
6. (insulation layer and winding device: (2 sets）
7. End insulation unwinding device; (3 sets left and 3 sets right)
8. Welding device; (1 set ）
9. Winding device;(1 set）
10. Winding and pressing device;(1 set）
11. Layer insulation unwinding device; (2 sets)
