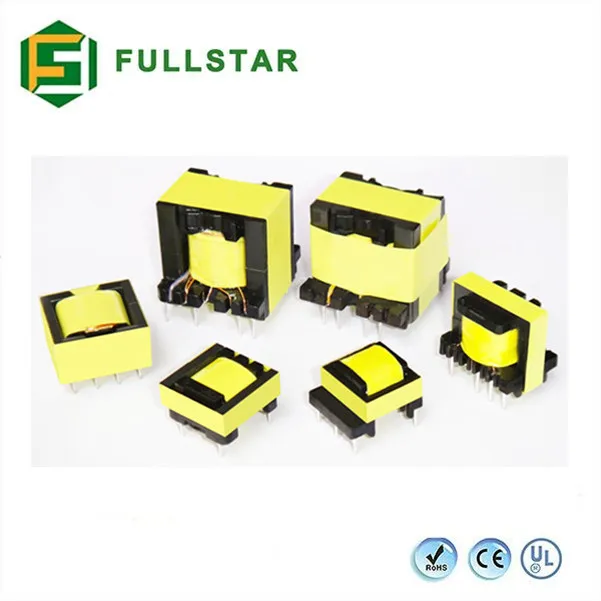

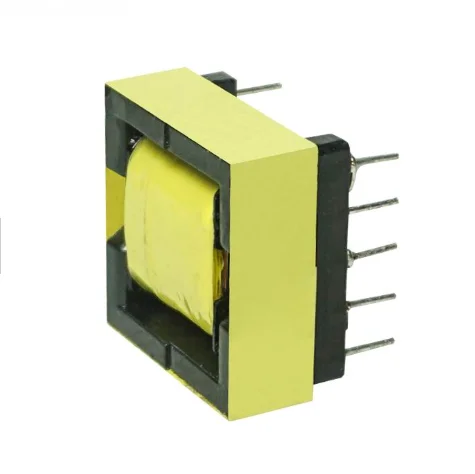

High Frequency EFD15 High Voltage EFD Ferrite Core PCB Mounting Power Supply Transformer

Transformer is to transform ac voltage, current and impedance of the device, when the primary zhongtong have alternating current coil, iron core (or core) to produce ac magnetic flux, induced in the secondary coil voltage (or current). A transformer consists of an iron core (or a magnet) and a coil. The coil has two or more windings, of which the winding is called a primary coil and the rest is called a secondary coil.

Electrical performance:

1. Operating frequency: 20kHz-500KHz
2. Output power: 30 to 80 W
3. Operating temperature:-40 ℃ to +125 ℃
4. Storage temperature:-25 ℃ to +85 ℃

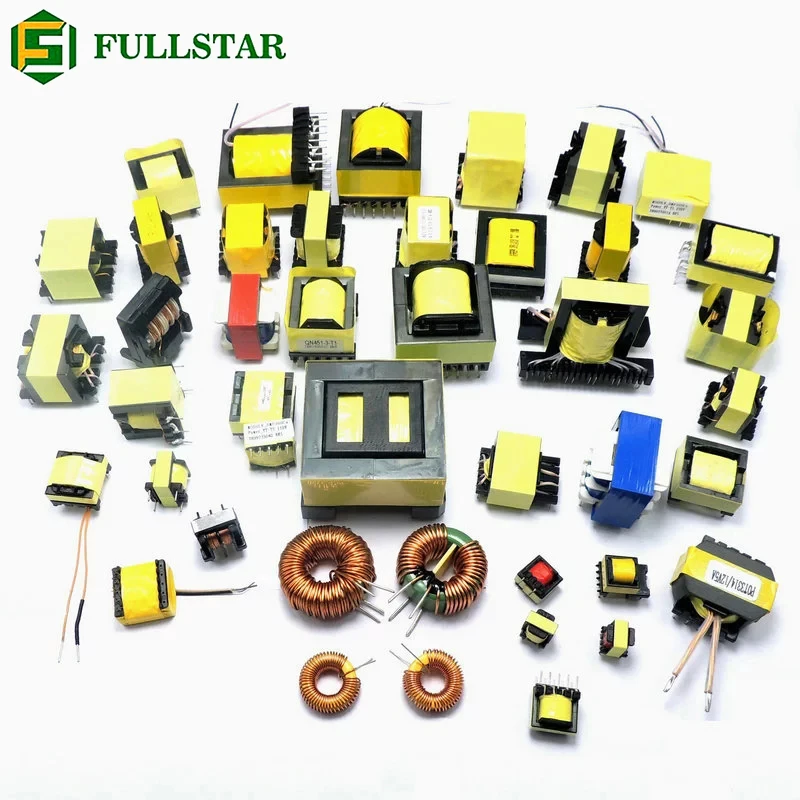

Switching Power Transformer

PCB Mount Encapsulated Transformer

Filter inductor

SMD High Current Inductor

IFT Adjustable Coil

Split-core Current Transformer

We also do ferrite cores,bobbins,iron power cores,amorphous cores,sendust cores,etc.,accessories.The products are exported to more than 40 countries and regions.

Our operating policy is "Quality comes first, customer foremost".We know customer's satisfaction is the only benchmark to verify our works.Engaging,learning and mastering advanced technology,Fullstar excellent team provide high quality products,quick delivery,strong technical support&best service and would help our customers achieve the maximum value.

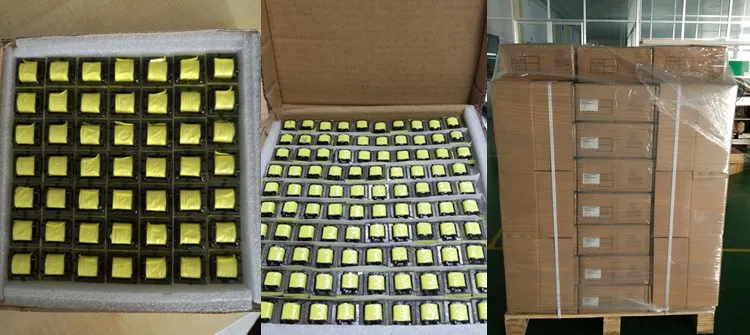

1. Neutral Packing
2.As customer requirement

The delivery time is strarting from we confirm the payment.
