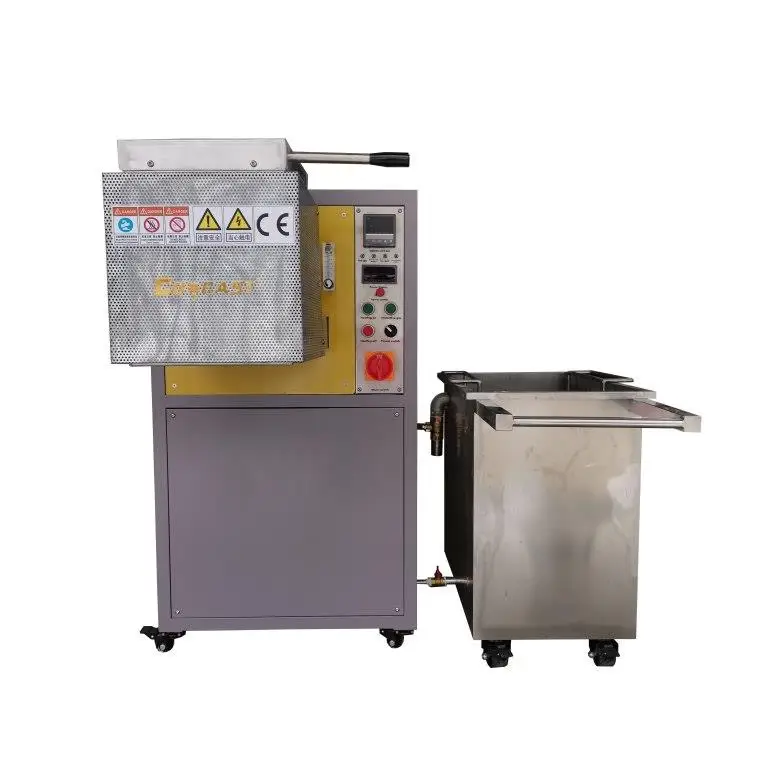

High quality precious metal granulatiing machine gold silver copper casting metal powder atomizer
- Category: >>>
- Supplier: Zhejiang Cooldo Electromechanical Equipment Co. Ltd.
Share on (1600316875136):
Product Overview
Description
Product Description
High quality precious metal granulatiing machine gold silver copper casting metal powder atomizer

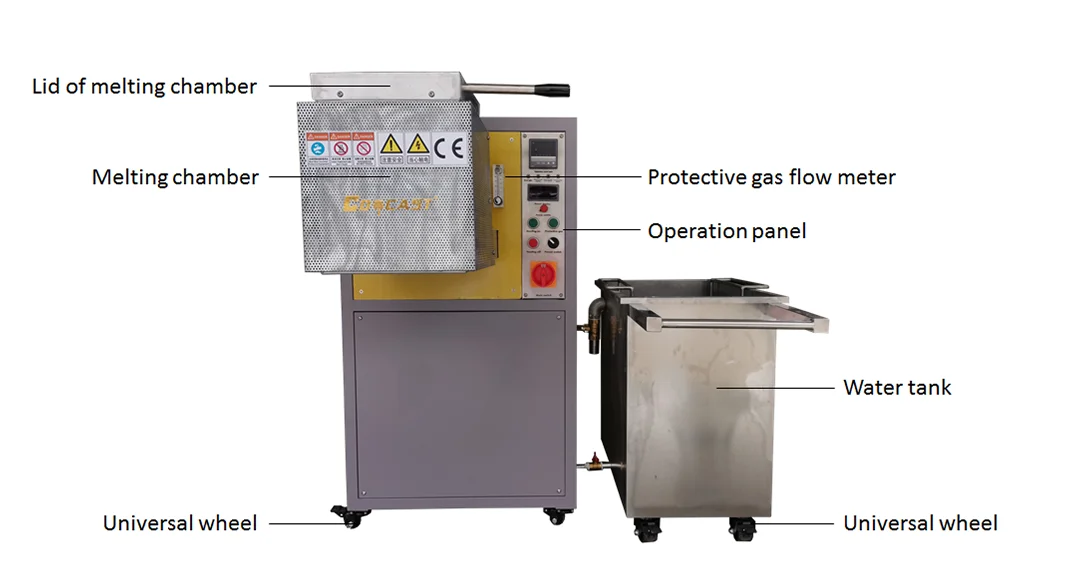

The metal granulator produced by CDOCAST is applied to produce various metal grains, such as gold, silver, K gold, copper, etc. The metal granulator includes three parts: the furnace, the water tank and the loading frame.
The molten metal will flow through the pure graphite comes with multihole at the bottom , and The whole granulation process is protected by inert gas argon or nitrogen, which minimizes the oxidation of metal.
CDOCAST can customized different metal granulator for customers according to different metals ,different capacities, and differentproduction efficiency for each client, welcome to inquiry us now!
CDOCAST can customized different metal granulator for customers according to different metals ,different capacities, and differentproduction efficiency for each client, welcome to inquiry us now!
Details Images
Graphite crucible can be customized to suit different needs, the porous design of the bottom acts as a crusher to cast the moltenmetal into pellets.

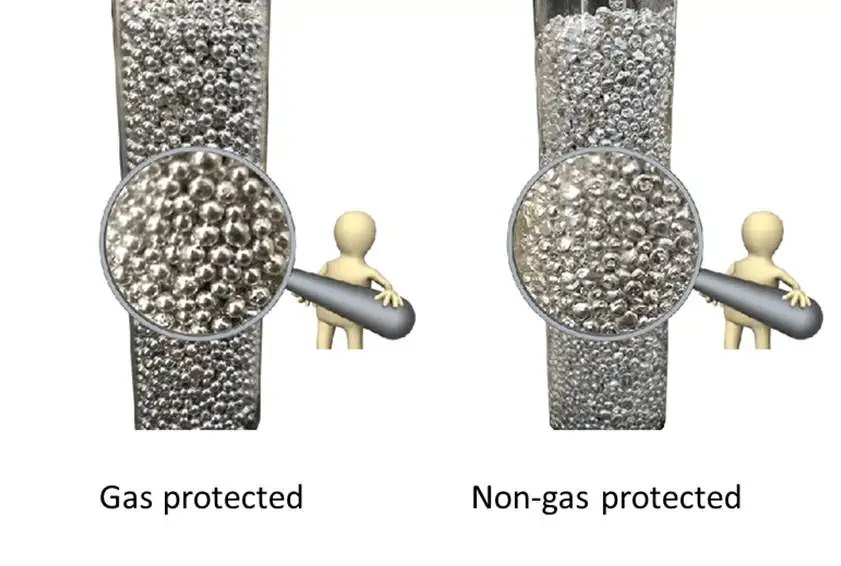

Argon gas to protect the metal from oxidation during the melting process, and the finished product is bright and free of impurities.
Parameter
Model | CDO-MG15 | CDO-MG25 | CDO-MG35 | CDO-MG40 | CDO-MG50 | ||||
Power | 15kw | 25kw | 35kw | 40kw | 50kw | ||||
Voltage | 380V(220V), 3 phase, 50/60Hz | 3P, 380V, 50/60hz | |||||||
Applicable metal | Gold, K-Gold, Silver, Copper, Brass, Bronze | Gold, K-Gold, Silver, Copper, Brass, Bronze | |||||||
Max temperature | 1500℃ | 1500℃ | 1500℃ | 1500℃ | 1500℃ | ||||
Melting time | 5-8min | 8-10min | 10-15min | 15-20min | 20-30min | ||||
Granulating time | About 10mins | About 10mins | About 15mins | About 20mins | About 30mins | ||||
Max capacity | Gold: 2-4 kg Silver: 1-2 kg | Gold: 8-10 kg Silver: 4-5 kg | Gold: 20-25 kg Silver: 10-12 kg | Gold: 60 kg Silver: 30 kg | Gold: 100 kg Silver: 50 kg | ||||
Overall size(mm) | 1100*500*1100 | 1200*600*1200 | 1300*700*1300 | 1400*800*1400 | 1500*900*1500 | ||||
Weight | 150kg | 180kg | 220kg | 270kg | 330kg | ||||
Feature
1：The metal granulator comes With argon protection system, which minimize the oxidation in the process of metal melting and casting
2:Applied with the Intermediate frequency induction heating technology, rapid melting speed, it takes about 15 minutes to melt one batch, and the casting time is about 15 minutes, which means that you will get high-quality metal grains within half an hour.
3:Pure graphite crucible comes with quartz jacket as protect, the multihole design at the bottom can act as breaker to make the molten metal cast into grains, what is more, It only takes 5 minutes to replace new crucible which is very convenient for the operator

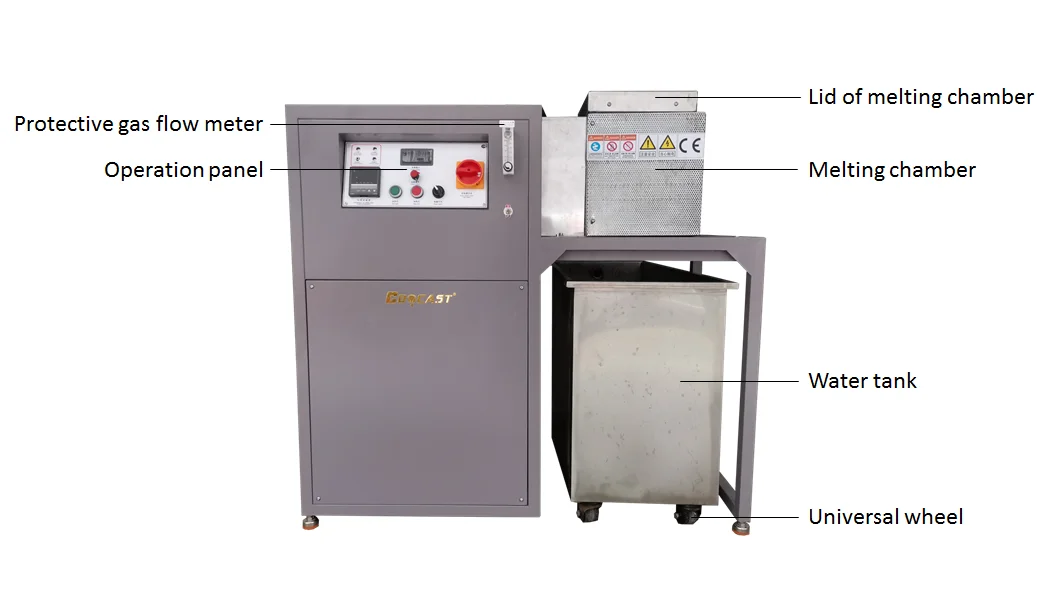

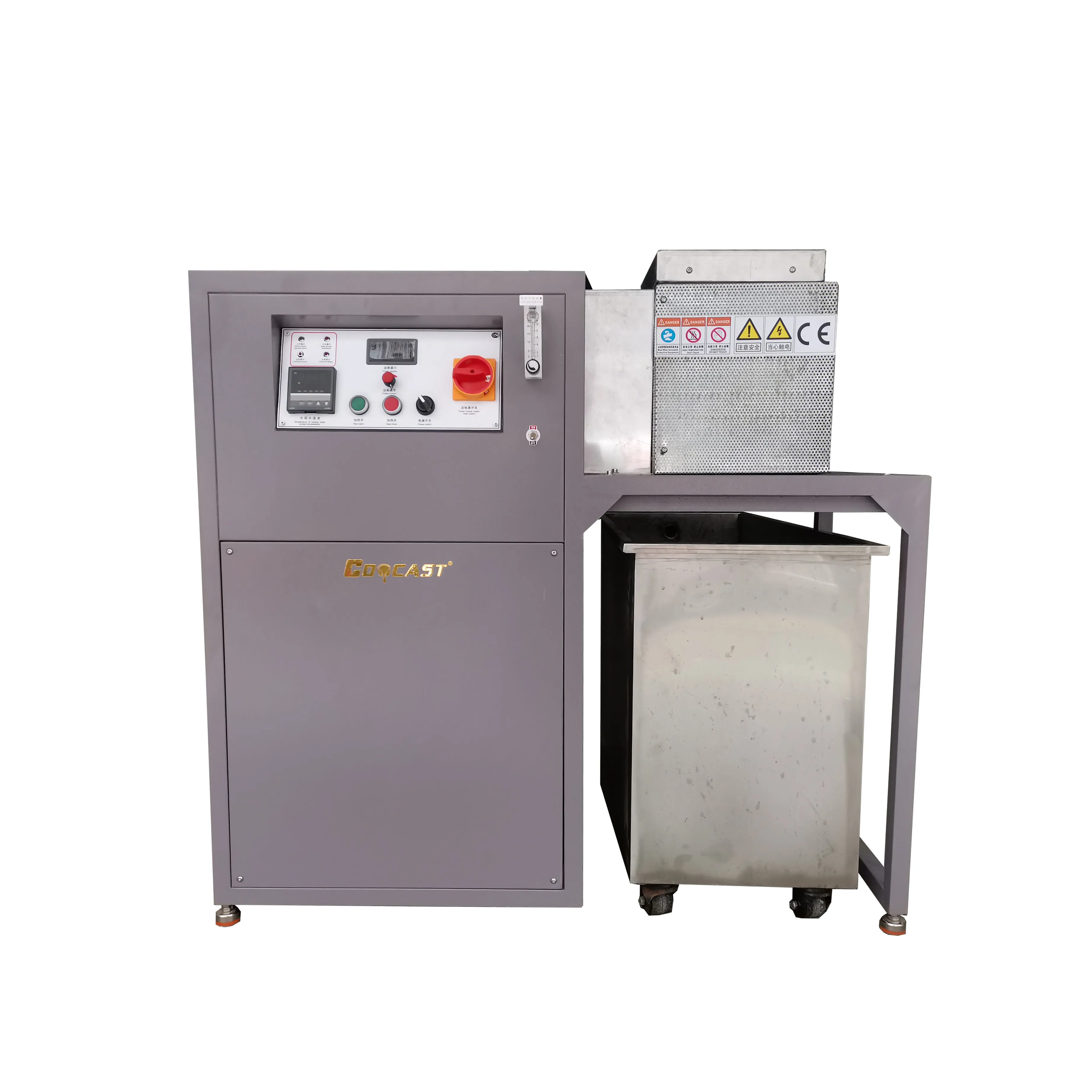

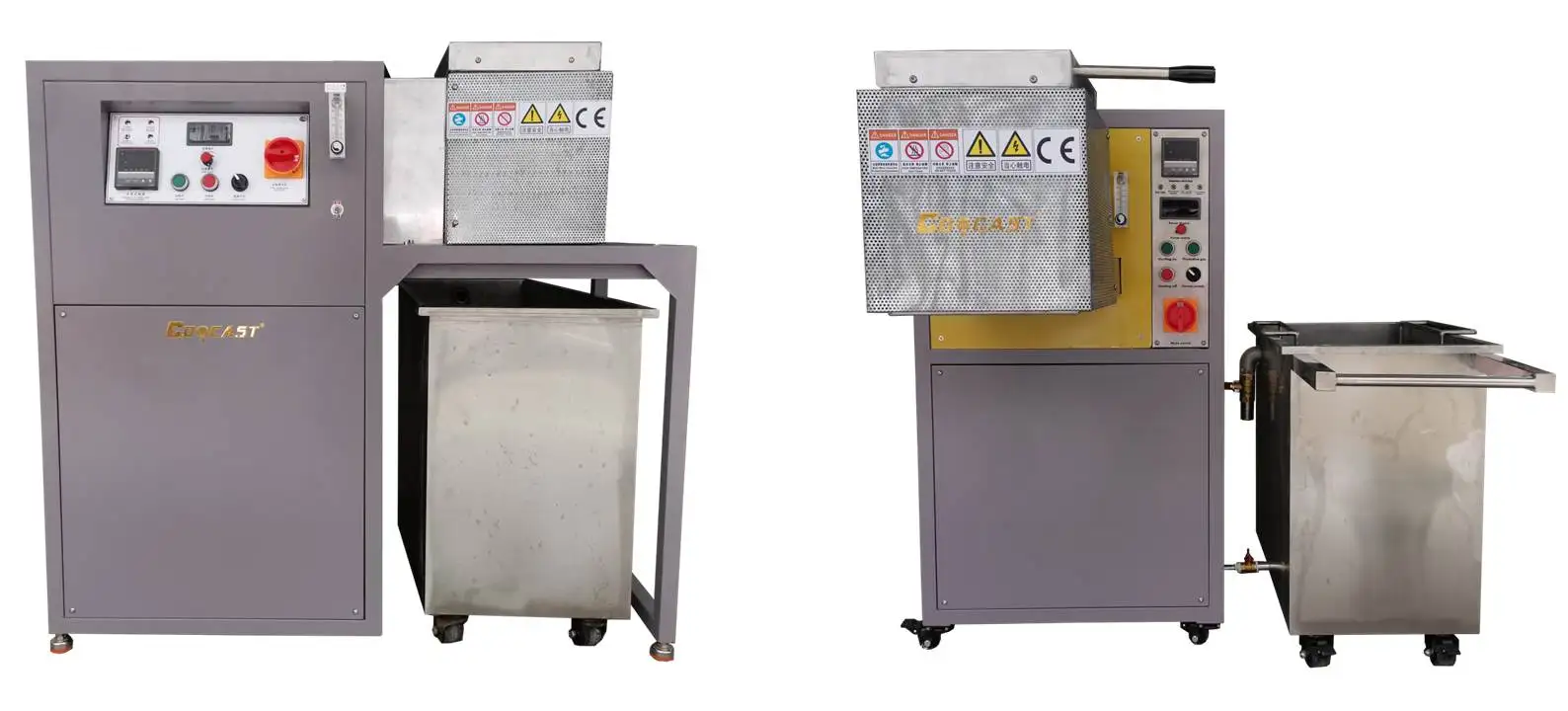

4:Metal granulator melting chamber and water tank can be designed separately or as an integrated unit, if there is not enough space for the user, we will recommend the integrated unit, which takes up less space.
5:CDOCAST provide 2 years of after-sales service, which minimizes customers’ concerns about after-sales service.
2:Applied with the Intermediate frequency induction heating technology, rapid melting speed, it takes about 15 minutes to melt one batch, and the casting time is about 15 minutes, which means that you will get high-quality metal grains within half an hour.
3:Pure graphite crucible comes with quartz jacket as protect, the multihole design at the bottom can act as breaker to make the molten metal cast into grains, what is more, It only takes 5 minutes to replace new crucible which is very convenient for the operator
4:Metal granulator melting chamber and water tank can be designed separately or as an integrated unit, if there is not enough space for the user, we will recommend the integrated unit, which takes up less space.
5:CDOCAST provide 2 years of after-sales service, which minimizes customers’ concerns about after-sales service.

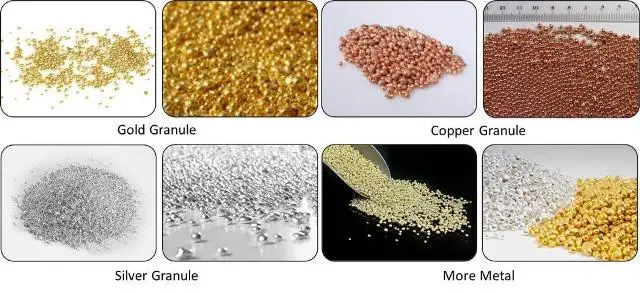

Application
Packing & Delivery
Company Profile
Cooldo is a Top-level professional manufacturer and exporter of precious metal Melting & Casting Equipment in Metallurgy and Foundry Since 2008. Backed by rich experience and resources, we have earned trust from a great many clients both at home and abroad, owning a sound reputation among this field. We not only offer the machine but also the solutions and service.
Our passion lies in helping client Minimal investment, maximum return and making Turn-Key Solution for precious metal.
Our passion lies in helping client Minimal investment, maximum return and making Turn-Key Solution for precious metal.
If you are looking for a professional manufacturer who makes all types of metal melting furnace & Metal Casting Machine , you are in the right place.

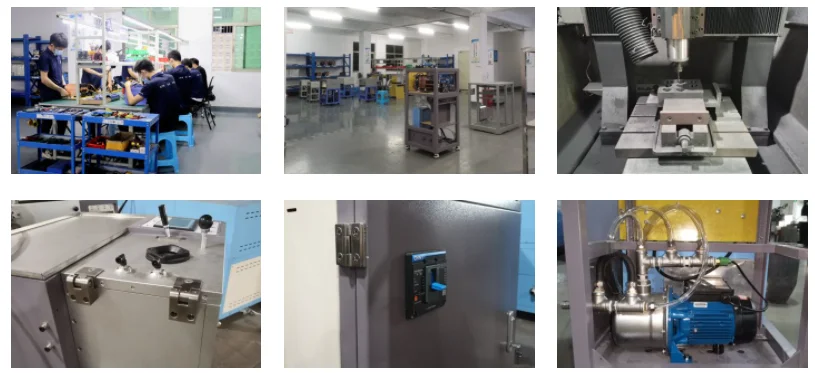

Factory Photo
Customer Photo
FAQ
1. What is your advantage compared to others?
First, we provided turnkey solution, Cost-effective, highly efficient, durable, and easy-to-operate machine is what we deliver.
Second, we have a Strict Quality Control System, Before Being dispatched from our factory all of our equipment will undergo a series of strict test, including the appearance quality test, voltage electrical test, aging test also the package strength
checking
2. If our machine meets fault, how could you help us to solve it?
For failures caused by using process, we will send our aftersales engineer to discuss with you, and you should provide the video of how the machine is broken, we will find out which part of the machine is broken, and then we will send you the broken part By DHL.
3. what is your warranty?
Our warranty period comes from the machine begin to run normally and we will provide the whole life technology support to you for free.
First, we provided turnkey solution, Cost-effective, highly efficient, durable, and easy-to-operate machine is what we deliver.
Second, we have a Strict Quality Control System, Before Being dispatched from our factory all of our equipment will undergo a series of strict test, including the appearance quality test, voltage electrical test, aging test also the package strength
checking
2. If our machine meets fault, how could you help us to solve it?
For failures caused by using process, we will send our aftersales engineer to discuss with you, and you should provide the video of how the machine is broken, we will find out which part of the machine is broken, and then we will send you the broken part By DHL.
3. what is your warranty?
Our warranty period comes from the machine begin to run normally and we will provide the whole life technology support to you for free.
All products sold by COOLDO In the warranty period, we will provide you the spare parts for free. Our engineer will help you do the aftersales through our remote control system. When out of one year warranty time, we will provide the spare parts with the cost price for the whole machine lifetime.
