35x 2MP Digital Zoom Network Camera module LVDS output
- Category: >>>
- Supplier: Giwei (Hangzhou) Intelligent Technology Co. Ltd.
Share on (1600316877477):
Product Overview
Description
Product Description
APPLICATION

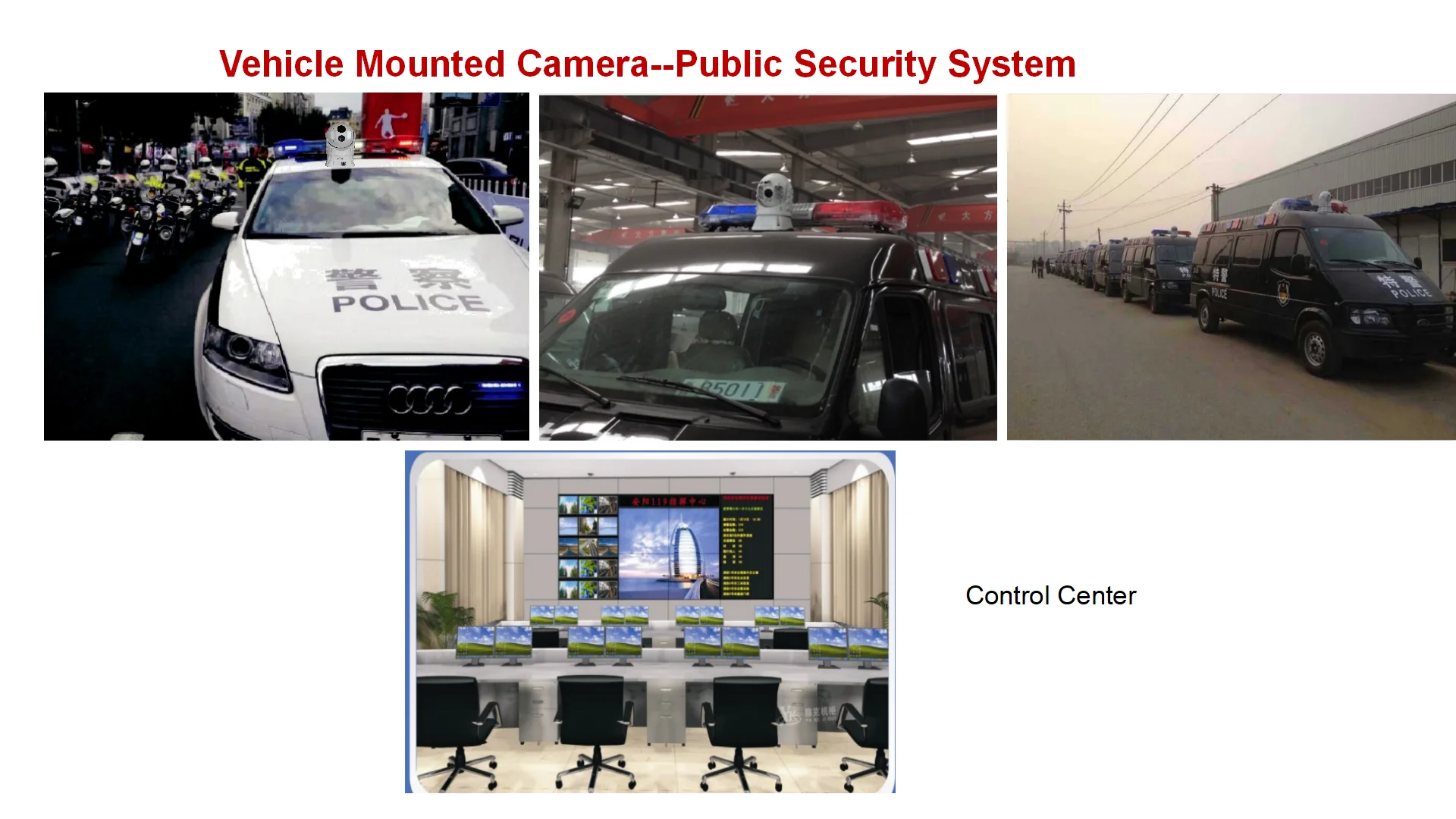

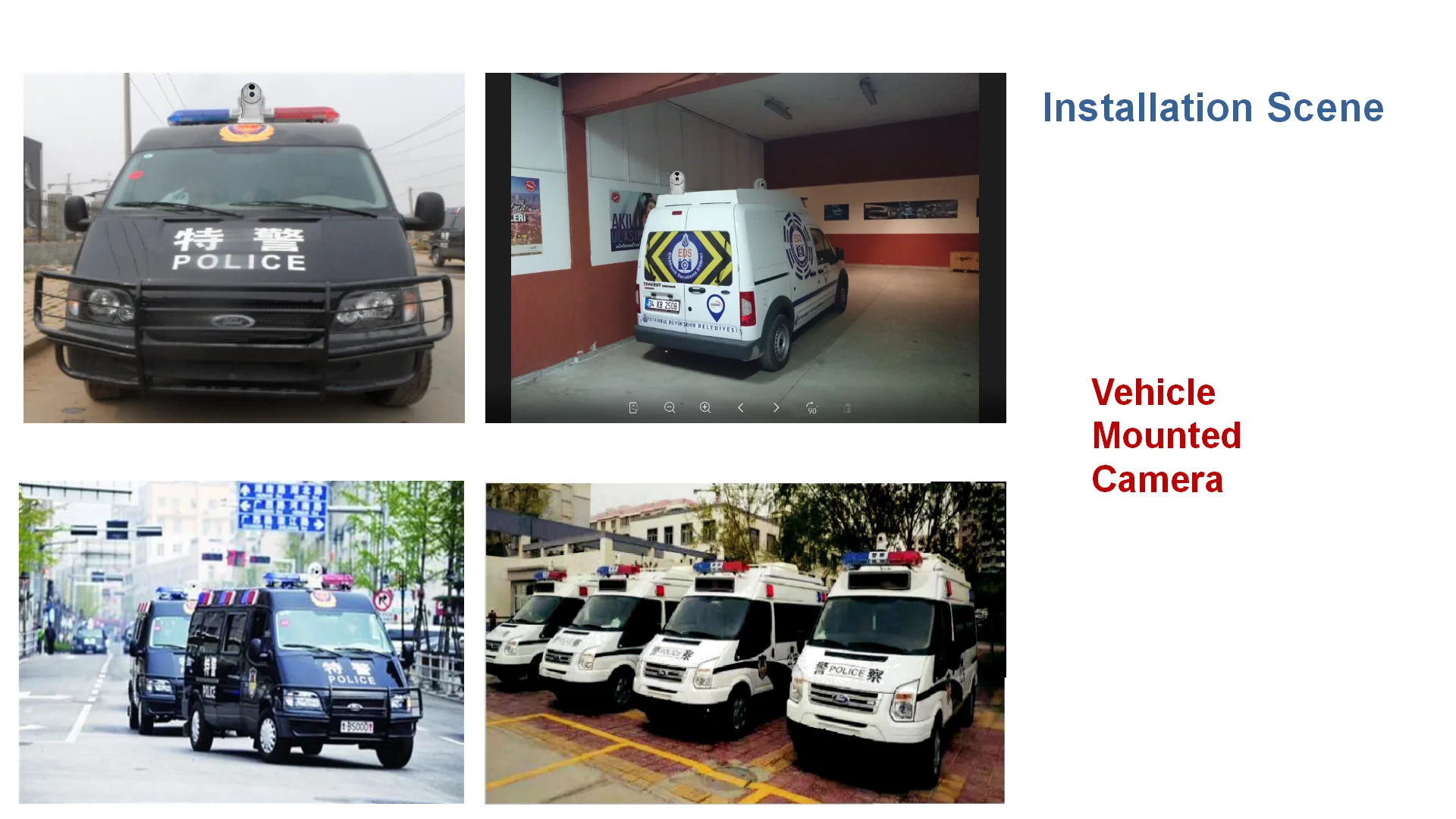

Mainly suitable for CCTV,PTZ product development and integration.
Specification
Visible camera specification | 0.8W | |
Image sensor | 1/2” Progressive Scan CMOS | |
Lens | ||
Focal Length | 6～210mm | |
Optical Zoom | 35x | |
Aperture Range | F1.5～4.8 | |
Working Distance | 1~1.5m | |
FOV | 61°~2.0° | |
Resolution | 1920*1080 @25fps/30fps | |
Zoom Speed | Approx 8s | |
Digital Zoom | 16X | |
Network protocol | ONVIF, GB28181, HTTP, RTSP, RTP, TCP, UDP | |
Storage | TF card,Max 256G | |
Encoder | H.265/H.264 | |
Minimum Illumination | color:0.0005 Lux @(F1.4,AGC ON);B/W:0.0001Lux @(F1.4,AGC ON) | |
Weight | 950g | |
Dimensions | 175.5x75x78mm | |
Power Supply | DC12V±25% | |
Power Consumption | 2.5W MAX(IR Maximum,4.5W MAX) | |
Working Temperature/Humidity | -30°~ +60°/20﹪ to 80﹪RH | |
